C#实战之CAD二次开发007：根据用户输入和选择来插入图块和文字

需求分析

在打开CAD之后，用户输入一个命令，CAD会弹出一个对话框，然后用户输入文本，点击确定之后，用户在CAD图面上选择要插入的点，然后点击之后则会在点击的地方插入文字和图块。

一、思路

开发环境：cad版本为2010，vs2015
AutoCAD.NET API 专门提供了两个有关的函数来实现对话框，
ShowModalDialog(Form formToShow)函数，所以我们需要创建一个Form类的对象。

二、实现

首先创建一个类库项目，添加acdbmgd.dll和acmgd.dll引用，记得将复制本地改为False，在添加一个窗体，用户设计我们的窗体界面，界面比较简单，如下所示

确定按钮事件，插入文字部份之前有提到，这里就不在赘述了，插入图块这次使用的是插入外部图块的方法。

        private void button1_Click(object sender, EventArgs e)
        {
            this.Close();
            Database db = HostApplicationServices.WorkingDatabase;
            Editor ed = Autodesk.AutoCAD.ApplicationServices.Application.DocumentManager.MdiActiveDocument.Editor;

            PromptPointResult ppr = ed.GetPoint("请选择插入点");
            Point3d pt = ppr.Value;

            string CutId = this.textBoxCutId.Text;
            double x = pt.X;
            double y = pt.Y;
            double z = pt.Z;

            using (Transaction trans = db.TransactionManager.StartTransaction())
            {
                string path = @"D:\cad\";
                BlockTools.InsertBlockFromDwg("ST-GGXHB", path + "GGXHB.dwg", pt, new Scale3d(1)); // 规格型号表格

                db.AddToModelSpace(addText(CutId, new Point3d(x + 13.79, y - 6.09, 0), 1.9, "Standard"), "0");
                db.AddToModelSpace(addText("W-" + CutId, new Point3d(x + 43.95, y - 6.09, 0), 1.9, "Standard"), "0");
                db.AddToModelSpace(addText("75", new Point3d(x + 66.86, y - 6.09, 0), 2.0, "Standard"), "0");

                db.AddToModelSpace(addText(CutId + "(50)", new Point3d(x + 13.79, y - 9.83, 0), 1.9, "Standard"), "0");
                db.AddToModelSpace(addText("W-" + CutId + "(50)", new Point3d(x + 43.95, y - 9.83, 0), 1.9, "Standard"), "0");
                db.AddToModelSpace(addText("50", new Point3d(x + 66.86, y - 9.83, 0), 2.0, "Standard"), "0");

                db.AddToModelSpace(addText(CutId + "-K", new Point3d(x + 13.79, y - 13.61, 0), 1.9, "Standard"), "0");

                db.AddToModelSpace(addText(CutId + "(BZ)", new Point3d(x + 13.79, y - 17.4, 0), 1.9, "Standard"), "0");
                trans.Commit();
            }
        }

public static void InsertBlockFromDwg(string BlockName, string filename, Point3d position, Scale3d scale)
        {
            Document doc = Autodesk.AutoCAD.ApplicationServices.Application.DocumentManager.MdiActiveDocument;

            using (Database db = new Database(false, true))
            {
                using (Transaction trans = doc.TransactionManager.StartTransaction())
                {
                    //如果文件存在
                    if (File.Exists(filename))
                    {
                        db.ReadDwgFile(filename, FileShare.Read, true, null);
                        db.CloseInput(true);
                        string name = BlockName;
                        ObjectId btrId = doc.Database.Insert(name, db, false);
                        //獲取數據庫塊表對象
                        BlockTable bt = (BlockTable)trans.GetObject(doc.Database.BlockTableId, OpenMode.ForRead);
                        //打開數據庫模型空間塊表記錄對象
                        BlockTableRecord btr = (BlockTableRecord)trans.GetObject(bt[BlockTableRecord.ModelSpace], OpenMode.ForWrite);
                        using (BlockReference br = new BlockReference(position, btrId))
                        {
                            br.ScaleFactors = scale;//设置块参照的缩放比例
                            btr.AppendEntity(br);
                            trans.AddNewlyCreatedDBObject(br, true);
                        }
                    }
                    trans.Commit();
                }
            }
        }

最后在类库项目中添加一个命令，名字自定义

        [CommandMethod("AD")]
        public static void AD()
        {
            ModalForm form = new ModalForm(); // 創建對話框
            Application.ShowModalDialog(form); // 顯示對話框
        }

最后打开CAD，输入netload加载项目生成的dll，然后输入ad命令，操作即可。

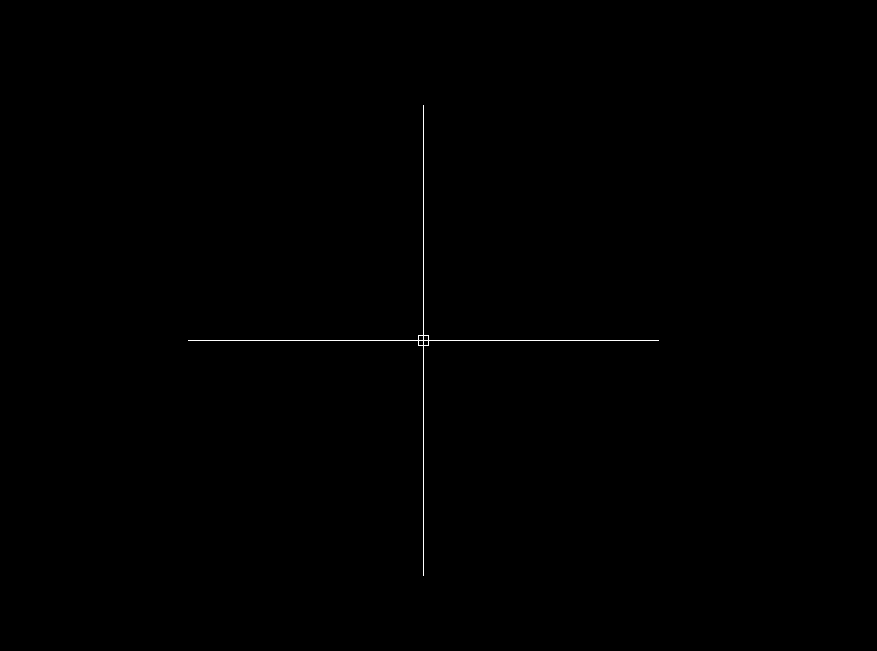

三、效果

最后实现效果如下
