配置promethues踩坑记录

promethues容器运行报错

报错信息

level=error ts=2021-03-02T09:42:35.130Z caller=main.go:293 msg=“Error loading config (–config.file=/etc/prometheus/prometheus.yml)” err=“parsing YAML file /etc/prometheus/prometheus.yml: yaml: unmarshal errors:\n line 5: field rules_files not found in type config.plain\n line 11: field targets not found in type config.AlertmanagerConfig”

prometheus.yml配置

global:
  scrape_interval:     60s
  evaluation_interval: 60s

rules_files:
  - /opt/prometheus/rules.yml
alerting:
    alertmanagers:
      - scheme: http
      - static_configs:
      - targets: ["localhost:9090"]

scrape_configs:
 - job_name: prometheus
    static_configs:
      - targets: ['localhost:9090']
        labels:
          instance: prometheus
 - job_name: node
    static_configs:
      - targets: ['*.*.*.*:9100']
        labels:
          instance: yx01
      - targets: ['*.*.*.*:9100']
        labels:
          instance: yx02

• 第一处错误在第5行rules_files拼写错误，修改为rule_files
• 第二处错误是格式错误，11行需要缩进

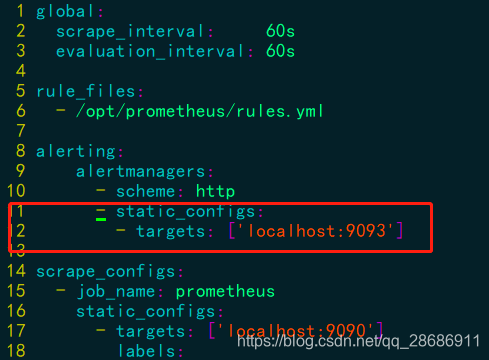

  修改后


AlertManger规则不显示

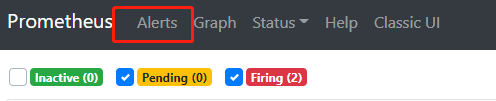

http://localhost:9090/alerts 不显示告警项

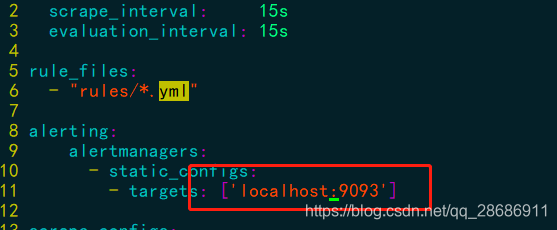

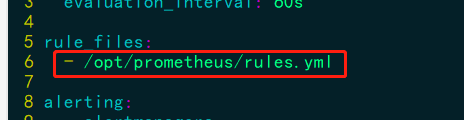

• 使用绝对路径可能有问题，修改成相对路径

修改后

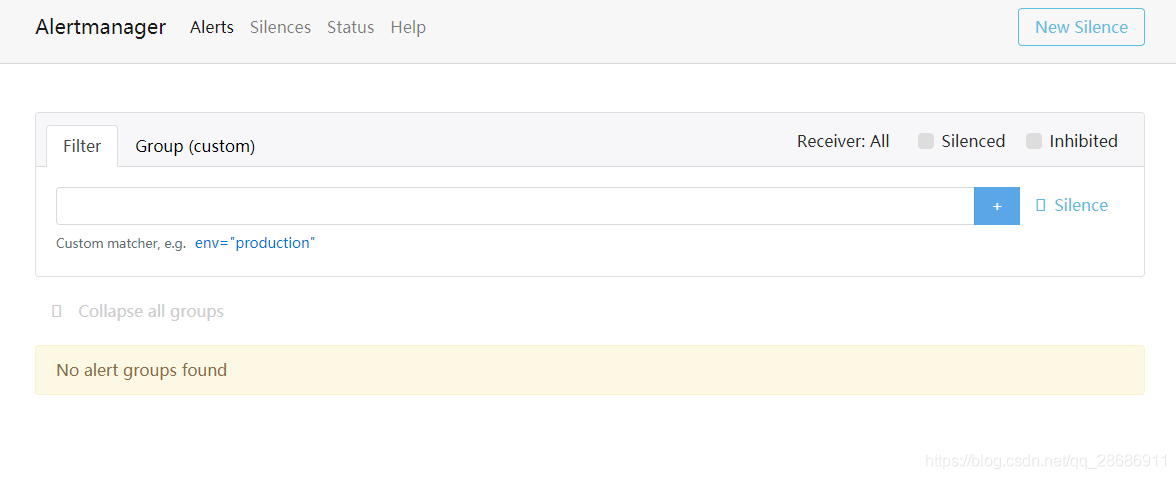

http://localhost:9093 alertmanager端接收不到告警

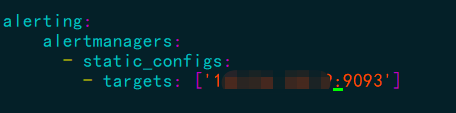

排查半天试了下将prometheus.yml中alertmanagers的地址localhost改为实际地址就可以接收到了

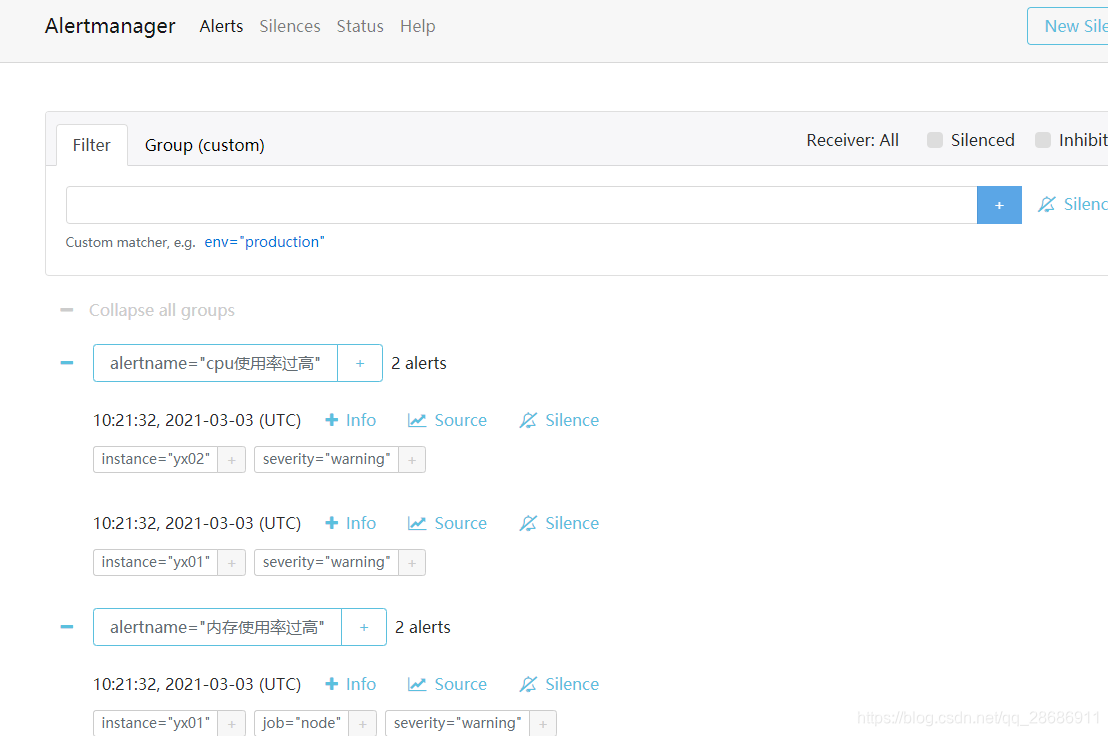

邮件也能接收
