本文详细解析了Linux内核中的clockevents设备结构体及其在`brcm,kona-timer`中的初始化过程，包括配置、注册、中断处理和事件设置等功能。主要涉及clock_event_device结构、clockevents_config_and_register、clockevents_register_device等关键函数。" 122521925,5735379,Android 图片压缩与三级缓存实践,"['Android开发', '图片处理', '缓存策略', '内存管理']

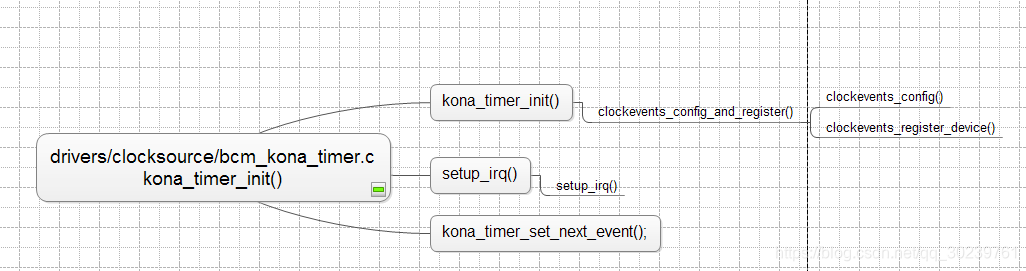

简单导图如下:

clockevents设备结构体：

/**

struct clock_event_device - clock event device descriptor
@event_handler: Assigned by the framework to be called by the low
```
 	level handler of the event source
```
@set_next_event: set next event function using a clocksource delta
@set_next_ktime: set next event function using a direct ktime value
@next_event: local storage for the next event in oneshot mode
@max_delta_ns: maximum delta value in ns
@min_delta_ns: minimum delta value in ns
@mult: nanosecond to cycles multiplier
@shift: nanoseconds to cycles divisor (power of two)
@state_use_accessors:current state of the device, assigned by the core code
@features: features
@retries: number of forced programming retries
@set_state_periodic: switch state to periodic
@set_state_oneshot: switch state to oneshot
@set_state_oneshot_stopped: switch state to oneshot_stopped
@set_state_shutdown: switch state to shutdown
@tick_resume: resume clkevt device
@broadcast: function to broadcast events
@min_delta_ticks: minimum delta value in ticks stored for reconfiguration
@max_delta_ticks: maximum delta value in ticks stored for reconfiguration
@name: ptr to clock event name
@rating: variable to rate clock event devices
@irq: IRQ number (only for non CPU local devices)
@bound_on: Bound on CPU
@cpumask: cpumask to indicate for which CPUs this device works
@list: list head for the management code
@owner: module reference
*/
struct clock_event_device {
void (*event_handler)(struct clock_event_device ); / 事件到期，产生中断后回调函数 */
int (*set_next_event)(unsigned long evt, struct clock_event_device ); / 下次时间到期时间设置（tick） */
int (*set_next_ktime)(kt
