前段时间公司需要用到类似支付宝/微信支付的键盘输入界面,于是和同事写了一个,可能代码质量不是很高,但是也实现了功能,这里记录一下给广大简书好友参考哈...
先给下demo的gitHub地址:(喜欢的话,star下吧)
https://github.com/BrightMoment/D-Y/tree/master/仿微信:支付宝密码输入框/仿微信:支付宝密码输入框

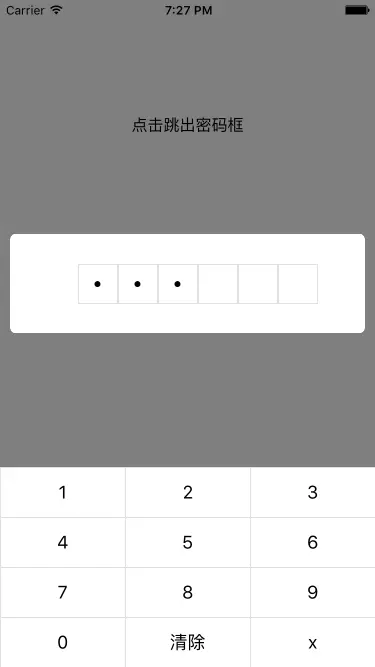

1.先给大家看看截屏(简书刚玩还不知道怎么加入录屏哈)

Simulator Screen Shot 2016年5月22日 19.27.53.png

2.简单介绍下代码实现
主要是利用了6个textField实现的,每当输入一位数字以后,就刷新6个textField的界面显示
下面给出核心代码实现:

-(void)allocPasswrod
{

    self.backView=[[UIView alloc] initWithFrame:CGRectMake(0, 0,SCREEN_WIDTH,SCREEN_HEIGHT)];
    self.backView.backgroundColor=[UIColor blackColor];
    [self.view addSubview:self.backView];
    self.backView.alpha=0;

    UITapGestureRecognizer*singleRecognizer = [[UITapGestureRecognizer alloc] initWithTarget:self action:@selector(hiddenBackVew)];
    singleRecognizer.numberOfTapsRequired = 1; // 单击
    [self.backView addGestureRecognizer:singleRecognizer];


    self.PhotoView=[[UIView alloc] initWithFrame:CGRectMake(10,SCREEN_HEIGHT, SCREEN_WIDTH-20, 100)];
    self.PhotoView.backgroundColor=[UIColor whiteColor];
    self.PhotoView.layer.cornerRadius=6;
    self.PhotoView.layer.masksToBounds=YES;
    [self.view addSubview:self.PhotoView];



#pragma 方法写得笨，勿喷

    la1= [[UITextField alloc] initWithFrame:CGRectMake((SCREEN_WIDTH-240)/2, 30, 40, 40)];
    la1.textAlignment= NSTextAlignmentCenter;
    la1.textColor=[UIColor blackColor];
    [la1 setSecureTextEntry:YES];
    la1.font=[UIFont systemFontOfSize:14.0f];
    la1.layer.borderWidth=1;
    [la1 setEnabled:NO];
    la1.layer.borderColor=[ColorHUI CGColor];
    [self.PhotoView addSubview:la1];

    la2= [[UITextField alloc] initWithFrame:CGRectMake((SCREEN_WIDTH-240)/2+40, 30, 40, 40)];
    la2.textAlignment= NSTextAlignmentCenter;
    la2.textColor=[UIColor blackColor];
    [la2 setSecureTextEntry:YES];
    la2.font=[UIFont systemFontOfSize:14.0f];
    la2.layer.borderWidth=1;
    [la2 setEnabled:NO];
    la2.layer.borderColor=[ColorHUI CGColor];
    [self.PhotoView addSubview:la2];


    la3= [[UITextField alloc] initWithFrame:CGRectMake((SCREEN_WIDTH-240)/2+80, 30, 40, 40)];
    la3.textAlignment= NSTextAlignmentCenter;
    la3.textColor=[UIColor blackColor];
    [la3 setSecureTextEntry:YES];
    la3.font=[UIFont systemFontOfSize:14.0f];
    la3.layer.borderWidth=1;
    [la3 setEnabled:NO];
    la3.layer.borderColor=[ColorHUI CGColor];
    [self.PhotoView addSubview:la3];

    la4= [[UITextField alloc] initWithFrame:CGRectMake((SCREEN_WIDTH-240)/2+120, 30, 40, 40)];
    la4.textAlignment= NSTextAlignmentCenter;
    la4.textColor=[UIColor blackColor];
    [la4 setSecureTextEntry:YES];
    la4.font=[UIFont systemFontOfSize:14.0f];
    la4.layer.borderWidth=1;
    la4.layer.borderColor=[ColorHUI CGColor];
    [la4 setEnabled:NO];
    [self.PhotoView addSubview:la4];

    la5= [[UITextField alloc] initWithFrame:CGRectMake((SCREEN_WIDTH-240)/2+160, 30, 40, 40)];
    la5.textAlignment= NSTextAlignmentCenter;
    la5.textColor=[UIColor blackColor];
    [la5 setSecureTextEntry:YES];
    la5.font=[UIFont systemFontOfSize:14.0f];
    la5.layer.borderWidth=1;
    la5.layer.borderColor=[ColorHUI CGColor];
    [la5 setEnabled:NO];
    [self.PhotoView addSubview:la5];

    la6= [[UITextField alloc] initWithFrame:CGRectMake((SCREEN_WIDTH-240)/2+200, 30, 40, 40)];
    la6.textAlignment= NSTextAlignmentCenter;
    la6.textColor=[UIColor blackColor];
    [la6 setSecureTextEntry:YES];
    la6.font=[UIFont systemFontOfSize:14.0f];
    la6.layer.borderWidth=1;
    la6.layer.borderColor=[ColorHUI CGColor];
    [la6 setEnabled:NO];

    [self.PhotoView addSubview:la6];


    la3.text=@"";
    la2.text=@"";
    la1.text=@"";
    la4.text=@"";
    la5.text=@"";
    la6.text=@"";



    self.keyBordView=[[UIView alloc] initWithFrame:CGRectMake(0,SCREEN_HEIGHT,SCREEN_WIDTH,200)];
    self.keyBordView.backgroundColor=[UIColor whiteColor];
    [self.view addSubview:self.keyBordView];


    NSArray * ary =[[NSArray alloc] initWithObjects:@"1",@"2",@"3",@"4",@"5",@"6",@"7",@"8",@"9",@"0",@"清除",@"x", nil];

    for(int i=0;i<ary.count;i++)
    {
        NSInteger index = i%3;
        NSInteger page = i/3;

        UIButton * btn =[UIButton buttonWithType:UIButtonTypeCustom];
        btn.frame = CGRectMake(index * (SCREEN_WIDTH/3), page  * 50,SCREEN_WIDTH/3,50);
        btn.tag=i;
        [btn setTitle:[ary objectAtIndex:i] forState:normal];
        [btn setTitleColor:[UIColor blackColor] forState:normal];
        btn.layer.borderColor=[ColorHUI CGColor];
        btn.layer.borderWidth=0.5;

        if(i<=9)
        {

            [btn addTarget:self action:@selector(KeyBoradClass:) forControlEvents:UIControlEventTouchUpInside];
        }
        if(i==10)
        {
            [btn addTarget:self action:@selector(KeyBoradClear:) forControlEvents:UIControlEventTouchUpInside];

        }
        if(i==11)
        {
            [btn addTarget:self action:@selector(KeyBoradRemove:) forControlEvents:UIControlEventTouchUpInside];

        }

        [self.keyBordView addSubview:btn];

    }


}

#pragma 清除
-(void)KeyBoradRemove:(UIButton *)btn
{

    if(passwordStr.length==0)
    {
        la3.text=@"";
        la2.text=@"";
        la1.text=@"";
        la4.text=@"";
        la5.text=@"";
        la6.text=@"";

        return;
    }


    NSString *str=[passwordStr substringToIndex:passwordStr.length-1];

    if(str.length==6)
    {

    }
    else if (str.length==5)
    {
        la6.text=@"";

    }
    else if(str.length==4)
    {
        la5.text=@"";
        la6.text=@"";

    }
    else if (str.length==3)
    {
        la4.text=@"";
        la5.text=@"";
        la6.text=@"";
    }
    else if(str.length==2)
    {
        la3.text=@"";
        la4.text=@"";
        la5.text=@"";
        la6.text=@"";

    }
    else if(str.length==1)
    {

        la3.text=@"";
        la2.text=@"";
        la4.text=@"";
        la5.text=@"";
        la6.text=@"";
    }
    else
    {
        la3.text=@"";
        la2.text=@"";
        la1.text=@"";
        la4.text=@"";
        la5.text=@"";
        la6.text=@"";

    }

    passwordStr=str;

    NSLog(@"%@",passwordStr);

}

#pragma 清空
-(void)KeyBoradClear:(UIButton *)btn{

    la3.text=@"";
    la2.text=@"";
    la1.text=@"";
    la4.text=@"";
    la5.text=@"";
    la6.text=@"";

}


#pragma 输入密码
-(void)KeyBoradClass:(UIButton *)btn
{

    NSArray * ary =[[NSArray alloc] initWithObjects:@"1",@"2",@"3",@"4",@"5",@"6",@"7",@"8",@"9",@"0",@"清除",@"x", nil];


    if (la1.text.length<1) {

        if (la1.text.length==0) {
            la1.text=[ary objectAtIndex:btn.tag];
        }

    }
    else if (la2.text.length<1 && la1.text.length==1) {

        if (la2.text.length==0) {
            la2.text=[ary objectAtIndex:btn.tag];
        }

    }
    else if (la3.text.length<1 && la2.text.length==1) {

        if (la3.text.length==0) {
            la3.text=[ary objectAtIndex:btn.tag];
        }

    }
    else if (la4.text.length<1 && la3.text.length==1) {

        if (la4.text.length==0) {
            la4.text=[ary objectAtIndex:btn.tag];
        }

    }
    else if (la5.text.length<1 && la4.text.length==1) {

        if (la5.text.length==0) {
            la5.text=[ary objectAtIndex:btn.tag];
        }

    }

    else if (la6.text.length<1 && la5.text.length==1) {

        if (la6.text.length==0) {
            la6.text=[ary objectAtIndex:btn.tag];
        }

    }


#pragma 密码输入己有6位

    passwordStr=[NSString stringWithFormat:@"%@%@%@%@%@%@",la1.text,la2.text,la3.text,la4.text,la5.text,la6.text];

    if(passwordStr.length==6)
    {
        NSLog(@"%@",passwordStr);



        passwordLable.text=passwordStr;

        [self hiddenBackVew];


    }


}

3.下面给出我的demo的gitHub地址,有需要的朋友友可以移步看下,喜欢的话给个star,鼓励一下吧...我会继续给大家带来好的demo的
https://github.com/BrightMoment/D-Y/tree/master/仿微信:支付宝密码输入框/仿微信:支付宝密码输入框

文／D了个Y（简书作者）
原文链接：http://www.jianshu.com/p/5eed0b5ebfa4
著作权归作者所有，转载请联系作者获得授权，并标注“简书作者”。
