VTK系列26_RGB图像(BMP类型)转换为灰度图像

实例26:将BMP类型的RGB图像转换为灰度图像

#include "vtkAutoInit.h"
VTK_MODULE_INIT(vtkRenderingOpenGL2);
VTK_MODULE_INIT(vtkInteractionStyle);

#include <vtkSmartPointer.h>
#include <vtkImageData.h>
#include <vtkRenderWindow.h>
#include <vtkRenderWindowInteractor.h>
#include <vtkInteractorStyleImage.h>
#include <vtkRenderer.h>
#include <vtkImageActor.h>
#include <vtkBMPReader.h>
#include <vtkImageLuminance.h>

//测试图像:../data/lena.bmp
int main(int argc, char* argv[])
{
	vtkSmartPointer<vtkBMPReader> reader =
    vtkSmartPointer<vtkBMPReader>::New();
	reader->SetFileName ( "lena.bmp" );

	vtkSmartPointer<vtkImageLuminance> luminanceFilter =
		vtkSmartPointer<vtkImageLuminance>::New();
	luminanceFilter->SetInputConnection(reader->GetOutputPort());
	luminanceFilter->Update();

	vtkSmartPointer<vtkImageActor> originalActor =
		vtkSmartPointer<vtkImageActor>::New();
	originalActor->SetInputData(reader->GetOutput());

	vtkSmartPointer<vtkImageActor> shiftscaleActor =
		vtkSmartPointer<vtkImageActor>::New();
	shiftscaleActor->SetInputData(luminanceFilter->GetOutput());

	double originalViewport[4] = {0.0, 0.0, 0.5, 1.0};
	double shiftscaleViewport[4] = {0.5, 0.0, 1.0, 1.0};

	vtkSmartPointer<vtkRenderer> originalRenderer =
		vtkSmartPointer<vtkRenderer>::New();
	originalRenderer->SetViewport(originalViewport);
	originalRenderer->AddActor(originalActor);
	originalRenderer->ResetCamera();
	originalRenderer->SetBackground(1.0, 1.0, 1.0);

	vtkSmartPointer<vtkRenderer> shiftscaleRenderer =
		vtkSmartPointer<vtkRenderer>::New();
	shiftscaleRenderer->SetViewport(shiftscaleViewport);
	shiftscaleRenderer->AddActor(shiftscaleActor);
	shiftscaleRenderer->ResetCamera();
	shiftscaleRenderer->SetBackground(1.0, 1.0, 1.0);

	vtkSmartPointer<vtkRenderWindow> renderWindow =
		vtkSmartPointer<vtkRenderWindow>::New();
	renderWindow->AddRenderer(originalRenderer);
	renderWindow->AddRenderer(shiftscaleRenderer);
	renderWindow->SetSize( 640, 320 );
	renderWindow->Render();

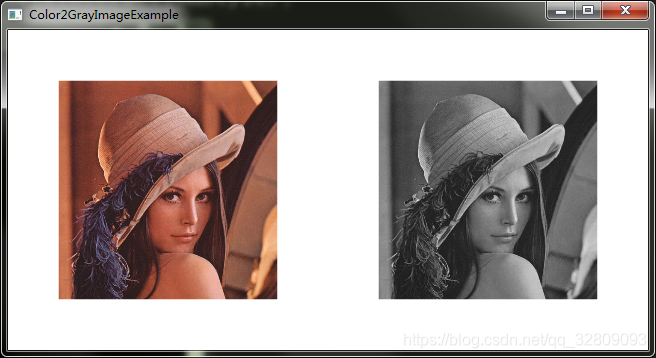

	renderWindow->SetWindowName("Color2GrayImageExample");

	vtkSmartPointer<vtkRenderWindowInteractor> renderWindowInteractor =
		vtkSmartPointer<vtkRenderWindowInteractor>::New();
	vtkSmartPointer<vtkInteractorStyleImage> style =
		vtkSmartPointer<vtkInteractorStyleImage>::New();

	renderWindowInteractor->SetInteractorStyle(style);
	renderWindowInteractor->SetRenderWindow(renderWindow);
	renderWindowInteractor->Initialize();

	renderWindowInteractor->Start();

	return EXIT_SUCCESS;
}
