SpringMVC源码分析

前言

由于学习SpringBoot发现对springMVC的执行流程不是特别熟悉，所以对SpringMVC的源码进行简要的分析从而来了解SpringMVC的执行原理。

一、执行流程总结

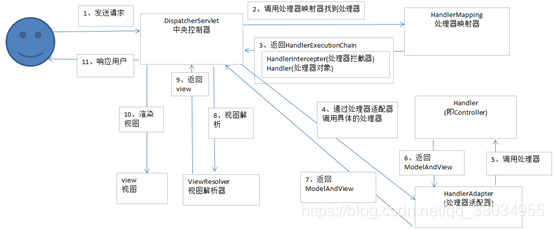

在之前做的springMVC的总结中我们可以了解到SpringMVC的简要执行流程：

在这里插入图片描述

1、 用户发送请求至前端控制器DispatcherServlet

2、 DispatcherServlet收到请求调用HandlerMapping处理器映射器。

3、 处理器映射器根据请求url找到具体的处理器，生成处理器对象及处理器拦截器(如果有则生成)一并返回给DispatcherServlet。

4、 DispatcherServlet通过HandlerAdapter处理器适配器调用处理器

5、 执行处理器(Controller，也叫后端控制器)。

6、 Controller执行完成返回ModelAndView

7、 HandlerAdapter将controller执行结果ModelAndView返回给DispatcherServlet

8、 DispatcherServlet将ModelAndView传给ViewReslover视图解析器

9、 ViewReslover解析后返回具体View

10、DispatcherServlet对View进行渲染视图（即将模型数据填充至视图中）。

11、DispatcherServlet响应用户

那就以此为参照来对其源码进行简要的剖析。

二、SpringMVC源码简单剖析

根据上边的图我们可以看到前端控制器在springMVC的系统中拥有了非常大的作用，那么我们就以此来入手。

在这里插入图片描述

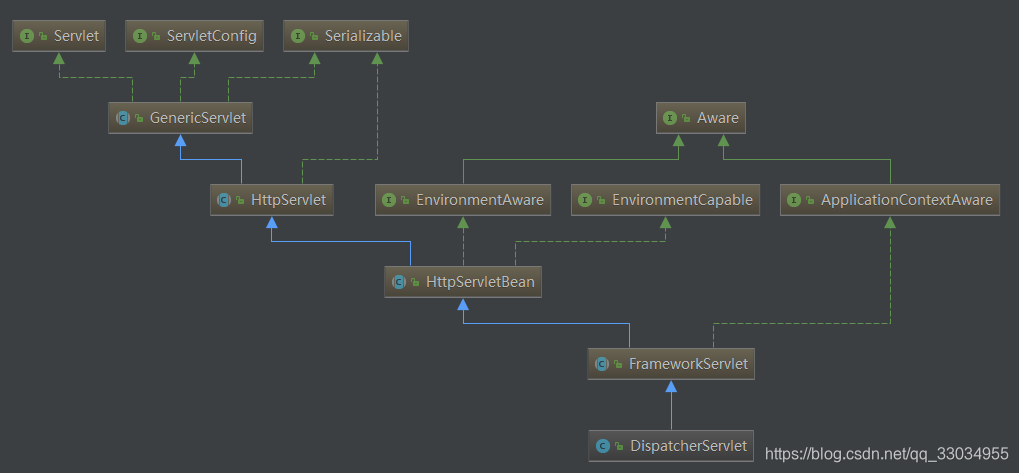

  • 首先在它的关系图中我们可以看出，DispatcherServlet类继承FrameworkServlet类，而FrameworkServlet继承了HttpServletBean类，再往上就是HttpServlet类与Servlet类了。
  • 那么我们就可以得出DispatchServlet是一个servlet类，既然是一个Servlet那么久有一个核心方法：service方法，我们在DispatchServlet中找，发现没有，那我们继续去它的父类中找，于是发现了如下方法：
protected void service(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
    HttpMethod httpMethod = HttpMethod.resolve(request.getMethod());
    if (HttpMethod.PATCH != httpMethod && httpMethod != null) {
        super.service(request, response);
    } else {
        this.processRequest(request, response);
    }
}
  • 它首先判断是不是PATCH请求，如果不是的话执行父类的service()方法，如果是则执行 processRequest()，那我们继续追踪：
protected void service(HttpServletRequest req, HttpServletResponse resp)
        throws ServletException, IOException
    {
        String method = req.getMethod();

        if (method.equals(METHOD_GET)) {
            long lastModified = getLastModified(req);
            if (lastModified == -1) {
                // servlet doesn't support if-modified-since, no reason
                // to go through further expensive logic
                doGet(req, resp);
            } else {
                long ifModifiedSince = req.getDateHeader(HEADER_IFMODSINCE);
                if (ifModifiedSince < lastModified) {
                    // If the servlet mod time is later, call doGet()
                    // Round down to the nearest second for a proper compare
                    // A ifModifiedSince of -1 will always be less
                    maybeSetLastModified(resp, lastModified);
                    doGet(req, resp);
                } else {
                    resp.setStatus(HttpServletResponse.SC_NOT_MODIFIED);
                }
            }

        } else if (method.equals(METHOD_HEAD)) {
            long lastModified = getLastModified(req);
            maybeSetLastModified(resp, lastModified);
            doHead(req, resp);

        } else if (method.equals(METHOD_POST)) {
            doPost(req, resp);

        } else if (method.equals(METHOD_PUT)) {
            doPut(req, resp);

        } else if (method.equals(METHOD_DELETE)) {
            doDelete(req, resp);

        } else if (method.equals(METHOD_OPTIONS)) {
            doOptions(req,resp);

        } else if (method.equals(METHOD_TRACE)) {
            doTrace(req,resp);

        } else {
            //
            // Note that this means NO servlet supports whatever
            // method was requested, anywhere on this server.
            //

            String errMsg = lStrings.getString("http.method_not_implemented");
            Object[] errArgs = new Object[1];
            errArgs[0] = method;
            errMsg = MessageFormat.format(errMsg, errArgs);

            resp.sendError(HttpServletResponse.SC_NOT_IMPLEMENTED, errMsg);
        }
    }

发现走到父类的super.service(request, response)方法之后，在service方法中调用了doGet、doHead、doPost…等方法，而HTTP的基本请求（GET、POST、PUT、DELETE）方法都在DispatcherServerlet的父类FrameworkServlet中进行了重写，在重写的方法中调用了processRequest方法：

	@Override
	protected final void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		processRequest(request, response);
	}
	@Override
	protected final void doPost(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		processRequest(request, response);
	}
	@Override
	protected final void doPut(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		processRequest(request, response);
	}
	@Override
	protected final void doDelete(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		processRequest(request, response);
	}

（注：从此至上述service方法开始，均为评论区(@thalictrum)指出错误后修改，由于当时学习的版本已经不明确，此块代码参考的MVC版本为：4.0.2.RELEASE）
于是让我们继续追踪：

protected final void processRequest(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        long startTime = System.currentTimeMillis();
        Throwable failureCause = null;
        LocaleContext previousLocaleContext = LocaleContextHolder.getLocaleContext();
        LocaleContext localeContext = this.buildLocaleContext(request);
        RequestAttributes previousAttributes = RequestContextHolder.getRequestAttributes();
        ServletRequestAttributes requestAttributes = this.buildRequestAttributes(request, response, previousAttributes);
        WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
        asyncManager.registerCallableInterceptor(FrameworkServlet.class.getName(), new FrameworkServlet.RequestBindingInterceptor(null));
        this.initContextHolders(request, localeContext, requestAttributes);
        try {
            this.doService(request, response);
        } catch (IOException | ServletException var16) {
            failureCause = var16;
            throw var16;
        } catch (Throwable var17) {
            failureCause = var17;
            throw new NestedServletException("Request processing failed", var17);
        } finally {
            this.resetContextHolders(request, previousLocaleContext, previousAttributes);
            if (requestAttributes != null) {
                requestAttributes.requestCompleted();
            }

            if (this.logger.isDebugEnabled()) {
                if (failureCause != null) {
                    this.logger.debug("Could not complete request", (Throwable)failureCause);
                } else if (asyncManager.isConcurrentHandlingStarted()) {
                    this.logger.debug("Leaving response open for concurrent processing");
                } else {
                    this.logger.debug("Successfully completed request");
                }
            }

            this.publishRequestHandledEvent(request, response, startTime, (Throwable)failureCause);
        }
    }
  • 这里边的代码主要是执行一些控制器等等，可以不用了解太多，我们主要是了解其执行流程。在其中我们可以看到 this.doService(request, response);方法，来执行一些事务，那么我们继续追踪：
protected abstract void doService(HttpServletRequest var1, HttpServletResponse var2) throws Exception;
  • 我们发现它是调用了子类：DispatcherServlet类中的方法，继续追踪：
protected void doService(HttpServletRequest request, HttpServletResponse response) throws Exception {
    if (this.logger.isDebugEnabled()) {
        String resumed = WebAsyncUtils.getAsyncManager(request).hasConcurrentResult() ? " resumed" : "";
        this.logger.debug("DispatcherServlet with name '" + this.getServletName() + "'" + resumed + " processing " + request.getMethod() + " request for [" + getRequestUri(request) + "]");
    }
    Map<String, Object> attributesSnapshot = null;
    if (WebUtils.isIncludeRequest(request)) {
        attributesSnapshot = new HashMap();
        Enumeration attrNames = request.getAttributeNames();

        label112:
        while(true) {
            String attrName;
            do {
                if (!attrNames.hasMoreElements()) {
                    break label112;
                }
                attrName = (String)attrNames.nextElement();
            } while(!this.cleanupAfterInclude && !attrName.startsWith("org.springframework.web.servlet"));

            attributesSnapshot.put(attrName, request.getAttribute(attrName));
        }
    }
    request.setAttribute(WEB_APPLICATION_CONTEXT_ATTRIBUTE, this.getWebApplicationContext());
    request.setAttribute(LOCALE_RESOLVER_ATTRIBUTE, this.localeResolver);
    request.setAttribute(THEME_RESOLVER_ATTRIBUTE, this.themeResolver);
    request.setAttribute(THEME_SOURCE_ATTRIBUTE, this.getThemeSource());
    if (this.flashMapManager != null) {
        FlashMap inputFlashMap = this.flashMapManager.retrieveAndUpdate(request, response);
        if (inputFlashMap != null) {
            request.setAttribute(INPUT_FLASH_MAP_ATTRIBUTE, Collections.unmodifiableMap(inputFlashMap));
        }

        request.setAttribute(OUTPUT_FLASH_MAP_ATTRIBUTE, new FlashMap());
        request.setAttribute(FLASH_MAP_MANAGER_ATTRIBUTE, this.flashMapManager);
    }
    try {
        this.doDispatch(request, response);
    } finally {
        if (!WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted() && attributesSnapshot != null) {
            this.restoreAttributesAfterInclude(request, attributesSnapshot);
        }

    }
}
  • 我们看到它首先设置了一些request属性，然后执行了一个this.doDispatch（request, response）方法，至此我们算是找到了它的核心执行代码：
protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
    HttpServletRequest processedRequest = request;
    HandlerExecutionChain mappedHandler = null;
    boolean multipartRequestParsed = false;
    WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
    try {
        try {
            ModelAndView mv = null;
            Object dispatchException = null;
            try {
                processedRequest = this.checkMultipart(request);
                multipartRequestParsed = processedRequest != request;
                mappedHandler = this.getHandler(processedRequest);
                if (mappedHandler == null) {
                    this.noHandlerFound(processedRequest, response);
                    return;
                }
                HandlerAdapter ha = this.getHandlerAdapter(mappedHandler.getHandler());
                String method = request.getMethod();
                boolean isGet = "GET".equals(method);
                if (isGet || "HEAD".equals(method)) {
                    long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
                    if (this.logger.isDebugEnabled()) {
                        this.logger.debug("Last-Modified value for [" + getRequestUri(request) + "] is: " + lastModified);
                    }
                    if ((new ServletWebRequest(request, response)).checkNotModified(lastModified) && isGet) {
                        return;
                    }
                }
                if (!mappedHandler.applyPreHandle(processedRequest, response)) {
                    return;
                }
                mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
                if (asyncManager.isConcurrentHandlingStarted()) {
                    return;
                }
                this.applyDefaultViewName(processedRequest, mv);
                mappedHandler.applyPostHandle(processedRequest, response, mv);
            } catch (Exception var20) {
                dispatchException = var20;
            } catch (Throwable var21) {
                dispatchException = new NestedServletException("Handler dispatch failed", var21);
            }
            this.processDispatchResult(processedRequest, response, mappedHandler, mv, (Exception)dispatchException);
        } catch (Exception var22) {
            this.triggerAfterCompletion(processedRequest, response, mappedHandler, var22);
        } catch (Throwable var23) {
            this.triggerAfterCompletion(processedRequest, response, mappedHandler, new NestedServletException("Handler processing failed", var23));
        }

    } finally {
        if (asyncManager.isConcurrentHandlingStarted()) {
            if (mappedHandler != null) {
                mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
            }
        } else if (multipartRequestParsed) {
            this.cleanupMultipart(processedRequest);
        }

    }
}

  • 这段代码可以分成四个部分：

    • 查找Handler对应的HandlerMapping部分：
    try {
    processedRequest = this.checkMultipart(request);
    multipartRequestParsed = processedRequest != request;
    mappedHandler = this.getHandler(processedRequest);
    if (mappedHandler == null) {
        this.noHandlerFound(processedRequest, response);
        return;
    }

    它首先判断request请求是不是二进制请求，然后执行this.getHandler(processedRequest);方法。那么我们来了解一下这个方法：

    @Nullable
protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
    if (this.handlerMappings != null) {
        Iterator var2 = this.handlerMappings.iterator();
        while(var2.hasNext()) {
            HandlerMapping hm = (HandlerMapping)var2.next();
            if (this.logger.isTraceEnabled()) {
                this.logger.trace("Testing handler map [" + hm + "] in DispatcherServlet with name '" + this.getServletName() + "'");
            }
            HandlerExecutionChain handler = hm.getHandler(request);
            if (handler != null) {
                return handler;
            }
        }
    }
    return null;
}

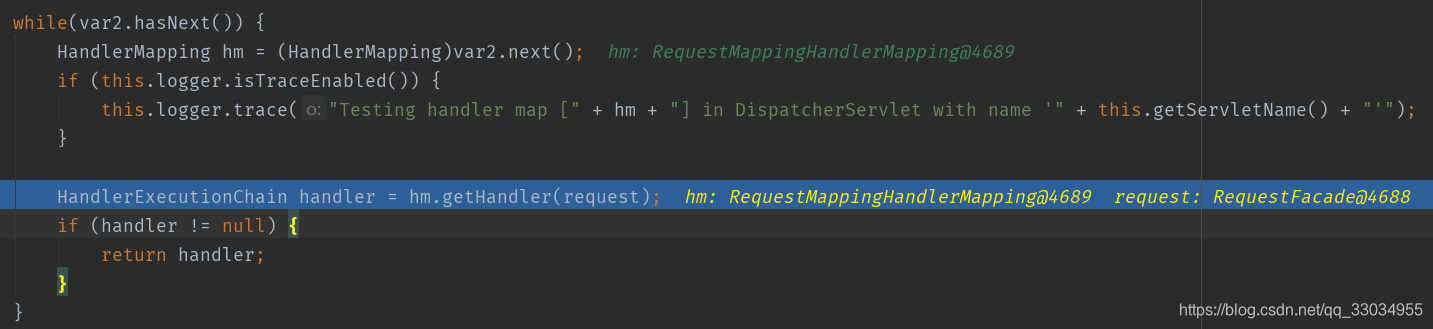

    首先：我们发现它获取了一个HandlerMapping的迭代器，然后查找每一个HandlerMapping。那么它为什么要先去查找HandlerMapping呢？那是因为我们在配置Controller的时候有两种方式：xml和注解的方式，所以它先去找到HandlerMapping，然后根据HandlerMapping去找Handler，就是hm.getHandler(request);这个方法来查找Handler。

在这里插入图片描述

执行后发现，它返回了一个HandlerExcutionChain类型的Handler，它里面包含了我们自己创建的Handler。

在这里插入图片描述

因此我们也就拿到了Handler对应的HandlerMapping。

  • 查找HandlerAdapter部分：
HandlerAdapter ha = this.getHandlerAdapter(mappedHandler.getHandler());
String method = request.getMethod();
boolean isGet = "GET".equals(method);
if (isGet || "HEAD".equals(method)) {
    long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
    if (this.logger.isDebugEnabled()) {
        this.logger.debug("Last-Modified value for [" + getRequestUri(request) + "] is: " + lastModified);
    }
    if ((new ServletWebRequest(request, response)).checkNotModified(lastModified) && isGet) {
        return;
    }
}

在拿到HandlerMapping之后，开始查找HandlerAdapter，就是ha.getLastModified(request, mappedHandler.getHandler());来查找。

protected HandlerAdapter getHandlerAdapter(Object handler) throws ServletException {
        if (this.handlerAdapters != null) {
            Iterator var2 = this.handlerAdapters.iterator();
            while(var2.hasNext()) {
                HandlerAdapter ha = (HandlerAdapter)var2.next();
                if (this.logger.isTraceEnabled()) {
                    this.logger.trace("Testing handler adapter [" + ha + "]");
                }
                if (ha.supports(handler)) {
                    return ha;
                }
            }
        }
        throw new ServletException("No adapter for handler [" + handler + "]: The DispatcherServlet configuration needs to include a HandlerAdapter that supports this handler");
    }

它的查找方式与之前查找HandlerMapping类似。

  • 拦截器执行部分：
if (!mappedHandler.applyPreHandle(processedRequest, response)) {
    return;
}

boolean applyPreHandle(HttpServletRequest request, HttpServletResponse response) throws Exception {
    HandlerInterceptor[] interceptors = this.getInterceptors();
    if (!ObjectUtils.isEmpty(interceptors)) {
        for(int i = 0; i < interceptors.length; this.interceptorIndex = i++) {
            HandlerInterceptor interceptor = interceptors[i];
            if (!interceptor.preHandle(request, response, this.handler)) {
                this.triggerAfterCompletion(request, response, (Exception)null);
                return false;
            }
        }
    }
    return true;
}

它就是获取拦截器然后执行。

  • 再接下来就是Hanler执行部分：
mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
if (asyncManager.isConcurrentHandlingStarted()) {
    return;
}
this.applyDefaultViewName(processedRequest, mv);
mappedHandler.applyPostHandle(processedRequest, response, mv);
} catch (Exception var20) {
    dispatchException = var20;
} catch (Throwable var21) {
    dispatchException = new NestedServletException("Handler dispatch failed", var21);
}
this.processDispatchResult(processedRequest, response, mappedHandler, mv, (Exception)dispatchException);

它首先在 mv = ha.handle(processedRequest, response, mappedHandler.getHandler()); 执行了handler并返回了一个视图；然后通过 this.applyDefaultViewName(processedRequest, mv); 在我们没有设置视图名称的时候返回默认视图名；然后通过 this.applyDefaultViewName(processedRequest, mv); 获取到项目的拦截器，然后判断拦截器是否存在，存在则对该请求进行测试（postHandler），如果有一个拦截器不成功，则请求失败。最后来到视图解析和渲染的执行方法： this.processDispatchResult(processedRequest, response, mappedHandler, mv, (Exception)dispatchException);

private void processDispatchResult(HttpServletRequest request, HttpServletResponse response, @Nullable HandlerExecutionChain mappedHandler, @Nullable ModelAndView mv, @Nullable Exception exception) throws Exception {
    boolean errorView = false;
    if (exception != null) {
        if (exception instanceof ModelAndViewDefiningException) {
            this.logger.debug("ModelAndViewDefiningException encountered", exception);
            mv = ((ModelAndViewDefiningException)exception).getModelAndView();
        } else {
            Object handler = mappedHandler != null ? mappedHandler.getHandler() : null;
            mv = this.processHandlerException(request, response, handler, exception);
            errorView = mv != null;
        }
    }
    if (mv != null && !mv.wasCleared()) {
        this.render(mv, request, response);
        if (errorView) {
            WebUtils.clearErrorRequestAttributes(request);
        }
    } else if (this.logger.isDebugEnabled()) {
        this.logger.debug("Null ModelAndView returned to DispatcherServlet with name '" + this.getServletName() + "': assuming HandlerAdapter completed request handling");
    }
    if (!WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
        if (mappedHandler != null) {
            mappedHandler.triggerAfterCompletion(request, response, (Exception)null);
        }

    }
}

它首先判断一下是否异常，如果出现异常，判断异常是否是ModelAndViewDefiningException的实例，如果是就直接调用getModelAndView方法返回一个mv，否则调用processHanlderException方法初始化mv对象；如果没有异常出现，那么判断mv是否为空，为空抛出异常，不为空则判断mv,wasCleared()方法返回的值是否为真；判断完成以后，执行了 this.render(mv, request, response);方法。

protected void render(ModelAndView mv, HttpServletRequest request, HttpServletResponse response) throws Exception {
    Locale locale = this.localeResolver != null ? this.localeResolver.resolveLocale(request) : request.getLocale();
    response.setLocale(locale);
    String viewName = mv.getViewName();
    View view;
    if (viewName != null) {
        view = this.resolveViewName(viewName, mv.getModelInternal(), locale, request);
        if (view == null) {
            throw new ServletException("Could not resolve view with name '" + mv.getViewName() + "' in servlet with name '" + this.getServletName() + "'");
        }
    } else {
        view = mv.getView();
        if (view == null) {
            throw new ServletException("ModelAndView [" + mv + "] neither contains a view name nor a View object in servlet with name '" + this.getServletName() + "'");
        }
    }
    if (this.logger.isDebugEnabled()) {
        this.logger.debug("Rendering view [" + view + "] in DispatcherServlet with name '" + this.getServletName() + "'");
    }

    try {
        if (mv.getStatus() != null) {
            response.setStatus(mv.getStatus().value());
        }
        view.render(mv.getModelInternal(), request, response);
    } catch (Exception var8) {
        if (this.logger.isDebugEnabled()) {
            this.logger.debug("Error rendering view [" + view + "] in DispatcherServlet with name '" + this.getServletName() + "'", var8);
        }

        throw var8;
    }
}

它首先设置了视图的编码格式，然后通过 view = this.resolveViewName(viewName, mv.getModelInternal(), locale, request);进行了视图解析：

 @Nullable
protected View resolveViewName(String viewName, @Nullable Map<String, Object> model, Locale locale, HttpServletRequest request) throws Exception {
    if (this.viewResolvers != null) {
        Iterator var5 = this.viewResolvers.iterator();
        while(var5.hasNext()) {
            ViewResolver viewResolver = (ViewResolver)var5.next();
            View view = viewResolver.resolveViewName(viewName, locale);
            if (view != null) {
                return view;
            }
        }
    }
    return null;
}

它是首先寻找视图解析器对象，然后根据视图解析器执行视图解析，解析完成之后返回view对象。然后就是通过 view.render(mv.getModelInternal(), request, response); 进行视图渲染。

public void render(@Nullable Map<String, ?> model, HttpServletRequest request, HttpServletResponse response) throws Exception {
    if (this.logger.isTraceEnabled()) {
        this.logger.trace("Rendering view with name '" + this.beanName + "' with model " + model + " and static attributes " + this.staticAttributes);
    }
    Map<String, Object> mergedModel = this.createMergedOutputModel(model, request, response);
    this.prepareResponse(request, response);
    this.renderMergedOutputModel(mergedModel, this.getRequestToExpose(request), response);
}

它首先通过 Map<String, Object> mergedModel = this.createMergedOutputModel(model, request, response);获取了传入的model的map集合。然后通过 this.prepareResponse(request, response);设置响应头的两个参数，最后通过 this.renderMergedOutputModel(mergedModel, this.getRequestToExpose(request), response);将mergeModel合到请求里.

protected void renderMergedOutputModel(Map<String, Object> model, HttpServletRequest request, HttpServletResponse response) throws Exception {
    this.exposeModelAsRequestAttributes(model, request);
    this.exposeHelpers(request);
    String dispatcherPath = this.prepareForRendering(request, response);
    RequestDispatcher rd = this.getRequestDispatcher(request, dispatcherPath);
    if (rd == null) {
        throw new ServletException("Could not get RequestDispatcher for [" + this.getUrl() + "]: Check that the corresponding file exists within your web application archive!");
    } else {
        if (this.useInclude(request, response)) {
            response.setContentType(this.getContentType());
            if (this.logger.isDebugEnabled()) {
                this.logger.debug("Including resource [" + this.getUrl() + "] in InternalResourceView '" + this.getBeanName() + "'");
            }

            rd.include(request, response);
        } else {
            if (this.logger.isDebugEnabled()) {
                this.logger.debug("Forwarding to resource [" + this.getUrl() + "] in InternalResourceView '" + this.getBeanName() + "'");
            }

            rd.forward(request, response);
        }

    }
}

它首先进行了 this.exposeModelAsRequestAttributes(model, request);操作：

protected void exposeModelAsRequestAttributes(Map<String, Object> model, HttpServletRequest request) throws Exception {
    model.forEach((modelName, modelValue) -> {
        if (modelValue != null) {
            request.setAttribute(modelName, modelValue);
            if (this.logger.isDebugEnabled()) {
                this.logger.debug("Added model object '" + modelName + "' of type [" + modelValue.getClass().getName() + "] to request in view with name '" + this.getBeanName() + "'");
            }
        } else {
            request.removeAttribute(modelName);
            if (this.logger.isDebugEnabled()) {
                this.logger.debug("Removed model object '" + modelName + "' from request in view with name '" + this.getBeanName() + "'");
            }
        }

    });
}

由此可见，model中的数据，最终是放在request域中的。

然后他们进行了RequestDispatcher 对象配置，就是选择它要进行的操作了，是使用include还是forward进行跳转。至此，视图的解析与渲染工作都完成了，并且也发送到了前端页面，完成了一个请求的整个流程。

三、总结

SpringMVC的总体执行流程的源码解析就为以上描述，因为是学习SpringBoot过程中对其执行原理不太清晰，所以做得总结，可能有些许纰漏，也可能有些许错误，欢迎大家指正。

参考资料：

【1】SpringMVC源码关于视图解析渲染

【2】Spring源码解析 - springMVC核心代码（一）

06.SpringMVC流程及源码分析
weixin_49352973的博客
12-26 705
SpringMVC流程
Spring MVC的流程及源码分析
BorisCao的博客
04-27 1197
1.Spring MVC通过前置控制器DispatcherServlet处理客户端请求,这里用到了DispatcherServlet的doService方法中的doDispatch DispatcherServlet.java protected void doService(HttpServletRequest request, HttpServletResponse response) throws Exception { logRequest(request);` .....省略其他代码 t
springMvc源码分析
03-09
springMvc源码分析springMvc源码分析springMvc源码分析springMvc源码分析springMvc源码分析springMvc源码分析
SpringMVC执行流程及源码解析
chijunmei7041的博客
04-06 305
原文链接 谢谢各位点赞评论收藏～自己学习时候记录的东西，没想到能被关注～自己理解还不太好，希望各位看的时候不要全部按照文章里写的来，要自己思考一下，如有不对还请指出，只希望不会误导别人。 在SpringMVC中主要是围绕着DispatcherServlet来设计，可以把它当做指挥中心。这里先说...
Spring MVC 执行流程全解析：从请求到响应的七步走
最新发布
m0_73748193的博客
04-21 1122
Spring MVC 中，DispatcherServlet 是核心协调者，通过一系列策略接口（HandlerMapping、HandlerAdapter、ViewResolver 等）完成从请求分发到视图渲染的完整链路。
SpringMVC的执行流程源码分析?
Jason8080
07-18 678
- SpringMVC执行流程时序图,此乃不传之秘。 - SpringMVC执行流程源码分析/源码追踪,呕心沥血之作。 SpringMVC源码版本: 5.1.7.RELEASE 1.源码分析: Servlet public interface Servlet { // 初始化方法,构造方法后执行 void init(ServletConfig var1); ...
SpringMVC执行流程（源码分析）
qq_43600166的博客
10-16 2782
SpringMVC大体流程，请求URL如何与HandlerMethod对应？AbstractHandlerMethodMapping初始化HandlerMethod。源码分析AbstractHandlerMethodMapping初始化HandlerMethod流程。一个请求到SpringMVC的完整流程，DispatcherServlet如何接收用户请求？ 分析DispatchServlet.doDispatch方法如何处理请求
SpringMVC请求流程源码分析.doc
07-09
### SpringMVC请求流程源码分析 #### 一、SpringMVC使用与配置 ##### 1. 工程创建 为了构建一个支持SpringMVC框架的项目，首先需要创建一个Maven工程。在这个过程中，我们需要完成以下几个步骤： - **创建项目...
Java架构师之源码分析专题SpringBoot2.x、Spring5、SpringMVC、Mybatis源码分析
08-23
源码分析会涉及SpringBoot的启动流程，包括`SpringApplication.run()`方法的执行细节，自动配置的实现机制，以及如何通过条件注解选择合适的bean。理解这些将帮助你自定义启动配置，优化项目结构。 接着，进入...
0从源码角度分析SpringMVC执行流程.java
04-10
0从源码角度分析SpringMVC执行流程.java
SpringMvc主要流程源码解析（1）.zip
08-16
在 SpringMvc 主要流程源码解析（1）.vep 文件中，可能详细分析了以上各个步骤的源码实现，包括 DispatcherServlet、HandlerMapping、Controller、HandlerAdapter、DataBinder、ViewResolver 和 View 的工作原理。...
springmvc源码分析
03-11
springmvc源码分析 html格式可以浏览器访问 跳转方便.
SpringMVC源码剖析-SpringMVC执行流程
墨家巨子@俏如来
12-28 5878
前言 上一篇文章写得是SpringMVC组件初始化，这篇文章我们来探讨一下SpringMVC的执行流程 SpringMVC执行流程 SpringMVC执行流程几乎是在面试时面试官对SpringMVC部分的必问之题，下面是SpirngMVC的执行原理图 这个是请求在SpringMVC的执行流程 DispatcherServlet：请求打过来由DispatcherServlet处理，它是 SpringMVC 中的前端控制器(中央控制器), 负责接收 Request 并将 Request 转发给对应的处理组件
SpringMvc执行流程源码分析
lh_mnbj的博客
12-08 635
在先进行源码分析之前，首先将整个具体流程写在前面，先对整个流程有一个初步的了解之后再去进行分析相必会更加的容易理解 SpringMvc执行流程源码分析SpringMvc执行流程源码分析1.DispatcherServlet结构分析2.SpringMvc的九大组件3.锁定目标方法的执行4.invokeHandlerMethod执行细节5.如何确定方法每一个参数的值（方法括号中的参数）6.视图解析原理分析 SpringMvc执行流程 流程分析： 用户向服务器发送请求，请求被SpringMvc的前端控制器D
SpringMVC 执行流程源码解析
weixin_42346558的博客
12-16 473
文章目录前言一、DispatcherServlet1、doServcie2、doDispatch3、getHandler3、getHandlerAdapter二、AbstractHandlerMapping1、getHandler三、RequestMappingHandlerMapping1、afterPropertiesSet2、initHandlerMethods3、detectHandlerMethods3、getHandlerInternal4、lookupHandlerMethod总结 办公设备租
从源码角度解析SpringMVC执行流程
做一个有思想的技术人
02-14 443
面试必问题目之一
Spring-MVC流程及源码解析(二) SpringMVC的执行流程
欢迎来到wise哲的博客空间
05-09 1717
    上篇文章(https://blog.csdn.net/f1004145107/article/details/78590847)    介绍了一下SpringMVC的初始化过程,本篇文章我们正式开始进入SpirngMVC的执行流程   首先,还是先进入DispatcherServlet中,跳过要加载的组件(如需看加载的组件请看上一篇博客文章微博)我们直接来到doService()方法   ...
SpringMVC执行流程源码浅析
莫失莫忘的博客
09-07 250
这么文章主要介绍两个问题： 1、什么是mvc 2、springmvc的主要执行流程 1、什么是mvc MVC全名是Model View Controller，是模型(model)－视图(view)－控制器(controller)的缩写，一种软件设计典范，用一种业务逻辑、数据、界面显示分离的方法组织代码，将业务逻辑聚集到一个部件里面，在改进和个性化定制界面及用户交互的同时，不需要重新编写业务逻辑。...
评论 3
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
