deployment controller源码阅读(1.18.x)

deployment是最常见的部署，官网举了一下deployment的常用实例，涵盖创建、声明、回滚、扩容、清理。

  • 创建 Deployment 以将 ReplicaSet 上线。 ReplicaSet 在后台创建 Pods。 检查 ReplicaSet 的上线状态，查看其是否成功。
  • 通过更新 Deployment 的 PodTemplateSpec，声明 Pod 的新状态 。 新的 ReplicaSet 会被创建，Deployment 以受控速率将 Pod 从旧 ReplicaSet 迁移到新 ReplicaSet。 每个新的 ReplicaSet 都会更新 Deployment 的修订版本。
  • 如果 Deployment 的当前状态不稳定，回滚到较早的 Deployment 版本。 每次回滚都会更新 Deployment 的修订版本。
  • 扩大 Deployment 规模以承担更多负载。
  • 暂停 Deployment 以应用对 PodTemplateSpec 所作的多项修改， 然后恢复其执行以启动新的上线版本。
  • 使用 Deployment 状态 来判定上线过程是否出现停滞。
  • 清理较旧的不再需要的 ReplicaSet 。
  • 创建 Deployment
    ----摘自k8s官网

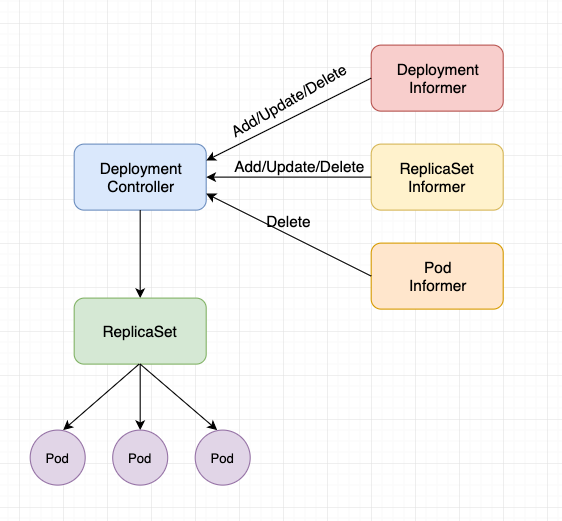

阿巴阿巴了这么多其实就是表达一下他很重要，其实好像就没有不重要的模块哈哈哈哈，先上个图理一下deployment、replicaSet 和 pod 之间的关系，deployment通过控制replicaSet控制pod，大概就这个结构
关系图

replicaSet负责具体实施，DeploymentInformer、ReplicaSetInformer、PodInformer负责监听，当资源发生变化，会触发DeploymentController里的轮询条件进行对应的操作

老样子先去找代码在哪里，DeploymentController的启动代码在cmd/kube-controller-mannager/controllermanager.go里面

func Run(c *config.CompletedConfig, stopCh <-chan struct{}) error {
	// 记录版本
	klog.Infof("Version: %+v", version.Get())

	if cfgz, err := configz.New(ConfigzName); err == nil {
		cfgz.Set(c.ComponentConfig)
	} else {
		klog.Errorf("unable to register configz: %v", err)
	}

	// 设置将要使用的所有healthz检查
	var checks []healthz.HealthChecker
	var electionChecker *leaderelection.HealthzAdaptor
	if c.ComponentConfig.Generic.LeaderElection.LeaderElect {
		electionChecker = leaderelection.NewLeaderHealthzAdaptor(time.Second * 20)
		checks = append(checks, electionChecker)
	}

    // 启动控制器管理器HTTP服务器
	var unsecuredMux *mux.PathRecorderMux
	if c.SecureServing != nil {
		unsecuredMux = genericcontrollermanager.NewBaseHandler(&c.ComponentConfig.Generic.Debugging, checks...)
		handler := genericcontrollermanager.BuildHandlerChain(unsecuredMux, &c.Authorization, &c.Authentication)
		// 处理c.SecureServing.Serve返回的stoppedCh
		if _, err := c.SecureServing.Serve(handler, 0, stopCh); err != nil {
			return err
		}
	}
	if c.InsecureServing != nil {
		unsecuredMux = genericcontrollermanager.NewBaseHandler(&c.ComponentConfig.Generic.Debugging, checks...)
		insecureSuperuserAuthn := server.AuthenticationInfo{Authenticator: &server.InsecureSuperuser{}}
		handler := genericcontrollermanager.BuildHandlerChain(unsecuredMux, nil, &insecureSuperuserAuthn)
		if err := c.InsecureServing.Serve(handler, 0, stopCh); err != nil {
			return err
		}
	}

	run := func(ctx context.Context) {
		rootClientBuilder := clientbuilder.SimpleControllerClientBuilder{
			ClientConfig: c.Kubeconfig,
		}
		var clientBuilder clientbuilder.ControllerClientBuilder
		if c.ComponentConfig.KubeCloudShared.UseServiceAccountCredentials {
			if len(c.ComponentConfig.SAController.ServiceAccountKeyFile) == 0 {
                // 另一个控制器进程可能正在为我们创建令牌。如果不是，我们将在客户端构建器无法创建令牌时超时并退出。
				klog.Warningf("--use-service-account-credentials was specified without providing a --service-account-private-key-file")
			}

			if shouldTurnOnDynamicClient(c.Client) {
				klog.V(1).Infof("using dynamic client builder")
                // 动态构建器将使用TokenRequest功能并定期刷新服务帐户令牌
				clientBuilder = controller.NewDynamicClientBuilder(
					restclient.AnonymousClientConfig(c.Kubeconfig),
					c.Client.CoreV1(),
					"kube-system")
			} else {
				klog.V(1).Infof("using legacy client builder")
				clientBuilder = clientbuilder.SAControllerClientBuilder{
					ClientConfig:         restclient.AnonymousClientConfig(c.Kubeconfig),
					CoreClient:           c.Client.CoreV1(),
					AuthenticationClient: c.Client.AuthenticationV1(),
					Namespace:            "kube-system",
				}
			}
		} else {
			clientBuilder = rootClientBuilder
		}
		controllerContext, err := CreateControllerContext(c, rootClientBuilder, clientBuilder, ctx.Done())
		if err != nil {
			klog.Fatalf("error building controller context: %v", err)
		}
		saTokenControllerInitFunc := serviceAccountTokenControllerStarter{rootClientBuilder: rootClientBuilder}.startServiceAccountTokenController

        // 调用NewControllerInitializers初始化controller，StartControllers启动controller
		if err := StartControllers(controllerContext, saTokenControllerInitFunc, NewControllerInitializers(controllerContext.LoopMode), unsecuredMux); err != nil {
			klog.Fatalf("error starting controllers: %v", err)
		}

		controllerContext.InformerFactory.Start(controllerContext.Stop)
		controllerContext.ObjectOrMetadataInformerFactory.Start(controllerContext.Stop)
		close(controllerContext.InformersStarted)

		select {}
	}

	if !c.ComponentConfig.Generic.LeaderElection.LeaderElect {
		run(context.TODO())
		panic("unreachable")
	}

	id, err := os.Hostname()
	if err != nil {
		return err
	}

	// 添加一个锁，保证同一主机上的两个进程不会意外地都变为活动状态
	id = id + "_" + string(uuid.NewUUID())

	rl, err := resourcelock.New(c.ComponentConfig.Generic.LeaderElection.ResourceLock,
		c.ComponentConfig.Generic.LeaderElection.ResourceNamespace,
		c.ComponentConfig.Generic.LeaderElection.ResourceName,
		c.LeaderElectionClient.CoreV1(),
		c.LeaderElectionClient.CoordinationV1(),
		resourcelock.ResourceLockConfig{
			Identity:      id,
			EventRecorder: c.EventRecorder,
		})
	if err != nil {
		klog.Fatalf("error creating lock: %v", err)
	}

	leaderelection.RunOrDie(context.TODO(), leaderelection.LeaderElectionConfig{
		Lock:          rl,
		LeaseDuration: c.ComponentConfig.Generic.LeaderElection.LeaseDuration.Duration,
		RenewDeadline: c.ComponentConfig.Generic.LeaderElection.RenewDeadline.Duration,
		RetryPeriod:   c.ComponentConfig.Generic.LeaderElection.RetryPeriod.Duration,
		Callbacks: leaderelection.LeaderCallbacks{
			OnStartedLeading: run,
			OnStoppedLeading: func() {
				klog.Fatalf("leaderelection lost")
			},
		},
		WatchDog: electionChecker,
		Name:     "kube-controller-manager",
	})
	panic("unreachable")
}

然后看一下NewControllerInitializers和StartControllers里面的东西

//这一大堆堆controller都是要初始化的，map开之后调各自对应的start方法执行具体的初始化操作，其中deployment的就是startDeploymentController方法，马上我们去找他
func NewControllerInitializers(loopMode ControllerLoopMode) map[string]InitFunc {
	controllers := map[string]InitFunc{}
	controllers["endpoint"] = startEndpointController
	controllers["endpointslice"] = startEndpointSliceController
	controllers["endpointslicemirroring"] = startEndpointSliceMirroringController
	controllers["replicationcontroller"] = startReplicationController
	controllers["podgc"] = startPodGCController
	controllers["resourcequota"] = startResourceQuotaController
	controllers["namespace"] = startNamespaceController
	controllers["serviceaccount"] = startServiceAccountController
	controllers["garbagecollector"] = startGarbageCollectorController
	controllers["daemonset"] = startDaemonSetController
	controllers["job"] = startJobController
	controllers["deployment"] = startDeploymentController
	controllers["replicaset"] = startReplicaSetController
	controllers["horizontalpodautoscaling"] = startHPAController
	controllers["disruption"] = startDisruptionController
	controllers["statefulset"] = startStatefulSetController
	controllers["cronjob"] = startCronJobController
	controllers["csrsigning"] = startCSRSigningController
	controllers["csrapproving"] = startCSRApprovingController
	controllers["csrcleaner"] = startCSRCleanerController
	controllers["ttl"] = startTTLController
	controllers["bootstrapsigner"] = startBootstrapSignerController
	controllers["tokencleaner"] = startTokenCleanerController
	controllers["nodeipam"] = startNodeIpamController
	controllers["nodelifecycle"] = startNodeLifecycleController
	if loopMode == IncludeCloudLoops {
		controllers["service"] = startServiceController
		controllers["route"] = startRouteController
		controllers["cloud-node-lifecycle"] = startCloudNodeLifecycleController
		// TODO: volume controller into the IncludeCloudLoops only set.
	}
	controllers["persistentvolume-binder"] = startPersistentVolumeBinderController
	controllers["attachdetach"] = startAttachDetachController
	controllers["persistentvolume-expander"] = startVolumeExpandController
	controllers["clusterrole-aggregation"] = startClusterRoleAggregrationController
	controllers["pvc-protection"] = startPVCProtectionController
	controllers["pv-protection"] = startPVProtectionController
	controllers["ttl-after-finished"] = startTTLAfterFinishedController
	controllers["root-ca-cert-publisher"] = startRootCACertPublisher
	controllers["ephemeral-volume"] = startEphemeralVolumeController

	return controllers
}

//这个函数在同级目录的app.go里面，一起在里面的还有DaemonSet、StatefulSet的Controller初始化方法，这个以后再说
func startDeploymentController(ctx ControllerContext) (http.Handler, bool, error) {
	if !ctx.AvailableResources[schema.GroupVersionResource{Group: "apps", Version: "v1", Resource: "deployments"}] {
		return nil, false, nil
    }
    //初始化controller,
	dc, err := deployment.NewDeploymentController(
		ctx.InformerFactory.Apps().V1().Deployments(),
		ctx.InformerFactory.Apps().V1().ReplicaSets(),
		ctx.InformerFactory.Core().V1().Pods(),
		ctx.ClientBuilder.ClientOrDie("deployment-controller"),
	)
	if err != nil {
		return nil, true, fmt.Errorf("error creating Deployment controller: %v", err)
    }
    //启动controller
	go dc.Run(int(ctx.ComponentConfig.DeploymentController.ConcurrentDeploymentSyncs), ctx.Stop)
	return nil, true, nil
}

//开始观察和同步
func (dc *DeploymentController) Run(workers int, stopCh <-chan struct{}) {
	defer utilruntime.HandleCrash()
	defer dc.queue.ShutDown()

	klog.Infof("Starting deployment controller")
	defer klog.Infof("Shutting down deployment controller")

    //等informer cache同步完成
	if !cache.WaitForNamedCacheSync("deployment", stopCh, dc.dListerSynced, dc.rsListerSynced, dc.podListerSynced) {
		return
	}

    //启动workers个goroutine，每一个都调用dc.worker
	for i := 0; i < workers; i++ {
		go wait.Until(dc.worker, time.Second, stopCh)
	}

	<-stopCh
}

//work又调用processNextWorkItem
func (dc *DeploymentController) worker() {
	for dc.processNextWorkItem() {
	}
}
//processNextWorkItem终于调用到正主syncHandler了
func (dc *DeploymentController) processNextWorkItem() bool {
	key, quit := dc.queue.Get()
	if quit {
		return false
	}
	defer dc.queue.Done(key)

	err := dc.syncHandler(key.(string))
	dc.handleErr(err, key)

	return true
}

然后线索在这里光荣的断了，看别人的帖子，人家的逻辑都是在都是在syncDeployment，然后仔细一看原来创建的时候有个这，dc.syncHandler = dc.syncDeployment，这个东西在NewDeploymentController里面，眼瞎啊我……按我简单粗暴的理解，就是syncDeployment等价于syncHandler，可以直接去看syncDeployment了

// NewDeploymentController creates a new DeploymentController.
func NewDeploymentController(dInformer appsinformers.DeploymentInformer, rsInformer appsinformers.ReplicaSetInformer, podInformer coreinformers.PodInformer, client clientset.Interface) (*DeploymentController, error) {
	eventBroadcaster := record.NewBroadcaster()
	eventBroadcaster.StartStructuredLogging(0)
	eventBroadcaster.StartRecordingToSink(&v1core.EventSinkImpl{Interface: client.CoreV1().Events("")})

	if client != nil && client.CoreV1().RESTClient().GetRateLimiter() != nil {
		if err := ratelimiter.RegisterMetricAndTrackRateLimiterUsage("deployment_controller", client.CoreV1().RESTClient().GetRateLimiter()); err != nil {
			return nil, err
		}
	}
	dc := &DeploymentController{
		client:        client,
		eventRecorder: eventBroadcaster.NewRecorder(scheme.Scheme, v1.EventSource{Component: "deployment-controller"}),
		queue:         workqueue.NewNamedRateLimitingQueue(workqueue.DefaultControllerRateLimiter(), "deployment"),
	}
	dc.rsControl = controller.RealRSControl{
		KubeClient: client,
		Recorder:   dc.eventRecorder,
	}

	dInformer.Informer().AddEventHandler(cache.ResourceEventHandlerFuncs{
		AddFunc:    dc.addDeployment,
		UpdateFunc: dc.updateDeployment,
		// This will enter the sync loop and no-op, because the deployment has been deleted from the store.
		DeleteFunc: dc.deleteDeployment,
	})
	rsInformer.Informer().AddEventHandler(cache.ResourceEventHandlerFuncs{
		AddFunc:    dc.addReplicaSet,
		UpdateFunc: dc.updateReplicaSet,
		DeleteFunc: dc.deleteReplicaSet,
	})
	podInformer.Informer().AddEventHandler(cache.ResourceEventHandlerFuncs{
		DeleteFunc: dc.deletePod,
	})
    //看我
	dc.syncHandler = dc.syncDeployment
	dc.enqueueDeployment = dc.enqueue

	dc.dLister = dInformer.Lister()
	dc.rsLister = rsInformer.Lister()
	dc.podLister = podInformer.Lister()
	dc.dListerSynced = dInformer.Informer().HasSynced
	dc.rsListerSynced = rsInformer.Informer().HasSynced
	dc.podListerSynced = podInformer.Informer().HasSynced
	return dc, nil
}

//
func (dc *DeploymentController) syncDeployment(key string) error {
	startTime := time.Now()
	klog.V(4).Infof("Started syncing deployment %q (%v)", key, startTime)
	defer func() {
		klog.V(4).Infof("Finished syncing deployment %q (%v)", key, time.Since(startTime))
	}()

	namespace, name, err := cache.SplitMetaNamespaceKey(key)
	if err != nil {
		return err
    }
    //获取deployment对象
	deployment, err := dc.dLister.Deployments(namespace).Get(name)
	if errors.IsNotFound(err) {
		klog.V(2).Infof("Deployment %v has been deleted", key)
		return nil
	}
	if err != nil {
		return err
	}

    //不深拷贝的话，会改缓存
	d := deployment.DeepCopy()
    //判断selecor是否为空
	everything := metav1.LabelSelector{}
	if reflect.DeepEqual(d.Spec.Selector, &everything) {
		dc.eventRecorder.Eventf(d, v1.EventTypeWarning, "SelectingAll", "This deployment is selecting all pods. A non-empty selector is required.")
		if d.Status.ObservedGeneration < d.Generation {
			d.Status.ObservedGeneration = d.Generation
			dc.client.AppsV1().Deployments(d.Namespace).UpdateStatus(context.TODO(), d, metav1.UpdateOptions{})
		}
		return nil
	}

    //列出这个deployment拥有的副本集rs，同时通过孤立的方式来协调ControllerRef。
    //（orphaning译过来就很魔性）,实际上就是通过 LabelSelector 进行匹配
	rsList, err := dc.getReplicaSetsForDeployment(d)
	if err != nil {
		return err
	}
    //列这个Deployment拥有的所有Pod，并按他的ReplicaSet分组(就是rs.UID)。podMap的当前用法是：
    //*检查Pod是否正确用pod-template-hash标签标记。
    //*检查在重新创建部署的中间没有旧的Pod正在运行。
	podMap, err := dc.getPodMapForDeployment(d, rsList)
	if err != nil {
		return err
	}
    //如果这个deployment处于删除状态，会更新status
	if d.DeletionTimestamp != nil {
		return dc.syncStatusOnly(d, rsList)
	}

    //检查是否处于pause状态，确保恢复具有设置的progressDeadlineSeconds的Deployment时不会超时。
	if err = dc.checkPausedConditions(d); err != nil {
		return err
	}

	if d.Spec.Paused {
		return dc.sync(d, rsList)
    }
    //检查是否为回滚操作，如果副本集已经更新，就回滚不会重新进入
    //所以需要确保后续部署中的部署已清除其回退规范之前，不要继续更新副本集。
	if getRollbackTo(d) != nil {
		return dc.rollback(d, rsList)
	}
    //检查deployment是不是scale状态
	scalingEvent, err := dc.isScalingEvent(d, rsList)
	if err != nil {
		return err
	}
	if scalingEvent {
		return dc.sync(d, rsList)
	}
    //开始更新
	switch d.Spec.Strategy.Type {
	case apps.RecreateDeploymentStrategyType:
		return dc.rolloutRecreate(d, rsList, podMap)
	case apps.RollingUpdateDeploymentStrategyType:
		return dc.rolloutRolling(d, rsList)
	}
	return fmt.Errorf("unexpected deployment strategy type: %s", d.Spec.Strategy.Type)
}

syncDeployment函数集中了很多处理，从上往下执行最先检查的就是是不是删除(syncStatusOnly),然后是更新（checkPausedConditions检查Pause），然后是回滚(rollback),然后又是更新（检查是scale）然后是rollout更新(rolloutRecreate或者rolloutRolling)

//按照顺序先看删除，只要DeletionTimestamp不为空，就证明有删除调用
//删除的时候还需要rs,newrs的和oldes都要，都在rsList里面

	if d.DeletionTimestamp != nil {
		return dc.syncStatusOnly(d, rsList)
	}

// rsList在判断DeletionTimestamp是否为空之前就已经由getReplicaSetsForDeployment获取到了
rsList, err := dc.getReplicaSetsForDeployment(d)

后续的删除逻辑由syncStatusOnly函数接手，这个函数在kubernetes/pkg/controller/deployment/sync.go中

//syncStatusOnly仅更新部署状态，并且不执行任何更改操作。
func (dc *DeploymentController) syncStatusOnly(d *apps.Deployment, rsList []*apps.ReplicaSet) error {
	newRS, oldRSs, err := dc.getAllReplicaSetsAndSyncRevision(d, rsList, false)
	if err != nil {
		return err
	}

	allRSs := append(oldRSs, newRS)
	//调用syncDeploymentStatus通过allRSs和newRS比对计算出现在应有的状态，更新状态
	return dc.syncDeploymentStatus(allRSs, newRS, d)
}


// syncDeploymentStatus检查状态是否为最新，并在必要时进行同步
func (dc *DeploymentController) syncDeploymentStatus(allRSs []*apps.ReplicaSet, newRS *apps.ReplicaSet, d *apps.Deployment) error {

	//调用calculateStatus进行状态比对
	newStatus := calculateStatus(allRSs, newRS, d)

	if reflect.DeepEqual(d.Status, newStatus) {
		return nil
	}

	newDeployment := d
	newDeployment.Status = newStatus
	_, err := dc.client.AppsV1().Deployments(newDeployment.Namespace).UpdateStatus(context.TODO(), newDeployment, metav1.UpdateOptions{})
	return err
}

// computeStatus通过查看提供的副本集来计算提供的部署的最新状态。
func calculateStatus(allRSs []*apps.ReplicaSet, newRS *apps.ReplicaSet, deployment *apps.Deployment) apps.DeploymentStatus {
	availableReplicas := deploymentutil.GetAvailableReplicaCountForReplicaSets(allRSs)
	totalReplicas := deploymentutil.GetReplicaCountForReplicaSets(allRSs)
	unavailableReplicas := totalReplicas - availableReplicas
	//如果unavailableReplicas为负数，就意味着Deployment正在运行的可用副本超出了预期，
	//比如unavailableReplicas缩小缩太多或者误操作，这种时候直接将unavailableReplicas置为零。反正就是不能为负数
	if unavailableReplicas < 0 {
		unavailableReplicas = 0
	}

	status := apps.DeploymentStatus{
		//确保如果开始重试状态更新，不会获取新的Generation值。
		ObservedGeneration:  deployment.Generation,
		Replicas:            deploymentutil.GetActualReplicaCountForReplicaSets(allRSs),
		UpdatedReplicas:     deploymentutil.GetActualReplicaCountForReplicaSets([]*apps.ReplicaSet{newRS}),
		ReadyReplicas:       deploymentutil.GetReadyReplicaCountForReplicaSets(allRSs),
		AvailableReplicas:   availableReplicas,
		UnavailableReplicas: unavailableReplicas,
		CollisionCount:      deployment.Status.CollisionCount,
	}

	// 逐一复制条件，保证不会改变原始对象。
	conditions := deployment.Status.Conditions
	for i := range conditions {
		status.Conditions = append(status.Conditions, conditions[i])
	}

	if availableReplicas >= *(deployment.Spec.Replicas)-deploymentutil.MaxUnavailable(*deployment) {
		minAvailability := deploymentutil.NewDeploymentCondition(apps.DeploymentAvailable, v1.ConditionTrue, deploymentutil.MinimumReplicasAvailable, "Deployment has minimum availability.")
		deploymentutil.SetDeploymentCondition(&status, *minAvailability)
	} else {
		noMinAvailability := deploymentutil.NewDeploymentCondition(apps.DeploymentAvailable, v1.ConditionFalse, deploymentutil.MinimumReplicasUnavailable, "Deployment does not have minimum availability.")
		deploymentutil.SetDeploymentCondition(&status, *noMinAvailability)
	}

	return status
}

deployment中关于pod的删除到这里就没有了，实际上对于deployment来说，删除pod就是变更了一次状态并同步，具体怎么删除不是deployment要管的事，deployment只需要把状态同步到位，会由kube-controller-manager交出去执行删除,deployment最主要的是关心状态变更及更新，然后看spec.paused

    // 检查pause，还有看一下是不是回滚，不是才可以暂停
    if d.Spec.Paused {
        return dc.sync(d, rsList)
    }
    if getRollbackTo(d) != nil {
        return dc.rollback(d, rsList)
    }

// sync负责协调扩展事件或暂停事件时的部署。
func (dc *DeploymentController) sync(d *apps.Deployment, rsList []*apps.ReplicaSet) error {

	//获取newRS和oldRSs
	newRS, oldRSs, err := dc.getAllReplicaSetsAndSyncRevision(d, rsList, false)
	if err != nil {
		return err
	}

	//根据newRS和oldRSs判断要不要scale
	if err := dc.scale(d, newRS, oldRSs); err != nil {
        //如果在尝试scale时遇到错误，将重新安排部署中止重新同步
		return err
	}

	//在暂停且没有回滚的情况下清理部署。
	if d.Spec.Paused && getRollbackTo(d) == nil {
		if err := dc.cleanupDeployment(oldRSs, d); err != nil {
			return err
		}
	}

	allRSs := append(oldRSs, newRS)
	//执行syncDeploymentStatus更新状态
	return dc.syncDeploymentStatus(allRSs, newRS, d)
}

因为暂停和恢复是配套使用的，所以scale（扩展）也在sync里面，而且scale还在Paused前面，所以scale的优先级高于Paused，也就是说如果如果你先更新再马上进行暂停，那实际上这一次更新也不会立马暂停，而是更新完后才暂停。so 小心一点。还有解释一下rs,deployment自己有一个.spec.revisionHistoryLimit参数会指定保留多少历史版本的revision，这个就是rs，接着看回滚


//从rollback开始调用回滚，实际上回滚也是依靠rs，所以也有rsList参数的传递，如果集群中的rs被删了，就没法回滚了
if getRollbackTo(d) != nil {
        return dc.rollback(d, rsList)
    }
//rollback函数在kubernetes/pkg/controller/deployment/rollback.go中
//rollback将部署回滚到指定版本
func (dc *DeploymentController) rollback(d *apps.Deployment, rsList []*apps.ReplicaSet) error {

	//获取 newRS和oldRSs
	newRS, allOldRSs, err := dc.getAllReplicaSetsAndSyncRevision(d, rsList, true)
	if err != nil {
		return err
	}

	allRSs := append(allOldRSs, newRS)

	//调用getRollbackTo获取这个rollback的rs
	rollbackTo := getRollbackTo(d)


	//如果这个rollback的rs为0，就直接回滚到上一个rs
	if rollbackTo.Revision == 0 {
		if rollbackTo.Revision = deploymentutil.LastRevision(allRSs); rollbackTo.Revision == 0 {
			//如果找不到最新的版本，就放弃回滚
			dc.emitRollbackWarningEvent(d, deploymentutil.RollbackRevisionNotFound, "Unable to find last revision.")
			//放弃回滚
			return dc.updateDeploymentAndClearRollbackTo(d)
		}
	}
	for _, rs := range allRSs {
		v, err := deploymentutil.Revision(rs)
		if err != nil {
			klog.V(4).Infof("Unable to extract revision from deployment's replica set %q: %v", rs.Name, err)
			continue
		}
		if v == rollbackTo.Revision {
			klog.V(4).Infof("Found replica set %q with desired revision %d", rs.Name, v)
		   //如果该rs与当前部署的podTemplate.Spec匹配，则通过复制rs中的podTemplate.Spec进行回滚将
		   //在下一次getAllReplicaSetsAndSyncRevision调用no-op期间递增。
			performedRollback, err := dc.rollbackToTemplate(d, rs)

			//调用rollbackToTemplate进行回滚操作
			if performedRollback && err == nil {
				dc.emitRollbackNormalEvent(d, fmt.Sprintf("Rolled back deployment %q to revision %d", d.Name, rollbackTo.Revision))
			}
			return err
		}
	}
	dc.emitRollbackWarningEvent(d, deploymentutil.RollbackRevisionNotFound, "Unable to find the revision to rollback to.")

	return dc.updateDeploymentAndClearRollbackTo(d)
}

//rollbackToTemplate提供比较的的deployment和replica set的模板，并在replica set模板不同的情况下
//使用replica set模板更新部署。并且清除回滚标志，因此deployment后续会重新排队而不是结束。
func (dc *DeploymentController) rollbackToTemplate(d *apps.Deployment, rs *apps.ReplicaSet) (bool, error) {
	performedRollback := false

	//比较d.Spec.Template和rs.Spec.Template是否相等
	if !deploymentutil.EqualIgnoreHash(&d.Spec.Template, &rs.Spec.Template) {
		klog.V(4).Infof("Rolling back deployment %q to template spec %+v", d.Name, rs.Spec.Template.Spec)

		//替换d.Spec.Template
		deploymentutil.SetFromReplicaSetTemplate(d, rs.Spec.Template)
		//将rs（将要回滚到的旧rs）注释设置回deployment,否则deployment的当前注释（应与当前新的rs相同）将在回滚后复制到rs。
		//比如，deployment中有具有注释{change-cause：create}的旧rs1，而新的rs2 {change-cause:edit}这两个注释都是从Deployment中复制的，并且Deployment也应注释为{change-cause：edit}。
		//现在，将Deployment回滚到rs1，所以应该更新Deployment的pod模板，并从rs1复制注释。
		//设置 annotation
		deploymentutil.SetDeploymentAnnotationsTo(d, rs)
		performedRollback = true
	} else {
		klog.V(4).Infof("Rolling back to a revision that contains the same template as current deployment %q, skipping rollback...", d.Name)
		eventMsg := fmt.Sprintf("The rollback revision contains the same template as current deployment %q", d.Name)
		dc.emitRollbackWarningEvent(d, deploymentutil.RollbackTemplateUnchanged, eventMsg)
	}
    //更新deployment并清除回滚标志
	return performedRollback, dc.updateDeploymentAndClearRollbackTo(d)
}

通过rollback的rs找到对应的rs，然后使用这个rs的rs.Spec.Template替换deployment.Spec.Template，deployment的rs状态变更完毕后，自会触发replicaSet和pod达到期望状态，这样就完成了回滚操作，所以实际上deployment还是只管状态变更

关于scale

// 使用给定的密钥同步部署
func (dc *DeploymentController) syncDeployment(key string) error {
	startTime := time.Now()
	klog.V(4).Infof("Started syncing deployment %q (%v)", key, startTime)
	defer func() {
		klog.V(4).Infof("Finished syncing deployment %q (%v)", key, time.Since(startTime))
	}()

	namespace, name, err := cache.SplitMetaNamespaceKey(key)
	if err != nil {
		return err
	}
	deployment, err := dc.dLister.Deployments(namespace).Get(name)
	if errors.IsNotFound(err) {
		klog.V(2).Infof("Deployment %v has been deleted", key)
		return nil
	}
	if err != nil {
		return err
	}

	d := deployment.DeepCopy()

	everything := metav1.LabelSelector{}
	if reflect.DeepEqual(d.Spec.Selector, &everything) {
		dc.eventRecorder.Eventf(d, v1.EventTypeWarning, "SelectingAll", "This deployment is selecting all pods. A non-empty selector is required.")
		if d.Status.ObservedGeneration < d.Generation {
			d.Status.ObservedGeneration = d.Generation
			dc.client.AppsV1().Deployments(d.Namespace).UpdateStatus(context.TODO(), d, metav1.UpdateOptions{})
		}
		return nil
	}


	//列出此部署拥有的副本集，同时通过adoption或者orphaning来协调ControllerRef。
	rsList, err := dc.getReplicaSetsForDeployment(d)
	if err != nil {
		return err
	}
	//列出此Deployment拥有的所有Pod，按照ReplicaSet进行分组。
	// 检查Pod是否正确用pod-template-hash标签标记。
	// 检查在重新创建部署的中间是否没有运行旧的Pod。
	podMap, err := dc.getPodMapForDeployment(d, rsList)
	if err != nil {
		return err
	}

	if d.DeletionTimestamp != nil {
		return dc.syncStatusOnly(d, rsList)
	}

	//暂停/恢复时更新部署条件，确保用户不会超时，使用已设置的progressDeadlineSeconds恢复部署。
	if err = dc.checkPausedConditions(d); err != nil {
		return err
	}

	if d.Spec.Paused {
		return dc.sync(d, rsList)
	}

	//如果基础副本集已使用新的更新更新，则不会重新进入回滚，所以必须确保在执行之前，不会继续更新副本集
	if getRollbackTo(d) != nil {
		return dc.rollback(d, rsList)
	}

    // 调用isScalingEvent进行scale操作
	scalingEvent, err := dc.isScalingEvent(d, rsList)
	if err != nil {
		return err
	}
	if scalingEvent {
		return dc.sync(d, rsList)
	}

	switch d.Spec.Strategy.Type {
	case apps.RecreateDeploymentStrategyType:
		return dc.rolloutRecreate(d, rsList, podMap)
	case apps.RollingUpdateDeploymentStrategyType:
		return dc.rolloutRolling(d, rsList)
	}
	return fmt.Errorf("unexpected deployment strategy type: %s", d.Spec.Strategy.Type)
}

isScalingEvent函数，主要负责

// 检查提供的部署是否已通过扩展事件更新（通过查看部署的活动副本集中的需要的副本注释）
func (dc *DeploymentController) isScalingEvent(d *apps.Deployment, rsList []*apps.ReplicaSet) (bool, error) {

	//获取所有 rs
	newRS, oldRSs, err := dc.getAllReplicaSetsAndSyncRevision(d, rsList, false)
	if err != nil {
		return false, err
	}

	allRSs := append(oldRSs, newRS)

	//过滤出 activeRS 并进行比较
	for _, rs := range controller.FilterActiveReplicaSets(allRSs) {

		//获取 rs annotation 中 deployment.kubernetes.io/desired-replicas 的值
		desired, ok := deploymentutil.GetDesiredReplicasAnnotation(rs)
		if !ok {
			continue
		}

		//判断是否需要 scale 操作
		if desired != *(d.Spec.Replicas) {
			return true, nil
		}
	}
	return false, nil
}

如果isScalingEvent判断确实需要scale操作时会调用sync,在sync方法中调用scale方法最终执行扩容操作

func (dc *DeploymentController) scale(deployment *apps.Deployment, newRS *apps.ReplicaSet, oldRSs []*apps.ReplicaSet) error {
	//如果只有一个活动副本集，则scale这个副本集到最大数量，如果没有活动的副本集，那就scale最新的副本集。

	if activeOrLatest := deploymentutil.FindActiveOrLatest(newRS, oldRSs); activeOrLatest != nil {
		if *(activeOrLatest.Spec.Replicas) == *(deployment.Spec.Replicas) {
			return nil
		}

		//只更新 rs annotation 以及为 deployment 设置 events
		_, _, err := dc.scaleReplicaSetAndRecordEvent(activeOrLatest, *(deployment.Spec.Replicas), deployment)
		return err
	}

	//如果新副本集已饱和，那么旧副本集应就完全scaleReplicaSetAndRecordEvent掉。

	if deploymentutil.IsSaturated(deployment, newRS) {
		for _, old := range controller.FilterActiveReplicaSets(oldRSs) {
			if _, _, err := dc.scaleReplicaSetAndRecordEvent(old, 0, deployment); err != nil {
				return err
			}
		}
		return nil
	}

	//有带有pod的旧副本集，然后新副本集未饱和。就按比例缩放所有副本集（新旧副本）
	//如果deployment的更新策略为滚动更新，需要按照比例分别对各个活跃的 rs 进行扩容或者缩容
	if deploymentutil.IsRollingUpdate(deployment) {
		allRSs := controller.FilterActiveReplicaSets(append(oldRSs, newRS))
		allRSsReplicas := deploymentutil.GetReplicaCountForReplicaSets(allRSs)

		allowedSize := int32(0)
		if *(deployment.Spec.Replicas) > 0 {
			//计算最大可以创建出的 pod 数
			allowedSize = *(deployment.Spec.Replicas) + deploymentutil.MaxSurge(*deployment)
		}

		//计算需要扩容的 pod 数
		deploymentReplicasToAdd := allowedSize - allRSsReplicas

		//其他副本应该在活动副本之间按比例分配，按照从大到小的顺序。如果大小相同先扩展较新的副本集，然后缩小时，先缩旧的副本集。
		var scalingOperation string
		switch {
		case deploymentReplicasToAdd > 0:
			sort.Sort(controller.ReplicaSetsBySizeNewer(allRSs))
			scalingOperation = "up"

		case deploymentReplicasToAdd < 0:
			sort.Sort(controller.ReplicaSetsBySizeOlder(allRSs))
			scalingOperation = "down"
		}

		//遍历所有活动副本集并估计每个副本集的比例。部署的绝对值绝对不能超过DeploymentReplicasToAdd的绝对值。
		deploymentReplicasAdded := int32(0)
		nameToSize := make(map[string]int32)
		for i := range allRSs {
			rs := allRSs[i]

			//如果要添加副本，需要重新估计比例，否则就只填充nameToSize以及每个副本集的当前大小。
			if deploymentReplicasToAdd != 0 {
				proportion := deploymentutil.GetProportion(rs, *deployment, deploymentReplicasToAdd, deploymentReplicasAdded)

				nameToSize[rs.Name] = *(rs.Spec.Replicas) + proportion
				deploymentReplicasAdded += proportion
			} else {
				nameToSize[rs.Name] = *(rs.Spec.Replicas)
			}
		}

		// 更新所有副本集
		for i := range allRSs {
			rs := allRSs[i]

			// 将剩余的内容添加/删除到最大副本集。
			if i == 0 && deploymentReplicasToAdd != 0 {
				leftover := deploymentReplicasToAdd - deploymentReplicasAdded
				nameToSize[rs.Name] = nameToSize[rs.Name] + leftover
				if nameToSize[rs.Name] < 0 {
					nameToSize[rs.Name] = 0
				}
			}

			if _, _, err := dc.scaleReplicaSet(rs, nameToSize[rs.Name], deployment, scalingOperation); err != nil {
				// 失败后立即返回，重新安排部署
				return err
			}
		}
	}
	return nil
}

syncDeployment判断是rolloutRecreate还是rolloutRolling，如果策略是rolloutRolling（滚动更新）

func (dc *DeploymentController) syncDeployment(key string) error {
    ......
    switch d.Spec.Strategy.Type {
	case apps.RecreateDeploymentStrategyType:
	    //调用rolloutRecreate执行更新
        return dc.rolloutRecreate(d, rsList, podMap)
    case apps.RollingUpdateDeploymentStrategyType:
        // 调用rolloutRolling执行更新
        return dc.rolloutRolling(d, rsList)
    }
    ......
}

rolloutRolling函数

func (dc *DeploymentController) rolloutRolling(d *apps.Deployment, rsList []*apps.ReplicaSet) error {
	//获取所有的 rs，如果没有newRS就创建一个
	newRS, oldRSs, err := dc.getAllReplicaSetsAndSyncRevision(d, rsList, true)
	if err != nil {
		return err
	}
	allRSs := append(oldRSs, newRS)

	// 执行scale up操作
	scaledUp, err := dc.reconcileNewReplicaSet(allRSs, newRS, d)
	if err != nil {
		return err
	}
	if scaledUp {
		return dc.syncRolloutStatus(allRSs, newRS, d)
	}

	// 执行scale down操作
	scaledDown, err := dc.reconcileOldReplicaSets(allRSs, controller.FilterActiveReplicaSets(oldRSs), newRS, d)
	if err != nil {
		return err
	}
	if scaledDown {
		return dc.syncRolloutStatus(allRSs, newRS, d)
	}

	//清理过期的 rs
	if deploymentutil.DeploymentComplete(d, &d.Status) {
		if err := dc.cleanupDeployment(oldRSs, d); err != nil {
			return err
		}
	}

	//同步deployment status
	return dc.syncRolloutStatus(allRSs, newRS, d)
}

其中scale up操作由reconcileNewReplicaSet函数完成


func (dc *DeploymentController) reconcileNewReplicaSet(allRSs []*apps.ReplicaSet, newRS *apps.ReplicaSet, deployment *apps.Deployment) (bool, error) {

	// 判断副本数是否已达到了期望值
	if *(newRS.Spec.Replicas) == *(deployment.Spec.Replicas) {
		// Scaling not required.
		return false, nil
	}

	//判断是否需要 scale down 操作
	if *(newRS.Spec.Replicas) > *(deployment.Spec.Replicas) {
		// Scale down.
		scaled, _, err := dc.scaleReplicaSetAndRecordEvent(newRS, *(deployment.Spec.Replicas), deployment)
		return scaled, err
	}

	//计算 newRS 所需要的副本数
	newReplicasCount, err := deploymentutil.NewRSNewReplicas(deployment, allRSs, newRS)
	if err != nil {
		return false, err
	}

	//如果需要 scale ，则更新rs的annotation以及rs.Spec.Replicas
	scaled, _, err := dc.scaleReplicaSetAndRecordEvent(newRS, newReplicasCount, deployment)
	return scaled, err
}

rolloutRecreate更新策略


// 重建式更新
func (dc *DeploymentController) rolloutRecreate(d *apps.Deployment, rsList []*apps.ReplicaSet, podMap map[types.UID][]*v1.Pod) error {
	//获取rs,如果不存在，也不要创建新的rs,免得影响大小，后面再建。
	newRS, oldRSs, err := dc.getAllReplicaSetsAndSyncRevision(d, rsList, false)
	if err != nil {
		return err
	}
	allRSs := append(oldRSs, newRS)
	activeOldRSs := controller.FilterActiveReplicaSets(oldRSs)

	// 缩容 oldRS
	scaledDown, err := dc.scaleDownOldReplicaSetsForRecreate(activeOldRSs, d)
	if err != nil {
		return err
	}
	if scaledDown {
		// Update DeploymentStatus.
		return dc.syncRolloutStatus(allRSs, newRS, d)
	}

	//确保deployment中已经没有旧的Pod正在运行时了
	if oldPodsRunning(newRS, oldRSs, podMap) {
		return dc.syncRolloutStatus(allRSs, newRS, d)
	}

	// 如果newRS为空，在这里就可以创建他了
	if newRS == nil {
		newRS, oldRSs, err = dc.getAllReplicaSetsAndSyncRevision(d, rsList, true)
		if err != nil {
			return err
		}
		allRSs = append(oldRSs, newRS)
	}

	// 扩容 newRS
	if _, err := dc.scaleUpNewReplicaSetForRecreate(newRS, d); err != nil {
		return err
	}

	//清理过期的rs
	if util.DeploymentComplete(d, &d.Status) {
		if err := dc.cleanupDeployment(oldRSs, d); err != nil {
			return err
		}
	}

	//同步deployment状态
	return dc.syncRolloutStatus(allRSs, newRS, d)
}

结束

tina_sprunt
关注
k8s视频教程入门到进阶（基于V1.19版本）.rar
04-06
6. **Controller Manager**：管理各种控制器，如ReplicaSet Controller、Node Controller等。 7. **Scheduler**：根据资源需求和策略将Pod调度到合适的Node上。 8. **Kubelet**：在每个Node上运行，负责维护Pod的...
controller-manager代码走读心得（deployment controller篇）
最新发布
qq_39523261的博客
08-03 1845
在这个过程中，我们使用kubectl describe命令，我们会发现YAML文件里面会多出一个Status的字段,这个字段就是代表着当前的对象实例的一个状态,而Spec字段就是我预期的一个状态。API Server的话是用来去读取资源对象的一个期望状态和当前状态，然后我们比较两者的一个差异，然后在控制器当中去操作这些资源对象，将这个资源对象的一个真实状态修正为Spec中的定义的期望状态。当这个执行完成之后，我们再将结果返回到API Server的一个目标资源对象的一个Status字段中。
deployment controller
weixin_42609341的博客
02-15 202
deployment 的本质是控制 replicaSet，replicaSet 会控制 pod，然后由 controller 驱动各个对象达到期望状态。DeploymentController 是 Deployment 资源的控制器，其通过 DeploymentInformer、ReplicaSetInformer、PodInformer 监听三种资源，当三种资源变化时会触发 DeploymentController 中的 syncLoop 操作。
kube-controller-manager源码分析（二）之 DeploymentController
胡伟煌的博客
07-15 873
本文个人博客地址：https://www.huweihuang.com/kubernetes-notes/code-analysis/kube-controller-manager/deployment-controller.html kube-controller-manager源码分析（二）之 DeploymentController 以下代码分析基于 kubernetes v1.12....
【kubernetes/k8s源码分析】 controller-manager之deployment源码分析
zhonglinzhang
10-08 4281
Deployment是什么？ Deployment为Pod和Replica Set提供声明式更新，Deployment controller就会将Pod和Replica Set的实际状态改变到目标状态。 使用Deployment来创建ReplicaSet。ReplicaSet在后台创建pod。检查状态，通过更新Deployment的PodTemplateSpec字段来声明Pod的...
提升用户体验：Android Loader View 开源库推荐
gitblog_00076的博客
04-08 472
提升用户体验：Android Loader View 开源库推荐 loaderviewlibrary Library that enables TextView of ImageView to show loading animation while waiting for the text and image get ...
Kubeadm安装k8s高可用集群1.18.x实战
悦分享
01-27 169
更改metrics的部署文件证书，将metrics-server-3.6.1/metrics-server-deployment.yaml的front-proxy-ca.pem改为front-proxy-ca.crt。如果ping不通且telnet没有出现 ]，则认为VIP不可以，不可在继续往下执行，需要排查keepalived的问题，比如防火墙和selinux，haproxy和keepalived的状态，监听端口等。VIP（虚拟IP）不要和公司内网IP重复，首先去ping一下，不通才可用。
Kubernetes基础入门（完整版）
starsray的博客
07-01 9723
简介 Kubernetes这个名字源于希腊语，意为"舵手"或"飞行员”。k8s这个缩写是因为k和s之间有八个字符。Google在 2014年开源了Kubernetes项目，Kubernetes是一个用于自动化部署、扩展和管理容器化应用程序的开源系统。同样类似的容器编排工具还有docker swarm/mesos等，但kubernetes应用最为广泛，社区更为活跃。 kubernetes主要包含了...
GitOps 应用实践系列 - Flux CD 及其核心组件
k8s 生态
11-02 3256
大家好，我是张晋涛。经过前面三篇文章，不仅为大家介绍了什么是 GitOps 也介绍了如何利用 Argo CD 来实施 GitOps。本篇我来为你介绍另一个可用于实施 GitOps 的工具：...
Java Web从入门到实战
Bejpse的博客
08-01 1545
操作系统：管理计算机硬件与软件资源的计算机程序，同时也是计算机系统的内核与基石。主流操作系统Linux发展历程Linux特点Linux与其它操作系统的区别Linux发行商和常见发行版先安装虚拟机，再安装CentosVmware简介Vmware下载：https://www.vmware.com/cn.htmlCentOS镜像下载：https://www.centos.org/download/ 高速下载地址简介：SecureCRT是一款支持SSH（SSH1和SSH2）的终端仿真程序，简单地说是Windows下
(3)：Controller之deployment解析
吾辈当自强
07-24 282
Controller（控制器）：k8s集群中，管理和运行容器的对象。也被叫做工作负载（workload）。 Pod和Controller的关系：Pod通过Controller来实现应用的运维，如伸缩、滚动升级。两者之间通过label标签来建立关系。 Deployment控制器应用场景 yaml文件字段说明 Deployment控制器部署应用 升级回滚 弹性伸缩 ...
架构师系列-k8s（四）-Deployment控制器
dengwei_dw的专栏
04-27 1291
Deployment为Pod和Replica Set（下一代Replication Controller）提供声明式更新只需要在 Deployment 中描述想要的目标状态是什么，Deployment controller 就会帮您将 Pod 和ReplicaSet 的实际状态改变到您的目标状态，也可以定义一个全新的 Deployment 来创建 ReplicaSet 或者删除已有的 Deployment 并创建一个新的来替换。
Deployment Controller详解（上）
程序员溪昂
12-22 1409
Deployment 为 Pod 和 Replica Set（下一代 Replication Controller）提供声明式更新。只需要在 Deployment 中描述您想要的目标状态是什么，Deployment controller 就会帮您将 Pod 和 ReplicaSet 的实际状态改变到您的目标状态。您可以定义一个全新的 Deployment 来创建 ReplicaSet 或者删除已有的 Deployment 并创建一个新的来替换。
kubernetes进阶之路（三）~~~Controller系列之Deployment
qq_33996921的博客
12-27 428
官网：https://kubernetes.io/docs/concepts/workloads/controllers/deployment/ A Deployment provides declarative updates for Pods and ReplicaSets. You describe a desired state in a Deployment, and the Dep...
老卫带你学---K8S源码剖析（Deployment是如何进行SyncStatus）
老卫带你学
03-31 400
deployment在progessing过程中，需要不断的同步状态，那整个过程是如何实现的呢？
k8s deployment controller源码分析
良凯尔的博客
09-25 604
deployment controller是kube-controller-manager组件中众多控制器中的一个，是 deployment 资源对象的控制器，其通过对deployment、replicaset、pod三种资源的监听，当三种资源发生变化时会触发 deployment controller 对相应的deployment资源进行调谐操作，从而完成deployment的扩缩容、暂停恢复、更新、回滚、状态status更新、所属的旧replicaset清理等操作。
图解 Deployment Controller 工作流程
k8s 生态
07-20 952
本文基于对 Kubernetes v1.16 的源码阅读，通过流程图描述 Deployment Controller 的工作流程，但也包含相关代码以供参考。上一篇文章《Kubernetes...
controller-manager学习三部曲之三：deployment的controller启动分析
程序员欣宸的博客
02-13 1300
了解deployment的controller是如何通过controller-manager创建和启动的，并且创建和启动具体都做了些什么
Kubernetes源码学习-Controller-P3-Controller分类与Deployment Controller
ywq935的博客
01-31 431
P3-Controller分类与Deployment Controller 前言 Controller部分的第一篇文章中，我们从cobra启动命令入口开始，进入到了多实例leader选举部分的代码，对leader选举流程做了详细地分析： Controller-P1-多实例leader选举 接着在第二篇中，文字和图解简单描述了controller是如何结合client-go模块中的informer工...
Sealos封装Kubernetes版本1.18.20安装包发布
通过复制集（ReplicaSet）、部署（Deployment）等资源，Kubernetes能够实现应用的高可用性、弹性伸缩和滚动更新。 Kubernetes具有以下核心特性： - 自我修复：当节点故障时，自动重新启动容器。 - 水平扩展：...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
