AndroidQ 分屏窗口模式 (AMS部分)

1. 多窗口

1.1 栈

Android7.0开始支持多窗口，多窗口分为三种，画中画，分屏，自由窗口，多窗口的核心原理其实就是分栈和设置栈边界，

分栈即把不同窗口模式下的Activity放在不同的ActivityStack中，Android7.0为区分不同ActivityStack定义了不同stackId：

        /** First static stack ID. */
        public static final int FIRST_STATIC_STACK_ID = 0;

        /** Home activity stack ID. */
        public static final int HOME_STACK_ID = FIRST_STATIC_STACK_ID;

        /** ID of stack where fullscreen activities are normally launched into. */
        public static final int FULLSCREEN_WORKSPACE_STACK_ID = 1;

        /** ID of stack where freeform/resized activities are normally launched into. */
        public static final int FREEFORM_WORKSPACE_STACK_ID = FULLSCREEN_WORKSPACE_STACK_ID + 1;

        /** ID of stack that occupies a dedicated region of the screen. */
        public static final int DOCKED_STACK_ID = FREEFORM_WORKSPACE_STACK_ID + 1;

        /** ID of stack that always on top (always visible) when it exist. */
        public static final int PINNED_STACK_ID = DOCKED_STACK_ID + 1;

但在Android10.0中已经不是用stackId来分栈了，而是使用ActivityStack父类提供的getWindowingMode()方法来获取窗口模式进而区分不同ActivityStack，具体的windowingMode定义在WindowConfiguration中：

 /** Windowing mode is currently not defined. */
    public static final int WINDOWING_MODE_UNDEFINED = 0;

    //普通全屏窗口
    public static final int WINDOWING_MODE_FULLSCREEN = 1;
    //画中画
    public static final int WINDOWING_MODE_PINNED = 2;
    //分屏主窗口
    public static final int WINDOWING_MODE_SPLIT_SCREEN_PRIMARY = 3;
    //分屏副窗口
    public static final int WINDOWING_MODE_SPLIT_SCREEN_SECONDARY = 4;
    /**
     * Alias for {@link #WINDOWING_MODE_SPLIT_SCREEN_SECONDARY} that makes it clear that the usage
     * points for APIs like {@link ActivityOptions#setLaunchWindowingMode(int)} that the container
     * will launch into fullscreen or split-screen secondary depending on if the device is currently
     * in fullscreen mode or split-screen mode.
     */
    public static final int WINDOWING_MODE_FULLSCREEN_OR_SPLIT_SCREEN_SECONDARY =
            WINDOWING_MODE_SPLIT_SCREEN_SECONDARY;
    //自有窗口
    public static final int WINDOWING_MODE_FREEFORM = 5;

1.2 Android对Activity的组织方式

Android对Activity的组织方式通过容器分级存储，容器分为AMS侧和WMS侧，AMS这边顶级容器为ConfigurationContainer，WMS这边顶级容器可以简单认为是WindowContainer（WindowContainer其实也是继承ConfigurationContainer的），接着AMS这边依次为：

ActivityDisplay->ActivityStack->TaskRecord->ActivityRecord

WMS这边仅针对Activity这种类型窗口来说也可以依次分为：

DisplayContent（TaskStackContainer）->TaskStack->Task->AppWindowToken

这种分级存储有利于对Activity的管理，AMS这边管理的是Activity，WMS这边管理的是Window.

1.2 栈边界

不同的窗口模式有不同的ActivityStack，而不同的ActivityStack有自己的边界，ActivityStack中的Activity只能显示在ActivityStack边界内，所以只要设置好ActivityStack的边界，其内部的Activity大小就确定了，设置边界的核心是setBounds方法：

  //  ActivityStack.java
  @Override
    public int setBounds(Rect bounds) {
        return super.setBounds(!inMultiWindowMode() ? null : bounds);
    }

可以看到在设置ActivityStack栈边界时会有判断，只有当前ActivityStack处于多窗口模式时才能设置边界：

   //ConfigurationContainer.java

     /**
     * Returns true if this container is currently in multi-window mode. I.e. sharing the screen
     * with another activity.
     */
    public boolean inMultiWindowMode() {
        /*@WindowConfiguration.WindowingMode*/ int windowingMode =
                mFullConfiguration.windowConfiguration.getWindowingMode();
        return windowingMode != WINDOWING_MODE_FULLSCREEN
                && windowingMode != WINDOWING_MODE_UNDEFINED;
    }

2. 分屏模式

2.1 进入分屏

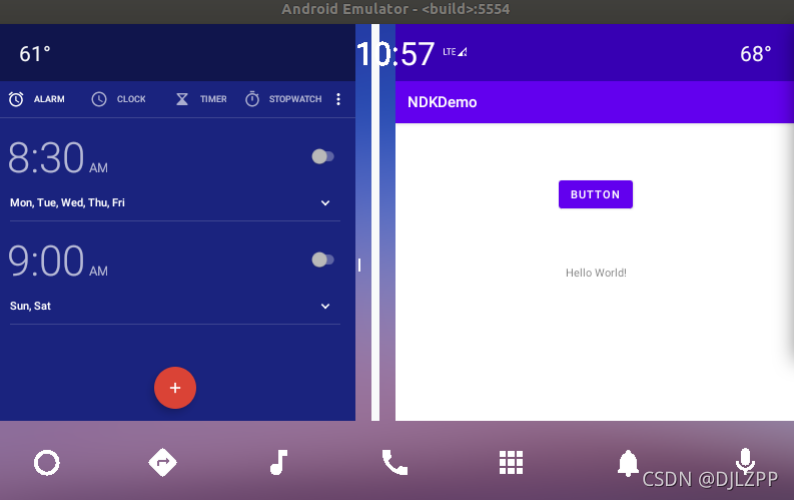

Android原生的分屏入口在SystemUI的最近任务界面，对于车机来说没有最近任务界面，但其实要进去分屏模式非常简单，前面说了多窗口核心原理其实就是分栈和设置栈边界，所以要进去分屏只需要将当前应用所在的ActivityStack设置为分屏的栈，即设置其windowmode为WINDOWING_MODE_SPLIT_SCREEN_PRIMARY，然后设置其分屏之后的栈的边界就行了，核心方法两个，ActivityTaskManagerService中的setTaskWindowingModeSplitScreenPrimary和resizeDockedStack，这两个方法是支持Binder调用的，SystemUI就是用的这两个方法，我这边直接在Framework中调用之后测试结果如下：

很简单就实现了分屏。

2.2 设置分屏模式

 /**
 参数：
 taskId：进入分屏的Activity所在的task的ID
 createMode：进入分屏的Activity显示在上面还是下面，如果是横屏则是左边或者右边
 initialBounds：进入分屏的Activity的大小
 toTop：进入分屏的Activity是否移动到顶部
 */
 @Override
    public boolean setTaskWindowingModeSplitScreenPrimary(int taskId, int createMode,
            boolean toTop, boolean animate, Rect initialBounds, boolean showRecents) {
        enforceCallerIsRecentsOrHasPermission(MANAGE_ACTIVITY_STACKS,
                "setTaskWindowingModeSplitScreenPrimary()");
        synchronized (mGlobalLock) {
            final long ident = Binder.clearCallingIdentity();
            try {
                //根据taskId拿到TaskRecord
                final TaskRecord task = mRootActivityContainer.anyTaskForId(taskId,
                        MATCH_TASK_IN_STACKS_ONLY);
                if (task == null) {
                    Slog.w(TAG, "setTaskWindowingModeSplitScreenPrimary: No task for id=" + taskId);
                    return false;
                }
                if (DEBUG_STACK) Slog.d(TAG_STACK,
                        "setTaskWindowingModeSplitScreenPrimary: moving task=" + taskId
                                + " to createMode=" + createMode + " toTop=" + toTop);
                if (!task.isActivityTypeStandardOrUndefined()) {
                    throw new IllegalArgumentException("setTaskWindowingMode: Attempt to move"
                            + " non-standard task " + taskId + " to split-screen windowing mode");
                }

                mWindowManager.setDockedStackCreateState(createMode, initialBounds);
                final int windowingMode = task.getWindowingMode();
                final ActivityStack stack = task.getStack();

                if (toTop) {
                    //将Activity所在的task所在的ActivityStack移到最顶部
                    stack.moveToFront("setTaskWindowingModeSplitScreenPrimary", task);
                }
                //核心：设置当前ActivityStack的windowMode为WINDOWING_MODE_SPLIT_SCREEN_PRIMARY
                //这里进入分屏的应用并不会新建栈，而是复用当前栈，然后修改栈的windowMode就行了，对比画中画
                //和自由窗口是不一样的。
                stack.setWindowingMode(WINDOWING_MODE_SPLIT_SCREEN_PRIMARY, animate, showRecents,
                        false /* enteringSplitScreenMode */, false /* deferEnsuringVisibility */,
                        false /* creating */);
                return windowingMode != task.getWindowingMode();
            } finally {
                Binder.restoreCallingIdentity(ident);
            }
        }
    }

setTaskWindowingModeSplitScreenPrimary方法核心其实就是将当前要进入分屏的应用所在的ActivityStack的windowMode修改为WINDOWING_MODE_SPLIT_SCREEN_PRIMARY，修改了模式后面在设置栈边界时才能生效。

2.3 设置栈边界

    @Override
    public void resizeDockedStack(Rect dockedBounds, Rect tempDockedTaskBounds,
            Rect tempDockedTaskInsetBounds,
            Rect tempOtherTaskBounds, Rect tempOtherTaskInsetBounds) {
        enforceCallerIsRecentsOrHasPermission(MANAGE_ACTIVITY_STACKS, "resizeDockedStack()");
        long ident = Binder.clearCallingIdentity();
        try {
            synchronized (mGlobalLock) {
                mStackSupervisor.resizeDockedStackLocked(dockedBounds, tempDockedTaskBounds,
                        tempDockedTaskInsetBounds, tempOtherTaskBounds, tempOtherTaskInsetBounds,
                        PRESERVE_WINDOWS);
            }
        } finally {
            Binder.restoreCallingIdentity(ident);
        }
    }

ActivityStackSupervisor.resizeDockedStackLocked：

  void resizeDockedStackLocked(Rect dockedBounds, Rect tempDockedTaskBounds,
            Rect tempDockedTaskInsetBounds, Rect tempOtherTaskBounds, Rect tempOtherTaskInsetBounds,
            boolean preserveWindows) {
        resizeDockedStackLocked(dockedBounds, tempDockedTaskBounds, tempDockedTaskInsetBounds,
                tempOtherTaskBounds, tempOtherTaskInsetBounds, preserveWindows,
                false /* deferResume */);
    }

resizeDockedStackLocked：

void resizeDockedStackLocked(Rect dockedBounds, Rect tempDockedTaskBounds,
            Rect tempDockedTaskInsetBounds, Rect tempOtherTaskBounds, Rect tempOtherTaskInsetBounds,
            boolean preserveWindows, boolean deferResume) {
      //是否允许StackResize
        if (!mAllowDockedStackResize) {
            // Docked stack resize currently disabled.
            return;
        }
       //获取当前系统中处于分屏模式的ActivityStack
        final ActivityStack stack =
                mRootActivityContainer.getDefaultDisplay().getSplitScreenPrimaryStack();
        if (stack == null) {
            Slog.w(TAG, "resizeDockedStackLocked: docked stack not found");
            return;
        }

        if (mDockedStackResizing) {
            mHasPendingDockedBounds = true;
            mPendingDockedBounds = copyOrNull(dockedBounds);
            mPendingTempDockedTaskBounds = copyOrNull(tempDockedTaskBounds);
            mPendingTempDockedTaskInsetBounds = copyOrNull(tempDockedTaskInsetBounds);
            mPendingTempOtherTaskBounds = copyOrNull(tempOtherTaskBounds);
            mPendingTempOtherTaskInsetBounds = copyOrNull(tempOtherTaskInsetBounds);
        }

        Trace.traceBegin(TRACE_TAG_ACTIVITY_MANAGER, "am.resizeDockedStack");
       //通知WMS延迟布局
        mWindowManager.deferSurfaceLayout();
        try {
            // 防止重复调用
            mAllowDockedStackResize = false;
            //获取分屏ActivityStack中的顶部Activity
            ActivityRecord r = stack.topRunningActivityLocked();
            //设置ActivityStack大小
            stack.resize(dockedBounds, tempDockedTaskBounds, tempDockedTaskInsetBounds);

            if (stack.getWindowingMode() == WINDOWING_MODE_FULLSCREEN
                    || (dockedBounds == null && !stack.isAttached())) {
                moveTasksToFullscreenStackLocked(stack, ON_TOP);

                // stack shouldn't contain anymore activities, so nothing to resume.
                r = null;
            } else {
                //遍历Display下所有ActivityStack，
                final ActivityDisplay display = mRootActivityContainer.getDefaultDisplay();
                final Rect otherTaskRect = new Rect();
                for (int i = display.getChildCount() - 1; i >= 0; --i) {
                    final ActivityStack current = display.getChildAt(i);
                    if (!current.inSplitScreenSecondaryWindowingMode()) {
                        continue;
                    }
                    if (!current.affectedBySplitScreenResize()) {
                        continue;
                    }
                    if (mDockedStackResizing && !current.isTopActivityVisible()) {
                        // Non-visible stacks get resized once we're done with the resize
                        // interaction.
                        continue;
                    }
                    //对分屏副窗口计算大小以及位置，位置分为上下，横屏为左右
                    current.getStackDockedModeBounds(dockedBounds,
                            tempOtherTaskBounds /* currentTempTaskBounds */,
                            tempRect /* outStackBounds */,
                            otherTaskRect /* outTempTaskBounds */);

                    mRootActivityContainer.resizeStack(current,
                            !tempRect.isEmpty() ? tempRect : null,
                            !otherTaskRect.isEmpty() ? otherTaskRect : tempOtherTaskBounds,
                            tempOtherTaskInsetBounds, preserveWindows,
                            true /* allowResizeInDockedMode */, deferResume);
                }
            }
            if (!deferResume) {
                stack.ensureVisibleActivitiesConfigurationLocked(r, preserveWindows);
            }
        } finally {
            mAllowDockedStackResize = true;
            mWindowManager.continueSurfaceLayout();
            Trace.traceEnd(TRACE_TAG_ACTIVITY_MANAGER);
        }
    }

重点看分屏副窗口的大小计算，分屏主窗口大小一般由调用者提供，

getStackDockedModeBounds：

void getStackDockedModeBounds(Rect dockedBounds, Rect currentTempTaskBounds,
            Rect outStackBounds, Rect outTempTaskBounds) {
        if (mTaskStack != null) {
            mTaskStack.getStackDockedModeBoundsLocked(getParent().getConfiguration(), dockedBounds,
                    currentTempTaskBounds, outStackBounds, outTempTaskBounds);
        } else {
            outStackBounds.setEmpty();
            outTempTaskBounds.setEmpty();
        }
    }

TaskStack.getStackDockedModeBoundsLocked：

void getStackDockedModeBoundsLocked(Configuration parentConfig, Rect dockedBounds,
            Rect currentTempTaskBounds, Rect outStackBounds, Rect outTempTaskBounds) {
        outTempTaskBounds.setEmpty();

        if (dockedBounds == null || dockedBounds.isEmpty()) {
            // Calculate the primary docked bounds.
            final boolean dockedOnTopOrLeft = mWmService.mDockedStackCreateMode
                    == SPLIT_SCREEN_CREATE_MODE_TOP_OR_LEFT;
            getStackDockedModeBounds(parentConfig,
                    true /* primary */, outStackBounds, dockedBounds,
                    mDisplayContent.mDividerControllerLocked.getContentWidth(), dockedOnTopOrLeft);
            return;
        }
       //计算分屏副窗口的位置，上或者下，横屏左或者右，计算规则比较简单，首先判断当前设备处于横屏还是竖屏，
       //横屏则比较屏幕和分屏主窗口x坐标，竖屏则比较屏幕和分屏主窗口y坐标
        final int dockedSide = getDockSide(parentConfig, dockedBounds);

        ......

        final boolean dockedOnTopOrLeft = dockedSide == DOCKED_TOP || dockedSide == DOCKED_LEFT;
        //计算分屏副窗口边界大小
        getStackDockedModeBounds(parentConfig,
                false /* primary */, outStackBounds, dockedBounds,
                mDisplayContent.mDividerControllerLocked.getContentWidth(), dockedOnTopOrLeft);
    }

计算分屏副窗口边界方法getStackDockedModeBounds中传了个很重要的参数， mDisplayContent.mDividerControllerLocked.getContentWidth()这个参数得到的是分屏中间的DividerView的宽度，就是那条分割屏幕的线，由下面方法计算得到：

 int getContentWidth() {
        return mDividerWindowWidth - 2 * mDividerInsets;
    }

mDividerWindowWidth = context.getResources().getDimensionPixelSize(
        com.android.internal.R.dimen.docked_stack_divider_thickness);
 mDividerInsets = context.getResources().getDimensionPixelSize(
                com.android.internal.R.dimen.docked_stack_divider_insets);


mDividerWindowWidth和mDividerInsets定义在frameworks/base/core/res/res/values/dimens.xml中，调整DividerView的宽度测试效果如下：

TaskStack.getStackDockedModeBounds：

private void getStackDockedModeBounds(Configuration parentConfig, boolean primary,
            Rect outBounds, Rect dockedBounds, int dockDividerWidth,
            boolean dockOnTopOrLeft) {
       //参数parentConfig是Display的配置，所以这里getBounds得到的是屏幕的边界（Rect(400, 0 - 800, 400)）
        final Rect displayRect = parentConfig.windowConfiguration.getBounds();
      //是否水平分屏
        final boolean splitHorizontally = displayRect.width() > displayRect.height();

        outBounds.set(displayRect);
     //分屏主窗口
        if (primary) {
            ......
            return;
        }

        // 分屏主窗口不在上或者左，
        if (!dockOnTopOrLeft) {
            //横屏分屏
            if (splitHorizontally) {
                //分屏副窗口right = 分屏主窗口的left减去分屏分割线的宽度
                outBounds.right = dockedBounds.left - dockDividerWidth;
            } else {//竖屏分屏
                //分屏副窗口bottom = 分屏主窗口的top减去分屏分割线的宽度
                outBounds.bottom = dockedBounds.top - dockDividerWidth;
            }
        } else {//分屏主窗口在上或者左，计算方法类似
            if (splitHorizontally) {
                outBounds.left = dockedBounds.right + dockDividerWidth;
            } else {
                outBounds.top = dockedBounds.bottom + dockDividerWidth;
            }
        }
     //确认计算得到的边界是有效的
        DockedDividerUtils.sanitizeStackBounds(outBounds, !dockOnTopOrLeft);
    }

分屏副窗口的边界计算很简单，核心就是分屏主窗口与分屏分割线做加减。

分屏副窗口边界计算完成之后，会调用RootActivityContainer的resizeStack方法设置边界：

RootActivityContainer.resizeStack：

void resizeStack(ActivityStack stack, Rect bounds, Rect tempTaskBounds,
            Rect tempTaskInsetBounds, boolean preserveWindows, boolean allowResizeInDockedMode,
            boolean deferResume) {
        //stack是否是分屏主窗口
        if (stack.inSplitScreenPrimaryWindowingMode()) {
            mStackSupervisor.resizeDockedStackLocked(bounds, tempTaskBounds,
                    tempTaskInsetBounds, null, null, preserveWindows, deferResume);
            return;
        }
      //系统当前是否存在分屏栈
        final boolean splitScreenActive = getDefaultDisplay().hasSplitScreenPrimaryStack();
    //基本判断，是否允许栈Resize
        if (!allowResizeInDockedMode
                && !stack.getWindowConfiguration().tasksAreFloating() && splitScreenActive) {

            return;
        }

        //延迟布局
        mWindowManager.deferSurfaceLayout();
        try {

            if (stack.affectedBySplitScreenResize()) {
                if (bounds == null && stack.inSplitScreenWindowingMode()) {
                    // 计算出来的分屏副窗口边界为空的情况则将分屏副窗口所在的栈windowMode设置为WINDOWING_MODE_FULLSCREEN
                    stack.setWindowingMode(WINDOWING_MODE_FULLSCREEN);
                } else if (splitScreenActive) {
                    //当前处于分屏状态则将分屏副窗口的windowMode设置为WINDOWING_MODE_SPLIT_SCREEN_SECONDARY
                    stack.setWindowingMode(WINDOWING_MODE_SPLIT_SCREEN_SECONDARY);
                }
            }
            //将之前计算出来的分屏副窗口边界保存下来，Rect(0, 0 - 360, 480)
            stack.resize(bounds, tempTaskBounds, tempTaskInsetBounds);
            if (!deferResume) {
                stack.ensureVisibleActivitiesConfigurationLocked(
                        stack.topRunningActivityLocked(), preserveWindows);
            }
        } finally {
            mWindowManager.continueSurfaceLayout();
            Trace.traceEnd(TRACE_TAG_ACTIVITY_MANAGER);
        }
    }

ActivityStack.resize：

 void resize(Rect bounds, Rect tempTaskBounds, Rect tempTaskInsetBounds) {
        if (!updateBoundsAllowed(bounds)) {
            return;
        }

        // Update override configurations of all tasks in the stack.
        final Rect taskBounds = tempTaskBounds != null ? tempTaskBounds : bounds;

        for (int i = mTaskHistory.size() - 1; i >= 0; i--) {
            final TaskRecord task = mTaskHistory.get(i);
            if (task.isResizeable()) {

                task.updateOverrideConfiguration(taskBounds, tempTaskInsetBounds);
            }
        }
      //核心：保存栈的边界
        setBounds(bounds);
    }

setBounds是AMS和WMS容器的顶级父类ConfigurationContainer中的方法，最终的边界值会保存到WindowConfiguration中，从类名可以看出来这个类其实是来存储窗口的配置信息的，包括之前的WindowMode也是保存在这里。

2.4 分屏Activity Resume

分屏主窗口和分屏副窗口的边界计算完成之后，会更新分屏主窗口Activity的Configuration，然后让分屏主窗口所在的栈的顶部Activity resume，重点看resume部分：

RootActivityContainer.resumeFocusedStacksTopActivities：

//分屏流程上调这个方法时传的三个参数都为null
boolean resumeFocusedStacksTopActivities(
            ActivityStack targetStack, ActivityRecord target, ActivityOptions targetOptions) {
        //targetStack == null,  target == null,   targetOptions == null

        // .....

       //遍历所有Display
        for (int displayNdx = mActivityDisplays.size() - 1; displayNdx >= 0; --displayNdx) {
            boolean resumedOnDisplay = false;
            final ActivityDisplay display = mActivityDisplays.get(displayNdx);
            //遍历所有ActivityStack
            for (int stackNdx = display.getChildCount() - 1; stackNdx >= 0; --stackNdx) {
                final ActivityStack stack = display.getChildAt(stackNdx);
                //每个ActivityStack中的顶部正在运行着的Activity
                final ActivityRecord topRunningActivity = stack.topRunningActivityLocked();
                //isFocusableAndVisible方法返回栈顶部Activity可见并且有焦点
                if (!stack.isFocusableAndVisible() || topRunningActivity == null) {
                    continue;
                }

                if (stack == targetStack) {

                    resumedOnDisplay |= result;
                    continue;
                }
                //分屏主窗口的栈是否在Display顶部 并且 其栈顶部的Activity是否已经是RESUMED状态
                if (display.isTopStack(stack) && topRunningActivity.isState(RESUMED)) {

                    //直接执行栈转换动画
                    stack.executeAppTransition(targetOptions);
                } else {
                    //否则修改Activity的状态
                    resumedOnDisplay |= topRunningActivity.makeActiveIfNeeded(target);
                }
            }
            if (!resumedOnDisplay) {
               ....
            }
        }

        return result;
    }

此方法核心是调用makeActiveIfNeeded修改当前Activity的状态，

ActivityRecord.makeActiveIfNeeded：

boolean makeActiveIfNeeded(ActivityRecord activeActivity) {
       //修改Activity状态为resume
        if (shouldResumeActivity(activeActivity)) {
            if (DEBUG_VISIBILITY) {
                Slog.v("TAG_VISIBILITY", "Resume visible activity, " + this);
            }
            return getActivityStack().resumeTopActivityUncheckedLocked(activeActivity /* prev */,
                    null /* options */);
        } else if (shouldPauseActivity(activeActivity)) {
            //修改Activity状态为pause
               ......
        }
        return false;
    }

仅关注resume流程

ActivityStack.resumeTopActivityUncheckedLocked：

boolean resumeTopActivityUncheckedLocked(ActivityRecord prev, ActivityOptions options) {  //传过来的prev和options都为空
       //当前是否正在resume中，防止重复调用
       if (mInResumeTopActivity) {
            // Don't even start recursing.
            return false;
        }

        boolean result = false;
        try {
            // Protect against recursion.
            mInResumeTopActivity = true;
            result = resumeTopActivityInnerLocked(prev, options);

           ......

        return result;
    }

ActivityStack.resumeTopActivityInnerLocked：

 private boolean resumeTopActivityInnerLocked(ActivityRecord prev, ActivityOptions options) {
        ...

        ActivityRecord next = topRunningActivityLocked(true /* focusableOnly */);

        final boolean hasRunningActivity = next != null;

        .....

        final ActivityDisplay display = getDisplay();


        if (mResumedActivity == next && next.isState(RESUMED状态)
                && display.allResumedActivitiesComplete()) {
            // 如果当前分屏主窗口Activity已经是RESUMED状态，仅执行窗口动画
            executeAppTransition(options);
            if (DEBUG_STATES) Slog.d(TAG_STATES,
                    "resumeTopActivityLocked: Top activity resumed " + next);
            return false;
        }


       //.....省略一些判断条件

        //当前要resume的Activity有可能正在stop或者sleep，所以需要从对应集合移除
        mStackSupervisor.mStoppingActivities.remove(next);
        mStackSupervisor.mGoingToSleepActivities.remove(next);
        next.sleeping = false;



        // 如果当前有正在pause的Activity，则跳过此次resume
        if (!mRootActivityContainer.allPausedActivitiesComplete()) {
            if (DEBUG_SWITCH || DEBUG_PAUSE || DEBUG_STATES) Slog.v(TAG_PAUSE,
                    "resumeTopActivityLocked: Skip resume: some activity pausing.");
            //分屏主窗口Activity首次会走这里，因为要先等Launcher进入pause之后才能resume
            return false;
        }

        mStackSupervisor.setLaunchSource(next.info.applicationInfo.uid);

     //省略大段代码
        .....
            ......

        boolean anim = true;
        final DisplayContent dc = getDisplay().mDisplayContent;
        if (prev != null) {
            //这里prev是launcher，
            if (prev.finishing) {
                //如果launcher正在finishing
                if (mStackSupervisor.mNoAnimActivities.contains(prev)) {
                    anim = false;
                    //没有动画
                    dc.prepareAppTransition(TRANSIT_NONE, false);
                } else {
                    //有动画就开始准备窗口转换的动画，如果prev和next处于同一task，则准备Activity close动画，否则准备Task close动画
                    dc.prepareAppTransition(
                            prev.getTaskRecord() == next.getTaskRecord() ? TRANSIT_ACTIVITY_CLOSE
                                    : TRANSIT_TASK_CLOSE, false);
                }

                prev.setVisibility(false);
            } else {
                //如果launcher没有finishing
                if (mStackSupervisor.mNoAnimActivities.contains(next)) {
                    anim = false;
                    //没有动画
                    dc.prepareAppTransition(TRANSIT_NONE, false);
                } else {
                    //有动画就开始准备窗口转换的动画，如果prev和next处于同一task，则准备Activity 打开动画，否则准备Task 打开动画
                    dc.prepareAppTransition(
                            prev.getTaskRecord() == next.getTaskRecord() ? TRANSIT_ACTIVITY_OPEN
                                    : next.mLaunchTaskBehind ? TRANSIT_TASK_OPEN_BEHIND
                                            : TRANSIT_TASK_OPEN, false);
                }
            }
        } else {
            //这里prev为空的情况，
            if (mStackSupervisor.mNoAnimActivities.contains(next)) {
                anim = false
                    //没有动画
                dc.prepareAppTransition(TRANSIT_NONE, false);
            } else {
                //直接准备Activity打开动画
                dc.prepareAppTransition(TRANSIT_ACTIVITY_OPEN, false);
            }
        }

        if (anim) {
            next.applyOptionsLocked();
        } else {
            next.clearOptionsLocked();
        }

        mStackSupervisor.mNoAnimActivities.clear();
        //分屏主窗口Activity所在的进程是否已经创建
        if (next.attachedToProcess()) {
            final boolean lastActivityTranslucent = lastFocusedStack != null
                    && (lastFocusedStack.inMultiWindowMode()
                    || (lastFocusedStack.mLastPausedActivity != null
                    && !lastFocusedStack.mLastPausedActivity.fullscreen));

            if (!next.visible || next.stopped || lastActivityTranslucent) {
                //设置分屏主窗口为可见
                next.setVisibility(true);
            }

            ......
                //设置分屏主窗口Activity状态为RESUMED
            next.setState(RESUMED, "resumeTopActivityInnerLocked");
             .....

            //这个方法里面又有一堆条件判断是否可见
            if (shouldBeVisible(next)) {
                // We have special rotation behavior when here is some active activity that
                // requests specific orientation or Keyguard is locked. Make sure all activity
                // visibilities are set correctly as well as the transition is updated if needed
                // to get the correct rotation behavior. Otherwise the following call to update
                // the orientation may cause incorrect configurations delivered to client as a
                // result of invisible window resize.
                // TODO: Remove this once visibilities are set correctly immediately when
                // starting an activity.
                notUpdated = !mRootActivityContainer.ensureVisibilityAndConfig(next, mDisplayId,
                        true /* markFrozenIfConfigChanged */, false /* deferResume */);
            }

            ......
         //后面就是执行Activity生命周期了
             .......
              //通过ResumeActivityItem到APP进程去执行Activity resume的流程
                transaction.setLifecycleStateRequest(
                        ResumeActivityItem.obtain(next.app.getReportedProcState(),
                                getDisplay().mDisplayContent.isNextTransitionForward()));
               //执行Activity resume
                mService.getLifecycleManager().scheduleTransaction(transaction);


            } catch (Exception e) {
                 ......
                return true;
            }

            // From this point on, if something goes wrong there is no way
            // to recover the activity.
            try {
                //Activity完成resume的通知，包括修改各种状态等
                next.completeResumeLocked();
            } catch (Exception e) {

                return true;
            }
        } else {
        ......
 }
        return true;
    }

这个方法实在太复杂了，省略了大段细节代码，需要关注的核心就是分屏主窗口Activity的状态被修改为了RESUME，然后到分屏应用进程去执行其Activity的生命周期。

总结下来分屏在AMS这边流程可以归纳为：设置分屏栈->计算分屏主副窗口的边界大小->将分屏应用放到前台来。

而真正窗口大小变化和动画会交给WMS来做。
