有部分读者可能听说过 ssl-exporter 这个项目，它能提供多种针对 SSL 的检测手段，包括：HTTPS 证书、文件证书、Kubernetes Secret、Kubeconfig 文件。从功能上来看，它基本可以满足上述需求，但它的指标还不够丰富，本文将介绍一个更为强大的 Prometheus Exporter：x509-certificate-exporter。
与 ssl-exporter 不同，x509-certificate-exporter 只专注于监控 Kubernetes 集群相关的证书，包括各个组件的文件证书、Kubernetes TLS Secret、Kubeconfig 文件，而且指标更加丰富。我们来看看在 KubeSphere 中如何部署 x509-certificate-exporter 以监控集群的所有证书。它能够帮助用户及时发现证书过期问题，确保系统的安全性和稳定性。
在 Kubernetes 环境中，x509-certificate-exporter 可以无缝集成，监控集群内所有证书的状态，确保集群的安全运行。
监控手段
使用enix 的 x509-certificate-exporter监控集群所有 node 的/etc/kubernetes/pki和/var/lib/kubelet下的证书以及 kubeconfig文件
- 优势: 可以监控所有 node, 所有 kubeconfig 文件, 以及 所有 tls 格式的 secret 证书, 如果要监控 Kubernetes 集群以外的证书，也可以如法炮制，范围广而全。
- 需要额外安装: x509-certificate-exporter, 对应有 1 个 Deployment 和 多个 DaemonSet, 对 Kubernetes 集群的资源消耗不少。
该 Exporter 是通过监控集群所有 node 的指定目录或 path 下的证书文件以及 kubeconfig 文件来获取证书信息。
如果是使用 kubeadm 搭建的 Kubernetes 集群，则可以监控如下包含证书的文件和 kubeconfig:
watchFiles:
- /var/lib/kubelet/pki/kubelet-client-current.pem
- /etc/kubernetes/pki/apiserver.crt
- /etc/kubernetes/pki/apiserver-etcd-client.crt
- /etc/kubernetes/pki/apiserver-kubelet-client.crt
- /etc/kubernetes/pki/ca.crt
- /etc/kubernetes/pki/front-proxy-ca.crt
- /etc/kubernetes/pki/front-proxy-client.crt
- /etc/kubernetes/pki/etcd/ca.crt
- /etc/kubernetes/pki/etcd/healthcheck-client.crt
- /etc/kubernetes/pki/etcd/peer.crt
- /etc/kubernetes/pki/etcd/server.crt
watchKubeconfFiles:
- /etc/kubernetes/admin.conf
- /etc/kubernetes/controller-manager.conf
- /etc/kubernetes/scheduler.conf
YAML下载并解压Chart包
https://github.com/enix/x509-certificate-exporter/tree/main
根据实际情况修改values.yaml，Chart.yaml 其他配置可不做修改
修改 Chart.yaml 里面版本号信息
[root@k8s-uat-m01 x509-certificate-exporter]# cat Chart.yaml
version: '3.19.1'
appVersion: '3.19.1'
........................................拉取镜像的地址，国内镜像源：
https://docker.aityp.com/image/docker.io/enix/x509-certificate-exporter:3.19.1Docker拉取命令
docker pull swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/enix/x509-certificate-exporter:3.19.1
docker tag swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/enix/x509-certificate-exporter:3.19.1 docker.io/enix/x509-certificate-exporter:3.19.1Containerd拉取命令
ctr images pull swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/enix/x509-certificate-exporter:3.19.1
ctr images tag swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/enix/x509-certificate-exporter:3.19.1 docker.io/enix/x509-certificate-exporter:3.19.1修改values.yaml地址
# 修改为镜像名称，默认是Chart中的appVersion
# 修改仓库名称
image:
# -- x509-certificate-exporter image registry
registry: swr.cn-north-4.myhuaweicloud.com
# -- x509-certificate-exporter image repository
repository: ddn-k8s/docker.io/enix/x509-certificate-exporter
--------------------------------------------------------------------------
# 节点标签，根据实际情况调整，基本也不用修改
# 容忍，根据实际情况调整，基本也不用修改
# 证书所在目录，根据实际情况调整
# -- Additional environment variables for container
env: []
# - name: GOMAXPROCS
# value: "1"

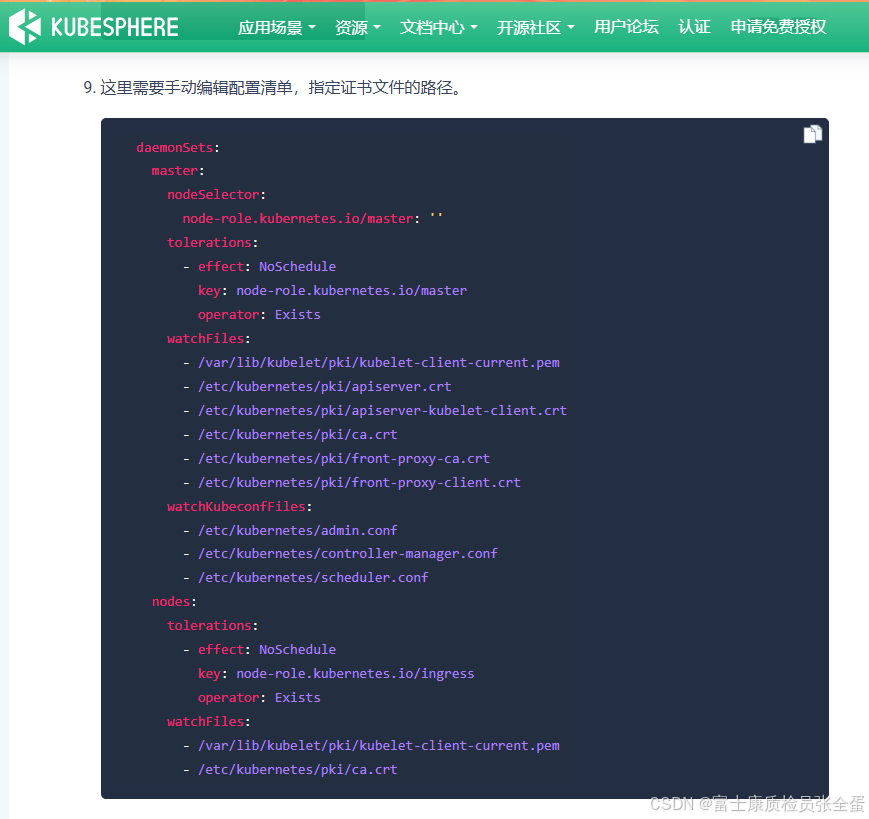

# -- [SEE README] Map to define one or many DaemonSets running hostPath exporters. Key is used as a name ; value is a map to override all default settings set by `hostPathsExporter.*`.
daemonSets:
master:
nodeSelector:
node-role.kubernetes.io/control-plane: ""
tolerations:
- effect: NoSchedule
key: node-role.kubernetes.io/control-plane
operator: Exists
watchFiles:
- /etc/kubernetes/pki/apiserver.crt
- /etc/kubernetes/pki/apiserver-etcd-client.crt
- /etc/kubernetes/pki/apiserver-kubelet-client.crt
- /etc/kubernetes/pki/ca.crt
- /etc/kubernetes/pki/front-proxy-ca.crt
- /etc/kubernetes/pki/front-proxy-client.crt
# 配置文件所在目录，根据实际情况调整，也可不做配置
watchKubeconfFiles:
- /etc/kubernetes/admin.conf
- /etc/kubernetes/controller-manager.conf
- /etc/kubernetes/kubelet.conf
- /etc/kubernetes/scheduler.conf
nodes:
watchFiles:
- /var/lib/kubelet/pki/kubelet-client-current.pem
- /etc/kubernetes/pki/ca.crt

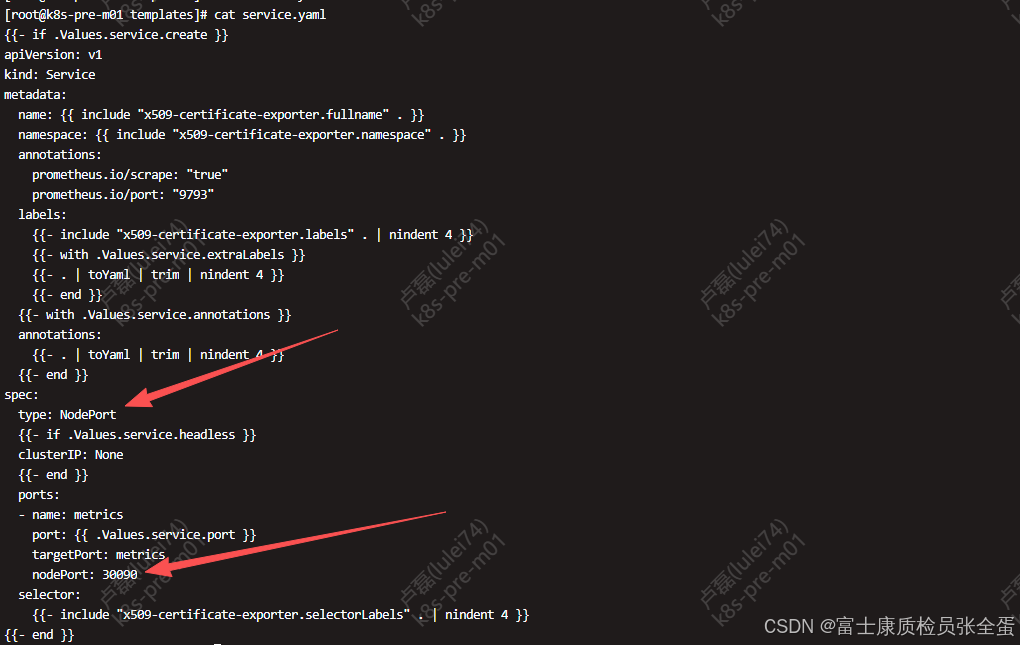

修改service类型为NodePort，这样部署在k8s外部的prometheus可以获取到端口暴露的数据:
[root@k8s-pre-m01 x509-certificate-exporter]# cat templates/service.yaml
{{- if .Values.service.create }}
apiVersion: v1
kind: Service
metadata:
name: {{ include "x509-certificate-exporter.fullname" . }}
namespace: {{ include "x509-certificate-exporter.namespace" . }}
annotations:
prometheus.io/scrape: "true"
prometheus.io/port: "9793"
labels:
{{- include "x509-certificate-exporter.labels" . | nindent 4 }}
{{- with .Values.service.extraLabels }}
{{- . | toYaml | trim | nindent 4 }}
{{- end }}
{{- with .Values.service.annotations }}
annotations:
{{- . | toYaml | trim | nindent 4 }}
{{- end }}
spec:
type: NodePort
{{- if .Values.service.headless }}
clusterIP: None
{{- end }}
ports:
- name: metrics
port: {{ .Values.service.port }}
targetPort: metrics
nodePort: 30090
selector:
{{- include "x509-certificate-exporter.selectorLabels" . | nindent 4 }}
{{- end }}
[root@k8s-uat-m01 x509-certificate-exporter]# helm install x509-certificate-exporter --values values.yaml .
[root@k8s-pre-m01 x509-certificate-exporter]# helm list
NAME NAMESPACE REVISION UPDATED STATUS CHART APP VERSION
x509-certificate-exporter default 1 2025-10-13 11:25:47.81887836 +0800 CST deployed x509-certificate-exporter-3.19.1 3.19.1
[root@k8s-m01 x509-certificate-exporter]# kubectl get pod
NAME READY STATUS RESTARTS AGE
x509-certificate-exporter-56567b56b9-xdmrf 1/1 Running 0 7h50m
x509-certificate-exporter-master-5tspp 1/1 Running 0 7h50m
x509-certificate-exporter-master-6ffhr 1/1 Running 0 7h50m
x509-certificate-exporter-master-6q94j 1/1 Running 0 7h50m
[root@k8s-m01 x509-certificate-exporter]# kubectl get ds
NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE
x509-certificate-exporter-master 3 3 3 3 3 node-role.kubernetes.io/control-plane= 7h52m
[root@k8s-uat-m01 x509-certificate-exporter]# kubectl get deploy
NAME READY UP-TO-DATE AVAILABLE AGE
x509-certificate-exporter 1/1 1 1 7h52m
[root@k8s-m01 x509-certificate-exporter]# kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
x509-certificate-exporter ClusterIP 10.202.156.255 <none> 9793/TCP 8h
[root@k8s-m01 x509-certificate-exporter]# curl 10.209.156.2xx:9793/metrics
...............................................................................
[root@k8s-pre-m01 templates]# kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes ClusterIP 10.196.xx.x <none> 443/TCP 618d
x509-certificate-exporter NodePort 10.196.xxx.173 <none> 9793:30090/TCP 16h访问master节点所在的主机 + 端口30090 +/metrics 这样就可以拿到采集的指标，然后在外部的prometheus写死就行了，如果部署在k8s内部的prometheus使用服务发现就行了。
配置监控以及告警
通过这个 Helm Chart 也会自动安装:
- ServiceMonitor
- PrometheusRule
其监控指标为:
x509_cert_not_after
前往prometheus使用(x509_cert_not_after - time()) / 86400是否有结果，有则成功，无则失败
前往告警平台配置告警，有效期低于14天告警
promQL为：(x509_cert_not_after{filepath!=""} - time()) / 86400 < 14
若需要配置grafana面板，则复制helm包中的x509-certificate-exporter/grafana-dashboards/x509-certificate-exporter.json，通过导入json的形式创建面板即可。
一般我们只需要关注已经过期的证书和即将过期的证书即可。假设我想查看证书还有多久失效，可以使用表达式 (x509_cert_not_after{filepath!=""} - time()) / 3600 / 24。
groups:
- name: certificate_alerts
rules:
- alert: CertificateExpiration
expr: ((x509_cert_not_after - time()) / 86400) < 28
for: 15m
labels:
severity: warning
annotations:
summary: "Certificate is about to expire"
description: "Certificate for '{{ $labels.subject_CN }}' is about to expire in Kubernetes secret '{{ $labels.secret_namespace }}/{{ $labels.secret_name }}'"监控效果
该 Exporter 还提供了一个比较花哨的 Grafana Dashboard, 如下:
异常处理
# 检查pod是否都运行kubectl get po -n 命名空间 -o wide
# 若运行异常，查看日志，一般都为某证书没读取权限或证书不存在kubectl logs -n 命名空间 【pod name】
# 若证书无读取权限，则前往该节点赋权 chmod +r 【证书路径】
