使用RT-Thread studio创建stm32h7的工程，rtthread默认的串口驱动是不支持DMA的，如果打开RT_SERIAL_USING_DMA编译在此处会报错。

#error "The STM32L0 and STM32H7 devices DO NOT support UART DMA feature."

所以需要手动修改代码，使其支持H7 串口DMA，如下：

drv_usart.c

/*
 * Copyright (c) 2006-2020, RT-Thread Development Team
 *
 * SPDX-License-Identifier: Apache-2.0
 *
 * Change Logs:
 * Date           Author       Notes
 * 2018-10-30     SummerGift   first version
 * 2020-05-23     chenyaxing   modify stm32_uart_config
 */

#include "string.h"
#include "stdlib.h"
#include <board.h>
#include "drv_common.h"
#include "uart_config.h"

#ifdef RT_USING_SERIAL

#include <rtdevice.h>

//#if (defined(SOC_SERIES_STM32L0) || defined(SOC_SERIES_STM32H7)) && defined(RT_SERIAL_USING_DMA)
#if (defined(SOC_SERIES_STM32L0)) && defined(RT_SERIAL_USING_DMA)
#error "The STM32L0 and STM32H7 devices DO NOT support UART DMA feature."
#elif defined(RT_SERIAL_USING_DMA)
#include "dma_config.h"
#endif

//#define DRV_DEBUG
#define DBG_TAG              "drv.usart"
#ifdef DRV_DEBUG
#define DBG_LVL               DBG_LOG
#else
#define DBG_LVL               DBG_INFO
#endif /* DRV_DEBUG */
#include <rtdbg.h>

#if defined(SOC_SERIES_STM32F0) || defined(SOC_SERIES_STM32F1) || defined(SOC_SERIES_STM32L4) \
    || defined(SOC_SERIES_STM32L0) || defined(SOC_SERIES_STM32L1) || defined(SOC_SERIES_STM32G0) || defined(SOC_SERIES_STM32G4)
#define DMA_INSTANCE_TYPE              DMA_Channel_TypeDef
#elif defined(SOC_SERIES_STM32F2) || defined(SOC_SERIES_STM32F4) || defined(SOC_SERIES_STM32F7) || defined(SOC_SERIES_STM32H7)
#define DMA_INSTANCE_TYPE              DMA_Stream_TypeDef
#endif /*  defined(SOC_SERIES_STM32F1) || defined(SOC_SERIES_STM32L4) */

#if defined(SOC_SERIES_STM32F1) || defined(SOC_SERIES_STM32L4) || defined(SOC_SERIES_STM32F2) \
    || defined(SOC_SERIES_STM32F4) || defined(SOC_SERIES_STM32L0) ||  defined(SOC_SERIES_STM32L1) \
    || defined(SOC_SERIES_STM32G0) || defined(SOC_SERIES_STM32G4)
#define UART_INSTANCE_CLEAR_FUNCTION    __HAL_UART_CLEAR_FLAG
#elif defined(SOC_SERIES_STM32F7) || defined(SOC_SERIES_STM32F0) || defined(SOC_SERIES_STM32H7)
#define UART_INSTANCE_CLEAR_FUNCTION    __HAL_UART_CLEAR_IT
#endif

#ifdef RT_SERIAL_USING_DMA
/* --------------------------  DMA   config  -------------------------- */
#if defined(SOC_SERIES_STM32F0) || defined(SOC_SERIES_STM32F1) || defined(SOC_SERIES_STM32L0) \
    || defined(SOC_SERIES_STM32L4) || defined(SOC_SERIES_STM32G0) || defined(SOC_SERIES_STM32G4)
#define DMA_INSTANCE_TYPE              DMA_Channel_TypeDef
#elif defined(SOC_SERIES_STM32F2) || defined(SOC_SERIES_STM32F4) || defined(SOC_SERIES_STM32F7)\
    || defined(SOC_SERIES_STM32H7)
#define DMA_INSTANCE_TYPE              DMA_Stream_TypeDef
#endif /*  defined(SOC_SERIES_STM32F1) || defined(SOC_SERIES_STM32L4) */

struct dma_config {
    DMA_INSTANCE_TYPE *Instance;
    rt_uint32_t dma_rcc;
    IRQn_Type dma_irq;

#if defined(SOC_SERIES_STM32F2) || defined(SOC_SERIES_STM32F4) || defined(SOC_SERIES_STM32F7)
    rt_uint32_t channel;
#endif

#if defined(SOC_SERIES_STM32L4) || defined(SOC_SERIES_STM32G0) || defined(SOC_SERIES_STM32G4)
    rt_uint32_t request;
#endif
};
#endif

/* stm32 config class */
struct stm32_uart_config
{
    const char *name;
    USART_TypeDef *Instance;
    IRQn_Type irq_type;

#ifdef RT_SERIAL_USING_DMA
    struct dma_config *dma_rx;
    struct dma_config *dma_tx;
#endif
    const char *tx_pin_name;
    const char *rx_pin_name;
};

/* stm32 uart dirver class */
struct stm32_uart
{
    UART_HandleTypeDef handle;
    struct stm32_uart_config *config;

#ifdef RT_SERIAL_USING_DMA
    struct
    {
        DMA_HandleTypeDef handle;
        rt_size_t last_index;
    } dma_rx;
    struct
    {
        DMA_HandleTypeDef handle;
    } dma_tx;
#endif
    rt_uint16_t uart_dma_flag;
    struct rt_serial_device serial;
};

#if !defined(BSP_USING_UART1) && !defined(BSP_USING_UART2) && !defined(BSP_USING_UART3) && \
    !defined(BSP_USING_UART4) && !defined(BSP_USING_UART5) && !defined(BSP_USING_UART6) && \
    !defined(BSP_USING_UART7) && !defined(BSP_USING_UART8) && !defined(BSP_USING_LPUART1)
    #error "Please define at least one BSP_USING_UARTx"
    /* this driver can be disabled at menuconfig -> RT-Thread Components -> Device Drivers */
#endif

#ifdef RT_SERIAL_USING_DMA
    static void stm32_dma_config(struct rt_serial_device *serial, rt_ubase_t flag);
#endif

enum
{
#ifdef BSP_USING_UART1
    UART1_INDEX,
#endif
#ifdef BSP_USING_UART2
    UART2_INDEX,
#endif
#ifdef BSP_USING_UART3
    UART3_INDEX,
#endif
#ifdef BSP_USING_UART4
    UART4_INDEX,
#endif
#ifdef BSP_USING_UART5
    UART5_INDEX,
#endif
#ifdef BSP_USING_UART6
    UART6_INDEX,
#endif
#ifdef BSP_USING_UART7
    UART7_INDEX,
#endif
#ifdef BSP_USING_UART8
    UART8_INDEX,
#endif
#ifdef BSP_USING_LPUART1
    LPUART1_INDEX,
#endif
};

static struct stm32_uart_config uart_config[] =
{
#ifdef BSP_USING_UART1
    UART1_CONFIG,
#endif
#ifdef BSP_USING_UART2
    UART2_CONFIG,
#endif
#ifdef BSP_USING_UART3
    UART3_CONFIG,
#endif
#ifdef BSP_USING_UART4
    UART4_CONFIG,
#endif
#ifdef BSP_USING_UART5
    UART5_CONFIG,
#endif
#ifdef BSP_USING_UART6
    UART6_CONFIG,
#endif
#ifdef BSP_USING_UART7
    UART7_CONFIG,
#endif
#ifdef BSP_USING_UART8
    UART8_CONFIG,
#endif
#ifdef BSP_USING_LPUART1
    LPUART1_CONFIG,
#endif
};

static rt_err_t stm32_uart_clk_enable(struct stm32_uart_config *config)
{
    RCC_PeriphCLKInitTypeDef PeriphClkInitStruct = {0};
    /* uart clock enable */
    switch ((uint32_t)config->Instance)
    {
#ifdef BSP_USING_UART1
    case (uint32_t)USART1:
        __HAL_RCC_USART1_CLK_ENABLE();
        break;
#endif /* BSP_USING_UART1 */
#ifdef BSP_USING_UART2
    case (uint32_t)USART2:
        __HAL_RCC_USART2_CLK_ENABLE();
        break;
#endif /* BSP_USING_UART2 */
#ifdef BSP_USING_UART3
    case (uint32_t)USART3:
        __HAL_RCC_USART3_CLK_ENABLE();
        break;
#endif /* BSP_USING_UART3 */
#ifdef BSP_USING_UART4
#if defined(SOC_SERIES_STM32F0) || defined(SOC_SERIES_STM32L0) || \
   defined(SOC_SERIES_STM32G0)
    case (uint32_t)USART4:
        __HAL_RCC_USART4_CLK_ENABLE();
#else
    case (uint32_t)UART4:
        __HAL_RCC_UART4_CLK_ENABLE();
#endif
        break;
#endif /* BSP_USING_UART4 */
#ifdef BSP_USING_UART5
#if defined(SOC_SERIES_STM32F0) || defined(SOC_SERIES_STM32L0) || \
   defined(SOC_SERIES_STM32G0)
    case (uint32_t)USART5:
        __HAL_RCC_USART5_CLK_ENABLE();
#else
    case (uint32_t)UART5:
        __HAL_RCC_UART5_CLK_ENABLE();
#endif
        break;
#endif /* BSP_USING_UART5 */
#ifdef BSP_USING_UART6
    case (uint32_t)USART6:
        __HAL_RCC_USART6_CLK_ENABLE();
        break;
#endif /* BSP_USING_UART6 */
#ifdef BSP_USING_UART7
#if defined(SOC_SERIES_STM32F0)
    case (uint32_t)USART7:
        __HAL_RCC_USART7_CLK_ENABLE();
#else
    case (uint32_t)UART7:
        __HAL_RCC_UART7_CLK_ENABLE();
#endif
        break;
#endif /* BSP_USING_UART7 */
#ifdef BSP_USING_UART8
#if defined(SOC_SERIES_STM32F0)
    case (uint32_t)USART8:
        __HAL_RCC_USART8_CLK_ENABLE();
#else
    case (uint32_t)UART8:
        __HAL_RCC_UART8_CLK_ENABLE();
#endif
        break;
#endif /* BSP_USING_UART8 */
#ifdef BSP_USING_LPUART1
    case (uint32_t)LPUART1:
       __HAL_RCC_LPUART1_CLK_ENABLE();
        break;
#endif /* BSP_USING_LPUART1 */
    default:
        return -RT_ERROR;
    }

    return RT_EOK;
}

static rt_err_t stm32_gpio_clk_enable(GPIO_TypeDef *gpiox)
{
    /* check the parameters */
    RT_ASSERT(IS_GPIO_ALL_INSTANCE(gpiox));

    /* gpio ports clock enable */
    switch ((uint32_t)gpiox)
    {
#if defined(__HAL_RCC_GPIOA_CLK_ENABLE)
    case (uint32_t)GPIOA:
        __HAL_RCC_GPIOA_CLK_ENABLE();
        break;
#endif
#if defined(__HAL_RCC_GPIOB_CLK_ENABLE)
    case (uint32_t)GPIOB:
        __HAL_RCC_GPIOB_CLK_ENABLE();
        break;
#endif
#if defined(__HAL_RCC_GPIOC_CLK_ENABLE)
    case (uint32_t)GPIOC:
        __HAL_RCC_GPIOC_CLK_ENABLE();
        break;
#endif
#if defined(__HAL_RCC_GPIOD_CLK_ENABLE)
    case (uint32_t)GPIOD:
        __HAL_RCC_GPIOD_CLK_ENABLE();
        break;
#endif
#if defined(__HAL_RCC_GPIOE_CLK_ENABLE)
    case (uint32_t)GPIOE:
        __HAL_RCC_GPIOE_CLK_ENABLE();
        break;
#endif
#if defined(__HAL_RCC_GPIOF_CLK_ENABLE)
    case (uint32_t)GPIOF:
        __HAL_RCC_GPIOF_CLK_ENABLE();
        break;
#endif
#if defined(__HAL_RCC_GPIOG_CLK_ENABLE)
    case (uint32_t)GPIOG:
        __HAL_RCC_GPIOG_CLK_ENABLE();
        break;
#endif
#if defined(__HAL_RCC_GPIOH_CLK_ENABLE)
    case (uint32_t)GPIOH:
        __HAL_RCC_GPIOH_CLK_ENABLE();
        break;
#endif
#if defined(__HAL_RCC_GPIOI_CLK_ENABLE)
    case (uint32_t)GPIOI:
        __HAL_RCC_GPIOI_CLK_ENABLE();
        break;
#endif
#if defined(__HAL_RCC_GPIOJ_CLK_ENABLE)
    case (uint32_t)GPIOJ:
        __HAL_RCC_GPIOJ_CLK_ENABLE();
        break;
#endif
#if defined(__HAL_RCC_GPIOK_CLK_ENABLE)
    case (uint32_t)GPIOK:
        __HAL_RCC_GPIOK_CLK_ENABLE();
        break;
#endif
    default:
        return -RT_ERROR;
    }

    return RT_EOK;
}

static int up_char(char * c)
{
    if ((*c >= 'a') && (*c <= 'z'))
    {
        *c = *c - 32;
    }
    return 0;
}

static void get_pin_by_name(const char* pin_name, GPIO_TypeDef **port, uint16_t *pin)
{
    int pin_num = atoi((char*) &pin_name[2]);
    char port_name = pin_name[1];
    up_char(&port_name);
    up_char(&port_name);
    *port = ((GPIO_TypeDef *) ((uint32_t) GPIOA
            + (uint32_t) (port_name - 'A') * ((uint32_t) GPIOB - (uint32_t) GPIOA)));
    *pin = (GPIO_PIN_0 << pin_num);
}
static uint16_t stm32_get_pin(GPIO_TypeDef *pin_port, rt_uint32_t pin_num)
{
    return (uint16_t)((16 * (((rt_base_t)pin_port - (rt_base_t)GPIOA_BASE)/(0x0400UL))) + (__rt_ffs(pin_num) - 1));
}
static rt_err_t stm32_gpio_configure(struct stm32_uart_config *config)
{
#define UART_IS_TX        (1U<<7)
#define UART_IS_RX        (0U)

    rt_uint16_t tx_pin_num = 0;
    int index = 0, tx_af_num = 0, rx_af_num = 0;
    uint8_t uart_num = 0;
    GPIO_TypeDef *tx_port;
    GPIO_TypeDef *rx_port;
    uint16_t tx_pin;
    uint16_t rx_pin;
    get_pin_by_name(config->rx_pin_name, &rx_port, &rx_pin);
    get_pin_by_name(config->tx_pin_name, &tx_port, &tx_pin);

   struct gpio_uart_af {
       /* index get by GET_PIN */
       uint16_t pin_index;
       struct {
           /* when is TX the bit7 is 1, bit6-bit0 is uart number (1-8)  */
           uint8_t uart_num;
           uint8_t af_num;
       } afs[1];
   };

   static const struct gpio_uart_af uart_afs[] =
     {
         { .pin_index = GET_PIN(A,  0), .afs[0] = {.uart_num = UART_IS_TX|4, .af_num =  8}},
         { .pin_index = GET_PIN(A,  1), .afs[0] = {.uart_num = UART_IS_RX|4, .af_num =  8}},
         { .pin_index = GET_PIN(A,  2), .afs[0] = {.uart_num = UART_IS_TX|2, .af_num =  7}},
         { .pin_index = GET_PIN(A,  3), .afs[0] = {.uart_num = UART_IS_RX|2, .af_num =  7}},
         { .pin_index = GET_PIN(A,  9), .afs[0] = {.uart_num = UART_IS_TX|1, .af_num =  7}},
         { .pin_index = GET_PIN(A, 10), .afs[0] = {.uart_num = UART_IS_RX|1, .af_num =  7}},
         { .pin_index = GET_PIN(A, 11), .afs[0] = {.uart_num = UART_IS_TX|4, .af_num =  6}},
         { .pin_index = GET_PIN(A, 12), .afs[0] = {.uart_num = UART_IS_RX|4, .af_num =  6}},
         { .pin_index = GET_PIN(A, 15), .afs[0] = {.uart_num = UART_IS_RX|7, .af_num = 11}},
         { .pin_index = GET_PIN(A,  8), .afs[0] = {.uart_num = UART_IS_RX|7, .af_num = 11}},
         { .pin_index = GET_PIN(B,  4), .afs[0] = {.uart_num = UART_IS_TX|7, .af_num = 11}},
         { .pin_index = GET_PIN(B,  3), .afs[0] = {.uart_num = UART_IS_RX|7, .af_num = 11}},
         { .pin_index = GET_PIN(B,  5), .afs[0] = {.uart_num = UART_IS_TX|5, .af_num = 14}},
         { .pin_index = GET_PIN(B,  6), .afs[0] = {.uart_num = UART_IS_RX|5, .af_num = 14}},
         { .pin_index = GET_PIN(B,  6), .afs[0] = {.uart_num = UART_IS_TX|1, .af_num =  7}},
         { .pin_index = GET_PIN(B,  7), .afs[0] = {.uart_num = UART_IS_RX|1, .af_num =  7}},
         { .pin_index = GET_PIN(B,  9), .afs[0] = {.uart_num = UART_IS_TX|4, .af_num =  8}},
         { .pin_index = GET_PIN(B,  8), .afs[0] = {.uart_num = UART_IS_RX|4, .af_num =  8}},
         { .pin_index = GET_PIN(B, 10), .afs[0] = {.uart_num = UART_IS_TX|3, .af_num =  7}},
         { .pin_index = GET_PIN(B, 11), .afs[0] = {.uart_num = UART_IS_RX|3, .af_num =  7}},
         { .pin_index = GET_PIN(B, 13), .afs[0] = {.uart_num = UART_IS_TX|5, .af_num = 14}},
         { .pin_index = GET_PIN(B, 12), .afs[0] = {.uart_num = UART_IS_RX|5, .af_num = 14}},
         { .pin_index = GET_PIN(B, 14), .afs[0] = {.uart_num = UART_IS_TX|1, .af_num =  4}},
         { .pin_index = GET_PIN(B, 15), .afs[0] = {.uart_num = UART_IS_RX|1, .af_num =  4}},
         { .pin_index = GET_PIN(C,  6), .afs[0] = {.uart_num = UART_IS_TX|6, .af_num =  7}},
         { .pin_index = GET_PIN(C,  7), .afs[0] = {.uart_num = UART_IS_RX|6, .af_num =  7}},
         { .pin_index = GET_PIN(C, 10), .afs[0] = {.uart_num = UART_IS_TX|3, .af_num =  7}},
         { .pin_index = GET_PIN(C, 11), .afs[0] = {.uart_num = UART_IS_RX|3, .af_num =  7}},
         { .pin_index = GET_PIN(C, 10), .afs[0] = {.uart_num = UART_IS_TX|4, .af_num =  8}},
         { .pin_index = GET_PIN(C, 11), .afs[0] = {.uart_num = UART_IS_RX|4, .af_num =  8}},
         { .pin_index = GET_PIN(C, 12), .afs[0] = {.uart_num = UART_IS_RX|5, .af_num =  8}},
         { .pin_index = GET_PIN(D,  2), .afs[0] = {.uart_num = UART_IS_TX|5, .af_num =  8}},
         { .pin_index = GET_PIN(D,  1), .afs[0] = {.uart_num = UART_IS_TX|4, .af_num =  8}},
         { .pin_index = GET_PIN(D,  0), .afs[0] = {.uart_num = UART_IS_RX|4, .af_num =  8}},
         { .pin_index = GET_PIN(D,  5), .afs[0] = {.uart_num = UART_IS_TX|2, .af_num =  7}},
         { .pin_index = GET_PIN(D,  6), .afs[0] = {.uart_num = UART_IS_RX|2, .af_num =  7}},
         { .pin_index = GET_PIN(D,  8), .afs[0] = {.uart_num = UART_IS_TX|3, .af_num =  7}},
         { .pin_index = GET_PIN(D,  9), .afs[0] = {.uart_num = UART_IS_RX|3, .af_num =  7}},
         { .pin_index = GET_PIN(E,  1), .afs[0] = {.uart_num = UART_IS_TX|8, .af_num =  8}},
         { .pin_index = GET_PIN(E,  0), .afs[0] = {.uart_num = UART_IS_RX|8, .af_num =  8}},
         { .pin_index = GET_PIN(E,  8), .afs[0] = {.uart_num = UART_IS_TX|7, .af_num =  7}},
         { .pin_index = GET_PIN(E,  7), .afs[0] = {.uart_num = UART_IS_RX|7, .af_num =  7}},
         { .pin_index = GET_PIN(F,  7), .afs[0] = {.uart_num = UART_IS_TX|7, .af_num =  7}},
         { .pin_index = GET_PIN(F,  6), .afs[0] = {.uart_num = UART_IS_RX|7, .af_num =  7}},
         { .pin_index = GET_PIN(G, 14), .afs[0] = {.uart_num = UART_IS_TX|6, .af_num =  7}},
         { .pin_index = GET_PIN(G,  9), .afs[0] = {.uart_num = UART_IS_RX|6, .af_num =  7}},
         { .pin_index = GET_PIN(H, 13), .afs[0] = {.uart_num = UART_IS_TX|4, .af_num =  8}},
         { .pin_index = GET_PIN(H, 14), .afs[0] = {.uart_num = UART_IS_RX|4, .af_num =  8}},
         { .pin_index = GET_PIN(G,  8), .afs[0] = {.uart_num = UART_IS_TX|8, .af_num =  8}},
         { .pin_index = GET_PIN(G,  9), .afs[0] = {.uart_num = UART_IS_RX|8, .af_num =  8}},
      };

   /* get tx/rx pin index */
   uart_num = config->name[4] - '0';
   tx_pin_num = stm32_get_pin(tx_port, tx_pin);

   for (index = 0; index < sizeof(uart_afs) / sizeof(struct gpio_uart_af); index = index + 2)
   {
       if (uart_afs[index].pin_index == tx_pin_num)
       {
           if(uart_afs[index].afs[0].uart_num == (uart_num|UART_IS_TX))
           {
               tx_af_num = uart_afs[index].afs[0].af_num;
               rx_af_num = uart_afs[index + 1].afs[0].af_num;
           }
       }
   }

   /* gpio Init */
   GPIO_InitTypeDef GPIO_InitStruct = {0};

   /* gpio ports clock enable */
   stm32_gpio_clk_enable(tx_port);
   if (tx_port != rx_port)
   {
       stm32_gpio_clk_enable(rx_port);
   }

    /* rx pin initialize */
    GPIO_InitStruct.Pin = tx_pin;
    GPIO_InitStruct.Mode = GPIO_MODE_AF_PP;
    GPIO_InitStruct.Pull = GPIO_PULLUP;
    GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_HIGH;
#if defined(SOC_SERIES_STM32L0) || defined(SOC_SERIES_STM32F0) || defined(SOC_SERIES_STM32G0) || defined(SOC_SERIES_STM32H7)
    GPIO_InitStruct.Alternate = tx_af_num;
#endif
    HAL_GPIO_Init(tx_port, &GPIO_InitStruct);

    /* rx pin initialize */
    GPIO_InitStruct.Pin = rx_pin;
#if defined(SOC_SERIES_STM32L0) || defined(SOC_SERIES_STM32F0) || defined(SOC_SERIES_STM32G0) || defined(SOC_SERIES_STM32H7)
    GPIO_InitStruct.Alternate = rx_af_num;
#endif
    HAL_GPIO_Init(rx_port, &GPIO_InitStruct);

    return RT_EOK;
}


static struct stm32_uart uart_obj[sizeof(uart_config) / sizeof(uart_config[0])] = {0};

static rt_err_t stm32_configure(struct rt_serial_device *serial, struct serial_configure *cfg)
{
    struct stm32_uart *uart;
    RT_ASSERT(serial != RT_NULL);
    RT_ASSERT(cfg != RT_NULL);

    uart = rt_container_of(serial, struct stm32_uart, serial);

    /* uart clock enable */
    stm32_uart_clk_enable(uart->config);
    /* uart gpio clock enable and gpio pin init */
    stm32_gpio_configure(uart->config);

    uart->handle.Instance          = uart->config->Instance;
    uart->handle.Init.BaudRate     = cfg->baud_rate;
    uart->handle.Init.HwFlowCtl    = UART_HWCONTROL_NONE;
    uart->handle.Init.Mode         = UART_MODE_TX_RX;
    uart->handle.Init.OverSampling = UART_OVERSAMPLING_16;
    uart->handle.Init.OneBitSampling = UART_ONE_BIT_SAMPLE_DISABLE;
    uart->handle.Init.ClockPrescaler = UART_PRESCALER_DIV1;
    uart->handle.AdvancedInit.AdvFeatureInit = UART_ADVFEATURE_NO_INIT;
    switch (cfg->data_bits)
    {
    case DATA_BITS_8:
        uart->handle.Init.WordLength = UART_WORDLENGTH_8B;
        break;
    case DATA_BITS_9:
        uart->handle.Init.WordLength = UART_WORDLENGTH_9B;
        break;
    default:
        uart->handle.Init.WordLength = UART_WORDLENGTH_8B;
        break;
    }
    switch (cfg->stop_bits)
    {
    case STOP_BITS_1:
        uart->handle.Init.StopBits   = UART_STOPBITS_1;
        break;
    case STOP_BITS_2:
        uart->handle.Init.StopBits   = UART_STOPBITS_2;
        break;
    default:
        uart->handle.Init.StopBits   = UART_STOPBITS_1;
        break;
    }
    switch (cfg->parity)
    {
    case PARITY_NONE:
        uart->handle.Init.Parity     = UART_PARITY_NONE;
        break;
    case PARITY_ODD:
        uart->handle.Init.Parity     = UART_PARITY_ODD;
        break;
    case PARITY_EVEN:
        uart->handle.Init.Parity     = UART_PARITY_EVEN;
        break;
    default:
        uart->handle.Init.Parity     = UART_PARITY_NONE;
        break;
    }

    if (HAL_UART_Init(&uart->handle) != HAL_OK)
    {
        return -RT_ERROR;
    }

    return RT_EOK;
}

static rt_err_t stm32_control(struct rt_serial_device *serial, int cmd, void *arg)
{
    struct stm32_uart *uart;
#ifdef RT_SERIAL_USING_DMA
    rt_ubase_t ctrl_arg = (rt_ubase_t)arg;
#endif

    RT_ASSERT(serial != RT_NULL);
    uart = rt_container_of(serial, struct stm32_uart, serial);

    switch (cmd)
    {
    /* disable interrupt */
    case RT_DEVICE_CTRL_CLR_INT:
        /* disable rx irq */
        NVIC_DisableIRQ(uart->config->irq_type);
        /* disable interrupt */
        __HAL_UART_DISABLE_IT(&(uart->handle), UART_IT_RXNE);
        break;
    /* enable interrupt */
    case RT_DEVICE_CTRL_SET_INT:
        /* enable rx irq */
        NVIC_EnableIRQ(uart->config->irq_type);
        /* enable interrupt */
        __HAL_UART_ENABLE_IT(&(uart->handle), UART_IT_RXNE);
        break;

#ifdef RT_SERIAL_USING_DMA
    case RT_DEVICE_CTRL_CONFIG:
        stm32_dma_config(serial, ctrl_arg);
        break;
#endif
    }
    return RT_EOK;
}

static int stm32_putc(struct rt_serial_device *serial, char c)
{
    struct stm32_uart *uart;
    RT_ASSERT(serial != RT_NULL);

    uart = rt_container_of(serial, struct stm32_uart, serial);
    UART_INSTANCE_CLEAR_FUNCTION(&(uart->handle), UART_FLAG_TC);
#if defined(SOC_SERIES_STM32L4) || defined(SOC_SERIES_STM32F7) || defined(SOC_SERIES_STM32F0) \
    || defined(SOC_SERIES_STM32L0) || defined(SOC_SERIES_STM32G0) || defined(SOC_SERIES_STM32H7) \
    || defined(SOC_SERIES_STM32G4)
    uart->handle.Instance->TDR = c;
#else
    uart->handle.Instance->DR = c;
#endif
    while (__HAL_UART_GET_FLAG(&(uart->handle), UART_FLAG_TC) == RESET);
    return 1;
}

static int stm32_getc(struct rt_serial_device *serial)
{
    int ch;
    struct stm32_uart *uart;
    RT_ASSERT(serial != RT_NULL);
    uart = rt_container_of(serial, struct stm32_uart, serial);

    ch = -1;
    if (__HAL_UART_GET_FLAG(&(uart->handle), UART_FLAG_RXNE) != RESET)
    {
#if defined(SOC_SERIES_STM32L4) || defined(SOC_SERIES_STM32F7) || defined(SOC_SERIES_STM32F0) \
    || defined(SOC_SERIES_STM32L0) || defined(SOC_SERIES_STM32G0) || defined(SOC_SERIES_STM32H7) \
    || defined(SOC_SERIES_STM32G4)
        ch = uart->handle.Instance->RDR & 0xff;
#else
        ch = uart->handle.Instance->DR & 0xff;
#endif
    }
    return ch;
}

static rt_size_t stm32_dma_transmit(struct rt_serial_device *serial, rt_uint8_t *buf, rt_size_t size, int direction)
{
    struct stm32_uart *uart;
    RT_ASSERT(serial != RT_NULL);
    uart = rt_container_of(serial, struct stm32_uart, serial);

    if (size == 0)
    {
        return 0;
    }

    if (RT_SERIAL_DMA_TX == direction)
    {
        if (HAL_UART_Transmit_DMA(&uart->handle, buf, size) == HAL_OK)
        {
            return size;
        }
        else
        {
            return 0;
        }
    }
    return 0;
}

static const struct rt_uart_ops stm32_uart_ops =
{
    .configure = stm32_configure,
    .control = stm32_control,
    .putc = stm32_putc,
    .getc = stm32_getc,
    .dma_transmit = stm32_dma_transmit
};

/**
 * Uart common interrupt process. This need add to uart ISR.
 *
 * @param serial serial device
 */
static void uart_isr(struct rt_serial_device *serial)
{
    struct stm32_uart *uart;
#ifdef RT_SERIAL_USING_DMA
    rt_size_t recv_total_index, recv_len;
    rt_base_t level;
#endif

    RT_ASSERT(serial != RT_NULL);
    uart = rt_container_of(serial, struct stm32_uart, serial);

    /* UART in mode Receiver -------------------------------------------------*/
    if ((__HAL_UART_GET_FLAG(&(uart->handle), UART_FLAG_RXNE) != RESET) &&
            (__HAL_UART_GET_IT_SOURCE(&(uart->handle), UART_IT_RXNE) != RESET))
    {
        rt_hw_serial_isr(serial, RT_SERIAL_EVENT_RX_IND);
    }
#ifdef RT_SERIAL_USING_DMA
    else if ((uart->uart_dma_flag) && (__HAL_UART_GET_FLAG(&(uart->handle), UART_FLAG_IDLE) != RESET)
             && (__HAL_UART_GET_IT_SOURCE(&(uart->handle), UART_IT_IDLE) != RESET))
    {
        level = rt_hw_interrupt_disable();
        recv_total_index = serial->config.bufsz - __HAL_DMA_GET_COUNTER(&(uart->dma_rx.handle));
        recv_len = recv_total_index - uart->dma_rx.last_index;
        uart->dma_rx.last_index = recv_total_index;
        rt_hw_interrupt_enable(level);

        if (recv_len)
        {
            rt_hw_serial_isr(serial, RT_SERIAL_EVENT_RX_DMADONE | (recv_len << 8));
        }
        __HAL_UART_CLEAR_IDLEFLAG(&uart->handle);
    }
    else if (__HAL_UART_GET_FLAG(&(uart->handle), UART_FLAG_TC) != RESET)
    {
        if ((serial->parent.open_flag & RT_DEVICE_FLAG_DMA_TX) != 0)
        {
            HAL_UART_IRQHandler(&(uart->handle));
        }
        else
        {
            UART_INSTANCE_CLEAR_FUNCTION(&(uart->handle), UART_FLAG_TC);
        }
    }
#endif
    else
    {
        if (__HAL_UART_GET_FLAG(&(uart->handle), UART_FLAG_ORE) != RESET)
        {
            __HAL_UART_CLEAR_OREFLAG(&uart->handle);
        }
        if (__HAL_UART_GET_FLAG(&(uart->handle), UART_FLAG_NE) != RESET)
        {
            __HAL_UART_CLEAR_NEFLAG(&uart->handle);
        }
        if (__HAL_UART_GET_FLAG(&(uart->handle), UART_FLAG_FE) != RESET)
        {
            __HAL_UART_CLEAR_FEFLAG(&uart->handle);
        }
        if (__HAL_UART_GET_FLAG(&(uart->handle), UART_FLAG_PE) != RESET)
        {
            __HAL_UART_CLEAR_PEFLAG(&uart->handle);
        }
#if !defined(SOC_SERIES_STM32L4) && !defined(SOC_SERIES_STM32F7) && !defined(SOC_SERIES_STM32F0) \
    && !defined(SOC_SERIES_STM32L0) && !defined(SOC_SERIES_STM32G0) && !defined(SOC_SERIES_STM32H7) \
    && !defined(SOC_SERIES_STM32G4)
        if (__HAL_UART_GET_FLAG(&(uart->handle), UART_FLAG_LBD) != RESET)
        {
            UART_INSTANCE_CLEAR_FUNCTION(&(uart->handle), UART_FLAG_LBD);
        }
#endif
        if (__HAL_UART_GET_FLAG(&(uart->handle), UART_FLAG_CTS) != RESET)
        {
            UART_INSTANCE_CLEAR_FUNCTION(&(uart->handle), UART_FLAG_CTS);
        }
        if (__HAL_UART_GET_FLAG(&(uart->handle), UART_FLAG_TXE) != RESET)
        {
            UART_INSTANCE_CLEAR_FUNCTION(&(uart->handle), UART_FLAG_TXE);
        }
        if (__HAL_UART_GET_FLAG(&(uart->handle), UART_FLAG_TC) != RESET)
        {
            UART_INSTANCE_CLEAR_FUNCTION(&(uart->handle), UART_FLAG_TC);
        }
        if (__HAL_UART_GET_FLAG(&(uart->handle), UART_FLAG_RXNE) != RESET)
        {
            UART_INSTANCE_CLEAR_FUNCTION(&(uart->handle), UART_FLAG_RXNE);
        }
    }
}

#ifdef RT_SERIAL_USING_DMA
static void dma_isr(struct rt_serial_device *serial)
{
    struct stm32_uart *uart;
    rt_size_t recv_total_index, recv_len;
    rt_base_t level;

    RT_ASSERT(serial != RT_NULL);
    uart = rt_container_of(serial, struct stm32_uart, serial);

    if ((__HAL_DMA_GET_IT_SOURCE(&(uart->dma_rx.handle), DMA_IT_TC) != RESET) ||
            (__HAL_DMA_GET_IT_SOURCE(&(uart->dma_rx.handle), DMA_IT_HT) != RESET))
    {
        level = rt_hw_interrupt_disable();
        recv_total_index = serial->config.bufsz - __HAL_DMA_GET_COUNTER(&(uart->dma_rx.handle));
        if (recv_total_index == 0)
        {
            recv_len = serial->config.bufsz - uart->dma_rx.last_index;
        }
        else
        {
            recv_len = recv_total_index - uart->dma_rx.last_index;
        }
        uart->dma_rx.last_index = recv_total_index;
        rt_hw_interrupt_enable(level);

        if (recv_len)
        {
            rt_hw_serial_isr(serial, RT_SERIAL_EVENT_RX_DMADONE | (recv_len << 8));
        }
    }
}
#endif

#if defined(BSP_USING_UART1)
void USART1_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    uart_isr(&(uart_obj[UART1_INDEX].serial));

    /* leave interrupt */
    rt_interrupt_leave();
}
#if defined(RT_SERIAL_USING_DMA) && defined(BSP_UART1_RX_USING_DMA)
void UART1_DMA_RX_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    HAL_DMA_IRQHandler(&uart_obj[UART1_INDEX].dma_rx.handle);

    /* leave interrupt */
    rt_interrupt_leave();
}
#endif /* defined(RT_SERIAL_USING_DMA) && defined(BSP_UART1_RX_USING_DMA) */
#if defined(RT_SERIAL_USING_DMA) && defined(BSP_UART1_TX_USING_DMA)
void UART1_DMA_TX_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    HAL_DMA_IRQHandler(&uart_obj[UART1_INDEX].dma_tx.handle);

    /* leave interrupt */
    rt_interrupt_leave();
}
#endif /* defined(RT_SERIAL_USING_DMA) && defined(BSP_UART1_TX_USING_DMA) */
#endif /* BSP_USING_UART1 */

#if defined(BSP_USING_UART2)
void USART2_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    uart_isr(&(uart_obj[UART2_INDEX].serial));

    /* leave interrupt */
    rt_interrupt_leave();
}
#if defined(RT_SERIAL_USING_DMA) && defined(BSP_UART2_RX_USING_DMA)
void UART2_DMA_RX_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    HAL_DMA_IRQHandler(&uart_obj[UART2_INDEX].dma_rx.handle);

    /* leave interrupt */
    rt_interrupt_leave();
}
#endif /* defined(RT_SERIAL_USING_DMA) && defined(BSP_UART2_RX_USING_DMA) */
#if defined(RT_SERIAL_USING_DMA) && defined(BSP_UART2_TX_USING_DMA)
void UART2_DMA_TX_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    HAL_DMA_IRQHandler(&uart_obj[UART2_INDEX].dma_tx.handle);

    /* leave interrupt */
    rt_interrupt_leave();
}
#endif /* defined(RT_SERIAL_USING_DMA) && defined(BSP_UART2_TX_USING_DMA) */
#endif /* BSP_USING_UART2 */

#if defined(BSP_USING_UART3)
void USART3_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    uart_isr(&(uart_obj[UART3_INDEX].serial));

    /* leave interrupt */
    rt_interrupt_leave();
}
#if defined(RT_SERIAL_USING_DMA) && defined(BSP_UART3_RX_USING_DMA)
void UART3_DMA_RX_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    HAL_DMA_IRQHandler(&uart_obj[UART3_INDEX].dma_rx.handle);

    /* leave interrupt */
    rt_interrupt_leave();
}
#endif /* defined(BSP_UART_USING_DMA_RX) && defined(BSP_UART3_RX_USING_DMA) */
#if defined(RT_SERIAL_USING_DMA) && defined(BSP_UART3_TX_USING_DMA)
void UART3_DMA_TX_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    HAL_DMA_IRQHandler(&uart_obj[UART3_INDEX].dma_tx.handle);

    /* leave interrupt */
    rt_interrupt_leave();
}
#endif /* defined(BSP_UART_USING_DMA_TX) && defined(BSP_UART3_TX_USING_DMA) */
#endif /* BSP_USING_UART3*/

#if defined(BSP_USING_UART4)
void UART4_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    uart_isr(&(uart_obj[UART4_INDEX].serial));

    /* leave interrupt */
    rt_interrupt_leave();
}
#if defined(RT_SERIAL_USING_DMA) && defined(BSP_UART4_RX_USING_DMA)
void UART4_DMA_RX_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    HAL_DMA_IRQHandler(&uart_obj[UART4_INDEX].dma_rx.handle);

    /* leave interrupt */
    rt_interrupt_leave();
}
#endif /* defined(BSP_UART_USING_DMA_RX) && defined(BSP_UART4_RX_USING_DMA) */

#if defined(RT_SERIAL_USING_DMA) && defined(BSP_UART4_TX_USING_DMA)
void UART4_DMA_TX_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    HAL_DMA_IRQHandler(&uart_obj[UART4_INDEX].dma_tx.handle);

    /* leave interrupt */
    rt_interrupt_leave();
}
#endif /* defined(BSP_UART_USING_DMA_TX) && defined(BSP_UART4_TX_USING_DMA) */
#endif /* BSP_USING_UART4*/

#if defined(BSP_USING_UART5)
void UART5_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    uart_isr(&(uart_obj[UART5_INDEX].serial));

    /* leave interrupt */
    rt_interrupt_leave();
}
#if defined(RT_SERIAL_USING_DMA) && defined(BSP_UART5_RX_USING_DMA)
void UART5_DMA_RX_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    HAL_DMA_IRQHandler(&uart_obj[UART5_INDEX].dma_rx.handle);

    /* leave interrupt */
    rt_interrupt_leave();
}
#endif /* defined(RT_SERIAL_USING_DMA) && defined(BSP_UART5_RX_USING_DMA) */
#if defined(RT_SERIAL_USING_DMA) && defined(BSP_UART5_TX_USING_DMA)
void UART5_DMA_TX_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    HAL_DMA_IRQHandler(&uart_obj[UART5_INDEX].dma_tx.handle);

    /* leave interrupt */
    rt_interrupt_leave();
}
#endif /* defined(RT_SERIAL_USING_DMA) && defined(BSP_UART5_TX_USING_DMA) */
#endif /* BSP_USING_UART5*/

#if defined(BSP_USING_UART6)
void USART6_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    uart_isr(&(uart_obj[UART6_INDEX].serial));

    /* leave interrupt */
    rt_interrupt_leave();
}
#if defined(RT_SERIAL_USING_DMA) && defined(BSP_UART6_RX_USING_DMA)
void UART6_DMA_RX_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    HAL_DMA_IRQHandler(&uart_obj[UART6_INDEX].dma_rx.handle);

    /* leave interrupt */
    rt_interrupt_leave();
}
#endif /* defined(RT_SERIAL_USING_DMA) && defined(BSP_UART6_RX_USING_DMA) */
#if defined(RT_SERIAL_USING_DMA) && defined(BSP_UART6_TX_USING_DMA)
//void UART6_DMA_TX_IRQHandler(void)
void DMA1_Stream0_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    HAL_DMA_IRQHandler(&uart_obj[UART6_INDEX].dma_tx.handle);

    /* leave interrupt */
    rt_interrupt_leave();
}
#endif /* defined(RT_SERIAL_USING_DMA) && defined(BSP_UART6_TX_USING_DMA) */
#endif /* BSP_USING_UART6*/

#if defined(BSP_USING_UART7)
void UART7_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    uart_isr(&(uart_obj[UART7_INDEX].serial));

    /* leave interrupt */
    rt_interrupt_leave();
}
#if defined(RT_SERIAL_USING_DMA) && defined(BSP_UART7_RX_USING_DMA)
void UART7_DMA_RX_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    HAL_DMA_IRQHandler(&uart_obj[UART7_INDEX].dma_rx.handle);

    /* leave interrupt */
    rt_interrupt_leave();
}
#endif /* defined(RT_SERIAL_USING_DMA) && defined(BSP_UART7_RX_USING_DMA) */
#if defined(RT_SERIAL_USING_DMA) && defined(BSP_UART7_TX_USING_DMA)
void UART7_DMA_TX_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    HAL_DMA_IRQHandler(&uart_obj[UART7_INDEX].dma_tx.handle);

    /* leave interrupt */
    rt_interrupt_leave();
}
#endif /* defined(RT_SERIAL_USING_DMA) && defined(BSP_UART7_TX_USING_DMA) */
#endif /* BSP_USING_UART7*/

#if defined(BSP_USING_UART8)
void UART8_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    uart_isr(&(uart_obj[UART8_INDEX].serial));

    /* leave interrupt */
    rt_interrupt_leave();
}
#if defined(RT_SERIAL_USING_DMA) && defined(BSP_UART8_RX_USING_DMA)
void UART8_DMA_RX_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    HAL_DMA_IRQHandler(&uart_obj[UART8_INDEX].dma_rx.handle);

    /* leave interrupt */
    rt_interrupt_leave();
}
#endif /* defined(RT_SERIAL_USING_DMA) && defined(BSP_UART8_RX_USING_DMA) */
#if defined(RT_SERIAL_USING_DMA) && defined(BSP_UART8_TX_USING_DMA)
void UART8_DMA_TX_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    HAL_DMA_IRQHandler(&uart_obj[UART8_INDEX].dma_tx.handle);

    /* leave interrupt */
    rt_interrupt_leave();
}
#endif /* defined(RT_SERIAL_USING_DMA) && defined(BSP_UART8_TX_USING_DMA) */
#endif /* BSP_USING_UART8*/

#if defined(BSP_USING_LPUART1)
void LPUART1_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    uart_isr(&(uart_obj[LPUART1_INDEX].serial));

    /* leave interrupt */
    rt_interrupt_leave();
}
#if defined(RT_SERIAL_USING_DMA) && defined(BSP_LPUART1_RX_USING_DMA)
void LPUART1_DMA_RX_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    HAL_DMA_IRQHandler(&uart_obj[LPUART1_INDEX].dma_rx.handle);

    /* leave interrupt */
    rt_interrupt_leave();
}
#endif /* defined(RT_SERIAL_USING_DMA) && defined(BSP_LPUART1_RX_USING_DMA) */
#endif /* BSP_USING_LPUART1*/

#ifdef RT_SERIAL_USING_DMA
static void stm32_dma_config(struct rt_serial_device *serial, rt_ubase_t flag)
{
    struct rt_serial_rx_fifo *rx_fifo;
    DMA_HandleTypeDef *DMA_Handle;
    struct dma_config *dma_config;
    struct stm32_uart *uart;

    RT_ASSERT(serial != RT_NULL);
    uart = rt_container_of(serial, struct stm32_uart, serial);

    if (RT_DEVICE_FLAG_DMA_RX == flag)
    {
        DMA_Handle = &uart->dma_rx.handle;
        dma_config = uart->config->dma_rx;
    }
    else if (RT_DEVICE_FLAG_DMA_TX == flag)
    {
        DMA_Handle = &uart->dma_tx.handle;
        dma_config = uart->config->dma_tx;
    }
    LOG_D("%s dma config start", uart->config->name);

    {
        rt_uint32_t tmpreg = 0x00U;
#if defined(SOC_SERIES_STM32H7)
        __HAL_RCC_DMA1_CLK_ENABLE();
#endif
#if defined(SOC_SERIES_STM32F1) || defined(SOC_SERIES_STM32F0) || defined(SOC_SERIES_STM32G0) \
    || defined(SOC_SERIES_STM32L0)
        /* enable DMA clock && Delay after an RCC peripheral clock enabling*/
        SET_BIT(RCC->AHBENR, dma_config->dma_rcc);
        tmpreg = READ_BIT(RCC->AHBENR, dma_config->dma_rcc);
#elif defined(SOC_SERIES_STM32F4) || defined(SOC_SERIES_STM32F7) || defined(SOC_SERIES_STM32L4) \
    || defined(SOC_SERIES_STM32G4)
        /* enable DMA clock && Delay after an RCC peripheral clock enabling*/
        SET_BIT(RCC->AHB1ENR, dma_config->dma_rcc);
        tmpreg = READ_BIT(RCC->AHB1ENR, dma_config->dma_rcc);

#if (defined(SOC_SERIES_STM32L4) || defined(SOC_SERIES_STM32G4)) && defined(DMAMUX1)
        /* enable DMAMUX clock for L4+ and G4 */
        __HAL_RCC_DMAMUX1_CLK_ENABLE();
#endif

#endif
        UNUSED(tmpreg);   /* To avoid compiler warnings */
    }

#if defined(SOC_SERIES_STM32F1) || defined(SOC_SERIES_STM32F0) || defined(SOC_SERIES_STM32L0)
    DMA_Handle->Instance                 = dma_config->Instance;
#elif defined(SOC_SERIES_STM32F4) || defined(SOC_SERIES_STM32F7)
    DMA_Handle->Instance                 = dma_config->Instance;
    DMA_Handle->Init.Channel             = dma_config->channel;
#elif defined(SOC_SERIES_STM32L4) || defined(SOC_SERIES_STM32G0) || defined(SOC_SERIES_STM32G4)
    DMA_Handle->Instance                 = dma_config->Instance;
    DMA_Handle->Init.Request             = dma_config->request;
#elif defined(SOC_SERIES_STM32H7)
    DMA_Handle->Instance                 = dma_config->Instance;
    DMA_Handle->Init.Request = DMA_REQUEST_USART6_TX;
    DMA_Handle->Init.FIFOMode = DMA_FIFOMODE_DISABLE;
#endif
    DMA_Handle->Init.PeriphInc           = DMA_PINC_DISABLE;
    DMA_Handle->Init.MemInc              = DMA_MINC_ENABLE;
    DMA_Handle->Init.PeriphDataAlignment = DMA_PDATAALIGN_BYTE;
    DMA_Handle->Init.MemDataAlignment    = DMA_MDATAALIGN_BYTE;

    if (RT_DEVICE_FLAG_DMA_RX == flag)
    {
        DMA_Handle->Init.Direction           = DMA_PERIPH_TO_MEMORY;
        DMA_Handle->Init.Mode                = DMA_CIRCULAR;
    }
    else if (RT_DEVICE_FLAG_DMA_TX == flag)
    {
        DMA_Handle->Init.Direction           = DMA_MEMORY_TO_PERIPH;
        DMA_Handle->Init.Mode                = DMA_NORMAL;
    }

    DMA_Handle->Init.Priority            = DMA_PRIORITY_MEDIUM;
#if defined(SOC_SERIES_STM32F4) || defined(SOC_SERIES_STM32F7)
    DMA_Handle->Init.FIFOMode            = DMA_FIFOMODE_DISABLE;
#endif

    if (RT_DEVICE_FLAG_DMA_RX == flag)
    {
        __HAL_LINKDMA(&(uart->handle), hdmarx, uart->dma_rx.handle);
    }
    else if (RT_DEVICE_FLAG_DMA_TX == flag)
    {
        __HAL_LINKDMA(&(uart->handle), hdmatx, uart->dma_tx.handle);
    }

    if (HAL_DMA_DeInit(DMA_Handle) != HAL_OK)
    {
        RT_ASSERT(0);
    }

    if (HAL_DMA_Init(DMA_Handle) != HAL_OK)
    {
        RT_ASSERT(0);
    }

    /* enable interrupt */
    if (flag == RT_DEVICE_FLAG_DMA_RX)
    {
        rx_fifo = (struct rt_serial_rx_fifo *)serial->serial_rx;
        /* Start DMA transfer */
        if (HAL_UART_Receive_DMA(&(uart->handle), rx_fifo->buffer, serial->config.bufsz) != HAL_OK)
        {
            /* Transfer error in reception process */
            RT_ASSERT(0);
        }
        CLEAR_BIT(uart->handle.Instance->CR3, USART_CR3_EIE);
        __HAL_UART_ENABLE_IT(&(uart->handle), UART_IT_IDLE);
    }

    HAL_NVIC_SetPriority(dma_config->dma_irq, 0, 0);
    HAL_NVIC_EnableIRQ(dma_config->dma_irq);

    HAL_NVIC_SetPriority(uart->config->irq_type, 0, 0);
    HAL_NVIC_EnableIRQ(uart->config->irq_type);

    LOG_D("%s dma %s instance: %x", uart->config->name, flag == RT_DEVICE_FLAG_DMA_RX ? "RX" : "TX", DMA_Handle->Instance);
    LOG_D("%s dma config done", uart->config->name);
}

/**
  * @brief  UART error callbacks
  * @param  huart: UART handle
  * @note   This example shows a simple way to report transfer error, and you can
  *         add your own implementation.
  * @retval None
  */
void HAL_UART_ErrorCallback(UART_HandleTypeDef *huart)
{
    RT_ASSERT(huart != NULL);
    struct stm32_uart *uart = (struct stm32_uart *)huart;
    LOG_D("%s: %s %d\n", __FUNCTION__, uart->config->name, huart->ErrorCode);
    UNUSED(uart);
}

/**
  * @brief  Rx Transfer completed callback
  * @param  huart: UART handle
  * @note   This example shows a simple way to report end of DMA Rx transfer, and
  *         you can add your own implementation.
  * @retval None
  */
void HAL_UART_RxCpltCallback(UART_HandleTypeDef *huart)
{
    struct stm32_uart *uart;
    RT_ASSERT(huart != NULL);
    uart = (struct stm32_uart *)huart;
 //   dma_isr(&uart->serial);
}

/**
  * @brief  Rx Half transfer completed callback
  * @param  huart: UART handle
  * @note   This example shows a simple way to report end of DMA Rx Half transfer,
  *         and you can add your own implementation.
  * @retval None
  */
void HAL_UART_RxHalfCpltCallback(UART_HandleTypeDef *huart)
{
    struct stm32_uart *uart;
    RT_ASSERT(huart != NULL);
    uart = (struct stm32_uart *)huart;
 //   dma_isr(&uart->serial);
}
void HAL_UART_TxCpltCallback(UART_HandleTypeDef *huart)
{
    struct stm32_uart *uart;
    RT_ASSERT(huart != NULL);
    uart = (struct stm32_uart *)huart;
    rt_hw_serial_isr(&uart->serial, RT_SERIAL_EVENT_TX_DMADONE);
}
#endif  /* RT_SERIAL_USING_DMA */

static void stm32_uart_get_dma_config(void)
{
#ifdef BSP_USING_UART1
    uart_obj[UART1_INDEX].uart_dma_flag = 0;
#ifdef BSP_UART1_RX_USING_DMA
    uart_obj[UART1_INDEX].uart_dma_flag |= RT_DEVICE_FLAG_DMA_RX;
    static struct dma_config uart1_dma_rx = UART1_DMA_RX_CONFIG;
    uart_config[UART1_INDEX].dma_rx = &uart1_dma_rx;
#endif
#ifdef BSP_UART1_TX_USING_DMA
    uart_obj[UART1_INDEX].uart_dma_flag |= RT_DEVICE_FLAG_DMA_TX;
    static struct dma_config uart1_dma_tx = UART1_DMA_TX_CONFIG;
    uart_config[UART1_INDEX].dma_tx = &uart1_dma_tx;
#endif
#endif

#ifdef BSP_USING_UART2
    uart_obj[UART2_INDEX].uart_dma_flag = 0;
#ifdef BSP_UART2_RX_USING_DMA
    uart_obj[UART2_INDEX].uart_dma_flag |= RT_DEVICE_FLAG_DMA_RX;
    static struct dma_config uart2_dma_rx = UART2_DMA_RX_CONFIG;
    uart_config[UART2_INDEX].dma_rx = &uart2_dma_rx;
#endif
#ifdef BSP_UART2_TX_USING_DMA
    uart_obj[UART2_INDEX].uart_dma_flag |= RT_DEVICE_FLAG_DMA_TX;
    static struct dma_config uart2_dma_tx = UART2_DMA_TX_CONFIG;
    uart_config[UART2_INDEX].dma_tx = &uart2_dma_tx;
#endif
#endif

#ifdef BSP_USING_UART3
    uart_obj[UART3_INDEX].uart_dma_flag = 0;
#ifdef BSP_UART3_RX_USING_DMA
    uart_obj[UART3_INDEX].uart_dma_flag |= RT_DEVICE_FLAG_DMA_RX;
    static struct dma_config uart3_dma_rx = UART3_DMA_RX_CONFIG;
    uart_config[UART3_INDEX].dma_rx = &uart3_dma_rx;
#endif
#ifdef BSP_UART3_TX_USING_DMA
    uart_obj[UART3_INDEX].uart_dma_flag |= RT_DEVICE_FLAG_DMA_TX;
    static struct dma_config uart3_dma_tx = UART3_DMA_TX_CONFIG;
    uart_config[UART3_INDEX].dma_tx = &uart3_dma_tx;
#endif
#endif

#ifdef BSP_USING_UART4
    uart_obj[UART4_INDEX].uart_dma_flag = 0;
#ifdef BSP_UART4_RX_USING_DMA
    uart_obj[UART4_INDEX].uart_dma_flag |= RT_DEVICE_FLAG_DMA_RX;
    static struct dma_config uart4_dma_rx = UART4_DMA_RX_CONFIG;
    uart_config[UART4_INDEX].dma_rx = &uart4_dma_rx;
#endif
#ifdef BSP_UART4_TX_USING_DMA
    uart_obj[UART4_INDEX].uart_dma_flag |= RT_DEVICE_FLAG_DMA_TX;
    static struct dma_config uart4_dma_tx = UART4_DMA_TX_CONFIG;
    uart_config[UART4_INDEX].dma_tx = &uart4_dma_tx;
#endif
#endif

#ifdef BSP_USING_UART5
    uart_obj[UART5_INDEX].uart_dma_flag = 0;
#ifdef BSP_UART5_RX_USING_DMA
    uart_obj[UART5_INDEX].uart_dma_flag |= RT_DEVICE_FLAG_DMA_RX;
    static struct dma_config uart5_dma_rx = UART5_DMA_RX_CONFIG;
    uart_config[UART5_INDEX].dma_rx = &uart5_dma_rx;
#endif
#ifdef BSP_UART5_TX_USING_DMA
    uart_obj[UART5_INDEX].uart_dma_flag |= RT_DEVICE_FLAG_DMA_TX;
    static struct dma_config uart5_dma_tx = UART5_DMA_TX_CONFIG;
    uart_config[UART5_INDEX].dma_tx = &uart5_dma_tx;
#endif
#endif

#ifdef BSP_USING_UART6
    uart_obj[UART6_INDEX].uart_dma_flag = 0;
#ifdef BSP_UART6_RX_USING_DMA
    uart_obj[UART6_INDEX].uart_dma_flag |= RT_DEVICE_FLAG_DMA_RX;
    static struct dma_config uart6_dma_rx = UART6_DMA_RX_CONFIG;
    uart_config[UART6_INDEX].dma_rx = &uart6_dma_rx;
#endif
#ifdef BSP_UART6_TX_USING_DMA
    uart_obj[UART6_INDEX].uart_dma_flag |= RT_DEVICE_FLAG_DMA_TX;
    static struct dma_config uart6_dma_tx = UART6_DMA_TX_CONFIG;
    uart_config[UART6_INDEX].dma_tx = &uart6_dma_tx;
#endif
#endif
}

int rt_hw_usart_init(void)
{
    rt_size_t obj_num = sizeof(uart_obj) / sizeof(struct stm32_uart);
    struct serial_configure config = RT_SERIAL_CONFIG_DEFAULT;
    rt_err_t result = 0;

    stm32_uart_get_dma_config();

    for (int i = 0; i < obj_num; i++)
    {
        uart_obj[i].config = &uart_config[i];
        uart_obj[i].serial.ops    = &stm32_uart_ops;
        uart_obj[i].serial.config = config;
        /* register UART device */
        result = rt_hw_serial_register(&uart_obj[i].serial, uart_obj[i].config->name,
                                       RT_DEVICE_FLAG_RDWR
                                       | RT_DEVICE_FLAG_INT_RX
                                       | RT_DEVICE_FLAG_INT_TX
                                       | uart_obj[i].uart_dma_flag
                                       , NULL);
        RT_ASSERT(result == RT_EOK);
    }

    return result;
}

#endif /* RT_USING_SERIAL */

然后再board.h中添加该串口相关宏，

#define BSP_USING_UART6
#define BSP_UART6_TX_PIN       "PC6"
#define BSP_UART6_RX_PIN       "PG9"
#define BSP_UART6_TX_USING_DMA
#define UART6_TX_DMA_INSTANCE   DMA1_Stream0
#define UART6_TX_DMA_RCC        0
#define UART6_TX_DMA_IRQ        DMA1_Stream0_IRQn

然后再uart_config.h中去掉uart6 dma的channel，H7没有channel通道，更改后如下，

#if defined(BSP_UART6_TX_USING_DMA)
#ifndef UART6_DMA_TX_CONFIG
#define UART6_DMA_TX_CONFIG                                         \
    {                                                               \
        .Instance = UART6_TX_DMA_INSTANCE,                          \
        .dma_rcc = UART6_TX_DMA_RCC,                                \
        .dma_irq = UART6_TX_DMA_IRQ,                                \
    }
#endif /* UART6_DMA_TX_CONFIG */

然后使用该串口发送测试，

static char buf[] /*__attribute__((section(".ARM.__at_0x24000000")))*/ = "liujian test!\r\n";
uint8_t rs485_en;
static rt_err_t rs485_tx_done(rt_device_t dev, void *buffer)
{
    rt_pin_write(rs485_en, PIN_LOW);
}

int main(void)
{
    int count = 1;
    rt_err_t ret = RT_EOK;
    rt_size_t len = 0;
    struct uart_configure conf = {0};

    rs485_en = GET_PIN(G,10);//rt_pin_get("PG.10");
    rt_pin_mode(rs485_en, PIN_MODE_OUTPUT);
    rt_pin_write(rs485_en, PIN_LOW);

    uart6 = rt_device_find("uart6");
    if (uart6 == RT_NULL)
        return 0;

    ret = rt_device_open(uart6,RT_DEVICE_FLAG_RDWR| RT_DEVICE_FLAG_DMA_TX);
    if (ret != RT_EOK)
        return 0;

    rt_device_set_tx_complete(uart6, rs485_tx_done);
/*
    conf.baud_rate = 115200;
    conf.data_bits = 8;
    conf.bufsz = 64;
    ret = rt_device_control(uart6, RT_DEVICE_CTRL_CONFIG, &conf);
    if (ret != RT_EOK)
        return 0;
*/
    while (count++)
    {
        rt_pin_write(rs485_en, PIN_HIGH);
        len = rt_device_write(uart6, 0, buf, 15);
       // rt_thread_mdelay(2);

       // LOG_D("Hello RT-Thread!");
        rt_thread_mdelay(5);
    }

    return RT_EOK;
}

发现DMA中断会进入TEIF，传输错误，根本原因为：程序默认执行地址是从RAM1: 0x20000000处开始执行，而0x20000000是DTCM段，DMA无法进行访问，这就导致使用DMA传输时无法读写数据。具体可参考此文章，STM32H7：解决DMA传输无效的问题_Ho_pe的博客-CSDN博客

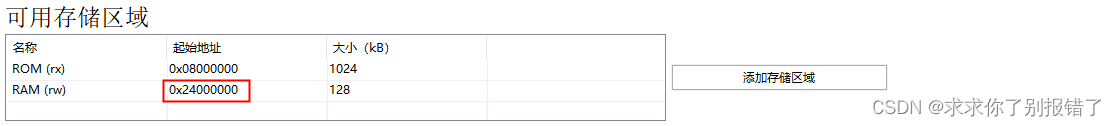

最后更改如下，更改链接文件link.lds, 0x20000000改为0x24000000，

 然后更改board.h中的RAM_START为0x24000000，

#define RAM_START              (0x24000000)

程序正常工作！！！

stm32h7 UART dma接收不到数据_串口通信（UART）介绍
weixin_39767983的博客
11-22 1989
通用异步收发传输器(Universal Asynchronous Receiver/Transmitter)，通常称作UART，是一种异步收发传输器。首先先来介绍以下同步和异步通信，同步是指，发送方发出数据后，等接收方发回响应以后才发下一个数据包的通讯方式；异步是指，发送方发出数据后，不等接收方发回响应，接着发送下个数据包的通讯方式。换句话说，同步通信是阻塞方式，异步通信是非阻塞方式。在常见通信总...
ART PI在RT-Thread Studio上开发体验
qq_26175393的博客
02-21 564
RT-Thread Studio上开发ART有点树莓派开发的感觉，底层驱动很多情况下根据社区文章推荐，下载配置即可，但是也只是有点树莓派开发的感觉。
关于STM32H7的串口DMA的使用
u012771642的博客
05-10 7440
关于STM32H7的串口DMA的使用： 最近在使用H743做项目，想用RT-THREAD来做，但是目前（2022/5/10）之前，RT对于H7系列的支持，特别是DMA的使用可以说完全没有适配，所以现在先裸机开发各个外设的DMA，到时候再做移植 文章目录关于STM32H7的串口DMA的使用：前言一、环境准备二、cubemx配置三、修改代码四、总结 前言 h743用的人属实不多，相关教程少，特别是一些教程的例子，都难以直接上手，于是决定自己写一篇，关于如何快速开发，用使用h7系列的串口DMA 本篇教程的
在RT-Thread Studio创建基于STM32H743的工程
最新发布
TrueLink的博客
04-16 354
更新软件包，这样只会编译SConscript添加的几个c文件。主要是利用CubeMx配置STM32芯片方便效率高的优点。4.添加cubemx文件夹下的SConscript文件。修改applications/main.c。
STM32H7在RT-Thread上的多内存使用方法
whj123999的博客
02-20 4805
一，STM32H7 RAM介绍 使用过STM32H7的朋友应该知道H7的RAM是有很多的区域的，不同的区域，使用了不同的总线，所能支持的外设也就不一样了，具体的总线结构如下图所示 通过上图和上表就能发现如果要使用DMA就必须对多RAM进行管理，要么自己去实现内存管理，要么通过__attribute__ 关键字去定义，这样或多或少会有些麻烦，后来看到安福莱STM32H743动态内存管理，同时分区管...
基于RT-Thread在STM32H7上移植LWIP（一）
whj123999的博客
05-04 9875
@基于RT_Thread在STM32H7上移植LWIP 一，写在前面 STM32H7目前还是一个比较新的MCU，网上的资料相对于F1 F4系列相对来说就很少了，我自己在移植这个LWIP的时候走了不少弯路，得到了不少人帮助。写这篇文章也是对我自己移植的一个总结，也是希望后来人能少走弯路。 这篇文章有由个人编辑并整理，如有错误，欢迎拍砖。 二，RT_Thread,STM32H7,LWIP简介 RT-T...
rtthread串口DMA收发
u012936480的博客
06-10 1050
RTT文档里的DMA例子不知道是什么原因，接收数据大小只能小于消息缓冲区大小的一半，所以自己将中断接收的例子改为DMA方式。屏蔽掉HAL_UART_RxHalfCpltCallback里的dma_recv_isr()再在程序中做如下修改。
RT-Thread DMA
Bit_Dong的博客
11-15 1115
这里以串口的DMA方式接收为例，串口1进行调试，串口2进行DMA接收。
RT-Thread 驱动篇 之 serialX 全网公测
rtthreadiotos的博客
02-09 1542
作者：RT-Thread论坛 出出啊前言“serialX” 我起的名字，起个名字想破头。在前一篇文章里，大致提出了我的串口驱动框架理论。里面做了一些对串口驱动特性的幻想。也在 NUC970...
STM32H743的SFUD固件移植实验
09-07
1. **STM32H743特性**：STM32H743拥有高主频的Cortex-M7核心，支持浮点运算单元（FPU），具有大容量的RAM和Flash存储，以及众多通信接口如SPI、I2C、USB等，这些都是进行串行闪存操作的基础。 2. **SFUD简介**：...
关于STM32H7的USB初始化失败
weixin_45045183的博客
12-28 4581
在使用STM32H7的USB时，初始化会失败，如果不开启优化，是没有问题的，只要开启就会时常出现USB初始化失败， // 使用CubeMX生成的void MX_USB_DEVICE_Init(void);/** * Init USB device Library, add supported class and start the library * @retval None */ void MX_USB_DEVICE_Init(void) { /* Init Device Library,
STM32 用 UART 串口 通过 DMA 方式进行 蓝牙 传输-C语言
10-25
STM32 用串口 通过 DMA 方式进行 蓝牙 传输 C语言，自己的项目，完全可用。DMA通道7 进行发送。
基于RT-Thread Nano的便携式电子测量仪器设计
通过本次项目的实践，作者深入理解了STM32 H7系列开发板的多域设计和RAM的分布式设计，以及在使用DMA通信时的特定限制。这些知识对于进行更高级别的嵌入式系统设计是非常重要的。 #### RT-Thread版本选择 作者尝试...
RT-Thread开启串口.中断和DMA接收（手把手教学）
weixin_44737233的博客
09-10 6954
串口是指数据一位一位地顺序传送，其特点是通讯线路简单，只要一对传输线就可以实现双向通信（可以直接利用电话线作为传输线），从而大大降低了成本，特别适用于远距离通信，但传送速度较慢。一条信息的各位数据被逐位按顺序传送的通讯方式称为串行通讯。串行通讯的特点是：数据位的传送，按位顺序进行，最少只需一根传输线即可完成；成本低但传送速度慢。串行通讯的距离可以从几米到几千米；根据信息的传送方向，串行通讯可以进一步分为单工、半双工和全双工三种。
stm32f407 6路串口dma如何配置_单片机串口共性问题
weixin_39538500的博客
11-22 361
以下文章来源于嵌入式客栈 ，作者逸珺。部分修改，串口分类(串口是啥)通用异步收发器(UART)是用于异步串行通信的一种物理层标准，其中数据格式和传输速度是可配置的。通用同步收发器(USART)是一种串行接口设备，可以对其进行编程以进行异步或同步通信。数据格式线上空闲、无数据状态为常高电平，故逻辑低定义为起始位。起始位：总是 1 位数据位：常见的有 8 位或 9 位。校验位奇校验偶校验无校验停止位：...
Rtthread学习笔记（五）串口设备使用示例--DMA 接收及轮询发送_rt thread uart dma示例代码
2401_85011895的博客
05-16 1087
当串口接收到一批数据后会调用接收回调函数，接收回调函数会把此时缓冲区的数据大小通过消息队列发送给等待的数据处理线程。线程获取到消息后被激活，并读取数据。一般情况下 DMA 接收模式会结合 DMA 接收完成中断和串口空闲中断完成数据接收。
在rt-thread中使用串口DMA模式的思考
SeniorZ的点滴记录
02-15 3826
DMA的定义 直接存储器存取（Direct Memory Access，DMA）是计算机科学中的一种内存访问技术。它允许某些电脑内部的硬体子系统（电脑外设），可以独立地直接读写系统存储器，而不需绕道 CPU。在同等程度的CPU负担下，DMA是一种快速的数据传送方式。它允许不同速度的硬件装置来沟通，而不需要依于 CPU的大量中断请求。 DMA有什么用？ 直接存储器存取用来提供在外设和存储器之间...
STM32H7串口DMA
qq_45955402的博客
04-30 1199
这个函数开启DMA接收,将收到的数据存放到Rxbuffer数组中去,当接收到了sizeof(Rxbuffer)个数据就会回调DMA1_Stream0_IRQHandler函数,再从HAL_DMA_IRQHandler继续回调HAL_UART_RxCpltCallback()这个函数。HAL_UART_RxCpltCallback是一个弱函数，需要自己去重写，否则默认HAL自带的形式。重写HAL_UART_RxCpltCallback()发送速度确实挺快的。
rt-thread stm32h7 无法接收组播数据
Deven Huang的博客
06-02 594
rt-thread ssdp无法接收组播数据
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
