概要

想要实现读取视频或者图片，然后发布到ros中，用rivz显示。
需要借助几个库，如下

catkin_create_pkg test roscpp rosmsg cv_bridge image_transport sensor_msgs std_msgs

实现方式

方式一 ros::Publisher

#include <cv_bridge/cv_bridge.h>
#include <ros/ros.h>
#include <sensor_msgs/Image.h>

#include <chrono>
#include <opencv2/opencv.hpp>

double GetTimeCostms(const std::chrono::time_point<std::chrono::high_resolution_clock>& start) {
  auto end = std::chrono::high_resolution_clock::now();
  double milliseconds = std::chrono::duration_cast<std::chrono::duration<double>>(end - start).count() * 1000;
  // ROS_INFO_STREAM("handle cost ms:" << milliseconds);
  return milliseconds;
}

int main(int argc, char** argv) {
  // 初始化ROS节点
  ros::init(argc, argv, "image_publisher");

  // 创建一个ROS节点句柄
  ros::NodeHandle nh;

  // 创建一个图像发布者
  ros::Publisher image_pub = nh.advertise<sensor_msgs::Image>("image_topic", 10);

  // 读取本地图片
  cv::Mat image = cv::imread("./picture/0.jpg");

  // 发布图像消息
  ros::Rate rate(25);  // 设置发布频率为10Hz
  while (ros::ok()) {
    auto start = std::chrono::high_resolution_clock::now();
    auto start1 = start;
    // 创建一个CvBridge对象
    cv_bridge::CvImage cv_image;
    // 将OpenCV图像转换为ROS图像消息
    cv::Mat imageResize;
    // cv::resize(image, imageResize, cv::Size(), 0.5, 0.5);
    // cv_image.image = imageResize;
    cv_image.image = image;
    cv_image.encoding = "bgr8";
    cv_image.header.stamp = ros::Time::now();
    auto msg = cv_image.toImageMsg();
    ROS_INFO_STREAM("1cost ms:" << GetTimeCostms(start));
    start = std::chrono::high_resolution_clock::now();
    image_pub.publish(msg);
    ROS_INFO_STREAM("2cost ms:" << GetTimeCostms(start));
    ROS_INFO_STREAM("3cost ms:" << GetTimeCostms(start1));
    ros::spinOnce();
    rate.sleep();
  }

  return 0;
}

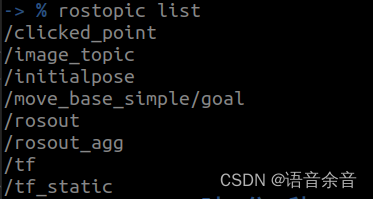

在这里插入图片描述

方式二 image_transport::Publisher

#include <cv_bridge/cv_bridge.h>
#include <image_transport/image_transport.h>
#include <ros/ros.h>
#include <sensor_msgs/Image.h>

#include <chrono>
#include <opencv2/opencv.hpp>

double GetTimeCostms(const std::chrono::time_point<std::chrono::high_resolution_clock>& start) {
  auto end = std::chrono::high_resolution_clock::now();
  double milliseconds = std::chrono::duration_cast<std::chrono::duration<double>>(end - start).count() * 1000;
  // ROS_INFO_STREAM("handle cost ms:" << milliseconds);
  return milliseconds;
}

int main(int argc, char** argv) {
  // 初始化ROS节点
  ros::init(argc, argv, "image_publisher");

  // 创建一个ROS节点句柄
  ros::NodeHandle nh;

  // 创建一个图像发布者
  image_transport::ImageTransport it_(nh);
  image_transport::Publisher image_pub = it_.advertise("image_topic", 10);

  // 读取本地图片
  cv::Mat image = cv::imread("./picture/0.jpg");

  // 发布图像消息
  ros::Rate rate(25);  // 设置发布频率为10Hz
  while (ros::ok()) {
    auto start = std::chrono::high_resolution_clock::now();
    auto start1 = start;
    // 创建一个CvBridge对象
    cv_bridge::CvImage cv_image;
    // 将OpenCV图像转换为ROS图像消息
    cv::Mat imageResize;
    // cv::resize(image, imageResize, cv::Size(), 0.5, 0.5);
    // cv_image.image = imageResize;
    cv_image.image = image;
    cv_image.encoding = "bgr8";
    // cv_image.header.stamp = ros::Time::now();
    auto msg = cv_image.toImageMsg();
    ROS_INFO_STREAM("1cost ms:" << GetTimeCostms(start));
    start = std::chrono::high_resolution_clock::now();
    image_pub.publish(msg);
    ROS_INFO_STREAM("2cost ms:" << GetTimeCostms(start));
    ROS_INFO_STREAM("3cost ms:" << GetTimeCostms(start1));
    ros::spinOnce();
    rate.sleep();
  }

  return 0;
}

-> % rostopic list
/clicked_point
/image_topic
/image_topic/compressed
/image_topic/compressed/parameter_descriptions
/image_topic/compressed/parameter_updates
/image_topic/compressedDepth
/image_topic/compressedDepth/parameter_descriptions
/image_topic/compressedDepth/parameter_updates
/image_topic/theora
/image_topic/theora/parameter_descriptions
/image_topic/theora/parameter_updates
/initialpose
/move_base_simple/goal
/rosout
/rosout_agg
/rviz_1707222063696618079/compressed/parameter_descriptions
/rviz_1707222063696618079/compressed/parameter_updates
/tf
/tf_static
