【第三节】- StreamGraph构建过程

本次分析针对 org.apache.flink.streaming.examples.wordcount程序进行分析， 通过debug代码，了解 StreamGraph的构建过程。

针对对应的几处操作添加debug断点:

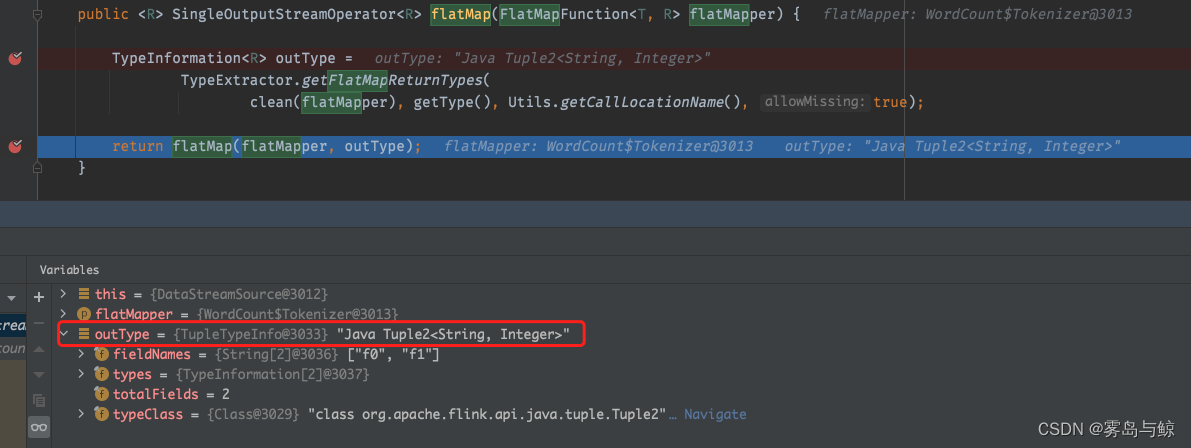

首先执行到 DataStream的 flatMap方法:

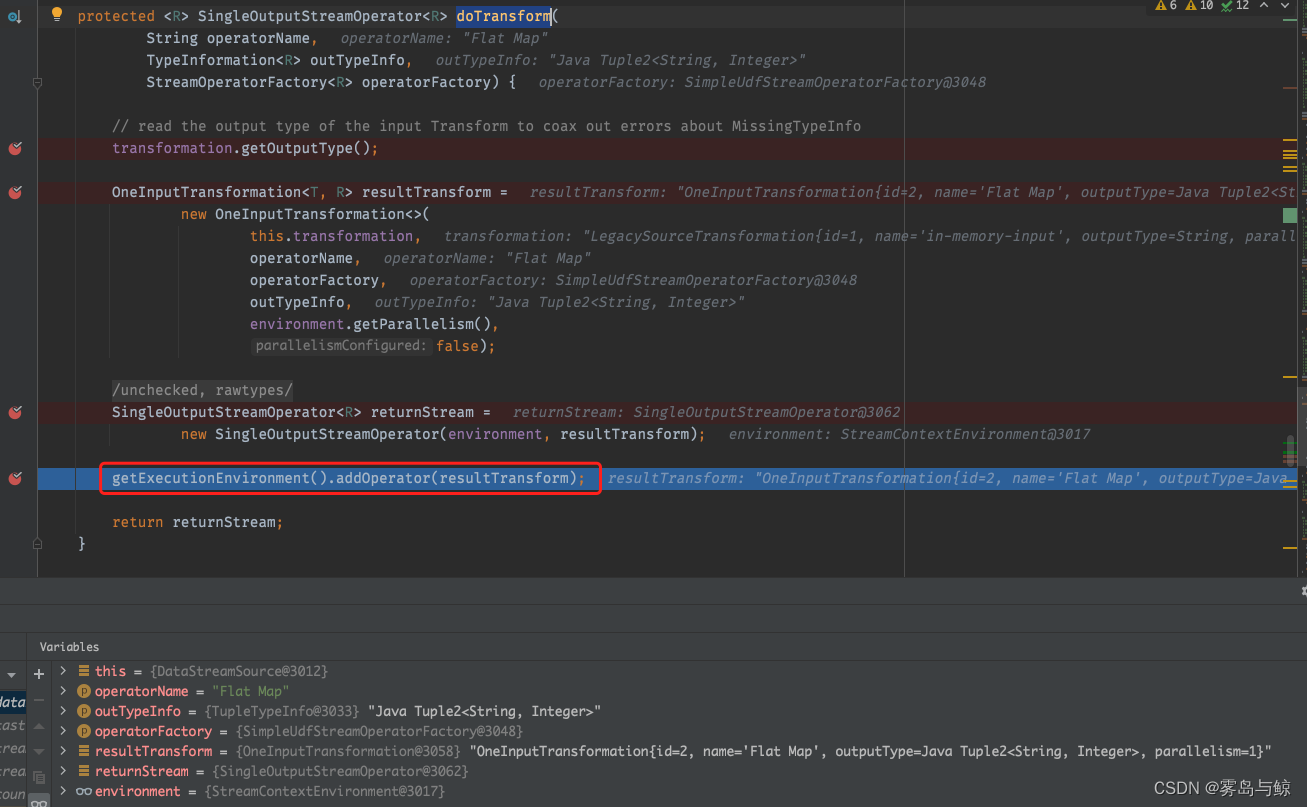

继续往下执行，执行到doTransform方法的时候， 获取当前执行环境，将当前StreamTransformation添加到StreamExecutionEnvironment 内部使用一个 List<StreamTransformation<?>> transformations中，该List 保留生成 DataStream 的所有转换:

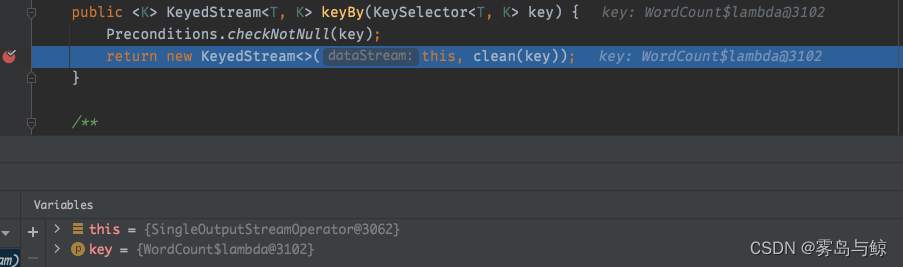

接下来执行到keyBy操作，DataStream转换为了KeyedStream:

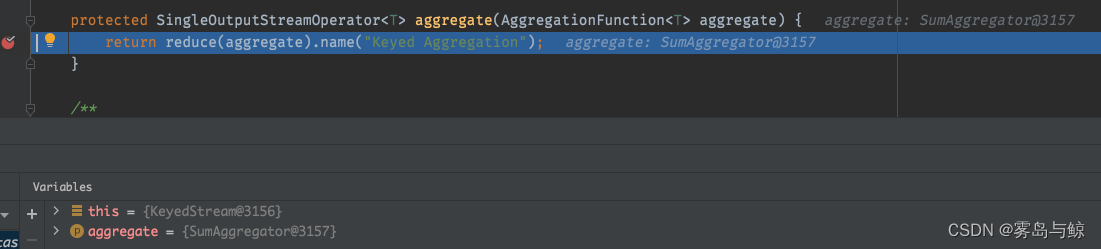

执行sum聚合操作:

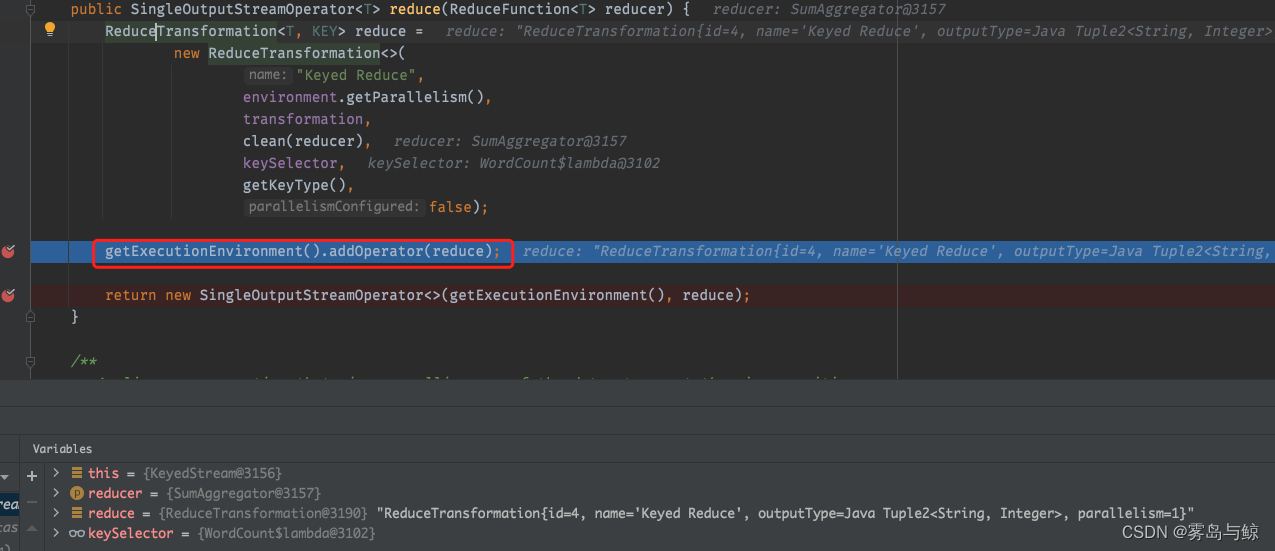

继续往下，同样的会获取当前执行环境，将对应的StreamTransformation添加到StreamExecutionEnvironment 内部使用一个 List<StreamTransformation<?>> transformations中:

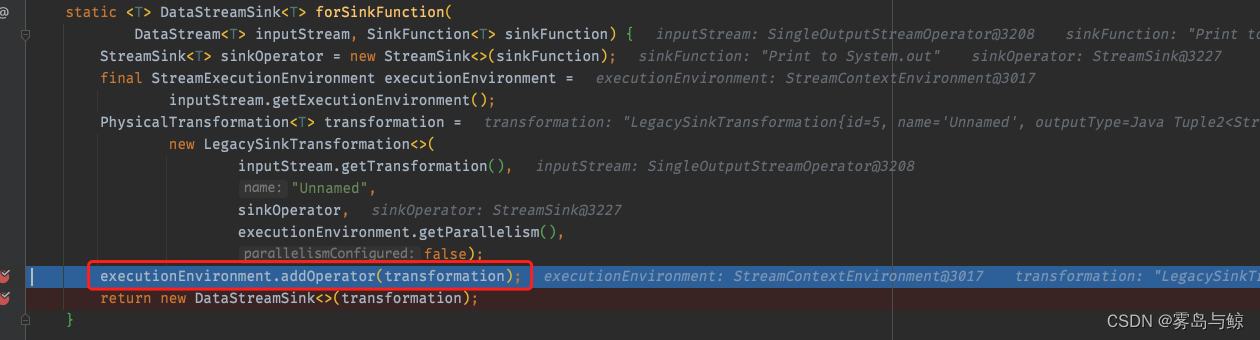

最后sink操作，同样的会获取当前执行环境，将对应的StreamTransformation添加到StreamExecutionEnvironment 内部使用一个 List<StreamTransformation<?>> transformations中:

接着程序执行到 StreamTransformation的execute方法:

public JobExecutionResult execute(String jobName) throws Exception {
		// DataStream中的所有转换
        final List<Transformation<?>> originalTransformations = new ArrayList<>(transformations);
        // 生成StreamGraph
        StreamGraph streamGraph = getStreamGraph();
        if (jobName != null) {
            streamGraph.setJobName(jobName);
        }

        try {
            return execute(streamGraph);
        } catch (Throwable t) {
            Optional<ClusterDatasetCorruptedException> clusterDatasetCorruptedException =
                    ExceptionUtils.findThrowable(t, ClusterDatasetCorruptedException.class);
            if (!clusterDatasetCorruptedException.isPresent()) {
                throw t;
            }

            // Retry without cache if it is caused by corrupted cluster dataset.
            invalidateCacheTransformations(originalTransformations);
            streamGraph = getStreamGraph(originalTransformations);
            return execute(streamGraph);
        }
    }

小结：

• flatmap 转换将用户自定义的 FlatMapFunction 包装到 StreamFlatMap 这个 Operator 中
• 再将 StreamFlatMap 包装到 OneInputTransformation
• 最后该 transformation 存到 env 中
• 当调用 env.execute 时，遍历其中的 transformation 列表构造出 StreamGraph

往下执行:

StreamGraphGenerator的generate方法:

public StreamGraph generate() {
        streamGraph = new StreamGraph(executionConfig, checkpointConfig, savepointRestoreSettings);
        shouldExecuteInBatchMode = shouldExecuteInBatchMode();
        configureStreamGraph(streamGraph);

        alreadyTransformed = new IdentityHashMap<>();

		// 遍历DataStream的操作列表，递归调用```StreamGraphGenerator#transform```方法
        for (Transformation<?> transformation : transformations) {
            transform(transformation);
        }

        streamGraph.setSlotSharingGroupResource(slotSharingGroupResources);

        setFineGrainedGlobalStreamExchangeMode(streamGraph);

        for (StreamNode node : streamGraph.getStreamNodes()) {
            if (node.getInEdges().stream().anyMatch(this::shouldDisableUnalignedCheckpointing)) {
                for (StreamEdge edge : node.getInEdges()) {
                    edge.setSupportsUnalignedCheckpoints(false);
                }
            }
        }

        final StreamGraph builtStreamGraph = streamGraph;

        alreadyTransformed.clear();
        alreadyTransformed = null;
        streamGraph = null;

        return builtStreamGraph;
    }

StreamGraphGenerator的transform方法:

private Collection<Integer> transform(Transformation<?> transform) {
        if (alreadyTransformed.containsKey(transform)) {
            return alreadyTransformed.get(transform);
        }

        LOG.debug("Transforming " + transform);

        if (transform.getMaxParallelism() <= 0) {

            // if the max parallelism hasn't been set, then first use the job wide max parallelism
            // from the ExecutionConfig.
            int globalMaxParallelismFromConfig = executionConfig.getMaxParallelism();
            if (globalMaxParallelismFromConfig > 0) {
                transform.setMaxParallelism(globalMaxParallelismFromConfig);
            }
        }

        transform
                .getSlotSharingGroup()
                .ifPresent(
                        slotSharingGroup -> {
                            final ResourceSpec resourceSpec =
                                    SlotSharingGroupUtils.extractResourceSpec(slotSharingGroup);
                            if (!resourceSpec.equals(ResourceSpec.UNKNOWN)) {
                                slotSharingGroupResources.compute(
                                        slotSharingGroup.getName(),
                                        (name, profile) -> {
                                            if (profile == null) {
                                                return ResourceProfile.fromResourceSpec(
                                                        resourceSpec, MemorySize.ZERO);
                                            } else if (!ResourceProfile.fromResourceSpec(
                                                            resourceSpec, MemorySize.ZERO)
                                                    .equals(profile)) {
                                                throw new IllegalArgumentException(
                                                        "The slot sharing group "
                                                                + slotSharingGroup.getName()
                                                                + " has been configured with two different resource spec.");
                                            } else {
                                                return profile;
                                            }
                                        });
                            }
                        });

        // call at least once to trigger exceptions about MissingTypeInfo
        transform.getOutputType();

        @SuppressWarnings("unchecked")
        final TransformationTranslator<?, Transformation<?>> translator =
                (TransformationTranslator<?, Transformation<?>>)
                        translatorMap.get(transform.getClass());

        Collection<Integer> transformedIds;
        if (translator != null) {
            transformedIds = translate(translator, transform);
        } else {
            transformedIds = legacyTransform(transform);
        }

        // need this check because the iterate transformation adds itself before
        // transforming the feedback edges
        if (!alreadyTransformed.containsKey(transform)) {
            alreadyTransformed.put(transform, transformedIds);
        }

        return transformedIds;
    }

StreamGraphGenerator的translate方法:

private Collection<Integer> translate(
            final TransformationTranslator<?, Transformation<?>> translator,
            final Transformation<?> transform) {
        checkNotNull(translator);
        checkNotNull(transform);

		//首先确保上游节点完成转换 (递归调用再这里)
        final List<Collection<Integer>> allInputIds = getParentInputIds(transform.getInputs());

        // the recursive call might have already transformed this
        // 由于是递归调用的，可能已经完成了转换
        if (alreadyTransformed.containsKey(transform)) {
            return alreadyTransformed.get(transform);
        }

		//确定资源共享组，用户如果没有指定，默认是default
        final String slotSharingGroup =
                determineSlotSharingGroup(
                        transform.getSlotSharingGroup().isPresent()
                                ? transform.getSlotSharingGroup().get().getName()
                                : null,
                        allInputIds.stream()
                                .flatMap(Collection::stream)
                                .collect(Collectors.toList()));

        final TransformationTranslator.Context context =
                new ContextImpl(this, streamGraph, slotSharingGroup, configuration);

		// 执行模式
        return shouldExecuteInBatchMode
                ? translator.translateForBatch(transform, context)
                : translator.translateForStreaming(transform, context);
    }

StreamGraphGenerator的getParentInputIds方法:

private List<Collection<Integer>> getParentInputIds(
            @Nullable final Collection<Transformation<?>> parentTransformations) {
        final List<Collection<Integer>> allInputIds = new ArrayList<>();
        if (parentTransformations == null) {
            return allInputIds;
        }

        for (Transformation<?> transformation : parentTransformations) {
        	// 递归调用
            allInputIds.add(transform(transformation));
        }
        return allInputIds;
    }

SimpleTransformationTranslator的translateForStreaming方法:

@Override
    public final Collection<Integer> translateForStreaming(
            final T transformation, final Context context) {
        checkNotNull(transformation);
        checkNotNull(context);

        final Collection<Integer> transformedIds =
                translateForStreamingInternal(transformation, context);
        configure(transformation, context);

        return transformedIds;
    }

AbstractOneInputTransformationTranslator的translateInternal方法, StreamTransformations被转换为 StreamGraph中的节点 StreamNode，并为上下游节点添加边 StreamEdge。:

protected Collection<Integer> translateInternal(
            final Transformation<OUT> transformation,
            final StreamOperatorFactory<OUT> operatorFactory,
            final TypeInformation<IN> inputType,
            @Nullable final KeySelector<IN, ?> stateKeySelector,
            @Nullable final TypeInformation<?> stateKeyType,
            final Context context) {
        checkNotNull(transformation);
        checkNotNull(operatorFactory);
        checkNotNull(inputType);
        checkNotNull(context);

        final StreamGraph streamGraph = context.getStreamGraph();
        final String slotSharingGroup = context.getSlotSharingGroup();
        final int transformationId = transformation.getId();
        final ExecutionConfig executionConfig = streamGraph.getExecutionConfig();

		//向 StreamGraph 中添加 Operator, 这一步会生成对应的 StreamNode
        streamGraph.addOperator(
                transformationId,
                slotSharingGroup,
                transformation.getCoLocationGroupKey(),
                operatorFactory,
                inputType,
                transformation.getOutputType(),
                transformation.getName());

        if (stateKeySelector != null) {
            TypeSerializer<?> keySerializer = stateKeyType.createSerializer(executionConfig);
            streamGraph.setOneInputStateKey(transformationId, stateKeySelector, keySerializer);
        }

        int parallelism =
                transformation.getParallelism() != ExecutionConfig.PARALLELISM_DEFAULT
                        ? transformation.getParallelism()
                        : executionConfig.getParallelism();
        streamGraph.setParallelism(
                transformationId, parallelism, transformation.isParallelismConfigured());
        streamGraph.setMaxParallelism(transformationId, transformation.getMaxParallelism());

        final List<Transformation<?>> parentTransformations = transformation.getInputs();
        checkState(
                parentTransformations.size() == 1,
                "Expected exactly one input transformation but found "
                        + parentTransformations.size());

		//依次连接到上游节点，创建 StreamEdge
        for (Integer inputId : context.getStreamNodeIds(parentTransformations.get(0))) {
            streamGraph.addEdge(inputId, transformationId, 0);
        }

        if (transformation instanceof PhysicalTransformation) {
            streamGraph.setSupportsConcurrentExecutionAttempts(
                    transformationId,
                    ((PhysicalTransformation<OUT>) transformation)
                            .isSupportsConcurrentExecutionAttempts());
        }

        return Collections.singleton(transformationId);
    }

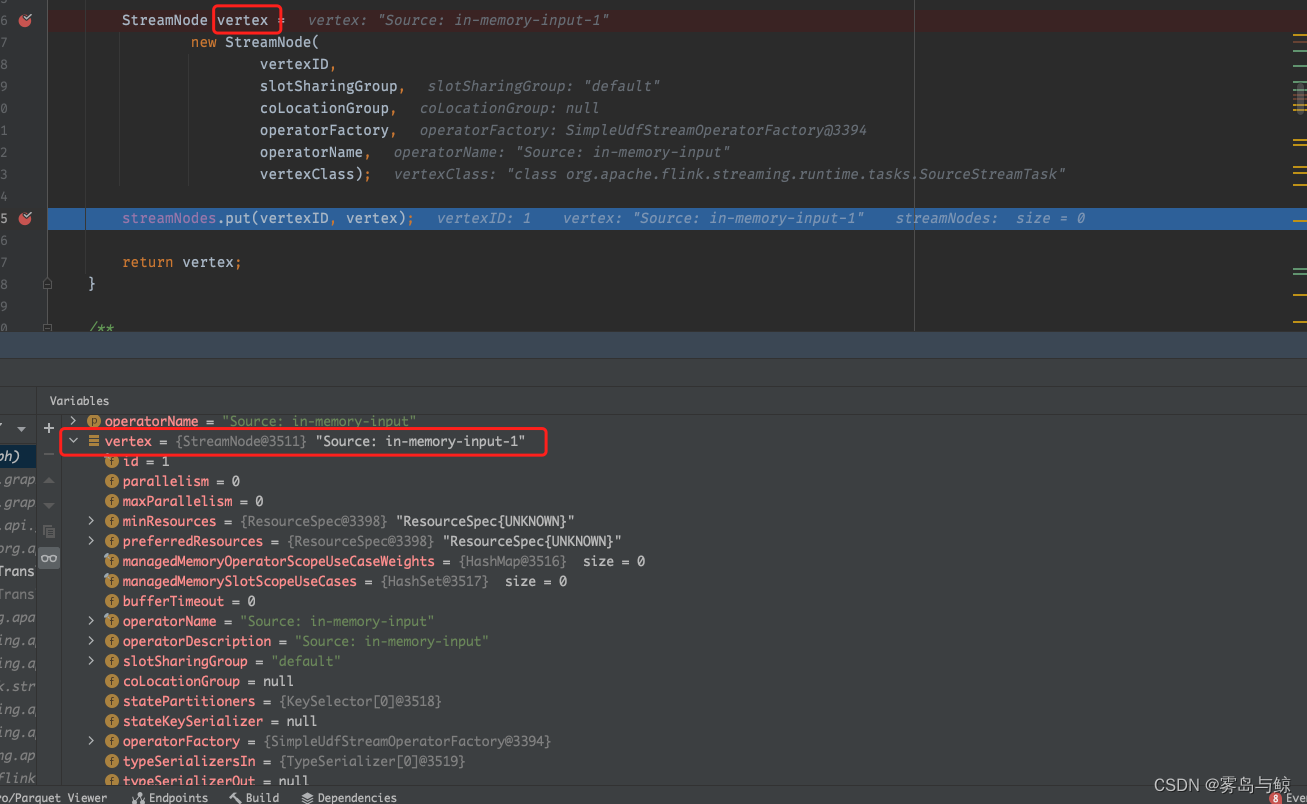

接着看一看 StreamGraph中对应的添加节点和边的方法:

protected StreamNode addNode(
            Integer vertexID,
            @Nullable String slotSharingGroup,
            @Nullable String coLocationGroup,
            Class<? extends TaskInvokable> vertexClass,
            StreamOperatorFactory<?> operatorFactory,
            String operatorName) {

        if (streamNodes.containsKey(vertexID)) {
            throw new RuntimeException("Duplicate vertexID " + vertexID);
        }

        StreamNode vertex =
                new StreamNode(
                        vertexID,
                        slotSharingGroup,
                        coLocationGroup,
                        operatorFactory,
                        operatorName,
                        vertexClass);

		//创建 StreamNode，这里保存了 StreamOperator 和 vertexClass 信息
        streamNodes.put(vertexID, vertex);

        return vertex;
    }

在 StreamNode中，保存了对应的 StreamOperator(从 StreamTransformation得到)，并且还引入了变量 jobVertexClass来表示该节点在 TaskManager中运行时的实际任务类型。

private final Class<? extends TaskInvokable> jobVertexClass;

TaskInvokable是所有可以在 TaskManager中运行的任务的接口，包括流式任务和批任务。StreamTask是所有流式任务的基础类，其具体的子类包括 SourceStreamTask, OneInputStreamTask, TwoInputStreamTask等。

对于一些不包含物理转换操作的 StreamTransformation，如 Partitioning, 侧输出/select, union，并不会生成 StreamNode，而是生成一个带有特定属性的虚拟节点。当添加一条有虚拟节点指向下游节点的边时，会找到虚拟节点上游的物理节点，在两个物理节点之间添加边，并把虚拟转换操作的属性附着上去。

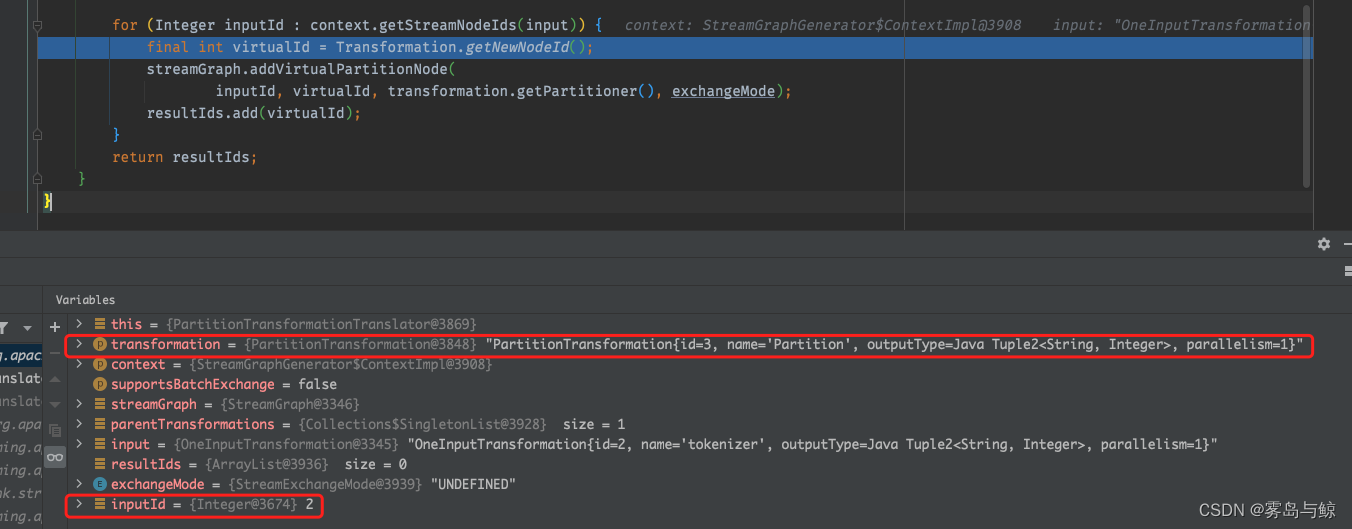

以 PartitionTansformation为例， PartitionTansformation是 KeyedStream对应的转换, PartitionTransformationTranslator的translateInternal 方法:

private Collection<Integer> translateInternal(
            final PartitionTransformation<OUT> transformation,
            final Context context,
            boolean supportsBatchExchange) {
        checkNotNull(transformation);
        checkNotNull(context);

        final StreamGraph streamGraph = context.getStreamGraph();

        final List<Transformation<?>> parentTransformations = transformation.getInputs();
        checkState(
                parentTransformations.size() == 1,
                "Expected exactly one input transformation but found "
                        + parentTransformations.size());
        final Transformation<?> input = parentTransformations.get(0);

        List<Integer> resultIds = new ArrayList<>();

        StreamExchangeMode exchangeMode = transformation.getExchangeMode();
        // StreamExchangeMode#BATCH has no effect in streaming mode so we can safely reset it to
        // UNDEFINED and let Flink decide on the best exchange mode.
        if (!supportsBatchExchange && exchangeMode == StreamExchangeMode.BATCH) {
            exchangeMode = StreamExchangeMode.UNDEFINED;
        }

        for (Integer inputId : context.getStreamNodeIds(input)) {
            final int virtualId = Transformation.getNewNodeId();
            //添加虚拟的 Partition 节点
            streamGraph.addVirtualPartitionNode(
                    inputId, virtualId, transformation.getPartitioner(), exchangeMode);
            resultIds.add(virtualId);
        }
        return resultIds;
    }

StreamGraph的addVirtualPartitionNode方法:

public void addVirtualPartitionNode(
            Integer originalId,
            Integer virtualId,
            StreamPartitioner<?> partitioner,
            StreamExchangeMode exchangeMode) {

        if (virtualPartitionNodes.containsKey(virtualId)) {
            throw new IllegalStateException(
                    "Already has virtual partition node with id " + virtualId);
        }

		//添加一个虚拟节点，后续添加边的时候会连接到实际的物理节点
        virtualPartitionNodes.put(virtualId, new Tuple3<>(originalId, partitioner, exchangeMode));
    }

在每一个物理节点的转换上，会调用 StreamGraph#addEdge在输入节点和当前节点之间建立边的连接：

public void addEdge(Integer upStreamVertexID, Integer downStreamVertexID, int typeNumber) {
        addEdge(upStreamVertexID, downStreamVertexID, typeNumber, null);
    }

    public void addEdge(
            Integer upStreamVertexID,
            Integer downStreamVertexID,
            int typeNumber,
            IntermediateDataSetID intermediateDataSetId) {
        addEdgeInternal(
                upStreamVertexID,
                downStreamVertexID,
                typeNumber,
                null,
                new ArrayList<String>(),
                null,
                null,
                intermediateDataSetId);
    }

    private void addEdgeInternal(
            Integer upStreamVertexID,
            Integer downStreamVertexID,
            int typeNumber,
            StreamPartitioner<?> partitioner,
            List<String> outputNames,
            OutputTag outputTag,
            StreamExchangeMode exchangeMode,
            IntermediateDataSetID intermediateDataSetId) {

		//先判断是不是虚拟节点上的边，如果是，则找到虚拟节点上游对应的物理节点
		//在两个物理节点之间添加边，并把对应的 StreamPartitioner,或者 OutputTag 等补充信息添加到StreamEdge中
        if (virtualSideOutputNodes.containsKey(upStreamVertexID)) {
            int virtualId = upStreamVertexID;
            upStreamVertexID = virtualSideOutputNodes.get(virtualId).f0;
            if (outputTag == null) {
                outputTag = virtualSideOutputNodes.get(virtualId).f1;
            }
            addEdgeInternal(
                    upStreamVertexID,
                    downStreamVertexID,
                    typeNumber,
                    partitioner,
                    null,
                    outputTag,
                    exchangeMode,
                    intermediateDataSetId);
        } else if (virtualPartitionNodes.containsKey(upStreamVertexID)) {
            int virtualId = upStreamVertexID;
            upStreamVertexID = virtualPartitionNodes.get(virtualId).f0;
            if (partitioner == null) {
                partitioner = virtualPartitionNodes.get(virtualId).f1;
            }
            exchangeMode = virtualPartitionNodes.get(virtualId).f2;
            addEdgeInternal(
                    upStreamVertexID,
                    downStreamVertexID,
                    typeNumber,
                    partitioner,
                    outputNames,
                    outputTag,
                    exchangeMode,
                    intermediateDataSetId);
        } else {
            createActualEdge(
                    upStreamVertexID,
                    downStreamVertexID,
                    typeNumber,
                    partitioner,
                    outputTag,
                    exchangeMode,
                    intermediateDataSetId);
        }
    }

StreamGraph的createActualEdge方法:

private void createActualEdge(
            Integer upStreamVertexID,
            Integer downStreamVertexID,
            int typeNumber,
            StreamPartitioner<?> partitioner,
            OutputTag outputTag,
            StreamExchangeMode exchangeMode,
            IntermediateDataSetID intermediateDataSetId) {
        // 两个物理节点
        StreamNode upstreamNode = getStreamNode(upStreamVertexID);
        StreamNode downstreamNode = getStreamNode(downStreamVertexID);

		// 如果没有指定分区或者上下游的分区一致，则使用forward分区策略，否则使用rebalance分区策略
        // If no partitioner was specified and the parallelism of upstream and downstream
        // operator matches use forward partitioning, use rebalance otherwise.
        if (partitioner == null
                && upstreamNode.getParallelism() == downstreamNode.getParallelism()) {
            partitioner =
                    dynamic ? new ForwardForUnspecifiedPartitioner<>() : new ForwardPartitioner<>();
        } else if (partitioner == null) {
            partitioner = new RebalancePartitioner<Object>();
        }

        if (partitioner instanceof ForwardPartitioner) {
            if (upstreamNode.getParallelism() != downstreamNode.getParallelism()) {
                if (partitioner instanceof ForwardForConsecutiveHashPartitioner) {
                    partitioner =
                            ((ForwardForConsecutiveHashPartitioner<?>) partitioner)
                                    .getHashPartitioner();
                } else {
                    throw new UnsupportedOperationException(
                            "Forward partitioning does not allow "
                                    + "change of parallelism. Upstream operation: "
                                    + upstreamNode
                                    + " parallelism: "
                                    + upstreamNode.getParallelism()
                                    + ", downstream operation: "
                                    + downstreamNode
                                    + " parallelism: "
                                    + downstreamNode.getParallelism()
                                    + " You must use another partitioning strategy, such as broadcast, rebalance, shuffle or global.");
                }
            }
        }

        if (exchangeMode == null) {
            exchangeMode = StreamExchangeMode.UNDEFINED;
        }

        /**
         * Just make sure that {@link StreamEdge} connecting same nodes (for example as a result of
         * self unioning a {@link DataStream}) are distinct and unique. Otherwise it would be
         * difficult on the {@link StreamTask} to assign {@link RecordWriter}s to correct {@link
         * StreamEdge}.
         */
        int uniqueId = getStreamEdges(upstreamNode.getId(), downstreamNode.getId()).size();

		//创建 StreamEdge，保留了 StreamPartitioner 等属性
        StreamEdge edge =
                new StreamEdge(
                        upstreamNode,
                        downstreamNode,
                        typeNumber,
                        partitioner,
                        outputTag,
                        exchangeMode,
                        uniqueId,
                        intermediateDataSetId);

		//分别将StreamEdge添加到上游节点和下游节点
        getStreamNode(edge.getSourceId()).addOutEdge(edge);
        getStreamNode(edge.getTargetId()).addInEdge(edge);
    }

这样通过 StreamNode 和 SteamEdge，就得到了 DAG 中的所有节点和边，以及它们之间的连接关系，拓扑结构也就建立了。
