python制作图表(爬取数据之后分析最后制成图表)

0x01数据收集

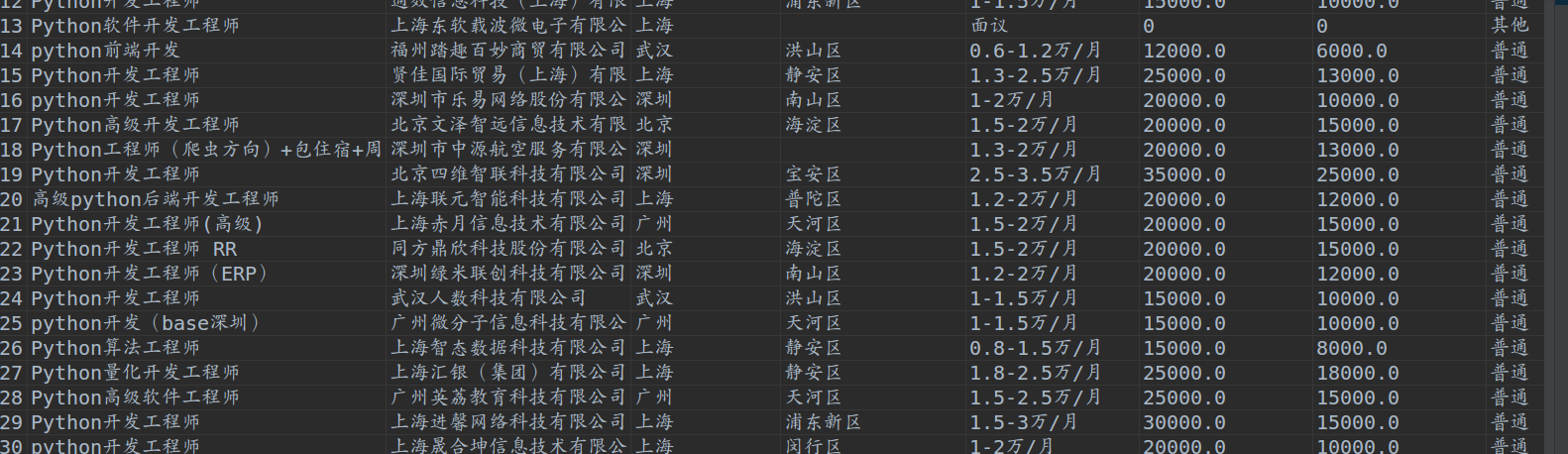

这里使用python爬取招聘信息存到数据库。这个脚本只负责收集，收集之后保存到数据库

为了加快爬取速度这里采用多进程方式。

脚本详情参考https://blog.csdn.net/qq_38204481/article/details/93890794

这里进行了一些修改，修复了一些bug

# -*- coding:utf-8 -*-
from multiprocessing import Pool
import os, time, random

# -*- coding:utf-8 -*-

"""
1.采集工作数据
    python php java html go
2. sqlite 存储数据

3.  表格存储数据

4. 采集完成以邮件 方式发送给工作人员
5. 将所有文件压缩再发邮件

6. 数据分析
    每个分类的工作数量
    工资区间
    某个分类下每天的岗位数量

7. 图表展示
"""

"""
静态网站用xpath
动态网站用jison.loads
    难点在于网址后面的参数加密

找工作网站：
    智联招聘 前程无忧 拉勾网 Boss直聘

"""

import requests
from lxml import etree
import sqlite3
import re
import time
from random import randint
import zmail
import zipfile


def init_sqlite(cols, tb_name='job', db_name="job.db"):
    con = sqlite3.connect(db_name)
    cols1 = cols
    cols1.append("")
    sql1 = " varchar(255) ,".join(cols)
    sql1 = sql1.rstrip(',')  # 去除两头的符号

    sql1 = """
        CREATE TABLE IF NOT EXISTS %s(
            id integer primary key autoincrement,
            %s
        )
    """ % (tb_name, sql1)
    # print(sql1)
    con.execute(sql1)
    return con


def get(url):
    headers = {
        'User-Agent': 'Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:67.0) Gecko/20100101 Firefox/67.0'
    }
    response = requests.get(url, headers=headers)
    response.encoding = response.apparent_encoding
    return response.text


# 通过岗位名称搜工作 ,并存入数据库和表格
def search_job_py_name(name, con):
    url = "https://search.51job.com/list/010000%252C020000%252C030200%252C040000%252C180200,000000,0000,00,9,99," + name + ",2,1.html?lang=c&stype=&postchannel=0000&workyear=99&cotype=99&degreefrom=99&jobterm=99&companysize=99&providesalary=99&lonlat=0%2C0&radius=-1&ord_field=0&confirmdate=9&fromType=&dibiaoid=0&address=&line=&specialarea=00&from=&welfare="
    content = get(url)
    root = etree.HTML(content)

    total_page = root.xpath("//span[contains(text(),'页，到第')]/text()")[0]
    total_page = total_page.replace("共", "").replace("页，到第", "")
    print(total_page)

    for page in range(1, int(total_page) + 1):
        page_url = url.replace(".html", str(page) + ".html")
        content = get(url)
        root = etree.HTML(content)
        job_list = root.xpath("//div[@id='resultList']/div[@class='el']")
        for job in job_list:
            # rand=randint(1,10)
            # time.sleep(rand/10)
            job_name = job.xpath("p/span/a/@title")[0]
            job_href = job.xpath("p/span/a/@href")[0]
            job_company_name = job.xpath("span[1]/a/@title")
            job_company_name = job_company_name[0] if job_company_name else "没有公司名字"
            job_place = job.xpath("span[2]/text()")
            job_place = job_place[0] if job_place else "没有公司地点"

            if "-" in job_place:
                job_city = job_place.split("-")[0]
                job_section = job_place.split("-")[1]
            else:
                job_city = job_place
                job_section = ""

            job_salary = job.xpath("span[3]/text()")
            job_salary = job_salary[0] if job_salary else "面议"
            # 1.3-2万/月   4.5-8千/月   面议     1500元/天
            min_money = 0
            max_money = 0

            if "-" in job_salary:
                job_type = "普通"
                pattern = re.compile("[-万/月千万]")
                result = pattern.split(job_salary)
                if "万" in job_salary:
                    min_money = float(result[0]) * 10000
                    max_money = float(result[1]) * 10000

                elif "千" in job_salary:
                    min_money = float(result[0]) * 1000
                    max_money = float(result[1]) * 1000

                if "年" in job_salary:
                    min_money = min_money // 12
                    max_money = max_money // 12
            else:
                job_type = "其他"

            min_money = str(min_money)
            max_money = str(max_money)

            job_date = job.xpath("span[4]/text()")
            job_date = job_date[0] if job_date else "没有发布时间"

            print(job_href, job_name, job_company_name, job_salary, job_place, job_date)

            data = {
                'job_name': job_name,
                'job_company_name': job_company_name,
                'job_salary': job_salary,
                'job_date': job_date,
                'job_group': name,
                'job_city': job_city,
                'job_section': job_section,
                'min_salary': min_money,
                'max_salary': max_money,
                'job_type': job_type,
            }

            save_to_sqlite(con, data)
            # save_to_csv(data)
        # break


# 存储到数据库,连接对象，插入的数据，表名   cols_value为字典
def save_to_sqlite(con, cols_value, tb_name="job"):
    cols_name = ",".join(cols_value.keys())  # 取字典的key
    col_values = "'" + "','".join(cols_value.values()) + "'"
    sql1 = """
        INSERT INTO %s (%s) values (%s)
    """ % (tb_name, cols_name, col_values)
    # print(sql1)
    con.execute(sql1)
    con.commit()


# 保存到表格csv文件
def save_to_csv(cols_value, csv_name="job.csv"):
    """
    csv 文件特点：数据之间用逗号隔开
    """
    values = cols_value.values()
    values = ",".join(values)
    f = open(csv_name, 'a', encoding="utf-8")
    f.write(values + '\n')
    f.close()


# 发邮件
def send_email(mail_name, file_name):
    # mail_content = {
    #     'subject': '重要通知',  # 随便填写
    #     'content_text': 'This message from zmail!',  # 随便填写
    # }

    #   发送带附件的邮件
    mail_content = {
        'subject': 'Success!',  # 邮件主题
        # 邮件内容
        'content_text': 'This message from zmail!',

        # 如果失败，,'content': 'This message from zmail!',
        'attachments': file_name,
    }

    # 使用你的邮件账户名和密码登录服务器
    server = zmail.server('tower111362058670@163.com', 'Root1996')
    # 发送邮件
    server.send_mail(mail_name, mail_content)


# 压缩文件
def zip_files(zip_name, files):
    # 创建压缩包
    azip = zipfile.ZipFile(zip_name, "w")
    # 把文件添加进压缩包，加密方式是ZIP_LZMA
    for file in files:
        azip.write(file, compress_type=zipfile.ZIP_LZMA)
    azip.close()

    pass







def worker(job_name):
    t_start = time.time()
    print("%s开始执行,进程号为%d" % (job_name,os.getpid()))
    con = init_sqlite(
        ['job_name', 'job_company_name', 'job_city', 'job_section', 'job_salary', 'max_salary', 'min_salary',
         'job_type', 'job_group', 'job_date'])
    search_job_py_name(job_name, con)
    con.close()



    t_stop = time.time()
    print(job_name,"执行完毕，耗时%0.2f" % (t_stop-t_start))

if __name__ == '__main__':
    job_list = ["python", "Java", "PHP", "C"]
    po = Pool(2)  # 定义一个进程池，最大进程数2
    for i in range(0,len(job_list)):
        po.apply_async(worker,(job_list[i],))  # Pool().apply_async(要调用的目标,(传递给目标的参数元祖,))

    print("----start----")
    po.close()  # 关闭进程池，关闭后po不再接收新的请求
    po.join()  # 等待po中所有子进程执行完成，再执行下面的代码,可以设置超时时间join(timeout=)
    print("-----end-----")
    # zip_files("工作情况.zip",job_list+".csv")
    # send_email("362058670@qq.com","工作情况.zip")

---

0x02数据处理
下面脚本对数据进行了一些处理。

用数据库查询语句对数据进行了过滤。
用柱状图和饼状图展示。
特点是把代码都封装了，用的话直接调用就好。

上图仅供参考，数据暂时并不完整

有机会学一下pandas numpy这两个比较专业的 数据分析库

# -*- coding:utf-8 -*-

"""

专业库   pandas   numpy

也可以用sql分析
"""
"""


统计上海的各语言的工作数量

统计各语言薪资听均属
"""

from pyecharts import Bar
from pyecharts import Pie
import sqlite3



#统计一类工作对应的工作数量
# 统计每种工作的数量

#基础函数：封装了数据库查询过程，只需要传入查询语句和表名就能查询
def select_sql(sql1,table_name="../2019-6-27/job.db"):
    """
        SELECT count(*) from job
        where job_type='普通' and job_group='python'
    """
    con = sqlite3.connect(table_name)
    #查询所有语言工作总数

    cursor=con.execute(sql1)
    result=cursor.fetchall()
    print("bbbb",result)
    # 列表推倒式
    data = []
    columns=[x[0] for x in result]
    """
    ('C', 47), ('Java', 52), ('PHP', 52), ('python', 48)
    经过columns=[x[0] for x in result]
    能够得到 ['C', 'Java', 'PHP', 'python']
    把2层循环精简到了一句话
    """
    print(columns)
    for i in range(len(result[0])-1):
        data.append([x[i+1] for x in result])
    return columns,data

#功能函数：每种工作的数量
def job_num_by_class(table_name="../2019-6-27/job.db"):
    sql1 = """
        SELECT job_group,count(*) from job
                where job_type='普通'
                group by job_group;
        """
    columns,data=select_sql(sql1,table_name)
    return columns, data

#功能函数：统计每种工作的最大最小平均工资水平
def max_mine_avg_salary(table_name="../2019-6-27/job.db"):

    #查询所有语言工作总数
    sql1="""
    SELECT job_group,avg(max_salary),avg(min_salary) from job
            where job_type='普通'
            group by job_group;
    """
    columns, data = select_sql(sql1, table_name)
    return columns, data

#功能函数：每个城市的薪资平均最大值最小值水平
def per_city_salary(table_name="../2019-6-27/job.db"):
    sql1 = """
        SELECT job_city,avg(max_salary),avg(min_salary) from job
                where job_type='普通'
                group by job_city;
        """
    columns, data = select_sql(sql1,table_name="../2019-6-27/job.db")
    return columns, data

#功能函数：每个城市工作数量
def per_city_num_of_job(table_name="../2019-6-27/job.db"):
    sql1 = """
            SELECT job_city,count(job_name) from job
                    where job_type='普通'
                    group by job_city;
            """
    columns, data = select_sql(sql1, table_name="../2019-6-27/job.db")
    print("aaaa",data)
    return columns,data

# 创建柱状图，图名字，  columns表每一柱表示的含义，   datas每一柱的数据（二维数组，支持每一列有两柱）
#table_context_name  字符串数组跟datas元素数量一样，每一组里面一柱的名字
def create_bar(table_name,columns,datas,table_context_name):
    # //设置柱状图的主标题与副标题
    bar = Bar(table_name)
    # //添加柱状图的数据及配置项
    for i in range(len(datas)):
        bar.add(table_context_name[i], columns, datas[i], mark_line=["average"], mark_point=["max", "min"])

    # bar.add("蒸发量", columns, data2, mark_line=["average"], mark_point=["max", "min"])
    # //生成本地文件（默认为.html文件）
    bar.render(table_name+"_bar.html")

#table_name 网页左上角的表名     columns每一个饼图中光标放上去的时候显示的名字
# datas二维数组，存放每一个饼图需要的每一项数据  table_context_name
def create_pie(table_name,columns ,datas,table_context_name):

    # //设置主标题与副标题，标题设置居中，设置宽度为900
    pie = Pie(table_name, title_pos='center', width=900)

    for i in range(len(datas)):
        # //加入数据，设置坐标位置为【75，50】，上方的colums选项取消显示，显示label标签  , center=[75, 50]
        pie.add(table_context_name[i], columns, datas[i], center=[25+50*(i%4), 50],is_legend_show=False, is_label_show=True)
    # //保存图表
    pie.render(table_name+"_pie.html")
columns,data1=job_num_by_class("./job.db")
# print(columns)
# print(data1)
create_bar("每种工作的数量",columns,data1,["每种工作的数量"])
create_pie("每种工作的数量",columns,data1,["每种工作的数量"])

columns,data1=max_mine_avg_salary("./job.db")
create_bar("最大最小薪资平均数(每种语言)",columns,data1,["薪资水平最大值","薪资水平最小值"])
create_pie("最大最小薪资平均数(每种语言)",columns,data1,["薪资水平最大值","薪资水平最小值"])
columns,data1=per_city_salary("./job.db")

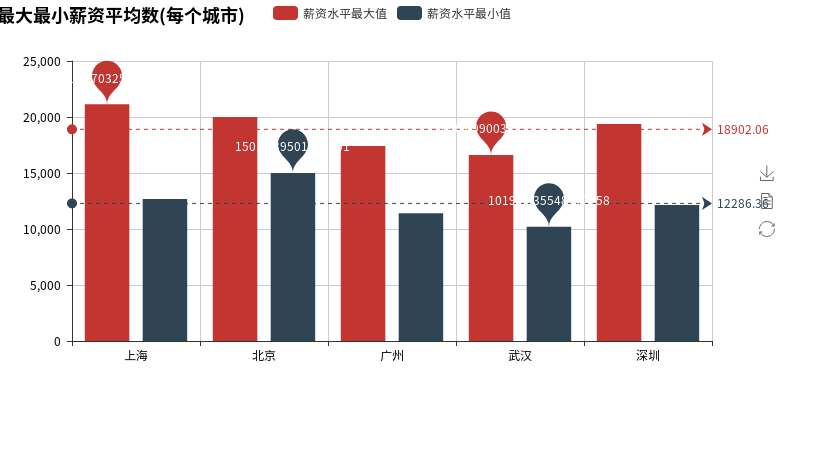

create_bar("最大最小薪资平均数(每个城市)",columns,data1,["薪资水平最大值","薪资水平最小值"])
create_pie("最大最小薪资平均数(每个城市)",columns,data1,["薪资水平最大值","薪资水平最小值"])

columns,data1=per_city_num_of_job("./job.db")
print("data1",data1)
create_bar("每个城市工作数",columns,data1,["工作数"])
create_pie("每个城市工作数",columns,data1,["工作数"])
