I2C总线架构之总线驱动

引言

单片机的IIC编程中，如果我们直接一点，只需要控制IIC硬件GPIO脚，然后根据IIC协议模拟各种电平时序实现与IIC设备的通信。但是这种编程方法，移植性较差(假如新加了一种IIC设备，同样的代码，又要重新复制一份)。这种做法完全不适应Linux的通用性的设计理念，对于Linux来讲：同样的事情我只做一遍，向外提供接口，不管你是什么IIC设备挂载那条IIC总线上，都可以用。因此，这就需要Linux在代码架构上有非常严谨的模块化设计。

架构设计

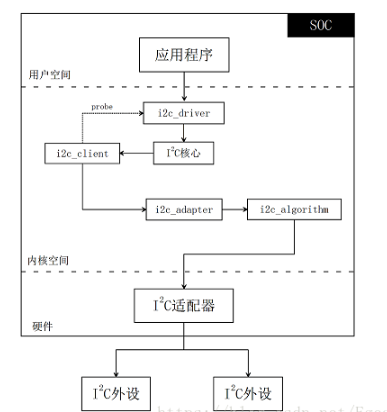

在Linux设计中，将I2C代码框架分为三个部分：I2C总线、I2C核心、I2C驱动。

I2C核心（i2c-core）： 主要定义i2c驱动所用到的通用API，高内聚的代码会放到i2c-core.c。
I2C总线驱动（i2c adapter）： 根据平台定制的i2c驱动，其中包含i2c传输的算法设计。主要工作负责生成i2c_client，注册适配器，以及i2c_client与i2c_driver的匹配。
I2C设备驱动（i2c client driver）： 驱动I2C设备的代码。I2C设备驱动定义了外设的交互方式，对与不同的I2C外设需要不同的设备驱动。I2C设备驱动对上和用户应用程序打交道，对下和I2C核心对接。

本篇主要对IIC总线驱动的总结。

i2c总线结构体

Linux在分层中，必不可少的将每一层模块封装成一个结构体，然后将结构体作为一个与外接交互的桥梁。I2C总线驱动也一样被抽象成结构体：

/*
 * i2c_adapter is the structure used to identify a physical i2c bus along
 * with the access algorithms necessary to access it.
 */
struct i2c_adapter {
	struct module *owner;
	unsigned int class;		  /* classes to allow probing for */
	const struct i2c_algorithm *algo; /* the algorithm to access the bus */
	void *algo_data;

	/* data fields that are valid for all devices	*/
	const struct i2c_lock_operations *lock_ops;
	struct rt_mutex bus_lock;
	struct rt_mutex mux_lock;

	int timeout;			/* in jiffies */
	int retries;
	struct device dev;		/* the adapter device */

	int nr;
	char name[48];
	struct completion dev_released;

	struct mutex userspace_clients_lock;
	struct list_head userspace_clients;

	struct i2c_bus_recovery_info *bus_recovery_info;
	const struct i2c_adapter_quirks *quirks;
};

驱动代码

总线驱动采用platform虚拟总线架构，其中包括一些platform常规注册流程，主要关注probe中的代码。

//linux/drivers/i2c/busses/i2c-imx.c
……
struct imx_i2c_struct {
	struct i2c_adapter	adapter;
	struct clk		*clk;
	void __iomem		*base;
	wait_queue_head_t	queue;
	unsigned long		i2csr;
	unsigned int		disable_delay;
	int			stopped;
	unsigned int		ifdr; /* IMX_I2C_IFDR */
	unsigned int		cur_clk;
	unsigned int		bitrate;
	const struct imx_i2c_hwdata	*hwdata;
	struct i2c_bus_recovery_info rinfo;

	struct pinctrl *pinctrl;
	struct pinctrl_state *pinctrl_pins_default;
	struct pinctrl_state *pinctrl_pins_gpio;

	struct imx_i2c_dma	*dma;
};
……

static struct i2c_algorithm i2c_imx_algo = {
	.master_xfer	= i2c_imx_xfer,
	.functionality	= i2c_imx_func,
};

static int i2c_imx_probe(struct platform_device *pdev)
{
	const struct of_device_id *of_id = of_match_device(i2c_imx_dt_ids,
							   &pdev->dev);
	struct imx_i2c_struct *i2c_imx;
	struct resource *res;
	struct imxi2c_platform_data *pdata = dev_get_platdata(&pdev->dev);
	void __iomem *base;
	int irq, ret;
	dma_addr_t phy_addr;

	irq = platform_get_irq(pdev, 0);

	res = platform_get_resource(pdev, IORESOURCE_MEM, 0);
	base = devm_ioremap_resource(&pdev->dev, res);

	phy_addr = (dma_addr_t)res->start;
	i2c_imx = devm_kzalloc(&pdev->dev, sizeof(*i2c_imx), GFP_KERNEL);
	if (!i2c_imx)
		return -ENOMEM;

	if (of_id)
		i2c_imx->hwdata = of_id->data;
	else
		i2c_imx->hwdata = (struct imx_i2c_hwdata *)
				platform_get_device_id(pdev)->driver_data;

	/* Setup i2c_imx driver structure */
	strlcpy(i2c_imx->adapter.name, pdev->name, sizeof(i2c_imx->adapter.name));
	i2c_imx->adapter.owner		= THIS_MODULE;
	i2c_imx->adapter.algo		= &i2c_imx_algo;
	i2c_imx->adapter.dev.parent	= &pdev->dev;
	i2c_imx->adapter.nr		= pdev->id;
	i2c_imx->adapter.dev.of_node	= pdev->dev.of_node;
	i2c_imx->base			= base;

	/* Get I2C clock */
	i2c_imx->clk = devm_clk_get(&pdev->dev, NULL);

	ret = clk_prepare_enable(i2c_imx->clk);

	/* Request IRQ */
	ret = devm_request_irq(&pdev->dev, irq, i2c_imx_isr,
			       IRQF_NO_SUSPEND, pdev->name, i2c_imx);

	/* Init queue */
	init_waitqueue_head(&i2c_imx->queue);

	/* Set up adapter data */
	i2c_set_adapdata(&i2c_imx->adapter, i2c_imx);

	/* Set up platform driver data */
	platform_set_drvdata(pdev, i2c_imx);

	ret = pm_runtime_get_sync(&pdev->dev);

	/* Set up clock divider */
	i2c_imx->bitrate = IMX_I2C_BIT_RATE;
	ret = of_property_read_u32(pdev->dev.of_node,
				   "clock-frequency", &i2c_imx->bitrate);
	if (ret < 0 && pdata && pdata->bitrate)
		i2c_imx->bitrate = pdata->bitrate;

	/* Set up chip registers to defaults */
	imx_i2c_write_reg(i2c_imx->hwdata->i2cr_ien_opcode ^ I2CR_IEN,
			i2c_imx, IMX_I2C_I2CR);
	imx_i2c_write_reg(i2c_imx->hwdata->i2sr_clr_opcode, i2c_imx, IMX_I2C_I2SR);

	/* Init optional bus recovery function */
	ret = i2c_imx_init_recovery_info(i2c_imx, pdev);
	/* Give it another chance if pinctrl used is not ready yet */

	/* Add I2C adapter */
	ret = i2c_add_numbered_adapter(&i2c_imx->adapter);

	/* Init DMA config if supported */
	i2c_imx_dma_request(i2c_imx, phy_addr);

	return 0;   /* Return OK */

}
……

static struct platform_driver i2c_imx_driver = {
	.probe = i2c_imx_probe,
	.remove = i2c_imx_remove,
	.driver = {
		.name = DRIVER_NAME,
		.pm = I2C_IMX_PM_OPS,
		.of_match_table = i2c_imx_dt_ids,
	},
	.id_table = imx_i2c_devtype,
};
……

static int __init i2c_adap_imx_init(void)
{
	return platform_driver_register(&i2c_imx_driver);
}
subsys_initcall(i2c_adap_imx_init);

static void __exit i2c_adap_imx_exit(void)
{
	platform_driver_unregister(&i2c_imx_driver);
}
module_exit(i2c_adap_imx_exit);

以上代码有删减

内核实现分析

在进入probe中，先填充i2c_imx成员adapter结构体：

	i2c_imx->adapter.owner		= THIS_MODULE;
	i2c_imx->adapter.algo		= &i2c_imx_algo; //i2c数据传输接口
	i2c_imx->adapter.dev.parent	= &pdev->dev;
	i2c_imx->adapter.nr		= pdev->id;        //适配器编号
	i2c_imx->adapter.dev.of_node	= pdev->dev.of_node;

使用i2c_set_adapdata(&i2c_imx->adapter, i2c_imx)将i2c_imx数据存入到adapter内部私有数据中，然后利用i2c-core中APIi2c_add_numbered_adapter(&i2c_imx->adapter)将适配器adapter注册到内核中，在此过程中还会生成i2c_client。

总线驱动注册流程图如下：

--- drivers --- i2c --- i2c_core.c --- i2c_add_numbered_adapter(   --- if (adap->nr == -1)
             |                      |    struct i2c_adapter *adap)  |      i2c_add_adapter(adap);
             |                      |                               |- __i2c_add_numbered_adapter(adap);
             |                      |- __i2c_add_numbered_adapter( --- id = idr_alloc(&i2c_adapter_idr,adap,adap->nr,adap->nr+1,GFP_KERNEL)
             |                      |    struct i2c_adapter *adap)  |- i2c_register_adapter(adap)
             |                      |- i2c_register_adapter(       --- INIT_LIST_HEAD(&adap->userspace_clients)
             |                      |    struct i2c_adapter *adap)  |- dev_set_name(&adap->dev, "i2c-%d", adap->nr)
             |                      |                               |- adap->dev.bus = &i2c_bus_type
             |                      |                               |- adap->dev.type = &i2c_adapter_type
             |                      |                               |- device_register(&adap->dev)
             |                      |                               |- bus_for_each_drv(&i2c_bus_type, NULL, adap, __process_new_adapter);
             |                      |- __process_new_adapter(     --- i2c_do_add_adapter(to_i2c_driver(d), data)
             |                      |    struct device_driver *d,
             |                      |    void *data)
             |                      |- i2c_do_add_adapter(         --- i2c_detect(adap, driver)
             |                      |    struct i2c_driver *driver, |- 这里是废弃的driver->attach_adapter方法
             |                      |    struct i2c_adapter *adap)
             |                      |- i2c_detect(                   --- address_list = driver->address_list
             |                      |    struct i2c_adapter *adapter, |- if (!driver->detect || !address_list)
             |                      |    struct i2c_driver *driver)   |       return 0;
             |                      |                                 |- temp_client = kzalloc(sizeof(struct i2c_client), GFP_KERNEL)
             |                      |                                 |- temp_client->adapter = adapter
             |                      |                                 |- for (i = 0; address_list[i] != I2C_CLIENT_END; i += 1) {
             |                      |                                 |      temp_client->addr = address_list[i];
             |                      |                                 |      err = i2c_detect_address(temp_client, driver);
             |                      |                                 |      err不是错误码，则break;
             |                      |                                 |  }
             |                      |                                 |- kfree(temp_client)
             |                      |- i2c_detect_address(              --- struct i2c_board_info info
             |                      |    struct i2c_client *temp_client, |- adapter = temp_client->adapter
             |                      |    struct i2c_driver *driver)      |- addr = temp_client->addr
             |                      |                                    |- info.addr = addr
             |                      |                                    |- driver->detect(temp_client, &info)
             |                      |                                    |- if (info.type[0] == '\0')
             |                      |                                    |      报错;
             |                      |                                    |  else {
             |                      |                                    |      struct i2c_client *client;
             |                      |                                    |      client = i2c_new_device(adapter, &info);
             |                      |                                    |      list_add_tail(&client->detected, &driver->clients);
             |                      |                                    |  }
             |
             |- base --- bus.c --- bus_for_each_drv(            --- while ((drv = next_driver(&i)) && !error)
                                     struct bus_type *bus,       |-     error = fn(drv, data);
                                     struct device_driver *start,
                                     void *data,
                                     int (*fn)(struct device_driver *, void *))
