需求

在用户打开某个页面时，对页面中指定的元素进行弹框说明，实现类似“新手引导”的效果

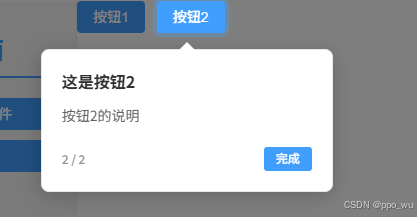

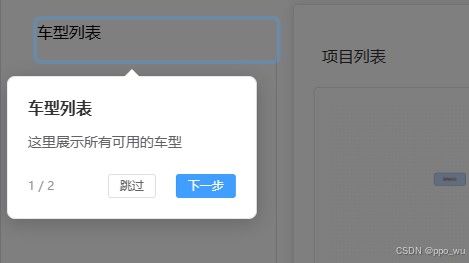

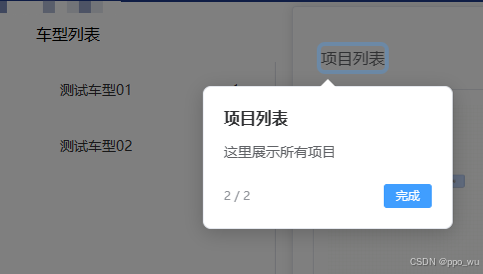

效果图

在这里插入图片描述

该组件的特点

完全独立，可以简单方便的引入页面使用
通过CSS选择器的方式指定需要引导的元素
可以自定义说明文字
自动计算总的引导步骤数

实现

<template>
    <teleport to="body">
        <transition name="fade">
            <div v-if="visible" class="guide-overlay" @click="handleSkip">
                <div
                    class="guide-tooltip"
                    :class="tooltipPosition"
                    :style="tooltipStyle"
                    @click.stop
                >
                    <div class="tooltip-content">
                        <h4>{{ currentStepData.title }}</h4>
                        <p>{{ currentStepData.description }}</p>
                        <div class="tooltip-actions">
                            <span class="step-indicator">
                                {{ currentStepIndex + 1 }} / {{ steps.length }}
                            </span>
                            <div class="button-group">
                                <el-button
                                    v-if="currentStepIndex < steps.length - 1"
                                    size="small"
                                    @click="handleSkip"
                                >
                                    {{ skipText }}
                                </el-button>
                                <el-button
                                    type="primary"
                                    size="small"
                                    @click="handleNext"
                                >
                                    {{ currentStepIndex < steps.length - 1 ? nextText : finishText }}
                                </el-button>
                            </div>
                        </div>
                    </div>
                </div>
            </div>
        </transition>
    </teleport>
</template>

<script setup>
import { ref, computed, watch, nextTick } from 'vue'

const props = defineProps({
    // 是否显示引导
    modelValue: {
        type: Boolean,
        default: false
    },
    // 引导步骤配置
    steps: {
        type: Array,
        required: true,
        validator: steps => {
            return steps.every(step =>
                step.target && step.title && step.description
            )
        }
    },
    // 自定义文本
    nextText: {
        type: String,
        default: '下一步'
    },
    skipText: {
        type: String,
        default: '跳过'
    },
    finishText: {
        type: String,
        default: '完成'
    },
    // 是否可以点击背景关闭
    closeOnClickOutside: {
        type: Boolean,
        default: true
    },
    // 提示框偏移量
    offset: {
        type: Number,
        default: 16
    }
})

const emit = defineEmits(['update:modelValue', 'finish', 'skip', 'step-change'])

const currentStepIndex = ref(0)
const tooltipStyle = ref({})
const tooltipPosition = ref('bottom')

const visible = computed({
    get: () => props.modelValue,
    set: value => emit('update:modelValue', value)
})

const currentStepData = computed(() => {
    return props.steps[currentStepIndex.value] || {}
})

// 添加高亮样式到目标元素
const addHighlight = targetSelector => {
    removeAllHighlights()
    const element = document.querySelector(targetSelector)
    if (element) {
        element.classList.add('guide-highlight')
        element.style.position = 'relative'
        element.style.zIndex = '1002'
    }
}

// 移除所有高亮样式
const removeAllHighlights = () => {
    const highlightedElements = document.querySelectorAll('.guide-highlight')
    highlightedElements.forEach(el => {
        el.classList.remove('guide-highlight')
        el.style.zIndex = ''
    })
}

// 计算提示框位置
const updateTooltipPosition = async() => {
    await nextTick()

    const targetSelector = currentStepData.value.target
    const targetElement = document.querySelector(targetSelector)

    if (!targetElement) {
        console.warn(`Guide target not found: ${targetSelector}`)
        return
    }

    // 添加高亮效果
    addHighlight(targetSelector)

    const rect = targetElement.getBoundingClientRect()
    const windowHeight = window.innerHeight
    const windowWidth = window.innerWidth
    const tooltipWidth = 300
    const tooltipHeight = 160

    // 判断提示框应该显示在目标元素的哪个位置
    const spaceBelow = windowHeight - rect.bottom
    const spaceAbove = rect.top
    const spaceRight = windowWidth - rect.right
    const spaceLeft = rect.left

    let position = 'bottom'
    let top = rect.bottom + props.offset
    let left = rect.left + rect.width / 2 - tooltipWidth / 2

    // 垂直位置判断
    if (spaceBelow < tooltipHeight && spaceAbove > tooltipHeight) {
        position = 'top'
        top = rect.top - tooltipHeight - props.offset
    }

    // 水平位置调整
    if (left < 20) {
        left = 20
    } else if (left + tooltipWidth > windowWidth - 20) {
        left = windowWidth - tooltipWidth - 20
    }

    tooltipPosition.value = position
    tooltipStyle.value = {
        top: top + 'px',
        left: left + 'px',
        maxWidth: tooltipWidth + 'px'
    }
}

// 下一步
const handleNext = async() => {
    if (currentStepIndex.value < props.steps.length - 1) {
        currentStepIndex.value++
        emit('step-change', currentStepIndex.value)
        await updateTooltipPosition()
    } else {
        handleFinish()
    }
}

// 跳过引导
const handleSkip = () => {
    if (props.closeOnClickOutside) {
        visible.value = false
        removeAllHighlights()
        emit('skip')
    }
}

// 完成引导
const handleFinish = () => {
    visible.value = false
    removeAllHighlights()
    emit('finish')
}

// 开始引导
const startGuide = async() => {
    currentStepIndex.value = 0
    await updateTooltipPosition()
}

// 监听显示状态变化
watch(visible, async newVal => {
    if (newVal) {
        await startGuide()
    } else {
        removeAllHighlights()
    }
})

// 监听窗口大小变化
window.addEventListener('resize', updateTooltipPosition)

defineExpose({
    startGuide,
    nextStep: handleNext,
    skipGuide: handleSkip,
    finishGuide: handleFinish
})
</script>

<style scoped>
.guide-overlay {
    position: fixed;
    top: 0;
    left: 0;
    right: 0;
    bottom: 0;
    background-color: rgba(0, 0, 0, 0.5);
    z-index: 1000;
    display: flex;
    align-items: center;
    justify-content: center;
}

.guide-tooltip {
    position: absolute;
    background: white;
    border-radius: 8px;
    padding: 20px;
    box-shadow: 0 4px 20px rgba(0, 0, 0, 0.2);
    max-width: 300px;
    min-width: 250px;
    z-index: 1001;
    border: 1px solid #e4e7ed;
}

.guide-tooltip::before {
    content: '';
    position: absolute;
    width: 0;
    height: 0;
    border-style: solid;
}

.guide-tooltip.bottom::before {
    top: -8px;
    left: 50%;
    transform: translateX(-50%);
    border-width: 0 8px 8px 8px;
    border-color: transparent transparent white transparent;
}

.guide-tooltip.top::before {
    bottom: -8px;
    left: 50%;
    transform: translateX(-50%);
    border-width: 8px 8px 0 8px;
    border-color: white transparent transparent transparent;
}

.tooltip-content h4 {
    margin: 0 0 12px 0;
    color: #303133;
    font-size: 16px;
    font-weight: 600;
    line-height: 1.4;
}

.tooltip-content p {
    margin: 0 0 20px 0;
    color: #606266;
    font-size: 14px;
    line-height: 1.6;
}

.tooltip-actions {
    display: flex;
    justify-content: space-between;
    align-items: center;
}

.step-indicator {
    color: #909399;
    font-size: 12px;
    font-weight: 500;
}

.button-group {
    display: flex;
    gap: 8px;
}

.fade-enter-active, .fade-leave-active {
    transition: opacity 0.3s ease;
}

.fade-enter-from, .fade-leave-to {
    opacity: 0;
}

@media (max-width: 768px) {
    .guide-tooltip {
        max-width: calc(100vw - 40px);
        min-width: auto;
        margin: 20px;
    }
}
</style>

<style>
.guide-highlight {
    box-shadow: 0 0 0 4px rgba(64, 158, 255, 0.3) !important;
    border-radius: 4px !important;
    transition: box-shadow 0.3s ease !important;
}
</style>

集成方式

假设现在该组件的文件名为UserGuide.vue

<!-- 引入组件 -->
import UserGuide from './components/UserGuide.vue'

<!-- 添加 -->
<UserGuide
  v-model="showGuide"
  :steps="guideSteps"
  @finish="onGuideFinish"
/>

<!-- 配置 -->
const guideSteps = [
  {
    target: '#xxx',  // CSS选择器
    title: '按钮标题',
    description: '按钮说明'
  }
]

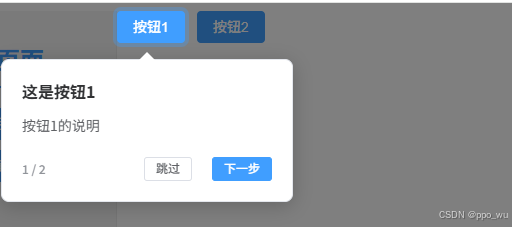

示例，对页面中的两个按钮进行新手引导

<template>
  <div>
    <el-button type="primary" id="button01">按钮1</el-button>
    <el-button type="primary" id="button02">按钮2</el-button>
  </div>

  <!-- 引入引导组件 -->
  <UserGuide
      v-model="showGuide"
      :steps="guideSteps"
      @finish="onGuideFinish"
      @skip="onGuideSkip"
      @step-change="onStepChange"
  />
</template>

<script setup>

import UserGuide from "./utils/UserGuide.vue";
import {onMounted, ref} from "vue";
import {ElMessage} from "element-plus";

// 控制引导显示
const showGuide = ref(false)
// 配置引导步骤
const guideSteps = [
  {
    target: '#button01',  // CSS选择器
    title: '这是按钮1',
    description: '按钮1的说明'
  },
  {
    target: '#button02',  // CSS选择器
    title: '这是按钮2',
    description: '按钮2的说明'
  }
]

// 页面加载时检查是否需要显示引导
onMounted(() => {

  // const guideCompleted = localStorage.getItem('guide_completed')
  // if (!guideCompleted) {
  //   // 延迟1秒后自动显示引导
  //   setTimeout(() => {
  //     showGuide.value = true
  //   }, 1000)
  // }

  setTimeout(() => {
    showGuide.value = true
  }, 1000)
})

// 引导完成
const onGuideFinish = () => {
  ElMessage.success('引导完成！')

  // 避免重复引导
  // localStorage.setItem('guide_completed', 'true')
}

// 引导跳过
const onGuideSkip = () => {
  ElMessage.info('已跳过引导')
}

// 步骤变化
const onStepChange = (stepIndex) => {
  console.log('当前步骤:', stepIndex)
}
</script>

<style scoped>

</style>
