Apache Spark启动spark-sql报错

一、问题

出现版本：
Apache Spark 2.4.0
Apache Spark 3.0.0

安装好spark后，执行spark-sql报错Exception in thread “main” java.lang.NoSuchFieldError: HIVE_STATS_JDBC_TIMEOUT

命令

./bin/spark-sql

报错日志：

2021-08-02 15:00:04,213 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
Exception in thread "main" java.lang.NoSuchFieldError: HIVE_STATS_JDBC_TIMEOUT
	at org.apache.spark.sql.hive.HiveUtils$.formatTimeVarsForHiveClient(HiveUtils.scala:204)
	at org.apache.spark.sql.hive.thriftserver.SparkSQLCLIDriver$.main(SparkSQLCLIDriver.scala:90)
	at org.apache.spark.sql.hive.thriftserver.SparkSQLCLIDriver.main(SparkSQLCLIDriver.scala)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at org.apache.spark.deploy.JavaMainApplication.start(SparkApplication.scala:52)
	at org.apache.spark.deploy.SparkSubmit.org$apache$spark$deploy$SparkSubmit$$runMain(SparkSubmit.scala:849)
	at org.apache.spark.deploy.SparkSubmit.doRunMain$1(SparkSubmit.scala:167)
	at org.apache.spark.deploy.SparkSubmit.submit(SparkSubmit.scala:195)
	at org.apache.spark.deploy.SparkSubmit.doSubmit(SparkSubmit.scala:86)
	at org.apache.spark.deploy.SparkSubmit$$anon$2.doSubmit(SparkSubmit.scala:924)
	at org.apache.spark.deploy.SparkSubmit$.main(SparkSubmit.scala:933)
	at org.apache.spark.deploy.SparkSubmit.main(SparkSubmit.scala)
2021-08-02 15:00:04,409 INFO util.ShutdownHookManager: Shutdown hook called
2021-08-02 15:00:04,410 INFO util.ShutdownHookManager: Deleting directory /tmp/spark-16fcc4aa-301d-428f-b840-cd29602d253b

二、解决

原因：

1 修改源码

hadoop@company:/opt/os_ws/spark$ pwd
/opt/os_ws/spark
hadoop@company:/opt/os_ws/spark$ vim sql/hive/src/main/scala/org/apache/spark/sql/hive/HiveUtils.scala

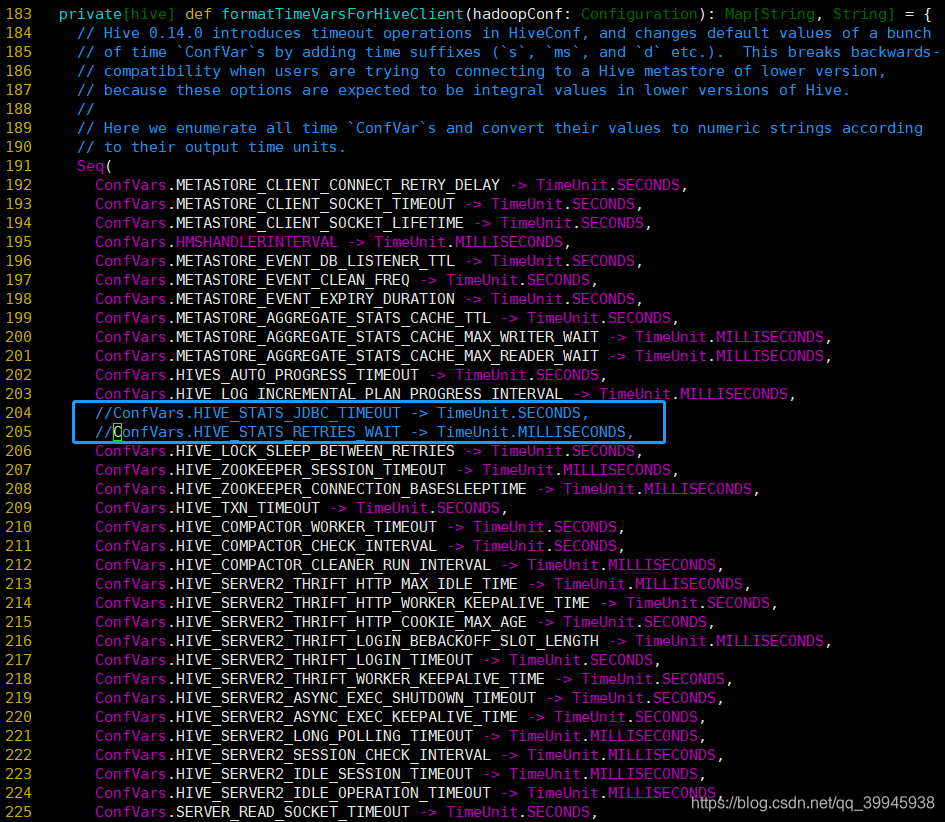

搜索HIVE_STATS_JDBC_TIMEOUT
注视掉如下内容

2 重新编译、部署

编译参考
https://blog.csdn.net/qq_39945938/article/details/119236982

部署参考
https://blog.csdn.net/weixin_44449270/article/details/86102461

再次启动spark-sql发现报错变了

root@company:/opt/soft/spark-2.4.0-bin-hadoop3.1.1/bin# spark-sql
21/08/02 15:43:42 WARN NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
Exception in thread "main" java.lang.ExceptionInInitializerError
	at org.apache.spark.sql.hive.HiveUtils$.formatTimeVarsForHiveClient(HiveUtils.scala:192)
	at org.apache.spark.sql.hive.thriftserver.SparkSQLCLIDriver$.main(SparkSQLCLIDriver.scala:90)
	at org.apache.spark.sql.hive.thriftserver.SparkSQLCLIDriver.main(SparkSQLCLIDriver.scala)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at org.apache.spark.deploy.JavaMainApplication.start(SparkApplication.scala:52)
	at org.apache.spark.deploy.SparkSubmit.org$apache$spark$deploy$SparkSubmit$$runMain(SparkSubmit.scala:849)
	at org.apache.spark.deploy.SparkSubmit.doRunMain$1(SparkSubmit.scala:167)
	at org.apache.spark.deploy.SparkSubmit.submit(SparkSubmit.scala:195)
	at org.apache.spark.deploy.SparkSubmit.doSubmit(SparkSubmit.scala:86)
	at org.apache.spark.deploy.SparkSubmit$$anon$2.doSubmit(SparkSubmit.scala:924)
	at org.apache.spark.deploy.SparkSubmit$.main(SparkSubmit.scala:933)
	at org.apache.spark.deploy.SparkSubmit.main(SparkSubmit.scala)
Caused by: java.lang.IllegalArgumentException: Unrecognized Hadoop major version number: 3.1.1
	at org.apache.hadoop.hive.shims.ShimLoader.getMajorVersion(ShimLoader.java:174)
	at org.apache.hadoop.hive.shims.ShimLoader.loadShims(ShimLoader.java:139)
	at org.apache.hadoop.hive.shims.ShimLoader.getHadoopShims(ShimLoader.java:100)
	at org.apache.hadoop.hive.conf.HiveConf$ConfVars.<clinit>(HiveConf.java:368)
	... 15 more

3 解决Unrecognized Hadoop major version number

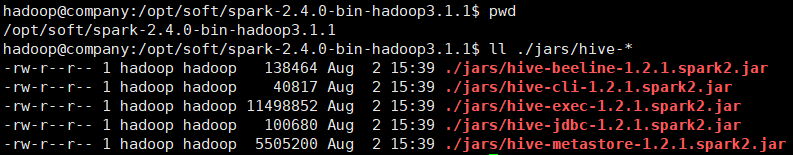

用$HIVE_HOME/lib/下的jar包拷贝到$SPARK_HOME/jars/，之后备份之前的jar包

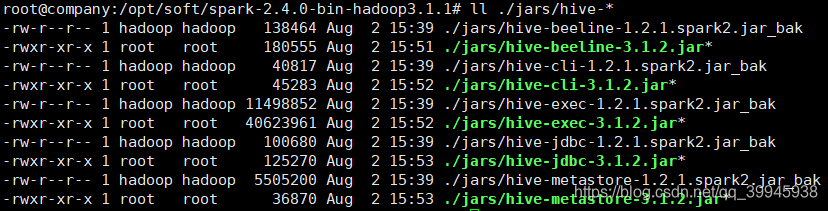

替换后的目录如下所示

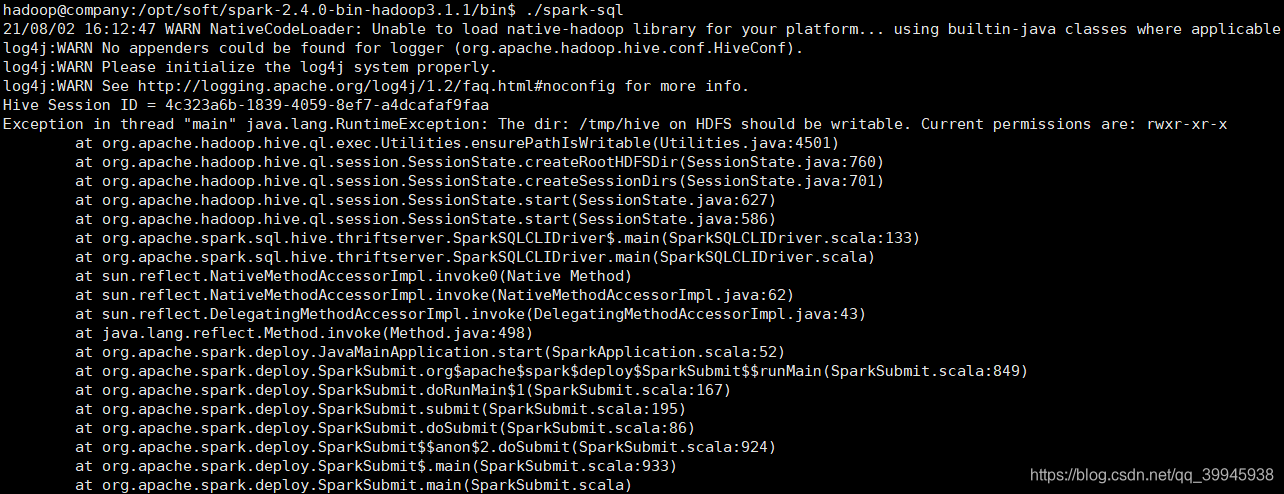

再次启动spark-sql；又报错提示没有写权限

4 解决The dir: /tmp/hive on HDFS should be writable问题

赋予全部权限

hdfs dfs -chmod -R 777 /tmp/hive

权限修改后，这个报错消失；看其他人改完后就可以启动spark-sql，又报了另外的错

hadoop@company:/opt/soft/spark-2.4.0-bin-hadoop3.1.1/bin$ ./spark-sql
2021-08-02 16:43:36,877 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
2021-08-02 16:43:37,066 INFO conf.HiveConf: Found configuration file file:/opt/soft/apache-hive-3.1.2-bin/conf/hive-site.xml
Hive Session ID = c9b1fce5-35e7-4716-a948-e71a69881c54
2021-08-02 16:43:37,161 INFO SessionState: Hive Session ID = c9b1fce5-35e7-4716-a948-e71a69881c54
2021-08-02 16:43:37,657 INFO session.SessionState: Created HDFS directory: /tmp/hive/hadoop/c9b1fce5-35e7-4716-a948-e71a69881c54
2021-08-02 16:43:37,665 INFO session.SessionState: Created local directory: /tmp/hive/tmpdir/hadoop/c9b1fce5-35e7-4716-a948-e71a69881c54
2021-08-02 16:43:37,692 INFO session.SessionState: Created HDFS directory: /tmp/hive/hadoop/c9b1fce5-35e7-4716-a948-e71a69881c54/_tmp_space.db
Exception in thread "main" java.lang.NoSuchMethodError: org.apache.hadoop.hive.ql.session.SessionState$LogHelper.<init>(Lorg/apache/commons/logging/Log;)V
	at org.apache.spark.sql.hive.thriftserver.SparkSQLCLIDriver.<init>(SparkSQLCLIDriver.scala:303)
	at org.apache.spark.sql.hive.thriftserver.SparkSQLCLIDriver$.main(SparkSQLCLIDriver.scala:166)
	at org.apache.spark.sql.hive.thriftserver.SparkSQLCLIDriver.main(SparkSQLCLIDriver.scala)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at org.apache.spark.deploy.JavaMainApplication.start(SparkApplication.scala:52)
	at org.apache.spark.deploy.SparkSubmit.org$apache$spark$deploy$SparkSubmit$$runMain(SparkSubmit.scala:849)
	at org.apache.spark.deploy.SparkSubmit.doRunMain$1(SparkSubmit.scala:167)
	at org.apache.spark.deploy.SparkSubmit.submit(SparkSubmit.scala:195)
	at org.apache.spark.deploy.SparkSubmit.doSubmit(SparkSubmit.scala:86)
	at org.apache.spark.deploy.SparkSubmit$$anon$2.doSubmit(SparkSubmit.scala:924)
	at org.apache.spark.deploy.SparkSubmit$.main(SparkSubmit.scala:933)
	at org.apache.spark.deploy.SparkSubmit.main(SparkSubmit.scala)
2021-08-02 16:43:37,703 INFO util.ShutdownHookManager: Shutdown hook called
2021-08-02 16:43:37,704 INFO util.ShutdownHookManager: Deleting directory /tmp/spark-9520a36a-9613-4081-b57e-65435736a034

看起来是hive和spark版本冲突问题；

参考资料

http://blog.51yip.com/hadoop/2329.html
