DDS(Data Distribution Service)是一套规范，包含许多组件，其中，DCPS(Data-Centric Publish-Subscribe)是DDS的核心层，它定义了数据如何在发布者和订阅者之间交换。RTPS (Real-Time Publish-Subscribe)是DDS规范的网络层协议

FastDDS是DDS的一种实现，实现有两种模型，一种DDS模型，一种RTPS模型，RTPS能够更加精细化地操作底层。
也就是说，当使用 DDS 开发应用程序时，实际上是在利用 DCPS 模型，并且这个模型通常会通过 RTPS 协议来实现数据的传输。

本文档描述了使用FastDDS进行测试，对不同数据大小的数据进行测试，搭建了一套测试框架，并给出结论。
！！！本文不对FastDDS的安装进行说明。

1. 测试概述

本文从简单的发布订阅协议的FastDDS测试样例开始，到最终搭建出一套简单的可定制测试的发布订阅框架，方便进行测试。

1.1. 测试环境及指标

环境：
Win10主机下的VMWare虚拟机环境
OS：Ubuntu22.04LTS
CPU：4x2=8(核)
内存：8G RAM
磁盘：100G
FastDDS版本：2.14.2

软件需求：

  1. CMake
  2. FastDDS库
  3. gcc

指标：
CPU占用、内存占用

1.2. 测试阶段

测试分为4个阶段
简单的发布订阅->能够配置简单Qos->通过xml文件配置->搭建测试框架->完整测试框架+测试脚本
因为每一节基本都包含了大量代码，所以最好跳着看。
若读者对FastDDS的传输已经有了一定的理解，可以直接跳到1.2.5.节进行查看。
1.2.1.简单发布订阅
1.2.2.配置历史记录
1.2.3.xml文件配置
1.2.4.测试框架
1.2.5.完整测试框架

1.2.1.简单发布订阅

1)目录结构
.
├── CMakeLists.txt
├── Readme.md(非必要)
├── restart.sh
└── src
    ├── HelloWorld.idl
    ├── HelloWorldPublisher.cpp
    └── HelloWorldSubscriber.cpp
2)测试需要执行
chmod +x ./restart.sh

# 在src下根据idl文件生成所需文件
fastddsgen src/HelloWorld.idl

# 编译文件
./restart.sh

	# 本窗口
	./build/DDSHelloWorldPublisher
	# 另外一个窗口
	./build/DDSHelloWorldSubscriber
3)文件内容

CMakeLists.txt内容如下

cmake_minimum_required(VERSION 3.20)

project(DDSHelloWorld)

if(NOT fastrtps_FOUND)
    find_package(fastrtps REQUIRED)
endif()
if(NOT fastcdr_FOUND)
    find_package(fastcdr REQUIRED)
endif()


# Set C++11
include(CheckCXXCompilerFlag)
if(CMAKE_COMPILER_IS_GNUCXX OR CMAKE_COMPILER_IS_CLANG OR
        CMAKE_CXX_COMPILER_ID MATCHES "Clang")
    check_cxx_compiler_flag(-std=c++11 SUPPORTS_CXX11)
    if(SUPPORTS_CXX11)
        add_compile_options(-std=c++11)
    else()
        message(FATAL_ERROR "Compiler doesn't support C++11")
    endif()
endif()

message(STATUS "Configuring HelloWorld publisher/subscriber example...")
# 注意 将src/*.cxx添加到DDS_HELLOWORLD_SOURCES_CXX变量中
file(GLOB DDS_HELLOWORLD_SOURCES_CXX "src/*.cxx")


add_executable(DDSHelloWorldPublisher src/HelloWorldPublisher.cpp ${DDS_HELLOWORLD_SOURCES_CXX})
target_link_libraries(DDSHelloWorldPublisher fastrtps fastcdr)
add_executable(DDSHelloWorldSubscriber src/HelloWorldSubscriber.cpp ${DDS_HELLOWORLD_SOURCES_CXX})
target_link_libraries(DDSHelloWorldSubscriber fastrtps fastcdr)

restart.sh内容如下:

# /usr/bin
rm -rf ./build &&
mkdir build &&
cd build  &&
cmake .. &&
cmake --build .

HelloWorld.idl

struct HelloWorld
{
    unsigned long index;
    string message;
};

HelloWorldPublisher.cpp

/**
 * @file HelloWorldPublisher.cpp
 *
 */

#include "HelloWorldPubSubTypes.h"

#include <chrono>
#include <thread>

#include <fastdds/dds/domain/DomainParticipant.hpp>
#include <fastdds/dds/domain/DomainParticipantFactory.hpp>
#include <fastdds/dds/publisher/DataWriter.hpp>
#include <fastdds/dds/publisher/DataWriterListener.hpp>
#include <fastdds/dds/publisher/Publisher.hpp>
#include <fastdds/dds/topic/TypeSupport.hpp>

using namespace eprosima::fastdds::dds;

class HelloWorldPublisher
{
private:

    HelloWorld hello_;

    DomainParticipant* participant_;

    Publisher* publisher_;

    Topic* topic_;

    DataWriter* writer_;

    TypeSupport type_;

    class PubListener : public DataWriterListener
    {
    public:

        PubListener()
            : matched_(0)
        {
        }

        ~PubListener() override
        {
        }

        void on_publication_matched(
                DataWriter*,
                const PublicationMatchedStatus& info) override
        {
            if (info.current_count_change == 1)
            {
                matched_ = info.total_count;
                std::cout << "Publisher matched." << std::endl;
            }
            else if (info.current_count_change == -1)
            {
                matched_ = info.total_count;
                std::cout << "Publisher unmatched." << std::endl;
            }
            else
            {
                std::cout << info.current_count_change
                        << " is not a valid value for PublicationMatchedStatus current count change." << std::endl;
            }
        }

        std::atomic_int matched_;

    } listener_;

public:

    HelloWorldPublisher()
        : participant_(nullptr)
        , publisher_(nullptr)
        , topic_(nullptr)
        , writer_(nullptr)
        , type_(new HelloWorldPubSubType())
    {
    }

    virtual ~HelloWorldPublisher()
    {
        if (writer_ != nullptr)
        {
            publisher_->delete_datawriter(writer_);
        }
        if (publisher_ != nullptr)
        {
            participant_->delete_publisher(publisher_);
        }
        if (topic_ != nullptr)
        {
            participant_->delete_topic(topic_);
        }
        DomainParticipantFactory::get_instance()->delete_participant(participant_);
    }

    //!Initialize the publisher
    bool init()
    {
        hello_.index(0);
        hello_.message("Firstfastddsdemo1");

        DomainParticipantQos participantQos;
        participantQos.name("Participant_publisher");
        participant_ = DomainParticipantFactory::get_instance()->create_participant(0, participantQos);

        if (participant_ == nullptr)
        {
            return false;
        }

        // Register the Type
        type_.register_type(participant_);

        // Create the publications Topic
        topic_ = participant_->create_topic("HelloWorldTopic", "HelloWorld", TOPIC_QOS_DEFAULT);

        if (topic_ == nullptr)
        {
            return false;
        }

        // Create the Publisher
        publisher_ = participant_->create_publisher(PUBLISHER_QOS_DEFAULT, nullptr);

        if (publisher_ == nullptr)
        {
            return false;
        }

        // Create the DataWriter
        writer_ = publisher_->create_datawriter(topic_, DATAWRITER_QOS_DEFAULT, &listener_);

        if (writer_ == nullptr)
        {
            return false;
        }
        return true;
    }

    //!Send a publication
    bool publish()
    {
        if (listener_.matched_ > 0)
        {
            hello_.index(hello_.index() + 1);
            writer_->write(&hello_);
            return true;
        }
        return false;
    }

    //!Run the Publisher
    void run(
            uint32_t samples)
    {
        uint32_t samples_sent = 0;
        while (samples_sent < samples)
        {
            if (publish())
            {
                samples_sent++;
                std::cout << "Message: " << hello_.message() << " with index: " << hello_.index()
                            << " SENT" << std::endl;
            }
            std::this_thread::sleep_for(std::chrono::milliseconds(1000));
        }
    }
};

int main(
        int argc,
        char** argv)
{
    std::cout << "Starting publisher." << std::endl;
    uint32_t samples = 10;

    HelloWorldPublisher* mypub = new HelloWorldPublisher();
    if(mypub->init())
    {
        mypub->run(samples);
    }

    delete mypub;
    return 0;
}

HelloWorldSubscriber.cpp

/**
 * @file HelloWorldSubscriber.cpp
 *
 */

#include "HelloWorldPubSubTypes.h"

#include <chrono>
#include <thread>

#include <fastdds/dds/domain/DomainParticipant.hpp>
#include <fastdds/dds/domain/DomainParticipantFactory.hpp>
#include <fastdds/dds/subscriber/DataReader.hpp>
#include <fastdds/dds/subscriber/DataReaderListener.hpp>
#include <fastdds/dds/subscriber/qos/DataReaderQos.hpp>
#include <fastdds/dds/subscriber/SampleInfo.hpp>
#include <fastdds/dds/subscriber/Subscriber.hpp>
#include <fastdds/dds/topic/TypeSupport.hpp>

using namespace eprosima::fastdds::dds;

class HelloWorldSubscriber
{
private:

    DomainParticipant* participant_;

    Subscriber* subscriber_;

    DataReader* reader_;

    Topic* topic_;

    TypeSupport type_;

    class SubListener : public DataReaderListener
    {
    public:

        SubListener()
            : samples_(0)
        {
        }

        ~SubListener() override
        {
        }

        void on_subscription_matched(
                DataReader*,
                const SubscriptionMatchedStatus& info) override
        {
            if (info.current_count_change == 1)
            {
                std::cout << "Subscriber matched." << std::endl;
            }
            else if (info.current_count_change == -1)
            {
                std::cout << "Subscriber unmatched." << std::endl;
            }
            else
            {
                std::cout << info.current_count_change
                          << " is not a valid value for SubscriptionMatchedStatus current count change" << std::endl;
            }
        }

        void on_data_available(
                DataReader* reader) override
        {
            SampleInfo info;
            if (reader->take_next_sample(&hello_, &info) == ReturnCode_t::RETCODE_OK)
            {
                if (info.valid_data)
                {
                    std::cout <<"Only recieved: "<<hello_.index()<<" "<<hello_.message()<<std::endl;
                    samples_++;
                    std::cout << "Message: " << hello_.message() << " with index: " << hello_.index()
                              << " RECEIVED." << std::endl;
                }
            }
        }

        HelloWorld hello_;

        std::atomic_int samples_;

    }
    listener_;

public:

    HelloWorldSubscriber()
        : participant_(nullptr)
        , subscriber_(nullptr)
        , topic_(nullptr)
        , reader_(nullptr)
        , type_(new HelloWorldPubSubType())
    {
    }

    virtual ~HelloWorldSubscriber()
    {
        if (reader_ != nullptr)
        {
            subscriber_->delete_datareader(reader_);
        }
        if (topic_ != nullptr)
        {
            participant_->delete_topic(topic_);
        }
        if (subscriber_ != nullptr)
        {
            participant_->delete_subscriber(subscriber_);
        }
        DomainParticipantFactory::get_instance()->delete_participant(participant_);
    }

    //!Initialize the subscriber
    bool init()
    {
        DomainParticipantQos participantQos;
        participantQos.name("Participant_subscriber");
        participant_ = DomainParticipantFactory::get_instance()->create_participant(0, participantQos);

        if (participant_ == nullptr)
        {
            return false;
        }

        // Register the Type
        type_.register_type(participant_);

        // Create the subscriptions Topic
        topic_ = participant_->create_topic("HelloWorldTopic", "HelloWorld", TOPIC_QOS_DEFAULT);

        if (topic_ == nullptr)
        {
            return false;
        }

        // Create the Subscriber
        subscriber_ = participant_->create_subscriber(SUBSCRIBER_QOS_DEFAULT, nullptr);

        if (subscriber_ == nullptr)
        {
            return false;
        }

        // Create the DataReader
        reader_ = subscriber_->create_datareader(topic_, DATAREADER_QOS_DEFAULT, &listener_);

        if (reader_ == nullptr)
        {
            return false;
        }

        return true;
    }

    //!Run the Subscriber
    void run(
            uint32_t samples)
    {
        while (listener_.samples_ < samples)
        {
            std::this_thread::sleep_for(std::chrono::milliseconds(100));
        }
    }

};

int main(
        int argc,
        char** argv)
{
    std::cout << "Starting subscriber." << std::endl;
    uint32_t samples = 10;

    HelloWorldSubscriber* mysub = new HelloWorldSubscriber();
    if (mysub->init())
    {
        mysub->run(samples);
    }

    delete mysub;
    return 0;
}

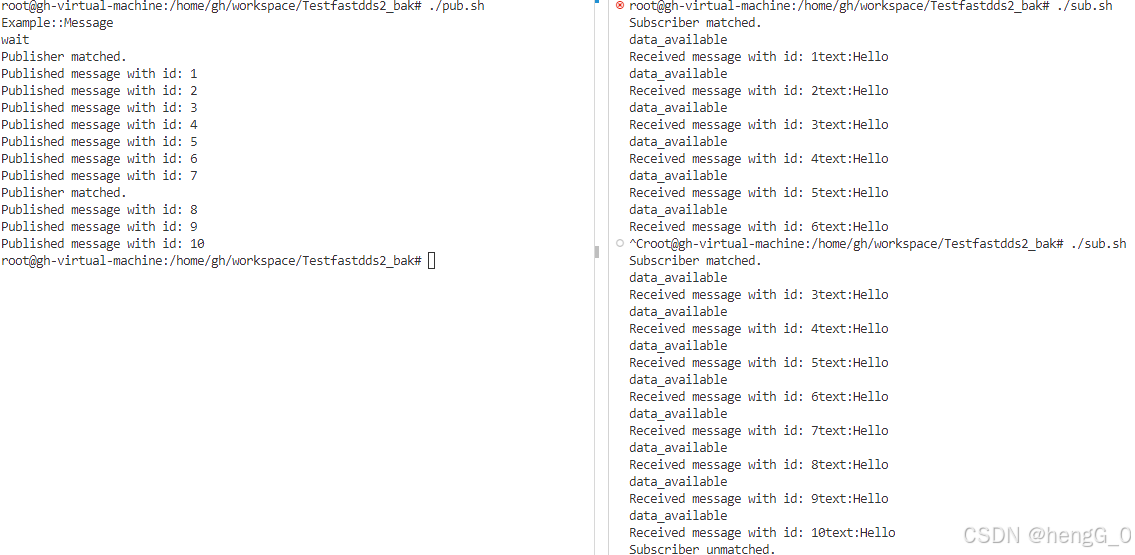

4)运行结果

简单测试结果

1.2.2.配置历史记录

通过对简单发布订阅代码的理解，摘出其中必要的部分，并对其进行Qos的扩展，再进行测试

1)目录结构
.
├── CMakeLists.txt
├── pub.sh
├── sub.sh
├── Readme.md(非必要)
├── restart.sh
└── src
    ├── Example.idl
    ├── HelloWorldPublisher.cpp
    └── HelloWorldSubscriber.cpp
2)测试时执行
chmod +x ./restart.sh
chmod +x ./pub.sh
chmod +x ./sub.sh

# 在src下根据idl文件生成所需文件
fastddsgen src/Example.idl

# 编译文件
./restart.sh

	# 本窗口
	./pub.sh
	# 另外一个窗口
	./sub.sh
3)文件内容

CMakeLists.txt和restart.sh与简单发布订阅一致，所以不再列出。
Example.idl

module Example {
    struct Message {
        unsigned long id;
        string<256> text;
    };
};

pub.sh

# /usr/bin
cd build
./DDSHelloWorldPublisher

sub.sh

# /usr/bin
cd build
./DDSHelloWorldSubscriber

HelloWorldPublisher.cpp

#include "ExamplePubSubTypes.h"
#include <iostream>
#include <thread>
#include <chrono>
#include <vector>
#include <fastdds/dds/domain/DomainParticipant.hpp>
#include <fastdds/dds/domain/DomainParticipantFactory.hpp>
#include <fastdds/dds/publisher/Publisher.hpp>
#include <fastdds/dds/publisher/DataWriter.hpp>
#include <fastdds/dds/publisher/DataWriterListener.hpp>
#include <fastdds/dds/topic/TypeSupport.hpp>
#include <fastdds/dds/core/policy/QosPolicies.hpp>
#include <fastrtps/transport/TCPv4TransportDescriptor.h>

using namespace eprosima::fastdds::dds;
using namespace eprosima::fastrtps::rtps;
class MyPubListener : public DataWriterListener
{
public:

    MyPubListener()
        : matched_(0)
    {
    }

    ~MyPubListener() override
    {
    }

    void on_publication_matched(
            DataWriter*,
            const PublicationMatchedStatus& info) override
    {
        if (info.current_count_change == 1)
        {
            matched_ = info.total_count;
            std::cout << "Publisher matched." << std::endl;
        }
        else if (info.current_count_change == -1)
        {
            matched_ = info.total_count;
            std::cout << "Publisher unmatched." << std::endl;
        }
        else
        {
            std::cout << info.current_count_change
                    << " is not a valid value for PublicationMatchedStatus current count change." << std::endl;
        }
    }

    std::atomic_int matched_;

};

int main()
{

    DomainParticipantQos dq;

    // 初始化DDS域参与者
    DomainParticipant* participant = DomainParticipantFactory::get_instance()->create_participant(0, dq);

    // 注册类型
    TypeSupport type(new Example::MessagePubSubType());
    type.register_type(participant);

    // 创建发布者
    Publisher* publisher = participant->create_publisher(PUBLISHER_QOS_DEFAULT, nullptr);

    // 创建主题
    TopicQos topic_qos = TOPIC_QOS_DEFAULT;
    topic_qos.durability().kind = TRANSIENT_LOCAL_DURABILITY_QOS;

    Topic* topic = participant->create_topic("MessageTopic", type.get_type_name(), topic_qos);
    std::cout<<type.get_type_name()<<std::endl;


    // 创建数据写入者
    MyPubListener Mypl;
    DataWriterQos writer_qos = DATAWRITER_QOS_DEFAULT;
    writer_qos.durability().kind = TRANSIENT_LOCAL_DURABILITY_QOS;
    writer_qos.reliability().kind = RELIABLE_RELIABILITY_QOS;
    writer_qos.reliability().max_blocking_time = {5, 0};
    writer_qos.history().depth = 5;
    DataWriter* writer = publisher->create_datawriter(topic, writer_qos,&Mypl);

    // 发布数据
    Example::Message msg;
    msg.text("Hello");
    for (long i = 1; i <= 10; ++i) {
        while(Mypl.matched_==0)
        {
            std::cout<<"wait"<<std::endl;
            std::this_thread::sleep_for(std::chrono::seconds(1));
        }
        msg.id(i);
        writer->write(&msg);
        std::cout << "Published message with id: " << i << std::endl;
        std::this_thread::sleep_for(std::chrono::seconds(1));
    }

    // 清理资源
    publisher->delete_datawriter(writer);
    participant->delete_publisher(publisher);
    participant->delete_topic(topic);
    DomainParticipantFactory::get_instance()->delete_participant(participant);

    return 0;
}

HelloWorldSubscriber.cpp

#include "ExamplePubSubTypes.h"
#include <iostream>
#include <thread>
#include <chrono>
#include <vector>
#include <fastdds/dds/domain/DomainParticipant.hpp>
#include <fastdds/dds/domain/DomainParticipantFactory.hpp>
#include <fastdds/dds/subscriber/DataReader.hpp>
#include <fastdds/dds/subscriber/DataReaderListener.hpp>
#include <fastdds/dds/subscriber/qos/DataReaderQos.hpp>
#include <fastdds/dds/subscriber/SampleInfo.hpp>
#include <fastdds/dds/subscriber/Subscriber.hpp>
#include <fastdds/dds/topic/TypeSupport.hpp>
#include <fastdds/dds/core/policy/QosPolicies.hpp>
#include <fastrtps/transport/TCPv4TransportDescriptor.h>

using namespace eprosima::fastdds::dds;
using namespace eprosima::fastrtps::rtps;

class MyReaderListener : public DataReaderListener
{
public:
    void on_subscription_matched(
            DataReader* reader,
            const SubscriptionMatchedStatus& info) override
    {
        if (info.current_count_change == 1)
        {
            std::cout << "Subscriber matched." << std::endl;
        }
        else if (info.current_count_change == -1)
        {
            std::cout << "Subscriber unmatched." << std::endl;
        }
        else
        {
            std::cout << info.current_count_change
                    << " is not a valid value for SubscriptionMatchedStatus current count change" << std::endl;
        }
    }
    void on_data_available(DataReader* reader) override {
        std::cout<<"data_available"<<std::endl;
        Example::Message msg;
        SampleInfo info;
        if (reader->take_next_sample(&msg, &info) == ReturnCode_t::RETCODE_OK) {
            if (info.valid_data) {
                std::cout << "Received message with id: " << msg.id() <<"text:"<<msg.text()<< std::endl;
            }
        }
    }
};

int main()
{
    // 设置TCP传输
    DomainParticipantQos dq;

    // 初始化DDS域参与者
    DomainParticipant* participant = DomainParticipantFactory::get_instance()->create_participant(0, dq);

    // 注册类型
    TypeSupport type(new Example::MessagePubSubType());
    type.register_type(participant);

    // 创建订阅者
    Subscriber* subscriber = participant->create_subscriber(SUBSCRIBER_QOS_DEFAULT);

    // 创建主题
    TopicQos topic_qos = participant->get_default_topic_qos();
    topic_qos.durability().kind = TRANSIENT_LOCAL_DURABILITY_QOS;
    Topic* topic = participant->create_topic("MessageTopic", type.get_type_name(), topic_qos);

    // 创建数据读取者
    DataReaderQos reader_qos = DATAREADER_QOS_DEFAULT;
    reader_qos.durability().kind = TRANSIENT_LOCAL_DURABILITY_QOS;
    reader_qos.reliability().kind = RELIABLE_RELIABILITY_QOS;
    reader_qos.reliability().max_blocking_time = {5, 0};
    reader_qos.history().depth = 5;
    DataReader* reader = subscriber->create_datareader(topic, reader_qos, new MyReaderListener());

    static int count = 0;
    // 等待接收消息
    while (count<=10) {
        std::this_thread::sleep_for(std::chrono::seconds(1));
        count++;
    }

    // 清理资源
    subscriber->delete_datareader(reader);
    participant->delete_subscriber(subscriber);
    participant->delete_topic(topic);
    DomainParticipantFactory::get_instance()->delete_participant(participant);

    return 0;
}

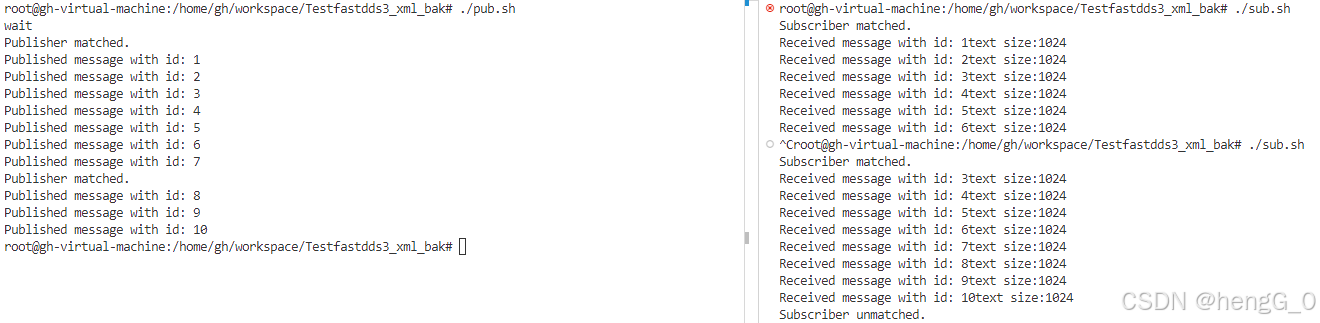

4)运行结果

历史记录测试结果

1.2.3.xml文件配置

通过xml进行配置，效果与配置历史记录相似

1)目录结构
.
├── CMakeLists.txt
├── pub.sh
├── sub.sh
├── Readme.md(非必要)
├── restart.sh
└── src
    ├── Example.idl
    ├── toal.xml
    ├── HelloWorldPublisher.cpp
    └── HelloWorldSubscriber.cpp
2)测试时执行
chmod +x ./restart.sh
chmod +x ./pub.sh
chmod +x ./sub.sh

# 在src下根据idl文件生成所需文件
fastddsgen src/Example.idl

# 编译文件
./restart.sh

	# 本窗口
	./pub.sh
	# 另外一个窗口
	./sub.sh
3)文件内容

CMakeLists.txt、restart.sh与配置历史记录一致。
pub.sh、sub.sh不一致
Example.idl

module Example {
    struct Message {
        unsigned long id;
        string<1024> text;
    };
};

pub.sh

# /usr/bin
./build/DDSHelloWorldPublisher $(pwd)/src/total.xml

sub.sh

# /usr/bin
./build/DDSHelloWorldSubscriber $(pwd)/src/total.xml

total.xml

<?xml version="1.0" encoding="UTF-8" ?>
<dds xmlns="http://www.eprosima.com">
    <profiles>
        <domainparticipant_factory profile_name="domainparticipant_factory_profile">
            <!-- ... -->
        </domainparticipant_factory>

        <participant profile_name="participant_profile">
            <!-- ... -->
        </participant>

        <publisher profile_name="publisher_profile">
            <!-- ... -->
        </publisher>

        <subscriber profile_name="subscriber_profile">
            <!-- ... -->
        </subscriber>

        <data_writer profile_name="datawriter_profile">
            <!-- ... -->
            <topic>
                <historyQos>
                    <kind>KEEP_LAST</kind>
                    <depth>5</depth>
                </historyQos>
            </topic>
            <qos>
                <reliability>
                    <kind>RELIABLE</kind>
                    <max_blocking_time>
                        <sec>2</sec>
                    </max_blocking_time>
                </reliability>
                <durability>
                    <kind>TRANSIENT_LOCAL</kind>
                </durability>
            </qos>
        </data_writer>

        <data_reader profile_name="datareader_profile">
            <!-- ... -->
            <topic>
                <historyQos>
                    <kind>KEEP_LAST</kind>
                    <depth>5</depth>
                </historyQos>
            </topic>
            <qos>
                <reliability>
                    <kind>RELIABLE</kind>
                    <max_blocking_time>
                        <sec>2</sec>
                    </max_blocking_time>
                </reliability>
                <durability>
                    <kind>TRANSIENT_LOCAL</kind>
                </durability>
            </qos>
        </data_reader>

        <topic profile_name="topic_profile">
            <!-- ... -->
        </topic>

        <transport_descriptors>
            <!-- ... -->
        </transport_descriptors>
    </profiles>

    <library_settings>
        <intraprocess_delivery>FULL</intraprocess_delivery> <!-- OFF | USER_DATA_ONLY | FULL -->
    </library_settings>

    <log>
        <!-- ... -->
    </log>

    <types>
        <!-- ... -->
    </types>
</dds>

HelloWorldPublisher.cpp

#include "ExamplePubSubTypes.h"
#include <iostream>
#include <thread>
#include <chrono>
#include <vector>
#include <string>
#include <fastdds/dds/domain/DomainParticipant.hpp>
#include <fastdds/dds/domain/DomainParticipantFactory.hpp>
#include <fastdds/dds/publisher/Publisher.hpp>
#include <fastdds/dds/publisher/DataWriter.hpp>
#include <fastdds/dds/publisher/DataWriterListener.hpp>
#include <fastdds/dds/topic/TypeSupport.hpp>
#include <fastdds/dds/core/policy/QosPolicies.hpp>
#include <fastrtps/transport/TCPv4TransportDescriptor.h>

using namespace eprosima::fastdds::dds;
using namespace eprosima::fastrtps::rtps;
class MyPubListener : public DataWriterListener
{
public:
    MyPubListener()
        : matched_(0)
    {
    }

    ~MyPubListener() override
    {
    }

    void on_publication_matched(
        DataWriter *,
        const PublicationMatchedStatus &info) override
    {
        if (info.current_count_change == 1)
        {
            matched_ = info.total_count;
            std::cout << "Publisher matched." << std::endl;
        }
        else if (info.current_count_change == -1)
        {
            matched_ = info.total_count;
            std::cout << "Publisher unmatched." << std::endl;
        }
        else
        {
            std::cout << info.current_count_change
                      << " is not a valid value for PublicationMatchedStatus current count change." << std::endl;
        }
    }

    std::atomic_int matched_;
};

int main(int argc, char *argv[])
{
    std::string xml_filename = argv[1];
    MyPubListener Mypl;
    DomainParticipant *participant;
    Topic *topic;
    Publisher *publisher;
    DataWriter *writer;
    if (ReturnCode_t::RETCODE_OK ==
        DomainParticipantFactory::get_instance()->load_XML_profiles_file(xml_filename))
    {
        participant =
            DomainParticipantFactory::get_instance()->create_participant_with_profile(
                0, "participant_profile");

        TypeSupport type(new Example::MessagePubSubType());
        type.register_type(participant);
        topic = participant->create_topic("MessageTopic", type.get_type_name(), TOPIC_QOS_DEFAULT);
        publisher = participant->create_publisher_with_profile("publisher_profile");
        writer = publisher->create_datawriter_with_profile(topic, "datawriter_profile", &Mypl);
    }
    else
    {
        std::cout << "load_XML_profiles_file failed" << std::endl;
    }

    // 发布数据
    Example::Message msg;
    std::string str;
    str.assign(1024, 'A');
    msg.text(str);
    for (long i = 1; i <= 10; ++i)
    {
        while (Mypl.matched_ == 0)
        {
            std::cout << "wait" << std::endl;
            std::this_thread::sleep_for(std::chrono::seconds(1));
        }
        msg.id(i);
        writer->write(&msg);
        std::cout << "Published message with id: " << i << std::endl;
        // 稍微带点时延，否则容易直接丢弃部分数据，历史记录来不及存储
        std::this_thread::sleep_for(std::chrono::milliseconds(500));
    }

    // 清理资源
    publisher->delete_datawriter(writer);
    participant->delete_publisher(publisher);
    participant->delete_topic(topic);
    DomainParticipantFactory::get_instance()->delete_participant(participant);

    return 0;
}

HelloWorldSubscriber.cpp

#include "ExamplePubSubTypes.h"
#include <iostream>
#include <thread>
#include <chrono>
#include <vector>
#include <fastdds/dds/domain/DomainParticipant.hpp>
#include <fastdds/dds/domain/DomainParticipantFactory.hpp>
#include <fastdds/dds/subscriber/DataReader.hpp>
#include <fastdds/dds/subscriber/DataReaderListener.hpp>
#include <fastdds/dds/subscriber/qos/DataReaderQos.hpp>
#include <fastdds/dds/subscriber/SampleInfo.hpp>
#include <fastdds/dds/subscriber/Subscriber.hpp>
#include <fastdds/dds/topic/TypeSupport.hpp>
#include <fastdds/dds/core/policy/QosPolicies.hpp>
#include <fastrtps/transport/TCPv4TransportDescriptor.h>

const long PORT = 12345;

using namespace eprosima::fastdds::dds;
using namespace eprosima::fastrtps::rtps;

class MyReaderListener : public DataReaderListener
{
public:
    void on_subscription_matched(
        DataReader *reader,
        const SubscriptionMatchedStatus &info) override
    {
        if (info.current_count_change == 1)
        {
            std::cout << "Subscriber matched." << std::endl;
        }
        else if (info.current_count_change == -1)
        {
            std::cout << "Subscriber unmatched." << std::endl;
        }
        else
        {
            std::cout << info.current_count_change
                      << " is not a valid value for SubscriptionMatchedStatus current count change" << std::endl;
        }
    }
    void on_data_available(DataReader *reader) override
    {
        Example::Message msg;
        SampleInfo info;
        if (reader->take_next_sample(&msg, &info) == ReturnCode_t::RETCODE_OK)
        {
            if (info.valid_data)
            {
                std::cout << "Received message with id: " << msg.id() << "text size:" << msg.text().size() << std::endl;
            }
        }
    }
};

int main(int argc, char *argv[])
{
    std::string xml_filename = argv[1];
    DomainParticipant *participant;
    Topic *topic;
    Subscriber *subscriber;
    DataReader *reader;
    if (ReturnCode_t::RETCODE_OK ==
        DomainParticipantFactory::get_instance()->load_XML_profiles_file(xml_filename))
    {
        participant =
            DomainParticipantFactory::get_instance()->create_participant_with_profile(
                0, "participant_profile");

        TypeSupport type(new Example::MessagePubSubType());
        type.register_type(participant);
        topic = participant->create_topic("MessageTopic", type.get_type_name(), TOPIC_QOS_DEFAULT);
        subscriber = participant->create_subscriber_with_profile("subscriber_profile");
        reader = subscriber->create_datareader_with_profile(topic, "datareader_profile", new MyReaderListener());
    }
    else
    {
        std::cout << "load_XML_profiles_file failed" << std::endl;
    }
    static int count = 0;
    // 等待接收消息
    while (count <= 10)
    {
        std::this_thread::sleep_for(std::chrono::seconds(1));
        count++;
    }

    // 清理资源
    subscriber->delete_datareader(reader);
    participant->delete_subscriber(subscriber);
    participant->delete_topic(topic);
    DomainParticipantFactory::get_instance()->delete_participant(participant);

    return 0;
}

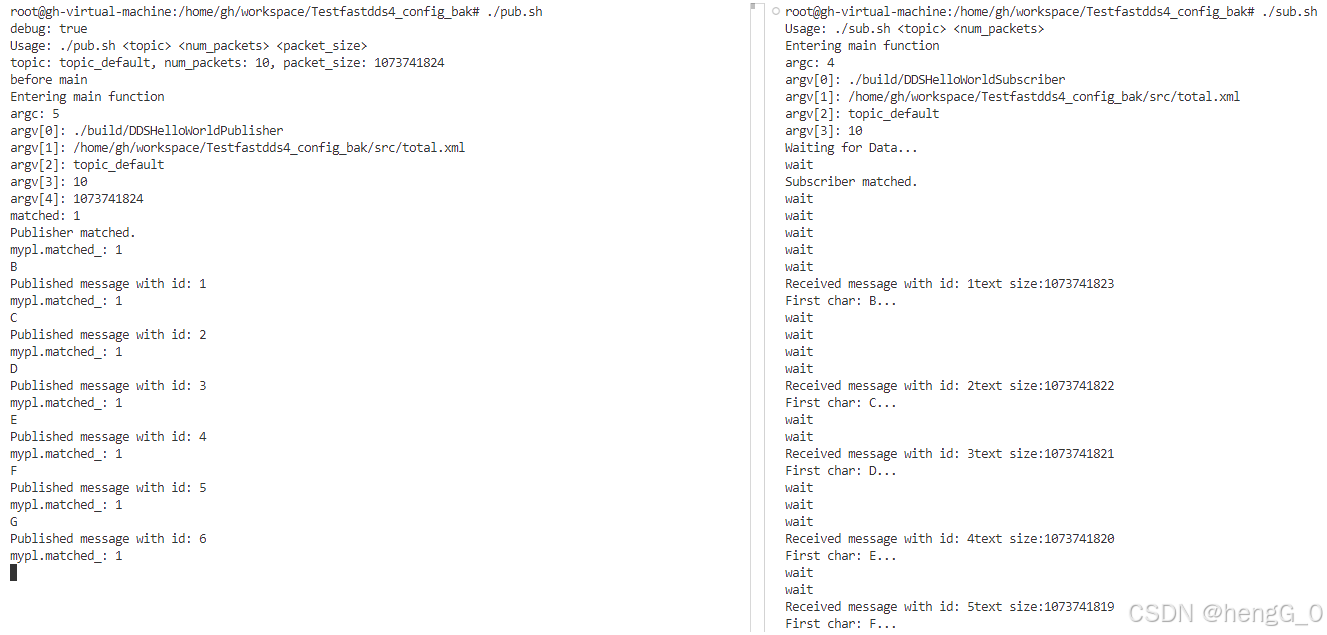

4)运行结果

xml测试结果

1.2.4.测试框架

在上一个基础上增加了自定义生成不同大小idl的工作

1)目录结构
.
├── CMakeLists.txt
├── pub.sh
├── sub.sh
├── gen.sh
├── Readme.md(非必要)
├── restart.sh
└── src
    ├── Example.idl
    ├── toal.xml
    ├── HelloWorldPublisher.cpp
    └── HelloWorldSubscriber.cpp
2)测试时执行
chmod +x ./restart.sh
chmod +x ./pub.sh
chmod +x ./sub.sh

# 修改Example.idl中的sequence的大小
# 修改pub.sh中的PACK变量

# 在src下根据idl文件生成所需文件
./gen.sh

	# 本窗口
	./pub.sh
	# 另外一个窗口
	./sub.sh
3)文件内容

CMakeLists.txt、restart.sh与配置历史记录一致。
Example.idl

module Example {
    struct Message {
        unsigned long id;
        sequence<char,1024*1024*1024> text;
    };
};

gen.sh

#!/bin/bash
cd src &&
rm Example.h Example.cxx ExampleC* ExampleP*
fastddsgen Example.idl &&
cd .. &&
./restart.sh

config.ini

[settings]

debug = true

pub.sh

#!/bin/bash

# 配置文件路径
CONFIG_FILE="config.ini"

# 读取配置文件中的 debug 选项
DEBUG=$(grep -E '^\s*debug\s*=' "$CONFIG_FILE" | cut -d'=' -f2 | tr -d '[:space:]')

if $DEBUG -eq true; then
    echo "debug: $DEBUG"
fi

# 检查参数个数
TOPIC=topic_default
NUM_PACKETS=10
PACK=$((1024*1024*1024)) #根据Example.idl更改
if [ "$#" -ne 3 ]; then
    echo "Usage: $0 <topic> <num_packets> <packet_size>"
else
    # 获取参数
    TOPIC=$1
    NUM_PACKETS=$2
    PACK=$3
fi

echo "topic: $TOPIC, num_packets: $NUM_PACKETS, packet_size: $PACK"

# 启动发布者
./build/DDSHelloWorldPublisher $(pwd)/src/total.xml $TOPIC $NUM_PACKETS $PACK

sub.sh

#!/bin/bash

# 检查参数个数
TOPIC=topic_default
NUM_PACKETS=10
if [ "$#" -ne 2 ]; then
    echo "Usage: $0 <topic> <num_packets>"
else
    # 获取参数
    TOPIC=$1
    NUM_PACKETS=$2
fi

# 启动订阅者
./build/DDSHelloWorldSubscriber $(pwd)/src/total.xml $TOPIC $NUM_PACKETS

HelloWorldPublisher.cpp

#include "ExamplePubSubTypes.h"
#include <iostream>
#include <thread>
#include <chrono>
#include <vector>
// #include <string>

#include <signal.h>
#include <unistd.h>

#include <fastdds/dds/domain/DomainParticipant.hpp>
#include <fastdds/dds/domain/DomainParticipantFactory.hpp>
#include <fastdds/dds/publisher/Publisher.hpp>
#include <fastdds/dds/publisher/DataWriter.hpp>
#include <fastdds/dds/publisher/DataWriterListener.hpp>
#include <fastdds/dds/topic/TypeSupport.hpp>
#include <fastdds/dds/core/policy/QosPolicies.hpp>
#include <fastrtps/transport/TCPv4TransportDescriptor.h>

using namespace eprosima::fastdds::dds;
using namespace eprosima::fastrtps::rtps;
class MyPubListener : public DataWriterListener
{
public:
    MyPubListener()
        : matched_(0)
    {
    }

    ~MyPubListener() override
    {
    }

    void on_publication_matched(
        DataWriter *,
        const PublicationMatchedStatus &info) override
    {
        if (info.current_count_change == 1)
        {
            matched_ = info.current_count;
            std::cout << "matched: " << matched_ << std::endl;
            std::cout << "Publisher matched." << std::endl;
        }
        else if (info.current_count_change == -1)
        {
            matched_ = info.current_count;
            std::cout << "matched: " << matched_ << std::endl;
            std::cout << "Publisher unmatched." << std::endl;
        }
        else
        {
            std::cout << info.current_count_change
                      << " is not a valid value for PublicationMatchedStatus current count change." << std::endl;
        }
    }

    std::atomic_int matched_;
};

class Me_
{
public:
    Me_()
    {
        std::cout << "before main " << std::endl;
    }
    ~Me_()
    {
        std::cout << "after main" << std::endl;
    }
    char get_a()
    {
        return a;
    }
    void set_a(char a_)
    {
        a = a_;
    }

private:
    char a;
};
Me_ me;
DomainParticipant *participant = nullptr;
Topic *topic = nullptr;
Publisher *publisher = nullptr;
DataWriter *writer = nullptr;
void signal_int_handler(int signum)
{
    if (signum == SIGINT)
    {
        if (writer != nullptr)
            publisher->delete_datawriter(writer);
        if (publisher != nullptr)
            participant->delete_publisher(publisher);
        if (topic != nullptr)
            participant->delete_topic(topic);
        if (participant != nullptr)
            DomainParticipantFactory::get_instance()->delete_participant(participant);
        exit(0);
    }
}

int main(int argc, char *argv[])
{
    // Ctrl+C处理
    std::cout << "Entering main function" << std::endl;
    std::cout << "argc: " << argc << std::endl;
    for (int i = 0; i < argc; ++i)
    {
        std::cout << "argv[" << i << "]: " << argv[i] << std::endl;
    }
    signal(SIGINT, signal_int_handler);

    std::string xml_filename = argv[1];
    std::string topic_name = argv[2];
    long NUM_PACKAGE = std::stoi(argv[3]);
    long PACKAGE_SIZE = std::stoi(argv[4]);
    long COUNT = 0;
    MyPubListener Mypl;
    // 未做错误处理
    if (ReturnCode_t::RETCODE_OK ==
        DomainParticipantFactory::get_instance()->load_XML_profiles_file(xml_filename))
    {
        participant =
            DomainParticipantFactory::get_instance()->create_participant_with_profile(
                0, "participant_profile");

        TypeSupport type(new Example::MessagePubSubType());
        type.register_type(participant);
        topic = participant->create_topic(topic_name, type.get_type_name(), TOPIC_QOS_DEFAULT);
        publisher = participant->create_publisher_with_profile("publisher_profile");
        writer = publisher->create_datawriter_with_profile(topic, "datawriter_profile", &Mypl);
    }
    else
    {
        std::cout << "load_XML_profiles_file failed" << std::endl;
    }

    // 发布数据
    Example::Message msg;
    for (long i = 1; i <= NUM_PACKAGE; ++i)
    {
        while (Mypl.matched_ <= 0)
        {
            std::cout << "wait" << std::endl;
            COUNT++;
            if (COUNT >= 20)
            {
                std::cout << "timeout" << std::endl;
                goto out;
            }
            std::this_thread::sleep_for(std::chrono::seconds(1));
        }
        std::cout << "mypl.matched_: " << Mypl.matched_ << std::endl;
        msg.id(i);
        me.set_a('A' + i % 26);
        std::vector<char> str;
        if(PACKAGE_SIZE>=i) {
            str = std::vector<char>(PACKAGE_SIZE - i, me.get_a());
        }
        msg.text(str);
        writer->write(&msg);
        std::cout<<(msg.text())[0]<<std::endl;
        std::cout << "Published message with id: " << i << std::endl;
        // 稍微带点时延，否则容易直接丢弃部分数据，历史记录来不及存储
        std::this_thread::sleep_for(std::chrono::seconds(1));
    }
out:
    // 清理资源
    publisher->delete_datawriter(writer);
    participant->delete_publisher(publisher);
    participant->delete_topic(topic);
    DomainParticipantFactory::get_instance()->delete_participant(participant);

    return 0;
}

HelloWorldSubscriber.cpp

#include "ExamplePubSubTypes.h"
#include <iostream>
#include <thread>
#include <chrono>
#include <vector>
#include <string>

#include <signal.h>
#include <unistd.h>

#include <fastdds/dds/domain/DomainParticipant.hpp>
#include <fastdds/dds/domain/DomainParticipantFactory.hpp>
#include <fastdds/dds/subscriber/DataReader.hpp>
#include <fastdds/dds/subscriber/DataReaderListener.hpp>
#include <fastdds/dds/subscriber/qos/DataReaderQos.hpp>
#include <fastdds/dds/subscriber/SampleInfo.hpp>
#include <fastdds/dds/subscriber/Subscriber.hpp>
#include <fastdds/dds/topic/TypeSupport.hpp>
#include <fastdds/dds/core/policy/QosPolicies.hpp>
#include <fastrtps/transport/TCPv4TransportDescriptor.h>

using namespace eprosima::fastdds::dds;
using namespace eprosima::fastrtps::rtps;

class MyReaderListener : public DataReaderListener
{
public:
    MyReaderListener()
        : messageCount(0), matched_(0)
    {
    }
    void on_subscription_matched(
        DataReader *reader,
        const SubscriptionMatchedStatus &info) override
    {
        if (info.current_count_change == 1)
        {
            matched_ = info.current_count;
            std::cout << "Subscriber matched." << std::endl;
        }
        else if (info.current_count_change == -1)
        {
            matched_ = info.current_count;
            std::cout << "Subscriber unmatched." << std::endl;
        }
        else
        {
            std::cout << info.current_count_change
                      << " is not a valid value for SubscriptionMatchedStatus current count change" << std::endl;
        }
    }
    void on_data_available(DataReader *reader) override
    {
        Example::Message msg;
        SampleInfo info;
        if (reader->take_next_sample(&msg, &info) == ReturnCode_t::RETCODE_OK)
        {
            if (info.valid_data)
            {
                messageCount++;
                std::cout << "Received message with id: " << msg.id() << "text size:" << msg.text().size() << std::endl;
                std::cout << "First char: " << (msg.text())[0] << "..." << std::endl;
            }
        }
    }
    std::atomic_int messageCount;
    std::atomic_int matched_;
};
DomainParticipant *participant;
Topic *topic;
Subscriber *subscriber;
DataReader *reader;
MyReaderListener *listener = new MyReaderListener();
TypeSupport type(new Example::MessagePubSubType());

void cleanup_resources()
{
    if (reader != nullptr)
        subscriber->delete_datareader(reader);
    if (subscriber != nullptr)
        participant->delete_subscriber(subscriber);
    if (topic != nullptr)
        participant->delete_topic(topic);
    if (participant != nullptr)
        DomainParticipantFactory::get_instance()->delete_participant(participant);
    delete listener;
}
void signal_int_handler(int signum)
{
    if (signum == SIGINT)
    {
        cleanup_resources();
        exit(0);
    }
}
int main(int argc, char *argv[])
{
    std::cout << "Entering main function" << std::endl;
    std::cout << "argc: " << argc << std::endl;
    for (int i = 0; i < argc; ++i)
    {
        std::cout << "argv[" << i << "]: " << argv[i] << std::endl;
    }
    if (argc < 4)
    {
        std::cerr << "Usage: " << argv[0] << " <xml_filename>" << std::endl;
        return 0; // 返回错误码
    }
    // Ctrl+C处理
    signal(SIGINT, signal_int_handler);

    std::string xml_filename = argv[1];
    std::string topic_name = argv[2];
    int NUM_PACKAGE = std::stoi(argv[3]);
    int COUNT = 0;

    if (ReturnCode_t::RETCODE_OK ==
        DomainParticipantFactory::get_instance()->load_XML_profiles_file(xml_filename))
    {
        participant =
            DomainParticipantFactory::get_instance()->create_participant_with_profile(
                0, "participant_profile");

        type.register_type(participant);
        topic = participant->create_topic_with_profile(topic_name, type.get_type_name(), "topic_profile");
        if (topic == nullptr)
        {
            std::cout << "create_topic failed" << std::endl;
        }
        subscriber = participant->create_subscriber_with_profile("subscriber_profile");
        if (subscriber == nullptr)
        {
            std::cout << "create_subscriber failed" << std::endl;
        }
        reader = subscriber->create_datareader_with_profile(topic, "datareader_profile", listener);
        if (reader == nullptr)
        {
            std::cout << "create_datareader failed" << std::endl;
        }
    }
    else
    {
        std::cout << "load_XML_profiles_file failed" << std::endl;
    }
    std::cout << "Waiting for Data..." << std::endl;
    // 等待接收消息
    while (listener->messageCount < NUM_PACKAGE && COUNT <= 20)
    {
        std::this_thread::sleep_for(std::chrono::seconds(1));
        if (listener->matched_ == 0)
        {
            COUNT++;
        }
        std::cout << "wait" << std::endl;
    }

    // 清理资源
    cleanup_resources();
    return 0;
}

total.xml

<?xml version="1.0" encoding="UTF-8" ?>
<dds xmlns="http://www.eprosima.com">
    <profiles>
        <domainparticipant_factory profile_name="domainparticipant_factory_profile">
            <!-- ... -->
        </domainparticipant_factory>

        <participant profile_name="participant_profile">
            <!-- ... -->
        </participant>

        <publisher profile_name="publisher_profile">
            <!-- ... -->
        </publisher>

        <subscriber profile_name="subscriber_profile">
            <!-- ... -->
        </subscriber>

        <data_writer profile_name="datawriter_profile">
            <!-- ... -->
        </data_writer>

        <data_reader profile_name="datareader_profile">
            <!-- ... -->
        </data_reader>

        <topic profile_name="topic_profile">
            <!-- ... -->
        </topic>

        <transport_descriptors>
            <!-- ... -->
        </transport_descriptors>
    </profiles>

    <library_settings>
        <intraprocess_delivery>OFF</intraprocess_delivery> <!-- OFF | USER_DATA_ONLY | FULL(default) -->
    </library_settings>

    <log>
        <!-- ... -->
    </log>

    <types>
        <!-- ... -->
    </types>
</dds>

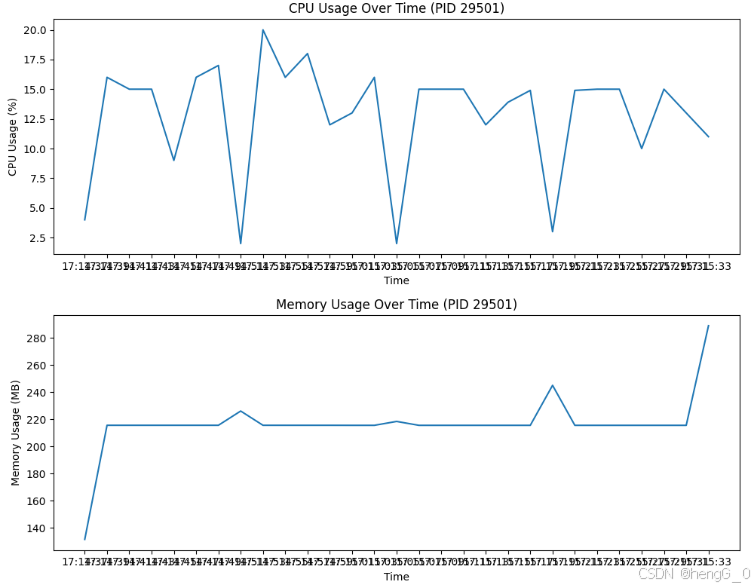

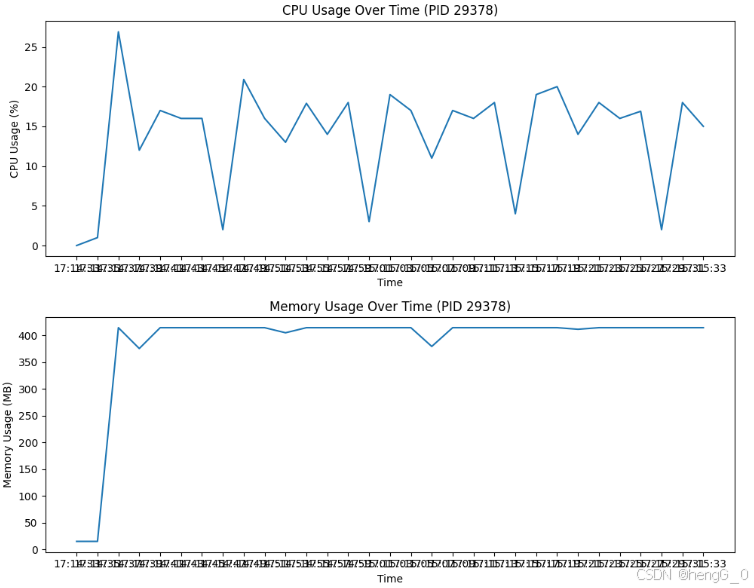

4)测试结果

测试框架测试结果

1.2.5.完整测试框架

这一项需要Python环境
在测试框架的基础上，加上CPU占用，内存占用数据的提取，并可以实现自定义数据包大小的填充，
因为这是一个完整的框架，所以在此基础上会附上所有文件的代码，
因为需要自定义数据包，Example.idl会在start_test.sh中自动生成，故目录结构中不再列出

1)目录结构
.
├── CMakeLists.txt
├── config.ini
├── idls
│   └── gen_idl.sh
├── monitor.py
├── pub.sh
├── Readme.md(非必要)
├── restart.sh
├── result
│   ├── img
│   └── log
├── src
│   ├── HelloWorldPublisher.cpp
│   ├── HelloWorldSubscriber.cpp
│   └── total.xml
├── start_test.sh
└── sub.sh
2)测试时执行
./start_test.sh
# 执行过程中需要根据需求按y/n继续
# 更改config.ini中的数据量时，需要重新覆盖，并重新编译
Do you want to overwrite it? (y/n): y
Do you want to recompile it? (recommend)(y/n):y
3)文件内容

CMakeLists.txt

cmake_minimum_required(VERSION 3.20)

project(DDSHelloWorld)

# 添加可调式选项
set(CMAKE_BUILD_TYPE Debug)

if(NOT fastrtps_FOUND)
    find_package(fastrtps REQUIRED)
endif()
if(NOT fastcdr_FOUND)
    find_package(fastcdr REQUIRED)
endif()

# Set c++11
include(CheckCXXCompilerFlag)
if(CMAKE_COMPILER_IS_GNUCXX OR CMAKE_COMPILER_IS_CLANG OR
        CMAKE_CXX_COMPILER_ID MATCHES "Clang")
    check_cxx_compiler_flag(-std=c++11 SUPPORTS_CXX11)
    if(SUPPORTS_CXX11)
        add_compile_options(-std=c++11)
    else()
        message(FATAL_ERROR "Compiler doesn't support C++11")
    endif()
endif()

message(STATUS "Configuring HelloWorld publisher/subscriber example...")
# 注意 将src/*.cxx添加到DDS_HELLOWORLD_SOURCES_CXX变量中
file(GLOB DDS_HELLOWORLD_SOURCES_CXX "src/*.cxx")


add_executable(DDSHelloWorldPublisher src/HelloWorldPublisher.cpp ${DDS_HELLOWORLD_SOURCES_CXX})
target_link_libraries(DDSHelloWorldPublisher fastrtps fastcdr)
add_executable(DDSHelloWorldSubscriber src/HelloWorldSubscriber.cpp ${DDS_HELLOWORLD_SOURCES_CXX})
target_link_libraries(DDSHelloWorldSubscriber fastrtps fastcdr)

config.ini

# 配置文件中大项一律大写，子项一律小写

[DEBUG]
debug=true

[LAUNCH]
num_group=1
num_pub=1
num_packets_pub=50
num_sub=1
num_packets_sub=50
# SIZE_PACKET 1024 1024*100 1024*1024 1024*1024*100 1024*1024*1024 可自定义
size_packet=1024*1024*100
xml_file=src/total.xml
# ROLE pub sub 二选一
role=sub

gen_idl.sh

fastddsgen idl_*/Example.idl

montior.py

import os
import time
import psutil
import matplotlib.pyplot as plt
import argparse
from concurrent.futures import ThreadPoolExecutor

def get_process_info(pid):
    try:
        process = psutil.Process(pid)
        cpu_percent = process.cpu_percent(interval=1)
        memory_info = process.memory_info()
        memory_usage = memory_info.rss / (1024 * 1024)  # Convert to MB
        return cpu_percent, memory_usage
    except psutil.NoSuchProcess:
        return None, None

def monitor_process(pid, interval=1, duration=60):
    cpu_data = []
    memory_data = []
    timestamps = []

    start_time = time.time()
    while time.time() - start_time < duration:
        current_time = time.strftime('%H:%M:%S', time.localtime())
        timestamps.append(current_time)
        cpu, memory = get_process_info(pid)
        if cpu is not None and memory is not None:
            cpu_data.append(cpu)
            memory_data.append(memory)
        else:
            cpu_data.append(None)
            memory_data.append(None)
        time.sleep(interval)

    return timestamps, {pid: cpu_data}, {pid: memory_data}  # 返回字典

def plot_data(timestamps, cpu_data, memory_data, pid, output_file):
    fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(10, 8))

    # 过滤掉 None 值
    filtered_timestamps = [t for t, c in zip(timestamps, cpu_data[pid]) if c is not None]
    filtered_cpu_data = [c for c in cpu_data[pid] if c is not None]
    filtered_memory_data = [m for m in memory_data[pid] if m is not None]

    ax1.plot(filtered_timestamps, filtered_cpu_data)
    ax1.set_title(f'CPU Usage Over Time (PID {pid})')
    ax1.set_xlabel('Time')
    ax1.set_ylabel('CPU Usage (%)')

    ax2.plot(filtered_timestamps, filtered_memory_data)
    ax2.set_title(f'Memory Usage Over Time (PID {pid})')
    ax2.set_xlabel('Time')
    ax2.set_ylabel('Memory Usage (MB)')

    plt.tight_layout()
    plt.savefig(output_file)
    plt.close(fig)

def get_pids_with_keyword(keyword, process_type):
    pids = []
    for proc in psutil.process_iter(['pid', 'name', 'cmdline']):
        try:
            if keyword in proc.name() or (proc.cmdline() and keyword in ' '.join(proc.cmdline())):
                if process_type in proc.name() or (proc.cmdline() and process_type in ' '.join(proc.cmdline())):
                    pids.append(proc.pid)
        except (psutil.NoSuchProcess, psutil.AccessDenied, psutil.ZombieProcess):
            continue
    return pids

if __name__ == "__main__":
    parser = argparse.ArgumentParser(description="Monitor CPU and memory usage of DDS processes.")
    parser.add_argument("--interval", type=int, default=1, help="Sampling interval in seconds (default: 1)")
    parser.add_argument("--total_time", type=int, default=10, help="Total monitoring time in seconds (default: 10)")
    parser.add_argument("--size", type=int, default=10, help="package_size ONLY USED TO mkdir (default: 10)")

    args = parser.parse_args()

    # 获取包含 DDS 关键字的 pub 和 sub 进程的 PID
    pub_pids = get_pids_with_keyword('DDS', 'Pub')
    sub_pids = get_pids_with_keyword('DDS', 'Sub')
    all_pids = pub_pids + sub_pids

    if not all_pids:
        print("No DDS processes found.")
        exit(1)

    # 使用 ThreadPoolExecutor 并行监控进程
    with ThreadPoolExecutor(max_workers=len(all_pids)) as executor:
        futures = {executor.submit(monitor_process, pid, args.interval, args.total_time): pid for pid in all_pids}
        results = {pid: future.result() for future, pid in futures.items()}

    img_dir = os.path.join('./result/img', str(args.size))
    os.makedirs(img_dir, exist_ok=True)

    # 绘制并保存数据
    for pid, (timestamps, cpu_data, memory_data) in results.items():
        if pid in pub_pids:
            output_file = os.path.join(img_dir, f'pub_{pid}.png')
            plot_data(timestamps, cpu_data, memory_data, pid, output_file)
        elif pid in sub_pids:
            output_file = os.path.join(img_dir, f'sub_{pid}.png')
            plot_data(timestamps, cpu_data, memory_data, pid, output_file)

pub.sh

#!/bin/bash

# 配置文件路径
CONFIG_FILE="config.ini"
# 检查配置文件是否存在
if [ ! -f "$CONFIG_FILE" ]; then
    echo "Config file not found: $CONFIG_FILE"
    exit 1
fi
# 读取配置文件中的 debug 选项
DEBUG=$(grep -E '^\s*debug\s*=' "$CONFIG_FILE" | cut -d'=' -f2 | tr -d '[:space:]')

# 检查参数个数
XML_FILE=$(pwd)/src/total.xml
TOPIC=topic_default
NUM_PACKETS=10
PACK=$((1024))
echo "$#"
MAX_PARAMS=10
if [ "$#" -ne 4 ]; then
    if  $DEBUG -eq true; then
        echo "Usage: $0 <xml_file> <topic> <num_packets> <packet_size>"
        # 打印传入参数
        for ((i=1; i<=MAX_PARAMS && i<=$#; i++)); do
            eval param=\$$i
            echo "Parameter $i: $param"
        done
    fi
else
    # 获取参数
    XML_FILE=$1
    TOPIC=$2
    NUM_PACKETS=$3
    PACK=$4
fi

if  $DEBUG -eq true; then
    echo "xml: $XML_FILE, topic: $TOPIC, num_packets: $NUM_PACKETS, packet_size: $PACK"
fi

# 切换到 build 目录
cd build

# 启动发布者
./DDSHelloWorldPublisher $XML_FILE $TOPIC $NUM_PACKETS $PACK

restart.sh

# /usr/bin
rm -rf ./build
mkdir build
cd build
cmake ..
cmake --build .

start_test.sh

#!/bin/bash

# 读取配置文件中的参数
CONFIG_FILE="config.ini"
# 检查配置文件是否存在
if [ ! -f "$CONFIG_FILE" ]; then
    echo "Config file not found: $CONFIG_FILE"
    exit 1
fi
# 默认参数
DEBUG=$(grep -E '^\s*debug\s*=' "$CONFIG_FILE" | cut -d'=' -f2 | tr -d '[:space:]')
NUM_GROUP=$(grep -E '^\s*num_group\s*=' "$CONFIG_FILE" | cut -d'=' -f2 | tr -d '[:space:]')
NUM_PUB=$(grep -E '^\s*num_pub\s*=' "$CONFIG_FILE" | cut -d'=' -f2 | tr -d '[:space:]')
NUM_PACKETS_PUB=$(grep -E '^\s*num_packets_pub\s*=' "$CONFIG_FILE" | cut -d'=' -f2 | tr -d '[:space:]')
NUM_SUB=$(grep -E '^\s*num_sub\s*=' "$CONFIG_FILE" | cut -d'=' -f2 | tr -d '[:space:]')
NUM_PACKETS_SUB=$(grep -E '^\s*num_packets_sub\s*=' "$CONFIG_FILE" | cut -d'=' -f2 | tr -d '[:space:]')
SIZE_PACKET=$(grep -E '^\s*size_packet\s*=' "$CONFIG_FILE" | cut -d'=' -f2 | tr -d '[:space:]')
XML_FILE=$(pwd)/$(grep -E '^\s*xml_file\s*=' "$CONFIG_FILE" | cut -d'=' -f2 | tr -d '[:space:]')
ROLE=$(grep -E '^\s*role\s*=' "$CONFIG_FILE" | cut -d'=' -f2 | tr -d '[:space:]')


# 迁移idl库并重新编译
M_SIZE=$((SIZE_PACKET))

if $DEBUG -eq true; then
    echo "DEBUG: $DEBUG"
    echo "NUM_GROUP: $NUM_GROUP"
    echo "NUM_PUB: $NUM_PUB"
    echo "NUM_PACKETS_PUB: $NUM_PACKETS_PUB"
    echo "NUM_SUB: $NUM_SUB"
    echo "NUM_PACKETS_SUB: $NUM_PACKETS_SUB"
    echo "SIZE_PACKET: $SIZE_PACKET"
    echo "XML_FILE: $XML_FILE"
    echo "ROLE: $ROLE"
    echo "M_SIZE: $M_SIZE"
fi

SOURCE_FILE="$(pwd)/idls/idl_$M_SIZE"
DEST_FILE="$(pwd)/src/"
# 循环询问用户是否覆盖
while true; do
    read -p "Destination file already exists: $DEST_FILE. Do you want to overwrite it? (y/n): " choice
    case "$choice" in
        y|Y )
            CONTENT="module Example {\n\t
                struct Message {\n\t\t
                    unsigned long id;\n\t\t
                    sequence<char,$M_SIZE> text;\n\t
                };\n
            };\n
            "
            mkdir -p "$SOURCE_FILE"
            echo -e $CONTENT > "$SOURCE_FILE"/Example.idl
            fastddsgen "$SOURCE_FILE/Example.idl"
            cp -f "$SOURCE_FILE"/* "$DEST_FILE"
            echo "Files copied and overwritten."
            break
            ;;
        n|N )
            echo "Files not copied.Use previous config."
            break
            ;;
        * )
            echo "Invalid input. Please enter 'y' or 'n'."
            ;;
    esac
done
# 重新编译
while true; do
    read -p "Do you want to recompile it? (recommend)(y/n): " choice
    case "$choice" in
        y|Y )
            ./restart.sh
            echo "Files recompiled."
            break
            ;;
        n|N )
            echo "Warning: No files recompiled.Files copied but not make sense."
            break
            ;;
        * )
            echo "Invalid input. Please enter 'y' or 'n'."
            ;;
    esac
done

# 检查参数个数
if $DEBUG -eq true; then
    if [ "$#" -ne 6 ]; then
        echo "Usage: $0 <num_group> <num_pub> <num_packets_pub> <num_sub> <num_packets_sub> <size_packet>"
        echo "use default params:"
        echo "Please find in config.ini."
    fi
        echo "----------"
fi


mkdir -p ./result/log/$((SIZE_PACKET))
echo $ROLE
for ((i=1; i<=NUM_GROUP; i++)); do
    if [[ "$ROLE" == "pub" ]]; then
        # 启动发布者
        for ((j=1; j<=NUM_PUB; j++)); do
            (./pub.sh $XML_FILE "Topic_${i}" $NUM_PACKETS_PUB $((SIZE_PACKET))) > ./result/log/$((SIZE_PACKET))/pub_${i}_${j}.log &
        done
    elif [[ "$ROLE" == "sub" ]]; then
        # 启动订阅者
        for ((j=1; j<=NUM_SUB; j++)); do
            (./sub.sh $XML_FILE "Topic_${i}" $NUM_PACKETS_SUB) > ./result/log/$((SIZE_PACKET))/sub_${i}_${j}.log &
        done
    fi
done

echo "Running ... Result in result directory."
python3 monitor.py --total_time=$(($NUM_PACKETS_PUB*2)) --size=$((SIZE_PACKET)) &

# 等待所有子进程完成
wait

echo "All processes have finished."

sub.sh

#!/bin/bash

# 配置文件路径
CONFIG_FILE="config.ini"
# 检查配置文件是否存在
if [ ! -f "$CONFIG_FILE" ]; then
    echo "Config file not found: $CONFIG_FILE"
    exit 1
fi
# 读取配置文件中的 debug 选项
DEBUG=$(grep -E '^\s*debug\s*=' "$CONFIG_FILE" | cut -d'=' -f2 | tr -d '[:space:]')

# 检查参数个数
TOPIC=topic_default
NUM_PACKETS=10
XML_FILE=$(pwd)/src/total.xml
if [ "$#" -ne 3 ]; then
    if  $DEBUG -eq true; then
        echo "Usage: $0 <xml_file> <topic> <num_packets>"
    fi
else
    # 获取参数
    XML_FILE=$1
    TOPIC=$2
    NUM_PACKETS=$3
fi

# 切换到 build 目录
cd build

# 启动订阅者
./DDSHelloWorldSubscriber $XML_FILE $TOPIC $NUM_PACKETS

HelloWorldPublisher.cpp

#include "ExamplePubSubTypes.h"
#include <iostream>
#include <thread>
#include <chrono>
#include <vector>

#include <signal.h>
#include <unistd.h>

#include <fastdds/dds/domain/DomainParticipant.hpp>
#include <fastdds/dds/domain/DomainParticipantFactory.hpp>
#include <fastdds/dds/publisher/Publisher.hpp>
#include <fastdds/dds/publisher/DataWriter.hpp>
#include <fastdds/dds/publisher/DataWriterListener.hpp>
#include <fastdds/dds/topic/TypeSupport.hpp>
#include <fastdds/dds/core/policy/QosPolicies.hpp>
#include <fastrtps/transport/TCPv4TransportDescriptor.h>

using namespace eprosima::fastdds::dds;
using namespace eprosima::fastrtps::rtps;
class MyPubListener : public DataWriterListener
{
public:

    MyPubListener()
        : matched_(0)
    {
    }

    ~MyPubListener() override
    {
    }

    void on_publication_matched(
            DataWriter*,
            const PublicationMatchedStatus& info) override
    {
        if (info.current_count_change == 1)
        {
            matched_ = info.current_count;
            std::cout << "matched: " << matched_ << std::endl;
            std::cout << "Publisher matched." << std::endl;
        }
        else if (info.current_count_change == -1)
        {
            matched_ = info.current_count;
            std::cout << "matched: " << matched_ << std::endl;
            std::cout << "Publisher unmatched." << std::endl;
        }
        else
        {
            std::cout << info.current_count_change
                    << " is not a valid value for PublicationMatchedStatus current count change." << std::endl;
        }
    }

    std::atomic_int matched_;

};

class Me_{
public:
    Me_()
    {
        std::cout<<"before main "<<std::endl;
    }
    ~Me_()
    {
        std::cout<<"after main"<<std::endl;
    }
    char get_a()
    {
        return a;
    }
    void set_a(char a_)
    {
        a=a_;
    }
private:
    char a;
};
Me_ me;
DomainParticipant* participant=nullptr;
Topic* topic=nullptr;
Publisher* publisher=nullptr;
DataWriter* writer=nullptr;
void signal_int_handler(int signum)
{
    if(signum == SIGINT)
    {
        if(writer!=nullptr)
            publisher->delete_datawriter(writer);
        if(publisher!=nullptr)
            participant->delete_publisher(publisher);
        if(topic!=nullptr)
            participant->delete_topic(topic);
        if(participant!=nullptr)
            DomainParticipantFactory::get_instance()->delete_participant(participant);
        exit(0);
    }
}

int main(int argc, char* argv[])
{
    //Ctrl+C处理
    std::cout << "Entering main function" << std::endl;
    std::cout << "argc: " << argc << std::endl;
    for (int i = 0; i < argc; ++i) {
        std::cout << "argv[" << i << "]: " << argv[i] << std::endl;
    }
    signal(SIGINT, signal_int_handler);

    std::string xml_filename = argv[1];
    std::string topic_name = argv[2];
    long NUM_PACKAGE = std::stoi(argv[3]);
    long PACKAGE_SIZE = std::stoi(argv[4]);
    long COUNT = 0;
    MyPubListener Mypl;
    //未做错误处理
    if (ReturnCode_t::RETCODE_OK ==
            DomainParticipantFactory::get_instance()->load_XML_profiles_file(xml_filename))
    {
        participant =
                DomainParticipantFactory::get_instance()->create_participant_with_profile(
            0, "participant_profile");

        TypeSupport type(new Example::MessagePubSubType());
        type.register_type(participant);
        topic = participant->create_topic(topic_name, type.get_type_name(), TOPIC_QOS_DEFAULT);
        publisher = participant->create_publisher_with_profile("publisher_profile");
        writer = publisher->create_datawriter_with_profile(topic, "datawriter_profile",&Mypl);
    }
    else
    {
        std::cout << "load_XML_profiles_file failed" << std::endl;
    }

    // 发布数据
    Example::Message msg;
    for (long i = 1; i <= NUM_PACKAGE; ++i) {
        while(Mypl.matched_<=0)
        {
            std::cout<<"wait"<<std::endl;
            COUNT++;
            if(COUNT>=100)
            {
                std::cout<<"timeout"<<std::endl;
                goto out;
            }
            std::this_thread::sleep_for(std::chrono::seconds(1));
        }
        std::cout<<"mypl.matched_: "<<Mypl.matched_<<std::endl;
        msg.id(i);
        me.set_a('A'+i%26);
        std::vector<char> str;
        if(PACKAGE_SIZE>=i) {
            str = std::vector<char>(PACKAGE_SIZE - i, me.get_a());
        }
        msg.text(str);
        writer->write(&msg);
        std::cout << "Published message with id: " << i << std::endl;
        //稍微带点时延，否则容易直接丢弃部分数据，历史记录来不及存储
        std::this_thread::sleep_for(std::chrono::seconds(1));
    }
out:
    // 清理资源
    publisher->delete_datawriter(writer);
    participant->delete_publisher(publisher);
    participant->delete_topic(topic);
    DomainParticipantFactory::get_instance()->delete_participant(participant);

    return 0;
}

HelloWorldSubscriber.cpp

#include "ExamplePubSubTypes.h"
#include <iostream>
#include <thread>
#include <chrono>
#include <vector>
#include <string>

#include <signal.h>
#include <unistd.h>

#include <fastdds/dds/domain/DomainParticipant.hpp>
#include <fastdds/dds/domain/DomainParticipantFactory.hpp>
#include <fastdds/dds/subscriber/DataReader.hpp>
#include <fastdds/dds/subscriber/DataReaderListener.hpp>
#include <fastdds/dds/subscriber/qos/DataReaderQos.hpp>
#include <fastdds/dds/subscriber/SampleInfo.hpp>
#include <fastdds/dds/subscriber/Subscriber.hpp>
#include <fastdds/dds/topic/TypeSupport.hpp>
#include <fastdds/dds/core/policy/QosPolicies.hpp>
#include <fastrtps/transport/TCPv4TransportDescriptor.h>


using namespace eprosima::fastdds::dds;
using namespace eprosima::fastrtps::rtps;

class MyReaderListener : public DataReaderListener
{
public:

    MyReaderListener()
        : messageCount(0)
        , matched_(0)
    {
    }
    void on_subscription_matched(
            DataReader* reader,
            const SubscriptionMatchedStatus& info) override
    {
        if (info.current_count_change == 1)
        {
            matched_=info.current_count;
            std::cout << "Subscriber matched." << std::endl;
        }
        else if (info.current_count_change == -1)
        {
            matched_=info.current_count;
            std::cout << "Subscriber unmatched." << std::endl;
        }
        else
        {
            std::cout << info.current_count_change
                    << " is not a valid value for SubscriptionMatchedStatus current count change" << std::endl;
        }
    }
    void on_data_available(DataReader* reader) override {
        Example::Message msg;
        SampleInfo info;
        if (reader->take_next_sample(&msg, &info) == ReturnCode_t::RETCODE_OK) {
            if (info.valid_data) {
                messageCount++;
                std::cout << "Received message with id: " << msg.id() <<"text size:"<<msg.text().size()<< std::endl;
                std::cout << "First char: "<<(msg.text())[0]<<"..."<<std::endl;
            } else {
                std::cout<<"invalid_data"<<std::endl;
            }
        } else {
            std::cout<<"take_next_sample ERROR"<<std::endl;
        }
    }
    std::atomic_int messageCount;
    std::atomic_int matched_;
};
DomainParticipant* participant;
Topic* topic;
Subscriber* subscriber;
DataReader* reader;
MyReaderListener* listener = new MyReaderListener();
TypeSupport type(new Example::MessagePubSubType());

void cleanup_resources()
{
    if(reader != nullptr)
        subscriber->delete_datareader(reader);
    if(subscriber != nullptr)
        participant->delete_subscriber(subscriber);
    if(topic != nullptr)
        participant->delete_topic(topic);
    if(participant != nullptr)
        DomainParticipantFactory::get_instance()->delete_participant(participant);
    delete listener;
}
void signal_int_handler(int signum)
{
    if(signum == SIGINT)
    {
        cleanup_resources();
        exit(0);
    }
}
int main(int argc, char* argv[])
{
    std::cout << "Entering main function" << std::endl;
    std::cout << "argc: " << argc << std::endl;
    for (int i = 0; i < argc; ++i) {
        std::cout << "argv[" << i << "]: " << argv[i] << std::endl;
    }
    if (argc < 4) {
        std::cerr << "Usage: " << argv[0] << " <xml_filename>" << std::endl;
        return 0;  // 返回错误码
    }
    //Ctrl+C处理
    signal(SIGINT, signal_int_handler);

    std::string xml_filename = argv[1];
    std::string topic_name = argv[2];
    int NUM_PACKAGE = std::stoi(argv[3]);
    int COUNT=0;

    if (ReturnCode_t::RETCODE_OK ==
            DomainParticipantFactory::get_instance()->load_XML_profiles_file(xml_filename))
    {
        participant =
                DomainParticipantFactory::get_instance()->create_participant_with_profile(
            0, "participant_profile");

        type.register_type(participant);
        topic = participant->create_topic_with_profile(topic_name, type.get_type_name(), "topic_profile");
        if(topic==nullptr)
        {
            std::cout << "create_topic failed" << std::endl;
        }
        subscriber = participant->create_subscriber_with_profile("subscriber_profile");
        if(subscriber==nullptr)
        {
            std::cout << "create_subscriber failed" << std::endl;
        }
        reader = subscriber->create_datareader_with_profile(topic, "datareader_profile",listener);
        if(reader==nullptr)
        {
            std::cout << "create_datareader failed" << std::endl;
        }
    }
    else
    {
        std::cout << "load_XML_profiles_file failed" << std::endl;
    }
    std::cout << "Waiting for Data..." << std::endl;
    // 等待接收消息
    while (listener->messageCount<NUM_PACKAGE&&COUNT<=100) {
        std::this_thread::sleep_for(std::chrono::seconds(1));
        if(listener->matched_==0)
        {
            COUNT++;
        }
        else{
            COUNT = 0;
        }
        std::cout<<"wait"<<COUNT<<std::endl;
    }

    // 清理资源
    cleanup_resources();
    return 0;
}

total.xml

<?xml version="1.0" encoding="UTF-8" ?>
<dds xmlns="http://www.eprosima.com">
    <profiles>
        <domainparticipant_factory profile_name="domainparticipant_factory_profile">
            <!-- ... -->
        </domainparticipant_factory>

        <participant profile_name="participant_profile">
            <!-- ... -->
        </participant>

        <publisher profile_name="publisher_profile">
            <!-- ... -->
        </publisher>

        <subscriber profile_name="subscriber_profile">
            <!-- ... -->
        </subscriber>

        <data_writer profile_name="datawriter_profile">
            <!-- ... -->
        </data_writer>

        <data_reader profile_name="datareader_profile">
            <!-- ... -->
        </data_reader>

        <topic profile_name="topic_profile">
            <!-- ... -->
        </topic>

        <transport_descriptors>
            <!-- ... -->
        </transport_descriptors>
    </profiles>

    <library_settings>
        <intraprocess_delivery>FULL</intraprocess_delivery>
    </library_settings>

    <log>
        <!-- ... -->
    </log>

    <types>
        <!-- ... -->
    </types>
</dds>
4) 测试结果

/log/<数据量大小>下的两个日志文件的内容如下表

pub_1_1sub_1_1
xml: /home/gh/workspace/Testfastdds5_test_v3_bak2/src/total.xml, topic: Topic_1, num_packets: 50, packet_size: 104857600
before main
Entering main function
argc: 5
argv[0]: ./DDSHelloWorldPublisher
argv[1]: /home/gh/workspace/Testfastdds5_test_v3_bak2/src/total.xml
argv[2]: Topic_1
argv[3]: 50
argv[4]: 104857600
matched: 1
Publisher matched.
mypl.matched_: 1
Published message with id: 1
mypl.matched_: 1
Published message with id: 2
mypl.matched_: 1		Entering main function
argc: 4
argv[0]: ./DDSHelloWorldSubscriber
argv[1]: /home/gh/workspace/Testfastdds5_test_v3_bak/src/total.xml
argv[2]: Topic_1
argv[3]: 50
Waiting for Data…
wait1
wait2
wait3
Subscriber matched.
wait0
Received message with id: 1text size:104857599
First char: B…
wait0
Received message with id: 2text size:104857598
First char: C…

/img/<数据量大小>下有测试图像
Sub的测试结果
Sub测试结果

Pub的测试结果

Pub测试结果

2.参考

官方文档

Fast DDS和Cyclone DDS对比性能测试
pony12的专栏
11-26 5100
不同软件供应商提供不同的DDS实现，有必要在它们之间进行性能的比较。在本文中，eProsima对Fast DDS和Eclipse Cyclone DDS进行了性能比较，包括延迟Latency和吞吐量Throughput性能。 经过测试发现，Fast DDS比Cyclone DDS具有更低的延迟和更高的吞吐量。
FastDDS-源码编译&安装&测试
生活不止眼前的苟且
02-07 7614
大家好，我是小鱼，今天被群友在群里催了DDS相关的文章里，说好的来源码体验一下DDS来着，小鱼不能再咕咕咕了，所以今天就分享一下，FastDDS的安装和体验。 FastDDS和普通ROS包一样，有二进制安装、源码编译、Docker三种安装方式。 因为官方把二进制和Docker放到了官网 而且要填写个人信息才能下载 而且下载速度超级超级慢 而且不方便观摩源码 所以小鱼带你一起从源码进行安装。 本来想做成一键安装的，省的大家敲脚本了！！ 但是绝对不能惯着，让大家多复制粘贴一下（其实是为了凑文章字数），小鱼就带大
FastDDS安装测试记录
iamjingong的博客
01-13 683
FastDDS安装测试记录
Fast-DDS 测试环境搭建
cwei231的博客
07-16 665
我们在编译完成Fast-DDS 的lib 之后需要测试dll 的使用方法和调试我们自己的应用程序，所以我们需要建立一个测试环境来完成这些任务。
DDS 协议测试套件介绍：测试用例和测试脚本简介 |优势|针对 ECU (Electronic Control Unit) 的 DDS 协议测试| 针对完整 DDS 分布式系统或子系统的测试或性能评估
Polelink北汇信息的博客
10-23 542
OMG DDS（Data-Distribution Service）协议测试套件是北汇信息与臻融科技合作研发的针对 DDS 中间件软件的测试套件。该套件用于验证 DDS（Data-Centric Publish-Subscribe, DCPS）软件的核心功能与 OMG DDS 相关标准规范的一致性，包括 API (Application Programming Interface) 接口及行为，QoS (Quality of Service) 功能等，也可用于评估 DDS 软件的性能，如吞吐量，时延等。
DDS只测这四项，就够了！
怿星科技的博客
05-16 1512
DDS是一个由OMG在2004年发布的以数据为中心的中间件协议和应用程序接口标准，旨在提供实时可靠、高性能、可交互性和可扩展的数据交互。DDS采用分布式发布/订阅体系架构，以中间件的形式提供通信服务，强调以数据为中心。DDS已广泛应用于军工、机器人等领域，国际主流军工厂商、ROS2操作系统等均将DDS作为其控制系统的核心中间件，为各类战舰、机器人等提供可靠、高实时的分布式通信功能。
Qt+go-Fastdfs 仿百度云盘开发笔记-服务端功能实现(二)
Leroy的博客
03-31 339
Qt+go-Fastdfs 仿百度云盘开发笔记-服务端功能实现，使用Gin框架,数据存储使用Mysql.
DDS中间件
最新发布
03-12
构建基本的应用程序框架时，通常分为两大部分——负责发送信息的一方称为Publisher；接收端则被称为Subscriber。两者均需初始化域参与者(DomainParticipant)，随后建立主题(Topic)对象表示特定话题下的交流通道，并...
快速DDS：最完善的DDS-已证明：大量成功案例
01-30
eProsima快速DDS eprosima Fast DDS （以前称为Fast RTPS）是OMG（对象管理组）的DDS（数据分发服务）标准的C ++实现。 eProsima Fast DDS实现了RTPS（实时发布订阅）协议，该协议通过对象管理组（OMG）联盟定义和维护的不可靠传输（例如UDP）提供发布者与订阅者的通信。 RTPS还是为数据分发服务（DDS）标准定义的有线互操作性协议。 eProsima Fast DDS公开了一个API，可以直接访问RTPS协议，从而使用户可以完全访问协议内部。 该库的一些主要功能是： 用于实时应用程序的可配置的最大努力和可靠的发布-订阅通信策略。 即插即用的连接性，以便网络的任何其他成员自动发现任何新的应用程序。 模块化和可扩展性允许网络中复杂而简单的设备不断增长。 可配置的网络行为和可互换的传输层：为每个部署选择最佳协议和系统输入/输出通道组合。 两个API层：一个高级的发布者-订阅者层（专注于可用性（DDS））和一个较低的Writer-Reader层，该层提供对RTPS协议内部工作的更好访问。 eProsima Fas
opendds测试程序学习
05-15
数据订阅发布的模式开启了已数据为中心的时代，dds模型是规范的结构。看了相关东西。只有opendds是开源较完善的，其功能值得研究，虽然它病不是优秀的，其性能和效率都有待提高，不过开源中是最佳学习的。简单封装了点测试研究代码。由于完整封装的代码需要配置tao,ace，因此没有上传。
Ubuntu下FastDDS的源码编译和简单测试
爱就是是恒久忍耐的专栏
06-19 2054
Ubuntu下源码编译FastDDS以及简单测试。
FastDDS参数介绍总结
雒珣的博客
08-07 780
fastdds 参数介绍
ROS2 王牌升级：Fast-DDS 性能直接碾压 zeroMQ 「下」
2301_76403635的博客
04-21 2277
以八戒之前所在的开发团队技术栈来看，机器人内部多节点架构，一般都习惯采用分布式技术，其中的消息中间件就是采用了 zeroMQ 作为通信底层，优点就是轻量和异步高性能。为此，八戒不禁对 ROS 采用的这款 DDS 实现顿生兴趣，其中必有不得了的优势。
C++高性能编程：ZeroMQ vs Fast-DDS发布-订阅模式下性能对比与分析
Where there is life, there is hope.
08-18 2079
本文对中间件ZeroMQ和Fast-DDS在发布-订阅模式下的性能进行了对比研究。对不同消息大小和订阅者数量下的延迟和吞吐量进行了测量。结果表明，ZeroMQ在处理小消息时具有优势，而Fast-DDS在大消息和多订阅者场景下表现更佳。
eProsima-fastdds简介
neuzhangno的博客
11-09 1425
fastdds的简介使用
如何实现fastdds的topic调试工具
boke_LIN
11-29 2844
在使用fastdds进行实际的开发调试中发现，常常需要对已经发布的话题进行进一步的调试，比如话题存在，话题内容，话题频率等等信息都需要确认，尤其是话题内容。这时候就需要一个能进行这项操作的调试工具。可能对于用过ros的同学来说，这很简单，因为ros、ros2提供的命令行调试调试工具就已经包含了该功能。那么fastdds作为ros2的底层支持是否直接支持了调试功能呢？如果想开发类似ros topic 的命令行的话题调试工具需要如何实现？
通信中间件 Fast DDS 基础概念简述与通信示例
热门推荐
frank 的专栏
04-10 1万+
从事汽车软件开发，通信中间件绕不开，当前最火热的无非有 2 种：Some/IP 和 DDS。DDS 是一种分布式通信标准，有很多商业和开源的实现，Fast DDS 是其中的一种。它在 ROS2 中被应用，而 Apollo 中的 CyberRT 框架中也有它的身影。 讲 Fast DDS 之前先讲什么是 DDS。 1. 什么是 DDS ? DDS 是 OMG 组织发布的一种中间件协议和 API 标准，它将系统的组件集成在一起，提供业务和任务关键型物联网 (IoT) 应用程序所需的低延迟数据连接、极高的可靠性和
测试OpenDDS消息的传输时延的几种方法
pony12的专栏
10-08 2546
OpenDDS是无中心、实时传输中间件，符合OMG组织的DDS1.4规范，和其他厂商的DDS产品具有互操作性，即相互通讯。在试验、生产环境下，经常需要对消息的时延进行测试，以验证DDS传输性能是否满足生产需要： 硬实时环境下，测试多台设备间DDS传输的时延 首先需要硬件实时环境，包括实时操作系统、时钟服务器； 多台设备分别向时钟服务器进行校时 定义idl，包括srcTimeStamp、destTimeStamp或者使用DDS内置的时间戳原始数据 编写pub和sub应用程序 设置测试时长如2...
评论 1
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
