openvino部署pytorch分类模型（C++版）

摘要：
本篇文章主要关注对openvino C++接口的调用，根据它的工作逻辑建立一个完整的demo。

1. 模型准备

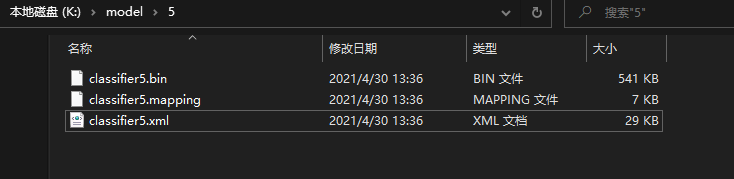

pytorch模型转为onnx格式（这个pytorch里面已经可以很方便的转换了）。安装好openvino后在命令行下输入一下命令即可转换为openvino需要的.bin 和.xml格式的模型。

python "G:\openVINO\install\openvino_2021\deployment_tools\model_optimizer\mo.py" --input_model="K:\classifier5.onnx" --output_dir="K:\\model\\5" --model_name="classifier5" --data_type=FP16

2. vs2017配置openvino+opencv

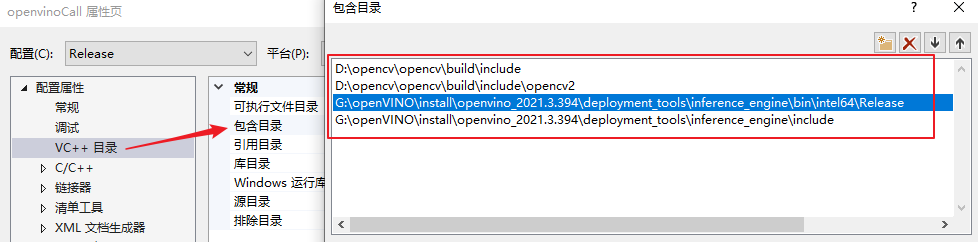

包含目录

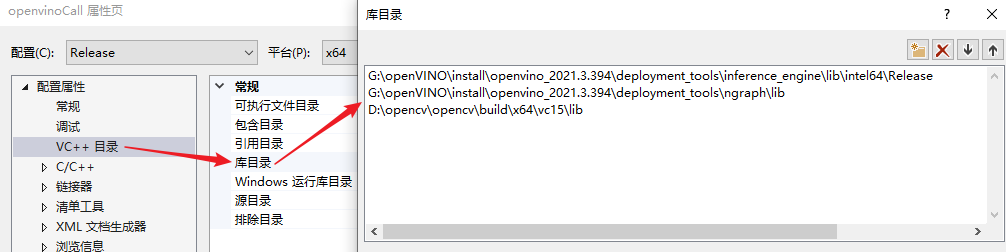

库目录

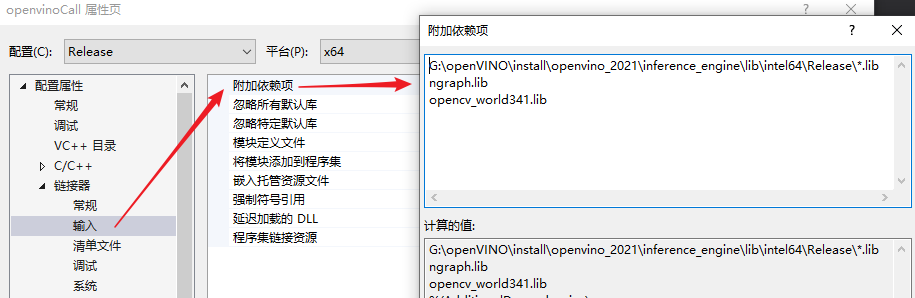

附加依赖项

3.说明

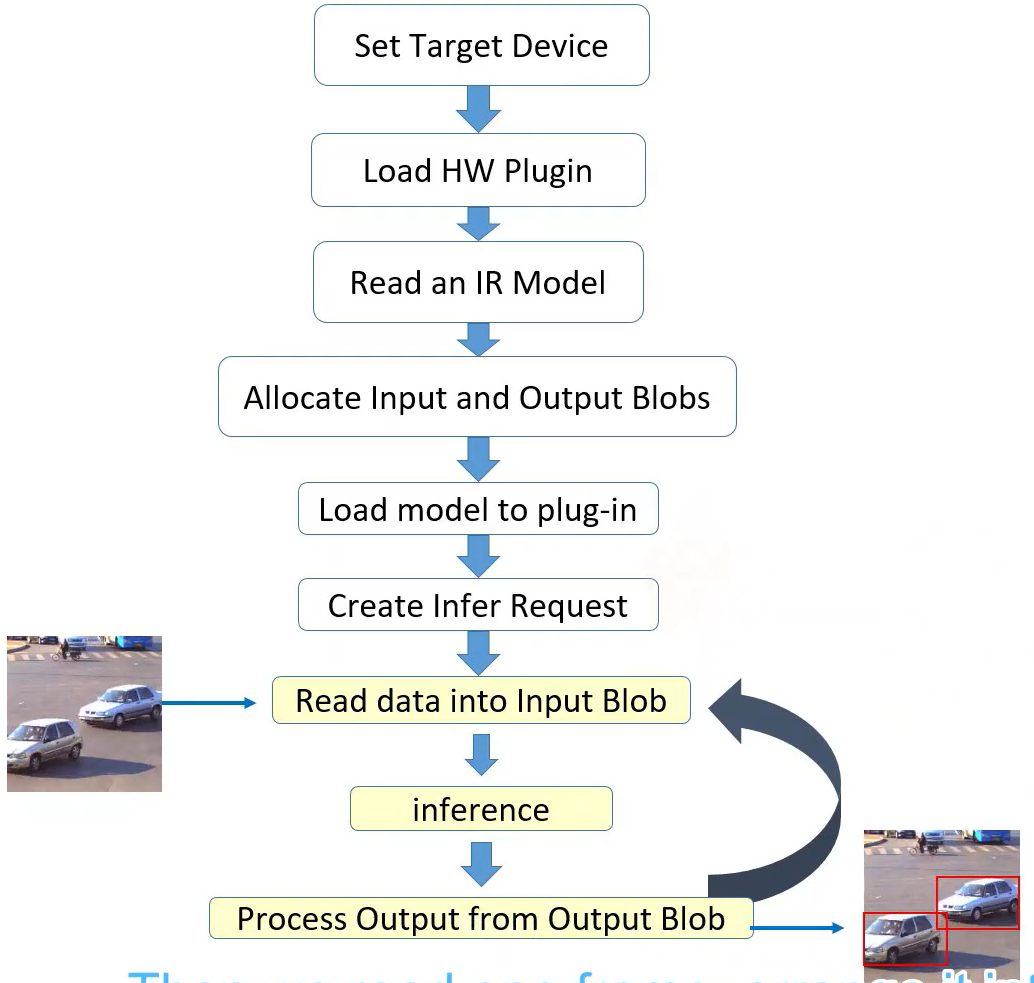

根据openvino推理引擎的逻辑，先需要读取模型—>准备input bolb 和output bolb—>模型导入到设备上—>创建infer request，后面就可以不断的输入图像去预测了。

4.源码

#include <iostream>
#include <vector>
#include <string>
#include "opencv.hpp"
#include "inference_engine.hpp"


//read model
int readModel(std::string binPath, std::string xmlPath, InferenceEngine::CNNNetwork &model)
{
	InferenceEngine::Core ie;
	if (binPath.empty() || xmlPath.empty())
	{
		return -1;
	}
	try
	{
		model = ie.ReadNetwork(xmlPath, binPath);
	}
	catch (...)
	{
		return -1;
	}

	return 0;
}

int predict(InferenceEngine::CNNNetwork &model,
	InferenceEngine::InferRequest &infer_request,
	cv::Mat &image)
{
	std::string input_name = model.getInputsInfo().begin()->first;
	std::string output_name = model.getOutputsInfo().begin()->first;

	InferenceEngine::Blob::Ptr input = infer_request.GetBlob(input_name);
	InferenceEngine::Blob::Ptr output = infer_request.GetBlob(output_name);

	cv::resize(image, image, cv::Size(input->getTensorDesc().getDims()[2],
		input->getTensorDesc().getDims()[3]));

	size_t channels_number = input->getTensorDesc().getDims()[1];
	size_t image_size = input->getTensorDesc().getDims()[3] * input->getTensorDesc().getDims()[2];

	auto input_data = input->buffer()
		.as<InferenceEngine::PrecisionTrait<InferenceEngine::Precision::FP32>::value_type *>();
	for (size_t pid = 0; pid < image_size; ++pid)
	{
		for (size_t ch = 0; ch < channels_number; ++ch)
		{
			input_data[ch*image_size + pid] = image.at<cv::Vec3b>(pid)[ch] / 255.0f;
		}
	}

	infer_request.Infer();

	auto output_data = output->buffer().
		as<InferenceEngine::PrecisionTrait<InferenceEngine::Precision::FP32>::value_type *>();
	/*for (size_t id = 0; id < 2; ++id)
	{
		auto result = output_data[id];
		std::cout << result << "\n";
	}*/
	if (output_data[0] < output_data[1]) return 1;
	else { return -1; }
	return 0;
}

int initiateModel(std::string binPath, std::string xmlPath,
	InferenceEngine::CNNNetwork &model,
	InferenceEngine::InferRequest &infer_request)
{
	InferenceEngine::Core ie;

	int readFlag = readModel(binPath, xmlPath, model);
	if (readFlag == -1)
	{
		//read model failed
		return -1;
	}

	//prepare input blobs
	InferenceEngine::InputInfo::Ptr input_info = model.getInputsInfo().begin()->second;;
	std::string input_name = model.getInputsInfo().begin()->first;
	input_info->setLayout(InferenceEngine::Layout::NCHW);
	input_info->setPrecision(InferenceEngine::Precision::FP32);

	//prepare output blobs
	InferenceEngine::DataPtr output_info = model.getOutputsInfo().begin()->second;
	std::string output_name = model.getOutputsInfo().begin()->first;
	output_info->setPrecision(InferenceEngine::Precision::FP32);

	//load model to device
	InferenceEngine::ExecutableNetwork 	executable_network = ie.LoadNetwork(model, "CPU");

	//create infer request
	infer_request = executable_network.CreateInferRequest();

	return 0;
}

int demo()
{
	std::string binPath = "K:\\model\\5\\classifier5.bin";
	std::string xmlPath = "K:\\model\\5\\classifier5.xml";
	std::string imagePath = "K:\\imageData\\polarity\\data5\\val\\neg\\00114.bmp";
	InferenceEngine::CNNNetwork model;
	InferenceEngine::InferRequest infer_request;
	//initinalize the model
	initiateModel(binPath, xmlPath, model, infer_request);

	cv::Mat image = cv::imread(imagePath);
	cv::cvtColor(image, image, cv::COLOR_BGR2RGB);
	if (image.empty()) {
		return -1;
	}
	int cls = predict(model, infer_request, image);

	if (cls == 1)
	{
		std::cout << "pos\n";
	}
	else if (cls == -1)
	{
		std::cout << "neg\n";
	}

	return 0;
}

int getAllImagePath(std::string path, std::vector<cv::String> &imagePathList)
{
	cv::glob(path, imagePathList);
	return 0;
}

int accTest()
{
	std::vector<cv::String> imagePathList;
	std::string binPath = "K:\\model\\5\\classifier5.bin";
	std::string xmlPath = "K:\\model\\5\\classifier5.xml";
	std::string imagePath = "K:\\imageData\\polarity\\data5\\val\\neg\\00114.bmp";
	std::string folder = "K:\\imageData\\polarity\\data5\\val\\neg";
	InferenceEngine::CNNNetwork model;
	InferenceEngine::InferRequest infer_request;
	//initinalize the model
	initiateModel(binPath, xmlPath, model, infer_request);


	getAllImagePath(folder, imagePathList);
	int neg = 0;
	int pos = 0;
	int item;
	for (auto &path : imagePathList)
	{
		cv::Mat image = cv::imread(path);
		cv::cvtColor(image, image, cv::COLOR_BGR2RGB);
		if (image.empty()) {
			return -1;
		}
		item = predict(model, infer_request, image);
		if (item == -1)
		{
			neg += 1;
		}
		else if (item == 1)
		{
			pos += 1;
		}
	}
	float all = pos + neg;
	printf("pos=%d, neg=%d, acc:pos:%f neg:%f\n", pos, neg, pos / all, neg / all);

	return 0;
}


int speedTest()
{
	std::vector<cv::String> imagePathList;
	std::string binPath = "K:\\model\\5\\classifier5.bin";
	std::string xmlPath = "K:\\model\\5\\classifier5.xml";
	std::string imagePath = "K:\\imageData\\polarity\\data5\\val\\neg\\00114.bmp";
	std::string folder = "K:\\imageData\\polarity\\data5\\val\\neg";
	InferenceEngine::CNNNetwork model;
	InferenceEngine::InferRequest infer_request;
	//initinalize the model
	initiateModel(binPath, xmlPath, model, infer_request);

	cv::Mat image = cv::imread(imagePath);
	cv::cvtColor(image, image, cv::COLOR_BGR2RGB);
	if (image.empty()) {
		return -1;
	}

	int num = 1000;
	clock_t startTime = clock();
	for (int i = 0; i < num; i++) 	predict(model, infer_request, image);
	clock_t endTime = clock();

	std::cout << "inference one image " << num << "times run time: " << double(endTime - startTime) * 1000 / CLOCKS_PER_SEC << "ms\n";
	return 0;
}



int main()
{
	demo();
	accTest();
	speedTest();

}

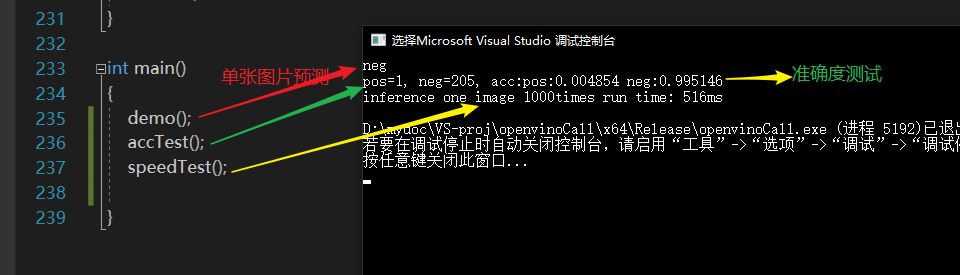

5.结果
