轻量级日志系统docker-compose搭建Loki+Grafana+Promtail，配置、部署，查询全流程

一、安装Docker

CentOS系统中安装Docker

（一）首先卸载可能在已经安装的旧版本的Docker

sudo yum remove docker docker-common docker-selinux docker-engine

（二）安装依赖包

sudo yum install -y yum-utils device-mapper-persistent-data lvm2

（三）安装Docker源

sudo yum-config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo

（四）安装Docker

sudo yum install docker-ce docker-ce-cli containerd.io

（五）启动Docker服务

sudo systemctl start docker

#验证是否安装成功
docker --version

二、安装docker-compose

（一）Docker compose是什么

        我们运行一个镜像的时候需要编写DockerFlie，docker build，docker run等命令操作容器。然而微服务架构的应用系统一般包含若干个微服务，每个微服务一般都会部署多个实例，如果每个微服务都要手动启停，那么效率之低，维护量之大

        使用 Docker Compose 可以轻松、高效的管理容器，Docker Compose 是一个用于定义和运行多容器 Docker 应用程序的工具。它通过一个 YAML 文件（默认为 docker-compose.yml）来定义构成应用程序的多个服务及其网络、卷等依赖关系。

        使用 Docker Compose 可以通过一个简单的命令（如 docker-compose up）来启动、停止和重建整个应用环境，大大简化了多容器应用的部署和管理流程。

        Docker Compose 适合于单主机或多主机（但非集群化）环境下的应用部署，适用于开发、测试及小型生产环境

（二）安装Docker-Compose

Docker-Compose可以通过二进制安装的方式进行安装

# 下载Docker-Compose二进制文件
curl -L "https://github.com/docker/compose/releases/download/v2.6.1/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose


# 添加执行权限
chmod +x /usr/local/bin/docker-compose

# 验证安装是否成功
docker-compose --version

三、LPG日志收集方案（Loki+Grafana+Promtail）

        LPG日志收集方案内存占用很少，经济且高效！它不像ELK日志系统那样为日志建立索引，而是为每个日志流设置一组标签。下面分别介绍下它的核心组件：

• Promtail：日志收集器，有点像Filebeat，可以收集日志文件中的日志，并把收集到的数据推送到Loki中去。
• Loki：聚合并存储日志数据，可以作为Grafana的数据源，为Grafana提供可视化数据。
• Grafana：从Loki中获取日志信息，进行可视化展示

三、创建文件夹以及配置文件

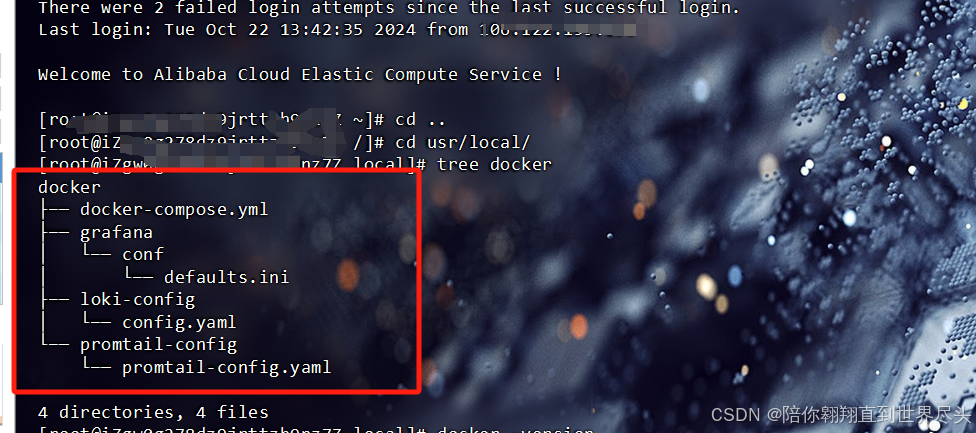

先上我的文件目录

（一）创建文件夹

#在usr/local下创建目录
mkdir docker

#在docker目录下再创建loki,promtail,以及grafana文件夹
mkdir {loki-config,promtail-config,grafana}

#在grafana下再建一个conf
cd /usr/local/docker/grafana
mkdir conf

（二）创建docker-compose.yml文件

#打开docker目录
cd /usr/local/docker

#创建配置文件
vim docker-compose.yml

docker-compose.yml配置如下：

version: '3.7'

services:
  loki:
    image: grafana/loki  #镜像
    ports:
      - "3100:3100"       #宿主机端口：镜像的端口
    command: -config.file=/etc/loki/local-config.yaml -config.expand-env=true
    volumes:
           #宿主机配置文件：镜像配置文件
      - ./loki-config/config.yaml:/etc/loki/local-config.yaml

  promtail:
    image: grafana/promtail
    volumes:
      - /fzwy/test-pc-admin-api/log:/fzwy/test-pc-admin-api/log

         #宿主机配置文件路径：镜像配置文件路径
      - ./promtail-config/promtail-config.yaml:/etc/promtail/promtail-config.yaml
    command: -config.file=/etc/promtail/promtail-config.yaml

  grafana:
    image: grafana/grafana
    ports:
      - "3000:3000"
    environment:
      - GF_SECURITY_ADMIN_PASSWORD=admin
    volumes:
      - grafana-storage:/var/lib/grafana

volumes:
  grafana-storage:

 （三）创建loki的配置文件

#打开docker下的loki目录
cd /usr/local/docker/loki-config

#创建配置文件
vim  config.yaml

loki的配置如下：

auth_enabled: false

server:
  http_listen_port: 3100
  grpc_listen_port: 9095

ingester:
  lifecycler:
    ring:
      kvstore:
        store: inmemory
      replication_factor: 1
  chunk_idle_period: 5m
  chunk_retain_period: 30s
  wal:
    dir: /loki/.cache/loki/wal

schema_config:
  configs:
    - from: 2020-10-24
      store: boltdb
      object_store: filesystem
      schema: v11
      index:
        prefix: index_
        period: 24h

storage_config:
  boltdb:
    directory: /loki/index

  filesystem:
    directory: /loki/chunks

limits_config:
  allow_structured_metadata: false
  reject_old_samples_max_age: 168h
  ingestion_rate_strategy: local
  # 每个用户每秒的采样率限制
  ingestion_rate_mb: 15
  # 每个用户允许的采样突发大小
  ingestion_burst_size_mb: 20


table_manager:
  retention_deletes_enabled: false
  retention_period: 0s

（四）创建granfana的默认配置defaults.ini

#打开docker目录
cd /usr/local/docker/grafana/conf

#创建配置文件
vim defaults.ini

defaults.ini配置如下,可以下载一下资源：

##################### Grafana Configuration Defaults #####################
#
# Do not modify this file in grafana installs
#

# possible values : production, development
app_mode = production

# instance name, defaults to HOSTNAME environment variable value or hostname if HOSTNAME var is empty
instance_name = ${HOSTNAME}

#################################### Paths ###############################
[paths]
# Path to where grafana can store temp files, sessions, and the sqlite3 db (if that is used)
data = data

# Temporary files in `data` directory older than given duration will be removed
temp_data_lifetime = 24h

# Directory where grafana can store logs
logs = data/log

# Directory where grafana will automatically scan and look for plugins
plugins = data/plugins

# folder that contains provisioning config files that grafana will apply on startup and while running.
provisioning = conf/provisioning

#################################### Server ##############################
[server]
default_locale = zh-CN
# Protocol (http, https, h2, socket)
protocol = http

# The ip address to bind to, empty will bind to all interfaces
http_addr =

# The http port to use
http_port = 3000

# The public facing domain name used to access grafana from a browser
domain = localhost

# Redirect to correct domain if host header does not match domain
# Prevents DNS rebinding attacks
enforce_domain = false

# The full public facing url
root_url = %(protocol)s://%(domain)s:%(http_port)s/

# Serve Grafana from subpath specified in `root_url` setting. By default it is set to `false` for compatibility reasons.
serve_from_sub_path = false

# Log web requests
router_logging = false

# the path relative working path
static_root_path = public

# enable gzip
enable_gzip = false

# https certs & key file
cert_file =
cert_key =

# Unix socket path
socket = /tmp/grafana.sock

# CDN Url
cdn_url =

# Sets the maximum time in minutes before timing out read of an incoming request and closing idle connections.
# `0` means there is no timeout for reading the request.
read_timeout = 0

#################################### Database ############################
[database]
# You can configure the database connection by specifying type, host, name, user and password
# as separate properties or as on string using the url property.

# Either "mysql", "postgres" or "sqlite3", it's your choice
type = sqlite3
host = 127.0.0.1:3306
name = grafana
user = root
# If the password contains # or ; you have to wrap it with triple quotes. Ex """#password;"""
password =
# Use either URL or the previous fields to configure the database
# Example: mysql://user:secret@host:port/database
url =

# Max idle conn setting default is 2
max_idle_conn = 2

# Max conn setting default is 0 (mean not set)
max_open_conn =

# Connection Max Lifetime default is 14400 (means 14400 seconds or 4 hours)
conn_max_lifetime = 14400

# Set to true to log the sql calls and execution times.
log_queries =

# For "postgres", use either "disable", "require" or "verify-full"
# For "mysql", use either "true", "false", or "skip-verify".
ssl_mode = disable

# Database drivers may support different transaction isolation levels.
# Currently, only "mysql" driver supports isolation levels.
# If the value is empty - driver's default isolation level is applied.
# For "mysql" use "READ-UNCOMMITTED", "READ-COMMITTED", "REPEATABLE-READ" or "SERIALIZABLE".
isolation_level =

ca_cert_path =
client_key_path =
client_cert_path =
server_cert_name =

# For "sqlite3" only, path relative to data_path setting
path = grafana.db

# For "sqlite3" only. cache mode setting used for connecting to the database
cache_mode = private

#################################### Cache server #############################
[remote_cache]
# Either "redis", "memcached" or "database" default is "database"
type = database

# cache connectionstring options
# database: will use Grafana primary database.
# redis: config like redis server e.g. `addr=127.0.0.1:6379,pool_size=100,db=0,ssl=false`. Only addr is required. ssl may be 'true', 'false', or 'insecure'.
# memcache: 127.0.0.1:11211
connstr =

#################################### Data proxy ###########################
[dataproxy]

# This enables data proxy logging, default is false
logging = false

# How long the data proxy waits to read the headers of the response before timing out, default is 30 seconds.
# This setting also applies to core backend HTTP data sources where query requests use an HTTP client with timeout set.
timeout = 30

# How long the data proxy waits to establish a TCP connection before timing out, default is 10 seconds.
dialTimeout = 10

# How many seconds the data proxy waits before sending a keepalive request.
keep_alive_seconds = 30

# How many seconds the data proxy waits for a successful TLS Handshake before timing out.
tls_handshake_timeout_seconds = 10

# How many seconds the data proxy will wait for a server's first response headers after
# fully writing the request headers if the request has an "Expect: 100-continue"
# header. A value of 0 will result in the body being sent immediately, without
# waiting for the server to approve.
expect_continue_timeout_seconds = 1

# Optionally limits the total number of connections per host, including connections in the dialing,
# active, and idle states. On limit violation, dials will block.
# A value of zero (0) means no limit.
max_conns_per_host = 0

# The maximum number of idle connections that Grafana will keep alive.
max_idle_connections = 100

# How many seconds the data proxy keeps an idle connection open before timing out.
idle_conn_timeout_seconds = 90

# If enabled and user is not anonymous, data proxy will add X-Grafana-User header with username into the request.
send_user_header = false

# Limit the amount of bytes that will be read/accepted from responses of outgoing HTTP requests.
response_limit = 0

# Limits the number of rows that Grafana will process from SQL data sources.
row_limit = 1000000

#################################### Analytics ###########################
[analytics]
# Server reporting, sends usage counters to stats.grafana.org every 24 hours.
# No ip addresses are being tracked, only simple counters to track
# running instances, dashboard and error counts. It is very helpful to us.
# Change this option to false to disable reporting.
reporting_enabled = true

# The name of the distributor of the Grafana instance. Ex hosted-grafana, grafana-labs
reporting_distributor = grafana-labs

# Set to false to disable all checks to https://grafana.com
# for new versions (grafana itself and plugins), check is used
# in some UI views to notify that grafana or plugin update exists
# This option does not cause any auto updates, nor send any information
# only a GET request to https://grafana.com to get latest versions
check_for_updates = true

# Google Analytics universal tracking code, only enabled if you specify an id here
google_analytics_ua_id =

# Google Tag Manager ID, only enabled if you specify an id here
google_tag_manager_id =

# Rudderstack write key, enabled only if rudderstack_data_plane_url is also set
rudderstack_write_key =

# Rudderstack data plane url, enabled only if rudderstack_write_key is also set
rudderstack_data_plane_url =

# Application Insights connection string. Specify an URL string to enable this feature.
application_insights_connection_string =

# Optional. Specifies an Application Insights endpoint URL where the endpoint string is wrapped in backticks ``.
application_insights_endpoint_url =

#################################### Security ############################
[security]
# disable creation of admin user on first start of grafana
disable_initial_admin_creation = false

# default admin user, created on startup
admin_user = admin

# default admin password, can be changed before first start of grafana, or in profile settings
admin_password = admin

# used for signing
secret_key = SW2YcwTIb9zpOOhoPsMm

# current key provider used for envelope encryption, default to static value specified by secret_key
encryption_provider = secretKey

# list of configured key providers, space separated (Enterprise only): e.g., awskms.v1 azurekv.v1
available_encryption_providers =

# disable gravatar profile images
disable_gravatar = false

# data source proxy whitelist (ip_or_domain:port separated by spaces)
data_source_proxy_whitelist =

# disable protection against brute force login attempts
disable_brute_force_login_protection = false

# set to true if you host Grafana behind HTTPS. default is false.
cookie_secure = false

# set cookie SameSite attribute. defaults to `lax`. can be set to "lax", "strict", "none" and "disabled"
cookie_samesite = lax

# set to true if you want to allow browsers to render Grafana in a <frame>, <iframe>, <embed> or <object>. default is false.
allow_embedding = false

# Set to true if you want to enable http strict transport security (HSTS) response header.
# This is only sent when HTTPS is enabled in this configuration.
# HSTS tells browsers that the site should only be accessed using HTTPS.
strict_transport_security = false

# Sets how long a browser should cache HSTS. Only applied if strict_transport_security is enabled.
strict_transport_security_max_age_seconds = 86400

# Set to true if to enable HSTS preloading option. Only applied if strict_transport_security is enabled.
strict_transport_security_preload = false

# Set to true if to enable the HSTS includeSubDomains option. Only applied if strict_transport_security is enabled.
strict_transport_security_subdomains = false

# Set to true to enable the X-Content-Type-Options response header.
# The X-Content-Type-Options response HTTP header is a marker used by the server to indicate that the MIME types advertised
# in the Content-Type headers should not be changed and be followed.
x_content_type_options = true

# Set to true to enable the X-XSS-Protection header, which tells browsers to stop pages from loading
# when they detect reflected cross-site scripting (XSS) attacks.
x_xss_protection = true

# Enable adding the Content-Security-Policy header to your requests.
# CSP allows to control resources the user agent is allowed to load and helps prevent XSS attacks.
content_security_policy = false

# Set Content Security Policy template used when adding the Content-Security-Policy header to your requests.
# $NONCE in the template includes a random nonce.
# $ROOT_PATH is server.root_url without the protocol.
content_security_policy_template = """script-src 'self' 'unsafe-eval' 'unsafe-inline' 'strict-dynamic' $NONCE;object-src 'none';font-src 'self';style-src 'self' 'unsafe-inline' blob:;img-src * data:;base-uri 'self';connect-src 'self' grafana.com ws://$ROOT_PATH wss://$ROOT_PATH;manifest-src 'self';media-src 'none';form-action 'self';"""

#################################### Snapshots ###########################
[snapshots]
# snapshot sharing options
external_enabled = true
external_snapshot_url = https://snapshots-origin.raintank.io
external_snapshot_name = Publish to snapshot.raintank.io

# Set to true to enable this Grafana instance act as an external snapshot server and allow unauthenticated requests for
# creating and deleting snapshots.
public_mode = false

# remove expired snapshot
snapshot_remove_expired = true

#################################### Dashboards ##################

[dashboards]
# Number dashboard versions to keep (per dashboard). Default: 20, Minimum: 1
versions_to_keep = 20

# Minimum dashboard refresh interval. When set, this will restrict users to set the refresh interval of a dashboard lower than given interval. Per default this is 5 seconds.
# The interval string is a possibly signed sequence of decimal numbers, followed by a unit suffix (ms, s, m, h, d), e.g. 30s or 1m.
min_refresh_interval = 5s

# Path to the default home dashboard. If this value is empty, then Grafana uses StaticRootPath + "dashboards/home.json"
default_home_dashboard_path =

################################### Data sources #########################
[datasources]
# Upper limit of data sources that Grafana will return. This limit is a temporary configuration and it will be deprecated when pagination will be introduced on the list data sources API.
datasource_limit = 5000

#################################### Users ###############################
[users]
# disable user signup / registration
allow_sign_up = false

# Allow non admin users to create organizations
allow_org_create = false

# Set to true to automatically assign new users to the default organization (id 1)
auto_assign_org = true

# Set this value to automatically add new users to the provided organization (if auto_assign_org above is set to true)
auto_assign_org_id = 1

# Default role new users will be automatically assigned (if auto_assign_org above is set to true)
auto_assign_org_role = Viewer

# Require email validation before sign up completes
verify_email_enabled = false

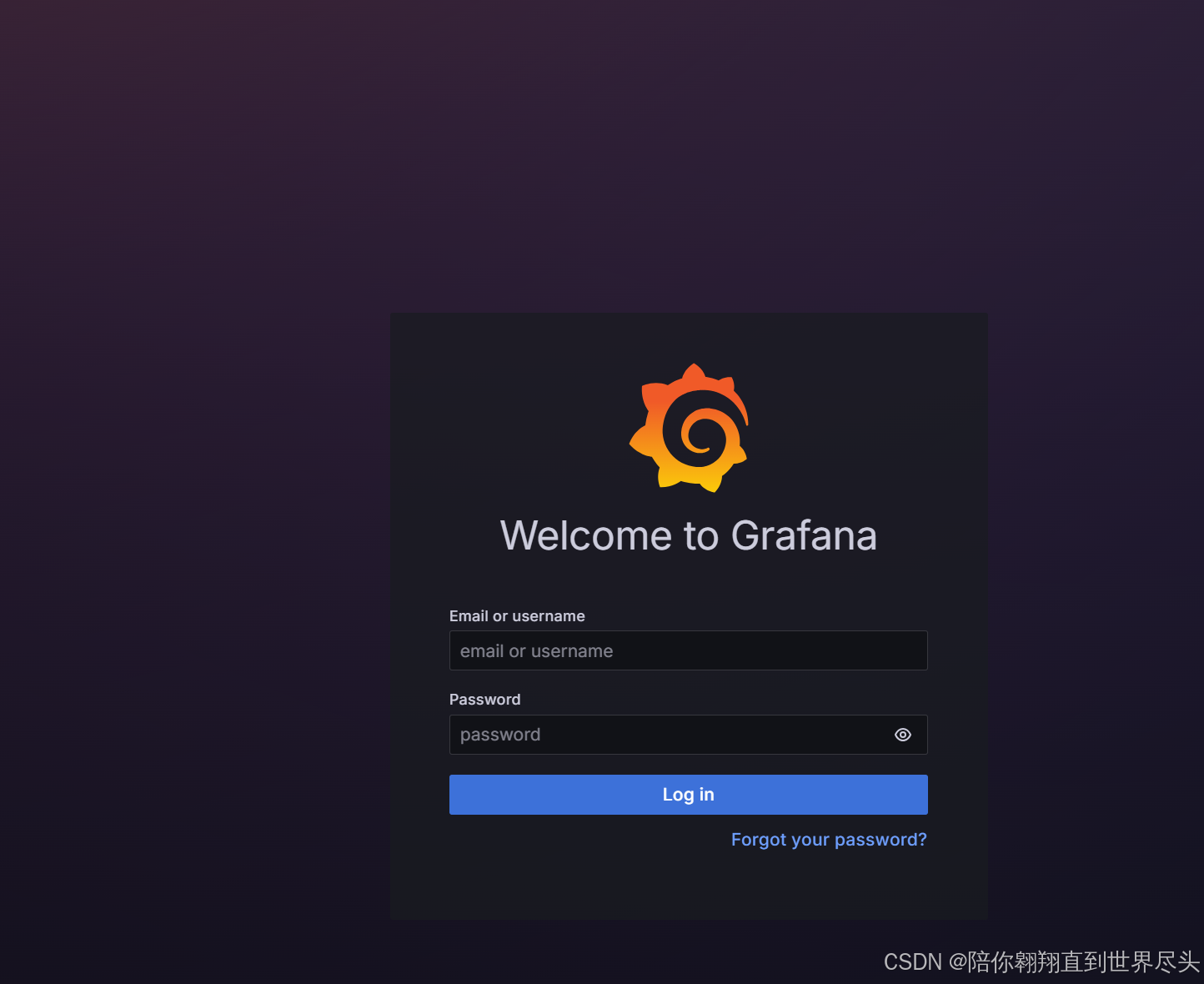

# Background text for the user field on the login page
login_hint = email or username
password_hint = password

# Default UI theme ("dark" or "light")
default_theme = dark

# Path to a custom home page. Users are only redirected to this if the default home dashboard is used. It should match a frontend route and contain a leading slash.
home_page =

# External user management
external_manage_link_url =
external_manage_link_name =
external_manage_info =

# Viewers can edit/inspect dashboard settings in the browser. But not save the dashboard.
viewers_can_edit = false

# Editors can administrate dashboard, folders and teams they create
editors_can_admin = false

# The duration in time a user invitation remains valid before expiring. This setting should be expressed as a duration. Examples: 6h (hours), 2d (days), 1w (week). Default is 24h (24 hours). The minimum supported duration is 15m (15 minutes).
user_invite_max_lifetime_duration = 24h

# Enter a comma-separated list of usernames to hide them in the Grafana UI. These users are shown to Grafana admins and to themselves.
hidden_users =

default_language = zh-Hans
[i18n]
default_language = zh-CN

[auth]
# Login cookie name
login_cookie_name = grafana_session

# The maximum lifetime (duration) an authenticated user can be inactive before being required to login at next visit. Default is 7 days (7d). This setting should be expressed as a duration, e.g. 5m (minutes), 6h (hours), 10d (days), 2w (weeks), 1M (month). The lifetime resets at each successful token rotation (token_rotation_interval_minutes).
login_maximum_inactive_lifetime_duration =

# The maximum lifetime (duration) an authenticated user can be logged in since login time before being required to login. Default is 30 days (30d). This setting should be expressed as a duration, e.g. 5m (minutes), 6h (hours), 10d (days), 2w (weeks), 1M (month).
login_maximum_lifetime_duration =

# How often should auth tokens be rotated for authenticated users when being active. The default is each 10 minutes.
token_rotation_interval_minutes = 10

# Set to true to disable (hide) the login form, useful if you use OAuth
disable_login_form = false

# Set to true to disable the sign out link in the side menu. Useful if you use auth.proxy or auth.jwt.
disable_signout_menu = false

# URL to redirect the user to after sign out
signout_redirect_url =

# Set to true to attempt login with OAuth automatically, skipping the login screen.
# This setting is ignored if multiple OAuth providers are configured.
oauth_auto_login = false

# OAuth state max age cookie duration in seconds. Defaults to 600 seconds.
oauth_state_cookie_max_age = 600

# limit of api_key seconds to live before expiration
api_key_max_seconds_to_live = -1

# Set to true to enable SigV4 authentication option for HTTP-based datasources
sigv4_auth_enabled = false

#################################### Anonymous Auth ######################
[auth.anonymous]
# enable anonymous access
enabled = false

# specify organization name that should be used for unauthenticated users
org_name = Main Org.

# specify role for unauthenticated users
org_role = Viewer

# mask the Grafana version number for unauthenticated users
hide_version = false

#################################### GitHub Auth #########################
[auth.github]
enabled = false
allow_sign_up = true
client_id = some_id
client_secret =
scopes = user:email,read:org
auth_url = https://github.com/login/oauth/authorize
token_url = https://github.com/login/oauth/access_token
api_url = https://api.github.com/user
allowed_domains =
team_ids =
allowed_organizations =

#################################### GitLab Auth #########################
[auth.gitlab]
enabled = false
allow_sign_up = true
client_id = some_id
client_secret =
scopes = api
auth_url = https://gitlab.com/oauth/authorize
token_url = https://gitlab.com/oauth/token
api_url = https://gitlab.com/api/v4
allowed_domains =
allowed_groups =

#################################### Google Auth #########################
[auth.google]
enabled = false
allow_sign_up = true
client_id = some_client_id
client_secret =
scopes = https://www.googleapis.com/auth/userinfo.profile https://www.googleapis.com/auth/userinfo.email
auth_url = https://accounts.google.com/o/oauth2/auth
token_url = https://accounts.google.com/o/oauth2/token
api_url = https://www.googleapis.com/oauth2/v1/userinfo
allowed_domains =
hosted_domain =

#################################### Grafana.com Auth ####################
# legacy key names (so they work in env variables)
[auth.grafananet]
enabled = false
allow_sign_up = true
client_id = some_id
client_secret =
scopes = user:email
allowed_organizations =

[auth.grafana_com]
enabled = false
allow_sign_up = true
client_id = some_id
client_secret =
scopes = user:email
allowed_organizations =

#################################### Azure AD OAuth #######################
[auth.azuread]
name = Azure AD
enabled = false
allow_sign_up = true
client_id = some_client_id
client_secret =
scopes = openid email profile
auth_url = https://login.microsoftonline.com/<tenant-id>/oauth2/v2.0/authorize
token_url = https://login.microsoftonline.com/<tenant-id>/oauth2/v2.0/token
allowed_domains =
allowed_groups =

#################################### Okta OAuth #######################
[auth.okta]
name = Okta
enabled = false
allow_sign_up = true
client_id = some_id
client_secret =
scopes = openid profile email groups
auth_url = https://<tenant-id>.okta.com/oauth2/v1/authorize
token_url = https://<tenant-id>.okta.com/oauth2/v1/token
api_url = https://<tenant-id>.okta.com/oauth2/v1/userinfo
allowed_domains =
allowed_groups =
role_attribute_path =
role_attribute_strict = false

#################################### Generic OAuth #######################
[auth.generic_oauth]
name = OAuth
enabled = false
allow_sign_up = true
client_id = some_id
client_secret =
scopes = user:email
empty_scopes = false
email_attribute_name = email:primary
email_attribute_path =
login_attribute_path =
name_attribute_path =
role_attribute_path =
role_attribute_strict = false
groups_attribute_path =
id_token_attribute_name =
team_ids_attribute_path =
auth_url =
token_url =
api_url =
teams_url =
allowed_domains =
team_ids =
allowed_organizations =
tls_skip_verify_insecure = false
tls_client_cert =
tls_client_key =
tls_client_ca =
use_pkce = false

#################################### Basic Auth ##########################
[auth.basic]
enabled = true

#################################### Auth Proxy ##########################
[auth.proxy]
enabled = false
header_name = X-WEBAUTH-USER
header_property = username
auto_sign_up = true
# Deprecated, use sync_ttl instead
ldap_sync_ttl = 60
sync_ttl = 60
whitelist =
headers =
enable_login_token = false

#################################### Auth JWT ##########################
[auth.jwt]
enabled = false
header_name =
email_claim =
username_claim =
jwk_set_url =
jwk_set_file =
cache_ttl = 60m
expected_claims = {}
key_file =

#################################### Auth LDAP ###########################
[auth.ldap]
enabled = false
config_file = /etc/grafana/ldap.toml
allow_sign_up = true

# LDAP background sync (Enterprise only)
# At 1 am every day
sync_cron = "0 0 1 * * *"
active_sync_enabled = true

#################################### AWS ###########################
[aws]
# Enter a comma-separated list of allowed AWS authentication providers.
# Options are: default (AWS SDK Default), keys (Access && secret key), credentials (Credentials field), ec2_iam_role (EC2 IAM Role)
allowed_auth_providers = default,keys,credentials

# Allow AWS users to assume a role using temporary security credentials.
# If true, assume role will be enabled for all AWS authentication providers that are specified in aws_auth_providers
assume_role_enabled = true

# Specify max no of pages to be returned by the ListMetricPages API
list_metrics_page_limit = 500

#################################### Azure ###############################
[azure]
# Azure cloud environment where Grafana is hosted
# Possible values are AzureCloud, AzureChinaCloud, AzureUSGovernment and AzureGermanCloud
# Default value is AzureCloud (i.e. public cloud)
cloud = AzureCloud

# Specifies whether Grafana hosted in Azure service with Managed Identity configured (e.g. Azure Virtual Machines instance)
# If enabled, the managed identity can be used for authentication of Grafana in Azure services
# Disabled by default, needs to be explicitly enabled
managed_identity_enabled = false

# Client ID to use for user-assigned managed identity
# Should be set for user-assigned identity and should be empty for system-assigned identity
managed_identity_client_id =

#################################### SMTP / Emailing #####################
[smtp]
enabled = false
host = localhost:25
user =
# If the password contains # or ; you have to wrap it with triple quotes. Ex """#password;"""
password =
cert_file =
key_file =
skip_verify = false
from_address = admin@grafana.localhost
from_name = Grafana
ehlo_identity =
startTLS_policy =

[emails]
welcome_email_on_sign_up = false
templates_pattern = emails/*.html, emails/*.txt
content_types = text/html

#################################### Logging ##########################
[log]
# Either "console", "file", "syslog". Default is console and file
# Use space to separate multiple modes, e.g. "console file"
mode = console file

# Either "debug", "info", "warn", "error", "critical", default is "info"
level = info

# optional settings to set different levels for specific loggers. Ex filters = sqlstore:debug
filters =

# For "console" mode only
[log.console]
level =

# log line format, valid options are text, console and json
format = console

# For "file" mode only
[log.file]
level =

# log line format, valid options are text, console and json
format = text

# This enables automated log rotate(switch of following options), default is true
log_rotate = true

# Max line number of single file, default is 1000000
max_lines = 1000000

# Max size shift of single file, default is 28 means 1 << 28, 256MB
max_size_shift = 28

# Segment log daily, default is true
daily_rotate = true

# Expired days of log file(delete after max days), default is 7
max_days = 7

[log.syslog]
level =

# log line format, valid options are text, console and json
format = text

# Syslog network type and address. This can be udp, tcp, or unix. If left blank, the default unix endpoints will be used.
network =
address =

# Syslog facility. user, daemon and local0 through local7 are valid.
facility =

# Syslog tag. By default, the process' argv[0] is used.
tag =

[log.frontend]
# Should Sentry javascript agent be initialized
enabled = false

# Sentry DSN if you want to send events to Sentry.
sentry_dsn =

# Custom HTTP endpoint to send events captured by the Sentry agent to. Default will log the events to stdout.
custom_endpoint = /log

# Rate of events to be reported between 0 (none) and 1 (all), float
sample_rate = 1.0

# Requests per second limit enforced per an extended period, for Grafana backend log ingestion endpoint (/log).
log_endpoint_requests_per_second_limit = 3

# Max requests accepted per short interval of time for Grafana backend log ingestion endpoint (/log)
log_endpoint_burst_limit = 15

#################################### Usage Quotas ########################
[quota]
enabled = false

#### set quotas to -1 to make unlimited. ####
# limit number of users per Org.
org_user = 10

# limit number of dashboards per Org.
org_dashboard = 100

# limit number of data_sources per Org.
org_data_source = 10

# limit number of api_keys per Org.
org_api_key = 10

# limit number of alerts per Org.
org_alert_rule = 100

# limit number of orgs a user can create.
user_org = 10

# Global limit of users.
global_user = -1

# global limit of orgs.
global_org = -1

# global limit of dashboards
global_dashboard = -1

# global limit of api_keys
global_api_key = -1

# global limit on number of logged in users.
global_session = -1

# global limit of alerts
global_alert_rule = -1

#################################### Unified Alerting ####################
[unified_alerting]
# Enable the Unified Alerting sub-system and interface. When enabled we'll migrate all of your alert rules and notification channels to the new system. New alert rules will be created and your notification channels will be converted into an Alertmanager configuration. Previous data is preserved to enable backwards compatibility but new data is removed when switching. When this configuration section and flag are not defined, the state is defined at runtime. See the documentation for more details.
enabled =

# Comma-separated list of organization IDs for which to disable unified alerting. Only supported if unified alerting is enabled.
disabled_orgs =

# Specify the frequency of polling for admin config changes.
# The interval string is a possibly signed sequence of decimal numbers, followed by a unit suffix (ms, s, m, h, d), e.g. 30s or 1m.
admin_config_poll_interval = 60s

# Specify the frequency of polling for Alertmanager config changes.
# The interval string is a possibly signed sequence of decimal numbers, followed by a unit suffix (ms, s, m, h, d), e.g. 30s or 1m.
alertmanager_config_poll_interval = 60s

# Listen address/hostname and port to receive unified alerting messages for other Grafana instances. The port is used for both TCP and UDP. It is assumed other Grafana instances are also running on the same port.
ha_listen_address = "0.0.0.0:9094"

# Explicit address/hostname and port to advertise other Grafana instances. The port is used for both TCP and UDP.
ha_advertise_address = ""

# Comma-separated list of initial instances (in a format of host:port) that will form the HA cluster. Configuring this setting will enable High Availability mode for alerting.
ha_peers = ""

# Time to wait for an instance to send a notification via the Alertmanager. In HA, each Grafana instance will
# be assigned a position (e.g. 0, 1). We then multiply this position with the timeout to indicate how long should
# each instance wait before sending the notification to take into account replication lag.
# The interval string is a possibly signed sequence of decimal numbers, followed by a unit suffix (ms, s, m, h, d), e.g. 30s or 1m.
ha_peer_timeout = 15s

# The interval between sending gossip messages. By lowering this value (more frequent) gossip messages are propagated
# across cluster more quickly at the expense of increased bandwidth usage.
# The interval string is a possibly signed sequence of decimal numbers, followed by a unit suffix (ms, s, m, h, d), e.g. 30s or 1m.
ha_gossip_interval = 200ms

# The interval between gossip full state syncs. Setting this interval lower (more frequent) will increase convergence speeds
# across larger clusters at the expense of increased bandwidth usage.
# The interval string is a possibly signed sequence of decimal numbers, followed by a unit suffix (ms, s, m, h, d), e.g. 30s or 1m.
ha_push_pull_interval = 60s

# Enable or disable alerting rule execution. The alerting UI remains visible. This option has a legacy version in the `[alerting]` section that takes precedence.
execute_alerts = true

# Alert evaluation timeout when fetching data from the datasource. This option has a legacy version in the `[alerting]` section that takes precedence.
# The timeout string is a possibly signed sequence of decimal numbers, followed by a unit suffix (ms, s, m, h, d), e.g. 30s or 1m.
evaluation_timeout = 30s

# Number of times we'll attempt to evaluate an alert rule before giving up on that evaluation. This option has a legacy version in the `[alerting]` section that takes precedence.
max_attempts = 3

# Minimum interval to enforce between rule evaluations. Rules will be adjusted if they are less than this value or if they are not multiple of the scheduler interval (10s). Higher values can help with resource management as we'll schedule fewer evaluations over time. This option has a legacy version in the `[alerting]` section that takes precedence.
# The interval string is a possibly signed sequence of decimal numbers, followed by a unit suffix (ms, s, m, h, d), e.g. 30s or 1m.
min_interval = 10s

#################################### Alerting ############################
[alerting]
# Enable the legacy alerting sub-system and interface. If Unified Alerting is already enabled and you try to go back to legacy alerting, all data that is part of Unified Alerting will be deleted. When this configuration section and flag are not defined, the state is defined at runtime. See the documentation for more details.
enabled =

# Makes it possible to turn off alert execution but alerting UI is visible
execute_alerts = true

# Default setting for new alert rules. Defaults to categorize error and timeouts as alerting. (alerting, keep_state)
error_or_timeout = alerting

# Default setting for how Grafana handles nodata or null values in alerting. (alerting, no_data, keep_state, ok)
nodata_or_nullvalues = no_data

# Alert notifications can include images, but rendering many images at the same time can overload the server
# This limit will protect the server from render overloading and make sure notifications are sent out quickly
concurrent_render_limit = 5

# Default setting for alert calculation timeout. Default value is 30
evaluation_timeout_seconds = 30

# Default setting for alert notification timeout. Default value is 30
notification_timeout_seconds = 30

# Default setting for max attempts to sending alert notifications. Default value is 3
max_attempts = 3

# Makes it possible to enforce a minimal interval between evaluations, to reduce load on the backend
min_interval_seconds = 1

# Configures for how long alert annotations are stored. Default is 0, which keeps them forever.
# This setting should be expressed as an duration. Ex 6h (hours), 10d (days), 2w (weeks), 1M (month).
max_annotation_age =

# Configures max number of alert annotations that Grafana stores. Default value is 0, which keeps all alert annotations.
max_annotations_to_keep =

#################################### Annotations #########################
[annotations]
# Configures the batch size for the annotation clean-up job. This setting is used for dashboard, API, and alert annotations.
cleanupjob_batchsize = 100

[annotations.dashboard]
# Dashboard annotations means that annotations are associated with the dashboard they are created on.

# Configures how long dashboard annotations are stored. Default is 0, which keeps them forever.
# This setting should be expressed as a duration. Examples: 6h (hours), 10d (days), 2w (weeks), 1M (month).
max_age =

# Configures max number of dashboard annotations that Grafana stores. Default value is 0, which keeps all dashboard annotations.
max_annotations_to_keep =

[annotations.api]
# API annotations means that the annotations have been created using the API without any
# association with a dashboard.

# Configures how long Grafana stores API annotations. Default is 0, which keeps them forever.
# This setting should be expressed as a duration. Examples: 6h (hours), 10d (days), 2w (weeks), 1M (month).
max_age =

# Configures max number of API annotations that Grafana keeps. Default value is 0, which keeps all API annotations.
max_annotations_to_keep =

#################################### Explore #############################
[explore]
# Enable the Explore section
enabled = true

#################################### Internal Grafana Metrics ############
# Metrics available at HTTP API Url /metrics
[metrics]
enabled              = true
interval_seconds     = 10
# Disable total stats (stat_totals_*) metrics to be generated
disable_total_stats = false

#If both are set, basic auth will be required for the metrics endpoint.
basic_auth_username =
basic_auth_password =

# Metrics environment info adds dimensions to the `grafana_environment_info` metric, which
# can expose more information about the Grafana instance.
[metrics.environment_info]
#exampleLabel1 = exampleValue1
#exampleLabel2 = exampleValue2

# Send internal Grafana metrics to graphite
[metrics.graphite]
# Enable by setting the address setting (ex localhost:2003)
address =
prefix = prod.grafana.%(instance_name)s.

#################################### Grafana.com integration  ##########################
[grafana_net]
url = https://grafana.com

[grafana_com]
url = https://grafana.com

#################################### Distributed tracing ############
[tracing.jaeger]
# jaeger destination (ex localhost:6831)
address =
# tag that will always be included in when creating new spans. ex (tag1:value1,tag2:value2)
always_included_tag =
# Type specifies the type of the sampler: const, probabilistic, rateLimiting, or remote
sampler_type = const
# jaeger samplerconfig param
# for "const" sampler, 0 or 1 for always false/true respectively
# for "probabilistic" sampler, a probability between 0 and 1
# for "rateLimiting" sampler, the number of spans per second
# for "remote" sampler, param is the same as for "probabilistic"
# and indicates the initial sampling rate before the actual one
# is received from the mothership
sampler_param = 1
# sampling_server_url is the URL of a sampling manager providing a sampling strategy.
sampling_server_url =
# Whether or not to use Zipkin span propagation (x-b3- HTTP headers).
zipkin_propagation = false
# Setting this to true disables shared RPC spans.
# Not disabling is the most common setting when using Zipkin elsewhere in your infrastructure.
disable_shared_zipkin_spans = false

#################################### External Image Storage ##############
[external_image_storage]
# Used for uploading images to public servers so they can be included in slack/email messages.
# You can choose between (s3, webdav, gcs, azure_blob, local)
provider =

[external_image_storage.s3]
endpoint =
path_style_access =
bucket_url =
bucket =
region =
path =
access_key =
secret_key =

[external_image_storage.webdav]
url =
username =
password =
public_url =

[external_image_storage.gcs]
key_file =
bucket =
path =
enable_signed_urls = false
signed_url_expiration =

[external_image_storage.azure_blob]
account_name =
account_key =
container_name =

[external_image_storage.local]
# does not require any configuration

[rendering]
# Options to configure a remote HTTP image rendering service, e.g. using https://github.com/grafana/grafana-image-renderer.
# URL to a remote HTTP image renderer service, e.g. http://localhost:8081/render, will enable Grafana to render panels and dashboards to PNG-images using HTTP requests to an external service.
server_url =
# If the remote HTTP image renderer service runs on a different server than the Grafana server you may have to configure this to a URL where Grafana is reachable, e.g. http://grafana.domain/.
callback_url =
# Concurrent render request limit affects when the /render HTTP endpoint is used. Rendering many images at the same time can overload the server,
# which this setting can help protect against by only allowing a certain amount of concurrent requests.
concurrent_render_request_limit = 30

[panels]
# here for to support old env variables, can remove after a few months
enable_alpha = false
disable_sanitize_html = false

[plugins]
enable_alpha = false
app_tls_skip_verify_insecure = false
# Enter a comma-separated list of plugin identifiers to identify plugins to load even if they are unsigned. Plugins with modified signatures are never loaded.
allow_loading_unsigned_plugins =
# Enable or disable installing / uninstalling / updating plugins directly from within Grafana.
plugin_admin_enabled = true
plugin_admin_external_manage_enabled = false
plugin_catalog_url = https://grafana.com/grafana/plugins/
# Enter a comma-separated list of plugin identifiers to hide in the plugin catalog.
plugin_catalog_hidden_plugins =

#################################### Grafana Live ##########################################
[live]
# max_connections to Grafana Live WebSocket endpoint per Grafana server instance. See Grafana Live docs
# if you are planning to make it higher than default 100 since this can require some OS and infrastructure
# tuning. 0 disables Live, -1 means unlimited connections.
max_connections = 100

# allowed_origins is a comma-separated list of origins that can establish connection with Grafana Live.
# If not set then origin will be matched over root_url. Supports wildcard symbol "*".
allowed_origins =

# engine defines an HA (high availability) engine to use for Grafana Live. By default no engine used - in
# this case Live features work only on a single Grafana server.
# Available options: "redis".
# Setting ha_engine is an EXPERIMENTAL feature.
ha_engine =

# ha_engine_address sets a connection address for Live HA engine. Depending on engine type address format can differ.
# For now we only support Redis connection address in "host:port" format.
# This option is EXPERIMENTAL.
ha_engine_address = "127.0.0.1:6379"

#################################### Grafana Image Renderer Plugin ##########################
[plugin.grafana-image-renderer]
# Instruct headless browser instance to use a default timezone when not provided by Grafana, e.g. when rendering panel image of alert.
# See ICU’s metaZones.txt (https://cs.chromium.org/chromium/src/third_party/icu/source/data/misc/metaZones.txt) for a list of supported
# timezone IDs. Fallbacks to TZ environment variable if not set.
rendering_timezone =

# Instruct headless browser instance to use a default language when not provided by Grafana, e.g. when rendering panel image of alert.
# Please refer to the HTTP header Accept-Language to understand how to format this value, e.g. 'fr-CH, fr;q=0.9, en;q=0.8, de;q=0.7, *;q=0.5'.
rendering_language =

# Instruct headless browser instance to use a default device scale factor when not provided by Grafana, e.g. when rendering panel image of alert.
# Default is 1. Using a higher value will produce more detailed images (higher DPI), but will require more disk space to store an image.
rendering_viewport_device_scale_factor =

# Instruct headless browser instance whether to ignore HTTPS errors during navigation. Per default HTTPS errors are not ignored. Due to
# the security risk it's not recommended to ignore HTTPS errors.
rendering_ignore_https_errors =

# Instruct headless browser instance whether to capture and log verbose information when rendering an image. Default is false and will
# only capture and log error messages. When enabled, debug messages are captured and logged as well.
# For the verbose information to be included in the Grafana server log you have to adjust the rendering log level to debug, configure
# [log].filter = rendering:debug.
rendering_verbose_logging =

# Instruct headless browser instance whether to output its debug and error messages into running process of remote rendering service.
# Default is false. This can be useful to enable (true) when troubleshooting.
rendering_dumpio =

# Additional arguments to pass to the headless browser instance. Default is --no-sandbox. The list of Chromium flags can be found
# here (https://peter.sh/experiments/chromium-command-line-switches/). Multiple arguments is separated with comma-character.
rendering_args =

# You can configure the plugin to use a different browser binary instead of the pre-packaged version of Chromium.
# Please note that this is not recommended, since you may encounter problems if the installed version of Chrome/Chromium is not
# compatible with the plugin.
rendering_chrome_bin =

# Instruct how headless browser instances are created. Default is 'default' and will create a new browser instance on each request.
# Mode 'clustered' will make sure that only a maximum of browsers/incognito pages can execute concurrently.
# Mode 'reusable' will have one browser instance and will create a new incognito page on each request.
rendering_mode =

# When rendering_mode = clustered, you can instruct how many browsers or incognito pages can execute concurrently. Default is 'browser'
# and will cluster using browser instances.
# Mode 'context' will cluster using incognito pages.
rendering_clustering_mode =
# When rendering_mode = clustered, you can define the maximum number of browser instances/incognito pages that can execute concurrently. Default is '5'.
rendering_clustering_max_concurrency =
# When rendering_mode = clustered, you can specify the duration a rendering request can take before it will time out. Default is `30` seconds.
rendering_clustering_timeout =

# Limit the maximum viewport width, height and device scale factor that can be requested.
rendering_viewport_max_width =
rendering_viewport_max_height =
rendering_viewport_max_device_scale_factor =

# Change the listening host and port of the gRPC server. Default host is 127.0.0.1 and default port is 0 and will automatically assign
# a port not in use.
grpc_host =
grpc_port =

[enterprise]
license_path =

[feature_toggles]
# enable features, separated by spaces
enable =

[date_formats]
# For information on what formatting patterns that are supported https://momentjs.com/docs/#/displaying/

# Default system date format used in time range picker and other places where full time is displayed
full_date = YYYY-MM-DD HH:mm:ss

# Used by graph and other places where we only show small intervals
interval_second = HH:mm:ss
interval_minute = HH:mm
interval_hour = MM/DD HH:mm
interval_day = MM/DD
interval_month = YYYY-MM
interval_year = YYYY

# Experimental feature
use_browser_locale = false

# Default timezone for user preferences. Options are 'browser' for the browser local timezone or a timezone name from IANA Time Zone database, e.g. 'UTC' or 'Europe/Amsterdam' etc.
default_timezone = browser

[expressions]
# Enable or disable the expressions functionality.
enabled = true

[geomap]
# Set the JSON configuration for the default basemap
default_baselayer_config =

# Enable or disable loading other base map layers
enable_custom_baselayers = true

（五）创建promtail-config.yaml文件

#打开docker目录
cd /usr/local/docker/promtail-config

#创建配置文件
vim promtail-config.yaml

promtail-config.yaml配置如下：

server:
  http_listen_port: 9080
  grpc_listen_port: 0

positions:
  filename: /tmp/positions.yaml

clients:
  - url: http://loki:3100/loki/api/v1/push

scrape_configs:
- job_name: system
  static_configs:
  - targets:
      - localhost
    labels:
      job: varlogs
       #这个路径是你项目产生的日志目录
      __path__: /xxx/xxx/log/**/*.log

四、使用docker-compose运行loki、grafana、promtail镜像

#docker compose启动
docker-compose up -d

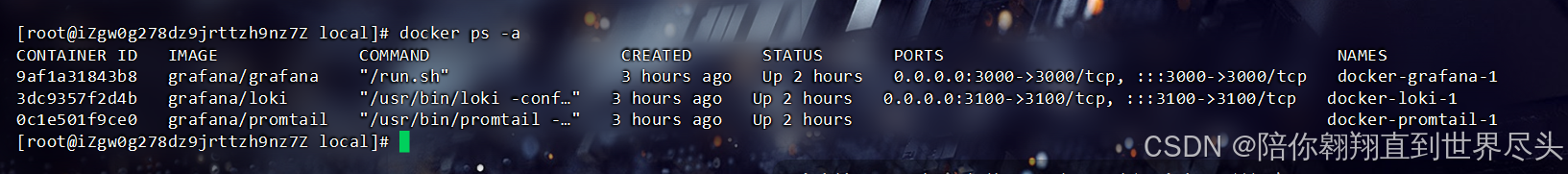

#查看docker 镜像
docker ps -a

五、登录Grafana

访问你的服务器地址，加3000端口

http://xxx:3000/

默认账号密码都是admin，进去之后会要你改密码

六、添加Loki以及开始查询

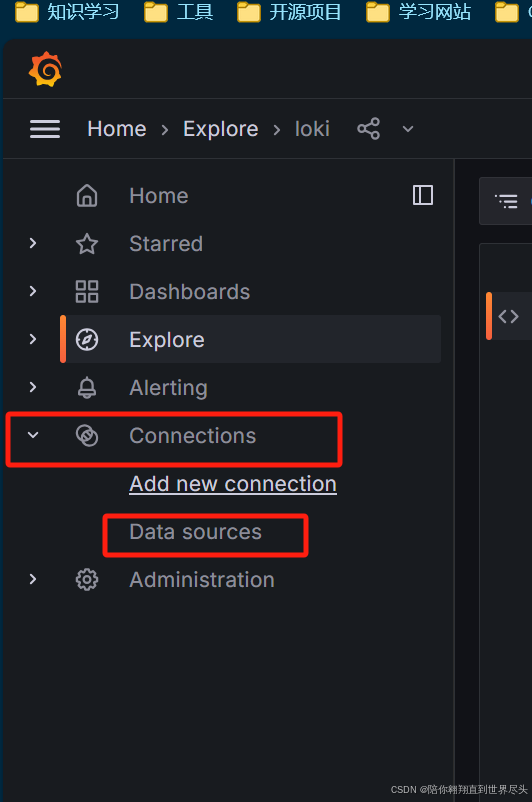

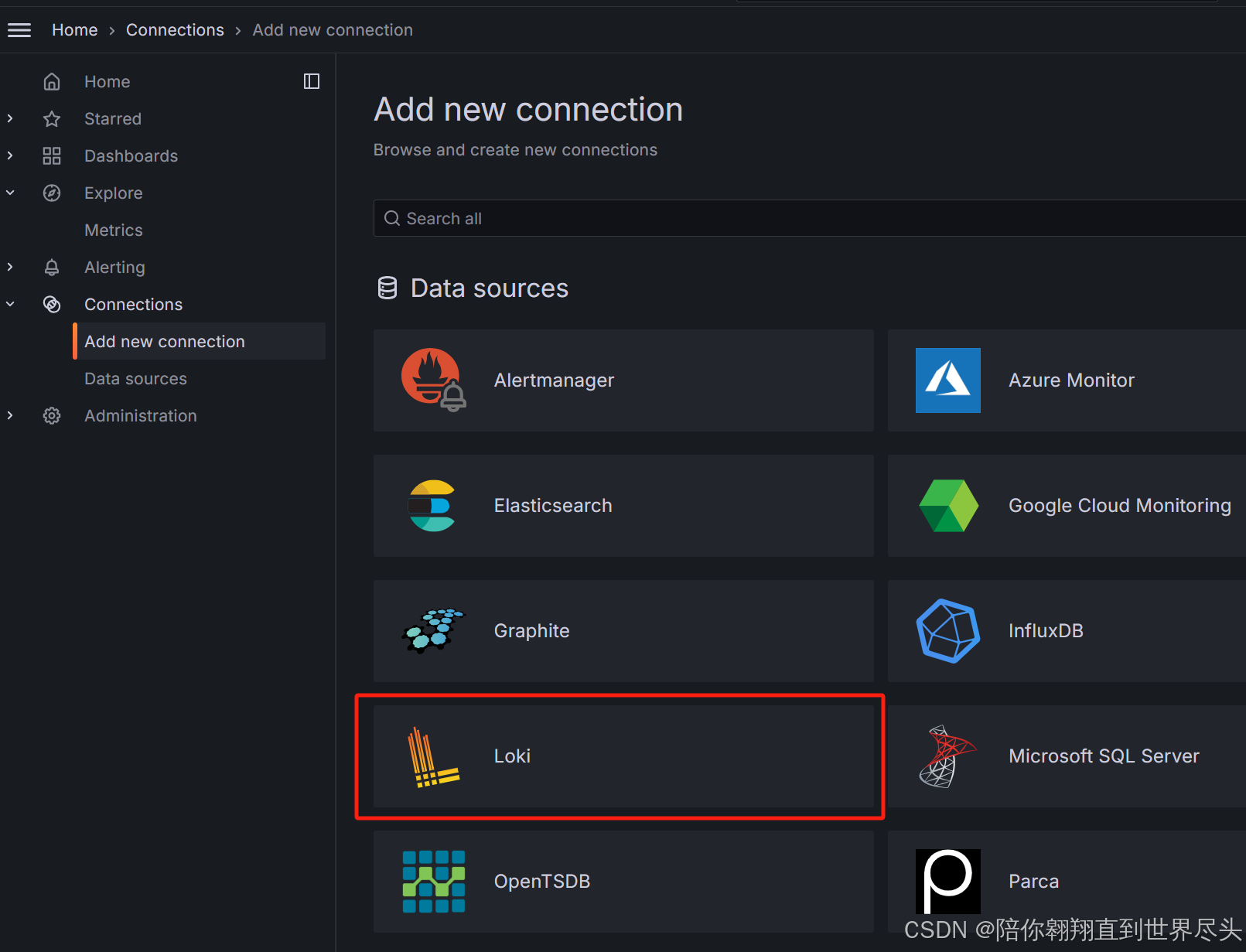

添加数据源

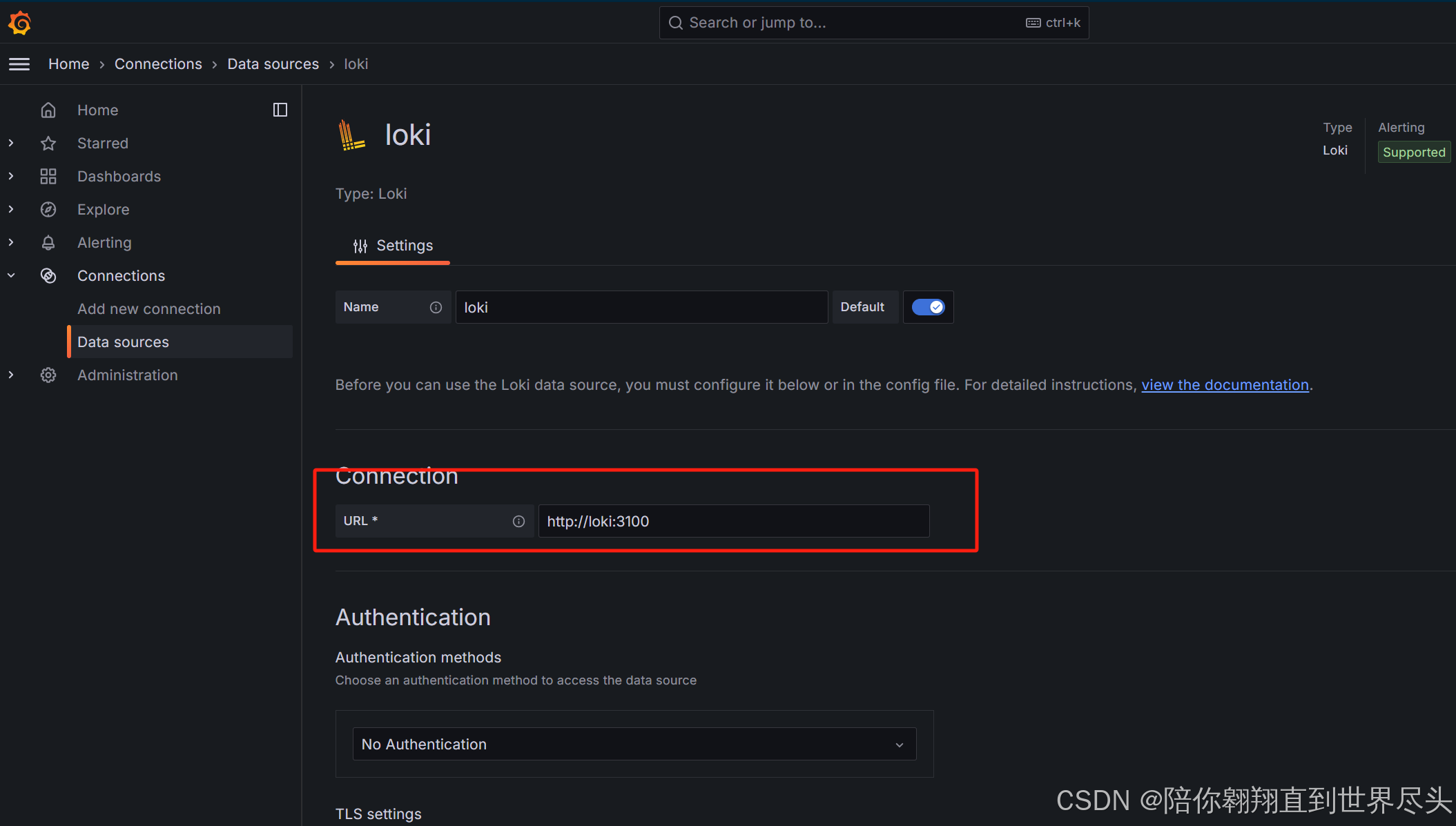

配置上你的loki地址：

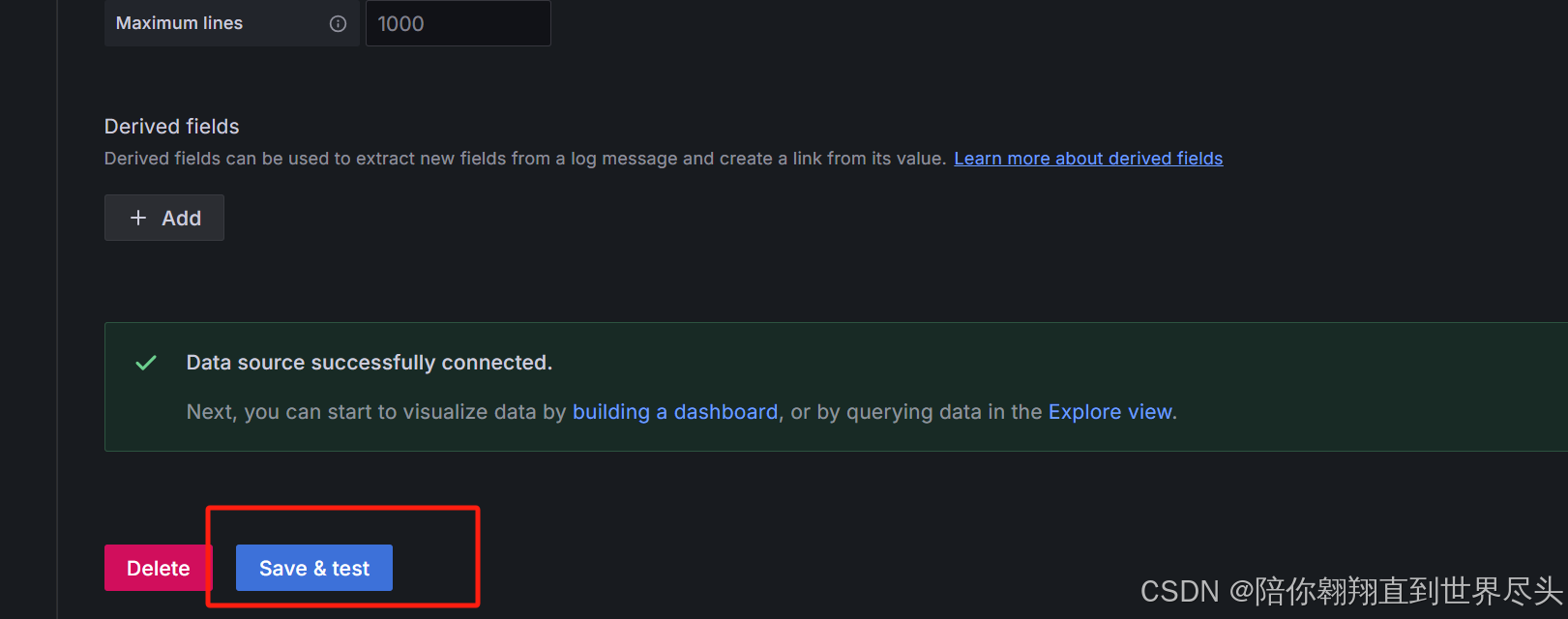

如果出现successfully，就可以开始查询了

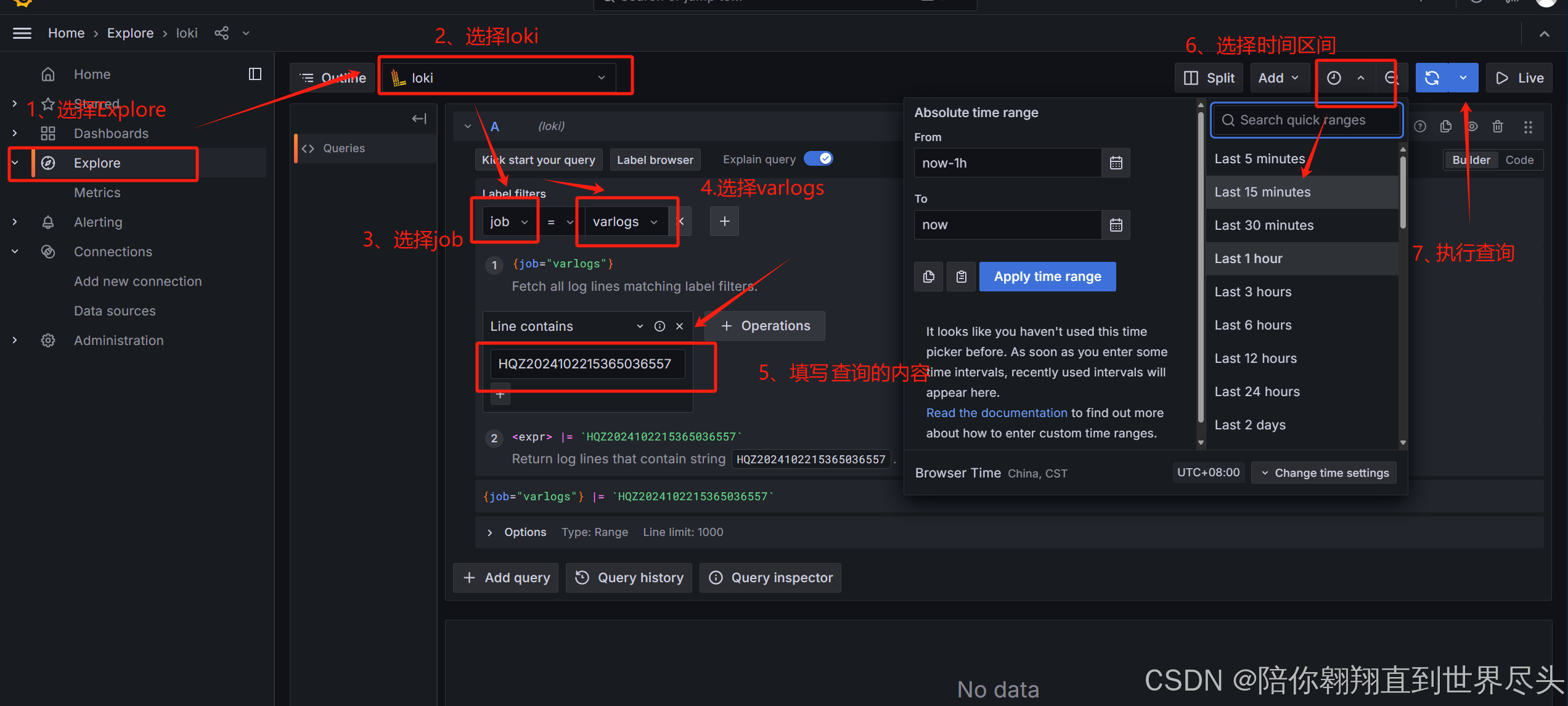

开始查询

七、踩坑

（一）Loki容器报错：creating WAL folder at "/wal": mkdir wal: permission，需要再配置文件中加入：

ingester:
  wal:
    dir: /loki/.cache/loki/wal

八、grafana忘记密码之后，重置密码

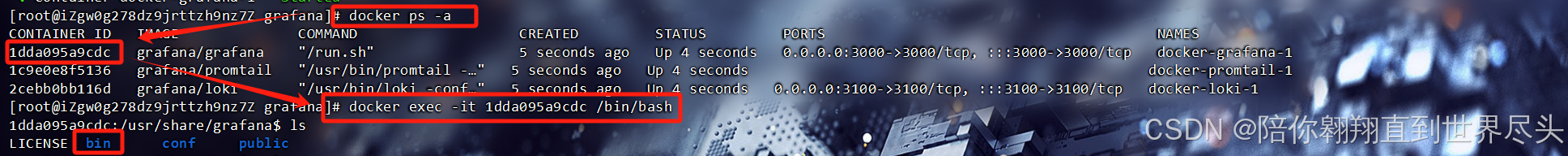

#查询所有docker容器
 docker ps -a

#找到grafana/grafana的容器的ID，进入容器
docker exec -it 1dda095a9cdc /bin/bash

进入bin目录执行下面的命令

grafana-cli admin reset-admin-password test_admin

修改成功，grafana页面使用新密码登录即可
