rabbitmq(二)：死信队列
1：死信队列的用途（3种情况）
先考虑，死信队列存在的意义。它就像是一个兜底队列，当message出现三种情况（无处可去）的时候，死信exchange就会收下他们。
Messages from a queue can be “dead-lettered”; that is, republished to an exchange when any of the following events occur:
- The message is negatively acknowledged by a consumer using basic.reject or basic.nack with requeue parameter set to false.
- The message expires due to per-message TTL; or
- The message is dropped because its queue exceeded a length limit
来自官网:https://www.rabbitmq.com/dlx.html

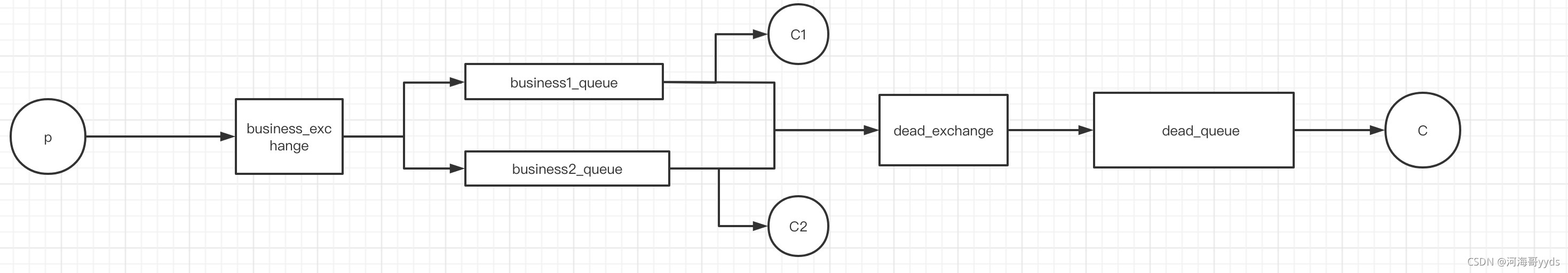

死信队列，就和普通的队列一样，需要声明和绑定。只是作用上，略有区别。废话不多说，来一个小demo，再来一个场景应用下。
2：springboot-rabbitmq实现
2-1：application.yml
server:
port: 8021
spring:
#给项目来个名字
application:
name: rabbitmq-provider
#配置rabbitMq 服务器
rabbitmq:
# host: 172.2200.10.2
host: 127.0.0.1
port: 5672
username: rabbitmq
password: rabbitmq
#虚拟host 可以不设置,使用server默认host
virtual-host: /
# 用来配置发布者异步确认，尚硅谷视频中说，queue持久+消息持久（rabbitTemplate 自动持久化消息）+生产者确认 可以实现不丢失消息
publisher-confirm-type: correlated
redis:
# host: 172.20.10.2
host: 127.0.0.1
port: 5070
2-2：configuration
package com.example.springbootrabbitmq.configuration;
import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.core.AcknowledgeMode;
import org.springframework.amqp.rabbit.config.SimpleRabbitListenerContainerFactory;
import org.springframework.amqp.rabbit.connection.CachingConnectionFactory;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.amqp.support.converter.Jackson2JsonMessageConverter;
import org.springframework.amqp.support.converter.MessageConverter;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.autoconfigure.amqp.SimpleRabbitListenerContainerFactoryConfigurer;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
/**
* @author xx
* @date 2021/10/5 16:24
*/
@Configuration
@Slf4j
public class RabbitmqConfig {
@Autowired
private CachingConnectionFactory connectionFactory;
//自动装配消息监听器所在的容器工厂配置类实例
@Autowired
private SimpleRabbitListenerContainerFactoryConfigurer factoryConfigurer;
// @Bean
// public MessageConverter jsonMessageConverter() {
// return new Jackson2JsonMessageConverter();
// }
@Bean
public RabbitTemplate rabbitTemplate() {
RabbitTemplate rabbitTemplate = new RabbitTemplate(connectionFactory);
rabbitTemplate.setConfirmCallback((correlationData, ack, cause) -> {
if (ack) {
// log.info("发送成功");
} else {
// correlationData.getReturned().getMessage().getMessageProperties().getMessageId();
// log.info("发送失败");
}
});
return rabbitTemplate;
}
/**
* 针对不同的消费者，可以进行不同的容器配置，来实现多个消费者应用不同的配置。
*/
@Bean(name = "singleListenerContainer")
public SimpleRabbitListenerContainerFactory listenerContainer() {
//定义消息监听器所在的容器工厂
SimpleRabbitListenerContainerFactory factory = new SimpleRabbitListenerContainerFactory();
//设置容器工厂所用的实例
factory.setConnectionFactory(connectionFactory);
//设置消息在传输中的格式，在这里采用JSON的格式进行传输
factory.setMessageConverter(new Jackson2JsonMessageConverter());
// //设置并发消费者实例的初始数量。在这里为1个
// factory.setConcurrentConsumers(1);
// //设置并发消费者实例的最大数量。在这里为1个
// factory.setMaxConcurrentConsumers(1);
// //设置并发消费者实例中每个实例拉取的消息数量-在这里为1个
// factory.setPrefetchCount(1);
// 关闭自动应答
factory.setAcknowledgeMode(AcknowledgeMode.MANUAL);
// 设置不公平分发，更改为每次读取1条消息,在消费者未回执确认之前,不在进行下一条消息的投送，而不是默认的轮询；
// 也就是说，我处理完了，我再接受下一次的投递，属于消费者端的控制
// 不设置的话，就是采用轮询的方法去监听队列，你一条我一条
factory.setPrefetchCount(1);
return factory;
}
}
package com.example.springbootrabbitmq.configuration;
import org.springframework.amqp.core.*;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import java.util.HashMap;
import java.util.Map;
@Configuration
public class DeadLetterConfig {
public static final String DEAD_LETTER_QUEUE_NAME = "dead_letter_queue";
public static final String DEAD_LETTER_EXCHANGE_NAME = "dead_letter_exchange";
public static final String DEAD_LETTER_ROUTING_KEY = "x-dead-letter-routing-key";
// 业务队列1专门用来测试channel.basicNack
public static final String BUSINESS1_QUEUE_NAME = "business1_queue";
public static final String BUSINESS1_EXCHANGE_NAME = "business1_exchange_name";
public static final String BUSINESS1_ROUTING_KEY = "busines1s_routing_key";
// 业务队列2专门用来测试TTL，以及队列溢出
public static final String BUSINESS2_QUEUE_NAME = "business2_queue";
public static final String BUSINESS2_EXCHANGE_NAME = "business2_exchange_name";
public static final String BUSINESS2_ROUTING_KEY = "business2_routing_key";
/******************************************死信队列配置 start********************************************/
@Bean
public Queue deadLetterQueue() {
return new Queue(DEAD_LETTER_QUEUE_NAME, true, false, false);
}
@Bean
public FanoutExchange deadLetterExchange() {
return new FanoutExchange(DEAD_LETTER_EXCHANGE_NAME, true, false);
}
@Bean
public Binding bindingDeadLetterQueue() {
return BindingBuilder.bind(deadLetterQueue()).to(deadLetterExchange());
}
/******************************************死信队列配置 end*************************************************/
/******************************************普通业务队列配置 start********************************************/
@Bean
public DirectExchange business1Exchange() {
return new DirectExchange(BUSINESS1_EXCHANGE_NAME, true, false);
}
@Bean
public Queue business1Queue() {
// 将队列绑定到死信交换机上
Map<String, Object> args = new HashMap<>();
args.put("x-dead-letter-exchange", DEAD_LETTER_EXCHANGE_NAME);
args.put("x-dead-letter-routing-key", DEAD_LETTER_ROUTING_KEY);
return new Queue(BUSINESS1_QUEUE_NAME, true, false, false, args);
}
@Bean
public Binding bindingBusiness1Queue() {
return BindingBuilder.bind(business1Queue()).to(business1Exchange()).with(BUSINESS1_ROUTING_KEY);
}
// ------------------------------------------
@Bean
public DirectExchange business2Exchange() {
return new DirectExchange(BUSINESS2_EXCHANGE_NAME, true, false);
}
@Bean
public Queue business2Queue() {
Map<String, Object> args = new HashMap<>();
// 模拟队列溢出
args.put("x-max-length", 3);
// 将其绑定要死信交换机上
args.put("x-dead-letter-exchange", DEAD_LETTER_EXCHANGE_NAME);
args.put("x-dead-letter-routing-key", DEAD_LETTER_ROUTING_KEY);
return new Queue(BUSINESS2_QUEUE_NAME, true, false, false, args);
}
@Bean
public Binding bindingBusiness2Queue() {
return BindingBuilder.bind(business2Queue()).to(business2Exchange()).with(BUSINESS2_ROUTING_KEY);
}
/******************************************普通业务队列配置 end********************************************/
}
2-3：Business1ProducerController
package com.example.springbootrabbitmq.controller;
import com.alibaba.fastjson.JSONObject;
import com.example.springbootrabbitmq.configuration.DeadLetterConfig;
import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.MessageBuilder;
import org.springframework.amqp.core.MessageProperties;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import javax.annotation.Resource;
import java.nio.charset.StandardCharsets;
import java.util.HashMap;
import java.util.Map;
import java.util.UUID;
@RestController
@Slf4j
@RequestMapping("/businessProducer")
public class Business1ProducerController {
@Resource
private RabbitTemplate rabbitTemplate;
@GetMapping("/sendMessage")
public void sendMessage(String msg) {
Map<String, String> msgMap = new HashMap<>();
msgMap.put("message", msg);
String messageJson = JSONObject.toJSONString(msgMap);
Message message = MessageBuilder
.withBody(messageJson.getBytes())
.setContentType(MessageProperties.CONTENT_TYPE_JSON)
.setContentEncoding("utf-8")
.setMessageId(UUID.randomUUID() + "")
.build();
log.info("生产者发送：" + new String(message.getBody(), StandardCharsets.UTF_8));
rabbitTemplate.convertAndSend(DeadLetterConfig.BUSINESS1_EXCHANGE_NAME, DeadLetterConfig.BUSINESS1_ROUTING_KEY, message);
}
@GetMapping("/sendMessageTTL")
public void sendMessageTTL(String msg) {
Map<String, String> msgMap = new HashMap<>();
msgMap.put("message", msg);
String messageJson = JSONObject.toJSONString(msgMap);
Message message = MessageBuilder
.withBody(messageJson.getBytes())
.setContentType(MessageProperties.CONTENT_TYPE_JSON)
// 设置0s过期，为了检查是不是会直接入死信队列
.setExpiration("0")
.setContentEncoding("utf-8")
.setMessageId(UUID.randomUUID() + "")
.build();
log.info("生产者发送：" + new String(message.getBody(), StandardCharsets.UTF_8));
rabbitTemplate.convertAndSend(DeadLetterConfig.BUSINESS2_EXCHANGE_NAME, DeadLetterConfig.BUSINESS2_ROUTING_KEY, message);
}
@GetMapping("/sendMessageOverflow")
public void sendMessageOverflow(String msg) {
Map<String, String> msgMap = new HashMap<>();
msgMap.put("message", msg);
String messageJson = JSONObject.toJSONString(msgMap);
Message message = MessageBuilder
.withBody(messageJson.getBytes())
.setContentType(MessageProperties.CONTENT_TYPE_JSON)
.setContentEncoding("utf-8")
.setMessageId(UUID.randomUUID() + "")
.build();
log.info("生产者发送：" + new String(message.getBody(), StandardCharsets.UTF_8));
rabbitTemplate.convertAndSend(DeadLetterConfig.BUSINESS2_EXCHANGE_NAME, DeadLetterConfig.BUSINESS2_ROUTING_KEY, message);
}
}
2-4：BusinessConsumer
package com.example.springbootrabbitmq.controller;
import com.example.springbootrabbitmq.configuration.DeadLetterConfig;
import com.rabbitmq.client.Channel;
import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
import java.nio.charset.StandardCharsets;
@Component
@Slf4j
public class BusinessConsumer {
// 测试reject情况
@RabbitListener(queues = DeadLetterConfig.BUSINESS1_QUEUE_NAME, containerFactory = "singleListenerContainer")
public void processMessage(Message message, Channel channel) throws Exception {
String messageString = new String(message.getBody(), StandardCharsets.UTF_8);
String messageId = message.getMessageProperties().getMessageId();
log.info("业务consumer消费者接受：" + messageString);
// 第一种情况，拒绝，不重新回归队列
channel.basicNack(message.getMessageProperties().getDeliveryTag(), false, false);
}
// // 测试队列满/TTL
// @RabbitListener(queues = DeadLetterConfig.BUSINESS2_QUEUE_NAME, containerFactory = "singleListenerContainer")
// public void processMessage2(Message message, Channel channel) throws Exception {
// String messageString = new String(message.getBody(), StandardCharsets.UTF_8);
// String messageId = message.getMessageProperties().getMessageId();
//
// // 睡10s，更好的体现队列溢出的情况
// TimeUnit.SECONDS.sleep(10);
//
// log.info("consumer2消费者接受：" + messageString);
// channel.basicAck(message.getMessageProperties().getDeliveryTag(), false);;
// }
// 监听死信队列
@RabbitListener(queues = DeadLetterConfig.DEAD_LETTER_QUEUE_NAME, containerFactory = "singleListenerContainer")
public void processMessage1(Message message, Channel channel) throws Exception {
String messageString = new String(message.getBody(), StandardCharsets.UTF_8);
String messageId = message.getMessageProperties().getMessageId();
log.info("死信队列consumer消费者接受：" + messageString);
channel.basicAck(message.getMessageProperties().getDeliveryTag(), false);
}
}
3: 测试场景
3-1：TTL过期
流程：将businessConsumer中的processMessage2()方法注释掉，没有消费者，且ttl设置为0，势必不会被消费，message会直接过期，进而进入死信队列。
postman_request: http://localhost:8021/businessProducer/sendMessageTTL?msg=测试directExchange
2021-10-13 10:03:24.083 INFO 18476 --- [nio-8021-exec-1] c.e.s.c.Business1ProducerController : 生产者发送：{"message":"测试directExchange"}
2021-10-13 10:03:24.097 INFO 18476 --- [nectionFactory1] c.e.s.configuration.RabbitmqConfig : 发送成功
2021-10-13 10:03:24.135 INFO 18476 --- [ntContainer#1-1] c.e.s.controller.Business1Consumer : 死信队列consumer消费者接受：{"message":"测试directExchange"}
3-2：队列满
流程：线程睡眠10s模拟业务处理情况。通过postman发送多次消息，使队列满。点5次，队列存3个，消费者消费1个，死信队列里面存一个。
postman_request：http://localhost:8021/businessProducer/sendMessageOverflow?msg=测试directExchange
2021-10-13 10:41:11.233 INFO 20685 --- [nio-8021-exec-1] c.e.s.c.Business1ProducerController : 生产者发送：{"message":"测试directExchange"}
2021-10-13 10:41:12.309 INFO 20685 --- [nio-8021-exec-3] c.e.s.c.Business1ProducerController : 生产者发送：{"message":"测试directExchange"}
2021-10-13 10:41:13.095 INFO 20685 --- [nio-8021-exec-4] c.e.s.c.Business1ProducerController : 生产者发送：{"message":"测试directExchange"}
2021-10-13 10:41:13.791 INFO 20685 --- [nio-8021-exec-5] c.e.s.c.Business1ProducerController : 生产者发送：{"message":"测试directExchange"}
2021-10-13 10:41:14.643 INFO 20685 --- [nio-8021-exec-6] c.e.s.c.Business1ProducerController : 生产者发送：{"message":"测试directExchange"}
2021-10-13 10:41:14.648 INFO 20685 --- [ntContainer#2-1] c.e.s.controller.BusinessConsumer : 死信队列consumer消费者接受：{"message":"测试directExchange"}
2021-10-13 10:41:21.281 INFO 20685 --- [ntContainer#1-1] c.e.s.controller.BusinessConsumer : consumer2消费者接受：{"message":"测试directExchange"}
2021-10-13 10:41:31.285 INFO 20685 --- [ntContainer#1-1] c.e.s.controller.BusinessConsumer : consumer2消费者接受：{"message":"测试directExchange"}
2021-10-13 10:41:41.291 INFO 20685 --- [ntContainer#1-1] c.e.s.controller.BusinessConsumer : consumer2消费者接受：{"message":"测试directExchange"}
2021-10-13 10:41:51.299 INFO 20685 --- [ntContainer#1-1] c.e.s.controller.BusinessConsumer : consumer2消费者接受：{"message":"测试directExchange"}
3-3：basicNack，失败，并且不重新回队列
request: http://localhost:8021/businessProducer/sendMessage?msg=测试directExchange
2021-10-13 10:55:16.692 INFO 20923 --- [nio-8021-exec-2] c.e.s.c.Business1ProducerController : 生产者发r送：{"message":"测试directExchange"}
2021-10-13 10:55:16.758 INFO 20923 --- [ntContainer#0-1] c.e.s.controller.BusinessConsumer : 业务consumer消费者接受：{"message":"测试directExchange"}
2021-10-13 10:55:16.762 INFO 20923 --- [ntContainer#2-1] c.e.s.controller.BusinessConsumer : 死信队列consumer消费者接受：{"message":"测试directExchange"}
4：应用场景
网上搜到的一共有两种场景：
- 订单超过多少分钟，自动取消，就是到了死信队列后再进行业务处理修改订单状态即可。
- 作为兜底队列，如果出现异常，可以dilivery进死信队列中，之后进行异常排查等。
5：bug记录
- 修改queue配置的时候，得先删除队列，不然会报错
2021-10-12 17:39:46.669 ERROR 15287 --- [ 127.0.0.1:5672] o.s.a.r.c.CachingConnectionFactory : Shutdown Signal: channel error; protocol method: #method<channel.close>(reply-code=406, reply-text=PRECONDITION_FAILED - inequivalent arg 'x-dead-letter-exchange' for queue 'dead_letter_queue' in vhost '/': received none but current is the value 'dead_letter_exchange' of type 'longstr', class-id=50, method-id=10)
-
死信队列没有收到message。
-
原因：配置没正确，要在业务队列里面添加如下参数配置，通过加入参数即可实现绑定，不需要像业务队列一样，绑定进交换机里面。
@Bean public Queue business1Queue() { // 将队列绑定到死信交换机上 Map<String, Object> args = new HashMap<>(); args.put("x-dead-letter-exchange", DEAD_LETTER_EXCHANGE_NAME); args.put("x-dead-letter-routing-key", DEAD_LETTER_ROUTING_KEY); return new Queue(BUSINESS1_QUEUE_NAME, true, false, false, args); }
-
-
测试队列溢出的时候，没有效果，一直被consumer消费。
原因：没有配置，
factory.setPrefetchCount(1);没有配置，通过web看队列，发现都是处于unack状态，而不是ready。配置上了之后，当前消息处理完之后，consumer才会去从队列中拉去一条新的message。
6：小结
-
一共有3种情况，message会进入消息队列。
-
修改队列状态的时候应该先删除
-
上面的代码是都可以复现的，有问题可以留言，大家一起讨论，共同进步。
扫一扫
21万+
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
