大话数据结构之图-邻接表BFS（C++）

大话数据结构

Unit6 图

2.邻接表的构建和广度遍历

代码

#include <iostream>
#include <queue>
#include <algorithm>
typedef char VertexType;
typedef int EdgeType;
#define MAXVEX 100
#define INFINITY 65535
using namespace std;
int visited[100];

//边表结点
typedef struct EdgeNode {
	int adjvex;                //顶点对应下标
	EdgeType weight;           //权值
	struct EdgeNode* next;     //指针，指向下一个表结点
}EdgeNode;


//顶点表结点
typedef struct VertexNode {
	VertexType data;           //顶点域，存储顶点信息
	EdgeNode* firstedge;       //边表头指针
}VertexNode, AdjList[MAXVEX];


typedef struct {
	AdjList adjlist;
	int numVertexes, numEdges; //图中当前顶点数和边数
}GraphAdjlist;


void CreateGraph(GraphAdjlist* G) {
	int i, j, k;
	EdgeNode* e;
	cout << "输入顶点数和边数：" << endl;
	cin >> G->numVertexes >> G->numEdges;
	//建立顶点表
	for (i = 0;i < G->numVertexes;i++) {
		cout << "请输入顶点值" << endl;
		cin >> G->adjlist[i].data;
		G->adjlist[i].firstedge = NULL;
	}
	for (k = 0;k < G->numEdges;k++) {
		cout << "输入边上的顶点序号：" << endl;  // 输入边(vi,vj)的边表
		cin >> i >> j;
		//前插法
		//若用尾插法还需尾指针
		e = (EdgeNode*)malloc(sizeof(EdgeNode));
		e->adjvex = j;
		e->next = G->adjlist[i].firstedge;
		G->adjlist[i].firstedge = e;
		/*e = (EdgeNode*)malloc(sizeof(EdgeNode));
		e->adjvex = i;
		e->next = G->adjlist[j].firstedge;
		G->adjlist[j].firstedge = e;*/
	}
}

//邻接表深度遍历算法
void BFSTraverse(GraphAdjlist GL) {
	int i;
	EdgeNode* p;
	queue<char> Q;
	for (i = 0;i < GL.numVertexes;i++) {
		visited[i] = false;
	}
	//InitQueue;
	for (i = 0; i < GL.numVertexes;i++) {
		if (!visited[i]) {
			visited[i] = true;
			cout << GL.adjlist[i].data;
			Q.push(i);
			while (!Q.empty()) {
				Q.pop();
				p = GL.adjlist[i].firstedge;
				while (p) {
					if (!visited[p->adjvex]) {
						visited[p->adjvex] = true;
						cout << GL.adjlist[p->adjvex].data;
						Q.push(p->adjvex);

					}
					p = p->next;
				}
			}
		}
	}
}


int main() {
	GraphAdjlist* grap = (GraphAdjlist*)malloc(sizeof(GraphAdjlist));
	CreateGraph(grap);
	BFSTraverse(*grap);
	free(grap);
	return 0;
}

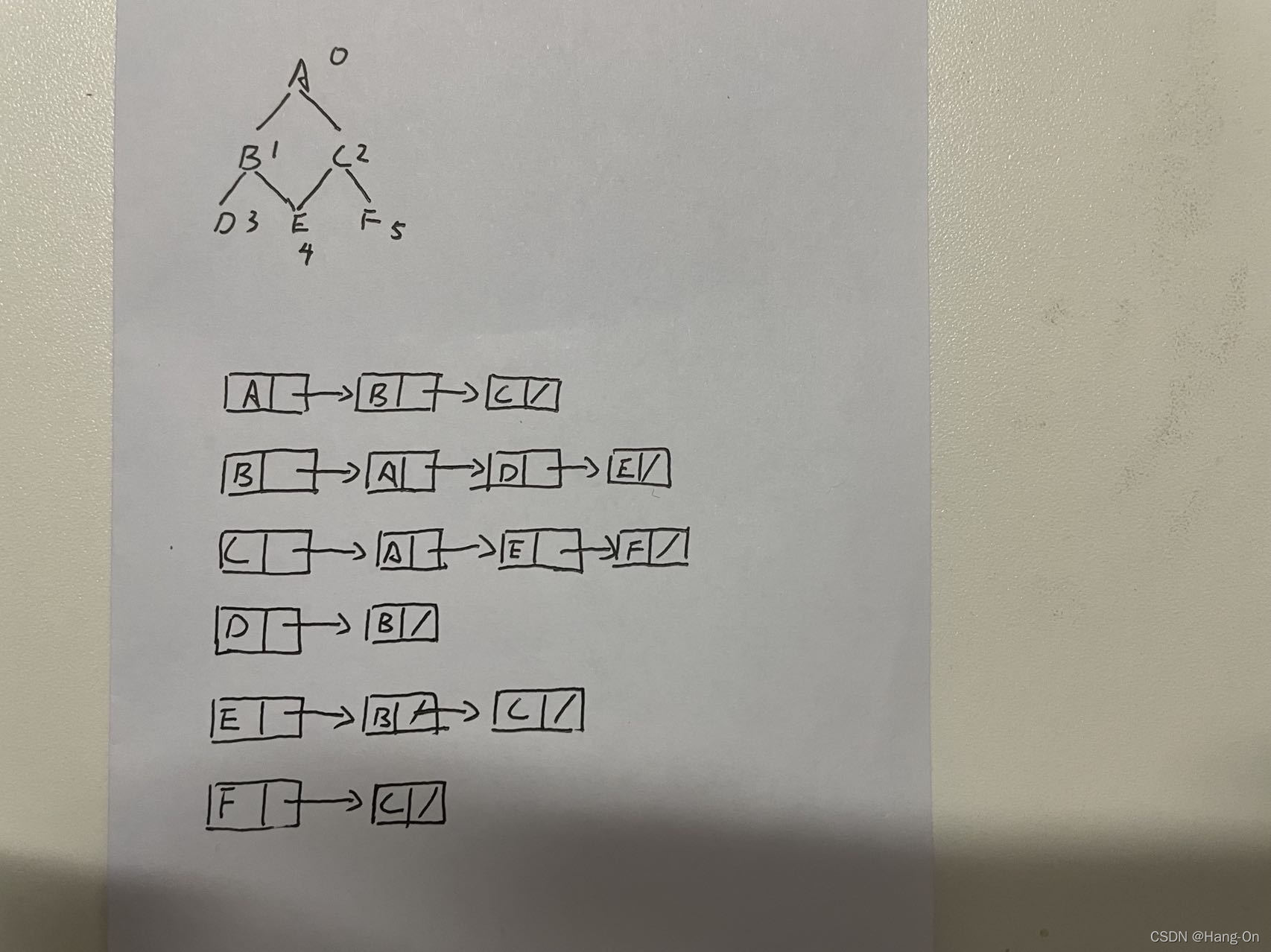

运行结果
