springboot项目集成mybatis-generator插件并运行起来步骤
1,新建项目,选择组件 spring-web,sql下的mybatis框架及mysql驱动
2,mybatis-generator安装与配置,生成数据库逆向文件
3,跑通接口
一、新建springboot项目
创建项目时勾选常用组件,spring-web,sql下的mybatis框架及mysql驱动,对应在pom.xml文件中自动加载依赖:
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.mybatis.spring.boot</groupId>
<artifactId>mybatis-spring-boot-starter</artifactId>
<version>2.2.0</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
</dependencies>
二、集成mybatis-generator插件:自动生成数据库文件
1.配置pom.xml文件(添加插件)
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
<plugin>
<groupId>org.mybatis.generator</groupId>
<artifactId>mybatis-generator-maven-plugin</artifactId>
<version>1.3.7</version>
<configuration>
<verbose>true</verbose>
<overwrite>true</overwrite>
</configuration>
</plugin>
</plugins>
</build>
2.配置GeneratorConfig.xml(配置数据源,生成的pojo、mapper文件、dao的位置,设置pojo与表的对应关系…)
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
"http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<generatorConfiguration>
<!-- 配置文件,放在resource目录下即可 -->
<!--数据库驱动个人配置-->
<classPathEntry
location="C:\Users\JPF\.m2\repository\mysql\mysql-connector-java\8.0.22\mysql-connector-java-8.0.22.jar"/>
<context id="MysqlTables" targetRuntime="MyBatis3">
<property name="autoDelimitKeywords" value="true"/>
<!--可以使用``包括字段名,避免字段名与sql保留字冲突报错-->
<property name="beginningDelimiter" value="`"/>
<property name="endingDelimiter" value="`"/>
<!-- optional,旨在创建class时,对注释进行控制 -->
<commentGenerator>
<property name="suppressDate" value="true"/>
<property name="suppressAllComments" value="true"/>
</commentGenerator>
<!--数据库链接地址账号密码-->
<jdbcConnection driverClass="com.mysql.cj.jdbc.Driver"
connectionURL="jdbc:mysql://127.0.0.1:3306/springboot?useUnicode=true&characterEncoding=UTF-8&zeroDateTimeBehavior=convertToNull&serverTimezone=Asia/Shanghai"
userId="***"
password="***">
<property name="nullCatalogMeansCurrent" value="true"/>
</jdbcConnection>
<!-- 非必需,类型处理器,在数据库类型和java类型之间的转换控制-->
<javaTypeResolver>
<property name="forceBigDecimals" value="false"/>
</javaTypeResolver>
<!--生成Model类存放位置-->
<javaModelGenerator targetPackage="com.bo.mall_review.model.pojo"
targetProject="src/main/java">
<!-- 是否允许子包,即targetPackage.schemaName.tableName -->
<property name="enableSubPackages" value="true"/>
<!-- 是否对类CHAR类型的列的数据进行trim操作 -->
<property name="trimStrings" value="true"/>
<!-- 建立的Model对象是否 不可改变 即生成的Model对象不会有 setter方法,只有构造方法 -->
<property name="immutable" value="false"/>
</javaModelGenerator>
<!--生成mapper映射文件存放位置-->
<sqlMapGenerator targetPackage="mappers" targetProject="src/main/resources">
<property name="enableSubPackages" value="true"/>
</sqlMapGenerator>
<!--生成Dao类存放位置-->
<javaClientGenerator type="XMLMAPPER" targetPackage="com.bo.mall_review.model.dao"
targetProject="src/main/java">
<property name="enableSubPackages" value="true"/>
</javaClientGenerator>
<!--生成对应表及类名-->
<table schema="root" tableName="imooc_mall_cart" domainObjectName="Cart"
enableCountByExample="false"
enableUpdateByExample="false" enableDeleteByExample="false" enableSelectByExample="false"
selectByExampleQueryId="false">
</table>
<table tableName="imooc_mall_category" domainObjectName="Category" enableCountByExample="false"
enableUpdateByExample="false" enableDeleteByExample="false" enableSelectByExample="false"
selectByExampleQueryId="false">
</table>
<table tableName="imooc_mall_order" domainObjectName="Order" enableCountByExample="false"
enableUpdateByExample="false" enableDeleteByExample="false" enableSelectByExample="false"
selectByExampleQueryId="false">
</table>
<table tableName="imooc_mall_order_item" domainObjectName="OrderItem"
enableCountByExample="false"
enableUpdateByExample="false" enableDeleteByExample="false" enableSelectByExample="false"
selectByExampleQueryId="false">
</table>
<table tableName="imooc_mall_product" domainObjectName="Product" enableCountByExample="false"
enableUpdateByExample="false" enableDeleteByExample="false" enableSelectByExample="false"
selectByExampleQueryId="false">
</table>
<table tableName="imooc_mall_user" domainObjectName="User" enableCountByExample="false"
enableUpdateByExample="false" enableDeleteByExample="false" enableSelectByExample="false"
selectByExampleQueryId="false">
</table>
</context>
</generatorConfiguration>

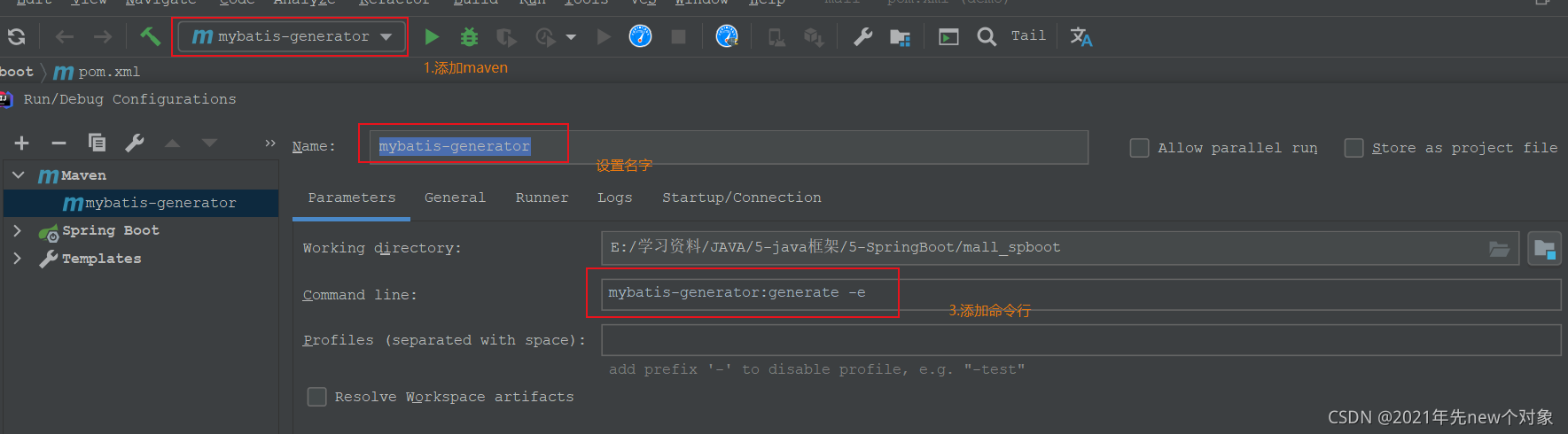

3.创建maven运行项
点击绿色按钮运行,自动生成实体类,dao,以及对应的xml文件,或者如下图所示,点击IDEA侧边栏—>Maven工具栏—>双击mybatis-generator,完成自动生成
三、跑通接口
1.application.properties文件中数据库信息配置,
#配置数据源的名称,不是数据库的名称
spring.datasource.name=imooc_mall_datasource
spring.datasource.url=jdbc:mysql://127.0.0.1:3306/springboot?useUnicode=true&characterEncoding=utf8&autoReconnect=true&useSSL=false&serverTimezone=Asia/Shanghai
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.username=root
spring.datasource.password=xxxxxxx
#配置mapper的位置
mybatis.mapper-locations=classpath:mappers/*.xml
2.设计service、controller
3.直接运行找不到mapper对象,配置mapper扫描器,@MapperScan
@SpringBootApplication
@MapperScan(basePackages = "com.bo.mall_review.model.dao")
public class MallReviewApplication {
public static void main(String[] args) {
SpringApplication.run(MallReviewApplication.class, args);
}
}
4.application.properties文件中端口信息配置,
# 应用名称
spring.application.name=mall
# 应用服务 WEB 访问端口
server.port=8080
5.启动项目
