Unity访问Android

一：Unity访问Android

1.Android方面所需要修改的文件

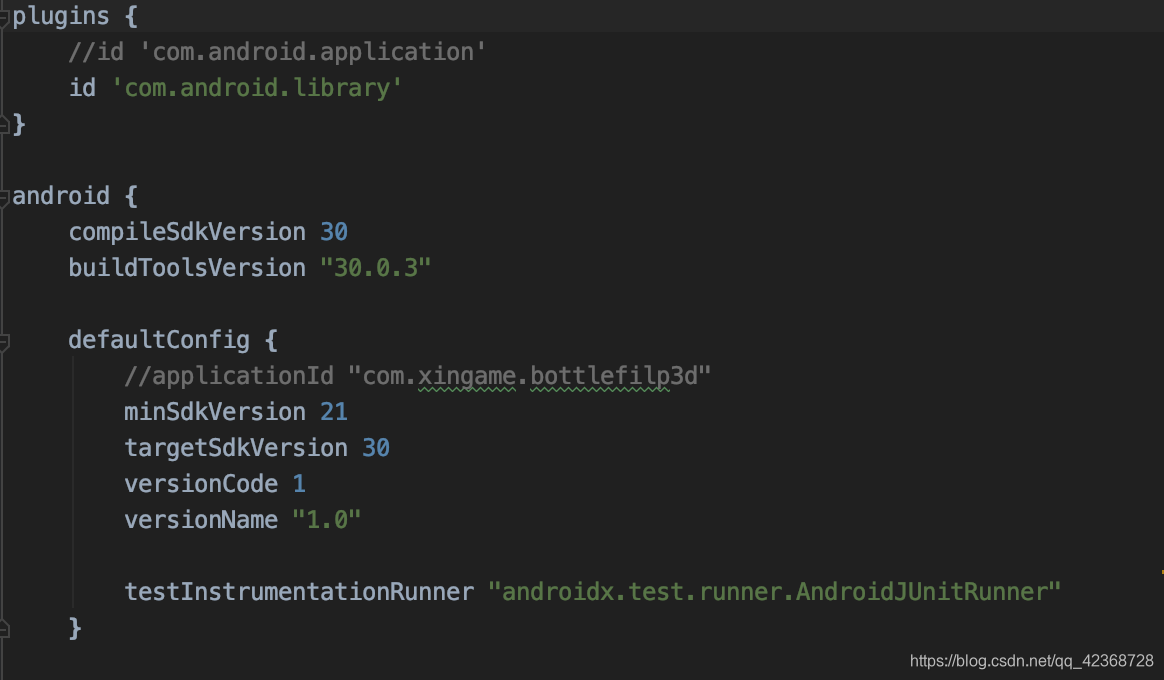

build.gradle

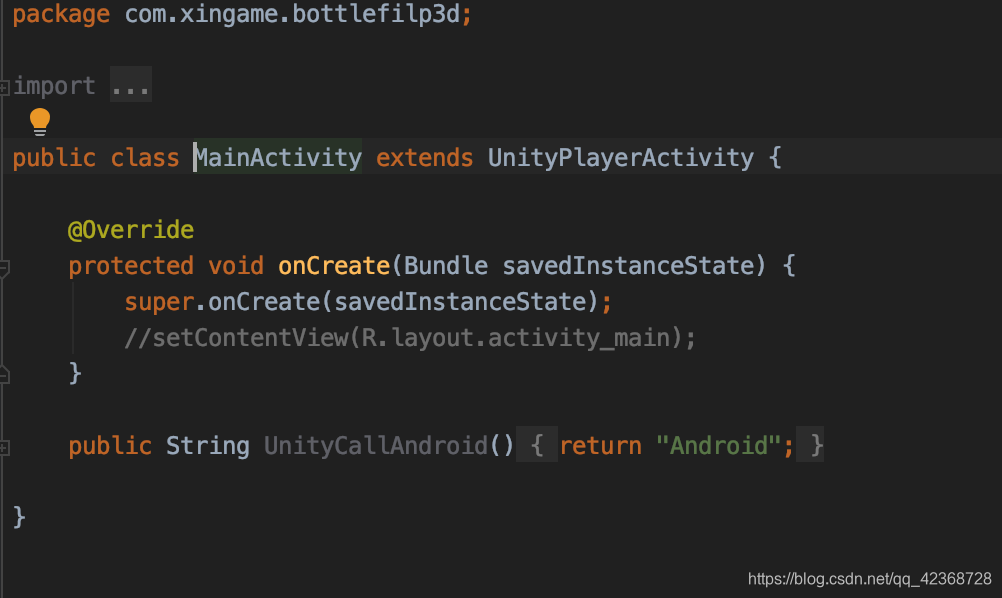

MainActivity

AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.xingame.bottlefilp3d">

    <application
        android:allowBackup="true"
        android:supportsRtl="true">
        <activity android:name="com.xingame.bottlefilp3d.MainActivity">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
        <meta-data android:name="unityplayer.UnityActivity" android:value="true" />
    </application>

</manifest>

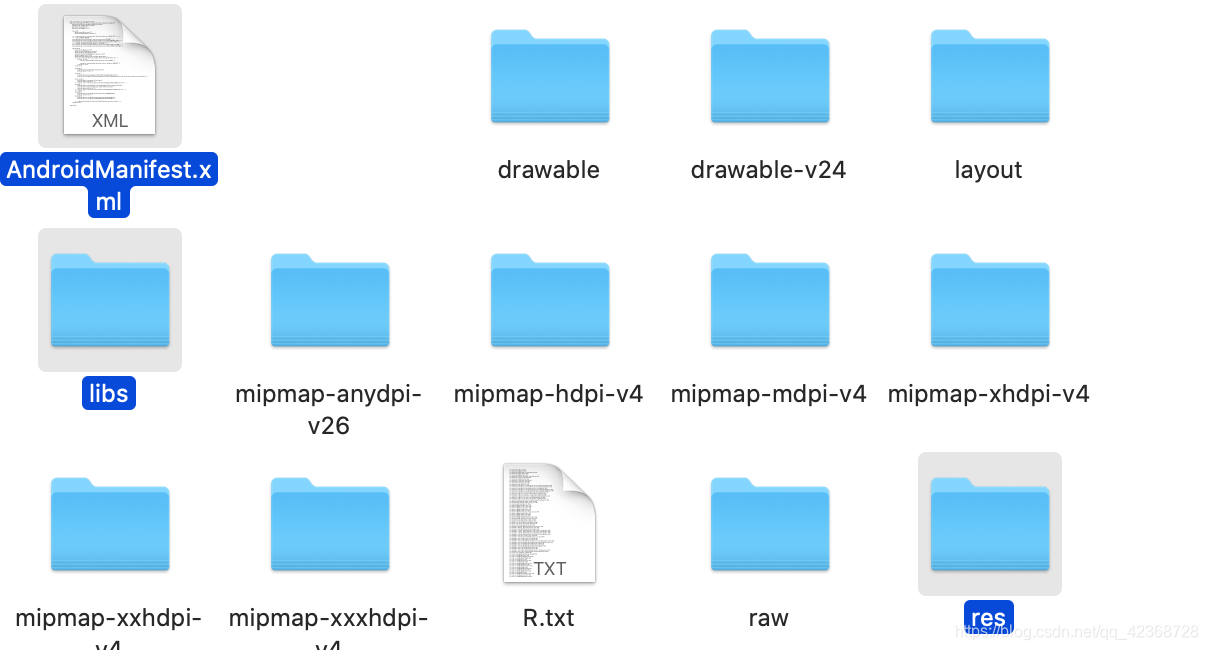

1.打包后将app-debug.arr包打开，外面的class.jar文件替换掉libs中的class.jar,复制这三个文件到unity中Plugins/Android目录下

需要解压class.jar文件，将文件中的BuildConfig文件删除，再重新打包。
将style删除
包名要与unity包名相同

2.Unity方面调用Android，具体请百度。

 private void Awake()
    {

        AndroidJavaClass androidClass = new AndroidJavaClass("com.unity3d.player.UnityPlayer");

        m_androidObj = androidClass.GetStatic<AndroidJavaObject>("currentActivity");

    }
void Start()
    {
         jo.Call("UnityCallAndroid");
    }

二：Unity调用TopOn_Android开屏广告

1.首先AS集成TopOn Android SDK
使用AAR/JAR库文件集成splash。目前Jcenter的集成方式没有成功
2.编写Unity脚本

public class Splash : MonoBehaviour
{

    private AndroidJavaObject m_androidObj = null;
    AndroidJavaObject m_activity;

    private void Awake()
    {

        AndroidJavaClass androidClass = new AndroidJavaClass("com.unity3d.player.UnityPlayer");

        m_androidObj = androidClass.GetStatic<AndroidJavaObject>("currentActivity");

    }

    void Start()
    {

    }

}

3.编写Android脚本
Android MainActivity代码

public class MainActivity extends UnityPlayerActivity {


    String TopOnAppID = "appid";
    String TopOnAppKey = "appkey";
    String TopOnPlacementId = "splashid";

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        //setContentView(R.layout.activity_main);

        //ATSDK.setNetworkLogDebug(true);//SDK日志功能，集成测试阶段建议开启，上线前必须关闭

        //ATSDK.integrationChecking(getApplicationContext());//检查广告平台的集成状态


        ATSDK.init(getApplicationContext(), TopOnAppID, TopOnAppKey);//初始化SDK


        Intent intent = new Intent(MainActivity.this, SplashAdShowActivity.class);
        intent.putExtra("placementId", TopOnPlacementId);
        startActivity(intent);
    }
}

创建Activity:SplashAdShowActivity。

public class SplashAdShowActivity extends Activity implements ATSplashExListener {

    private static final String TAG = SplashAdShowActivity.class.getSimpleName();

    ATSplashAd splashAd;
    FrameLayout container;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        setContentView(R.layout.activity_splash_ad_show);

        String placementId = getIntent().getStringExtra("placementId");
        container = findViewById(R.id.splash_ad_container);
        ViewGroup.LayoutParams layoutParams = container.getLayoutParams();
        Configuration cf = getResources().getConfiguration();

        int ori = cf.orientation;

        /**You should set size to the layout param.**/
        if (ori == Configuration.ORIENTATION_LANDSCAPE) {
            setRequestedOrientation(ActivityInfo.SCREEN_ORIENTATION_SENSOR_LANDSCAPE);
            layoutParams.width = (int) (getResources().getDisplayMetrics().widthPixels * 1);
            layoutParams.height = getResources().getDisplayMetrics().heightPixels;
        } else if (ori == Configuration.ORIENTATION_PORTRAIT) {
            setRequestedOrientation(ActivityInfo.SCREEN_ORIENTATION_SENSOR_PORTRAIT);
            layoutParams.width = getResources().getDisplayMetrics().widthPixels;
            layoutParams.height = (int) (getResources().getDisplayMetrics().heightPixels * 1);
        } else {
            setRequestedOrientation(ActivityInfo.SCREEN_ORIENTATION_SENSOR_PORTRAIT);
            layoutParams.width = getResources().getDisplayMetrics().widthPixels;
            layoutParams.height = (int) (getResources().getDisplayMetrics().heightPixels * 1);
        }

        ATMediationRequestInfo atMediationRequestInfo = null;

        //Mintegral
        atMediationRequestInfo = new MintegralATRequestInfo("142414", "8960a39ef00317b2846f4a2d758bfd37", "280021", "440882");
        atMediationRequestInfo.setAdSourceId("400631");

//        atMediationRequestInfo = new AdmobATRequestInfo("ca-app-pub-9488501426181082~6354662111", "ca-app-pub-3940256099942544/1033173712", AdmobATRequestInfo.ORIENTATION_PORTRAIT);
//        atMediationRequestInfo.setAdSourceId("145022");
        splashAd = new ATSplashAd(this, placementId, atMediationRequestInfo, this, 5000);

        Map<String, Object> localMap = new HashMap<>();
        localMap.put(ATAdConst.KEY.AD_WIDTH, layoutParams.width);
        localMap.put(ATAdConst.KEY.AD_HEIGHT, layoutParams.height);
        splashAd.setLocalExtra(localMap);

        if (splashAd.isAdReady()) {
            splashAd.show(this, container);
        } else {
            splashAd.loadAd();
        }


        ATSplashAd.checkSplashDefaultConfigList(this, placementId, null);
    }


    @Override
    public void onAdLoaded() {

        splashAd.show(this, container);
    }

    @Override
    public void onNoAdError(AdError adError) {

    }

    @Override
    public void onAdShow(ATAdInfo entity) {
        Log.i(TAG, "onAdShow:\n" + entity.toString());
    }

    @Override
    public void onAdClick(ATAdInfo entity) {
        Log.i(TAG, "onAdClick:\n" + entity.toString());
    }

    @Override
    public void onAdDismiss(ATAdInfo entity) {
        jumpToMainActivity();
    }

    boolean hasHandleJump = false;

    public void jumpToMainActivity() {
        if (!hasHandleJump) {
            hasHandleJump = true;
            finish();
            //Toast.makeText(this, "start your MainActivity.", Toast.LENGTH_SHORT).show();

        }

    }

    @Override
    protected void onDestroy() {
        super.onDestroy();
        if (splashAd != null) {
            splashAd.onDestory();
        }

    }

    @Override
    public void onDeeplinkCallback(ATAdInfo atAdInfo, boolean b) {

    }
}

activity_splash_ad_show.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="#ffffff">



    <FrameLayout
        android:id="@+id/splash_ad_container"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        ></FrameLayout>

</RelativeLayout>

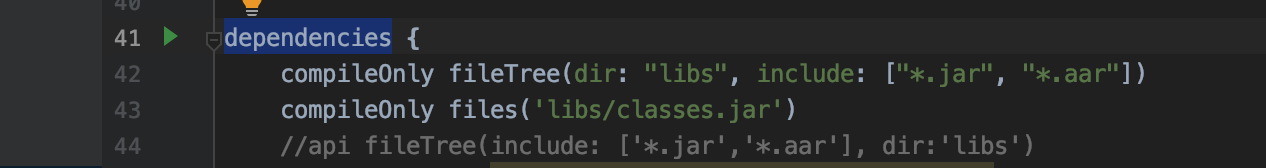

为了能在unity中获取aar文件，在build.gradle文件中dependencies添加

compileOnly fileTree(dir: "libs", include: ["*.jar", "*.aar"])
compileOnly files('libs/classes.jar')

如图：

之后使用Unity调用，步骤入同一。
