3D游戏：六、物理系统与碰撞

1、改进飞碟（Hit UFO）游戏：

游戏内容要求：

• 按 adapter模式设计图修改飞碟游戏
• 使它同时支持物理运动与运动学（变换）运动

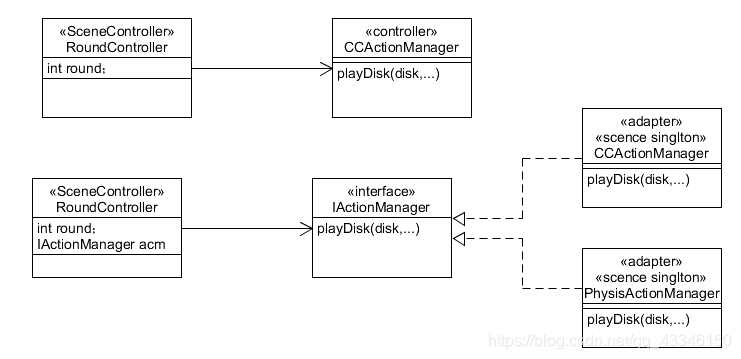

新设计图如下：
在上次作业基础上进行改进：

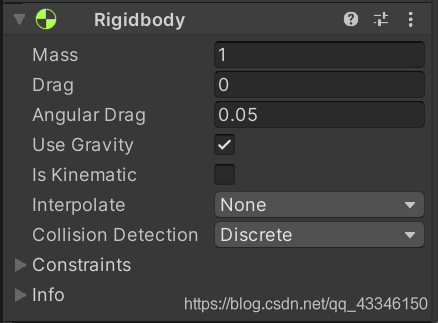

• 给飞碟增加重力属性：

• 添加Adapter：

public class Adapter : MonoBehaviour,AdaActionmanager {
    public FlyActionManager fly_action_manager;
    public PhyActionManager phy_action_manager;
    public void UFOFly(GameObject disk,float angle,float power,bool op){
        if (op) phy_action_manager.UFOFly(disk,angle,power);
        else fly_action_manager.UFOFly(disk,angle,power);
    }
    void Start(){
        fly_action_manager=gameObject.AddComponent<FlyActionManager>() as FlyActionManager;
        phy_action_manager=gameObject.AddComponent<PhyActionManager>() as PhyActionManager;
    }
}

• 添加PhyUFOFlyAction：

public class PhyUFOFlyAction : SSAction{
    private Vector3 start_vector;                              //初速度向量
    public float power;
    private PhyUFOFlyAction() {}
    public static PhyUFOFlyAction GetSSAction(Vector3 direction, float angle, float power){
        //初始化物体将要运动的初速度向量
        PhyUFOFlyAction action = CreateInstance<PhyUFOFlyAction>();
        if (direction.x == -1) action.start_vector = Quaternion.Euler(new Vector3(0, 0, -angle)) * Vector3.left * power;
        else action.start_vector = Quaternion.Euler(new Vector3(0, 0, angle)) * Vector3.right * power;
        action.power = power;
        return action;
    }
    public override void Update() {
        if (this.transform.position.y < -10){
            this.destroy = true;
            this.callback.SSActionEvent(this);
        }
    }
    public override void Start(){
        //使用重力以及给一个初速度
        gameobject.GetComponent<Rigidbody>().velocity = power / 13 * start_vector;
        gameobject.GetComponent<Rigidbody>().useGravity = true;
    }
}

• 添加PhyActionManager：

public class PhyActionManager : SSActionManager{
    public PhyUFOFlyAction fly;
    protected void Start(){
    }
    //飞碟飞行
    public void UFOFly(GameObject disk, float angle, float power){
        fly = PhyUFOFlyAction.GetSSAction(disk.GetComponent<DiskData>().direction, angle, power);
        this.RunAction(disk, fly, this);
    }
