1、问题背景

统一一周内植树的数量，利用柱状图来实现

2、实现源码

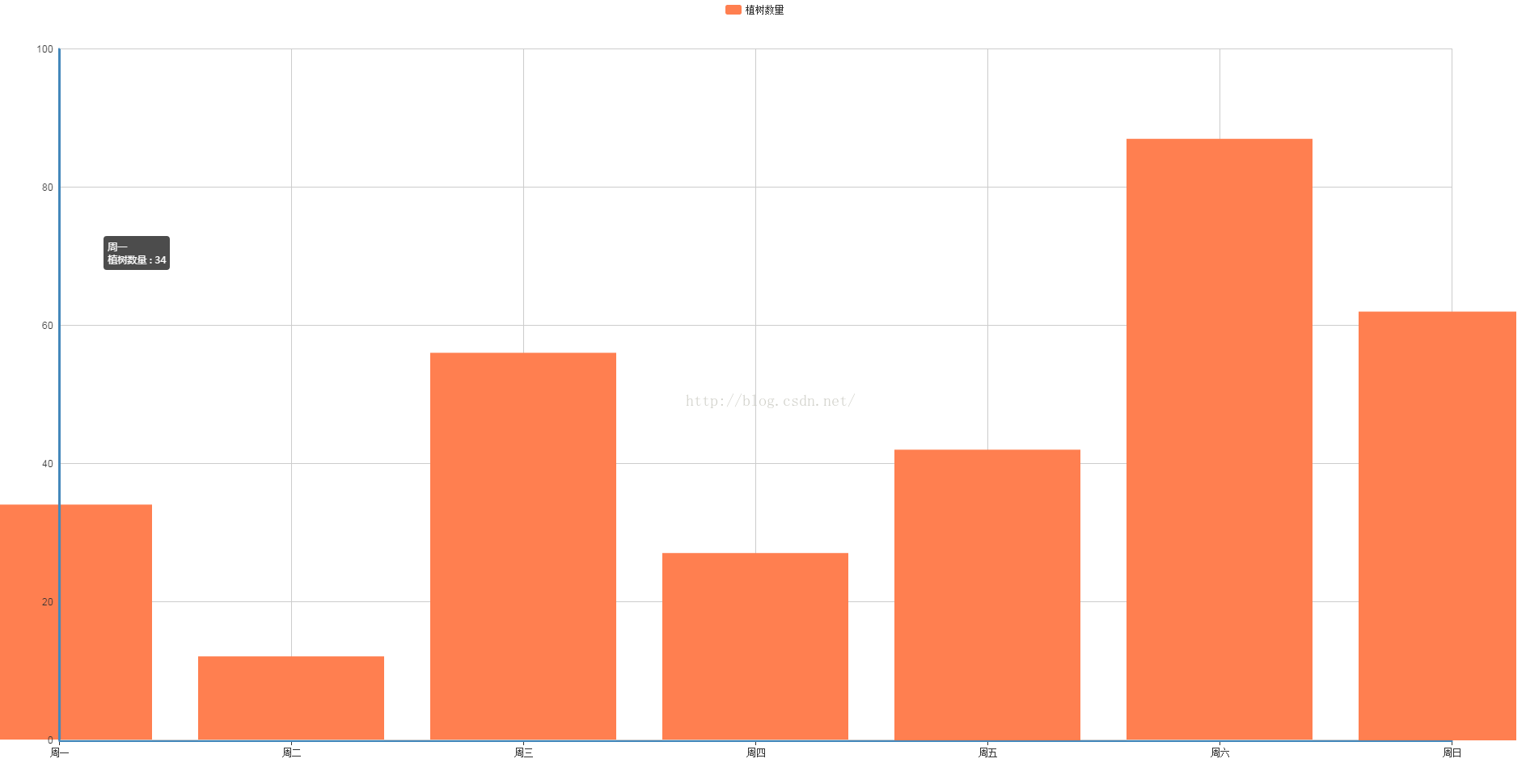

（1）X轴从零刻度开始

<!DOCTYPE html><html> <head>  <meta charset="UTF-8">  <title>echarts-X轴不从0刻度开始</title>  <link rel="shortcut icon" href="../js/echarts-2.2.7/doc/asset/ico/favicon.png">  <script type="text/javascript" src="../js/echarts-2.2.7/doc/asset/js/jquery.min.js" ></script>  <script type="text/javascript" src="../js/echarts-2.2.7/doc/example/www2/js/echarts-all.js" ></script>  <style>   body,html{    width: 99%;    height: 99%;    font-family: "微软雅黑";    font-size: 12px;   }   #bar{    width: 100%;    height: 100%;   }  </style>  <script>   $(function(){    var chart = document.getElementById('bar');                  var echart = echarts.init(chart);                                 var option = {        title: {            text: ''        },        tooltip: {            trigger: 'axis'        },        legend: {            data:['植树数量']        },        grid: {            left: '3%',            right: '4%',            bottom: '3%',            containLabel: true        },        toolbox: {            feature: {                saveAsImage: {}            }        },        xAxis: {            type: 'category',            boundaryGap: false,            data: ['周一','周二','周三','周四','周五','周六','周日']        },        yAxis: {            type: 'value'        },        series: [            {                name:'植树数量',                type:'bar',                stack: '植树数量',                data:[34, 12, 56, 27, 42, 87, 62]            }        ]    };                                  echart.setOption(option);     });  </script> </head> <body>  <div id="bar"></div> </body></html>

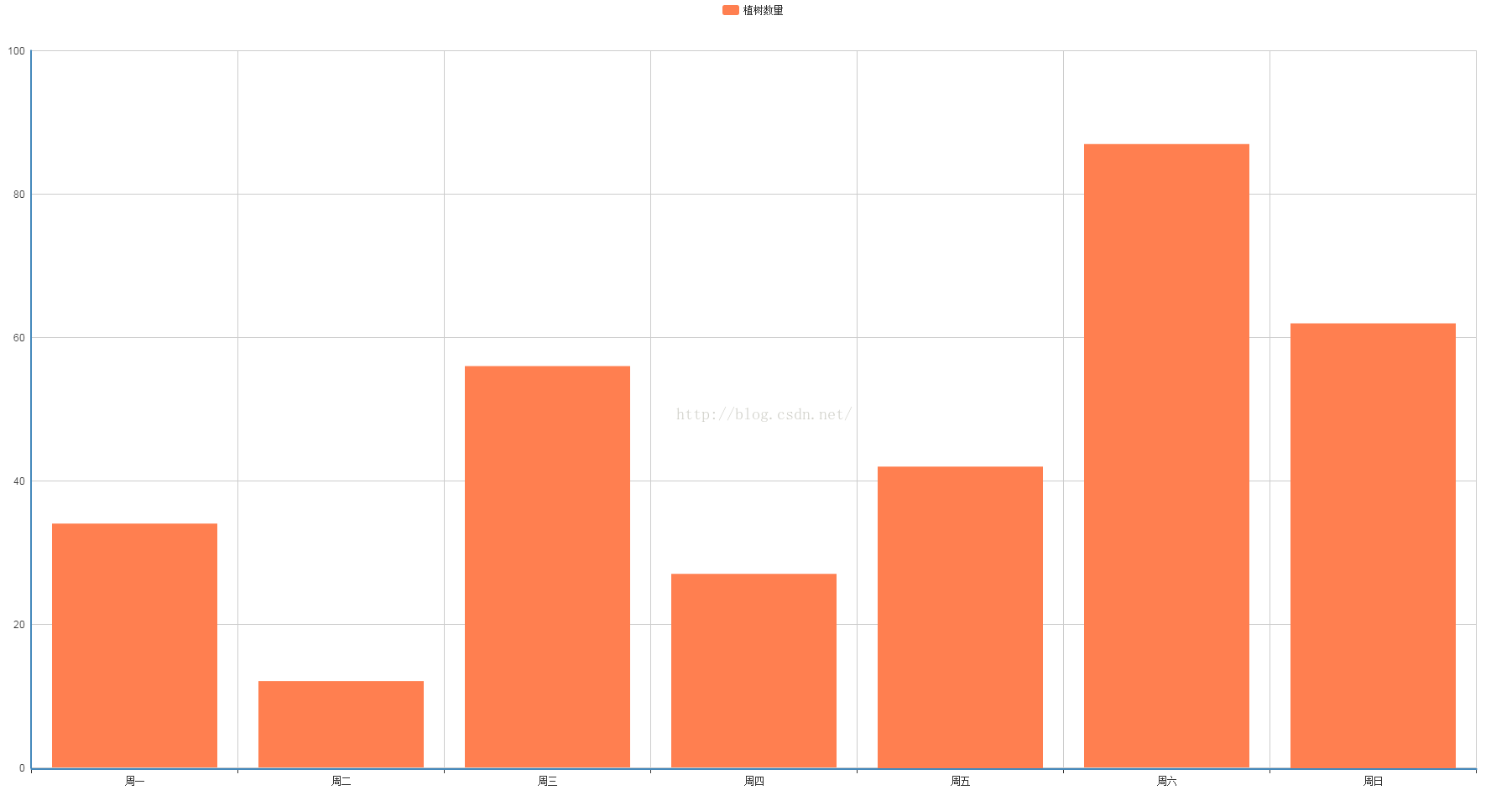

（2） X轴不从零刻度开始

<!DOCTYPE html><html> <head>  <meta charset="UTF-8">  <title>echarts-X轴不从0刻度开始</title>  <link rel="shortcut icon" href="../js/echarts-2.2.7/doc/asset/ico/favicon.png">  <script type="text/javascript" src="../js/echarts-2.2.7/doc/asset/js/jquery.min.js" ></script>  <script type="text/javascript" src="../js/echarts-2.2.7/doc/example/www2/js/echarts-all.js" ></script>  <style>   body,html{    width: 99%;    height: 99%;    font-family: "微软雅黑";    font-size: 12px;   }   #bar{    width: 100%;    height: 100%;   }  </style>  <script>   $(function(){    var chart = document.getElementById('bar');                  var echart = echarts.init(chart);                                 var option = {        title: {            text: ''        },        tooltip: {            trigger: 'axis'        },        legend: {            data:['植树数量']        },        grid: {            left: '3%',            right: '4%',            bottom: '3%',            containLabel: true        },        toolbox: {            feature: {                saveAsImage: {}            }        },        xAxis: {            type: 'category',            boundaryGap: true,            data: ['周一','周二','周三','周四','周五','周六','周日']        },        yAxis: {            type: 'value'        },        series: [            {                name:'植树数量',                type:'bar',                stack: '植树数量',                data:[34, 12, 56, 27, 42, 87, 62]            }        ]    };                                  echart.setOption(option);     });  </script> </head> <body>  <div id="bar"></div> </body></html>
