1 DataSets

1.1 XCAD angiography coronary artery disease

数量 126张，84 training 42 test
分辨率： 512*512

1.2 DRIVE retinal vessel seg429 mentation dataset

数量： 40张 20training 20 test
分辨率： 565*584

1.3 PV Portal vein vessel dataset

属性： in-house
数量： 32张 24training 8test
分辨率： 352**352~448*448

1.4 DSA digital subtraction angiography cerebrovas cular vessel

属性： in-house
数量： 20张
分辨率： 512*512

2 Data Aaugment

水平翻转
随机亮度和对比度范围从 1.0 到 2.1
随机饱和度范围从 0.5 到 1.5
并以 90°、180° 和 270° 随机旋转
然后裁剪为 256×256 像素进行训练

3 Initialization

Optimizer： Adam
lr_Schedule: lr=0.001, Decay=0.0005
Batch_Size： 2
Epoch: 2000

4 Comparison

4.1 Comparison Range

Datasets: XCAD, DRIVE and PV.
Pixel-level: CS2Net
Topology-level: TopoNet
hybrid-level: JTFN
affinity field feature learning: AAF

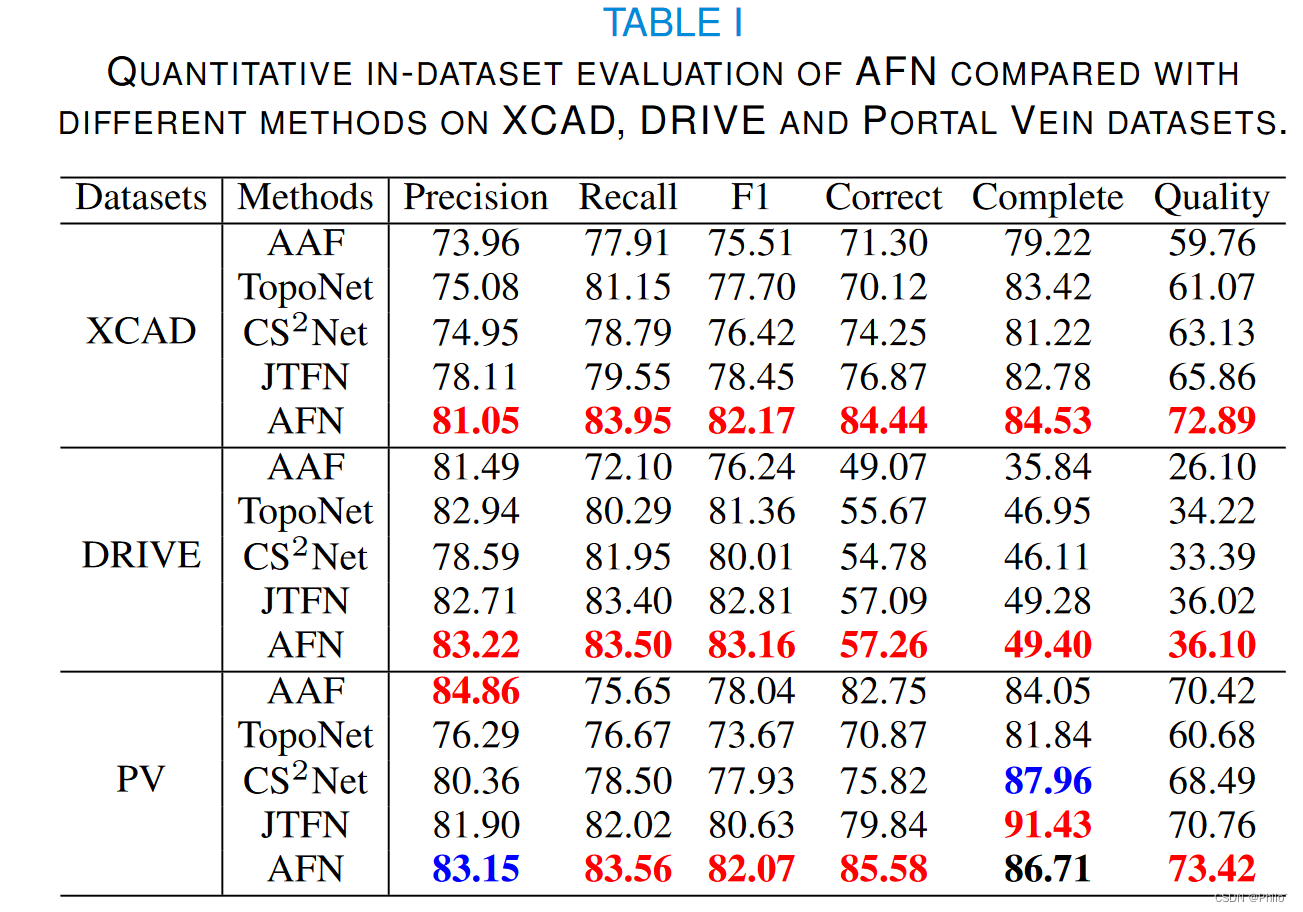

4.2 Comparison Results

在这里插入图片描述

5 Ablation Study

在这里插入图片描述

6 Other Work

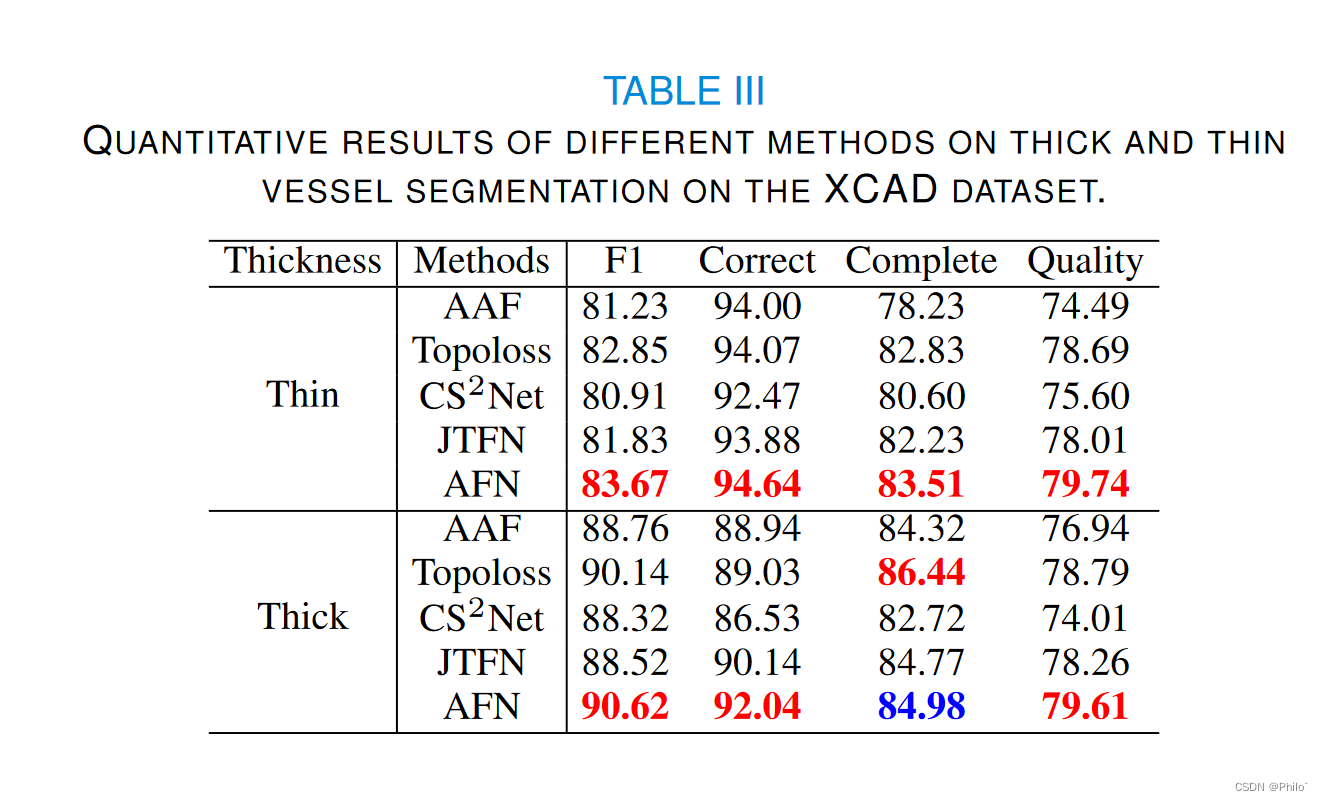

6.1 Evaluation of vessel segmentation with varying sizes

each thin vessel is assigned with a 5_piexl searching
but each thick use 10-piexl to search
results:
在这里插入图片描述

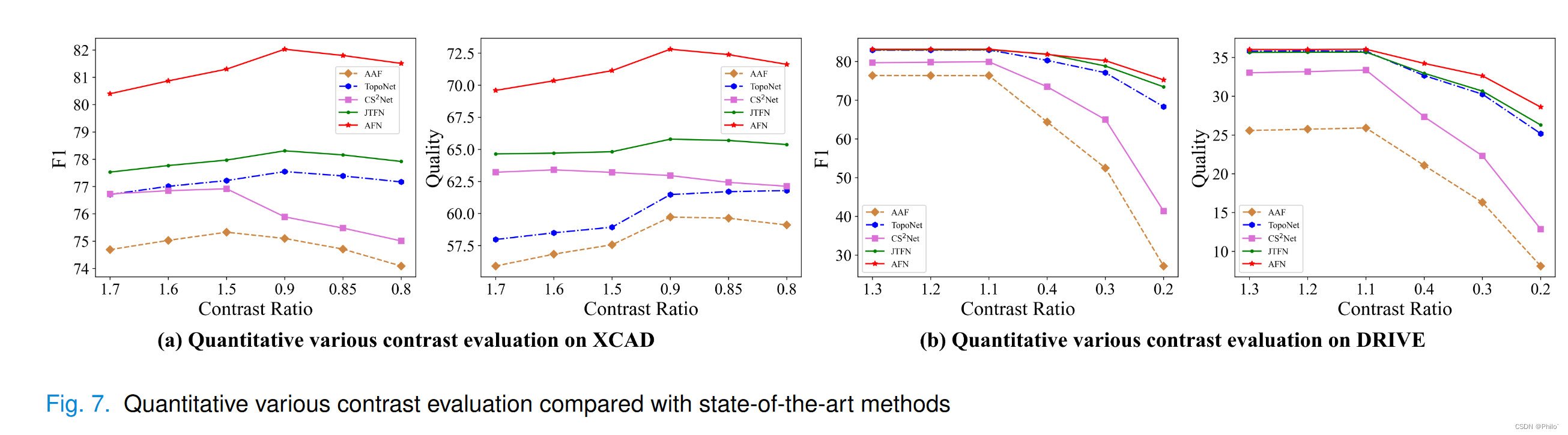

6.2 Robustness to contrast changes

For XCADratio is range [1.7,1.6,1.5,0.9,0.85,0.8], and for DRIVE is range [1.3,1.2,1.1,0.4,0.3,0.2], and the result as follew
Results:
在这里插入图片描述
Reasons:

Though image contrast can change across different sit584 uations, the semantic and geometric structure relationships 585 among pixels should be consistent and this information in 586 turn makes AFN more robust against absolute pixel intensity 587 change.

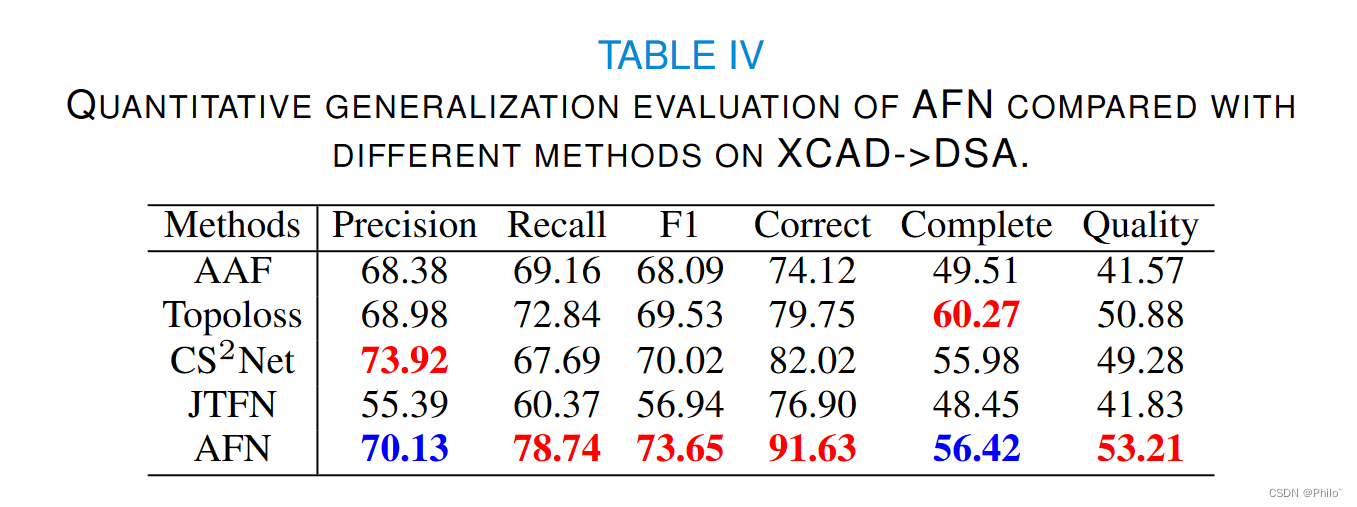

6.3 Evaluation of generalizability

Way：

Apply the models trained on XCAD to the DSA dataset for testing

Results:
在这里插入图片描述

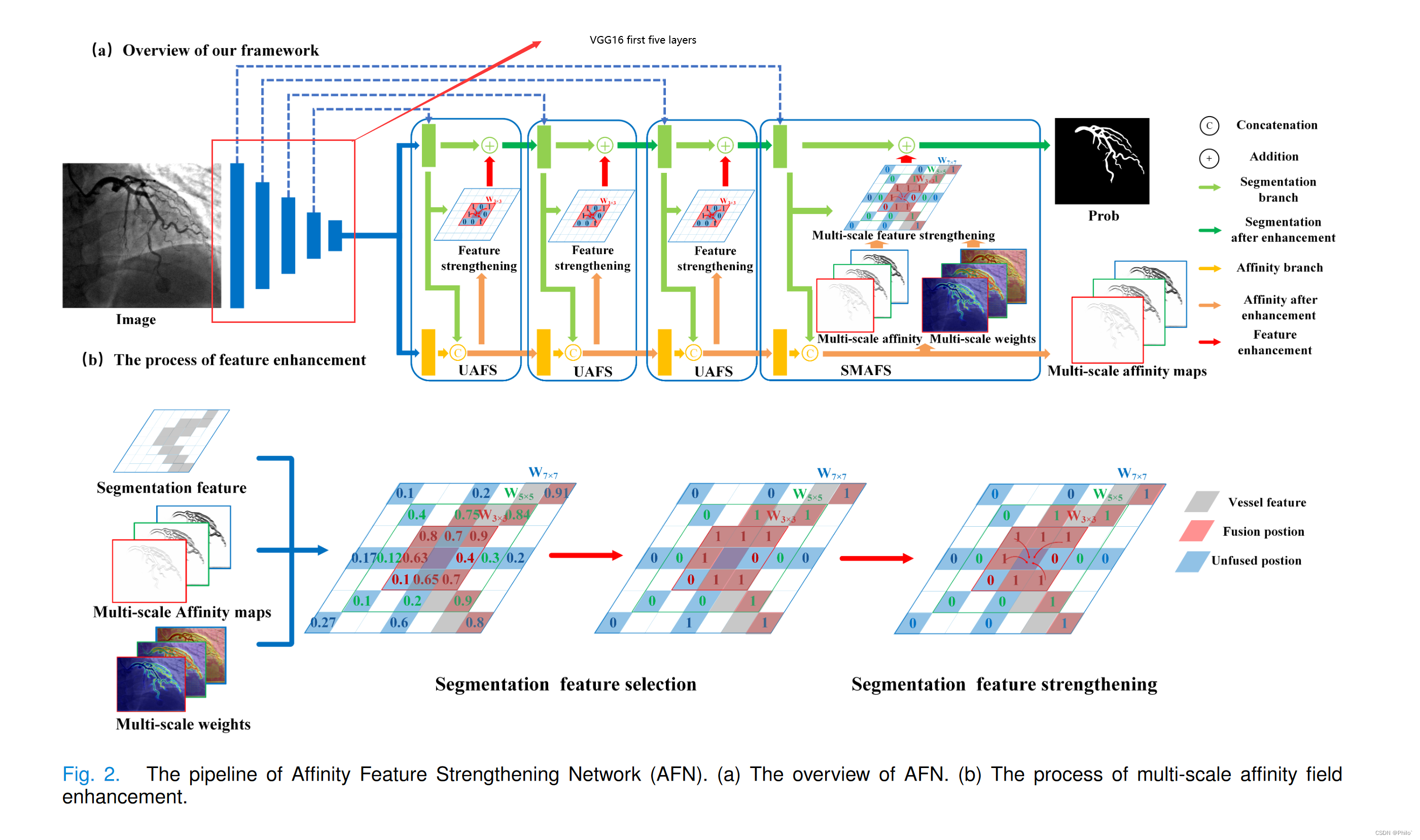

7 Conclusion

The cores of our AFN are one SMAFS and three UAFS modules which utilize affinity fields to encode semantic relationships as the topology constraint for the segmentation feature enhancement

Core Ways

affinity feature strengthening network(AFN)

SMAFS_one

supervised multi-scale affinity feature strengthening
which use 3*3、 5** 5、9 * 9 pixels to caputer different information.
it is used to combine the last result

UAFS_three

unsupervised affinity feature strengthening
it is deployed to predict affinity relationships aamong pixels in different layers for feature enhancement, each VGG16 layer correspond UAFS.
it only in the 3*3 scale to fuse the segmentation features
