AlexNet重点介绍和源码测试

1 网络背景

AlexNet 首次发表在 NIPS 2012，获得了 ILSVRC 2012 的冠军，开启了深度学习模型在图像分类中的应用历程，由Alex Krizhevsky, Ilya Sutskever, and Geoffrey E. Hinton三人提出，因此网络名称为AlexNet，论文阅读地址：ImageNet Classification with Deep Convolutional Neural Networks

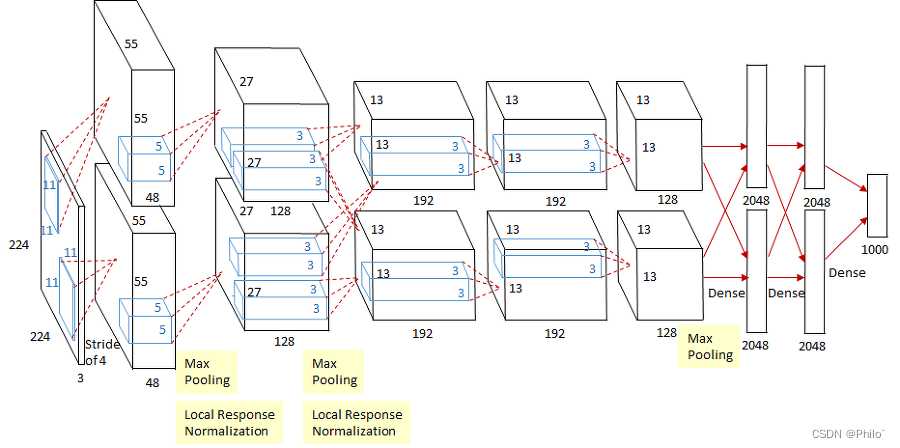

2 网络结构

这里注意一下，原文给出的输入尺寸是224*224，但是使用它的卷积参数，想要达到下一层是55*55的尺寸，需要向上取整，所以，复现代码用的227的尺寸，实现起来更加方便

1. 分为上下两个，是因为原始AlexNet是多GPU训练，将不同的训练内容放在不同的GPU上。
2. 网络层包含8层权重，前五层是卷积操作，后三层是全连接操作，最后一个全连接操作使用softmax函数进行标签确定。

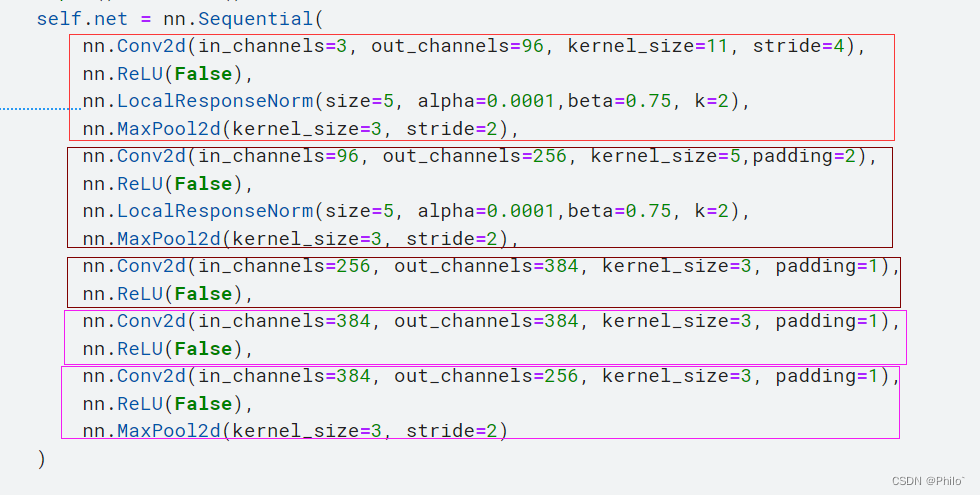

3. 参数设置见下图：

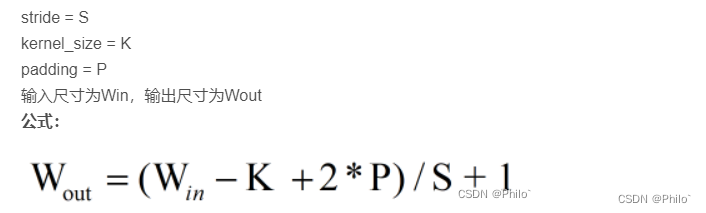

结合网络结构图和代码一起看，在前两个网络层中，通过in_out_channels控制输入输出通道，同时因为kernel_size和strid的原因，会导致图像尺寸变化，后三个卷积层，因为运算关系，没有改变图像尺寸，计算公式如下：Conv2d和MaxPool2d输入输出尺寸计算

3 网络基础设置

1. 使用ReLu激活函数替代以往的f(x) = tanh(x) or f(x) =Sigmoid(x)
2. 在ReLU激活函数后，再一次使用LRN防止过拟合，参考文献有：文章1 文章2
3. 数据增强：图像平移，水平反射、调整图像中RGB通道强度进行PCA(主成分分析)
4. 使用Dropout加快训练速度和减少过拟合。
5. 使用动态衰减权重，即随着训练次数的增加，不断缩小权重变化幅度，提升训练精度和速度

4 代码分享

1. 平台使用的Kaggle，使用GPU进行加速
2. 数据集使用的是medical-mnist，是Kaggle开放的数据集，包含6个分类，训练图片47163张，测试图片11791张
3. 基本保留了AlexNet的网络结构和基础设置，改变了数据集以及没有使用分布式训练的方法

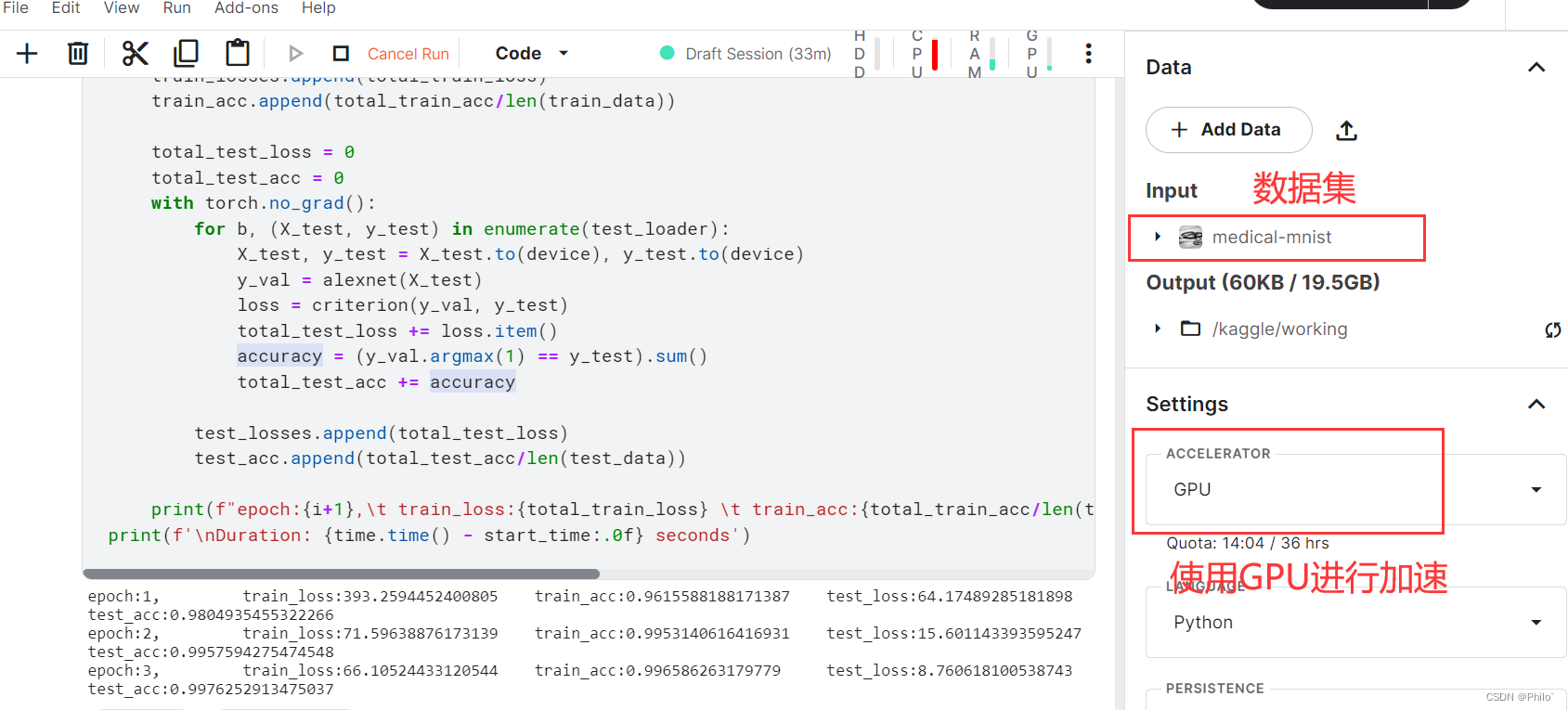

部分截图：

源码使用：
第一步：在Kaggle平台上搜索medical mnist，找到并new Notebook
第二步：打开GPU加速
第三步：复制以下代码，跑起来吧！

import torch
import torch.nn as nn
import torch.nn.functional as F
from torch.utils.data import DataLoader
from torchvision import datasets, transforms, models

from torchvision.utils import make_grid

from sklearn.model_selection import train_test_split
from sklearn.metrics import classification_report

import os
import random
import cv2
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

import warnings
warnings.filterwarnings("ignore")

train_transforms = transforms.Compose([
    transforms.RandomRotation(10),    #  Rotation (-10,109)
    transforms.RandomHorizontalFlip(),   # HorizontalFlip by 0.5 ratio
    transforms.Resize(227),
    transforms.CenterCrop(227),
    transforms.ToTensor(),
    transforms.Normalize([0.485,0.456,0.406],   # Three channesl by data-mean/std    (mean, std)
                        [0.229,0.224,0.225])
])


dataset = datasets.ImageFolder(root="../input/medical-mnist", transform=train_transforms)

train_indices, test_indices = train_test_split(list(range(len(dataset.targets))), test_size=0.2, stratify=dataset.target_transform)
train_data = torch.utils.data.Subset(dataset, train_indices)
test_data = torch.utils.data.Subset(dataset, test_indices)
print(len(train_data), len(test_data))

train_loader = DataLoader(train_data, batch_size=12, shuffle=True)
test_loader = DataLoader(test_data, batch_size=12)
print(len(test_loader), len(train_loader))


# AlexNet
class AlexNet(nn.Module):
    "Neural network model "

    def __init__(self, num_classes):
        super().__init__()
        self.net = nn.Sequential(
            nn.Conv2d(in_channels=3, out_channels=96, kernel_size=11, stride=4), # (b x 96 x 55 x 55)
            nn.ReLU(False),
            nn.LocalResponseNorm(size=5, alpha=0.0001,beta=0.75, k=2),
            nn.MaxPool2d(kernel_size=3, stride=2),   # (b x 96 x 27 x 27)
            nn.Conv2d(in_channels=96, out_channels=256, kernel_size=5,padding=2),  # (b x 256 x 27 x 27)
            nn.ReLU(False),
            nn.LocalResponseNorm(size=5, alpha=0.0001,beta=0.75, k=2),
            nn.MaxPool2d(kernel_size=3, stride=2),    # (b x 256 x 13 x 13)
            nn.Conv2d(in_channels=256, out_channels=384, kernel_size=3, padding=1),  # (b x 384 x 13 x 13)
            nn.ReLU(False),
            nn.Conv2d(in_channels=384, out_channels=384, kernel_size=3, padding=1),  # (b x 384 x 13 x 13)
            nn.ReLU(False),
            nn.Conv2d(in_channels=384, out_channels=256, kernel_size=3, padding=1),  # (b x 256 x 13 x 13)
            nn.ReLU(False),
            nn.MaxPool2d(kernel_size=3, stride=2)  # (b x 256 x 6 x 6)
        )

        # this is last outLayer
        self.classifier = nn.Sequential(
            nn.Dropout(p=0.5, inplace=False),
            nn.Linear(in_features=(256*6*6), out_features=4096),
            nn.ReLU(False),
            nn.Dropout(p=0.5, inplace=False),
            nn.Linear(in_features=4096, out_features=4096),
            nn.ReLU(False),
            nn.Linear(in_features=4096, out_features=num_classes)
        )
        self.init_bias()   # initialize bias

    def init_bias(self):
        for layer in self.net:
            if  isinstance(layer, nn.Conv2d):
                nn.init.normal_(layer.weight, mean=0, std=0.01)
                nn.init.constant_(layer.bias, 0)
             # original paper = 1 for Conv2d layers 2nd, 4th, and 5th conv layers
        nn.init.constant_(self.net[4].bias, 1)
        nn.init.constant_(self.net[10].bias, 1)
        nn.init.constant_(self.net[12].bias, 1)

    def forward(self,x):
        x = self.net(x)
#         print(x.shape)
        x = x.view(-1, 256*6*6) # reduce the dimensions for linear layer input
        return self.classifier(x)


# count model parameters
def count_parameters(model):
    params = [p.numel() for p in model.parameters() if p.requires_grad]
    for item in params:
        print(f'{item:>8}')
    print(f'________\n{sum(params):>8}')

count_parameters(AlexNet(6))

device = torch.device("cuda" if torch.cuda.is_available() else 'cpu')

alexnet = AlexNet(num_classes=6).to(device)

optimizer = torch.optim.Adam(alexnet.parameters(), lr=0.0001)

criterion = nn.CrossEntropyLoss().to(device)

lr_scheduler = torch.optim.lr_scheduler.StepLR(optimizer, step_size=30, gamma=0.1)



import time
start_time = time.time()
train_losses = []
test_losses = []
train_acc = []
test_acc = []
epoch = 90
for i in range(epoch):
    total_train_loss = 0
    total_train_acc = 0
    for b,(X_train, y_train) in enumerate(train_loader):
        X_train, y_train  = X_train.to(device), y_train.to(device)

        y_pred= alexnet(X_train)
        loss = criterion(y_pred, y_train)
        total_train_loss += loss.item()

        accuracy = (y_pred.argmax(1) == y_train).sum()
        total_train_acc += accuracy

        optimizer.zero_grad()
        loss.backward()
        optimizer.step()


    train_losses.append(total_train_loss)
    train_acc.append(total_train_acc/len(train_data))

    total_test_loss = 0
    total_test_acc = 0
    with torch.no_grad():
        for b, (X_test, y_test) in enumerate(test_loader):
            X_test, y_test = X_test.to(device), y_test.to(device)
            y_val = alexnet(X_test)
            loss = criterion(y_val, y_test)
            total_test_loss += loss.item()
            accuracy = (y_val.argmax(1) == y_test).sum()
            total_test_acc += accuracy

        test_losses.append(total_test_loss)
        test_acc.append(total_test_acc/len(test_data))

    print(f"epoch:{i+1},\t train_loss:{total_train_loss} \t train_acc:{total_train_acc/len(train_data)} \t test_loss:{total_test_loss} \t test_acc:{total_test_acc/len(test_data)}")
print(f'\nDuration: {time.time() - start_time:.0f} seconds')

1. 按块复制运行，有助于辅助理解
2. 总的参数个数约为58305926个，和原文给出的基本类似
3. 个人认为这里使用ImageFolder、train_test_split、torch.utils.data.Subset进行数据加载也非常重要，可以稍微注意一下

最后贴一下源代码链接，可以参考学习一下：AlexNet代码_清晰易懂
我还预测了你们会报错的地方，就是RuntimeError: one of the variables needed for gradient computation has been modified by an inplace operation: [torch.cuda.FloatTensor [128, 4096]].......
修改方法：将源码中出现的ReLU和Dropout参数中的True改为False
