基于STM32与红外感应开关的自动门设计与实现（结构+设计）

基于STM32与红外感应开关的自动门设计与实现

采用STM32作为主控，设计了自动和手动开门装置，MLX90614作为设计测温装置。

前言说明

元器件清单说明

1. STM32F103C8T6系统板
2. 微型滑台，步进电机
3. TMC2208步进电机驱动器
4. 红外接近开关
5. MLX90614测温模块
6. 四线0.96寸OLED屏幕
7. 按键
8. 限位触碰开关

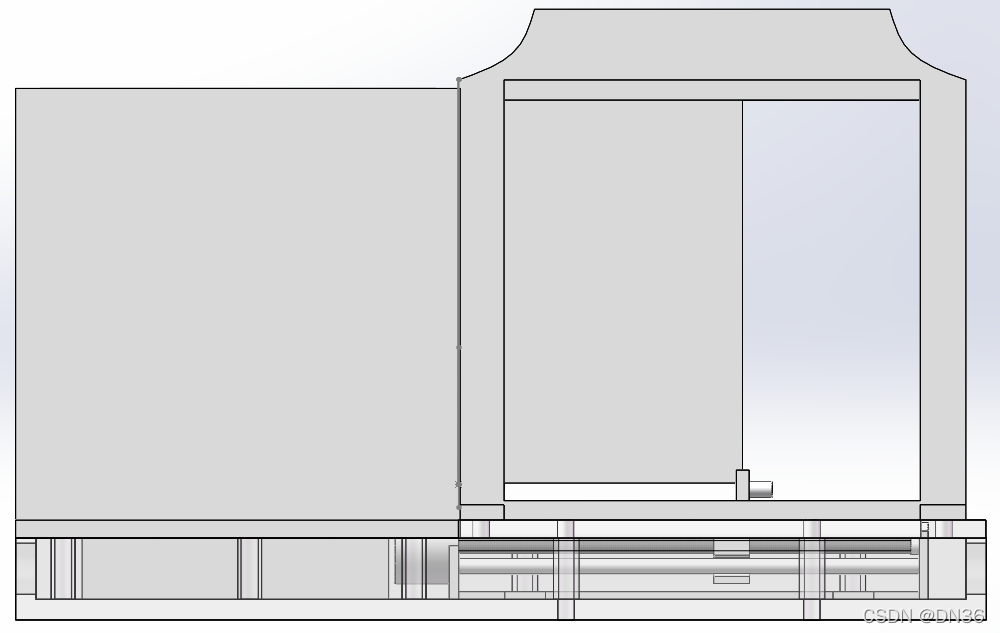

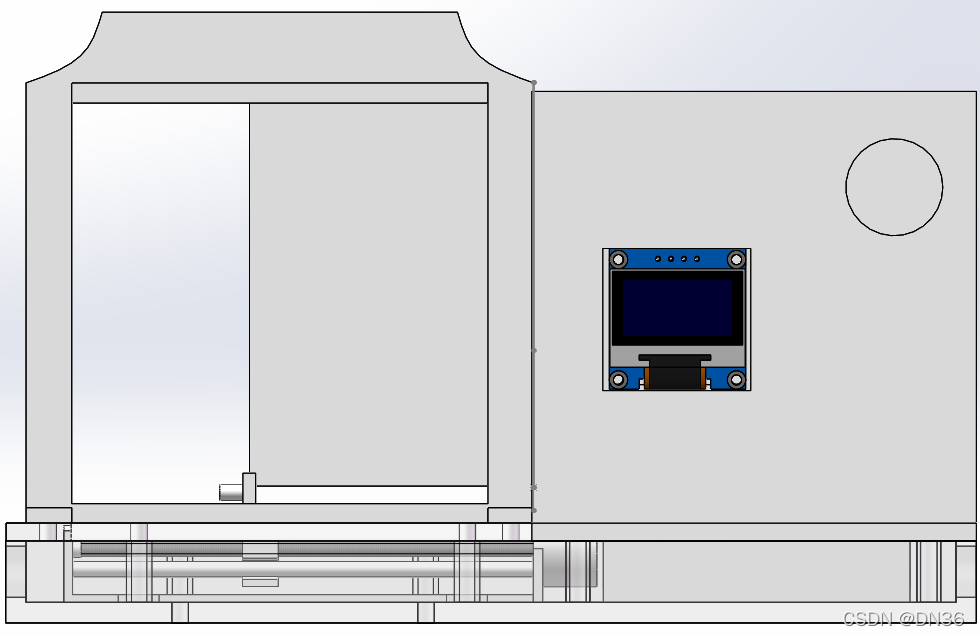

Soildworks模型绘制

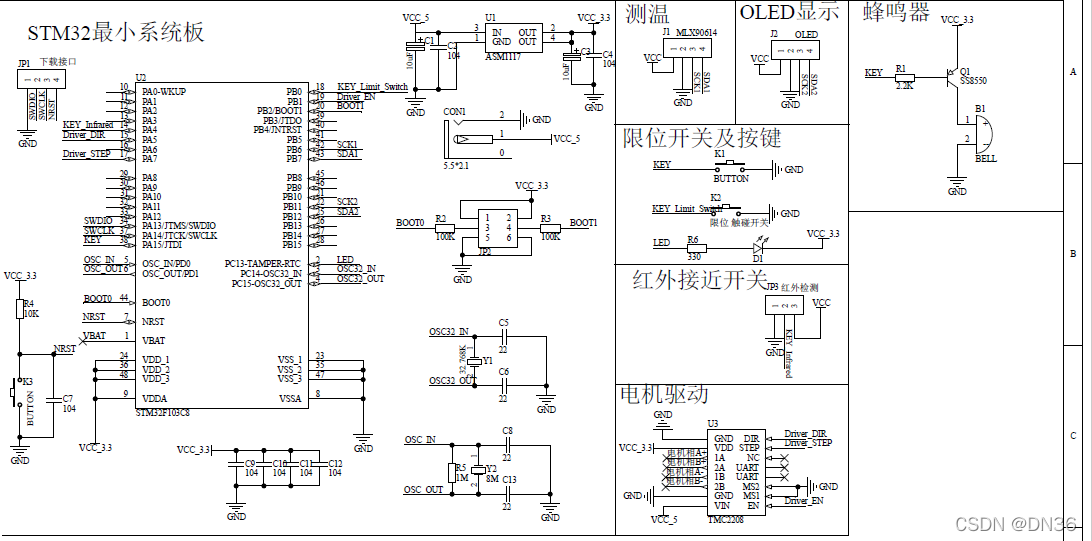

原理图绘制

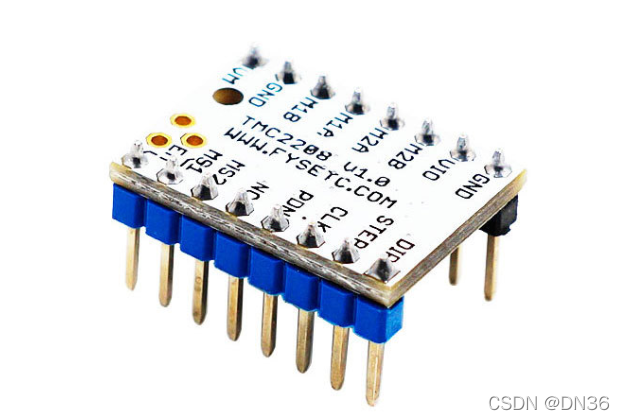

TMC2208驱动介绍

TMC2208是一款超静音的两相步进电机驱动芯片，持续驱动电流1.4A，峰值电流2A，电压范围4.75V-36V，256细分；灵活的microPlyer插值单元，可提供高达256的细分，即使是在脉冲频率有限的系统中仍可完美地实现正弦控制；由于stealthChop2超静音技术在3D打印中被广泛应用，因此这些组件的设计也与现有3D打印机电子设备兼容，省去了重新设计所产生的昂贵费用。具有标准的step/dir接口，使用起来简单方便。可以替代原有的TMC2100，更低的发热量，特别适合3D打印市场。关键引脚说明

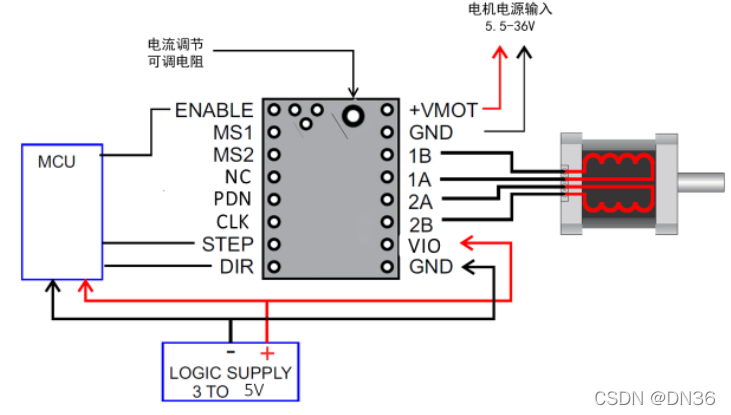

引脚	说明
GND	地
VM	我给的是5V1A
VIN	逻辑电平输入3-5V
1A	相A+
2A	相B+
1B	相A-
2B	相B-
DIR	方向输入
EN	使能，低电平有效
STEP	输入脉冲数
MS1	细分
MS2	细分

步进电机介绍

采用SM15-80L微型滑台作为门的载体，该滑台属于步进电机控制直接给高低电平是驱动不了的。

关键代码

下面展示一些 内联代码片。

void EXTI0_IRQHandler(void)
{
    delay_ms(10);    //消抖
	if(KEY_Limit_Switch==0)
	{
		Limit_Switch_Finish=0;
	}
	EXTI_ClearITPendingBit(EXTI_Line0);     //清除EXTI0线路挂起位
}

 void EXTI4_IRQHandler(void)
{
	delay_ms(10);   //消抖
	u8 i,j;

	float Temperature = 0;                          //温度数据变量（浮点型）
	char TempValue[80] = {0};                       //温度值（字符串）
	if(KEY_Infrared==0&&Opening==0)
	{
		Opening=1;
		Door_Open_Flag = 1;
		Locate_Rle3(5000,CCW,24000);     //CCW往电机
		Temperature = SMBus_ReadTemp();
		sprintf(TempValue,"%.1f", Temperature); //浮点型转换成字符串
		//温度单位显示 （℃）
		for(i = 6;i < 7;i++)
		{
			j = i - 6;
			OLED_ShowCHinese16x16(i*16,4,j,TempCompany);
		}
		OLED_ShowString(40,4,(uint8_t *)TempValue,16);//在在OLED上显示实际测量的温度
	}
	else if(KEY_Infrared==0&&Opened==1)
	{
		Door_Opened_Flag = 1;
	}

 	 EXTI_ClearITPendingBit(EXTI_Line4);    //清除LINE5上的中断标志位
}

void EXTI15_10_IRQHandler(void)
{
    delay_ms(10);    //消抖
	u8 i,j;
	float Temperature = 0;                          //温度数据变量（浮点型）
	char TempValue[80] = {0};                       //温度值（字符串）
    if(KEY==0&&Opening==0)
	{
		Opening=1;
		Door_Open_Flag = 1;
		Locate_Rle3(5000,CCW,24000);     //CCW往电机
		Temperature = SMBus_ReadTemp();
		sprintf(TempValue,"%.1f", Temperature); //浮点型转换成字符串
		//温度单位显示 （℃）
		for(i = 6;i < 7;i++)
		{
			j = i - 6;
			OLED_ShowCHinese16x16(i*16,4,j,TempCompany);
		}
		OLED_ShowString(40,4,(uint8_t *)TempValue,16);//在在OLED上显示实际测量的温度
	}
	else if(KEY==0&&Opened==1)
	{
		Door_Opened_Flag = 1;
	}
	 EXTI_ClearITPendingBit(EXTI_Line15);  //清除LINE15线路挂起位
}

程序主要是通过外部引起中断执行的，一共用了三个中断，分别对应着手动开门，红外感应开门以及限位开关三个部分。

驱动代码块

#include "driver.h"
#include "delay.h"
#include "usart.h"
#include "led.h"
#include "key.h"

long current_pos[2]={0,0}; //有符号方向
u16 Motor_Step;
DIR_Type motor_dir3=CW;
u16 count[3]={0,0,0};
extern u8 Door_Open_Flag;
extern u8 Limit_Switch_Finish;
u8 Time_Flag=0;
u8 Limit_Switch_Flag=0;
u8 Flag=0;
extern u8 Opening;
u8 Opened=0;
/************** 驱动器控制信号线初始化 ****************/
void Driver_Init(void)
{
	GPIO_InitTypeDef  GPIO_InitStructure;

	RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA|RCC_APB2Periph_GPIOB, ENABLE);	//使能PA端口时钟

	GPIO_InitStructure.GPIO_Pin = GPIO_Pin_5;	            //PC0.2 端口配置
	GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP; 		//推挽输出
	GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;		//IO口速度为50MHz
	GPIO_Init(GPIOA, &GPIO_InitStructure);					//根据设定参数初始化GPIOA
	GPIO_SetBits(GPIOA,GPIO_Pin_5);						 	//PA8输出高 顺时针方向  DRIVER_DIR

	GPIO_InitStructure.GPIO_Pin = GPIO_Pin_1;
	GPIO_Init(GPIOB, &GPIO_InitStructure);
	GPIO_ResetBits(GPIOB,GPIO_Pin_1);						//PA11输出低 使能输出  DRIVER_OE

	Limit_Switch_Flag=1;
	Locate_Limit(5000,CCW);
	while(Flag==0);
	Flag=0;
	Locate_Limit(5000,CW);
}

void TIM3_Init(u16 arr,u16 psc)
{
	GPIO_InitTypeDef GPIO_InitStructure;
	TIM_TimeBaseInitTypeDef  TIM_TimeBaseStructure;
	TIM_OCInitTypeDef  TIM_OCInitStructure;
	NVIC_InitTypeDef NVIC_InitStructure;

	RCC_APB1PeriphClockCmd(RCC_APB1Periph_TIM3, ENABLE);
 	RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA , ENABLE);


	GPIO_InitStructure.GPIO_Pin = GPIO_Pin_7;
	GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_PP;
	GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
	GPIO_Init(GPIOA, &GPIO_InitStructure);

	TIM_TimeBaseStructInit(&TIM_TimeBaseStructure);

	TIM_TimeBaseStructure.TIM_Period = arr;
	TIM_TimeBaseStructure.TIM_Prescaler =psc;
	TIM_TimeBaseStructure.TIM_ClockDivision = 0;
	TIM_TimeBaseStructure.TIM_CounterMode = TIM_CounterMode_Up;
	TIM_TimeBaseInit(TIM3, &TIM_TimeBaseStructure);
	TIM_ClearITPendingBit(TIM3,TIM_IT_Update);

	TIM_UpdateRequestConfig(TIM3,TIM_UpdateSource_Regular);
	TIM_SelectOnePulseMode(TIM3,TIM_OPMode_Single);

	TIM_OCInitStructure.TIM_OCMode = TIM_OCMode_PWM2;
	TIM_OCInitStructure.TIM_OutputState = TIM_OutputState_Enable;
	TIM_OCInitStructure.TIM_Pulse = arr>>1;
	TIM_OCInitStructure.TIM_OCPolarity = TIM_OCPolarity_High;
	TIM_OC2Init(TIM3, &TIM_OCInitStructure);

	TIM_OC2PreloadConfig(TIM3, TIM_OCPreload_Enable);
	TIM_ARRPreloadConfig(TIM3, ENABLE);

	TIM_ITConfig(TIM3, TIM_IT_Update ,ENABLE);

	NVIC_InitStructure.NVIC_IRQChannel = TIM3_IRQn;
	NVIC_InitStructure.NVIC_IRQChannelPreemptionPriority = 2;
	NVIC_InitStructure.NVIC_IRQChannelSubPriority = 3;
	NVIC_InitStructure.NVIC_IRQChannelCmd = ENABLE;
	NVIC_Init(&NVIC_InitStructure);

	TIM_ClearITPendingBit(TIM3, TIM_IT_Update);
	TIM_Cmd(TIM3, DISABLE);
}

void TIM3_IRQHandler(void)
{
	if(TIM_GetITStatus(TIM3,TIM_FLAG_Update)!=RESET)
	{
		TIM_ClearITPendingBit(TIM3,TIM_FLAG_Update);	   //清除中断
		if(motor_dir3==CW)     //关门
		{
			TIM_GenerateEvent(TIM3,TIM_EventSource_Update);
			TIM_Cmd(TIM3, ENABLE);
			if(Limit_Switch_Finish==0)
			{
				Limit_Switch_Finish=1;
				Opening = 0;
				TIM_Cmd(TIM3, DISABLE);
			}
		}
		else
		{
			if(Limit_Switch_Flag==1)                           //开始限位
		    {
				count[0]++;
				TIM_GenerateEvent(TIM3,TIM_EventSource_Update);
				TIM_Cmd(TIM3, ENABLE);
				if(count[0]==1000)
				{
					count[0]=0;
					Flag=1;
					TIM_Cmd(TIM3, DISABLE);
					LED0=0;
					Limit_Switch_Flag=0;
				}
			}
			else
			{
				count[1]++;
				TIM_GenerateEvent(TIM3,TIM_EventSource_Update);
				TIM_Cmd(TIM3, ENABLE);
				if(count[1]==Motor_Step)     //24000
				{
					Opened = 1;
					count[1]=0;
					TIM_Cmd(TIM3, DISABLE);
					if(Door_Open_Flag==1)
					{
						Time_Flag=1;
					}
				}
			}
		}
	}
}

void TIM3_Startup(u32 frequency)
{
	u16 temp_arr=1000000/frequency-1;
	TIM_SetAutoreload(TIM3,temp_arr);
	TIM_SetCompare2(TIM3,temp_arr>>1);
	TIM_SetCounter(TIM3,0);
	TIM_Cmd(TIM3, ENABLE);
}
/********************************************
//相对定位函数
//num 0～2147483647
//frequency: 20Hz~100KHz
//dir: CW(顺时针方向)  CCW(逆时针方向)
*********************************************/
void Locate_Rle3(u32 frequency,DIR_Type dir,u16 step) //相对定位函数
{

	if(TIM3->CR1&0x01)
	{
//		printf("\r\nThe last time pulses is not send finished,wait please!\r\n");
		return;
	}
	if((frequency<20)||(frequency>100000))
	{
//		printf("\r\nThe frequency is out of range! please reset it!!(range:20Hz~100KHz)\r\n");
		return;
	}
	motor_dir3=dir;
	DRIVER_DIR3=motor_dir3;
	Motor_Step = step;
	TIM3_Startup(frequency);
	LED0=1;
}

void Locate_Limit(u32 frequency,DIR_Type dir) //相对定位函数
{

	if(TIM3->CR1&0x01)
	{
//		printf("\r\nThe last time pulses is not send finished,wait please!\r\n");
		return;
	}
	if((frequency<20)||(frequency>100000))
	{
//		printf("\r\nThe frequency is out of range! please reset it!!(range:20Hz~100KHz)\r\n");
		return;
	}
	motor_dir3=dir;
	DRIVER_DIR3=motor_dir3;
	TIM3_Startup(frequency);
}
