SpringSecurity入门使用

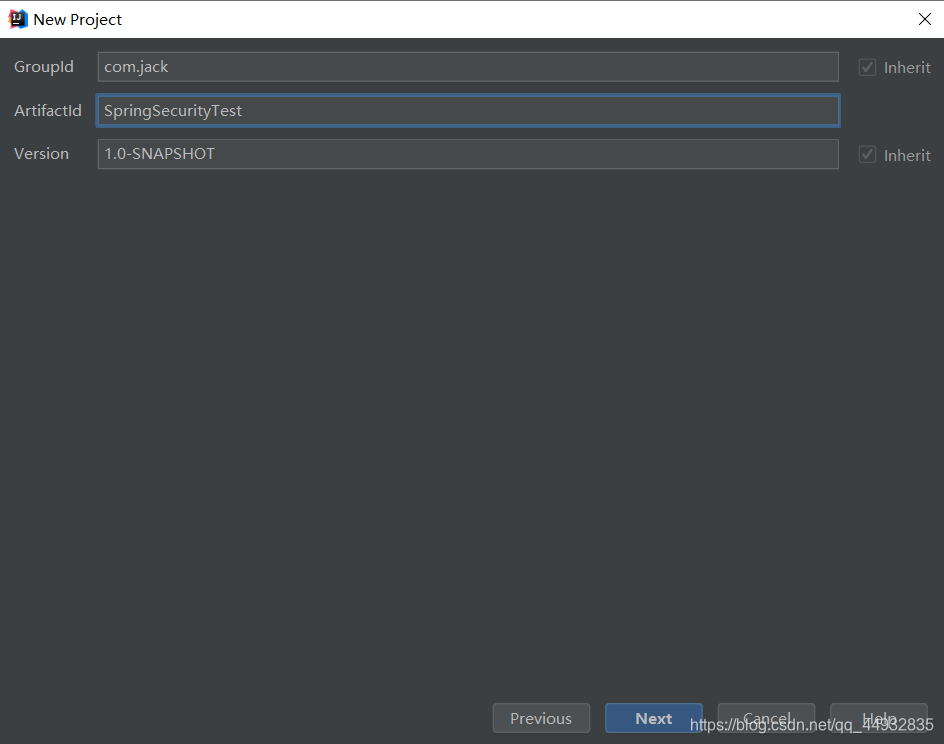

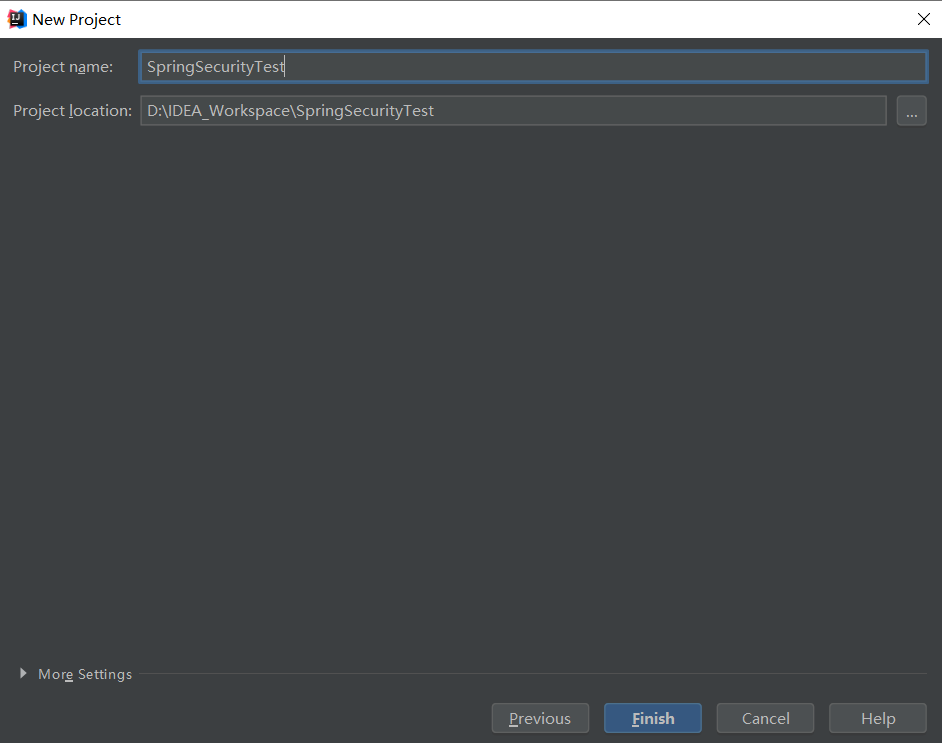

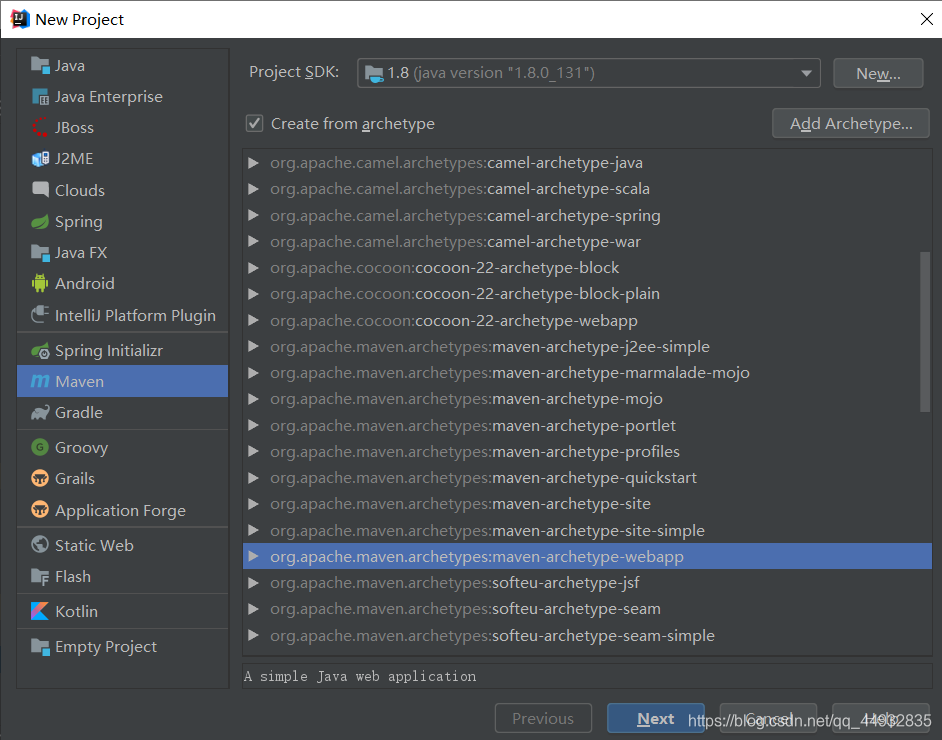

一.创建工程

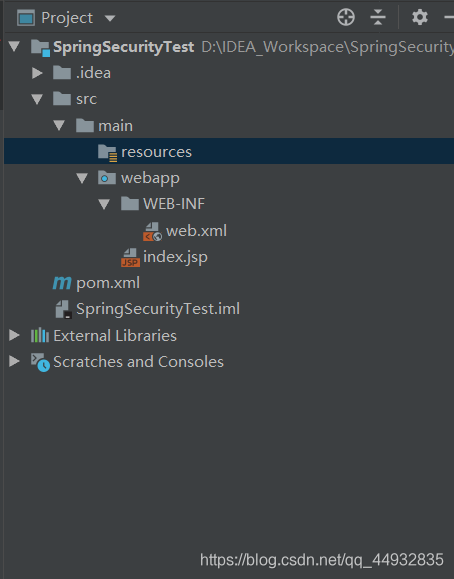

目录结构如下(下面resources目录没有,需要自己加上):
二.文件配置
1.在pom.xml
文件里面加上下面这段代码:
<properties>
<spring.version>5.0.2.RELEASE</spring.version>
<spring.security.version>5.0.1.RELEASE</spring.security.version>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-core</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-web</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context-support</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework.security</groupId>
<artifactId>spring-security-web</artifactId>
<version>${spring.security.version}</version>
</dependency>
<dependency>
<groupId>org.springframework.security</groupId>
<artifactId>spring-security-config</artifactId>
<version>${spring.security.version}</version>
</dependency>
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>javax.servlet-api</artifactId>
<version>3.1.0</version>
<scope>provided</scope>
</dependency>
</dependencies>
<build>
<plugins>
<!-- java编译插件 -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.2</version>
<configuration>
<source>1.8</source>
<target>1.8</target>
<encoding>UTF-8</encoding>
</configuration>
</plugin>
<plugin>
<groupId>org.apache.tomcat.maven</groupId>
<artifactId>tomcat7-maven-plugin</artifactId>
<configuration>
<!-- 指定端口 -->
<port>8090</port>
<!-- 请求路径 -->
<path>/</path>
</configuration>
</plugin>
</plugins>
</build>
</project>
pom.xml文件的内容都是比较死的,没什么逻辑可以讲解,这里大家直接copy就可以了。
2.web.xml文件内容:
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns="http://java.sun.com/xml/ns/javaee"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
version="2.5">
<display-name>SpringSecurity314</display-name>
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:spring-security.xml</param-value>
</context-param>
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<filter>
<!--内容不允许改变-->
<filter-name>springSecurityFilterChain</filter-name>
<filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class>
</filter>
<filter-mapping>
<filter-name>springSecurityFilterChain</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<welcome-file-list>
<welcome-file>index.html</welcome-file>
<welcome-file>index.htm</welcome-file>
<welcome-file>index.jsp</welcome-file>
<welcome-file>default.html</welcome-file>
<welcome-file>default.htm</welcome-file>
<welcome-file>default.jsp</welcome-file>
</welcome-file-list>
</web-app>
3.在resources目录下面的spring-security.xml
内容如下:
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:security="http://www.springframework.org/schema/security"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/security
http://www.springframework.org/schema/security/spring-security.xsd">
<security:http auto-config="true" use-expressions="false">
<!-- intercept-url定义一个过滤规则 pattern表示对哪些url进行权限控制,ccess属性表示在请求对应
的URL时需要什么权限,
默认配置时它应该是一个以逗号分隔的角色列表,请求的用户只需拥有其中的一个角色就能成功访问对应
的URL -->
<security:intercept-url pattern="/**" access="ROLE_USER" />
<!-- auto-config配置后,不需要在配置下面信息 <security:form-login /> 定义登录表单信息
<security:http-basic
/> <security:logout /> -->
</security:http>
<security:authentication-manager>
<security:authentication-provider>
<security:user-service>
<security:user name="user" password="{noop}user"
authorities="ROLE_USER" />
<security:user name="admin" password="{noop}admin"
authorities="ROLE_ADMIN" />
</security:user-service>
</security:authentication-provider>
</security:authentication-manager>
</beans>
我们从上面的注释可以知道
<security:intercept-url pattern="/**" access="ROLE_USER" />
/**将会拦截一切路径,如果访问者有ROLE_USER权限才可以通过
<security:user name="user" password="{noop}user" authorities="ROLE_USER"/>
这里是定义用户user,其密码是user前面的{noop}是一种固定的写法,ROLE_USER是权限
<security:http auto-config="true" use-expressions="false">
这一配置会帮我们默认生成login.html页面

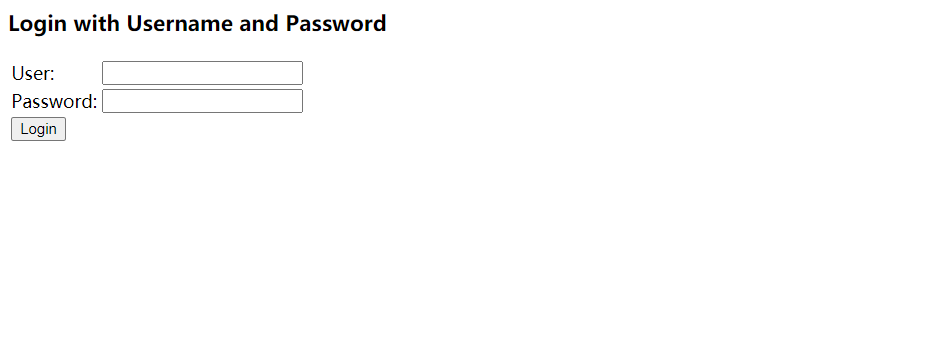

访问:http://localhost:8090/
(访问后网址会自动变为http://localhost:8090/login
)来到下面页面
三.使用自己的页面跳转
login.html
:
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
<form action="login" method="post">
<table>
<tr>
<td>用户名:</td>
<td><input type="text" name="username" /></td>
</tr>
<tr>
<td>密码:</td>
<td><input type="password" name="password" /></td>
</tr>
<tr>
<td colspan="2" align="center"><input type="submit" value="登录" />
<input type="reset" value="重置" /></td>
</tr>
</table>
</form>
</body>
</html>
failer.html
:
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>登录失败
</body>
</html>
success.html
:
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
success html<br>
<a href="logout">退出</a>
</body>
</html>
spring-security.xml文件内容如下
:
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:security="http://www.springframework.org/schema/security"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/security
http://www.springframework.org/schema/security/spring-security.xsd">
<!--配置不过滤的资源(静态资源及登录相关),即下面页面在访问时不受权限控制-->
<security:http security="none" pattern="/login.html" />
<security:http security="none" pattern="/failer.html" />
<security:http auto-config="true" use-expressions="false" >
<!-- 配置资料连接,表示任意路径都需要ROLE_USER权限 -->
<security:intercept-url pattern="/**" access="ROLE_USER" />
<!-- 自定义登陆页面,①login-page 自定义登陆页面;
②authentication-failure-url 如果数据库中没有这个用户或者用户存在但是密码错误则会跳转到这个页面。
③default-target-url 登陆成功后跳转的页面
④authentication-success-forward-url指登录成功后跳转的页面,其与default-target-url一样,不过它会覆盖default-target-url,这个页面在用户存在且密码正确时跳转,与用户权限无关(比如输入admin与admin也会成功跳转)
⑤username-parameter,password-parameter,login-processing-url的值都是固定的,必须按照下面这样写,这样写后,在我们自定义的login.html里面的表单的参数与这几个一一对应-->
<security:form-login login-page="/login.html"
login-processing-url="/login" username-parameter="username"
password-parameter="password" authentication-failure-url="/failer.html"
default-target-url="/success.html" authentication-success-forward-url="/success.html"/>
<!-- 关闭CSRF,默认是开启的 -->
<security:csrf disabled="true" />
</security:http>
<security:authentication-manager>
<security:authentication-provider>
<security:user-service>
<security:user name="user" password="{noop}user"
authorities="ROLE_USER" />
<security:user name="admin" password="{noop}admin"
authorities="ROLE_ADMIN" />
</security:user-service>
</security:authentication-provider>
</security:authentication-manager>
</beans>
接下来我们的入门项目就全部解决好了,演示就交给大家吧
