前言
前阵子实现了，Fast_planner无人机模型替换为Turtlebot3模型实现无地图的轨迹规划，最近尝试了几种方法是Turtlebot3小车跟踪规划出的轨迹，以实现在未知环境中也能实时避障的效果。
一、基于PID轨迹跟踪
本以为简简单单，仿照之前给epuck2小车写的PID跟踪算法微调了下，但发现Turtlebot3并不能很好的跟踪轨迹，经过一番查找原因如下。

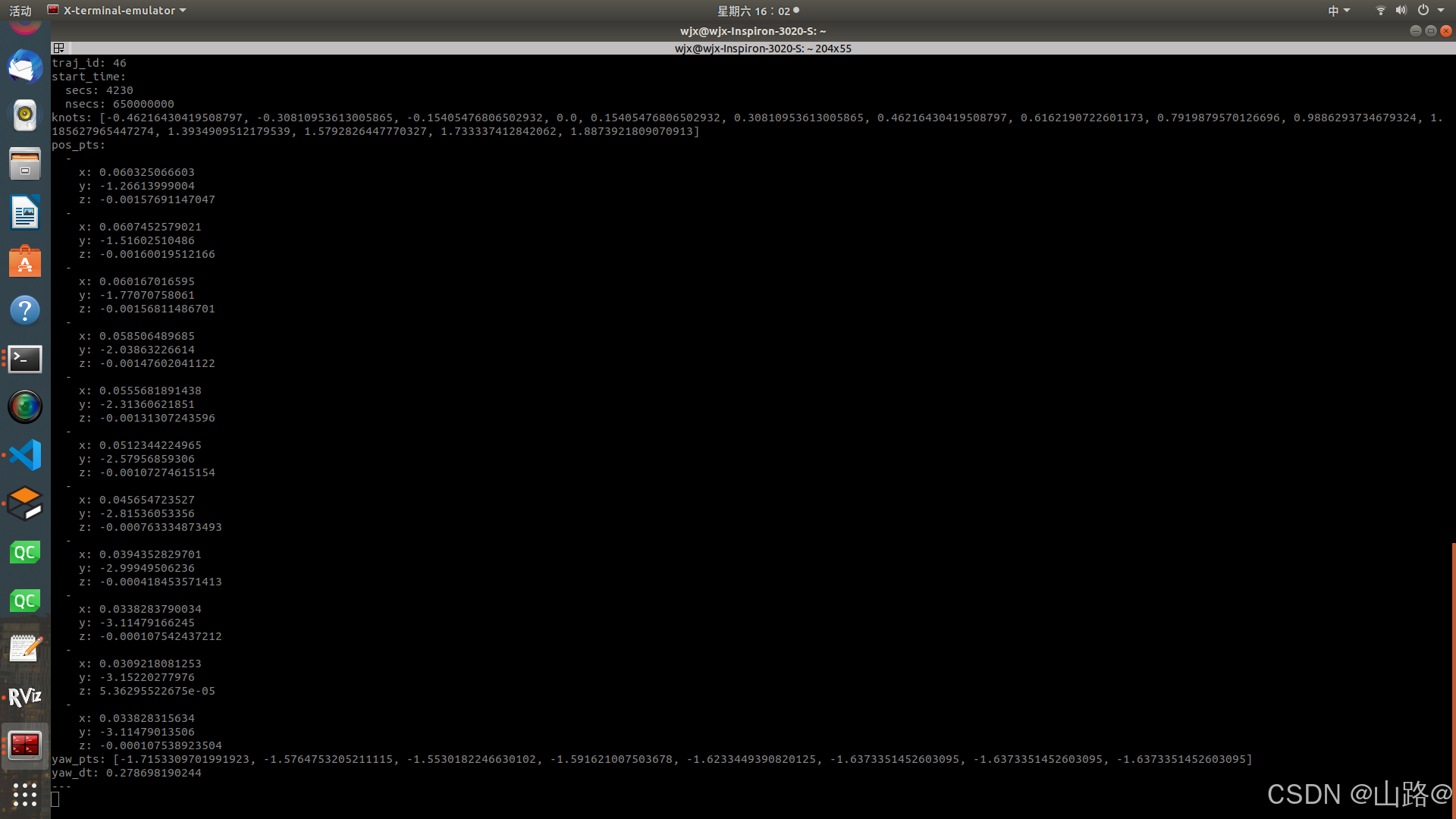

把fast_planner生成的所有路径点打印出来（planning/bspline）
发现其生成的是一系列的散点，将其在环境中画出（这大大增加了轨迹跟踪的难度）：
1.采用分段的方法进行轨迹跟踪
一开始我采用了这样的办法解决这个问题：虽然fast_planner生成的路径是一段一段的，但每一段是连续的，把fast_planner每次生成的路径保存起来（csv文件），当机器人收到下一次信息，则覆盖原有的数据，这样确保每次存的一段数据是一条连续的路径，代码如下tracking_path_node.cpp：
#include <iostream>
#include <ros/ros.h>
#include <geometry_msgs/Twist.h>
#include <nav_msgs/Odometry.h>
#include <nav_msgs/Path.h>
#include <geometry_msgs/PoseStamped.h>
#include <visualization_msgs/Marker.h>
#include <visualization_msgs/MarkerArray.h>
#include "bspline/non_uniform_bspline.h"
#include "mpc_tracking/Bspline.h"
#include "std_msgs/Empty.h"
#include <tf2_geometry_msgs/tf2_geometry_msgs.h>
#include "tf2/utils.h"
#include <vector>
#include <Eigen/Dense>
#include "tf2/utils.h"
#include <casadi/casadi.hpp>
#include <chrono>
#include <geometry_msgs/PoseWithCovarianceStamped.h>
#include "nav_msgs/Odometry.h"
#include "std_msgs/String.h"
#include <tf/tf.h>
#include <ros/time.h>
#include <queue>
#include <cmath>
#include <thread>
#include <tf2/LinearMath/Quaternion.h>
#include "mpc_tracking/mpc.h"
using namespace std;
struct Pose2D {
double x;
double y;
double angle;
Pose2D(double X, double Y, double YAW) : x(X), y(Y), angle(YAW) {}
};
void bsplineCallback(const mpc_tracking::BsplineConstPtr& msg) {

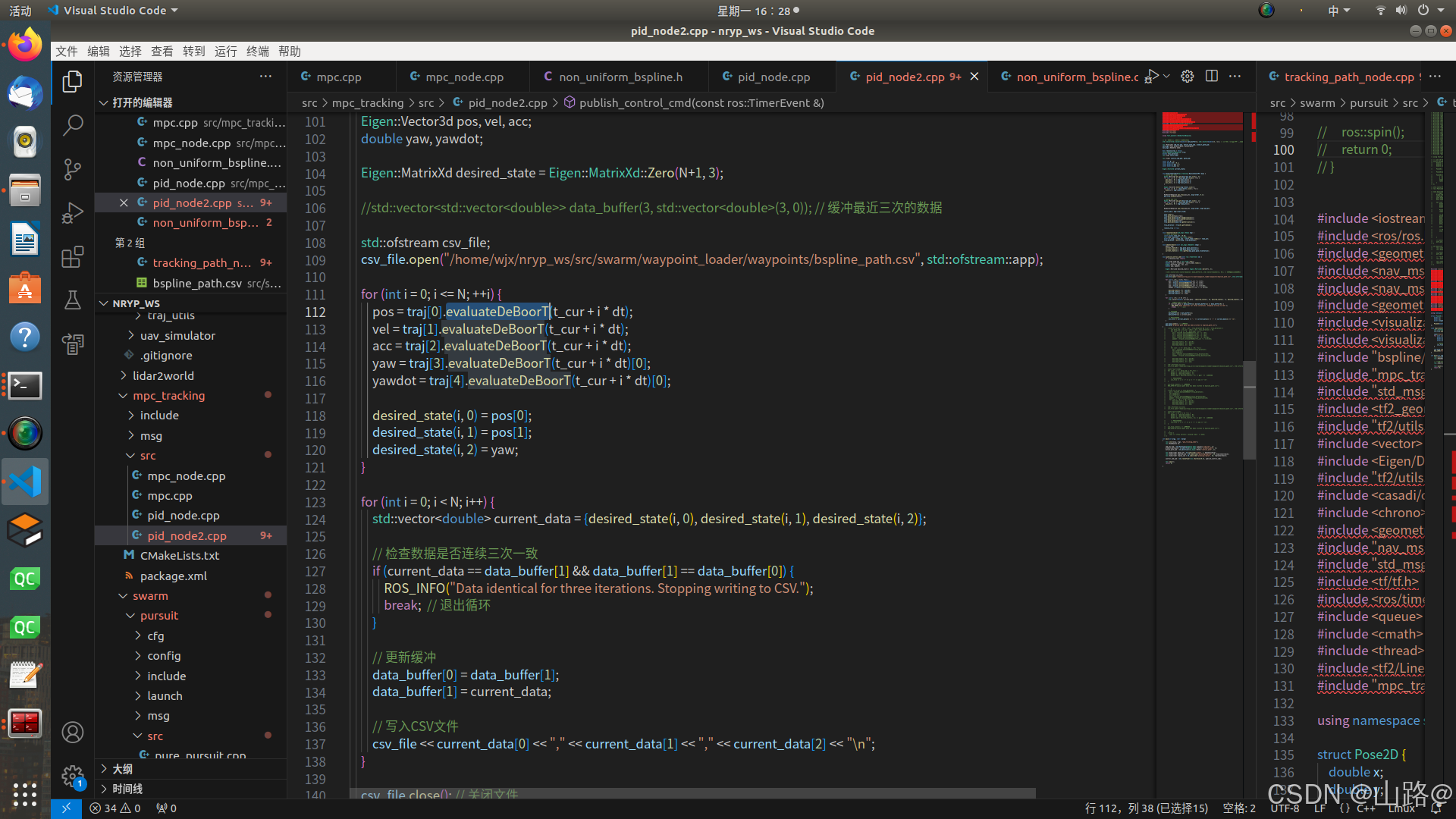

std::ofstream csv_file;
csv_file.open("/home/wjx/nryp_ws/src/swarm/waypoint_loader/waypoints/bspline_path.csv", std::ofstream::out); // 打开CSV文件以写入模式，自动覆盖
cout<<"wjx"<<endl;
for (int i = 0; i < msg->pos_pts.size(); i++) {
double x = msg->pos_pts[i].x;
double y = msg->pos_pts[i].y;
double yaw = 0.1; // 假设一个简单的角度
// 写入CSV文件
csv_file << x << "," << y << "," << yaw << "\n";
}
csv_file.close(); // 关闭文件
ROS_INFO("B-spline path data has been written to bspline_path.csv");
}
int main(int argc, char **argv) {
ros::init(argc, argv, "tracking_path_node");
ros::NodeHandle nh;
// 订阅B-spline路径
ros::Subscriber bspline_sub = nh.subscribe("/planning/bspline", 10, bsplineCallback);
ros::spin();
return 0;
}
然后去监听这个文件，每当保存路径的bspline_path.csv被修改，则另其调用之前写的轨迹生成launch文件(waypoint_loader.launch)，在环境中生成轨迹。
monitor_csv.py监听bspline_path.csv
#!/usr/bin/env python
import time
from watchdog.observers import Observer
from watchdog.events import FileSystemEventHandler
import subprocess
class Watcher:
FILE_TO_WATCH = "/home/wjx/nryp_ws/src/swarm/waypoint_loader/waypoints/bspline_path.csv"
def __init__(self):
self.observer = Observer()
def run(self):
event_handler = Handler()
self.observer.schedule(event_handler, self.FILE_TO_WATCH, recursive=False)
self.observer.start()
try:
while True:
time.sleep(5)
except:
self.observer.stop()
print("Observer Stopped")
self.observer.join()
class Handler(FileSystemEventHandler):
@staticmethod
def on_modified(event):
if not event.is_directory and event.src_path.endswith('.csv'):
print("Detected modification in bspline_path.csv")
Handler.launch_ros()
@staticmethod
def launch_ros():
print("Launching ROS waypoint loader with updated CSV")
try:
# Kill existing roslaunch if necessary
subprocess.call(['pkill', '-f', 'waypoint_loader_1'])
# Start new launch file
cmd = "roslaunch waypoint_loader waypoint_loader.launch"
subprocess.Popen(cmd, shell=True)
except Exception as e:
print(str(e))
if __name__ == '__main__':
w = Watcher()
w.run()
waypoint_loader.py 跟踪轨迹生成
#!/usr/bin/env python
import os
import csv
import math
import tf
import rospy
import sys
from geometry_msgs.msg import Quaternion, PoseStamped
from styx_msgs.msg import Lane, Waypoint
from nav_msgs.msg import Path
CSV_HEADER = ['x', 'y', 'yaw']
MAX_DECEL = 1.0
class WaypointLoader(object):
def __init__(self):
rospy.init_node('waypoint_loader', log_level=rospy.DEBUG)
self.pub = rospy.Publisher('/base_waypoints', Lane, queue_size=1, latch=True)
self.pub_path = rospy.Publisher('/path', Path, queue_size=1, latch=True)
self.velocity = self.kmph2mps(rospy.get_param('~velocity'))
self.new_waypoint_loader(rospy.get_param('~path'))
rospy.spin()
def new_waypoint_loader(self, path):
if os.path.isfile(path):
waypoints, base_path = self.load_waypoints(path)
self.publish(waypoints, base_path)
rospy.loginfo('Waypoint Loded')
else:
rospy.logerr('%s is not a file', path)
def quaternion_from_yaw(self, yaw):
return tf.transformations.quaternion_from_euler(0., 0., yaw)
def kmph2mps(self, velocity_kmph):
return (velocity_kmph * 1000.) / (60. * 60.)
def load_waypoints(self, fname):
waypoints = []
base_path = Path()
#base_path.header.frame_id = 'world'
base_path.header.frame_id = 'odom'
with open(fname) as wfile:
reader = csv.DictReader(wfile, CSV_HEADER)
for wp in reader:
#print(wp)
p = Waypoint()
p.pose.pose.position.x = float(wp['x'])
p.pose.pose.position.y = float(wp['y'])
q = self.quaternion_from_yaw(float(wp['yaw']))
p.pose.pose.orientation = Quaternion(*q)
p.twist.twist.linear.x = float(self.velocity)
p.forward = True
waypoints.append(p)
path_element = PoseStamped()
path_element.pose.position.x = p.pose.pose.position.x
path_element.pose.position.y = p.pose.pose.position.y
base_path.poses.append(path_element)
waypoints = self.decelerate(waypoints)
return waypoints,base_path
def distance(self, p1, p2):
x, y, z = p1.x - p2.x, p1.y - p2.y, p1.z - p2.z
return math.sqrt(x*x + y*y + z*z)
def decelerate(self, waypoints):
last = waypoints[-1]
last.twist.twist.linear.x = 0.
for wp in waypoints[:-1][::-1]:
print(wp)
dist = self.distance(wp.pose.pose.position, last.pose.pose.position)
vel = math.sqrt(2 * MAX_DECEL * dist)
print(vel)
if vel < 1.0:
vel = 0.0
wp.twist.twist.linear.x = min(vel, wp.twist.twist.linear.x)
return waypoints
def publish(self, waypoints, base_path):
lane = Lane()
lane.header.frame_id = 'odom'
lane.header.stamp = rospy.Time(0)
lane.waypoints = waypoints
self.pub.publish(lane)
self.pub_path.publish(base_path)
rospy.loginfo('publishing......\n')
if __name__ == '__main__':
try:
WaypointLoader()
print("waypoint loader closed.")
except rospy.ROSInterruptException:
rospy.logerr('Could not start waypoint node.')
路径信息（覆盖）
处理好轨迹后，调用pure_pursuit进行轨迹跟踪：
#include <ackermann_msgs/AckermannDriveStamped.h>
#include <geometry_msgs/TransformStamped.h>
#include <geometry_msgs/Twist.h>
#include <nav_msgs/Odometry.h>
#include <nav_msgs/Path.h>
#include <ros/ros.h>
#include <tf2_ros/transform_broadcaster.h>
#include <tf2_ros/transform_listener.h>
#include <algorithm>
#include <cmath>
#include <kdl/frames.hpp>
#include <string>
// TODO: Figure out how to use tf2 DataConversions
// for more elegant and compact code
//#include <tf2_kdl/tf2_kdl.h>
//#include <tf2_geometry_msgs/tf2_geometry_msgs.h>
#include <dynamic_reconfigure/server.h>
#include <pure_pursuit/PurePursuitConfig.h>
using std::string;
class PurePursuit
{
public:
//! Constructor
PurePursuit();
//! Compute velocit commands each time new odometry data is received.
void computeVelocities(nav_msgs::Odometry odom);
//! Receive path to follow.
void receivePath(nav_msgs::Path path);
//! Compute transform that transforms a pose into the robot frame (base_link)
KDL::Frame transformToBaseLink(const geometry_msgs::Pose &pose,
const geometry_msgs::Transform &tf);
//! Helper founction for computing eucledian distances in the x-y plane.
template <typename T1, typename T2>
double distance(T1 pt1, T2 pt2)
{
return sqrt(pow(pt1.x - pt2.x, 2) + pow(pt1.y - pt2.y, 2) +
pow(pt1.z - pt2.z, 2));
}
//! Run the controller.
void run();
private:
//! Dynamic reconfigure callback.
void reconfigure(pure_pursuit::PurePursuitConfig &config, uint32_t level);
// Vehicle parameters
double L_;
// Algorithm variables
// Position tolerace is measured along the x-axis of the robot!
double ld_, pos_tol_;
// Generic control variables
double v_max_, v_, w_max_;
// Control variables for Ackermann steering
// Steering angle is denoted by delta
double delta_, delta_vel_, acc_, jerk_, delta_max_;
nav_msgs::Path path_;
unsigned idx_;
bool goal_reached_;
geometry_msgs::Twist cmd_vel_;
ackermann_msgs::AckermannDriveStamped cmd_acker_;
// Ros infrastructure
ros::NodeHandle nh_, nh_private_;
ros::Subscriber sub_odom_, sub_path_;
ros::Publisher pub_vel_, pub_acker_;
tf2_ros::Buffer tf_buffer_;
tf2_ros::TransformListener tf_listener_;
tf2_ros::TransformBroadcaster tf_broadcaster_;
geometry_msgs::TransformStamped lookahead_;
string map_frame_id_, robot_frame_id_, lookahead_frame_id_, acker_frame_id_;
dynamic_reconfigure::Server<pure_pursuit::PurePursuitConfig>
reconfigure_server_;
dynamic_reconfigure::Server<pure_pursuit::PurePursuitConfig>::CallbackType
reconfigure_callback_;
};
PurePursuit::PurePursuit()
: ld_(0.01),
v_max_(0.1),
v_(v_max_),
w_max_(1.0),
pos_tol_(0.1),
idx_(0),
goal_reached_(true),
nh_private_("~"),
tf_listener_(tf_buffer_),
map_frame_id_("map"),
robot_frame_id_("base_link"),
lookahead_frame_id_("lookahead")
{
// Get parameters from the parameter server
nh_private_.param<double>("wheelbase", L_, 0.2);
nh_private_.param<double>("lookahead_distance", ld_, 0.01);
// nh_private_.param<double>("linear_velocity", v_, 0.1);
nh_private_.param<double>("max_rotational_velocity", w_max_, 1.0);
nh_private_.param<double>("position_tolerance", pos_tol_, 0.1);
nh_private_.param<double>("steering_angle_velocity", delta_vel_, 1.5);
nh_private_.param<double>("acceleration", acc_, 1.0);
nh_private_.param<double>("jerk", jerk_, 100.0);
nh_private_.param<double>("steering_angle_limit", delta_max_, 1.57);
nh_private_.param<string>("map_frame_id", map_frame_id_, "map");
// Frame attached to midpoint of rear axle (for front-steered vehicles).
nh_private_.param<string>("robot_frame_id", robot_frame_id_, "base_link");
// Lookahead frame moving along the path as the vehicle is moving.
nh_private_.param<string>("lookahead_frame_id", lookahead_frame_id_,
"lookahead");
// Frame attached to midpoint of front axle (for front-steered vehicles).
nh_private_.param<string>("ackermann_frame_id", acker_frame_id_,
"rear_axle_midpoint");
// Populate messages with static data
lookahead_.header.frame_id = robot_frame_id_;
lookahead_.child_frame_id = lookahead_frame_id_;
cmd_acker_.header.frame_id = acker_frame_id_;
cmd_acker_.drive.steering_angle_velocity = delta_vel_;
cmd_acker_.drive.acceleration = acc_;
cmd_acker_.drive.jerk = jerk_;
sub_path_ = nh_.subscribe("path_segment", 1, &PurePursuit::receivePath, this);
sub_odom_ =
nh_.subscribe("odometry", 1, &PurePursuit::computeVelocities, this);
pub_vel_ = nh_.advertise<geometry_msgs::Twist>("cmd_vel", 1);
pub_acker_ =
nh_.advertise<ackermann_msgs::AckermannDriveStamped>("cmd_acker", 1);
reconfigure_callback_ = boost::bind(&PurePursuit::reconfigure, this, _1, _2);
reconfigure_server_.setCallback(reconfigure_callback_);
}
void PurePursuit::computeVelocities(nav_msgs::Odometry odom)
{
ROS_INFO("start");
// The velocity commands are computed, each time a new Odometry message is
// received. Odometry is not used directly, but through the tf tree. Get the
// current robot pose
geometry_msgs::TransformStamped tf;
try
{
tf = tf_buffer_.lookupTransform(map_frame_id_, robot_frame_id_,
ros::Time(0));
// We first compute the new point to track, based on our current pose,
// path information and lookahead distance.
for (; idx_ < path_.poses.size(); idx_++)
{
ROS_INFO("index is %d \n", idx_);
// the distance between current pose and the path point must
// larger than ld_
ROS_INFO("distance is %f:", distance(path_.poses[idx_].pose.position, tf.transform.translation));
ROS_INFO("ld_:%f ", ld_);
std::cout << "postiton: " << path_.poses[idx_].pose.position << std::endl;
tf.transform.translation.z = 0;
std::cout << "transform: " << tf.transform.translation << std::endl;
if (distance(path_.poses[idx_].pose.position, tf.transform.translation) >
ld_)
{
// Transformed lookahead to base_link frame is lateral error
KDL::Frame F_bl_ld =
transformToBaseLink(path_.poses[idx_].pose, tf.transform);
lookahead_.transform.translation.x = F_bl_ld.p.x();
lookahead_.transform.translation.y = F_bl_ld.p.y();
lookahead_.transform.translation.z = F_bl_ld.p.z();
F_bl_ld.M.GetQuaternion(
lookahead_.transform.rotation.x, lookahead_.transform.rotation.y,
lookahead_.transform.rotation.z, lookahead_.transform.rotation.w);
ROS_INFO("F_bl_ld %f", lookahead_.transform.rotation.w);
// TODO: See how the above conversion can be done more elegantly
// using tf2_kdl and tf2_geometry_msgs
break;
}
}
ROS_INFO("end for");
// try to optimise the pose, although it already arrived at nearby the
// specific point
if (!path_.poses.empty() && idx_ >= path_.poses.size())
{
// We are approaching the goal,
// which is closer than ld
ROS_INFO("start if");
// This is the pose of the goal w.r.t. the base_link frame
KDL::Frame F_bl_end =
transformToBaseLink(path_.poses.back().pose, tf.transform);
if (fabs(F_bl_end.p.x()) <= pos_tol_)
{
// We have reached the goal
goal_reached_ = true;
// Reset the path
path_ = nav_msgs::Path();
}
else
{
// We need to extend the lookahead distance
// beyond the goal point.
// Find the intersection between the circle of radius ld
// centered at the robot (origin)
// and the line defined by the last path pose
double roll, pitch, yaw;
F_bl_end.M.GetRPY(roll, pitch, yaw);
double k_end = tan(yaw); // Slope of line defined by the last path pose
double l_end = F_bl_end.p.y() - k_end * F_bl_end.p.x();
double a = 1 + k_end * k_end;
double b = 2 * l_end;
double c = l_end * l_end - ld_ * ld_;
double D = sqrt(b * b - 4 * a * c);
double x_ld = (-b + copysign(D, v_)) / (2 * a);
double y_ld = k_end * x_ld + l_end;
lookahead_.transform.translation.x = x_ld;
lookahead_.transform.translation.y = y_ld;
lookahead_.transform.translation.z = F_bl_end.p.z();
F_bl_end.M.GetQuaternion(
lookahead_.transform.rotation.x, lookahead_.transform.rotation.y,
lookahead_.transform.rotation.z, lookahead_.transform.rotation.w);
ROS_INFO("F_bl_end %f", lookahead_.transform.rotation.w);
}
ROS_INFO("F_bl_end");
}
if (!goal_reached_)
{
// We are tracking.
// Compute linear velocity.
// Right now,this is not very smart :)
v_ = copysign(v_max_, v_); // max linear speed
// Compute the angular velocity.
// Lateral error is the y-value of the lookahead point (in base_link
// frame)
double yt = lookahead_.transform.translation.y;
double ld_2 = ld_ * ld_;
cmd_vel_.angular.z = std::min(2 * v_ / ld_2 * yt, w_max_)*0.2;
ROS_INFO("yt: %f", yt);
ROS_INFO("ld_2: %f", ld_2);
ROS_INFO("acmd_vel_.angular.z: %f", cmd_vel_.angular.z);
// cmd_vel_.angular.z = std::min(2 * v_ / ld_2 * yt, w_max_);
// Compute desired Ackermann steering angle
cmd_acker_.drive.steering_angle =
std::min(atan2(2 * yt * L_, ld_2), delta_max_);
// Set linear velocity for tracking.
cmd_vel_.linear.x = v_;
cmd_acker_.drive.speed = v_;
cmd_acker_.header.stamp = ros::Time::now();
ROS_INFO("here if");
}
else
{
// We are at the goal!
// Stop the vehicle
// The lookahead target is at our current pose.
lookahead_.transform = geometry_msgs::Transform();
lookahead_.transform.rotation.w = 1.0;
// Stop moving.
cmd_vel_.linear.x = 0.0;
cmd_vel_.angular.z = 0.0;
cmd_acker_.header.stamp = ros::Time::now();
cmd_acker_.drive.steering_angle = 0.0;
cmd_acker_.drive.speed = 0.0;
}
// Publish the lookahead target transform.
lookahead_.header.stamp = ros::Time::now();
tf_broadcaster_.sendTransform(lookahead_);
// Publish the velocities
pub_vel_.publish(cmd_vel_);
// Publish ackerman steering setpoints
pub_acker_.publish(cmd_acker_);
ROS_INFO("here!");
}
catch (tf2::TransformException &ex)
{
ROS_INFO("here");
ROS_WARN_STREAM(ex.what());
}
}
void PurePursuit::receivePath(nav_msgs::Path new_path)
{
// When a new path received, the previous one is simply discarded
// It is up to the planner/motion manager to make sure that the new
// path is feasible.
// Callbacks are non-interruptible, so this will
// not interfere with velocity computation callback.
ROS_INFO("new_path %s", new_path.header.frame_id.c_str());
if (new_path.header.frame_id == map_frame_id_)
{
path_ = new_path;
idx_ = 0;
if (new_path.poses.size() > 0)
{
goal_reached_ = false;
ROS_INFO("goal_reached_");
}
else
{
goal_reached_ = true;
ROS_WARN_STREAM("Received empty path!");
}
}
else
{
ROS_WARN_STREAM("The path must be published in the "
<< map_frame_id_ << " frame! Ignoring path in "
<< new_path.header.frame_id << " frame!");
}
}
KDL::Frame PurePursuit::transformToBaseLink(
const geometry_msgs::Pose &pose, const geometry_msgs::Transform &tf)
{
// Pose in global (map) frame
KDL::Frame F_map_pose(
KDL::Rotation::Quaternion(pose.orientation.x, pose.orientation.y,
pose.orientation.z, pose.orientation.w),
KDL::Vector(pose.position.x, pose.position.y, pose.position.z));
// Robot (base_link) in global (map) frame
KDL::Frame F_map_tf(
KDL::Rotation::Quaternion(tf.rotation.x, tf.rotation.y, tf.rotation.z,
tf.rotation.w),
KDL::Vector(tf.translation.x, tf.translation.y, tf.translation.z));
// TODO: See how the above conversions can be done more elegantly
// using tf2_kdl and tf2_geometry_msgs
return F_map_tf.Inverse() * F_map_pose;
}
void PurePursuit::run() { ros::spin(); }
void PurePursuit::reconfigure(pure_pursuit::PurePursuitConfig &config,
uint32_t level)
{
v_max_ = config.max_linear_velocity;
}
int main(int argc, char **argv)
{
ros::init(argc, argv, "pure_pursuit");
PurePursuit controller;
controller.run();
return 0;
}
PID跟踪（分段跟踪）
2.采用拟合的方法进行轨迹跟踪
后面了解到，生成多个非均匀B样条后，可以使用DeBoor算法将多段曲线整合为一条连续且平滑的曲线。
其推导可参考这个大佬写的这篇文章：使用De Boor递推算法求B样条曲线上的点
De Boor代码：
Eigen::VectorXd NonUniformBspline::evaluateDeBoor(const double& u) {
double ub = min(max(u_(p_), u), u_(m_ - p_));
// determine which [ui,ui+1] lay in
int k = p_;
while (true) {
if (u_(k + 1) >= ub) break;
++k;
}
/* deBoor's alg */
vector<Eigen::VectorXd> d;
for (int i = 0; i <= p_; ++i) {
d.push_back(control_points_.row(k - p_ + i));
// cout << d[i].transpose() << endl;
}
for (int r = 1; r <= p_; ++r) {
for (int i = p_; i >= r; --i) {
double alpha = (ub - u_[i + k - p_]) / (u_[i + 1 + k - r] - u_[i + k - p_]);
// cout << "alpha: " << alpha << endl;
d[i] = (1 - alpha) * d[i - 1] + alpha * d[i];
}
}
return d[p_];
}
则能够将相邻的两个控制点合并为一个新的控制点，通过p次迭代（P是B样条曲线的阶数），最终得到我们想要的点的坐标，整合为一条连续且平滑的曲线。
DeBoor轨迹生成
PID轨迹跟踪（DeBoor拟合）
二、基于MPC轨迹跟踪
1.代码实现
mpc_node.cpp
#include <ros/ros.h>
#include <geometry_msgs/Twist.h>
#include <nav_msgs/Odometry.h>
#include <nav_msgs/Path.h>
#include <geometry_msgs/PoseStamped.h>
#include <visualization_msgs/Marker.h>
#include <visualization_msgs/MarkerArray.h>
#include "bspline/non_uniform_bspline.h"
#include "mpc_tracking/Bspline.h"
#include "std_msgs/Empty.h"
#include "mpc_tracking/mpc.h"
using fast_planner::NonUniformBspline;
ros::Publisher cmd_vel_pub, motion_path_pub, predict_path_pub;
nav_msgs::Path predict_path, motion_path;
nav_msgs::Odometry odom;
bool receive_traj = false;
vector<NonUniformBspline> traj;
double traj_duration;
ros::Time start_time;
ros::Timer control_cmd_pub, path_pub;
const int N = 15;
const double dt = 0.1;
const double u_max = 0.5;
const double w_max =1;
vector<double> weights = {10,10,1,1,1,0}; //Q,R
Eigen::Vector3d current_state;
unique_ptr<Mpc> mpc_ptr;
void bsplineCallback(mpc_tracking::BsplineConstPtr msg) {
// parse pos traj
Eigen::MatrixXd pos_pts(msg->pos_pts.size(), 3);
for (int i = 0; i < msg->pos_pts.size(); ++i) {
pos_pts(i, 0) = msg->pos_pts[i].x;
pos_pts(i, 1) = msg->pos_pts[i].y;
pos_pts(i, 2) = msg->pos_pts[i].z;
}
Eigen::VectorXd knots(msg->knots.size());
for (int i = 0; i < msg->knots.size(); ++i) {
knots(i) = msg->knots[i];
}
NonUniformBspline pos_traj(pos_pts, msg->order, 0.1);
pos_traj.setKnot(knots);
// parse yaw traj
Eigen::MatrixXd yaw_pts(msg->yaw_pts.size(), 1);
for (int i = 0; i < msg->yaw_pts.size(); ++i) {
yaw_pts(i, 0) = msg->yaw_pts[i];
}
NonUniformBspline yaw_traj(yaw_pts, msg->order, msg->yaw_dt);
start_time = msg->start_time;
traj.clear();
traj.push_back(pos_traj);
traj.push_back(traj[0].getDerivative());
traj.push_back(traj[1].getDerivative());
traj.push_back(yaw_traj);
traj.push_back(yaw_traj.getDerivative());
traj_duration = traj[0].getTimeSum();
std::cout<<"-----wjx-----"<<std::endl;
std::cout<<"traj_duration: "<<traj_duration<<std::endl;
std::cout<<"-----wjx-----"<<std::endl;
receive_traj = true;
}
void replanCallback(std_msgs::Empty msg) {
/* reset duration */
const double time_out = 0.01;
ros::Time time_now = ros::Time::now();
double t_stop = (time_now - start_time).toSec() + time_out;
traj_duration = min(t_stop, traj_duration);
}
void odomCallback(const nav_msgs::Odometry &msg) {
odom = msg;
current_state(0) = msg.pose.pose.position.x;
current_state(1) = msg.pose.pose.position.y;
current_state(2) = tf2::getYaw(msg.pose.pose.orientation);
}
void publish_control_cmd(const ros::TimerEvent &e) {
if (!receive_traj) return;
ros::Time time_now = ros::Time::now();
double t_cur = (time_now - start_time).toSec();
Eigen::Vector3d pos, vel, acc, pos_f;
double yaw, yawdot;
Eigen::MatrixXd desired_state = Eigen::MatrixXd::Zero(N+1, 3);
if (t_cur + (N-1) * dt <= traj_duration && t_cur > 0) {
for (int i = 0; i <= N; ++i) {
cout<<"Test01"<<endl;
pos = traj[0].evaluateDeBoorT(t_cur + i * dt);
vel = traj[1].evaluateDeBoorT(t_cur + i * dt);
acc = traj[2].evaluateDeBoorT(t_cur + i * dt);
yaw = traj[3].evaluateDeBoorT(t_cur + i * dt)[0];
yawdot = traj[4].evaluateDeBoorT(t_cur + i * dt)[0];
desired_state(i, 0) = pos[0];
desired_state(i, 1) = pos[1];
desired_state(i, 2) = yaw;
}
} else if (t_cur + (N-1) * dt > traj_duration && t_cur < traj_duration) {
int more_num = (t_cur + (N-1) * dt - traj_duration) / dt;
for (int i = 0; i < N - more_num; ++i) {
cout<<"Test02_01"<<endl;
pos = traj[0].evaluateDeBoorT(t_cur + i * dt);
vel = traj[1].evaluateDeBoorT(t_cur + i * dt);
acc = traj[2].evaluateDeBoorT(t_cur + i * dt);
yaw = traj[3].evaluateDeBoorT(t_cur + i * dt)[0];
yawdot = traj[4].evaluateDeBoorT(t_cur + i * dt)[0];
desired_state(i, 0) = pos(0);
desired_state(i, 1) = pos(1);
desired_state(i, 2) = yaw;
}
for (int i = N - more_num; i < N; ++i) {
cout<<"Test02_02"<<endl;
pos = traj[0].evaluateDeBoorT(traj_duration);
vel.setZero();
acc.setZero();
yaw = traj[3].evaluateDeBoorT(traj_duration)[0];
yawdot = traj[4].evaluateDeBoorT(traj_duration)[0];
desired_state(i, 0) = pos(0);
desired_state(i, 1) = pos(1);
desired_state(i, 2) = yaw;
}
} else if (t_cur >= traj_duration) {
cout<<"Test03"<<endl;
pos = traj[0].evaluateDeBoorT(traj_duration);
vel.setZero();
acc.setZero();
yaw = traj[3].evaluateDeBoorT(traj_duration)[0];
yawdot = traj[4].evaluateDeBoorT(traj_duration)[0];
for (int i = 0; i <= N; ++i) {
desired_state(i, 0) = pos(0);
desired_state(i, 1) = pos(1);
desired_state(i, 2) = yaw;
}
} else {
//cout << "[Traj server]: invalid time." << endl;
}
Eigen::MatrixXd desired_state2 = desired_state.transpose();
ros::Time solve_start = ros::Time::now();
auto success = mpc_ptr->solve(current_state, desired_state2);
cout<<"desired_state2:"<<desired_state2<<endl;
//cout << "solve success" << endl;
ros::Time solve_end = ros::Time::now();
double t_cur1 = (solve_end - solve_start).toSec();
// cout << "solve time:" << t_cur1 << endl;
geometry_msgs::Twist cmd;
auto control_cmd = mpc_ptr->getFirstU();
//cout << "got cmd" << endl;
//cout << "linear:" << control_cmd[0] << endl;
//cout << "angular:" << control_cmd[1] << endl;
cmd.linear.x = control_cmd[0];
//cmd.linear.y = control_cmd[1];
cmd.angular.z = control_cmd[1];
cmd_vel_pub.publish(cmd);
//cout << "u:" << result[0] << " " << "r:" << result[1] << endl;
predict_path.header.frame_id = "odom";
predict_path.header.stamp = ros::Time::now();
geometry_msgs::PoseStamped pose_msg;
geometry_msgs::Point pt;
auto predict_states = mpc_ptr->getPredictX();
//cout << "got predict x" << endl;
for (int i = 0; i < predict_states.size(); i += 2) {
pose_msg.pose.position.x = predict_states[i];
pose_msg.pose.position.y = predict_states[i + 1];
predict_path.poses.push_back(pose_msg);
}
predict_path_pub.publish(predict_path);
predict_path.poses.clear();
}
int main(int argc, char **argv)
{
ros::init(argc, argv, "mpc_tracking_node");
ros::NodeHandle nh;
mpc_ptr.reset(new Mpc());
cmd_vel_pub = nh.advertise<geometry_msgs::Twist>("/cmd_vel", 1);
predict_path_pub = nh.advertise<nav_msgs::Path>("/predict_path", 1);
motion_path_pub = nh.advertise<nav_msgs::Path>("/motion_path", 1);
ros::Subscriber odom_sub = nh.subscribe("/odom", 1, &odomCallback);
ros::Subscriber bspline_sub = nh.subscribe("planning/bspline", 10, bsplineCallback);
ros::Subscriber replan_sub = nh.subscribe("planning/replan", 10, replanCallback);
control_cmd_pub = nh.createTimer(ros::Duration(0.1), publish_control_cmd);
ros::spin();
return 0;
}
mpc.cpp
#include "mpc_tracking/mpc.h"
Mpc::Mpc() {
N_ = 15;
dt_ = 0.1;
u_max_ = 0.6;
w_max_ =2.0;
//vector<double> weights = {10,10,1,1,1}; //Q,R
vector<double> weights = {20,20,1,1,1}; //Q,R
u_min_ = - u_max_;
w_min_ = - w_max_;
Q_ = DM::zeros(3,3); //索引之前初始化size
R_ = DM::zeros(2,2);
setWeights(weights);
kinematic_equation_ = setKinematicEquation();
}
Mpc::~Mpc() {}
void Mpc::setWeights(vector<double> weights) {
//cout << "setweights" << endl;
Q_(0, 0) = weights[0];
Q_(1, 1) = weights[1];
Q_(2, 2) = weights[2];
R_(0, 0) = weights[3];
R_(1, 1) = weights[4];
//R_(2, 2) = weights[5];
//cout << "set weight finish" << endl;
}
Function Mpc::setKinematicEquation() {
//cout << "set kinematic" << endl;
MX x = MX::sym("x");
MX y = MX::sym("y");
MX theta = MX::sym("theta");
MX state_vars = MX::vertcat({x, y, theta});
MX v = MX::sym("v");
MX w = MX::sym("w");
MX control_vars = MX::vertcat({v, w});
//rhs means right hand side
MX rhs = MX::vertcat({v * MX::cos(theta), v * MX::sin(theta), w});
return Function("kinematic_equation", {state_vars, control_vars}, {rhs});
bool Mpc::solve(Eigen::Vector3d current_states, Eigen::MatrixXd desired_states) {
//cout << "jinqiujiele" << endl;
Opti opti = Opti();
Slice all;
MX cost = 0;
X = opti.variable(3, N_ + 1);
U = opti.variable(2, N_);
MX x = X(0, all);
MX y = X(1, all);
MX theta = X(2, all);
MX v = U(0, all);
MX w = U(1, all);
//MX w = U(2, all);
MX X_ref = opti.parameter(3, N_ + 1);
MX X_cur = opti.parameter(3);
DM x_tmp1 = {current_states[0], current_states[1], current_states[2]};
opti.set_value(X_cur, x_tmp1); //set current state
cout << "set current state success" << endl;
//按列索引
vector<double> X_ref_v(desired_states.data(), desired_states.data() + desired_states.size());
//auto tp1 = std::chrono::steady_clock::now();
DM X_ref_d(X_ref_v);
//X_ref_d.resize(3, N_ + 1);
//cout << "desired_states:" << desired_states << endl;
//cout << "X_ref_v:" << X_ref_v << endl;
//cout << "X_ref_d:" << X_ref_d << endl;
// DM x_tmp2(3, N_ + 1);
// for (int i = 0; i < 3; ++i) {
// for (int j = 0; j <= N_; ++j) {
// x_tmp2(i, j) = desired_states(i, j);
// }
// }
X_ref = MX::reshape(X_ref_d, 3, N_ + 1);
//opti.set_value(X_ref, X_ref_d); //set reference traj
// auto tp2 = std::chrono::steady_clock::now();
// cout <<"set trajectory time:"
// << chrono::duration_cast<chrono::microseconds>(tp2 - tp1).count()
// << "microseconds" << endl;
//cout << "set reference traj success" << endl;
//cout << "x_ref:" << X_ref.size() << endl;
//set costfunction
for (int i = 0; i < N_; ++i) {
MX X_err = X(all, i) - X_ref(all, i);
MX U_0 = U(all, i);
//cout << "U_0 size:" << U_0.size() << endl;
//cout << "cost size:" << cost_.size() << endl;
cost += MX::mtimes({X_err.T(), Q_, X_err});
//cout << "cost size:" << cost_.size() << endl;
cost += MX::mtimes({U_0.T(), R_, U_0});
//cout << "cost size:" << cost_.size() << endl;
}
//cout << "cost size:" << cost_.size() << endl;
cost += MX::mtimes({(X(all, N_) - X_ref(all, N_)).T(), Q_,
X(all, N_) - X_ref(all, N_)});
//cout << "cost:" << cost << endl;
opti.minimize(cost);
//cout << "set cost success" << endl;
//kinematic constrains
for (int i = 0; i < N_; ++i) {
vector<MX> input(2);
input[0] = X(all, i);
input[1] = U(all, i);
MX X_next = kinematic_equation_(input)[0] * dt_ + X(all, i);
opti.subject_to(X_next == X(all, i + 1));
}
//init value
opti.subject_to(X(all, 0) == X_cur);
//speed angle_speed limit
opti.subject_to(0 <= v <= u_max_);
opti.subject_to(w_min_ <= w <= w_max_);
//set solver
casadi::Dict solver_opts;
solver_opts["expand"] = true; //MX change to SX for speed up
solver_opts["ipopt.max_iter"] = 100;
solver_opts["ipopt.print_level"] = 0;
solver_opts["print_time"] = 0;
solver_opts["ipopt.acceptable_tol"] = 1e-6;
solver_opts["ipopt.acceptable_obj_change_tol"] = 1e-6;
opti.solver("ipopt", solver_opts);
//auto sol = opti.solve();
solution_ = std::make_unique<casadi::OptiSol>(opti.solve());
return true;
}
vector<double> Mpc::getFirstU() {
vector<double> res;
auto first_v = solution_->value(U)(0,0);
auto first_w = solution_->value(U)(1,0);
cout << "first_v" << first_v << " " << "first_w" << first_w << endl;
// for (int i = 0; i < N_; i++)
// {
// cout << "v_" << i <<" "<<solution_->value(U)(0,i) << " " << "w_" << i<<solution_->value(U)(1,i) << endl;
// }
res.push_back(static_cast<double>(first_v));
res.push_back(static_cast<double>(first_w));
return res;
}
vector<double> Mpc::getPredictX() {
vector<double> res;
auto predict_x = solution_->value(X);
cout << "nomal" << endl;
//cout << "predict_x size :" << predict_x.size() << endl;
for (int i = 0; i <= N_; ++i) {
res.push_back(static_cast<double>(predict_x(0, i)));
res.push_back(static_cast<double>(predict_x(1, i)));
}
return res;
}
2.注意事项
在一开始机器人并不能跟上fast_planner规划的轨迹，本以为时mpc控制器的问题，又尝试了一些其他的控制器，发现出现同样的问题，经过一番思索，发现真正的原因是：turtlebot3运动学的限制，fast_planner相较于机器人来说规划的速度太快了，mpc解算出的速度太大，turtlebot3执行不了，故将fast_planner规划速度调慢。
fast_planner MPC轨迹跟踪
总结
以上就是基于Turtlebot3模型的轨迹跟踪的内容，后面将其扩展到多机…
扫一扫
4354
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
