espidf5.4版本 vscode使用clangd插件代码提示

最新推荐文章于 2025-09-10 20:50:00 发布

原创最新推荐文章于 2025-09-10 20:50:00 发布 · 416 阅读

1 ·

CC 4.0 BY-SA版权

文章标签：

#vscode #ide #编辑器

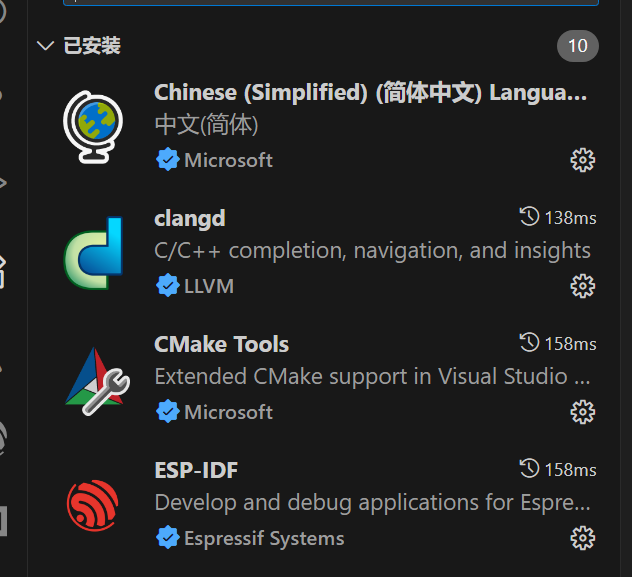

1.依赖插件
在这里插入图片描述
2.launch.json配置

{
  "version": "0.2.0",
  "configurations": [
    {
      "type": "gdbtarget",
      "request": "attach",
      "name": "Eclipse CDT GDB Adapter"
    },
    {
      "type": "espidf",
      "name": "Launch",
      "request": "launch"
    }
  ]
}

3.settings.json配置

{
  "clangd.path": "C:\\Espressif_5_4\\Espressif\\tools\\esp-clang\\esp-18.1.2_20240912\\esp-clang\\bin\\clangd.exe",

  "clangd.arguments": [
    "--compile-commands-dir=build",                        // 指定 compile_commands.json 所在目录
    "--header-insertion=never",                           // 防止自动插入 include
    "--background-index",                                 // 开启后台索引，提升跳转能力
    "--query-driver=C:/Espressif_5_4/Espressif/tools/**/xtensa-esp32s3-elf-gcc.exe"  // 允许使用 ESP 的交叉编译器
  ],

  "clangd.onConfigChanged": "restart",
  "clangd.checkUpdates": true,
  "clangd.restartAfterCrash": true,

  "idf.espIdfPathWin": "C:/Espressif_5_4/Espressif/frameworks/esp-idf-v5.4/",
  "idf.pythonInstallPath": "C:\\Espressif_5_4\\Espressif\\tools\\idf-python\\3.11.2\\python.exe",
  "idf.espAdfPathWin": "C:\\Espressif_5_4\\esp-adf\\",
  "idf.openOcdConfigs": [
    "board/esp32s3-builtin.cfg"
  ],
  "idf.portWin": "COM6",
  "idf.toolsPathWin": "C:\\Espressif_5_4\\Espressif",
  "idf.flashType": "UART",
  "idf.customExtraVars": {
    "IDF_TARGET": "esp32s3"
  },

  "files.associations": {
    "*.h": "c",
    "*.c": "c",
    "*.cpp": "cpp"
  }
}
