coggle1-2月打卡之LightGBM实战

Litra LIN

已于 2022-01-24 11:24:15 修改

阅读量2.3k

点赞数 4

文章标签： python 机器学习 sklearn 人工智能

于 2022-01-20 16:21:28 首次发布

本文链接：https://blog.csdn.net/qq_48314528/article/details/122604135

版权

文章目录

任务1：模型训练与预测

步骤1：导入LightGBM库
步骤2：使用LGBMClassifier对iris进行训练。
步骤3：将预测的模型对iris进行预测。

# 安装LightGBM
!pip install lightgbm

# 导入
import lightgbm as lgb
import pandas as pd
import json
from sklearn import datasets

# 导入鸢尾花数据集
iris = datasets.load_iris()
iris.data.shape

#构建数据集
from sklearn.model_selection import train_test_split as TTS
#将iris划分为训练集和测试机
train_data_all,test_data, train_y_all, test_y = TTS(iris.data, iris.target, test_size=0.2, random_state=42, shuffle=True)
train_data, val_data, train_y, val_y = TTS(train_data_all, train_y_all, test_size=0.2, random_state=42, shuffle=True)
train_data.shape

#构建LGB的训练集
lgb_train = lgb.Dataset(train_data, train_y)
lgb_val = lgb.Dataset(val_data, val_y)

#设置模型参数
params = {
    "objective":"multiclass",
    "num_classes":3,
    "verbosity":-1
}
# 训练模型
booster = lgb.train(params, train_set=lgb_train, valid_sets=lgb_val, num_boost_round=10)

## 结果：

#[1] valid_0's multi_logloss: 0.998257
#[2] valid_0's multi_logloss: 0.87888
#[3] valid_0's multi_logloss: 0.802809
#[4] valid_0's multi_logloss: 0.723778
#[5] valid_0's multi_logloss: 0.65558
#[6] valid_0's multi_logloss: 0.60953
#[7] valid_0's multi_logloss: 0.553635
#[8] valid_0's multi_logloss: 0.499817
#[9] valid_0's multi_logloss: 0.471947
#[10] valid_0's multi_logloss: 0.438747
#[11] valid_0's multi_logloss: 0.404308
#[12] valid_0's multi_logloss: 0.387417

#使用训练的模型对iris进行预测
from sklearn.metrics import accuracy_score
import numpy as np

train_preds = np.argmax(booster.predict(train_data), axis=1)
test_preds = np.argmax(booster.predict(test_data), axis=1)
#测试结果
print("Train Accuracy Score: %.2f"%accuracy_score(train_y, train_preds))
print("Test Accuracy Score: %.2f"%accuracy_score(test_y, test_preds))
# 结果:
# Train Accuracy Score: 0.96
# Test Accuracy Score: 0.97

任务2：模型保存与加载

参考资料

步骤1 ：将任务1训练得到的模型，使用pickle进行保存。
步骤2 ：将任务1训练得到的模型，使用txt进行保存。
步骤3 ：加载步骤1和步骤2的模型，并进行预测。

#模型保存
import pickle
pickle.dump(booster,open('model.pickle','wb'))

#使用txt进行保存
booster.save_model('model.txt')

#加载模型，并进行预测
model_pickle = pickle.load(open('model.pickle','rb'))
y_pred_pickle = np.argmax(model_pickle.predict(test_data), axis=1)
print("y_pred_pickle:",y_pred_pickle)
# txt读取
model_txt = lgb.Booster(model_file='model.txt')
y_pred_txt = np.argmax(model_txt.predict(test_data), axis=1)
print("y_pred_txt:",y_pred_txt)
#output->
# y_pred_pickle: [1 0 2 1 2 0 1 2 1 1 2 0 0 0 0 1 2 1 1 2 0 2 0 2 2 2 2 2 0 0]
# y_pred_txt: [1 0 2 1 2 0 1 2 1 1 2 0 0 0 0 1 2 1 1 2 0 2 0 2 2 2 2 2 0 0]

任务3：分类、回归和排序任务

https://github.com/microsoft/LightGBM/blob/master/examples/python-guide/sklearn_example.py
https://github.com/microsoft/LightGBM/blob/master/examples/python-guide/simple_example.py

步骤1 ：学习LightGBM中sklearn接口的使用，导入分类、回归和排序接口。
步骤2 ：学习LightGBM中原生train接口的使用。
步骤3 ：二分类任务
使用make_classification，创建一个二分类数据集。
使用sklearn接口完成训练和预测。
使用原生train接口完成训练和预测。

TwoClassData = make_classification(n_samples=10000,n_features=20,
                            n_informative=2,
                            n_redundant=0,
                            n_repeated=0,
                            n_classes=2,
                            n_clusters_per_class=2,
                            # weights=[0.05,0.1,0.1,0.5],
                            flip_y=0.4,
                            class_sep=1.0,
                            hypercube=True,
                            shift=0.0,
                            scale=1.0,
                            shuffle=True,
                            random_state=420)

# 划分测试集和验证集
from sklearn.model_selection import train_test_split as TTS
TDF = pd.DataFrame(TwoClassData[0])
TDF['label'] = TwoClassData[1]
print(TDF.label.value_counts())

X_train, X_val, y_train, y_val = TTS(TDF.drop(['label'], axis=1), TDF.label, test_size=0.3, random_state=42)

# 使用原生的LGBM API需要将数据转换成lgbm中Datasets格式，如下：
lgb_train = lgb.Dataset(X_train, y_train)
lgb_validate = lgb.Dataset(X_val, y_val)

from sklearn.metrics import accuracy_score
#使用原生API
params_naive = {
    "learning_rate":0.1,
    "max_bin":150,
    "num_leaves":32,
    "max_depth":11,

    "lambda_l1":0.1,
    "lambda_l2":0.2,

    "objective":"binary",
    # "num_class":2,

    "verbose": -1  # <0 显示致命的, =0 显示错误 (警告), >0 显示信息
}

model = lgb.train(params=params_naive, train_set=lgb_train, num_boost_round=300, valid_sets=[lgb_train, lgb_validate], callbacks=[early_stopping(10), log_evaluation(10)])

#Save the model
model.save_model('model_classifier_lgb,txt')

#Load the model
# model = lgb.Booster(model_file='model_classifier_lgb.txt')

#predict the X_val data
y_pred = model.predict(X_val)
y_pred = y_pred.flatten()
# extract the predicted class labels
y_pred = np.where(y_pred > 0.5, 1, 0)

#metirc the model
print("The accuracy score of prediction is ", accuracy_score(y_val, y_pred))
# 正确率有点低！！

#Using sklearn API
params_sklearn = {
    'learning_rate':0.1,
    'max_bin':150,
    'num_leaves':32,
    'max_depth':11,

    'reg_alpha':0.1,
    'reg_lambda':0.2,

    'objective':'binary',
    'n_estimators':300,
    'verbose':-1
}

watchlist = [(X_train, y_train), (X_val, y_val)]
#Using sklearn API to train the model
clf = lgb.LGBMClassifier(**params_sklearn)
clf.fit(X_train, y_train, eval_set=watchlist, callbacks=[early_stopping(10), log_evaluation(10)])

# save the model
# clf.save_model("model_classifier_sklearn.txt")

# load the model
# clf = lgb.Booster('model_classifier_sklearn.txt')

# predict the X_val data
y_pred_sklearn = clf.predict(X_val)

#metirc the model
print("The accuracy score of prediction is ", accuracy_score(y_val, y_pred_sklearn))

步骤4 ：多分类任务
使用make_classification，创建一个多分类数据集。
使用sklearn接口完成训练和预测。
使用原生train接口完成训练和预测。

data = make_classification(n_samples=10000,n_features=20,
                            n_informative=4,
                            n_redundant=2,
                            n_repeated=0,
                            n_classes=5,
                            n_clusters_per_class=2,
                            weights=[0.05,0.1,0.1,0.5],
                            flip_y=0.4,
                            class_sep=1.0,
                            hypercube=True,
                            shift=0.0,
                            scale=1.0,
                            shuffle=True,
                            random_state=420)

# 划分测试集和验证集
from sklearn.model_selection import train_test_split as TTS
df = pd.DataFrame(data[0])
df['label'] = data[1]
print(df.label.value_counts())

X_train, X_val, y_train, y_val = TTS(df.drop(['label'], axis=1), df.label, test_size=0.3, random_state=42)

# 使用原生的LGBM API需要将数据转换成lgbm中Datasets格式，如下：
lgb_train = lgb.Dataset(X_train, y_train)
lgb_validate = lgb.Dataset(X_val, y_val)

from sklearn.metrics import accuracy_score
#使用原生API
params_naive = {
    "learning_rate":0.1,
    "max_bin":150,
    "num_leaves":32,
    "max_depth":11,

    "lambda_l1":0.1,
    "lambda_l2":0.2,

    "objective":"multiclass",
    "num_class":5,

    "verbose": -1  # <0 显示致命的, =0 显示错误 (警告), >0 显示信息
}

model = lgb.train(params=params_naive, train_set=lgb_train, num_boost_round=300, valid_sets=[lgb_train, lgb_validate], callbacks=[early_stopping(10), log_evaluation(10)])

#Save the model
model.save_model('model_classifier_lgb,txt')

#Load the model
# model = lgb.Booster(model_file='model_classifier_lgb.txt')

#predict the X_val data
y_pred = np.argmax(model.predict(X_val), axis=1)

#metirc the model
print("The accuracy score of prediction is ", accuracy_score(y_val, y_pred))

# Using sklearn API
params_sklearn = {
    'learning_rate':0.1,
    'max_bin':150,
    'num_leaves':32,
    'max_depth':11,

    'reg_alpha':0.1,
    'reg_lambda':0.2,

    'objective':'multiclass',
    'n_estimators':300,
    'verbose':-1
}

watchlist = [(X_train, y_train), (X_val, y_val)]
#Using sklearn API to train the model
clf = lgb.LGBMClassifier(**params_sklearn)
clf.fit(X_train, y_train, eval_set=watchlist, callbacks=[early_stopping(10), log_evaluation(10)])

# save the model
# clf.save_model("model_classifier_sklearn.txt")

# load the model
# clf = lgb.Booster('model_classifier_sklearn.txt')

# predict the X_val data
y_pred_sklearn = clf.predict(X_val)

#metirc the model
print("The accuracy score of prediction is ", accuracy_score(y_val, y_pred_sklearn))

步骤5：回归任务
使用make_regression，创建一个回归数据集。
使用sklearn接口完成训练和预测。
使用原生train接口完成训练和预测。

from sklearn.datasets import make_regression
X, Y = make_regression(n_samples=10000, n_features=20, n_targets=1, noise=1.5, random_state=420)

X = pd.DataFrame(X)
Y = pd.DataFrame(Y)

X_train, X_val, y_test, y_val = TTS(X, Y, test_size=0.3, random_state=420, shuffle=True)

from sklearn.metrics import mean_absolute_error as mae
#LGB API
params_lgb = {
    'boosting_type': 'gbdt',
    'objective':'mae',
    'n_jobs':8,
    'subsample': 0.5,
    'subsample_freq': 1,
    'learning_rate': 0.01,
    'num_leaves': 2**11-1,
    'min_data_in_leaf': 2**12-1,
    'feature_fraction': 0.5,
    'max_bin': 100,
    'n_estimators': 2500,
    'boost_from_average': False,
    "random_seed":420,
    "verbose": -1  # <0 显示致命的, =0 显示错误 (警告), >0 显示信息
}

lgb_train = lgb.Dataset(X_train, y_train)
lgb_validate = lgb.Dataset(X_val, y_val)


reg_lgb = lgb.train(params=params_lgb, train_set=lgb_train, valid_sets=[lgb_train, lgb_validate], num_boost_round=300,callbacks=[early_stopping(10), log_evaluation(10)])

# save the model
reg_lgb.save_model('reg_lgb.txt')

# load the model
# reg_lgb = lgb.Booster('reg_lgb.txt')

# predict the result
y_pred = reg_lgb.predict(X_val)

#metrics the model
print("The mse of the model is",mae(y_val, y_pred)**0.5)

params_sklearn = {
                'boosting_type': 'gbdt',
                'objective':'mae',
                'n_jobs':8,
                'subsample': 0.5,
                'subsample_freq': 1,
                'learning_rate': 0.01,
                'num_leaves': 2**11-1,
                'min_data_in_leaf': 2**12-1,
                'feature_fraction': 0.5,
                'max_bin': 100,
                'n_estimators': 2500,
                'boost_from_average': False,
                "random_seed":420,
                "verbose": -1  # <0 显示致命的, =0 显示错误 (警告), >0 显示信息
}
reg_sklearn = lgb.LGBMRegressor(**params_sklearn)
reg_sklearn.fit(X_train, y_train,
            eval_set=[(X_val, y_val)],
            callbacks=[early_stopping(100), log_evaluation(100)])
y_pred_sklearn = reg_sklearn.predict(X_val)
print("The mse of the model is",mae(y_val, y_pred_sklearn)**0.5)

任务4：可视化树模型

参考：决策树模型，XGBoost，LightGBM和CatBoost模型可视化

1、首先安装graphviz

使用pip install python-graphviz进行直接安装，后续不需要再将graphviz添加到环境变量中。（如果仍然报错，可以将graphviz包下的bin文件夹路径添加到系统PATH中，WIN+R输入cmd进入命令行后输入dot -version，没报错的话则说明添加到系统PATH成功，此时重启 Jupyter Lab 或 Jupyter Notebook即可。

2、LightGBM模型可视化

在lgb中，对应的可视化函数是lightgbm.create_tree_digraph。以iris数据为例，训练一个lgb分类模型并可视化。

#导入库
import lightgbm as lgb
import pandas as pd
import numpy as np
import graphviz
from sklearn import tree
import matplotlib.pyplot as plt
from sklearn.datasets import load_iris
from sklearn.model_selection import train_test_split as TTS
from sklearn.metrics import accuracy_score

# 导入鸢尾花数据集
iris = load_iris()
target = iris.target
feature_names = ["calyx length", "calyx width", "petal length", "petal width"]
data = pd.DataFrame(iris.data, columns=feature_names)
data

#将iris划分为训练集和测试机
train_data_all,test_data, train_y_all, test_y = TTS(data, target, test_size=0.2, random_state=42, shuffle=True)
train_data, val_data, train_y, val_y = TTS(train_data_all, train_y_all, test_size=0.2, random_state=42, shuffle=True)

#构建LGB的训练集
lgb_train = lgb.Dataset(train_data, train_y)
lgb_val = lgb.Dataset(val_data, val_y)

#设置模型参数
params = {
    "objective":"multiclass",
    "num_classes":3,
    "verbosity":-1
}
# 训练模型
booster = lgb.train(params, train_set=lgb_train, valid_sets=lgb_val, num_boost_round=12)

#使用训练的模型对iris进行预测
train_preds = np.argmax(booster.predict(train_data), axis=1)
test_preds = np.argmax(booster.predict(test_data), axis=1)
#测试结果
print("Train Accuracy Score: %.2f"%accuracy_score(train_y, train_preds))
print("Test Accuracy Score: %.2f"%accuracy_score(test_y, test_preds))

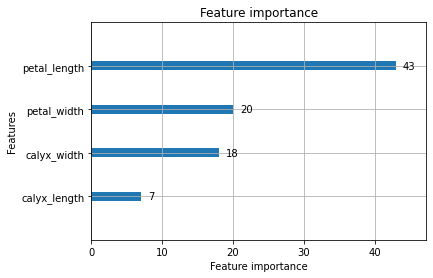

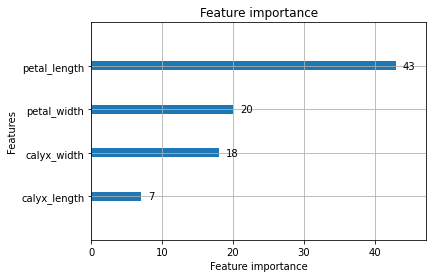

#绘制特征重要程度图
ax = lgb.plot_importance(booster)
plt.show;

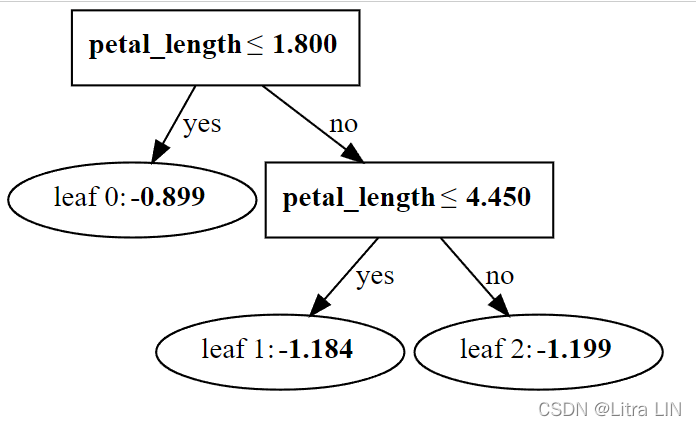

#可视化分类树模型

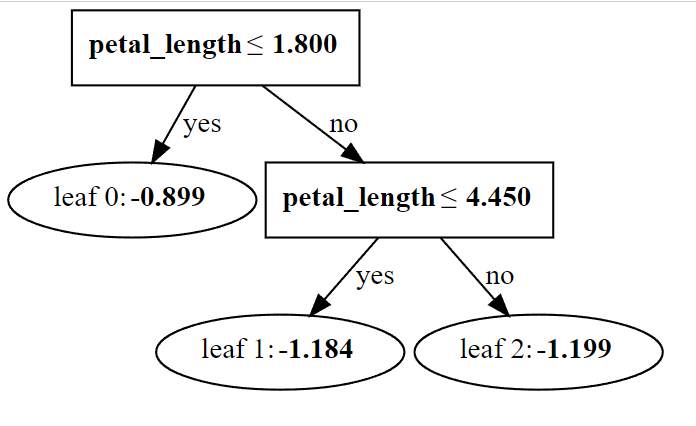

lgb.create_tree_digraph(booster, tree_index=0,orientation='vertical')

在这里插入图片描述

任务5：模型调参（网格、随机、贝叶斯）

步骤1 ：运行以下代码得到训练集和验证集

import pandas as pd, numpy as np, time
from sklearn.model_selection import train_test_split

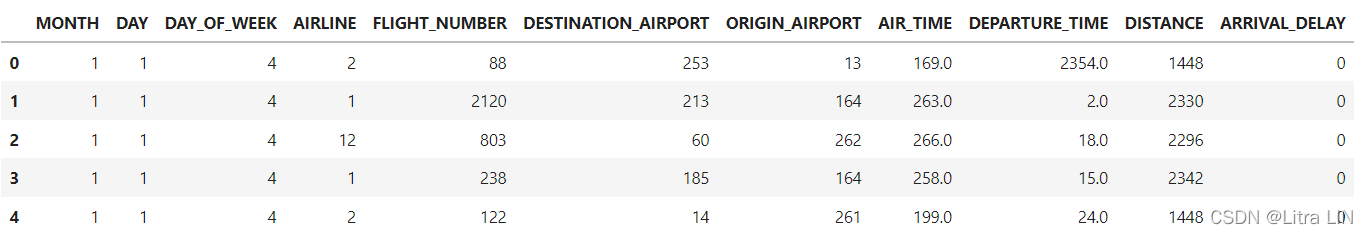

# 读取数据
data = pd.read_csv("https://cdn.coggle.club/kaggle-flight-delays/flights_10k.csv.zip")

# 提取有用的列
data = data[["MONTH","DAY","DAY_OF_WEEK","AIRLINE","FLIGHT_NUMBER","DESTINATION_AIRPORT",
                 "ORIGIN_AIRPORT","AIR_TIME", "DEPARTURE_TIME","DISTANCE","ARRIVAL_DELAY"]]
data.dropna(inplace=True)

# 筛选出部分数据
data["ARRIVAL_DELAY"] = (data["ARRIVAL_DELAY"]>10)*1

# 进行编码
cols = ["AIRLINE","FLIGHT_NUMBER","DESTINATION_AIRPORT","ORIGIN_AIRPORT"]
for item in cols:
    data[item] = data[item].astype("category").cat.codes +1

# 划分训练集和测试集
train, test, y_train, y_test = train_test_split(data.drop(["ARRIVAL_DELAY"], axis=1), data["ARRIVAL_DELAY"], random_state=10, test_size=0.25)

在这里插入图片描述

步骤2 ：构建LightGBM分类器，并设置树模型深度分别为[3,5,6,9]，设置训练集和验证集，分别记录下验证集AUC精度。

#导入库
import lightgbm as lgb
import pandas as pd
import numpy as np
import graphviz
from sklearn import tree
import matplotlib.pyplot as plt
from sklearn.metrics import roc_auc_score
from sklearn.datasets import load_iris
from sklearn.model_selection import train_test_split as TTS
from sklearn.metrics import accuracy_score

### 构建LightGBM分类器

#使用sklearn API
def test_depth(max_depth):
    gbm = lgb.LGBMClassifier(max_depth=max_depth)
    gbm.fit(train, y_train,
            eval_set=[(test, y_test)],
            eval_metric='binary_logloss',
            callbacks=[lgb.early_stopping(5)])
    #eval_metric默认值：LGBMRegressor 为“l2”，LGBMClassifier 为“logloss”，LGBMRanker 为“ndcg”。
    #使用binary_logloss或者logloss准确率都是一样的。默认logloss
    y_pred = gbm.predict(test)
    # 计算准确率
    accuracy = accuracy_score(y_test,y_pred)
    auc_score=roc_auc_score(y_test,gbm.predict_proba(test)[:,1])#predict_proba输出正负样本概率值，取第二列为正样本概率值
    print("max_depth=",max_depth,"accuarcy: %.2f%%" % (accuracy*100.0),"auc_score: %.2f%%" % (auc_score*100.0)+"\n"+"*"*100)

test_depth(3)
test_depth(5)
test_depth(6)
test_depth(9)

Training until validation scores don't improve for 5 rounds
Did not meet early stopping. Best iteration is:
[98]	valid_0's binary_logloss: 0.429334
max_depth= 3 accuarcy: 81.90% auc_score: 76.32%
****************************************************************************************************
Training until validation scores don't improve for 5 rounds
Early stopping, best iteration is:
[60]	valid_0's binary_logloss: 0.430826
max_depth= 5 accuarcy: 81.98% auc_score: 75.54%
****************************************************************************************************
Training until validation scores don't improve for 5 rounds
Early stopping, best iteration is:
[65]	valid_0's binary_logloss: 0.429341
max_depth= 6 accuarcy: 81.69% auc_score: 75.63%
****************************************************************************************************
Training until validation scores don't improve for 5 rounds
Early stopping, best iteration is:
[52]	valid_0's binary_logloss: 0.429146
max_depth= 9 accuarcy: 81.94% auc_score: 76.07%
****************************************************************************************************

步骤3 ：构建LightGBM分类器，在fit函数中将category变量设置为categorical_feature，训练并记录下分别记录下验证集AUC精度。
参考资料1
参考资料2

lightgbm处理类别特征
lightgbm的categorical_feature(类别特征)使用：lightbm相比xgboost的一个改进之处在于对于类别特征的处理，不再粗腰将类别特征转为ont-hot.
具体流程为：

1、可以使用pd.DataFrame存放特征X，每一列表示一个特征，将类别特征设置为：X[cat_cols].astype('category')，这样模型在后面fit的时候会自动识别类别特征
2、在模型的fit方法中传入参数categorical_feature，指明哪些列是类别特征.
3、类别特征的值必须是从0开始的连续整数, 比如0,1,2,…, 不能是负数.

使用categorical_feature

#导入库
import lightgbm as lgb
import pandas as pd
import numpy as np
import graphviz
from sklearn import tree
import matplotlib.pyplot as plt
from sklearn.metrics import roc_auc_score
from sklearn.datasets import load_iris
from sklearn.model_selection import train_test_split as TTS
from sklearn.metrics import accuracy_score
#隐藏警告
import warnings
warnings.filterwarnings('ignore')

import pandas as pd, numpy as np, time
from sklearn.model_selection import train_test_split

# 读取数据
data = pd.read_csv("https://cdn.coggle.club/kaggle-flight-delays/flights_10k.csv.zip")

# 提取有用的列
data = data[["MONTH","DAY","DAY_OF_WEEK","AIRLINE","FLIGHT_NUMBER","DESTINATION_AIRPORT",
                 "ORIGIN_AIRPORT","AIR_TIME", "DEPARTURE_TIME","DISTANCE","ARRIVAL_DELAY"]]
data.dropna(inplace=True)

# 筛选出部分数据
data["ARRIVAL_DELAY"] = (data["ARRIVAL_DELAY"]>10)*1

# 进行编码
categorical_feats = ["AIRLINE","FLIGHT_NUMBER","DESTINATION_AIRPORT","ORIGIN_AIRPORT"]
for f_ in categorical_feats:
    data[f_] = data[f_].astype('category')  # 这里将类别特诊的类型转换为'category'
# 划分训练集和测试集
train, test, y_train, y_test = train_test_split(data.drop(["ARRIVAL_DELAY"], axis=1), data["ARRIVAL_DELAY"], random_state=10, test_size=0.25)

#sklaern API
params_sklearn = {
            "boosting_type" : 'gbdt',
            "num_leaves" : 31,
            "max_depth" : 5,
            "learning_rate" : 0.1,
            "objective" : "binary",
            "min_child_samples" : 20,
            "verbose" : -1
}
gbm = lgb.LGBMClassifier(**params_sklearn)
gbm = gbm.fit(train, y_train, eval_set=[(test, y_test)], eval_metric='binary_logloss',categorical_feature=categorical_feats,
              callbacks=[lgb.early_stopping(5)])
y_proba = gbm.predict_proba(test)
y_pred = gbm.predict(test)
#compute auc
print("Auc is %.2f "%(roc_auc_score(y_test, y_proba[:,1]))+"\t Accuracy score is %.2f"%(accuracy_score(y_test, y_pred)))

#结果：
Training until validation scores don't improve for 5 rounds
Early stopping, best iteration is:
[37]	valid_0's binary_logloss: 0.422765
Auc is 0.77 	 Accuracy score is 0.82

使用LightGBM naive API

#Using the lightgbm API
params_lgb = {
            "boosting_type" : 'gbdt',
            "num_leaves" : 31,
            "max_depth" : 5,
            "learning_rate" : 0.1,
            "objective" : "binary",
            "min_child_samples" : 20,
            "verbose" : -1
}
lgb_train = lgb.Dataset(train, y_train,free_raw_data=False, categorical_feature=categorical_feats)
lgb_eval = lgb.Dataset(test, y_test, reference=lgb_train,free_raw_data=False, categorical_feature=categorical_feats)

#model
gbm = lgb.train(params_lgb,
                lgb_train,
                num_boost_round=10,
                valid_sets=lgb_eval,  #验证集设置
                #feature_name=feature_name,  #特征命名
                categorical_feature=categorical_feats,
                callbacks=[lgb.early_stopping(stopping_rounds=5)]) #设置分类变量

y_pred = gbm.predict(test,num_iteration=gbm.best_iteration) #The difference with sklearn API is lgb navie API has not predict_proba, its preidct output the probability of the predicted class
pred =[1 if x >0.5 else 0 for x in y_pred]
#compute auc
print("AUC is %.2f"%(roc_auc_score(y_test, y_pred))+"\t Accuracy is %.2f"%(accuracy_score(y_test, pred)))

Training until validation scores don't improve for 5 rounds
Did not meet early stopping. Best iteration is:
[10]	valid_0's binary_logloss: 0.441938
AUC is 0.77	 Accuracy is 0.81
#和使用sklearn API差别不大。

不使用category_feature时

#不适用categorical_feature
import pandas as pd, numpy as np, time
from sklearn.model_selection import train_test_split

# 读取数据
data = pd.read_csv("https://cdn.coggle.club/kaggle-flight-delays/flights_10k.csv.zip")

# 提取有用的列
data = data[["MONTH","DAY","DAY_OF_WEEK","AIRLINE","FLIGHT_NUMBER","DESTINATION_AIRPORT",
                 "ORIGIN_AIRPORT","AIR_TIME", "DEPARTURE_TIME","DISTANCE","ARRIVAL_DELAY"]]
data.dropna(inplace=True)

# 筛选出部分数据
data["ARRIVAL_DELAY"] = (data["ARRIVAL_DELAY"]>10)*1

# 进行编码
cols = ["AIRLINE","FLIGHT_NUMBER","DESTINATION_AIRPORT","ORIGIN_AIRPORT"]
for item in cols:
    data[item] = data[item].astype("category").cat.codes +1

# 划分训练集和测试集
train, test, y_train, y_test = train_test_split(data.drop(["ARRIVAL_DELAY"], axis=1), data["ARRIVAL_DELAY"], random_state=10, test_size=0.25)

#Using the lightgbm API
params_lgb = {
            "boosting_type" : 'gbdt',
            "num_leaves" : 31,
            "max_depth" : 5,
            "learning_rate" : 0.1,
            "objective" : "binary",
            "min_child_samples" : 20,
            "verbose" : -1
}
lgb_train = lgb.Dataset(train, y_train,free_raw_data=False)
lgb_eval = lgb.Dataset(test, y_test, reference=lgb_train,free_raw_data=False)

#model
gbm = lgb.train(params_lgb,
                lgb_train,
                num_boost_round=10,
                valid_sets=lgb_eval,  #验证集设置
                #feature_name=feature_name,  #特征命名
                callbacks=[lgb.early_stopping(stopping_rounds=5)]) #设置分类变量

y_pred = gbm.predict(test,num_iteration=gbm.best_iteration) #The difference with sklearn API is lgb navie API has not predict_proba, its preidct output the probability of the predicted class
pred =[1 if x >0.5 else 0 for x in y_pred]
#compute auc
print('AUC = %.2f'%(roc_auc_score(y_test, y_pred))+"\t Accuracy = %.2f"%(accuracy_score(y_test, pred)))

#结果
Training until validation scores don't improve for 5 rounds
Did not meet early stopping. Best iteration is:
[10]	valid_0's binary_logloss: 0.462207
AUC = 0.72	 Accuracy = 0.81

综上，我们可以看出，使用了category_feature后，AUC提升了0.05，accuracy_score基本不变。

步骤4 ：学习网格搜索原理，使用GridSearchCV完成其他超参数搜索，其他超参数设置可以选择learning_rate、num_leaves等。

三种参数优化方法原理见：网格搜索、随机搜索和贝叶斯调参总结与实践

from sklearn.model_selection import GridSearchCV

#定义自己的网格搜索函数
def GridSearch(clf, params, X, y):
    gscv = GridSearchCV(clf, params, scoring='neg_mean_squared_error', n_jobs=1, cv=5)
    gscv.fit(X, y)
    print("The best result: ", gscv.cv_results_)
    print("The best params: ", gscv.best_params_)

#实验
params_sklearn = {
        "boosting_type" : 'gbdt',
        "max_depth" : 5,
        "learning_rate" : 0.1,
        "objective" : "binary",
        "min_child_samples" : 20,
        "verbose" : -1,
        "random_state": 420,
}
gbm = lgb.LGBMClassifier(**params_sklearn)
#网格搜索的参数
params_grid = {
    'max_depth':range(3,9),
    'num_leaves':range(20,50),
    'reg_lambda': np.arange(0.1, 1.0, 0.2),
    'reg_alpha': np.arange(0.1, 1.0, 0.2),
    'learning_rate':np.arange(0.1, 0.01, -0.05)
}
GridSearch(gbm, params_grid, train, y_train)

步骤4 ：学习网格搜索原理，使用GridSearchCV完成其他超参数搜索，其他超参数设置可以选择learning_rate、num_leaves等。

from sklearn.model_selection import GridSearchCV

#定义自己的网格搜索函数
def GridSearch(clf, params, X, y):
    gscv = GridSearchCV(clf, params, scoring='neg_mean_squared_error', n_jobs=1, cv=5)
    gscv.fit(X, y)
    print("The best result: ", gscv.cv_results_)
    print("The best params: ", gscv.best_params_)

#实验
params_sklearn = {
        "boosting_type" : 'gbdt',
        'max_depth':3,
        "learning_rate" : 0.1,
        "objective" : "binary",
        "min_child_samples" : 20,
        "metric" : ['binary_logloss','auc'],
        "verbose" : -1,
        'reg_lambda': 0.1,
        'reg_alpha': 0.2,
        "random_state": 420,
}
gbm = lgb.LGBMClassifier(**params_sklearn)
#网格搜索的参数
params_grid = {
    'num_leaves':range(30,50),
    'max_depth': range(4,8),
}
gscv = GridSearch(gbm, params_grid, train, y_train)
#The best params:  {'max_depth': 6, 'num_leaves': 40}
#Timing 16.8s

步骤5 ：学习随机搜索原理，使用GridSearchCV完成其他超参数搜索，其他超参数设置可以选择learning_rate、num_leaves等。

#随机搜索，和网格搜索代码一致，除了更改GridSearchCV为RandomizedSearchCV

from sklearn.model_selection import RandomizedSearchCV

#定义自己的网格搜索函数
def RandomizedSearch(clf, params, X, y):
    rscv = RandomizedSearchCV(clf, params, scoring='neg_mean_squared_error', n_jobs=1, cv=5)
    rscv.fit(X, y)
    print("The best result: ", rscv.cv_results_)
    print("The best params: ", rscv.best_params_)

#实验
params_sklearn = {
        "boosting_type" : 'gbdt',
        'max_depth':3,
        "learning_rate" : 0.1,
        "objective" : "binary",
        "min_child_samples" : 20,
        "metric" : ['binary_logloss','auc'],
        "verbose" : -1,
        'reg_lambda': 0.1,
        'reg_alpha': 0.2,
        "random_state": 420,
}
gbm = lgb.LGBMClassifier(**params_sklearn)
#网格搜索的参数
params_randm = {
    'num_leaves':range(30,50),
    'max_depth': range(4,8),
}
rscv = RandomizedSearch(gbm, params_randm, train, y_train)

#The best params:  {'num_leaves': 49, 'max_depth': 7}
#Timing:2.8s

步骤6 ：学习贝叶斯调参原理，使用BayesianOptimization完成超参数搜索，具体过程可以参考https://blog.csdn.net/qq_42283960/article/details/88317003

#设定贝叶斯优化的黑盒函数LGB_bayesian
def LGB_bayesian(
    num_leaves,  # int
    min_data_in_leaf,  # int
    learning_rate,
    min_sum_hessian_in_leaf,    # int
    feature_fraction,
    lambda_l1,
    lambda_l2,
    min_gain_to_split,
    max_depth):

    # LightGBM expects next three parameters need to be integer. So we make them integer
    num_leaves = int(num_leaves)
    min_data_in_leaf = int(min_data_in_leaf)
    max_depth = int(max_depth)

    assert type(num_leaves) == int
    assert type(min_data_in_leaf) == int
    assert type(max_depth) == int

    param = {
        'num_leaves': num_leaves,
        'max_bin': 63,
        'min_data_in_leaf': min_data_in_leaf,
        'learning_rate': learning_rate,
        'min_sum_hessian_in_leaf': min_sum_hessian_in_leaf,
        'bagging_fraction': 1.0,
        'bagging_freq': 5,
        'feature_fraction': feature_fraction,
        'lambda_l1': lambda_l1,
        'lambda_l2': lambda_l2,
        'min_gain_to_split': min_gain_to_split,
        'max_depth': max_depth,
        'save_binary': True,
        'seed': 1337,
        'feature_fraction_seed': 1337,
        'bagging_seed': 1337,
        'drop_seed': 1337,
        'data_random_seed': 1337,
        'objective': 'binary',
        'boosting_type': 'gbdt',
        'verbose': 1,
        'metric': 'auc',
        'is_unbalance': True,
        'boost_from_average': False,
        "verbosity":-1

    }


    lgb_train = lgb.Dataset(train,
                           label=y_train)
    lgb_valid = lgb.Dataset(test,label=y_test,reference=lgb_train)

    num_round = 500
    gbm= lgb.train(param, lgb_train, num_round, valid_sets = [lgb_valid],callbacks=[lgb.early_stopping(stopping_rounds=5)])
    predictions = gbm.predict(test,num_iteration=gbm.best_iteration)
    score = roc_auc_score(y_test, predictions)

    return score

bounds_LGB = {
    'num_leaves': (5, 20),
    'min_data_in_leaf': (5, 20),
    'learning_rate': (0.01, 0.3),
    'min_sum_hessian_in_leaf': (0.00001, 0.01),
    'feature_fraction': (0.05, 0.5),
    'lambda_l1': (0, 5.0),
    'lambda_l2': (0, 5.0),
    'min_gain_to_split': (0, 1.0),
    'max_depth':(3,15),
}

#将它们全部放在BayesianOptimization对象中
from bayes_opt import BayesianOptimization
LGB_BO = BayesianOptimization(LGB_bayesian, bounds_LGB, random_state=13)
print(LGB_BO.space.keys)#显示要优化的参数

import warnings
import gc
pd.set_option('display.max_columns', 200)

init_points = 5
n_iter = 5
print('-' * 130)

with warnings.catch_warnings():
    warnings.filterwarnings('ignore')
    LGB_BO.maximize(init_points=init_points, n_iter=n_iter, acq='ucb', xi=0.0, alpha=1e-6)

任务6：模型微调与参数衰减

步骤0 ：读取任务5的数据集，并完成数据划分。
步骤1 ：学习使用LightGBM微调的步骤逐步完成1k数据分批次训练，训练集分批次验证集不划分，记录下验证集AUC精度。

数据分批处理：

import pandas as pd, numpy as np, time
import lightgbm as lgb
from sklearn.model_selection import train_test_split

# 读取数据
data = pd.read_csv("https://cdn.coggle.club/kaggle-flight-delays/flights_10k.csv.zip")

# 提取有用的列
data = data[["MONTH","DAY","DAY_OF_WEEK","AIRLINE","FLIGHT_NUMBER","DESTINATION_AIRPORT",
                 "ORIGIN_AIRPORT","AIR_TIME", "DEPARTURE_TIME","DISTANCE","ARRIVAL_DELAY"]]
data.dropna(inplace=True)

# 筛选出部分数据
data["ARRIVAL_DELAY"] = (data["ARRIVAL_DELAY"]>10)*1

# 进行编码
cols = ["AIRLINE","FLIGHT_NUMBER","DESTINATION_AIRPORT","ORIGIN_AIRPORT"]
for item in cols:
    data[item] = data[item].astype("category").cat.codes +1

# 划分训练集和测试集
train, test, y_train, y_test = train_test_split(data.drop(["ARRIVAL_DELAY"], axis=1), data["ARRIVAL_DELAY"], random_state=10, test_size=0.2)
train_data = pd.concat([train, y_train], axis=1)
test_data = pd.concat([test, y_test], axis=1)
#重建索引
train_data = train_data.reset_index(drop=True)

#分批次训练，每一批训练数据两为959，一共分为8批数据
batch_size = 8
train_batch = []
batch_num = train_data.shape[0] // batch_size              # 959
out_data = train_data.shape[0] - batch_num * batch_size    # 1
gbm = None
for batch in range(batch_size):
      if batch != 7:
            train_batch.append(train_data.iloc[batch*batch_num:(batch+1)*batch_num-1,:])
      else:
            train_batch.append(train_data.iloc[batch*batch_num:-1,:])

      lgb_train = lgb.Dataset(label=train_batch[batch].ARRIVAL_DELAY, data=train_batch[batch].drop('ARRIVAL_DELAY', axis=1))
      lgb_eval = lgb.Dataset(test, y_test)

      #训练增量模型->通过init_model & keep_training_booster两个参数实例化
      params_lgb = {
                  "boosting_type" : 'gbdt',
                  "num_leaves" : 31,
                  "max_depth" : 5,
                  "metric" : ['binary_logloss','auc'],
                  "learning_rate" : 0.1,
                  "objective" : "binary",
                  "min_child_samples" : 20,
                  "verbose" : -1
      }
      gbm =lgb.train(params_lgb,
                  lgb_train,
                  num_boost_round=10,
                  valid_sets=lgb_eval,
                  init_model=gbm,      #如果gbm变为None，那就是在上次训练的基础上接着训练
                  callbacks=[lgb.early_stopping(stopping_rounds=5)],
                  keep_training_booster=True)  #增量训练

      #输出模型评估分数
      score_train = dict([(s[1], s[2]) for s in gbm.eval_train()])
      score_valid = dict([(s[1], s[2]) for s in gbm.eval_valid()])
      print("当前模型在训练集的得分是:binary_logloss=%.4f, auc=%.4f"%(score_train['binary_logloss'], score_train['auc']))
      print("当前模型在验证集的得分是:binary_logloss=%.4f, auc=%.4f"%(score_valid['binary_logloss'], score_valid['auc']))
      print('\n')

print("Processing Sussesifully! ")

Training until validation scores don't improve for 5 rounds
Did not meet early stopping. Best iteration is:
[10]	valid_0's binary_logloss: 0.469446	valid_0's auc: 0.685584
当前模型在训练集的得分是:binary_logloss=0.4413, auc=0.8513
当前模型在验证集的得分是:binary_logloss=0.4694, auc=0.6856


Training until validation scores don't improve for 5 rounds
Did not meet early stopping. Best iteration is:
[20]	valid_0's binary_logloss: 0.452407	valid_0's auc: 0.718817
当前模型在训练集的得分是:binary_logloss=0.4276, auc=0.8282
当前模型在验证集的得分是:binary_logloss=0.4524, auc=0.7188


Training until validation scores don't improve for 5 rounds
Did not meet early stopping. Best iteration is:
[30]	valid_0's binary_logloss: 0.442653	valid_0's auc: 0.735925
当前模型在训练集的得分是:binary_logloss=0.4284, auc=0.7823
当前模型在验证集的得分是:binary_logloss=0.4427, auc=0.7359


Training until validation scores don't improve for 5 rounds
Early stopping, best iteration is:
[32]	valid_0's binary_logloss: 0.440702	valid_0's auc: 0.737068
当前模型在训练集的得分是:binary_logloss=0.3987, auc=0.8301
当前模型在验证集的得分是:binary_logloss=0.4428, auc=0.7309


Training until validation scores don't improve for 5 rounds
Early stopping, best iteration is:
[38]	valid_0's binary_logloss: 0.442734	valid_0's auc: 0.730401
当前模型在训练集的得分是:binary_logloss=0.4456, auc=0.7739
当前模型在验证集的得分是:binary_logloss=0.4477, auc=0.7226


Training until validation scores don't improve for 5 rounds
Did not meet early stopping. Best iteration is:
[50]	valid_0's binary_logloss: 0.444845	valid_0's auc: 0.730959
当前模型在训练集的得分是:binary_logloss=0.3867, auc=0.8373
当前模型在验证集的得分是:binary_logloss=0.4458, auc=0.7302


Training until validation scores don't improve for 5 rounds
Early stopping, best iteration is:
[58]	valid_0's binary_logloss: 0.441577	valid_0's auc: 0.739175
当前模型在训练集的得分是:binary_logloss=0.4018, auc=0.8340
当前模型在验证集的得分是:binary_logloss=0.4427, auc=0.7385


Training until validation scores don't improve for 5 rounds
Early stopping, best iteration is:
[64]	valid_0's binary_logloss: 0.441751	valid_0's auc: 0.740202
当前模型在训练集的得分是:binary_logloss=0.4318, auc=0.7743
当前模型在验证集的得分是:binary_logloss=0.4433, auc=0.7387

Processing Sussesifully！

步骤2 ：学习使用LightGBM学习率衰减的方法，使用指数衰减&阶梯衰减，记录下验证集AUC精度。

学习率衰减

#导入库
import lightgbm as lgb
import pandas as pd
import numpy as np
import graphviz
from sklearn import tree
import matplotlib.pyplot as plt
from sklearn.metrics import roc_auc_score
from sklearn.datasets import load_iris
from sklearn.model_selection import train_test_split as TTS
from sklearn.metrics import accuracy_score
#隐藏警告
import warnings
warnings.filterwarnings('ignore')

import pandas as pd, numpy as np, time
from sklearn.model_selection import train_test_split

# 读取数据
data = pd.read_csv("https://cdn.coggle.club/kaggle-flight-delays/flights_10k.csv.zip")

# 提取有用的列
data = data[["MONTH","DAY","DAY_OF_WEEK","AIRLINE","FLIGHT_NUMBER","DESTINATION_AIRPORT",
                 "ORIGIN_AIRPORT","AIR_TIME", "DEPARTURE_TIME","DISTANCE","ARRIVAL_DELAY"]]
data.dropna(inplace=True)

# 筛选出部分数据
data["ARRIVAL_DELAY"] = (data["ARRIVAL_DELAY"]>10)*1

# 进行编码
cols = ["AIRLINE","FLIGHT_NUMBER","DESTINATION_AIRPORT","ORIGIN_AIRPORT"]
for item in cols:
    data[item] = data[item].astype("category").cat.codes +1

# 划分训练集和测试集
train, test, y_train, y_test = train_test_split(data.drop(["ARRIVAL_DELAY"], axis=1), data["ARRIVAL_DELAY"], random_state=10, test_size=0.25)
lgb_train = lgb.Dataset(train, y_train, free_raw_data = False)
lgb_test = lgb.Dataset(test, y_test, free_raw_data = False)

params_lgb = {
                  "boosting_type" : 'gbdt',
                  "num_leaves" : 31,
                  "max_depth" : 5,
                  "metric" : ['binary_logloss','auc'],
                  "learning_rate" : 0.1,
                  "objective" : "binary",
                  "min_child_samples" : 20,
                  "verbose" : -1
}
gbm = None
# decay learning rates
# learning_rates accepts:
# 1. list/tuple with length = num_boost_round
# 2. function(curr_iter)
gbm = lgb.train(params_lgb,
                lgb_train,
                num_boost_round=10,
                init_model=gbm,
                learning_rates=lambda iter: 0.05 * (0.99 ** iter),
                valid_sets=lgb_test)
print('Finished 20 - 30 rounds with decay learning rates...')

# change other parameters during training
gbm = lgb.train(params_lgb,
                lgb_train,
                num_boost_round=10,
                init_model=gbm,
                valid_sets=lgb_test,
                callbacks=[lgb.reset_parameter(bagging_fraction=[0.7] * 5 + [0.6] * 5)])
print('Finished 30 - 40 rounds with changing bagging_fraction...')

[1]	valid_0's binary_logloss: 0.507864	valid_0's auc: 0.679773
[2]	valid_0's binary_logloss: 0.502682	valid_0's auc: 0.690961
[3]	valid_0's binary_logloss: 0.498704	valid_0's auc: 0.693954
[4]	valid_0's binary_logloss: 0.495317	valid_0's auc: 0.690265
[5]	valid_0's binary_logloss: 0.49185	valid_0's auc: 0.692502
[6]	valid_0's binary_logloss: 0.48925	valid_0's auc: 0.694694
[7]	valid_0's binary_logloss: 0.486458	valid_0's auc: 0.695307
[8]	valid_0's binary_logloss: 0.483654	valid_0's auc: 0.701753
[9]	valid_0's binary_logloss: 0.481802	valid_0's auc: 0.703548
[10]	valid_0's binary_logloss: 0.479875	valid_0's auc: 0.703218
Finished 20 - 30 rounds with decay learning rates...
Finished 30 - 40 rounds with changing bagging_fraction...

任务7：特征筛选方法

步骤0 ：读取任务5的数据集，并完成数据划分。
步骤1 ：使用LightGBM计算特征重要性，并筛选最重要的3个特征。

def get_feature_importance_pair(gbm_model):
    feature_name_list = gbm_model.feature_name()
    importance_list = list(gbm_model.feature_importance())
    feature_importance_pair = [(fe, round(im, 2)) for fe, im in zip(feature_name_list, importance_list)]
    # 重要性从高到低排序
    feature_importance_pair = sorted(feature_importance_pair, key=lambda x: x[1], reverse=True)
    for pair in feature_importance_pair:
        print('Feature:\t{}\t{}'.format(*pair))
    return feature_importance_pair

Feature:	DEPARTURE_TIME	92
Feature:	AIRLINE	80
Feature:	DESTINATION_AIRPORT	72
Feature:	ORIGIN_AIRPORT	46
Feature:	DISTANCE	40
Feature:	FLIGHT_NUMBER	37
Feature:	AIR_TIME	30
Feature:	MONTH	0
Feature:	DAY	0
Feature:	DAY_OF_WEEK	0
[('DEPARTURE_TIME', 92),
 ('AIRLINE', 80),
 ('DESTINATION_AIRPORT', 72),
 ('ORIGIN_AIRPORT', 46),
 ('DISTANCE', 40),
 ('FLIGHT_NUMBER', 37),
 ('AIR_TIME', 30),
 ('MONTH', 0),
 ('DAY', 0),
 ('DAY_OF_WEEK', 0)]

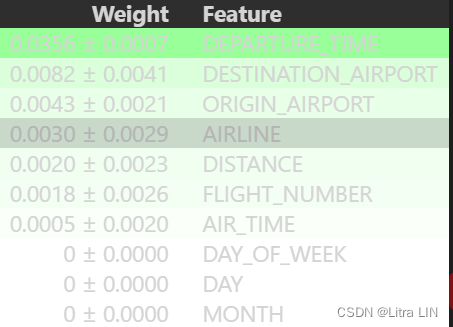

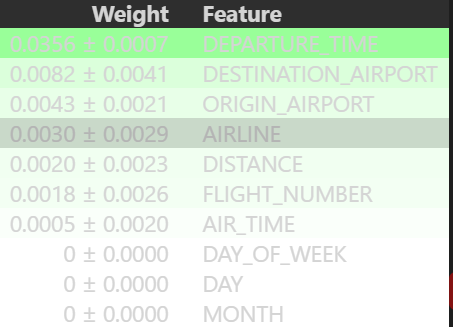

步骤2 ：学习排列重要性，并通过排列重要性计算出最重要的3个特征，

要求你手动实现其过程。
- https://scikit-learn.org/stable/modules/permutation_importance.html
- https://www.kaggle.com/dansbecker/permutation-importance

def get_feature_importance_pair(gbm_model):
    feature_name_list = gbm_model.feature_name_
    importance_list = list(gbm_model.feature_importances_)
    feature_importance_pair = [(fe, round(im, 2)) for fe, im in zip(feature_name_list, importance_list)]
    # 重要性从高到低排序
    feature_importance_pair = sorted(feature_importance_pair, key=lambda x: x[1], reverse=True)
    for pair in feature_importance_pair:
        print('Feature:\t{}\t{}'.format(*pair))
    return feature_importance_pair

params_sklearn = {
            "boosting_type" : 'gbdt',
            "num_leaves" : 40,
            "max_depth" : 6,
            "metric" : ['binary_logloss','auc'],
            "learning_rate" : 0.1,
            "n_estimators": 200,
            "objective" : "binary",
            "min_child_samples" : 20,
            "verbose" : -1,
            "reg_alpha": 0.1,
            "reg_lambda": 0.2,
}
gbm = lgb.LGBMClassifier(**params_sklearn)
gbm = gbm.fit(train, y_train, eval_set=[(test, y_test)],callbacks=[lgb.early_stopping(5)])
get_feature_importance_pair(gbm)

Training until validation scores don't improve for 5 rounds
Early stopping, best iteration is:
[19]	valid_0's binary_logloss: 0.439497	valid_0's auc: 0.754382
Feature:	DEPARTURE_TIME	106
Feature:	DESTINATION_AIRPORT	99
Feature:	ORIGIN_AIRPORT	92
Feature:	AIRLINE	70
Feature:	DISTANCE	66
Feature:	FLIGHT_NUMBER	65
Feature:	AIR_TIME	57
Feature:	MONTH	0
Feature:	DAY	0
Feature:	DAY_OF_WEEK	0
[('DEPARTURE_TIME', 106),
 ('DESTINATION_AIRPORT', 99),
 ('ORIGIN_AIRPORT', 92),
 ('AIRLINE', 70),
 ('DISTANCE', 66),
 ('FLIGHT_NUMBER', 65),
 ('AIR_TIME', 57),
 ('MONTH', 0),
 ('DAY', 0),
 ('DAY_OF_WEEK', 0)]

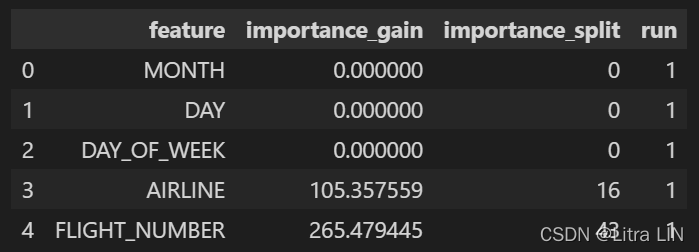

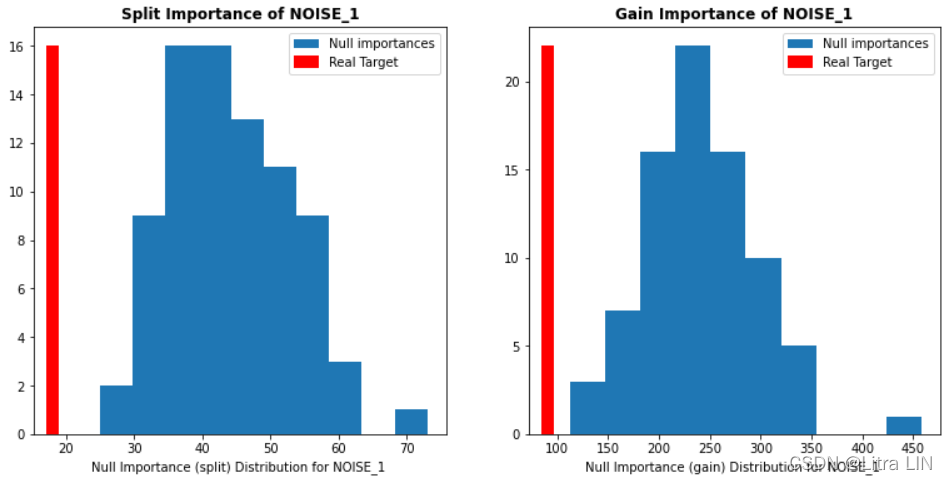

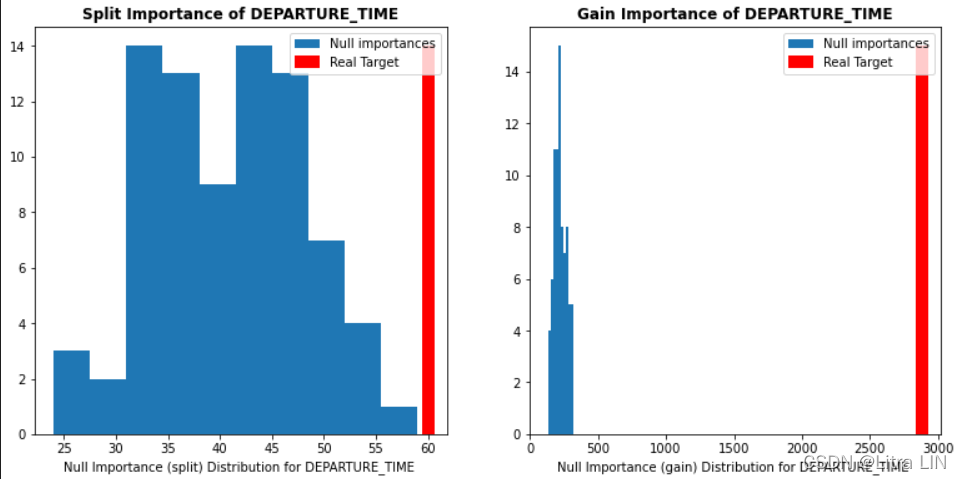

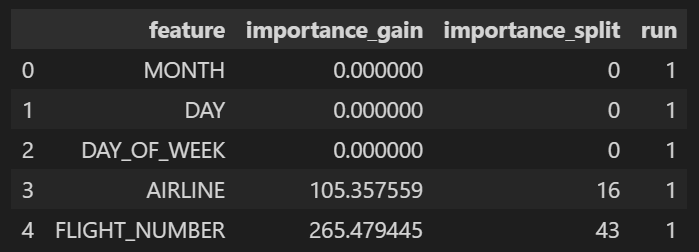

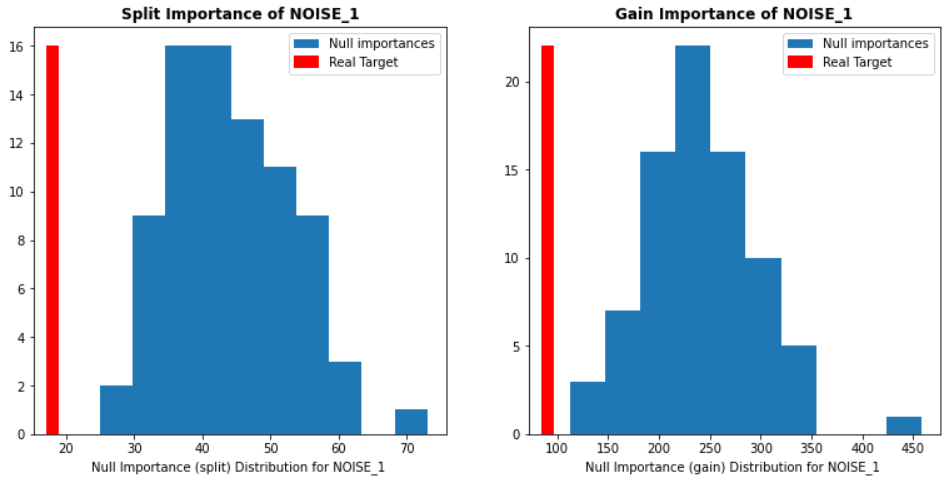

**步骤3：**学习null importance重要性，并手动实现其过程，计算出最重要的3个特征。
- https://www.kaggle.com/ogrellier/feature-selection-with-null-importances

import eli5
from eli5.sklearn import PermutationImportance
params_sklearn = {
            "boosting_type" : 'gbdt',
            "num_leaves" : 40,
            "max_depth" : 6,
            "metric" : ['binary_logloss','auc'],
            "learning_rate" : 0.1,
            "n_estimators": 200,
            "objective" : "binary",
            "min_child_samples" : 20,
            "verbose" : -1,
            "reg_alpha": 0.1,
            "reg_lambda": 0.2,
}
gbm = lgb.LGBMClassifier(**params_sklearn)
gbm = gbm.fit(train, y_train, eval_set=[(test, y_test)],callbacks=[lgb.early_stopping(5)])
perm = PermutationImportance(gbm, random_state=1).fit(test, y_test)
eli5.show_weights(perm, feature_names = test.columns.tolist())

Training until validation scores don't improve for 5 rounds
Early stopping, best iteration is:
[19]	valid_0's binary_logloss: 0.439497	valid_0's auc: 0.754382

在这里插入图片描述

步骤3：学习null importance重要性，并手动实现其过程，计算出最重要的3个特征。
- https://www.kaggle.com/ogrellier/feature-selection-with-null-importances

#导入库
import lightgbm as lgb
import pandas as pd
import numpy as np
import graphviz
from sklearn import tree
import matplotlib.pyplot as plt
from sklearn.metrics import roc_auc_score
from sklearn.datasets import load_iris
from sklearn.model_selection import train_test_split as TTS
from sklearn.metrics import accuracy_score
#隐藏警告
import warnings
warnings.filterwarnings('ignore')

import pandas as pd, numpy as np, time
from sklearn.model_selection import train_test_split

# 读取数据
data = pd.read_csv("https://cdn.coggle.club/kaggle-flight-delays/flights_10k.csv.zip")

# 提取有用的列
data = data[["MONTH","DAY","DAY_OF_WEEK","AIRLINE","FLIGHT_NUMBER","DESTINATION_AIRPORT",
                 "ORIGIN_AIRPORT","AIR_TIME", "DEPARTURE_TIME","DISTANCE","ARRIVAL_DELAY"]]
data.dropna(inplace=True)

# 筛选出部分数据
data["ARRIVAL_DELAY"] = (data["ARRIVAL_DELAY"]>10)*1

# 进行编码
cols = ["AIRLINE","FLIGHT_NUMBER","DESTINATION_AIRPORT","ORIGIN_AIRPORT"]
for item in cols:
    data[item] = data[item].astype("category").cat.codes +1

#我们做两个随机的噪声项进去，看看噪声项的表现是怎么样的
data["noise_1"] = np.random.normal(size=data.shape[0])#正态分布
data["noise_2"] = np.random.randint(100,size=data.shape[0])#随机整数
# 划分训练集和测试集
# train, test, y_train, y_test = train_test_split(data.drop(["ARRIVAL_DELAY"], axis=1), data["ARRIVAL_DELAY"], random_state=10, test_size=0.25)
# lgb_train = lgb.Dataset(train, y_train, free_raw_data = False)
# lgb_test = lgb.Dataset(test, y_test, free_raw_data = False)


def get_feature_importances(data, shuffle, seed=None):
    #特征
    train_features = [f for f in data if f not in ['ARRIVAL_DELAY']]

    y = data['ARRIVAL_DELAY'].copy()

    #在制造Null importance时打乱
    if shuffle:
        #为了打乱时不影响原始数据，我们采取了.copy().sample(frac=1.0)
        y = data['ARRIVAL_DELAY'].copy().sample(frac=1.0)
    train_lgb = lgb.Dataset(data[train_features], y, free_raw_data=False, silent=True)
    params_lgb = {
            "boosting_type" : 'gbdt',
            "num_leaves" : 40,
            "max_depth" : 6,
            "learning_rate" : 0.1,
            "objective" : "binary",
            "min_child_samples" : 20,
            "verbose" : -1,
            'random_state':seed,
            'n_jobs':4,
    }
    #训练
    clf = lgb.train(params_lgb, train_set=train_lgb, num_boost_round=10)

    #Get feature importance
    imp_df = pd.DataFrame()
    imp_df["feature"] = list(train_features)
    imp_df["importance_gain"] = clf.feature_importance(importance_type='gain')
    imp_df["importance_split"] = clf.feature_importance(importance_type='split')

    return imp_df

#我们先来看下原始的feature_importance好了
actual_imp = get_feature_importances(data=data,shuffle=False)
actual_imp.sort_values("importance_gain",ascending=False)

在这里插入图片描述

null_imp_df = pd.DataFrame()
nb_runs = 80
import time
start = time.time()
dsp = ''
for i in range(nb_runs):
    # 获取当前轮feature impotance
    imp_df = get_feature_importances(data=data, shuffle=True)
    imp_df['run'] = i + 1
    # 加到合集上去
    null_imp_df = pd.concat([null_imp_df, imp_df], axis=0)
    # 擦除旧信息
    for l in range(len(dsp)):
        print('\b', end='', flush=True)
    # 显示当前轮信息
    spent = (time.time() - start) / 60
    dsp = 'Done with %4d of %4d (Spent %5.1f min)' % (i + 1, nb_runs, spent)
    print(dsp, end='', flush=True)

    null_imp_df.head()

在这里插入图片描述

import matplotlib.gridspec as gridspec
def display_distributions(actual_imp_df_, null_imp_df_, feature_):
    plt.figure(figsize=(13, 6))
    gs = gridspec.GridSpec(1, 2)
    # Plot Split importances
    ax = plt.subplot(gs[0, 0])
    a = ax.hist(null_imp_df_.loc[null_imp_df_['feature'] == feature_, 'importance_split'].values, label='Null importances')
    ax.vlines(x=actual_imp_df_.loc[actual_imp_df_['feature'] == feature_, 'importance_split'].mean(),
               ymin=0, ymax=np.max(a[0]), color='r',linewidth=10, label='Real Target')
    ax.legend()
    ax.set_title('Split Importance of %s' % feature_.upper(), fontweight='bold')
    plt.xlabel('Null Importance (split) Distribution for %s ' % feature_.upper())
    # Plot Gain importances
    ax = plt.subplot(gs[0, 1])
    a = ax.hist(null_imp_df_.loc[null_imp_df_['feature'] == feature_, 'importance_gain'].values, label='Null importances')
    ax.vlines(x=actual_imp_df_.loc[actual_imp_df_['feature'] == feature_, 'importance_gain'].mean(),
               ymin=0, ymax=np.max(a[0]), color='r',linewidth=10, label='Real Target')
    ax.legend()
    ax.set_title('Gain Importance of %s' % feature_.upper(), fontweight='bold')
    plt.xlabel('Null Importance (gain) Distribution for %s ' % feature_.upper())

    display_distributions(actual_imp_df_=actual_imp, null_imp_df_=null_imp_df, feature_='DEPARTURE_TIME')

在这里插入图片描述

display_distributions(actual_imp_df_=actual_imp, null_imp_df_=null_imp_df, feature_='noise_1')

在这里插入图片描述

display_distributions(actual_imp_df_=actual_imp, null_imp_df_=null_imp_df, feature_='DAY_OF_WEEK')

在这里插入图片描述

任务8：自定义损失函数

https://gitee.com/mirrors/lightgbm/blob/master/examples/python-guide/advanced_example.py
步骤0 ：读取任务5的数据集，并完成数据划分。
步骤1 ：自定义损失函数，预测概率小于0.1的正样本（标签为正样本，但模型预测概率小于0.1），梯度增加一倍。
步骤2 ：自定义评价函数，阈值大于0.8视为正样本（标签为正样本，但模型预测概率大于0.8）。

#自定义目标函数和评估指标

##自定义目标函数
def loglikehood(preds, train_data):
    labels = train_data.get_label()
    preds = 1./(1.+np.exp(-preds))      #sigmoid函数
    grad=[(p-l) if p>=0.1 else 2*(p-l) for (p,l) in zip(preds,labels) ]     #一阶导数
    hess=[p*(1.-p) if p>=0.1 else 2*p*(1.-p) for p in preds ]               #二阶导数
    return grad, hess

def binary_error(preds, train_data):
    labels = train_data.get_label()
    preds = 1./(1.+np.exp(-preds))
    return 'binary_error:', np.mean(labels != (preds > 0.8)), False

#开始训练
#Using the lightgbm API
params_lgb = {
            "boosting_type" : 'gbdt',
            "num_leaves" : 31,
            "max_depth" : 5,
            "learning_rate" : 0.1,
            #"objective" : "binary",
            "min_child_samples" : 20,
            "verbose" : -1
}


#model
gbm = lgb.train(params_lgb,
                lgb_train,
                num_boost_round=10,
                valid_sets=lgb_test,  #验证集设置
                #feature_name=feature_name,  #特征命名
                fobj=loglikehood, # 目标函数
                feval=binary_error, # 评价指标
                callbacks=[lgb.early_stopping(stopping_rounds=5)]) #设置分类变量

y_pred = gbm.predict(test,num_iteration=gbm.best_iteration) #The difference with sklearn API is lgb navie API has not predict_proba, its preidct output the probability of the predicted class
pred =[1 if x >0.5 else 0 for x in y_pred]
#compute auc
print('AUC = %.2f'%(roc_auc_score(y_test, y_pred))+"\t Accuracy = %.2f"%(accuracy_score(y_test, pred)))

Training until validation scores don't improve for 5 rounds
Early stopping, best iteration is:
[1]	valid_0's binary_error:: 0.209341
AUC = 0.68	 Accuracy = 0.79

任务9：模型部署与加速（可选，不参与积分）

https://treelite.readthedocs.io/en/latest/tutorials/import.html
步骤1 ：训练模型，将模型保存为txt
步骤2 ：使用treelite加载模型，导出为so，并进行预测。

#lightgbm模型打包
import treelite
import treelite_runtime

#将树模型导出为treelite
model = treelite.Model.load('model.txt', model_format='lightgbm')

#部署源存档：
model.export_srcpkg(platform='unix', toolchain='gcc',
                    pkgpath='./mymodel.zip', libname='mymodel.so',
                    verbose=True)

#部署共享库：
model.export_lib(toolchain='gcc', libpath='./mymodel.so', verbose=True)

#对目标进行预测
predictor = treelite_runtime.Predictor('./mymodel.so', verbose=True)
batch = treelite_runtime.Batch.from_npy2d(X)
out_pred = predictor.predict(batch)

Litra LIN

关注

4
点赞
踩
14

收藏

觉得还不错? 一键收藏
1
评论
coggle1-2月打卡之LightGBM实战

任务1：模型训练与预测步骤1 ：导入LightGBM库步骤2 ：使用LGBMClassifier对iris进行训练。步骤3 ：将预测的模型对iris进行预测。# 安装LightGBM!pip install lightgbm# 导入import lightgbm as lgbimport pandas as pdimport jsonfrom sklearn import datasets# 导入鸢尾花数据集iris = datasets.load_iris()iris.d
复制链接

扫一扫
