【具身智能基础】三、机器人运动学

【具身智能基础】系列文章

一、坐标系与位姿变换
二、机器人轨迹规划
三、机器人运动学


提示:该文章为个人学习记录,如有错误请指出


三、机器人运动学

一、运动学与动力学概念

运动学(Kinematics)
研究“运动本身”,不考虑产生运动的力。
主要关注:

  • 位置 x \mathbf{x} x
  • 速度 v = d x d t \mathbf{v} = \dfrac{d\mathbf{x}}{dt} v=dtdx
  • 加速度 a = d v d t = d 2 x d t 2 \mathbf{a} = \dfrac{d\mathbf{v}}{dt} = \dfrac{d^2\mathbf{x}}{dt^2} a=dtdv=dt2d2x

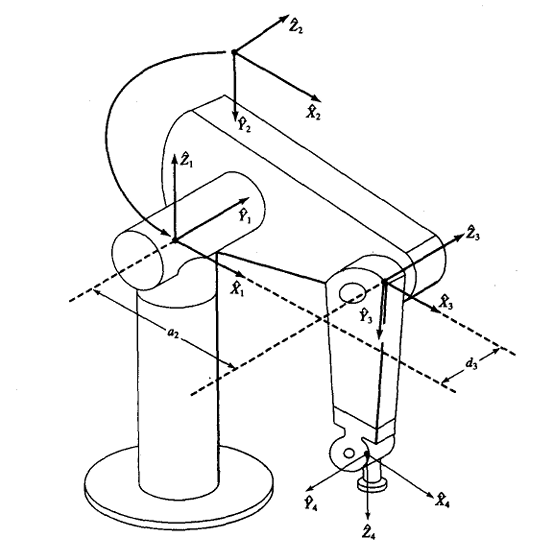

机器人运动学(Robot Kinematics)研究机器人关节、连杆之间的几何关系

  • 正运动学(Forward Kinematics, FK):已知关节变量,求末端执行器位姿。
  • 逆运动学(Inverse Kinematics, IK):已知末端执行器位姿,求关节变量。

在这里插入图片描述

动力学(Dynamics)
研究“力如何产生运动”,依据牛顿第二定律:
F = m a \mathbf{F} = m\mathbf{a} F=ma


二、机械手臂的几何结构描述

1. 组成要素

  • Link(连杆):刚体,用来连接各关节。
  • Joint(关节):提供一个自由度(DOF)。
    • 旋转关节(Revolute) → 变量为角度 θ \theta θ
    • 移动关节(Prismatic) → 变量为位移 d d d
  • 末端执行器(End Effector):机器人用于执行任务的末端装置(如机械手爪)。

  • 姿态(Pose):包含位置与方向:

p = [ x , y , z ] T , R ∈ S O ( 3 ) \mathbf{p} = [x, y, z]^T, \qquad \mathbf{R} \in SO(3) p=[x,y,z]T,RSO(3)

2. 编号规则

  • Link 0:基座(固定不动)
  • Link 1:第一个活动杆
  • 以此类推,最后一个为末端执行器。

二、正运动学(Forward Kinematics, FK)

2.1 定义

给定各关节变量,求出末端相对于基座的位姿:

T 0 n = f ( θ 1 , θ 2 , … , θ n ) \mathbf{T}_{0}^{n} = f(\theta_1, \theta_2, \dots, \theta_n) T0n=f(θ1,θ2,,θn)

其中 T 0 n \mathbf{T}_{0}^{n} T0n齐次变换矩阵

T = [ R p 0 1 ] \mathbf{T} = \begin{bmatrix} \mathbf{R} & \mathbf{p} \\ 0 & 1 \end{bmatrix} T=[R0p1]

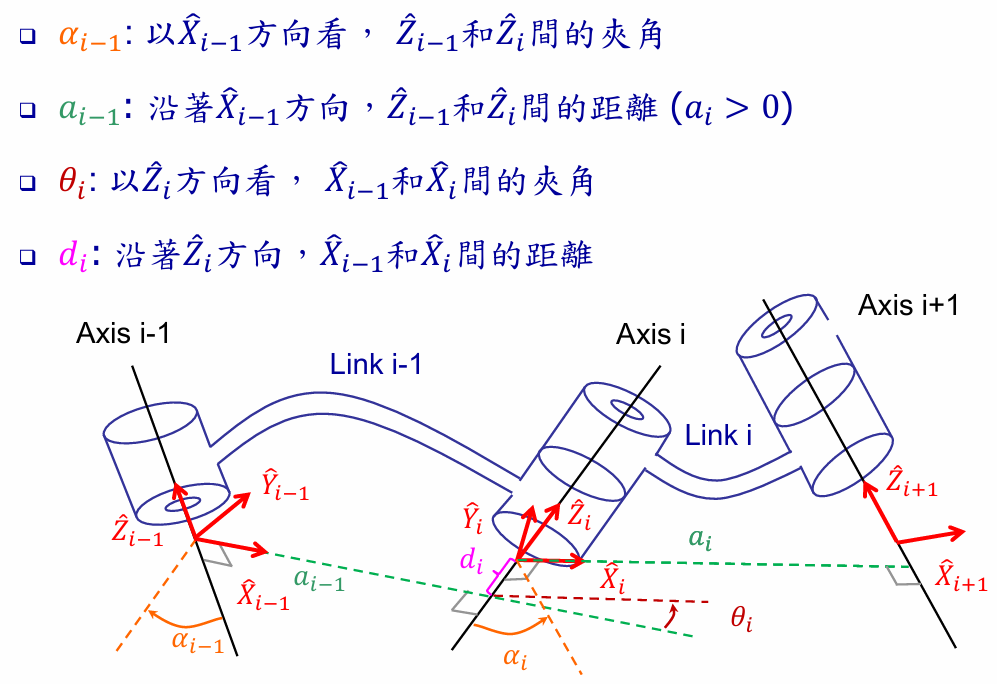

2.2 D–H 参数法(Denavit–Hartenberg)

在这里插入图片描述

为每个连杆定义 4 个参数:

参数含义类型
a i a_i ai连杆长度位移
α i \alpha_i αi连杆扭角旋转
d i d_i di连杆偏距位移
θ i \theta_i θi连杆转角旋转

单个连杆的齐次变换(从 i − 1 i-1 i1 i i i):
A i = [ cos ⁡ θ i − sin ⁡ θ i cos ⁡ α i sin ⁡ θ i sin ⁡ α i a i cos ⁡ θ i sin ⁡ θ i cos ⁡ θ i cos ⁡ α i − cos ⁡ θ i sin ⁡ α i a i sin ⁡ θ i 0 sin ⁡ α i cos ⁡ α i d i 0 0 0 1 ] \mathbf{A}_i = \begin{bmatrix} \cos\theta_i & -\sin\theta_i\cos\alpha_i & \sin\theta_i\sin\alpha_i & a_i\cos\theta_i \\ \sin\theta_i & \cos\theta_i\cos\alpha_i & -\cos\theta_i\sin\alpha_i & a_i\sin\theta_i \\ 0 & \sin\alpha_i & \cos\alpha_i & d_i \\ 0 & 0 & 0 & 1 \end{bmatrix} Ai= cosθisinθi00sinθicosαicosθicosαisinαi0sinθisinαicosθisinαicosαi0aicosθiaisinθidi1

整体变换为:

T 0 n = A 1 A 2 ⋯ A n \mathbf{T}_{0}^{n} = \mathbf{A}_1 \mathbf{A}_2 \cdots \mathbf{A}_n T0n=A1A2An

2.3 二维双连杆机械臂示例

已知两关节转角 θ 1 , θ 2 \theta_1, \theta_2 θ1,θ2,连杆长度 l 1 , l 2 l_1, l_2 l1,l2,则末端坐标为:

{ x = l 1 cos ⁡ θ 1 + l 2 cos ⁡ ( θ 1 + θ 2 ) y = l 1 sin ⁡ θ 1 + l 2 sin ⁡ ( θ 1 + θ 2 ) \begin{cases} x = l_1\cos\theta_1 + l_2\cos(\theta_1 + \theta_2) \\ y = l_1\sin\theta_1 + l_2\sin(\theta_1 + \theta_2) \end{cases} {x=l1cosθ1+l2cos(θ1+θ2)y=l1sinθ1+l2sin(θ1+θ2)

示意图(Mermaid)

θ1
θ2
Base
Link1
Link2
End Effector

三、逆运动学(Inverse Kinematics, IK)

3.1 定义

已知末端位姿 T 0 n \mathbf{T}_{0}^{n} T0n,求各个关节变量:

Given  T 0 n , find  θ i \text{Given } \mathbf{T}_{0}^{n}, \quad \text{find } \theta_i Given T0n,find θi

3.2 特点

  • 非唯一性:可能有多个解(如肘上/肘下姿态)。
  • 可能无解:目标点在工作空间之外。
  • 高非线性:方程复杂,常需数值迭代法。

3.3 几何法求解(二维双连杆示例)

先求 θ 2 \theta_2 θ2

cos ⁡ θ 2 = x 2 + y 2 − l 1 2 − l 2 2 2 l 1 l 2 \cos\theta_2 = \frac{x^2 + y^2 - l_1^2 - l_2^2}{2 l_1 l_2} cosθ2=2l1l2x2+y2l12l22

θ 2 = arccos ⁡ ( cos ⁡ θ 2 ) \theta_2 = \arccos(\cos\theta_2) θ2=arccos(cosθ2)

再求 θ 1 \theta_1 θ1

θ 1 = atan2 ⁡ ( y , x ) − atan2 ⁡ ( l 2 sin ⁡ θ 2 , ; l 1 + l 2 cos ⁡ θ 2 ) \theta_1 = \operatorname{atan2}(y, x) - \operatorname{atan2}\bigl(l_2\sin\theta_2,; l_1 + l_2\cos\theta_2\bigr) θ1=atan2(y,x)atan2(l2sinθ2,;l1+l2cosθ2)

条件: ∣ cos ⁡ θ 2 ∣ ≤ 1 |\cos\theta_2| \le 1 cosθ21,即目标点在可达范围内。

3.4 数值法(Jacobian 迭代法)

雅可比关系:

x ˙ = J ( θ ) θ ˙ \dot{\mathbf{x}} = \mathbf{J}(\theta)\dot{\theta} x˙=J(θ)θ˙

伪逆求解增量:

θ ˙ = J + ( θ ) x ˙ \dot{\theta} = \mathbf{J}^{+}(\theta)\dot{\mathbf{x}} θ˙=J+(θ)x˙

迭代更新:

θ k + 1 = θ k + Δ t J + ( θ k ) ( x target − x ( θ k ) ) \theta_{k+1} = \theta_k + \Delta t\mathbf{J}^{+}(\theta_k)\bigl(\mathbf{x}_{\text{target}} - \mathbf{x}(\theta_k)\bigr) θk+1=θk+ΔtJ+(θk)(xtargetx(θk))


四、FK 与 IK 对比总结

项目正运动学 (FK)逆运动学 (IK)
输入关节变量 θ i \theta_i θi末端位姿 T 0 n \mathbf{T}_{0}^{n} T0n
输出末端位姿 T 0 n \mathbf{T}_{0}^{n} T0n关节变量 θ i \theta_i θi
计算难度简单(矩阵乘积)复杂(非线性方程)
解的数量唯一多解 / 无解
应用场景仿真、验证规划、控制

五、Q&A

1.正运动学和逆运动学的输入和输出是什么?

正运动学:

1)输入
各个关节变量(旋转角或平移量):

θ 1 , θ 2 , … , θ n \theta_1, \theta_2, \dots, \theta_n θ1,θ2,,θn
2)输出

末端执行器的位姿(位置 + 姿态):

T 0 n = [ R p 0 1 ] \mathbf{T}_0^n = \begin{bmatrix} \mathbf{R} & \mathbf{p} \\\\ 0 & 1 \end{bmatrix} T0n= R0p1

其中:

  • 位置:末端的坐标 ( x , y , z ) (x, y, z) (x,y,z)

  • 姿态:末端的方向(用旋转矩阵、欧拉角或四元数表示)

逆运动学:

1)输入

目标末端位姿(期望的目标位置与方向):

T target = [ R target p target 0 1 ] \mathbf{T}_{\text{target}} = \begin{bmatrix} \mathbf{R}_{\text{target}} & \mathbf{p}_{\text{target}} \\\\ 0 & 1 \end{bmatrix} Ttarget= Rtarget0ptarget1

2)输出

关节变量:

θ 1 , θ 2 , … , θ n \theta_1, \theta_2, \dots, \theta_n θ1,θ2,,θn


2.一个平面两关节机械臂去到同一个目标点,可能会有几种解?为什么?

1)场景:

平面上一个两关节旋转机械臂(2R),每个连杆长度为 l 1 , l 2 l_1, l_2 l1,l2,目标点为 ( x , y ) (x, y) (x,y)

2)可能的解

通常有 两种几何解

  • 肘上(elbow-up)构型
  • 肘下(elbow-down)构型

这两个解的区别在于第二个关节的弯曲方向不同

3)数学解释

由几何法可得第二关节角度:

cos ⁡ θ 2 = x 2 + y 2 − l 1 2 − l 2 2 2 l 1 l 2 \cos\theta_2 = \frac{x^2 + y^2 - l_1^2 - l_2^2}{2 l_1 l_2} cosθ2=2l1l2x2+y2l12l22

∣ cos ⁡ θ 2 ∣ ≤ 1 |\cos\theta_2| \le 1 cosθ21 时,有两个可能的解:

θ 2 = arccos ⁡ ( cos ⁡ θ 2 ) \theta_2 = \arccos(\cos\theta_2) θ2=arccos(cosθ2)

θ 2 ′ = − arccos ⁡ ( cos ⁡ θ 2 ) \theta_2' = -\arccos(\cos\theta_2) θ2=arccos(cosθ2)

这对应两种不同的构型(即“肘上/肘下”)。


3.如果目标点超出了机械臂的最大工作范围,会怎样?

1)最大可达范围

末端与基座的最大、最小距离为:

r max ⁡ = l 1 + l 2 r_{\max} = l_1 + l_2 rmax=l1+l2

r min ⁡ = ∣ l 1 − l 2 ∣ r_{\min} = |l_1 - l_2| rmin=l1l2

2)超出范围时

如果目标点 ( x , y ) (x, y) (x,y) 满足:

x 2 + y 2 > r max ⁡ \sqrt{x^2 + y^2} > r_{\max} x2+y2 >rmax

x 2 + y 2 < r min ⁡ \sqrt{x^2 + y^2} < r_{\min} x2+y2 <rmin

则机械臂 无实解(不可达),在计算中会出现:

∣ cos ⁡ θ 2 ∣ > 1 |\cos\theta_2| > 1 cosθ2>1

导致 arccos() 无实数解。

3)物理意义

  • 机械臂无法到达目标点。
  • 控制系统通常会返回“不可达”或“超出工作空间”错误。
  • 在规划算法中会直接排除这些点。

参考

1、 机器人学导论(原书第3版)
