今天花了将近一天的时间来研究ESP8266SmartConfig功能,这个应该算是wifi云产品的标配。这篇文章先把SmartConfig操作一遍,我还写了另一篇文章梳理了物理层的具体协议,点击这里可以看到

转载请注明:http://blog.csdn.net/sadshen/

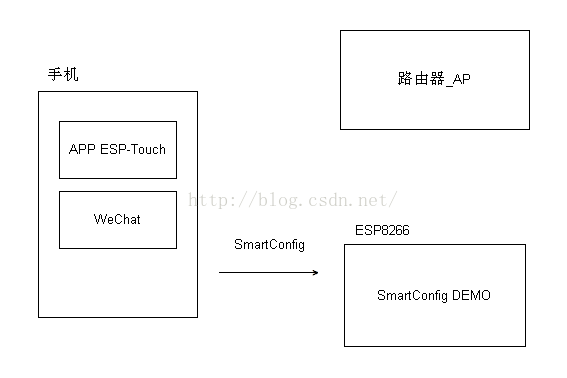

一、准备



ESP8266目前的SDK_v1.2.0支持SmartConfig。将esp_iot_sdk_v1.2.0\examples\smart_config

\目录的例程源码拷贝至app目录即可。


ESP-TouchAPP在乐鑫官网有下载。


微信官方对AirKiss有初步介绍(http://iot.weixin.qq.com/document-7_1.html),这个介绍中提到的库文件误导了我。事实上ESPSDK_v1.2.0已经支持了AirKiss,我们只需要调用SmartConfig接口就可以了。

一个比较大的限制是,微信只将AirKiss的功能权限开放给企业服务号,而个人申请的订阅号则不能申请这个权限。不过微信还是给了DEMO(http://iot.weixin.qq.com/download.html)方便开发者的调试。



二、ESP-TOUCH



如下是ESP8266ESP-TOUCH时的打印信息:

<Time:2015-07-14 19:01:13:078 Len:0099>:?
SDK ver: 1.2.0 compiled @ Jul  3 2015 19:36:17
phy ver: 356, pp ver: 8.7

SDK version:1.2.0

<Time:2015-07-14 19:01:13:218 Len:0045>:mode : sta(18:fe:34:f8:8f:cf)
add if0
f 0,
<Time:2015-07-14 19:01:15:296 Len:0015>:scandone
f 0,
<Time:2015-07-14 19:01:17:484 Len:0034>:scandone
SC_STATUS_FIND_CHANNEL

<Time:2015-07-14 19:02:07:484 Len:0136>:
TYPE: ESPTOUCH V2.4
T|PHONE MAC: b4 b 44 1 6 5
T|AP MAC   : 0 c4 38 12 0 5e
SC_STATUS_GETTING_SSID_PSWD
SC_TYPE:SC_TYPE_ESPTOUCH

<Time:2015-07-14 19:02:08:531 Len:0030>:T|SCAN SSID: 杩瀢ifi_2.4g鍚?

<Time:2015-07-14 19:02:09:593 Len:0088>:T|pswd: 12345678
T|ssid: 杩瀢ifi_2.4g鍚?
T|bssid: 00 c4 38 12 00 5e
SC_STATUS_LINK

<Time:2015-07-14 19:02:09:671 Len:0008>:f -240,
<Time:2015-07-14 19:02:11:906 Len:0072>:scandone
no 杩瀢ifi_2.4g鍚?found, reconnect after 1s
reconnect
f 0,
<Time:2015-07-14 19:02:14:093 Len:0123>:scandone
add 0
aid 2
pm open phy_2,type:2 0 0

connected with 杩瀢ifi_2.4g鍚? channel 3
dhcp client start...
cnt

<Time:2015-07-1419:02:17:109 Len:0052>:ip:192.168.4.232,mask:255.255.255.0,gw:192.168.4.1

<Time:2015-07-14 19:02:19:937 Len:0046>:SC_STATUS_LINK_OVER
Phone ip: 192.168.4.199



三、AirKiss



如下是ESP8266AirKiss时的打印信息:

<Time:2015-07-14 19:20:00:968 Len:0159>:?
SDK ver: 1.2.0 compiled @ Jul  3 2015 19:36:17
phy ver: 356, pp ver: 8.7

SDK version:1.2.0
mode : sta(18:fe:34:f8:8f:cf)
add if0
f 0, scandone
f 0,
<Time:2015-07-14 19:20:03:046 Len:0015>:scandone
f 0,
<Time:2015-07-14 19:20:05:234 Len:0034>:scandone
SC_STATUS_FIND_CHANNEL

<Time:2015-07-14 19:20:16:421 Len:0185>:
TYPE: AIRKISS V2.4
T|sniffer on ch:3
T|PHONE MAC: b4 b 44 1 6 5
T|AP MAC   : 0 c4 38 12 0 5e
T|Head Len : 66

SC_STATUS_GETTING_SSID_PSWD
SC_TYPE:SC_TYPE_AIRKISS
T|sync:wait

<Time:2015-07-14 19:20:16:812 Len:0052>:T|retain data: 0
T|all data: 24

T|sync:mgc end

<Time:2015-07-14 19:20:17:406 Len:0250>:T|ssid len15
T|SSID: 杩瀢ifi_2.4g鍚?
T|SCAN CRC SSID: 1
T|index:2, remain:1
T|password len: 8
T|sync:pfx end
T|seq:0
T|seq:1
T|seq:2
T|I get it!
T|pswd : 12345678
T|ssid : 杩瀢ifi_2.4g鍚?
T|bssid: 00 c4 38 12 00 5e
SC_STATUS_LINK
f 0,
<Time:2015-07-14 19:20:19:562 Len:0123>:scandone
add 0
aid 2
pm open phy_2,type:2 0 0

connected with 杩瀢ifi_2.4g鍚? channel 3
dhcp client start...
cnt

<Time:2015-07-14 19:20:20:343 Len:0052>:ip:192.168.4.232,mask:255.255.255.0,gw:192.168.4.1

<Time:2015-07-14 19:20:24:171 Len:0021>:SC_STATUS_LINK_OVER



四、总结

ESP8266V1.2.0版本已经兼容ESP-TOUCH和微信AirKiss,经测试,效果良好。
