前言

HarmonyOS Next（基于API11）实现从手机选择图片或拍照上传功能，常用于头像上传等操作

一、实现步骤总结

1、媒体读写权限检查和申请
2、从手机存储选择图片或拍照
3、把图片复制到缓存目录
4、接口请求上传图片

分析说明：

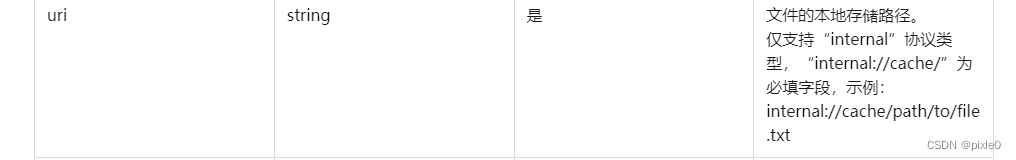

图片上传使用API request.uploadFile 而该api上传文件的本地路径只支持internal协议

在这里插入图片描述

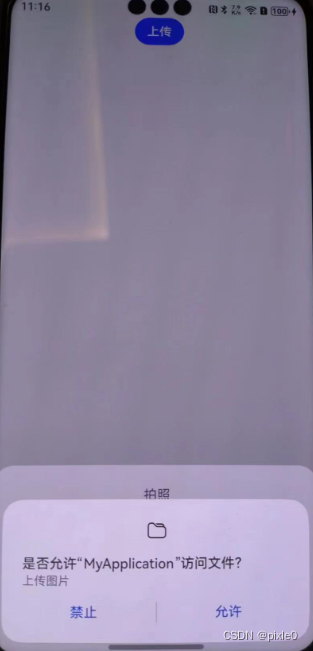

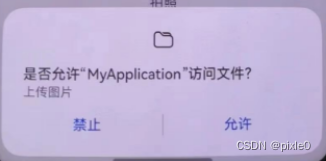

所以选择完图片/或拍照后需要把图片从内部存储复制到cache目录下，该操作需要外部存储设备媒体读写权限，且是用户级别的权限，因此每次复制图片前需要检查权限如果没权限需弹窗口让用户授权，最后在通过该api实现上传

在这里插入图片描述

二、代码实现

1.媒体读写权限检查和申请

（1）检查权限

工具类文件：

import bundleManager from '@ohos.bundle.bundleManager';
import abilityAccessCtrl, { Context, Permissions } from '@ohos.abilityAccessCtrl';

//校验应用是否授予权限
//@params permissions:权限名称数组
//@return permissionabilityAccessCtrl:权限名称
async function checkAccessToken(permission: Permissions): Promise<abilityAccessCtrl.GrantStatus> {
  let atManager = abilityAccessCtrl.createAtManager();
  let grantStatus: abilityAccessCtrl.GrantStatus = 0;

  // 获取应用程序的accessTokenID
  let tokenId: number = 0;
  try {
    let bundleInfo: bundleManager.BundleInfo = await bundleManager.getBundleInfoForSelf(bundleManager.BundleFlag.GET_BUNDLE_INFO_WITH_APPLICATION);
    let appInfo: bundleManager.ApplicationInfo = bundleInfo.appInfo;
    tokenId = appInfo.accessTokenId;
  } catch (err) {
    console.error(`getBundleInfoForSelf failed, code is ${err.code}, message is ${err.message}`);
  }

  // 校验应用是否被授予权限
  try {
    grantStatus = await atManager.checkAccessToken(tokenId, permission);
  } catch (err) {
    console.error(`checkAccessToken failed, code is ${err.code}, message is ${err.message}`);
  }

  return grantStatus;
}


//检查用户权限
//@params permissions:权限名称数组
export  async function checkPermissions(permissions: Permissions): Promise<boolean> {
  try {
    let grantStatus: abilityAccessCtrl.GrantStatus = await checkAccessToken(permissions);
    return grantStatus === abilityAccessCtrl.GrantStatus.PERMISSION_GRANTED
  }
  catch (e) {
    return Promise.reject(e)
  }
}

调用：

      const READ_MEDIA_PERMISSION: Permissions = 'ohos.permission.READ_MEDIA' //媒体读取权限
      const WRITE_MEDIA_PERMISSION: Permissions = 'ohos.permission.WRITE_MEDIA' //媒体写入权限
      let permissionList: Permissions[] = []; //需要申请选项列表
      let readPermission = await checkPermissions(READ_MEDIA_PERMISSION)//检查是否有媒体读取权限
      !readPermission && permissionList.push(READ_MEDIA_PERMISSION)
      let writePermission = await checkPermissions(WRITE_MEDIA_PERMISSION)//检查是否有媒体写入权限
      !writePermission && permissionList.push(READ_MEDIA_PERMISSION)

（2）申请权限
工具类文件：

import abilityAccessCtrl, { Permissions } from '@ohos.abilityAccessCtrl';
import common from '@ohos.app.ability.common'

interface rejectObj {
  code: number
  message: string
}
/**
 * 申请权限
 * @params context:AblitiyContext
 * @params permissions:权限名称数组
 * @returns  Promise<boolean>：是否授权成功
 */
export async function applyPermission(context: common.UIAbilityContext, permissions: Array<Permissions>): Promise<boolean> {
  let atManager = abilityAccessCtrl.createAtManager();
  return new Promise((resolve: (res: boolean) => void, reject: (e: rejectObj) => void) => {
    atManager.requestPermissionsFromUser(context, permissions).then((data) => {
      let grantStatus: Array<number> = data.authResults;
      resolve(grantStatus.every(item => item === 0))
    }).catch((err: rejectObj) => {
      reject(err)
    })

  })
}

调用：

       private context = getContext(this) as common.UIAbilityContext; //UIAbilityContext
       .....
       .....
       .....
      //申请权限
        let res: boolean = await applyPermission(this.context, permissionList)
        if (!res) {//用户未同意授权
          AlertDialog.show({
            title: "提示",
            message: "无权限读写用户外部存储中的媒体文件信息，请前往系统设置开启",
            alignment: DialogAlignment.Center,
            secondaryButton: {
              value: '关闭',
              action: () => {
              }
            }
          })
        }

2.从手机存储选择图片或拍照

（1）从手机存储选择图片

    import picker from '@ohos.file.picker';
    ....
    ....

       //从相册选择
        let PhotoSelectOptions = new picker.PhotoSelectOptions();
        PhotoSelectOptions.MIMEType = picker.PhotoViewMIMETypes.IMAGE_TYPE;
        PhotoSelectOptions.maxSelectNumber = 1;
        let photoPicker = new picker.PhotoViewPicker();
        photoPicker.select(PhotoSelectOptions).then(async (PhotoSelectResult) => {
            if (PhotoSelectResult.photoUris.length) {
              console.log(`图片本地路径：${PhotoSelectResult.photoUris[0]}`)
            }
        })

(2)拍照

    import camera from '@ohos.multimedia.camera';
    import camerapicker from '@ohos.multimedia.cameraPicker';
    import { BusinessError } from '@ohos.base';
    ....
    ....

      try{
         let pickerProfile: camerapicker.PickerProfile = {
            cameraPosition: camera.CameraPosition.CAMERA_POSITION_BACK
          };
          let pickerResult: camerapicker.PickerResult = await camerapicker.pick(this.context,
            [camerapicker.PickerMediaType.PHOTO, camerapicker.PickerMediaType.PHOTO], pickerProfile);
        } catch (error) {
          let err = error as BusinessError;
          console.error(`the pick call failed. error code: ${err.code}`);
       }

3.复制图片到缓存目录下

默认复制图片到缓存目录cache根路径下，移动后文件名前面加上当前时间戳区分：timestamep+原name.格式

import fs from '@ohos.file.fs';

/**
 * 复制文件到缓存目录下
 * @param path :文件路径
 * @param context :Context
 * @returns Promise<string> 移动后文件路径
 */
export async function copyFileToCache(path: string,context:Context): Promise<string> {
  try {

    let file =  fs.openSync(path, fs.OpenMode.READ_ONLY)
    if (file) {
      let fileDir: string = `${context.cacheDir}` //临时文件目录
      //时间戳生成随机文件名
      let newPath: string =  `${new Date().getTime()}_${path.split("/")[path.split("/").length-1]}`
      let targetPath: string = `${fileDir}/${newPath}`
      fs.copyFileSync(file.fd, targetPath)
      return  newPath
    }
    else {
      return ''
    }

  } catch (e) {
    return Promise.resolve('')
  }
}

4. 接口请求上传图片

  //开始上传图片 path：图片路径后缀（图片名称）
  async uploadImage(path: string) {
    let uri=`internal://cache/${path}` //上传图片全路径
    let uploadConfig: request.UploadConfig = {
      url:"http://xxxxxxx",
      header:{},
      method: "POST",
      files: [{ filename: path, name: "file", uri, type: path.split('.')[path.split('.').length-1] }],
      data: [],
    };
    try {
      let uploadTask:request.UploadTask=await request.uploadFile(this.context, uploadConfig)
      //上传中回调
      uploadTask.on('progress', (size,total) => {
        console.log(size.toString(),total.toString(),'上传进度')
      })
    //每上传一张图片成功回调
      uploadTask.on('headerReceive', (data: object) => {
         console.info("upOnComplete success data" + JSON.stringify(data));
         })
      //所有图片上传完成回调
      uploadTask.on('complete', (taskStates: request.TaskState[]) => {
        console.info("upOnComplete complete taskState:" + JSON.stringify(taskStates));
      })
      //上传失败回调
      uploadTask.on('fail', (taskStates: request.TaskState[]) => {
        console.info("upOnComplete fail taskState:" + JSON.stringify(taskStates));
      })
    }catch (e){
      console.log( JSON.stringify(e),'e')
    }

  }

需要注意的是我们在复制图片步骤中通过context.cacheDir获取到的缓存目录路径如下所示：

"path":"/data/storage/el2/base/haps/entry/cache/1717854801890_IMG_20240603_170235.jpg"

需转换成internal协议路径，
前面 “/data/storage/el2/base/haps/entry/cache"实际等价于"internal://cache”
所以在上传接口拼接uri参数时候只需要知道图片名称+格式即可，最终上传参数拼接后路径为internal://cache/1717854801890_IMG_20240603_170235.jpg

三、完整代码

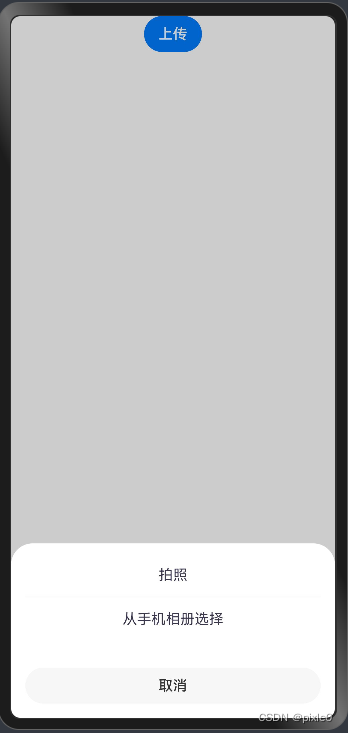

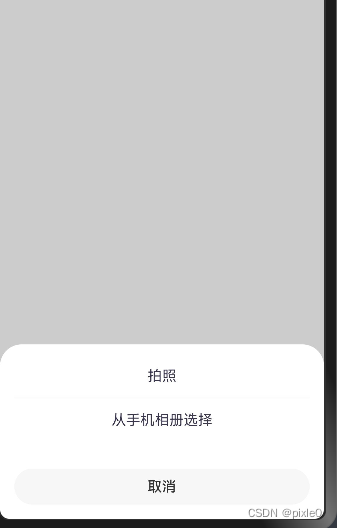

完整代码将封装一个完整的组件，自定义底部弹窗菜单选择拍照或从手机相册选择，选完自动上传。
在这里插入图片描述

代码目录结构
在这里插入图片描述

utils/index.ets（工具类）:


import fs from '@ohos.file.fs';
import bundleManager from '@ohos.bundle.bundleManager';
import abilityAccessCtrl, { Context, Permissions } from '@ohos.abilityAccessCtrl';
import common from '@ohos.app.ability.common'

/**
 * 复制文件到缓存目录下
 * @param path :文件路径
 * @param context :Context
 * @returns Promise<string> 移动后文件路径
 */
export async function copyFileToCache(path: string,context:Context): Promise<string> {
  try {

    let file =  fs.openSync(path, fs.OpenMode.READ_WRITE)
    if (file) {
      let fileDir: string = `${context.cacheDir}` //临时文件目录
      //时间戳生成随机文件名
      let newPath: string =  `${new Date().getTime()}_${path.split("/")[path.split("/").length-1]}`
      let targetPath: string = `${fileDir}/${newPath}`
      fs.copyFileSync(file.fd, targetPath)
      return  newPath
    }
    else {
      return ''
    }

  } catch (e) {
    return Promise.resolve('')
  }
}

//校验应用是否授予权限
//@params permissions:权限名称数组
//@return permissionabilityAccessCtrl:权限名称
async function checkAccessToken(permission: Permissions): Promise<abilityAccessCtrl.GrantStatus> {
  let atManager = abilityAccessCtrl.createAtManager();
  let grantStatus: abilityAccessCtrl.GrantStatus = 0;

  // 获取应用程序的accessTokenID
  let tokenId: number = 0;
  try {
    let bundleInfo: bundleManager.BundleInfo = await bundleManager.getBundleInfoForSelf(bundleManager.BundleFlag.GET_BUNDLE_INFO_WITH_APPLICATION);
    let appInfo: bundleManager.ApplicationInfo = bundleInfo.appInfo;
    tokenId = appInfo.accessTokenId;
  } catch (err) {
    console.error(`getBundleInfoForSelf failed, code is ${err.code}, message is ${err.message}`);
  }

  // 校验应用是否被授予权限
  try {
    grantStatus = await atManager.checkAccessToken(tokenId, permission);
  } catch (err) {
    console.error(`checkAccessToken failed, code is ${err.code}, message is ${err.message}`);
  }

  return grantStatus;
}


//检查用户权限
//@params permissions:权限名称数组
export  async function checkPermissions(permissions: Permissions): Promise<boolean> {
  try {
    let grantStatus: abilityAccessCtrl.GrantStatus = await checkAccessToken(permissions);
    return grantStatus === abilityAccessCtrl.GrantStatus.PERMISSION_GRANTED
  }
  catch (e) {
    return Promise.reject(e)
  }
}

interface rejectObj {
  code: number
  message: string
}
/**
 * 申请权限
 * @params context:AblitiyContext
 * @params permissions:权限名称数组
 * @returns  Promise<boolean>：是否授权成功
 */
export async function applyPermission(context: common.UIAbilityContext, permissions: Array<Permissions>): Promise<boolean> {
  let atManager = abilityAccessCtrl.createAtManager();
  return new Promise((resolve: (res: boolean) => void, reject: (e: rejectObj) => void) => {
    atManager.requestPermissionsFromUser(context, permissions).then((data) => {
      let grantStatus: Array<number> = data.authResults;
      resolve(grantStatus.every(item => item === 0))
    }).catch((err: rejectObj) => {
      reject(err)
    })

  })
}

ImageUploadDialog.ets（图片上传弹窗菜单选择组件）：

import picker from '@ohos.file.picker';
import { checkPermissions, applyPermission, copyFileToCache } from '../../utils/index'
import { request } from '@kit.BasicServicesKit';
import { Permissions } from '@ohos.abilityAccessCtrl';
import camera from '@ohos.multimedia.camera';
import camerapicker from '@ohos.multimedia.cameraPicker';
import { BusinessError } from '@ohos.base';
import { common } from '@kit.AbilityKit';

//上传回调数据类型
interface ReceiveRes {
  body: string
  headers: object
}


@Extend(Text)
function custText() {
  .width('100%')
  .height('48')
  .fontColor('#39364D')
  .textAlign(TextAlign.Center)
}

@CustomDialog
export default struct ImageUploadDialog {
  dialogController: CustomDialogController
  @Prop uploadURL:string='';//上传接口地址
  private context = getContext(this) as common.UIAbilityContext; //UIAbilityContext
  private success: (res: ReceiveRes) => void = () => {} //上传成功回调
  private fail: (res: request.TaskState[]) => void = () => {} //上传失败回调
  private complete: (res: request.TaskState[]) => void = () => {} //上传完成回调

  //检查权限
  async checkAppPermission(): Promise<boolean> {
    try {
      const READ_MEDIA_PERMISSION: Permissions = 'ohos.permission.READ_MEDIA' //媒体读取权限
      const WRITE_MEDIA_PERMISSION: Permissions = 'ohos.permission.WRITE_MEDIA' //媒体写入权限
      let permissionList: Permissions[] = []; //需要申请选项列表
      let readPermission = await checkPermissions(READ_MEDIA_PERMISSION)//检查是否有媒体读取权限
      !readPermission && permissionList.push(READ_MEDIA_PERMISSION)
      let writePermission = await checkPermissions(WRITE_MEDIA_PERMISSION)//检查是否有媒体写入权限
      !writePermission && permissionList.push(READ_MEDIA_PERMISSION)

      if (permissionList.length) {
         //申请权限
        let res: boolean = await applyPermission(this.context, permissionList)
        if (!res) {//用户未同意授权
          AlertDialog.show({
            title: "提示",
            message: "无权限读写用户外部存储中的媒体文件信息，请前往系统设置开启",
            alignment: DialogAlignment.Center,
            secondaryButton: {
              value: '关闭',
              action: () => {
              }
            }
          })
        }
        return res
      }
      return true

    }

    catch (e) {
      return Promise.reject(e)
    }
  }

  //开始上传图片 path：图片路径后缀（图片名称）
  async uploadImage(path: string) {
    console.log(path, 'path')
    let uri=`internal://cache/${path}` //上传图片全路径
    let uploadConfig: request.UploadConfig = {
      url:this.uploadURL,
      header:{},
      method: "POST",
      files: [{ filename: path, name: "file", uri, type: path.split('.')[path.split('.').length-1] }],
      data: [],
    };
    try {
      let uploadTask:request.UploadTask=await request.uploadFile(this.context, uploadConfig)
      //上传中回调
      uploadTask.on('progress', (size,total) => {
        console.log(size.toString(),total.toString(),'上传进度')
      })

      //每上传一张图片成功回调
      uploadTask.on('headerReceive', (data: object) => {
        let res = data as ReceiveRes
        this.success && this.success(res)
      })

      //所有上传完成回调
      uploadTask.on('complete', (taskStates: request.TaskState[]) => {
        console.info("upOnComplete complete taskState:" + JSON.stringify(taskStates));
        this.complete && this.complete(taskStates)
      })
      //上传失败回调
      uploadTask.on('fail', (taskStates: request.TaskState[]) => {
        console.info("upOnComplete fail taskState:" + JSON.stringify(taskStates));
        this.fail&&this.fail(taskStates)
      })
    }catch (e){
      console.log( JSON.stringify(e),'e')
    }

  }

  build() {
    Column() {
      //拍照
      Text('拍照').custText().onClick(async()=>{
        //检查是否有读写外部媒体权限
        let res: boolean = await this.checkAppPermission()
        //无权限返回
        if (!res) return
        try {
          let pickerProfile: camerapicker.PickerProfile = {
            cameraPosition: camera.CameraPosition.CAMERA_POSITION_BACK
          };
          let pickerResult: camerapicker.PickerResult = await camerapicker.pick(this.context,
            [camerapicker.PickerMediaType.PHOTO, camerapicker.PickerMediaType.PHOTO], pickerProfile);
          if(pickerResult?.resultUri){
            //关闭弹窗
            this.dialogController.close()
            //复制图片到缓存目录（缓存目录才有读写权限）
            let filePath = await copyFileToCache(pickerResult.resultUri, this.context)
            if (filePath) {
              //上传头像并设置
              this.uploadImage(filePath)
            }

          }
        } catch (error) {
          let err = error as BusinessError;
          console.error(`the pick call failed. error code: ${err.code}`);
        }

      })
      Divider().color('#F7F9FA').width('100%').strokeWidth(1)
      //从手机相册选择
      Text('从手机相册选择').custText().onClick(async () => {
        //检查是否有读写外部媒体权限
        let res: boolean = await this.checkAppPermission()
        //无权限返回
        if (!res) return
        //关闭弹窗
        this.dialogController.close()
        //从相册选择
        let PhotoSelectOptions = new picker.PhotoSelectOptions();
        PhotoSelectOptions.MIMEType = picker.PhotoViewMIMETypes.IMAGE_TYPE;
        PhotoSelectOptions.maxSelectNumber = 1;
        let photoPicker = new picker.PhotoViewPicker();
        photoPicker.select(PhotoSelectOptions).then(async (PhotoSelectResult) => {
          if (PhotoSelectResult.photoUris.length) {
            //复制图片到缓存目录（缓存目录才有读写权限）
            let filePath = await copyFileToCache(PhotoSelectResult.photoUris[0],this.context)
            if (filePath) {
              this.uploadImage(filePath)
            }
          }
        })
      })
      Button('取消', { type: ButtonType.Capsule })
        .backgroundColor('#F7F7F7')
        .fontSize('16fp')
        .fontColor('#333333')
        .width('100%')
        .margin({ top: '30' })
        .onClick(() => {
          this.dialogController.close()
        })
    }.width('100%').padding({ left: '16', top: '11', right: '16', bottom: '16' })
    .backgroundColor(Color.White)
    .borderRadius({
      topLeft: '24',
      topRight: '24'
    })
  }
}

组件入参说明：

uploadURL：上传接口url
success:(res: ReceiveRes)=>void 上传成功回调函数
fail:(res: request.TaskState[])=>void=()=>{} //上传失败回调
complete: (res: request.TaskState[]) => void = () => {} //上传完成回调

完成或失败回调参数说明

 request.TaskState[]: {
  path:string //图片在本地路径
  message:string //上传结果信息
  responseCode //上传结果状态码 0：成功，其他值失败
 }[]

成功回调参数说明

interface ReceiveRes {
  body: string //接口返回数据，字符串类型需要通过JSON.Parse转对象来取值
  headers: object //请求头数据，对象类型
}

获取上传成功接口返回图片url可通过uploadTask.on(‘headerReceive’,callback）获取

页面调用：

pages/Index

import ImageUploadDialog from '../components/ImageUploadDialog/ImageUploadDialog'
import { promptAction } from '@kit.ArkUI'

@Entry
@Component
struct Index {
  @State dialogController: CustomDialogController | null = null //选择上传类型弹窗控制器
  aboutToAppear(): void {
   this.dialogController= new CustomDialogController({
     builder: ImageUploadDialog({
       uploadURL: 'http://xxxxxxxxx',//上传地址
       success:e=>{//上传成功回调，e上传成功接口返回数据
          let res= JSON.parse(e.body) as object //接口上传成功返回数据
           console.log(JSON.stringify(res),'上传成功')
          //根据实际接口返回字段获取图片url
          //url=res['data']
        },
       fail:e=>{//上传失败回调
         console.log(JSON.stringify(e))
         promptAction.showToast({message:'上传失败'})
       },
        complete:e=>{//上传完成回调
          console.log(JSON.stringify(e),'complete')
        }
     }),
     alignment: DialogAlignment.Bottom,//弹窗居于底部
     customStyle: true,//自定义样式
    })
  }
  build() {
    Column(){
      Button('上传').onClick(()=>{
          this.dialogController?.open()
      })

    }.width('100%')
  }
}

最后不要忘记添加权限
三个：

  "ohos.permission.INTERNET":网访问权限
 "ohos.permission.READ_MEDIA"：外部存储设备媒体读取权限
 "ohos.permission.WRITE_MEDIA"：外部存储设备媒体写入权限

module.json5：

 //权限
    requestPermissions: [{
      "name": "ohos.permission.INTERNET",
    },{
      "name": "ohos.permission.READ_MEDIA",
      "reason": "$string:reasonReadWriteMedia",//使用权限原因
      "usedScene": {
        "abilities": [//使用的该权限的EntryAbility名称数组
          "EntryAbility"
        ],
        "when": "inuse"
      }
    },{
      "name": "ohos.permission.WRITE_MEDIA",
      "reason": "$string:reasonReadWriteMedia",
      "usedScene": {
        "abilities": [
          "EntryAbility"
        ],
        "when": "inuse"
      }
    }]

entry\src\main\resources\base\element\string.json

{
  "string": [
 ,{
      "name":"reasonReadWriteMedia",
      "value": "上传头像"
    }
  ]
}

效果：
在这里插入图片描述

在这里插入图片描述

2024-09-09更新：

最近上架被提示

应用申请ohos.permission.READ_MEDIA和ohos.permission.WRITE_MEDIA已下线，请使用参考@ohos.file.photoAccessHelper替换

也就是上文使用 @ohos.file.picker从手机相册选择图片api需要换成@ohos.file.photoAccessHelper （基于api12），其他都不变

 //从手机相册选择
      Text('从手机相册选择').custText().onClick(async () => {
        //检查是否有读写外部媒体权限
        let res: boolean = await this.checkAppPermission()
        //无权限返回
        if (!res) return
        //关闭弹窗
        this.dialogController.close()
        //从相册选择
        let PhotoSelectOptions = new picker.PhotoSelectOptions();
        PhotoSelectOptions.MIMEType = picker.PhotoViewMIMETypes.IMAGE_TYPE;
        PhotoSelectOptions.maxSelectNumber = 1;
        let photoPicker = new picker.PhotoViewPicker();
        photoPicker.select(PhotoSelectOptions).then(async (PhotoSelectResult) => {
          if (PhotoSelectResult.photoUris.length) {
            //复制图片到缓存目录（缓存目录才有读写权限）
            let filePath = await copyFileToCache(PhotoSelectResult.photoUris[0],this.context)
            if (filePath) {
              this.uploadImage(filePath)
            }
          }
        })
      })

换成：

import { photoAccessHelper } from '@kit.MediaLibraryKit';
....
....
....

 //从手机相册选择
      Text('从手机相册选择').custText().onClick(async () => {
        const photoSelectOptions = new photoAccessHelper.PhotoSelectOptions();
        photoSelectOptions.MIMEType = photoAccessHelper.PhotoViewMIMETypes.IMAGE_TYPE; // 过滤选择媒体文件类型为IMAGE
        photoSelectOptions.maxSelectNumber = 1; // 选择媒体文件的最大数目
        const photoViewPicker = new photoAccessHelper.PhotoViewPicker();
        photoViewPicker.select(photoSelectOptions).then(async(photoSelectResult: photoAccessHelper.PhotoSelectResult) => {
          if (photoSelectResult.photoUris.length) {
            //复制图片到缓存目录（缓存目录才有读写权限）
            let filePath = await copyFileToCache(photoSelectResult.photoUris[0])
            if (filePath) {
              this.uploadImage(filePath)
            }
          }
        }).catch((err: BusinessError) => {

        })
      })

使用@ohos.file.photoAccessHelper后无须再去检查和申请任何权限

完整代码：

utils/index.ets（工具类）:


import fs from '@ohos.file.fs';
import  { Context } from '@ohos.abilityAccessCtrl';


/**
 * 复制文件到缓存目录下
 * @param path :文件路径
 * @param context :Context
 * @returns Promise<string> 移动后文件路径
 */
export async function copyFileToCache(path: string,context:Context): Promise<string> {
  try {

    let file =  fs.openSync(path, fs.OpenMode.READ_ONLY)//只读
    if (file) {
      let fileDir: string = `${context.cacheDir}` //临时文件目录
      //时间戳生成随机文件名
      let newPath: string =  `${new Date().getTime()}_${path.split("/")[path.split("/").length-1]}`
      let targetPath: string = `${fileDir}/${newPath}`
      fs.copyFileSync(file.fd, targetPath)
      return  newPath
    }
    else {
      return ''
    }

  } catch (e) {
    return Promise.resolve('')
  }
}

ImageUploadDialog.ets（图片上传弹窗菜单选择组件）：


import { copyFileToCache } from '../utils/index'
import { request } from '@kit.BasicServicesKit';
import camera from '@ohos.multimedia.camera';
import camerapicker from '@ohos.multimedia.cameraPicker';
import { BusinessError } from '@ohos.base';
import { common } from '@kit.AbilityKit';
import { photoAccessHelper } from '@kit.MediaLibraryKit';

//上传回调数据类型
interface ReceiveRes {
  body: string
  headers: object
}


@Extend(Text)
function custText() {
  .width('100%')
  .height('48')
  .fontColor('#39364D')
  .textAlign(TextAlign.Center)
}

@CustomDialog
export default struct ImageUploadDialog {
  dialogController: CustomDialogController
  @Prop uploadURL: string = ''; //上传接口地址
  private context = getContext(this) as common.UIAbilityContext; //UIAbilityContext
  private success: (res: ReceiveRes) => void = () => {} //上传成功回调
  private fail: (res: request.TaskState[]) => void = () => {} //上传失败回调
  private complete: (res: request.TaskState[]) => void = () => {} //上传完成回调


  //开始上传图片 path：图片路径后缀（图片名称）
  async uploadImage(path: string) {
    let uri = `internal://cache/${path}` //上传图片全路径
    let uploadConfig: request.UploadConfig = {
      url:this.uploadURL,
      header:{},
      method: "POST",
      files: [{ filename: path, name: "file", uri, type: path.split('.')[path.split('.').length-1] }],
      data: [],
    };
    try {
      let uploadTask: request.UploadTask = await request.uploadFile(this.context, uploadConfig)
      //上传中回调
      uploadTask.on('progress', (size, total) => {
        console.log(size.toString(), total.toString(), '上传进度')
      })

      //每上传一张图片成功回调
      uploadTask.on('headerReceive', (data: object) => {
        let res = data as ReceiveRes
        this.success && this.success(res)
      })

      //所有上传完成回调
      uploadTask.on('complete', (taskStates: request.TaskState[]) => {
        console.info("upOnComplete complete taskState:" + JSON.stringify(taskStates));
        this.complete && this.complete(taskStates)
      })
      //上传失败回调
      uploadTask.on('fail', (taskStates: request.TaskState[]) => {
        console.info("upOnComplete fail taskState:" + JSON.stringify(taskStates));
        this.fail && this.fail(taskStates)
      })
    } catch (e) {
      console.log(JSON.stringify(e), 'e')
    }

  }

  build() {
    Column() {
      //拍照
      Text('拍照').custText().onClick(async () => {

        try {
          let pickerProfile: camerapicker.PickerProfile = {
            cameraPosition: camera.CameraPosition.CAMERA_POSITION_BACK
          };
          let pickerResult: camerapicker.PickerResult = await camerapicker.pick(this.context,
            [camerapicker.PickerMediaType.PHOTO, camerapicker.PickerMediaType.PHOTO], pickerProfile);
          if (pickerResult?.resultUri) {
            //关闭弹窗
            this.dialogController.close()
            //复制图片到缓存目录（缓存目录才有读写权限）
            let filePath = await copyFileToCache(pickerResult.resultUri, this.context)
            if (filePath) {
              //上传头像并设置
              this.uploadImage(filePath)
            }

          }
        } catch (error) {
          let err = error as BusinessError;
          console.error(`the pick call failed. error code: ${err.code}`);
        }

      })
      Divider().color('#F7F9FA').width('100%').strokeWidth(1)
      //从手机相册选择
      Text('从手机相册选择').custText().onClick(async () => {
        const photoSelectOptions = new photoAccessHelper.PhotoSelectOptions();
        photoSelectOptions.MIMEType = photoAccessHelper.PhotoViewMIMETypes.IMAGE_TYPE; // 过滤选择媒体文件类型为IMAGE
        photoSelectOptions.maxSelectNumber = 1; // 选择媒体文件的最大数目
        const photoViewPicker = new photoAccessHelper.PhotoViewPicker();
        photoViewPicker.select(photoSelectOptions).then(async(photoSelectResult: photoAccessHelper.PhotoSelectResult) => {
          if (photoSelectResult.photoUris.length) {
            //复制图片到缓存目录（缓存目录才有读写权限）
            let filePath = await copyFileToCache(photoSelectResult.photoUris[0],this.context)
            if (filePath) {
              this.uploadImage(filePath)
            }
          }
        }).catch((err: BusinessError) => {

        })
      })
      Button('取消', { type: ButtonType.Capsule })
        .backgroundColor('#F7F7F7')
        .fontSize('16fp')
        .fontColor('#333333')
        .width('100%')
        .margin({ top: '30' })
        .onClick(() => {
          this.dialogController.close()
        })
    }
    .width('100%')
    .padding({
      left: '16',
      top: '11',
      right: '16',
      bottom: '16'
    })
    .backgroundColor(Color.White)
    .borderRadius({
      topLeft: '24',
      topRight: '24'
    })
  }
}

页面调用：
pages/Index

import ImageUploadDialog from '../components/ImageUploadDialog'
import { promptAction } from '@kit.ArkUI'

@Entry
@Component
struct Index {
  @State dialogController: CustomDialogController | null = null //选择上传类型弹窗控制器
  aboutToAppear(): void {
    this.dialogController= new CustomDialogController({
      builder: ImageUploadDialog({
        uploadURL: 'http://xxxxxxxxx',//上传地址
        success:e=>{//上传成功回调，e上传成功接口返回数据
          let res= JSON.parse(e.body) as object //接口上传成功返回数据
          console.log(JSON.stringify(res),'上传成功')
          //根据实际接口返回字段获取图片url
          //url=res['data']
        },
        fail:e=>{//上传失败回调
          console.log(JSON.stringify(e))
          promptAction.showToast({message:'上传失败'})
        },
        complete:e=>{//上传完成回调
          console.log(JSON.stringify(e),'complete')
        }
      }),
      alignment: DialogAlignment.Bottom,//弹窗居于底部
      customStyle: true,//自定义样式
    })
  }
  build() {
    Column(){
      Button('上传').onClick(()=>{
        this.dialogController?.open()
      })

    }.width('100%')
  }
}
