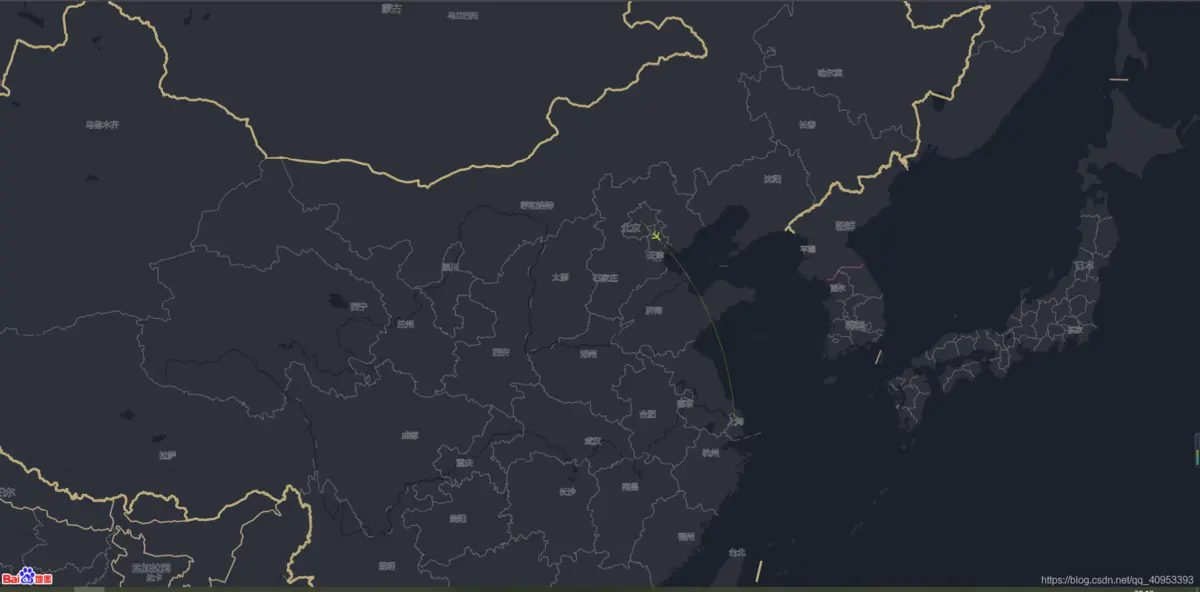

echarts百度地图上绘制飞行线

没有天赋的搬砖者

已于 2023-03-23 15:35:05 修改

阅读量911

点赞数

文章标签： echarts 前端 javascript Powered by 金山文档

于 2023-03-16 18:37:09 首次发布

本文链接：https://blog.csdn.net/sdad2154/article/details/129594966

版权

<html xmlns="http://www.w3.org/1999/xhtml">

<head>
    <meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
    <title>飞线</title>
    <style type="text/css">
        body {
            margin: 0;
            border: 0;
            overflow: hidden;
        }
        #map_canvas {
            width: 100%;
            height: 100%;
            position: absolute;
        }
    </style>

</head>

<body>
<div id="container" style="height: 100%"></div>
<script type="text/javascript" src="https://cdn.bootcss.com/jquery/3.4.1/jquery.min.js"></script>
<script type="text/javascript" src="https://cdn.jsdelivr.net/npm/echarts/dist/echarts.min.js"></script>
<script type="text/javascript" src="https://cdn.jsdelivr.net/npm/echarts-gl/dist/echarts-gl.min.js"></script>
<script type="text/javascript" src="https://cdn.jsdelivr.net/npm/echarts-stat/dist/ecStat.min.js"></script>
<script type="text/javascript" src="https://cdn.jsdelivr.net/npm/echarts/dist/extension/dataTool.min.js"></script>
<script type="text/javascript" src="https://cdn.jsdelivr.net/npm/echarts/map/js/china.js"></script>
<script type="text/javascript" src="https://cdn.jsdelivr.net/npm/echarts/map/js/world.js"></script>
<!--百度地图 引入 -->
<script type="text/javascript" src="https://api.map.baidu.com/api?v=3.0&ak=你的key"></script>
<script type="text/javascript" src="https://cdn.jsdelivr.net/npm/echarts/dist/extension/bmap.min.js"></script>
<script>
    var dom = document.getElementById("container");
    var myChart = echarts.init(dom);

    var option=null;

    var startPoint = {
        x: 104.114129,
        y: 37.550339
    };
    // 地图
    var bmap = {
        center: [startPoint.x, startPoint.y],
        zoom: 5,
        roam: true,
        mapStyleV2: {
            //设置地图自定义样式
            styleId: "1c9508432f1bd060b4485d79045d5bdd",
        },
    }

    //飞线图标
    var planePath = 'path://M1705.06,1318.313v-89.254l-319.9-221.799l0.073-208.063c0.521-84.662-26.629-121.796-63.961-121.491c-37.332-0.305-64.482,36.829-63.961,121.491l0.073,208.063l-319.9,221.799v89.254l330.343-157.288l12.238,241.308l-134.449,92.931l0.531,42.034l175.125-42.917l175.125,42.917l0.531-42.034l-134.449-92.931l12.238-241.308L1705.06,1318.313z';

    var series = [
        //飞线数据
        {
            name: 'wha Top2',
            type: 'lines',
            coordinateSystem: 'bmap',
            zlevel: 2,
            effect: {
                show: true,
                period: 6,
                trailLength: 0,
                symbol: planePath,
                symbolSize: 15
            },
            lineStyle: {
                normal: {
                    color: '#a6c84c',
                    width: 1,
                    opacity: 0.4,
                    curveness: 0.2
                }
            },
            data: [{
                fromName: "北京",
                toName: "上海",
                coords:[[116.4551, 40.2539],[121.4648, 31.2891]]
            }]
        }
    ];
    option = {
        bmap: bmap,
        tooltip: {
            trigger: 'item'
        },
        series: series
    };
    myChart.setOption(option);


</script>
</body>

</html>
