【YOLOv10改进-卷积Conv】SCConv ：即插即用的空间和通道重建卷积

YOLO大师

已于 2024-11-05 17:21:20 修改

阅读量8.2k

点赞数 2

文章标签：计算机视觉人工智能 YOLO 神经网络 yolov10

于 2019-02-16 20:22:18 首次发布

原创文章，禁止任何形式转载！

本文链接：https://blog.csdn.net/shangyanaf/article/details/87470317

版权

优质外文翻译专栏收录该内容

7 篇文章

订阅专栏

YOLOv10目标检测创新改进与实战案例专栏

改进目录: YOLOv10有效改进系列及项目实战目录：卷积，主干注意力，检测头等创新机制

专栏链接: YOLOv10 创新改进有效涨点

介绍

摘要

卷积神经网络（CNNs）在各种计算机视觉任务中取得了显著的性能，但这是以巨大的计算资源为代价的，部分原因是卷积层提取了冗余特征。近期的研究要么压缩训练有素的大规模模型，要么探索设计精良的轻量级模型。在本文中，我们尝试利用特征之间的空间和通道冗余性来进行CNN压缩，并提出了一种高效的卷积模块，称为SCConv（空间和通道重构卷积），以减少冗余计算并促进代表性特征学习。所提出的SCConv由两个单元组成：空间重构单元（SRU）和通道重构单元（CRU）。SRU使用分离-重构方法来抑制空间冗余，而CRU使用分割-变换-融合策略来减少通道冗余。此外，SCConv是一个即插即用的架构单元，可以直接用于替换各种卷积神经网络中的标准卷积。实验结果表明，嵌入SCConv的模型能够通过减少冗余特征，在显著降低复杂性和计算成本的同时，达到更好的性能。

创新点

空间重构单元（SRU）
通道重构单元（CRU）

如下图，SCConv 由两个单元组成，即空间重构单元 (SRU) 和信道重构单元 (CRU) ，两个单元按顺序排列。输入的特征 X 先经过空间重构单元，得到空间细化的特征Xw 。再经过通道重构单元，得到通道提炼的特征 Y 作为输出。SCConv 模块利用了特征之间的空间冗余和信道冗余，模块可以无缝集成到任何 CNN 框架中，减少特征之间的冗余，提高 CNN 特征的代表性。

在这里插入图片描述

文章链接

论文地址：论文地址

代码地址：非官方代码地址1 非官方代码地址2

基本原理

本研究创新性地提出了一种新型卷积，其设计灵活可与任意卷积模型无缝集成，即插即用。文章分别从空间和通道两个维度提出了空间重构单元（SRU）和通道重构单元（CRU），有效减少了特征的冗余。最为关键的是，该方法在减少模型参数的同时，还显著提升了性能，实现了效率与效果的双赢。

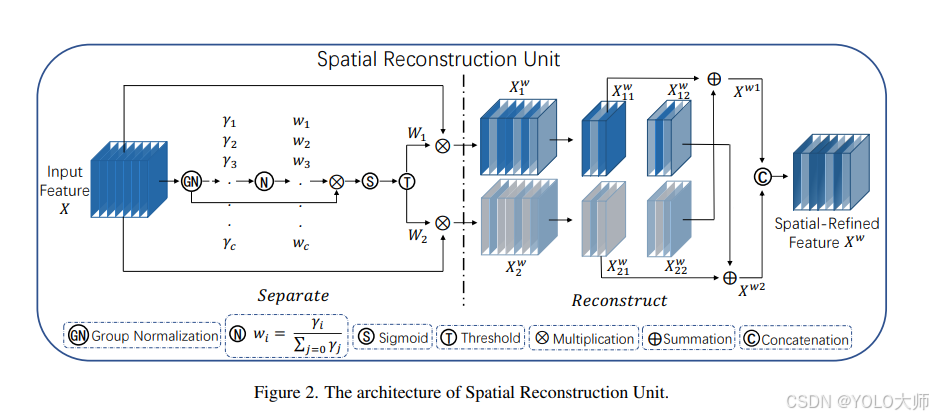

空间重构单元（SRU）

该单元运用“分离-重构”策略。其“分离”步骤旨在根据空间内容将富含信息的特征图与信息稀疏的特征图区分开来。为此，作者借助组归一化（Group Normalization）中的缩放因子来衡量不同特征图的信息量。而“重构”步骤则通过相加信息密集与信息稀疏的特征，以生成信息更丰富的特征同时优化空间利用。具体而言，采用交叉重建法融合两个加权不同信息特征，生成空间精细化特征图Xw，通过这一过程，既丰富了特征信息，又提高了空间效率。

分离操作

分离操作旨在从低信息量的特征图中提取出高信息量的特征图，这与空间内容的相关性密切相关。为了评估不同特征图中的信息含量，作者采用了组归一化（Group Normalization）中的缩放因子。

重构操作

重构操作通过将高信息量特征与低信息量特征相结合，以增加总信息量并优化空间利用效率。具体来说，该操作通过交叉重建的方式，将两个不同信息量的特征图进行加权合并，形成和。这些特征图联合后得到空间细化的特征图。

在这里，⊗表示元素乘法，⊕表示元素加法，而∪表示求并集操作。

通过SRU（Spatial Refinement Unit）处理，高信息量的特征从低信息量的特征中成功分离，从而减少了空间维度上的冗余特征。

在这里插入图片描述

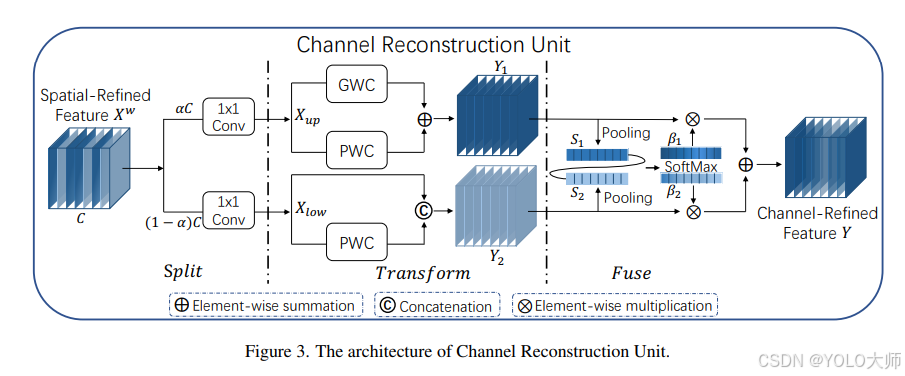

通道重构单元（CRU）

该单元运用分割-转换-融合策略

分割操作

输入的空间细化特征Xw被分割成两部分：

第一部分的通道数为αC
第二部分的通道数为(1−α)C

其中，α是一个预设的超参数，满足0 ≤ α ≤ 1。接着，使用1×1卷积核对这两部分特征的通道数进行压缩，分别生成Xup和Xlow。

转换操作

Xup作为“富特征提取”的输入，经历以下过程：

经过组卷积（Group-Wise Convolution, GWC）
经过点卷积（Point-Wise Convolution, PWC）
这两种处理的结果相加，形成输出Y1

Xlow作为“富特征提取”的补充，进行点卷积处理。其结果与原输入进行合并，得到Y2。

融合操作

采用简化版的SKNet方法自适应合并Y1和Y2。过程如下：

首先，应用全局平均池化技术，结合全局空间信息与通道统计信息，处理S1和S2。
对S1和S2执行Softmax操作，得到特征权重向量β1和β2。
最终输出Y为β1Y1 + β2Y2，其中Y是经过通道提炼的特征。

在这里插入图片描述

核心代码


import torch
import torch.nn.functional as F
import torch.nn as nn

def autopad(k, p=None, d=1):  # kernel, padding, dilation
    # Pad to 'same' shape outputs
    if d > 1:
        k = d * (k - 1) + 1 if isinstance(k, int) else [d * (x - 1) + 1 for x in k]  # actual kernel-size
    if p is None:
        p = k // 2 if isinstance(k, int) else [x // 2 for x in k]  # auto-pad
    return p


class Conv(nn.Module):
    # Standard convolution with args(ch_in, ch_out, kernel, stride, padding, groups, dilation, activation)
    default_act = nn.SiLU()  # default activation

    def __init__(self, c1, c2, k=1, s=1, p=None, g=1, d=1, act=True):
        super().__init__()
        self.conv = nn.Conv2d(c1, c2, k, s, autopad(k, p, d), groups=g, dilation=d, bias=False)
        self.bn = nn.BatchNorm2d(c2)
        self.act = self.default_act if act is True else act if isinstance(act, nn.Module) else nn.Identity()

    def forward(self, x):
        return self.act(self.bn(self.conv(x)))

    def forward_fuse(self, x):
        return self.act(self.conv(x))


class GroupBatchnorm2d(nn.Module):
    def __init__(self, c_num:int,
                 group_num:int = 16,
                 eps:float = 1e-10
                 ):
        super(GroupBatchnorm2d,self).__init__()
        assert c_num    >= group_num
        self.group_num  = group_num
        self.gamma      = nn.Parameter( torch.randn(c_num, 1, 1)    )
        self.beta       = nn.Parameter( torch.zeros(c_num, 1, 1)    )
        self.eps        = eps

    def forward(self, x):
        N, C, H, W  = x.size()
        x           = x.view(   N, self.group_num, -1   )
        mean        = x.mean(   dim = 2, keepdim = True )
        std         = x.std (   dim = 2, keepdim = True )
        x           = (x - mean) / (std+self.eps)
        x           = x.view(N, C, H, W)
        return x * self.gamma + self.beta


class SRU(nn.Module):
    def __init__(self,
                 oup_channels:int,
                 group_num:int = 16,
                 gate_treshold:float = 0.5
                 ):
        super().__init__()

        self.gn             = GroupBatchnorm2d( oup_channels, group_num = group_num )
        self.gate_treshold  = gate_treshold
        self.sigomid        = nn.Sigmoid()

    def forward(self,x):
        gn_x        = self.gn(x)
        w_gamma     = F.softmax(self.gn.gamma,dim=0)
        reweigts    = self.sigomid( gn_x * w_gamma )
        # Gate
        info_mask   = w_gamma>self.gate_treshold
        noninfo_mask= w_gamma<=self.gate_treshold
        x_1         = info_mask*reweigts * x
        x_2         = noninfo_mask*reweigts * x
        x           = self.reconstruct(x_1,x_2)
        return x

    def reconstruct(self,x_1,x_2):
        x_11,x_12 = torch.split(x_1, x_1.size(1)//2, dim=1)
        x_21,x_22 = torch.split(x_2, x_2.size(1)//2, dim=1)
        return torch.cat([ x_11+x_22, x_12+x_21 ],dim=1)


class CRU(nn.Module):
    '''
    alpha: 0<alpha<1
    '''
    def __init__(self,
                 op_channel:int,
                 alpha:float = 1/2,
                 squeeze_radio:int = 2 ,
                 group_size:int = 2,
                 group_kernel_size:int = 3,
                 ):
        super().__init__()
        self.up_channel     = up_channel   =   int(alpha*op_channel)
        self.low_channel    = low_channel  =   op_channel-up_channel
        self.squeeze1       = nn.Conv2d(up_channel,up_channel//squeeze_radio,kernel_size=1,bias=False)
        self.squeeze2       = nn.Conv2d(low_channel,low_channel//squeeze_radio,kernel_size=1,bias=False)
        #up
        self.GWC            = nn.Conv2d(up_channel//squeeze_radio, op_channel,kernel_size=group_kernel_size, stride=1,padding=group_kernel_size//2, groups = group_size)
        self.PWC1           = nn.Conv2d(up_channel//squeeze_radio, op_channel,kernel_size=1, bias=False)
        #low
        self.PWC2           = nn.Conv2d(low_channel//squeeze_radio, op_channel-low_channel//squeeze_radio,kernel_size=1, bias=False)
        self.advavg         = nn.AdaptiveAvgPool2d(1)

    def forward(self,x):
        # Split
        up,low  = torch.split(x,[self.up_channel,self.low_channel],dim=1)
        up,low  = self.squeeze1(up),self.squeeze2(low)
        # Transform
        Y1      = self.GWC(up) + self.PWC1(up)
        Y2      = torch.cat( [self.PWC2(low), low], dim= 1 )
        # Fuse
        out     = torch.cat( [Y1,Y2], dim= 1 )
        out     = F.softmax( self.advavg(out), dim=1 ) * out
        out1,out2 = torch.split(out,out.size(1)//2,dim=1)
        return out1+out2


class ScConv(nn.Module):
    def __init__(self,
                op_channel:int,
                group_num:int = 16,
                gate_treshold:float = 0.5,
                alpha:float = 1/2,
                squeeze_radio:int = 2 ,
                group_size:int = 2,
                group_kernel_size:int = 3,
                 ):
        super().__init__()
        self.SRU = SRU( op_channel,
                       group_num            = group_num,
                       gate_treshold        = gate_treshold )
        self.CRU = CRU( op_channel,
                       alpha                = alpha,
                       squeeze_radio        = squeeze_radio ,
                       group_size           = group_size ,
                       group_kernel_size    = group_kernel_size )

    def forward(self,x):
        x = self.SRU(x)
        x = self.CRU(x)
        return x


class C2f_ScConv(nn.Module):
    # CSP Bottleneck with 2 convolutions
    def __init__(self, c1, c2, n=1, shortcut=False, g=1, e=0.5):  # ch_in, ch_out, number, shortcut, groups, expansion
        super().__init__()
        self.c = int(c2 * e)  # hidden channels
        self.cv1 = Conv(c1, 2 * self.c, 1, 1)
        self.cv2 = Conv((2 + n) * self.c, c2, 1)  # optional act=FReLU(c2)
        self.m = nn.ModuleList(ScConv(self.c) for _ in range(n))

    def forward(self, x):
        y = list(self.cv1(x).chunk(2, 1))
        y.extend(m(y[-1]) for m in self.m)
        return self.cv2(torch.cat(y, 1))

    def forward_split(self, x):
        y = list(self.cv1(x).split((self.c, self.c), 1))
        y.extend(m(y[-1]) for m in self.m)
        return self.cv2(torch.cat(y, 1))

if __name__ == '__main__':
    x       = torch.randn(1,32,16,16)
    model   = ScConv(32)
    print(model(x).shape)

下载YOLOv10代码

直接下载

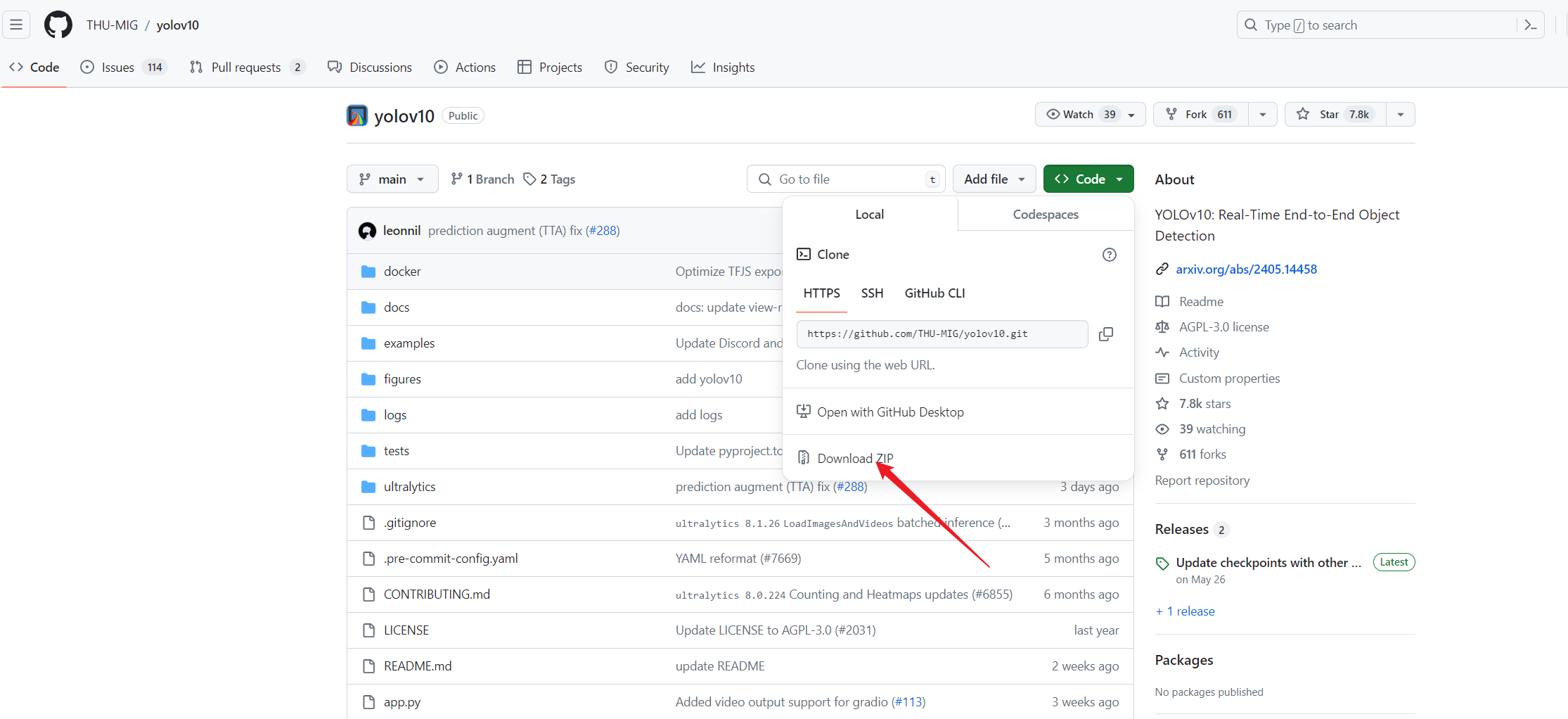

GitHub地址

Git Clone

git clone https://github.com/THU-MIG/yolov10.git

安装环境

进入代码根目录并安装依赖。

创建虚拟环境并安装依赖

conda create -n yolov10
conda activate yolov10
pip install -r requirements.txt
pip install -e .

引入代码

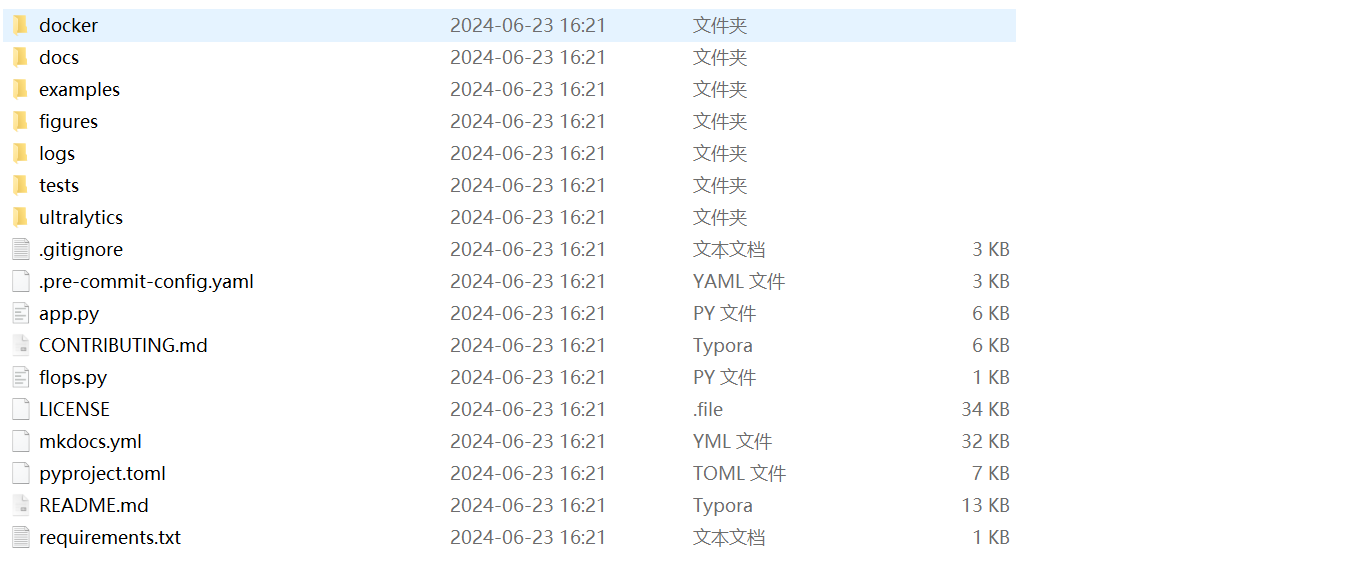

根目录下的ultralytics/nn/目录，新建一个 conv目录，然后新建一个以 ScConv为文件名的py文件，把代码拷贝进去。

import torch
import torch.nn.functional as F
import torch.nn as nn

def autopad(k, p=None, d=1):  # kernel, padding, dilation
    # Pad to 'same' shape outputs
    if d > 1:
        k = d * (k - 1) + 1 if isinstance(k, int) else [d * (x - 1) + 1 for x in k]  # actual kernel-size
    if p is None:
        p = k // 2 if isinstance(k, int) else [x // 2 for x in k]  # auto-pad
    return p


class Conv(nn.Module):
    # Standard convolution with args(ch_in, ch_out, kernel, stride, padding, groups, dilation, activation)
    default_act = nn.SiLU()  # default activation

    def __init__(self, c1, c2, k=1, s=1, p=None, g=1, d=1, act=True):
        super().__init__()
        self.conv = nn.Conv2d(c1, c2, k, s, autopad(k, p, d), groups=g, dilation=d, bias=False)
        self.bn = nn.BatchNorm2d(c2)
        self.act = self.default_act if act is True else act if isinstance(act, nn.Module) else nn.Identity()

    def forward(self, x):
        return self.act(self.bn(self.conv(x)))

    def forward_fuse(self, x):
        return self.act(self.conv(x))


class GroupBatchnorm2d(nn.Module):
    def __init__(self, c_num:int,
                 group_num:int = 16,
                 eps:float = 1e-10
                 ):
        super(GroupBatchnorm2d,self).__init__()
        assert c_num    >= group_num
        self.group_num  = group_num
        self.gamma      = nn.Parameter( torch.randn(c_num, 1, 1)    )
        self.beta       = nn.Parameter( torch.zeros(c_num, 1, 1)    )
        self.eps        = eps

    def forward(self, x):
        N, C, H, W  = x.size()
        x           = x.view(   N, self.group_num, -1   )
        mean        = x.mean(   dim = 2, keepdim = True )
        std         = x.std (   dim = 2, keepdim = True )
        x           = (x - mean) / (std+self.eps)
        x           = x.view(N, C, H, W)
        return x * self.gamma + self.beta


class SRU(nn.Module):
    def __init__(self,
                 oup_channels:int,
                 group_num:int = 16,
                 gate_treshold:float = 0.5
                 ):
        super().__init__()

        self.gn             = GroupBatchnorm2d( oup_channels, group_num = group_num )
        self.gate_treshold  = gate_treshold
        self.sigomid        = nn.Sigmoid()

    def forward(self,x):
        gn_x        = self.gn(x)
        w_gamma     = F.softmax(self.gn.gamma,dim=0)
        reweigts    = self.sigomid( gn_x * w_gamma )
        # Gate
        info_mask   = w_gamma>self.gate_treshold
        noninfo_mask= w_gamma<=self.gate_treshold
        x_1         = info_mask*reweigts * x
        x_2         = noninfo_mask*reweigts * x
        x           = self.reconstruct(x_1,x_2)
        return x

    def reconstruct(self,x_1,x_2):
        x_11,x_12 = torch.split(x_1, x_1.size(1)//2, dim=1)
        x_21,x_22 = torch.split(x_2, x_2.size(1)//2, dim=1)
        return torch.cat([ x_11+x_22, x_12+x_21 ],dim=1)


class CRU(nn.Module):
    '''
    alpha: 0<alpha<1
    '''
    def __init__(self,
                 op_channel:int,
                 alpha:float = 1/2,
                 squeeze_radio:int = 2 ,
                 group_size:int = 2,
                 group_kernel_size:int = 3,
                 ):
        super().__init__()
        self.up_channel     = up_channel   =   int(alpha*op_channel)
        self.low_channel    = low_channel  =   op_channel-up_channel
        self.squeeze1       = nn.Conv2d(up_channel,up_channel//squeeze_radio,kernel_size=1,bias=False)
        self.squeeze2       = nn.Conv2d(low_channel,low_channel//squeeze_radio,kernel_size=1,bias=False)
        #up
        self.GWC            = nn.Conv2d(up_channel//squeeze_radio, op_channel,kernel_size=group_kernel_size, stride=1,padding=group_kernel_size//2, groups = group_size)
        self.PWC1           = nn.Conv2d(up_channel//squeeze_radio, op_channel,kernel_size=1, bias=False)
        #low
        self.PWC2           = nn.Conv2d(low_channel//squeeze_radio, op_channel-low_channel//squeeze_radio,kernel_size=1, bias=False)
        self.advavg         = nn.AdaptiveAvgPool2d(1)

    def forward(self,x):
        # Split
        up,low  = torch.split(x,[self.up_channel,self.low_channel],dim=1)
        up,low  = self.squeeze1(up),self.squeeze2(low)
        # Transform
        Y1      = self.GWC(up) + self.PWC1(up)
        Y2      = torch.cat( [self.PWC2(low), low], dim= 1 )
        # Fuse
        out     = torch.cat( [Y1,Y2], dim= 1 )
        out     = F.softmax( self.advavg(out), dim=1 ) * out
        out1,out2 = torch.split(out,out.size(1)//2,dim=1)
        return out1+out2


class ScConv(nn.Module):
    def __init__(self,
                op_channel:int,
                group_num:int = 16,
                gate_treshold:float = 0.5,
                alpha:float = 1/2,
                squeeze_radio:int = 2 ,
                group_size:int = 2,
                group_kernel_size:int = 3,
                 ):
        super().__init__()
        self.SRU = SRU( op_channel,
                       group_num            = group_num,
                       gate_treshold        = gate_treshold )
        self.CRU = CRU( op_channel,
                       alpha                = alpha,
                       squeeze_radio        = squeeze_radio ,
                       group_size           = group_size ,
                       group_kernel_size    = group_kernel_size )

    def forward(self,x):
        x = self.SRU(x)
        x = self.CRU(x)
        return x


class C2f_ScConv(nn.Module):
    # CSP Bottleneck with 2 convolutions
    def __init__(self, c1, c2, n=1, shortcut=False, g=1, e=0.5):  # ch_in, ch_out, number, shortcut, groups, expansion
        super().__init__()
        self.c = int(c2 * e)  # hidden channels
        self.cv1 = Conv(c1, 2 * self.c, 1, 1)
        self.cv2 = Conv((2 + n) * self.c, c2, 1)  # optional act=FReLU(c2)
        self.m = nn.ModuleList(ScConv(self.c) for _ in range(n))

    def forward(self, x):
        y = list(self.cv1(x).chunk(2, 1))
        y.extend(m(y[-1]) for m in self.m)
        return self.cv2(torch.cat(y, 1))

    def forward_split(self, x):
        y = list(self.cv1(x).split((self.c, self.c), 1))
        y.extend(m(y[-1]) for m in self.m)
        return self.cv2(torch.cat(y, 1))

注册卷积

在ultralytics/nn/tasks.py中进行如下操作：

步骤1:

from ultralytics.nn.conv.ScConv import ScConv,C2f_ScConv

步骤2

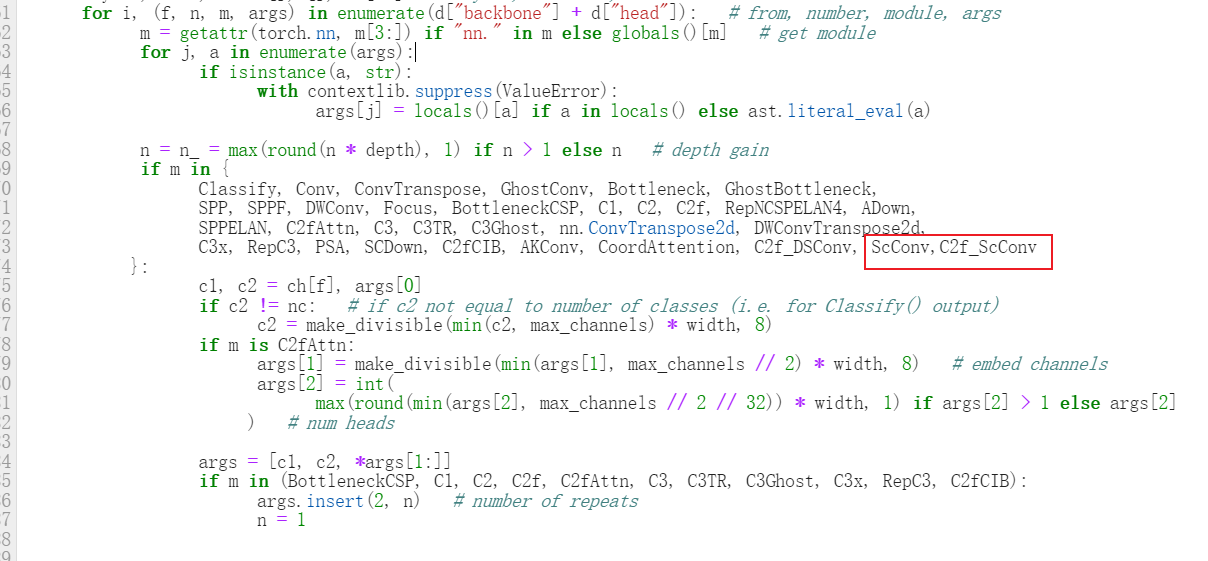

修改def parse_model(d, ch, verbose=True):

        if m in {
            Classify, Conv, ConvTranspose, GhostConv, Bottleneck, GhostBottleneck,
            SPP, SPPF, DWConv, Focus, BottleneckCSP, C1, C2, C2f, RepNCSPELAN4, ADown,
            SPPELAN, C2fAttn, C3, C3TR, C3Ghost, nn.ConvTranspose2d, DWConvTranspose2d,
            C3x, RepC3, PSA, SCDown, C2fCIB, AKConv, CoordAttention, C2f_DSConv, ScConv,C2f_ScConv
        }:

配置yolov10n_SCConv.yaml

ultralytics/cfg/models/v10/yolov10n_SCConv.yaml

# Parameters
nc: 80 # number of classes
scales: # model compound scaling constants, i.e. 'model=yolov8n.yaml' will call yolov8.yaml with scale 'n'
  # [depth, width, max_channels]
  n: [0.33, 0.25, 1024]

# YOLOv8.0n backbone
backbone:
  # [from, repeats, module, args]
  - [-1, 1, Conv, [64, 3, 2]] # 0-P1/2
  - [-1, 1, Conv, [128, 3, 2]] # 1-P2/4
  - [-1, 3, C2f_SCConv, [128, True]]
  - [-1, 1, Conv, [256, 3, 2]] # 3-P3/8
  - [-1, 6, C2f_SCConv, [256, True]]
  - [-1, 1, SCDown, [512, 3, 2]] # 5-P4/16
  - [-1, 6, C2f_SCConv, [512, True]]
  - [-1, 1, SCDown, [1024, 3, 2]] # 7-P5/32
  - [-1, 3, C2f_SCConv, [1024, True]]
  - [-1, 1, SPPF, [1024, 5]] # 9
  - [-1, 1, PSA, [1024]] # 10

# YOLOv8.0n head
head:
  - [-1, 1, nn.Upsample, [None, 2, "nearest"]]
  - [[-1, 6], 1, Concat, [1]] # cat backbone P4
  - [-1, 3, C2f, [512]] # 13

  - [-1, 1, nn.Upsample, [None, 2, "nearest"]]
  - [[-1, 4], 1, Concat, [1]] # cat backbone P3
  - [-1, 3, C2f, [256]] # 16 (P3/8-small)

  - [-1, 1, Conv, [256, 3, 2]]
  - [[-1, 13], 1, Concat, [1]] # cat head P4
  - [-1, 3, C2f, [512]] # 19 (P4/16-medium)

  - [-1, 1, SCDown, [512, 3, 2]]
  - [[-1, 10], 1, Concat, [1]] # cat head P5
  - [-1, 3, C2fCIB, [1024, True, True]] # 22 (P5/32-large)

  - [[16, 19, 22], 1, v10Detect, [nc]] # Detect(P3, P4, P5)

配置2

# Parameters
nc: 80 # number of classes
scales: # model compound scaling constants, i.e. 'model=yolov8n.yaml' will call yolov8.yaml with scale 'n'
  # [depth, width, max_channels]
  n: [0.33, 0.25, 1024]

# YOLOv8.0n backbone
backbone:
  # [from, repeats, module, args]
  - [-1, 1, Conv, [64, 3, 2]] # 0-P1/2
  - [-1, 1, Conv, [128, 3, 2]] # 1-P2/4
  - [-1, 3, ScConv, [128]]
  - [-1, 1, Conv, [256, 3, 2]] # 3-P3/8
  - [-1, 6, C2f, [256, True]]
  - [-1, 1, SCDown, [512, 3, 2]] # 5-P4/16
  - [-1, 6, C2f, [512, True]]
  - [-1, 1, SCDown, [1024, 3, 2]] # 7-P5/32
  - [-1, 3, C2f, [1024, True]]
  - [-1, 1, SPPF, [1024, 5]] # 9
  - [-1, 1, PSA, [1024]] # 10

# YOLOv8.0n head
head:
  - [-1, 1, nn.Upsample, [None, 2, "nearest"]]
  - [[-1, 6], 1, Concat, [1]] # cat backbone P4
  - [-1, 3, C2f, [512]] # 13

  - [-1, 1, nn.Upsample, [None, 2, "nearest"]]
  - [[-1, 4], 1, Concat, [1]] # cat backbone P3
  - [-1, 3, C2f, [256]] # 16 (P3/8-small)

  - [-1, 1, Conv, [256, 3, 2]]
  - [[-1, 13], 1, Concat, [1]] # cat head P4
  - [-1, 3, C2f, [512]] # 19 (P4/16-medium)

  - [-1, 1, SCDown, [512, 3, 2]]
  - [[-1, 10], 1, Concat, [1]] # cat head P5
  - [-1, 3, C2fCIB, [1024, True, True]] # 22 (P5/32-large)

  - [[16, 19, 22], 1, v10Detect, [nc]] # Detect(P3, P4, P5)

实验

脚本

import os
from ultralytics import YOLOv10


yaml = 'ultralytics/cfg/models/v10/yolov10n_SCConv.yaml'


model = YOLOv10(yaml)

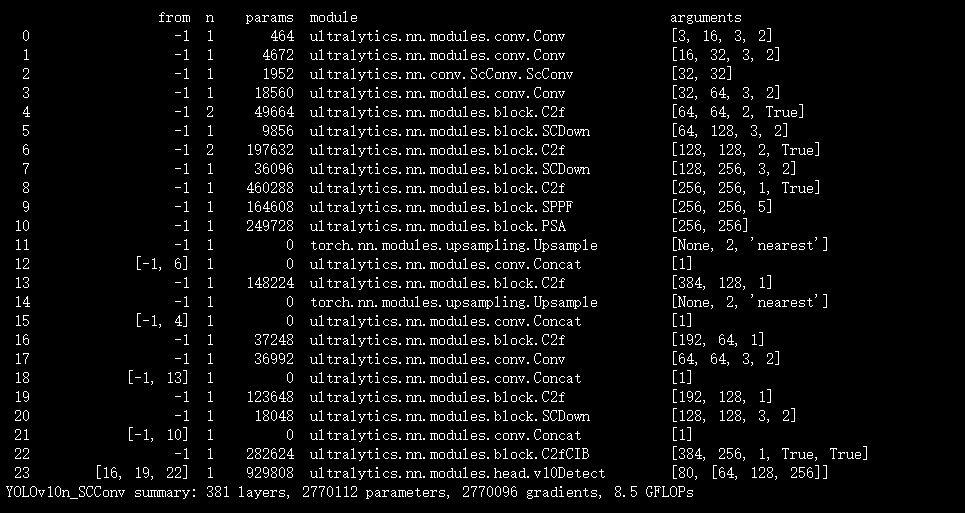

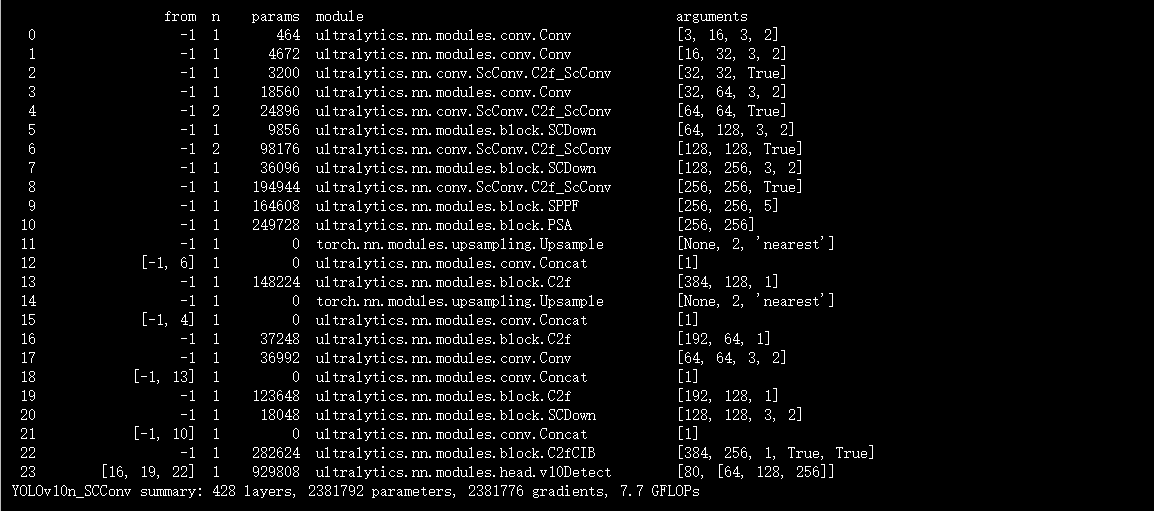

model.info()
if __name__ == "__main__":

    results = model.train(data='coco128.yaml',
                          name='yolov10n_SCConv',
                          epochs=10,
                          workers=8,
                          batch=1)
