前言

C#Form窗体中自带的按钮控件外观单一，已不适合现在的窗体设计，所以我们需要自定义制作一个按钮控件，这个按钮可以把矩形的外框变成圆角，而且可以改变边框的宽度和颜色。

一、创建一个自定义控件项目

在VS中新建项目，选择Windows窗体控件库，并创建，如下图所示：

在窗体中拖入一个label，如下图所示：

二、关键技术

1.添加控件属性

添加控件控件属性，“是否圆角”，"圆角半径"，"按钮背景色"，"按钮字体颜色"，"按钮字体"，"按钮显示文字"，代码如下：

  /// <summary>
        /// 是否圆角
        /// </summary>
        private bool _isRoundCorner = false;
        /// <summary>
        /// 是否圆角
        /// </summary>
        [Description("是否圆角"), Category("自定义")]
        public virtual bool IsRoundCorner
        {
            get
            {
                return _isRoundCorner;
            }
            set
            {
                _isRoundCorner = value;
                Refresh();
            }
        }
        /// <summary>
        /// 圆角半径
        /// </summary>
        private int _roundRadius = 24;

        /// <summary>
        /// 圆角半径
        /// </summary>
        [Description("圆角半径"), Category("自定义")]
        public virtual int RoundRadius
        {
            get
            {
                return _roundRadius;
            }
            set
            {
                if (value < 1)//圆角半径最小为1
                {
                    value = 1;
                }
                _roundRadius = value;
                Refresh();
            }
        }
        /// <summary>
        /// 按钮背景色
        /// </summary>
        private Color _btnBackColor = Color.Green;
        /// <summary>
        /// 按钮背景色
        /// </summary>
        [Description("按钮背景色"), Category("自定义")]
        public Color BtnBackColor
        {
            get { return _btnBackColor; }
            set
            {
                _btnBackColor = value;
                BackColor = value;
            }
        }

        /// <summary>
        /// 按钮字体颜色
        /// </summary>
        private Color _btnForeColor = Color.White;
        /// <summary>
        /// 按钮字体颜色
        /// </summary>
        [Description("按钮字体颜色"), Category("自定义")]
        public virtual Color BtnForeColor
        {
            get { return _btnForeColor; }
            set
            {
                _btnForeColor = value;
                lbl.ForeColor = value;
            }
        }

        /// <summary>
        /// 按钮字体
        /// </summary>
        private Font _btnFont = new System.Drawing.Font("微软雅黑", 12F, System.Drawing.FontStyle.Regular, System.Drawing.GraphicsUnit.Point, 134);
        /// <summary>
        /// 按钮字体
        /// </summary>
        [Description("按钮字体"), Category("自定义")]
        public Font BtnFont
        {
            get { return _btnFont; }
            set
            {
                _btnFont = value;
                lbl.Font = value;
            }
        }

        /// <summary>
        /// 按钮文字
        /// </summary>
        private string _btnText;
        /// <summary>
        /// 按钮文字
        /// </summary>
        [Description("按钮文字"), Category("自定义")]
        public virtual string BtnText
        {
            get { return _btnText; }
            set
            {
                _btnText = value;
                lbl.Text = value;
                Refresh();
            }
        }

2.控件初始化

代码如下：

   public BtnRoundCorner()
        {
            InitializeComponent();
            SetStyle(ControlStyles.AllPaintingInWmPaint, true);
            SetStyle(ControlStyles.DoubleBuffer, true);
            SetStyle(ControlStyles.ResizeRedraw, true);
            SetStyle(ControlStyles.Selectable, true);
            SetStyle(ControlStyles.SupportsTransparentBackColor, true);
            SetStyle(ControlStyles.UserPaint, true);
            TabStop = false;
            lbl.MouseEnter += lbl_MouseEnter;
            lbl.MouseLeave += lbl_MouseLeave;
            lbl.MouseDown += lbl_MouseDown;
        }

3.画圆角

通过重写OnPaint事件来实现画圆角的效果，代码如下：

  protected override void OnPaint(PaintEventArgs e)
        {
            if (Visible)
            {
                if (_isRoundCorner)
                {
                    PaintRoundCorner();
                }
                else
                {
                    //关闭圆角后显示为原矩形
                    GraphicsPath g = new GraphicsPath();
                    g.AddRectangle(base.ClientRectangle);//添加一个矩形
                    g.CloseFigure();//闭合当前图形并开始新的图形
                    base.Region = new Region(g);
                }
            }
            base.OnPaint(e);
        }
        /// <summary>
        /// 绘制圆角
        /// </summary>
        private void PaintRoundCorner()
        {
            Rectangle rect = new Rectangle(-1, -1, base.Width + 1, base.Height);
            Rectangle rect2 = new Rectangle(rect.Location, new Size(_roundRadius, _roundRadius));
            GraphicsPath graphicsPath = new GraphicsPath();
            graphicsPath.AddArc(rect2, 180f, 90f);//左上角
            rect2.X = rect.Right - _roundRadius;
            graphicsPath.AddArc(rect2, 270f, 90f);//右上角
            rect2.Y = rect.Bottom - _roundRadius;
            rect2.Width += 1;
            rect2.Height += 1;
            graphicsPath.AddArc(rect2, 360f, 90f);//右下角
            rect2.X = rect.Left;
            graphicsPath.AddArc(rect2, 90f, 90f);//左下角
            graphicsPath.CloseFigure();
            base.Region = new Region(graphicsPath);
        }
        /// <summary>
        /// 设置GDI高质量模式抗锯齿
        /// </summary>
        void SetGDIHigh(Graphics g)
        {
            g.SmoothingMode = SmoothingMode.AntiAlias;  //使绘图质量最高，即消除锯齿
            g.InterpolationMode = InterpolationMode.HighQualityBicubic;
            g.CompositingQuality = CompositingQuality.HighQuality;
        }

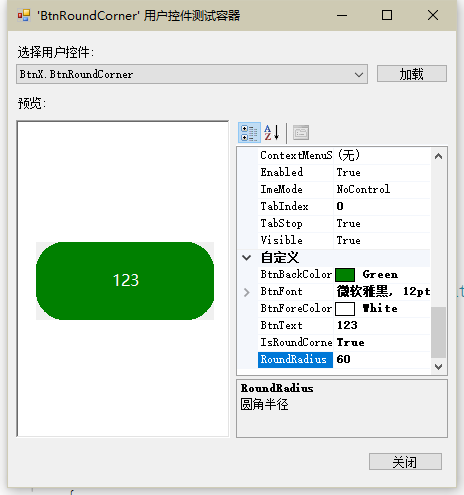

效果如下：

4.添加按钮事件

添加当鼠标进入按钮范围时，背景颜色变深，代码如下：

       /// <summary>
        /// 按钮点击事件
        /// </summary>
        [Description("按钮点击事件"), Category("自定义")]
        public event EventHandler BtnClick;
        Color m_cacheColor = Color.Empty;

        void lbl_MouseLeave(object sender, EventArgs e)
        {
            if (m_cacheColor != Color.Empty)
            {
                BtnBackColor = m_cacheColor;
                m_cacheColor = Color.Empty;
            }
        }

        void lbl_MouseEnter(object sender, EventArgs e)
        {
            if (BtnBackColor != Color.Empty && BtnBackColor != null)
            {
                m_cacheColor = BtnBackColor;
                BtnBackColor = ChangeColor(BtnBackColor, -0.2f);
            }
        }

        /// <summary>
        /// 改变颜色
        /// </summary>
        Color ChangeColor(Color color, float value)
        {
            float red = color.R;
            float green = color.G;
            float blue = color.B;

            if (value < 0)
            {
                value = 1 + value;
                red *= value;
                green *= value;
                blue *= value;
            }
            else
            {
                red = (255 - red) * value + red;
                green = (255 - green) * value + green;
                blue = (255 - blue) * value + blue;
            }

            if (red < 0) red = 0;

            if (red > 255) red = 255;

            if (green < 0) green = 0;

            if (green > 255) green = 255;

            if (blue < 0) blue = 0;

            if (blue > 255) blue = 255;



            return Color.FromArgb(color.A, (int)red, (int)green, (int)blue);
        }
        /// <summary>
        /// 单击事件
        /// </summary>
        private void lbl_MouseDown(object sender, MouseEventArgs e)
        {
            if (BtnClick != null)
                BtnClick(this, e);
        }

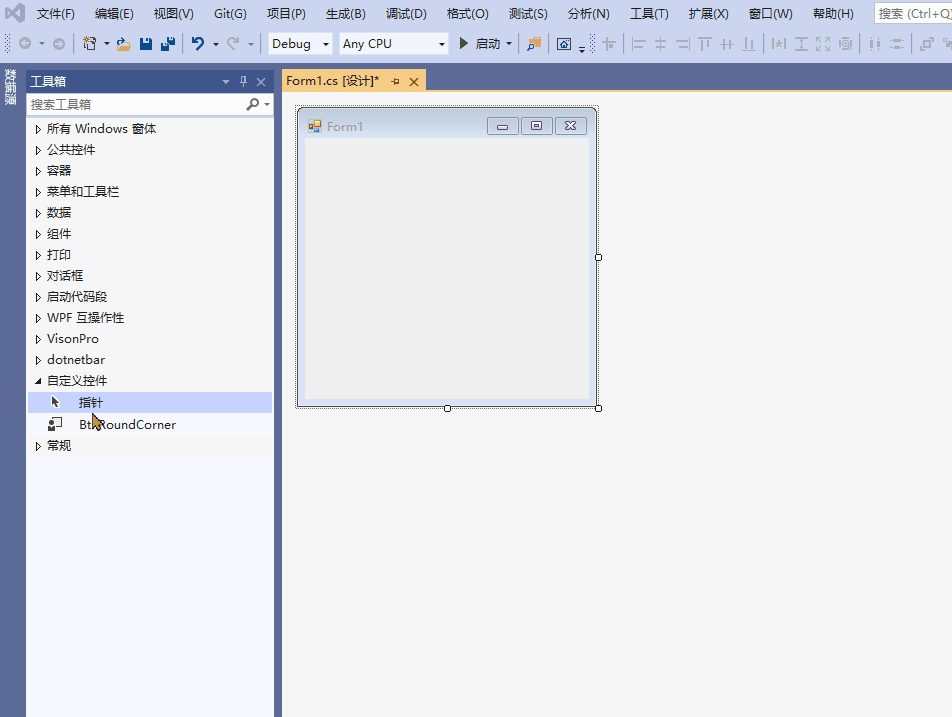

效果如下：
