Echarts 环形图多层嵌套

Echarts 环形图多层嵌套如何实现？
本文主要分解展示环形图多层嵌套的一些option配置项，希望能帮到您！

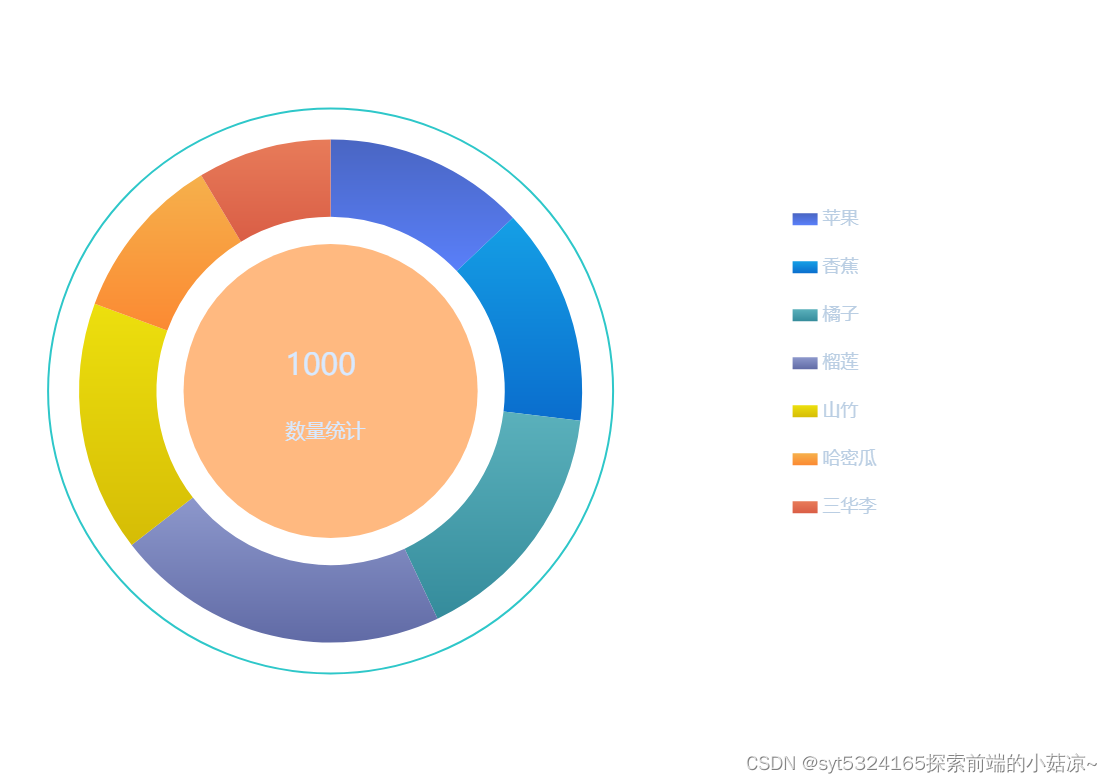

如图：
多层环形图本质就是多个饼图（圆），然后 分别给不同的饼图设置不同样式；具体实现要结合项目需求。

直接上代码:

option = {
  // 鼠标悬浮不显示数据提示框
        tooltip: {
            trigger: 'item',
            show:true,
            formatter: '{b} </br> 占比{d}%'
        },
        // 富文本显示中间文字
        title:{
            text: '{a|1000}\n{c|数量统计}',
            textStyle: {
                color: "#fff",
                fontWeight: '100',
                fontFamily:'PingFang',
                rich: {
                    a: {
                        fontSize: "30",
                        fontFamily:'PangMenZhengDao' ,
                        color: '#D8E9FF',
                        padding: [20,1,33,60]
                    },

                    c: {
                        fontSize: 20,
                        lineHeight: 35,
                        color: '#D8E9FF',
                        padding: [0,0,0,60]
                    }
                }
            },
            x: "20%",
            y: "center"
        },
        color: [
            new echarts.graphic.LinearGradient(0, 0, 0, 1, [
                { offset: 0, color: "#4A66C3 " },
                { offset: 1, color: "#5A80FA " }
            ]),
            new echarts.graphic.LinearGradient(0, 0, 0, 1, [
                { offset: 0, color: "#15A0E6" },
                { offset: 1, color: "#0B6ECE" }
            ]),
            new echarts.graphic.LinearGradient(0, 0, 0, 1, [
                { offset: 0, color: "#5BB1BC" },
                { offset: 1, color: "#358C9C" }
            ]),
            new echarts.graphic.LinearGradient(0, 0, 0, 1, [
                { offset: 0, color: "#8D98CC" },
                { offset: 1, color: "#616BA6" }
            ]),
            new echarts.graphic.LinearGradient(0, 0, 0, 1, [
                { offset: 0, color: "#EDE00E" },
                { offset: 1, color: "#D6BD06" }
            ]),
            new echarts.graphic.LinearGradient(0, 0, 0, 1, [
                { offset: 0, color: "#F6B14C" },
                { offset: 1, color: "#FC8A33" }
            ]),
            new echarts.graphic.LinearGradient(0, 0, 0, 1, [
                { offset: 0, color: "#E87C5A" },
                { offset: 1, color: "#DA5E46" }
            ])
        ],
        // 图例位置
        legend: {
            top:'26%',
            right: '20%',
            orient : 'vertical',
            icon: "rect",
            itemHeight: 12,
            itemGap:30,
            textStyle: { //图例⽂字的样式
                color: '#BACEE3',
                fontSize: 14
            },
        },
        series: [
            {
                name: '占比',
                type: 'pie',
                radius: ['45%', '65%'],
                center:['30%','50%'],
                avoidLabelOverlap: true,
                emphasis: {
                    label: {
                        show: false,
                        fontSize: '20',
                        fontFamily:'PingFang',
                    }
                },
                label: {
                    color: '#D8E9FF',
                    fontFamily:'PingFang',
                    normal:{
                        show:false,
                        position:'center',
                        formatter: '{b} : {c}' , // 标签内容
                    },
                },
                labelLine: {
                    lineStyle: {
                        color: 'rgba(255, 255, 255, 0)'
                    },
                    smooth: 0.2,
                    length: 10,
                    length2: 20
                },
                itemStyle: {
                    shadowBlur: 0,
                    shadowColor: 'rgba(255, 255, 255)'
                },
                data:[
                    { name: '苹果',value: 12},
                    { name: '香蕉',value: 13 },
                    { name: '橘子',value: 15},
                    { name: '榴莲',value: 20 },
                    { name: '山竹',value: 15 },
                    { name: '哈密瓜',value: 10 },
                    { name: '三华李',value: 8 }
                ],

            // 初始化echarts的动画效果
                animationType: 'scale',
                animationEasing: 'elasticOut',
                animationDelay: function (idx) {
                    return Math.random() * 200;
                }
            },
            {
                name:'中心圆',
                radius: ['0%', '38%'],
                center: ['30%', '50%'],
                type: 'pie',
                color:"#ffb980",  //内圆颜色
                label: {
                    normal: {
                        show: false
                    },
                    emphasis: {
                        show: false
                    }
                },
                labelLine: {
                    normal: {
                        show: false
                    },
                    emphasis: {
                        show: false
                    }
                },
                animation: false,
                tooltip: {
                    show: false
                },
                data: [{
                    value: 1,

                }],
            },
            {
                name: '外边框',
                type: 'pie',
                clockWise: false, //顺时加载
                hoverAnimation: false, //鼠标移入变大
                center: ['30%', '50%'],
                radius: ['73%', '73%'],
                label: {
                    normal: {
                        show: false
                    }
                },
                data: [{
                    value: 9,
                    name: '',
                    itemStyle: {
                        normal: {
                            borderWidth: 2,
                            borderColor: '#2ec7c9'
                        }
                    }
                }]
            },
        ]
    }
