最大流和最小割
问题描述:
网络流:一个连通的赋权有向图 G = (V、E、C),其中 V 是该图的顶点集,E 是有向边(即弧)集,C 是弧上的容量。此外顶点集中包括一个起点和一个终点。网络上的流就是由起点流向终点的可行流,它有两个性质:① 每条边的流量不超过它的容量;② 除 s 和 t 的任意结点,流入 u 的流量等于流出 u 的流量。
最大流问题:找到从 s 到 t 的一条线路,使得总流量最大。
最小割问题:图中所有的割中,边权值和最小的割为最小割。
设 Ci 为网络 N 中一些弧的集合,若从 N 中删去 Ci 中的所有弧能使得从源点 s 到汇点 t 的路集为空集时,称 Ci 为 s 和 t 间的一个割。
❗算法描述❗:
首先想到的算法是,从 s 开始广度优先搜索所有能到达 t 的路径,然后找每条路径上权值最小的边,再进行其它操作,就能找到这张图的最大流。
这里引入一个概念,增广路 (Aumenting Path)是指从 s 到 t 的一条路径,流过这条路径,使得当前的流(可以到达 t 的流量)可以增加。那么求最大流问题可以转换为不断求解增广路的问题,并且,显然当图中不存在增广路时就达到了最大流。
所以,我们就可以利用广搜算法,从 s 不断往外广搜,通过权值 > 0 的边到达 t,找到每条路径上的最小值 min,并把该条路径上的所有边值都减去 min,直到再也找不到增广路,将所有的 min 值累加在一起就得到了最大流。
但是,上述方法真的能得到最大流吗?不免会出现差错:一些流量已经到了某个节点,但由于下一条边的容量已经被占满,可用容量为 0,它们便不能继续通过。这时候呢,应该让这些流量返回走另一条路径,但上述算法不能实现这一功能。
因此,引入反向边。每次确定一条路径后,在剩余网络上加入对应的反向边,意思是,已经流过的流量可以“反悔”,重新回去找其他的路径通过。

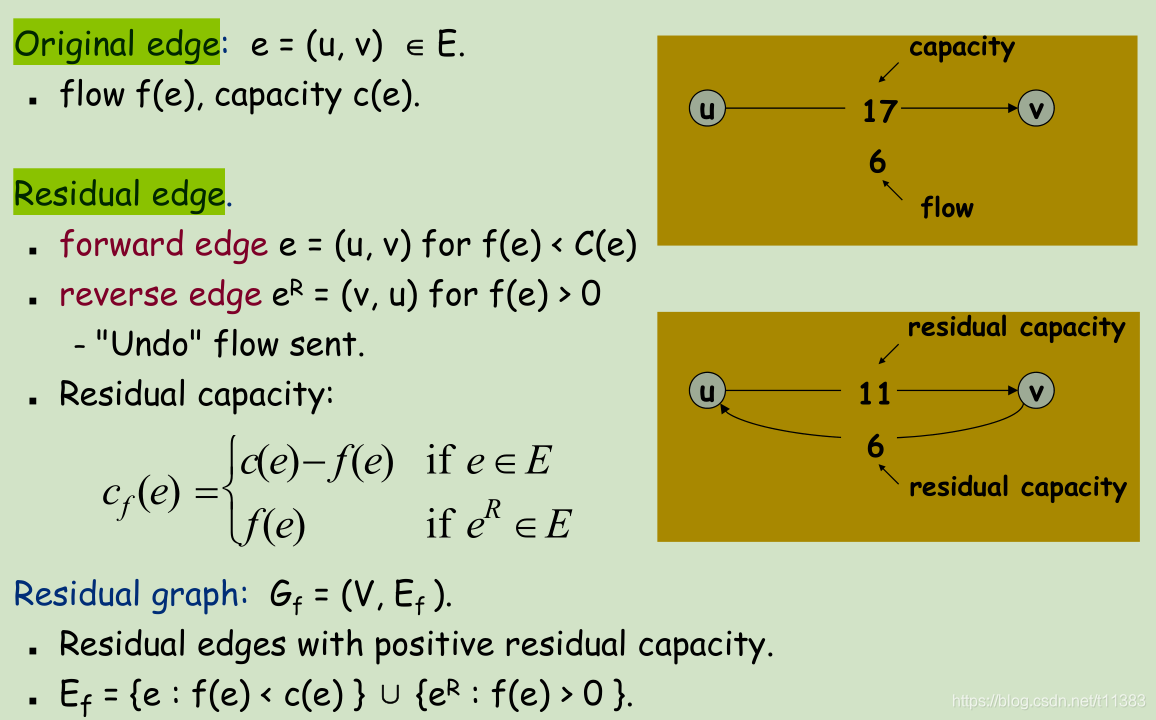

这里补充一个概念:残量图 Residual Graph,它显示可用的容量的多少。在选定当前流后,减少了 G 的每条边的容量,并加入了对应的反向边。
所以,我们得到了一个解决最大流的直接算法。该算法采用迭代的方式进行,每次先构造一个 Gf,然后利用线性时间的广度优先搜索在 Gf 上找到 s 到 t 的一条可行的增广路径,找不到任何这样的路径时算法停止?。
❗算法实现❗:
(转载)
/* * * * * * * *
C++ program for implementation of Ford Fulkerson algorithm
* * * * * * * * */
#include <iostream>
#include <limits.h>
#include <string.h>
#include <queue>
using namespace std;
// Number of vertices in given graph
#define V 6
/* Returns true if there is a path from source 's' to sink 't' in
residual graph. Also fills parent[] to store the path */
bool bfs(int rGraph[V][V], int s, int t, int parent[])
{
// Create a visited array and mark all vertices as not visited
bool visited[V];
memset(visited, 0, sizeof(visited));
// Create a queue, enqueue source vertex and mark source vertex as visited
queue<int> q;
q.push(s);
visited[s] = true;
parent[s] = -1;
// Standard BFS Loop
int u;
while (!q.empty())
{
// edge: u -> v
u = q.front(); // head point u
q.pop();
for (int v = 0; v < V; ++v) // tail point v
{
if (!visited[v] && rGraph[u][v] > 0) // find one linked vertex
{
q.push(v);
parent[v] = u; // find pre point
visited[v] = true;
}
}
}
// If we reached sink in BFS starting from source, then return true, else false
return visited[t] == true;
}
// Returns the maximum flow from s to t in the given graph
int fordFulkerson(int graph[V][V], int s, int t)
{
int u, v;
int rGraph[V][V];
for (u = 0; u < V; ++u)
{
for (v = 0; v < V; ++v)
{
rGraph[u][v] = graph[u][v];
}
}
int parent[V];
int max_flow = 0;
// Augment the flow while tere is path from source to sink
while (bfs(rGraph, s, t, parent))
{
// edge: u -> v
int path_flow = INT_MAX;
for (v = t; v != s; v = parent[v])
{
// find the minimum flow
u = parent[v];
path_flow = min(path_flow, rGraph[u][v]);
}
// update residual capacities of the edges and reverse edges along the path
for (v = t; v != s; v = parent[v])
{
u = parent[v];
rGraph[u][v] -= path_flow;
rGraph[v][u] += path_flow; // assuming v->u weight is add path_flow
}
// Add path flow to overall flow
max_flow += path_flow;
}
return max_flow;
}
int main()
{
int graph[V][V] = { {0,16,13, 0, 0, 0},
{0, 0,10,12, 0, 0},
{0, 4, 0, 0,14, 0},
{0, 0, 9, 0, 0,20},
{0, 0, 0, 7, 0, 4},
{0, 0, 0, 0, 0, 0}
};
cout << "the maximum flow from v0 to v5 is:" << endl << fordFulkerson(graph, 0, 5);
return 0;
}
按自己的习惯,将上述代码改动:
#include <iostream>
#include <algorithm>
#include <vector>
#include <queue>
using namespace std;
int vexnum, edgenum;
vector<vector<int>> residual;
int source, target;
vector<int> parent;
int fordFulkerson();
bool bfs();
int main()
{
cout << "请输入顶点数量、边数量:" << endl;
cin >> vexnum >> edgenum;
residual.resize(vexnum, vector<int>(vexnum, 0));
cout << "输入各边的顶点序号、容量:" << endl;
for (int i = 0; i < edgenum; ++i)
{
int tmp1, tmp2, temp;
cin >> tmp1 >> tmp2 >> temp;
residual[tmp1][tmp2] = temp;
}
cout << "请输入源点、汇点的序号:" << endl;
cin >> source >> target;
cout << "最大流量: " << fordFulkerson() << endl;
return 0;
}
int fordFulkerson()
{
// 存储每个顶点的父结点
parent.resize(vexnum);
int maxflow = 0;
while (bfs())
{
int path_flow = INT_MAX;
// 找到一条路径中的可流流量
for (int i = target; i != source; i = parent[i])
{
path_flow = min(path_flow, residual[parent[i]][i]);
}
// 更新残量图
for (int i = target; i != source; i = parent[i])
{
residual[parent[i]][i] -= path_flow; //正向边减path_flow
residual[i][parent[i]] += path_flow; //反向边加path_flow
}
maxflow += path_flow;
}
return maxflow;
}
bool bfs()
{
vector<bool> visited(vexnum, false);
queue<int> q;
q.push(source);
visited[source] = true;
parent[source] = -1;
// 广度优先搜索
while (!q.empty())
{
int u = q.front();
q.pop();
for (int v = 0; v < vexnum; ++v)
{
if (!visited[v] && residual[u][v] > 0)
{
q.push(v);
parent[v] = u;
visited[v] = true;
}
}
}
return (visited[target] == true);
}

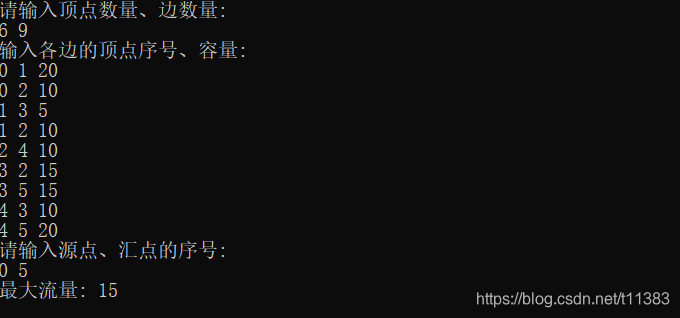

检验:
