Qt自定义文件选择框

敲代码的雪糕

已于 2023-10-31 17:08:33 修改

阅读量664

点赞数

分类专栏： Qt 文章标签： qt

于 2023-10-31 16:58:34 首次发布

本文链接：https://blog.csdn.net/u011832219/article/details/134018080

版权

Qt 专栏收录该内容

16 篇文章 5 订阅

订阅专栏

文章目录

前言
一、头文件
二、源文件
三、qss文件

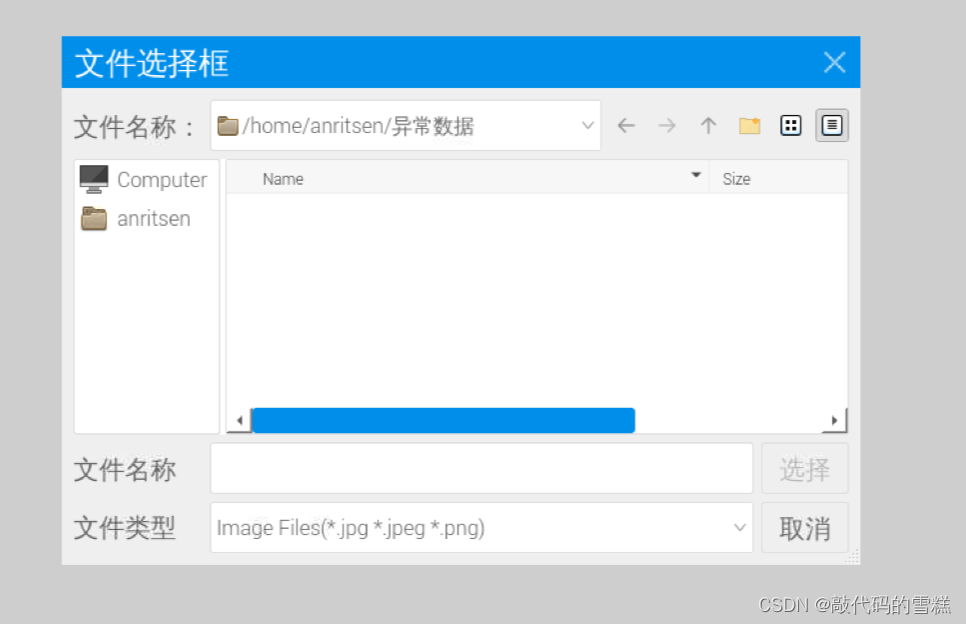

四、效果

前言

在开发过程中,经常遇到使用文件选择框的情况,qt默认的文件选择框,样式可能与开发的桌面程序差异比较大.此时,我们可以自定义文件选择框,设置其样式,尽量做到样式统一.

一、头文件

#ifndef CUSTOMFILEDIALOG_H
#define CUSTOMFILEDIALOG_H

#include <QDialog>
#include <QFileDialog>
#include <QHBoxLayout>
#include <QMouseEvent>

#include "mymessagedialog.h"

namespace Ui {
class CustomFileDialog;
}

class CustomFileDialog : public QDialog
{
    Q_OBJECT

public:
    explicit CustomFileDialog(QWidget *parent = nullptr);
    ~CustomFileDialog();

    void createFileDialog(QString);
    QStringList selectedFiles() const;

signals:
    void selectFileSignal(QString);

private slots:
    void on_minBtn_clicked();

    void on_closeBtn_clicked();
    void onFileDialogFinished(int);

private:
    void init();
    void loadUI();

private:
    Ui::CustomFileDialog    *ui;
    QFileDialog             *m_fileDialog = nullptr;
    QHBoxLayout             *hLayout;
    QPoint                  last = QPoint(0,0);
    QStringList             m_fileList;
    MyMessageDialog     *m_nonRulesMsgDialog = nullptr;

protected:
    void mousePressEvent(QMouseEvent *);
    void mouseMoveEvent(QMouseEvent *);
    void mouseReleaseEvent(QMouseEvent *);
};

#endif // CUSTOMFILEDIALOG_H

二、源文件

#include "customfiledialog.h"
#include "ui_customfiledialog.h"

#include <QComboBox>
#include <QLineEdit>
#include <QDialogButtonBox>
#include <QDebug>

CustomFileDialog::CustomFileDialog(QWidget *parent) :
    QDialog(parent),
    ui(new Ui::CustomFileDialog)
{
    ui->setupUi(this);
    this->setWindowFlags(Qt::FramelessWindowHint);
    this->setWindowTitle("文件对话框");
    this->setWindowIcon(QIcon(":/logo.ico"));

    init();
}

CustomFileDialog::~CustomFileDialog()
{
    if(m_nonRulesMsgDialog){
        delete m_nonRulesMsgDialog;
        m_nonRulesMsgDialog = nullptr;
    }
    delete ui;
}

void CustomFileDialog::init()
{
    ui->label->setText("文件选择框");
    ui->minBtn->hide();
    //
    loadUI();
}

void CustomFileDialog::createFileDialog(QString defaultDir){
    if(m_fileDialog == nullptr)
        m_fileDialog = new QFileDialog(ui->bodyWidget,"选择文件啊",defaultDir);
    m_fileDialog->setWindowFlags(Qt::FramelessWindowHint);
    m_fileDialog->setFileMode(QFileDialog::FileMode::ExistingFile);
    m_fileDialog->setOption(QFileDialog::DontUseNativeDialog, true);
    m_fileDialog->setAcceptMode(QFileDialog::AcceptSave);
    m_fileDialog->setLabelText(QFileDialog::Accept, tr("选择"));
    m_fileDialog->setViewMode(QFileDialog::Detail);
    m_fileDialog->setNameFilter("W3060_*_V*.alx");
    //
    hLayout  = new QHBoxLayout;
    hLayout->addWidget(m_fileDialog);
    hLayout->setSpacing(0);
    hLayout->setMargin(0);
    ui->bodyWidget->setLayout(hLayout);
    //
    QLabel* lookinLabel = m_fileDialog->findChild<QLabel*>("lookInLabel");
    if (lookinLabel)
        lookinLabel->setText("文件目录：");
    QComboBox* fileTypeCombo = m_fileDialog->findChild<QComboBox*>("fileTypeCombo");
    if (fileTypeCombo)
        fileTypeCombo->setMinimumHeight(40);
    QComboBox* lookInCombo = m_fileDialog->findChild<QComboBox*>("lookInCombo");
    if (lookInCombo)
        lookInCombo->setMinimumHeight(40);
    QLineEdit* fileNameEdit = m_fileDialog->findChild<QLineEdit*>("fileNameEdit");
    if (fileNameEdit)
    {
        fileNameEdit->setReadOnly(true);
        fileNameEdit->setMinimumHeight(40);
    }
    m_fileDialog->setLabelText(QFileDialog::FileName,"文件目录");
    m_fileDialog->setLabelText(QFileDialog::FileType,"文件类型");
    QDialogButtonBox *buttonBox = m_fileDialog->findChild<QDialogButtonBox *>("buttonBox");
    /*if (QPushButton *button = buttonBox->button(QDialogButtonBox::Open))
    {
            button->setStyleSheet("QPushButton{background-color: qlineargradient(x1: 0, y1: 0, x2: 1, y2: 0,stop: 0 #00BAFF, stop: 1 #00A1FF);font-size: 12px;color: #FFFFFF;border-radius:2px;}"
                                  "QPushButton:hover{background: #00C1FF;font-size: 12px;color: #FFFFFF;border-radius:2px;}"
                                  "QPushButton:disabled{background: #F0F0F0;border: 1px solid #DDDDDD;font-size: 12px;color: #BBBBBB;border-radius:2px;}");
            button->setFixedSize(68, 30);
    }*/
    if (QPushButton *button = buttonBox->button(QDialogButtonBox::Save))
    {
        button->setStyleSheet("QPushButton{background-color: rgb(1,141,235);font-size: 20px;color: #FFFFFF;border-radius:2px;}"
                              "QPushButton:hover{background: rgb(1,141,235);font-size: 20px;color: #FFFFFF;border-radius:2px;}"
                              "QPushButton:disabled{background: #F0F0F0;border: 1px solid #DDDDDD;font-size: 20px;color: #BBBBBB;border-radius:2px;}");
        button->setFixedSize(68, 40);
    }
    if (QPushButton *button = buttonBox->button(QDialogButtonBox::Cancel))
    {
        button->setStyleSheet("QPushButton{border: 1px solid #DDDDDD;font-size: 20px;color: #666666;border-radius:2px;}"
                              "QPushButton:hover{font-size: 20px;color: #00A1FF;border: 1px solid #00A1FF;border-radius:2px;}"
                              "QPushButton:disabled{background: #F0F0F0;border: 1px solid #DDDDDD;font-size: 20px;color: #BBBBBB;border-radius:2px;}");
        button->setText("取消");
        button->setFixedSize(68, 40);
    }
    connect(m_fileDialog, SIGNAL(finished(int)), this, SLOT(onFileDialogFinished(int)));
}

QStringList CustomFileDialog::selectedFiles() const
{
    return m_fileList;
}

void CustomFileDialog::onFileDialogFinished(int result)
{
    if (result == QDialog::Accepted)
    {
        //qDebug()<<"CustomFileDialog::onFileDialogFinished Accepted";
        m_fileList.clear();
        m_fileList = m_fileDialog->selectedFiles();
        QRegularExpression regex("^W3060_.*_V\\d+\\.\\d+\\.\\d+\\.alx$");

        for(const QString &selectedFile : m_fileList)
        {
            QString text = selectedFile.section('/',-1);
            //qDebug()<<"text ="<<text;
            QRegularExpressionMatch match = regex.match(text);
            if(match.hasMatch()){
                //qDebug()<<"选中的文件符合规则";
                emit selectFileSignal(m_fileList.first());
            }
            else{
                //qDebug()<<"选中的文件不符合规则";
                if(m_nonRulesMsgDialog == nullptr){
                    m_nonRulesMsgDialog = new MyMessageDialog;
                    m_nonRulesMsgDialog->setCancleBtn(false);
                }
                m_nonRulesMsgDialog->setInfo("安装包不符合命名规则");
                m_nonRulesMsgDialog->setModal(true);
                m_nonRulesMsgDialog->show();
            }
        }
        //
        delete m_fileDialog;
        m_fileDialog = nullptr;
        delete  hLayout;

        QDialog::accept();
    }
    else
    {
        //qDebug()<<"CustomFileDialog::onFileDialogFinished reject";
        delete m_fileDialog;
        m_fileDialog = nullptr;
        delete  hLayout;

        QDialog::reject();
    }
}

void CustomFileDialog::loadUI()
{
    QString fileName = QString(":/image/customFileDialog.qss");
    QFile file(fileName);
    if(file.open(QIODevice::ReadOnly))
    {
        QString str = QString::fromUtf8(file.readAll());
        this->setStyleSheet(str);
        file.close();
    }
}

void CustomFileDialog::on_minBtn_clicked()
{
    this->showMinimized();
}

void CustomFileDialog::on_closeBtn_clicked()
{
    delete m_fileDialog;
    m_fileDialog = nullptr;
    delete  hLayout;
    this->close();
}

void CustomFileDialog::mousePressEvent(QMouseEvent *event)
{
    if(event->y() < ui->titleWidget->height())
    {
        last = event->globalPos();
    }
}

void CustomFileDialog::mouseMoveEvent(QMouseEvent *event)
{
    if(event->y() < ui->titleWidget->height())
    {
        int dx = event->globalX() - last.x();
        int dy = event->globalY() - last.y();
        last = event->globalPos();
        this->move(this->x() + dx,this->y() + dy);
    }
}

void CustomFileDialog::mouseReleaseEvent(QMouseEvent *event)
{
    if(event->y() < ui->titleWidget->height())
    {
        int dx = event->globalX() - last.x();
        int dy = event->globalY() - last.y();
        this->move(this->x() + dx,this->y() + dy);
    }
}

三、qss文件

#titleWidget{
        background-color:rgb(1,141,235)/*#4E69E1*/;
}

#label{
	color:white;
	font:24px;
}
#closeBtn{
        border-image:url(:/image/sysclose.png);
	width:40px;
	height:40px;
}


#minBtn{
   border-image: url(:/image/sysmin.png);
	width:40px;
	height:40px;
}

#minBtn:hover{
   border-image: url(:/image/sysmin_hover.png);
}

#minBtn:pressed{
   border-image: url(:/image/sysmin_hover.png);
}


QLabel{
	font-size:20px;
	color:#666666;
}

QComboBox::down-arrow{
        image: url(:/image/drop-down.png);
	padding-right:4px;
}

QComboBox::down-arrow:on{
        image: url(:/image/drop-up.png);
	padding-right:4px;
}

QComboBox::drop-down{
	background-color:rgb(255,255,255);
}

QComboBox::drop-down:disabled,QComboBox:disabled{
	background-color:#f8f8f8
}

QLineEdit,QComboBox{
	color: #666666;
	border: 1px solid #DDDDDD;
	border-radius:2px;
}

QListView, QTreeView{
	outline: 0px;
	background-color:white;
	border: 1px solid #DDDDDD;
	color:#666666;
	selection-color:#666666;
	selection-background-color: #f6f6f6;
	border-radius:2px;
}

QListView::item, QTreeView::item{
	height:30px;
	text-align:center;
}

QListView::item:selected,QTreeView::item:selected{
	/*border: 1px solid #6a6ea9;*/
	background-color: #1e90ff;
	color : rgb(255, 255, 255);
}

QScrollBar:horizontal{
     background: #ffffff;
     height: 20px;
	border-width:0px 10px 0px 10px;
	margin-left:6px;
	margin-right:20px;
	padding-left:14px;
}

QScrollBar::handle:horizontal{
     background:rgb(1,141,235)/*#1c86ee*/;
     border-radius:3px;
     height: 20px;
     max-width:40px;
}

QSplitter::handle {
     background-color: rgb(255, 255, 255);
}

QScrollBar::sub-line:horizontal{
     /*background:transparent;*/
	width:20px;
	height:20px;
	subcontrol-position:left;
	subcontrol-origin:margin;
}

QScrollBar::add-line:horizontal{
     /*background:transparent;*/
	width:20px;
	height:20px;
	subcontrol-position:right;
	subcontrol-origin:margin;
}

QScrollBar:vertical {
     background: #ffffff;
     width: 20px;
	border-width:10px 0px 10px 0px;
	margin-top:7px;
	margin-bottom:0px;
	padding-top:17px;
	padding-bottom:24px;
}

QScrollBar::handle:vertical {
     background:rgb(1,141,235)/*#1c86ee*/;
     border-radius:3px;
     width: 20px;
}

QScrollBar::sub-line:vertical {
	width:20px;
	height:24px;
	subcontrol-position:top left;
	subcontrol-origin:margin;
}

QScrollBar::add-line:vertical {
	width:20px;
	height:24px;
	subcontrol-position:bottom;
	subcontrol-origin:border;
}

QHeaderView::section {
    color: #333333;
    height:18px;
    font-size:12px;
    background-color: #f8f8f8;
    border:1px solid #eeeeee;
    border-left:none;
    border-top:none;
    padding:6px 10px 1px 10px;
}

/*QHeaderView::down-arrow {
    image: url(~/image/drop-down.png);
}

QHeaderView::up-arrow {
    image: url(~/image/drop-up.png);
} */

QMenu{
	background-color:white;
	border-style:none;
}

QMenu::item {
	font-size: 12px;
	color: #666666;
	background-color:#ffffff;
	padding:8px;
}

QMenu::item:selected {
	background-color:#f6f6f6;
	color:#666666;
}

QMenu::item:!enabled {
	background-color:white;
	color:#999999;
}

QMenu::item:hover {
	color:#666666;
}

QMenu::separator {
    height: 1px;
    background: #eeeeee;
    margin: 2px 5px 2px 10px;
}
