Origins of the C programming language

C was closly tied with the Unix operating system.
C is a small,simple language.
C was designed for a practical purpose.

Programs Are Translated by Other Programs into Different Forms

1.4 Processors Read and Interpret Instructions Stored in Memory

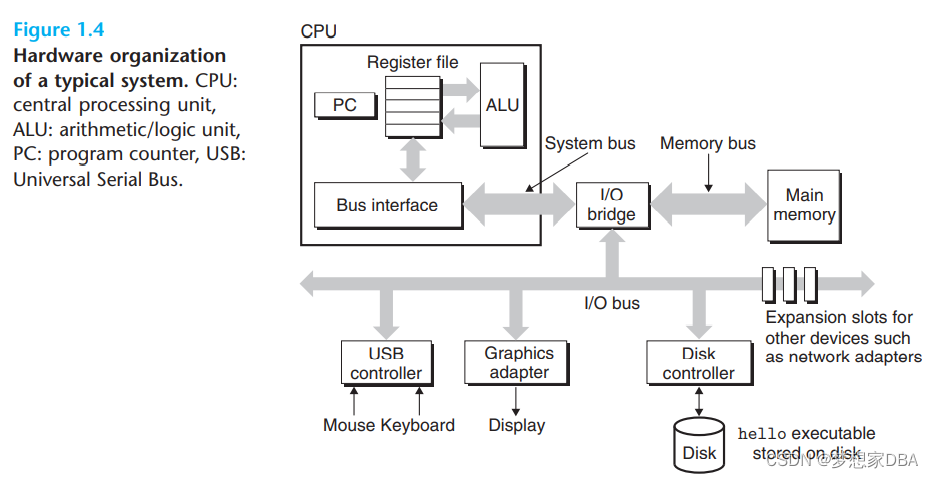

1.4.1 Hardware Organization of a System

Buses

Running throughouts the system is a collection of electrical conduits called buses that carry bytes of information back and forth between the components.

Buses are typically designed to transfer fixed-size chunk of bytes known as words.The number of bytes in a word (the word size) is a fundamental system parameter that varies across systems.Most machines today have word size of either 4 bytes(32 bits) or 8 bytes(64bits).

I/O Devices

Input/output(I/O) devices are the system's connection to the external world.

Each I/O device is connected to the I/O bus by either a controller or an adapter.

Controllers are chip sets in the device itself or on the system’s main printed circuit board (often called the motherboard). An adapter is a card that plugs into a slot on the motherboard

Main Memory

The main memory is a temporary storage device that holds both a program and the data it manipulates while the processor is executing the program.

main memory consists of a collection of dynamic random access memory(DRAM)

Processor

The central processing unit(CPU) is the engine that interprets (or executes) instructions stored in main memory.At its core is a word-size storage device (or register) called the program counter (PC).

Load: Copy a byte or a word from main memory into a register, overwriting the previous contents of the register.
Store: Copy a byte or a word from a register to a location in main memory, overwriting the previous contents of that location.
Operate: Copy the contents of two registers to the ALU, perform an arithmetic operation on the two words, and store the result in a register, overwriting the previous contents of that register.
Jump: Extract a word from the instruction itself and copy that word into the program counter (PC), overwriting the previous value of the PC.
