PostgreSQL is the most advanced RDBMS and pgAdmin is a web UI for Postgres.
Environment Specification:
- CPU - 4 Ghz (2 cores)
- Memory - 4 GB
- Storage - 80GB
- Operating System - CentOS 8.4
- Hostname – postgres
- IP Address - 192.168.8.133 /24
Update Linux Server Packages:
Use a ssh client and login to postgres as root user.
Update Linux server packages by using dnf command.
[root@postgres ~]# dnf update -y
Last metadata expiration check: 0:03:30 ago on Mon 21 Nov 2022 08:22:50 PM HKT.
Dependencies resolved.
Nothing to do.
Complete!
[root@postgres ~]#Check the Linux operating system and Kernel version.
[root@postgres ~]# uname -r
4.18.0-408.el8.x86_64
[root@postgres ~]# cat /etc/redhat-release
CentOS Stream release 8
[root@postgres ~]# Installing Postgres Official Yum Repository:
[root@postgres ~]# dnf install -y https://download.postgresql.org/pub/repos/yum/reporpms/EL-8-x86_64/pgdg-redhat-repo-latest.noarch.rpm
Last metadata expiration check: 0:05:05 ago on Mon 21 Nov 2022 08:22:50 PM HKT.
pgdg-redhat-repo-latest.noarch.rpm 5.8 kB/s | 13 kB 00:02
Dependencies resolved.
=========================================================================================================================================================================================================================================
Package Architecture Version Repository Size
=========================================================================================================================================================================================================================================
Installing:
pgdg-redhat-repo noarch 42.0-28 @commandline 13 k
Transaction Summary
=========================================================================================================================================================================================================================================
Install 1 Package
Total size: 13 k
Installed size: 14 k
Downloading Packages:
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transaction
Preparing : 1/1
Installing : pgdg-redhat-repo-42.0-28.noarch 1/1
Verifying : pgdg-redhat-repo-42.0-28.noarch 1/1
Installed:
pgdg-redhat-repo-42.0-28.noarch
Complete!
[root@postgres ~]# Disable the PostgreSQL module in standard yum repository by executing following command.
[root@postgres ~]# dnf -qy module disable postgresql
Importing GPG key 0x442DF0F8:
Userid : "PostgreSQL RPM Building Project <pgsql-pkg-yum@postgresql.org>"
Fingerprint: 68C9 E2B9 1A37 D136 FE74 D176 1F16 D2E1 442D F0F8
From : /etc/pki/rpm-gpg/RPM-GPG-KEY-PGDG
Importing GPG key 0x442DF0F8:
Userid : "PostgreSQL RPM Building Project <pgsql-pkg-yum@postgresql.org>"
Fingerprint: 68C9 E2B9 1A37 D136 FE74 D176 1F16 D2E1 442D F0F8
From : /etc/pki/rpm-gpg/RPM-GPG-KEY-PGDG
Importing GPG key 0x442DF0F8:
Userid : "PostgreSQL RPM Building Project <pgsql-pkg-yum@postgresql.org>"
Fingerprint: 68C9 E2B9 1A37 D136 FE74 D176 1F16 D2E1 442D F0F8
From : /etc/pki/rpm-gpg/RPM-GPG-KEY-PGDG
Importing GPG key 0x442DF0F8:
Userid : "PostgreSQL RPM Building Project <pgsql-pkg-yum@postgresql.org>"
Fingerprint: 68C9 E2B9 1A37 D136 FE74 D176 1F16 D2E1 442D F0F8
From : /etc/pki/rpm-gpg/RPM-GPG-KEY-PGDG
Importing GPG key 0x442DF0F8:
Userid : "PostgreSQL RPM Building Project <pgsql-pkg-yum@postgresql.org>"
Fingerprint: 68C9 E2B9 1A37 D136 FE74 D176 1F16 D2E1 442D F0F8
From : /etc/pki/rpm-gpg/RPM-GPG-KEY-PGDG
Importing GPG key 0x442DF0F8:
Userid : "PostgreSQL RPM Building Project <pgsql-pkg-yum@postgresql.org>"
Fingerprint: 68C9 E2B9 1A37 D136 FE74 D176 1F16 D2E1 442D F0F8
From : /etc/pki/rpm-gpg/RPM-GPG-KEY-PGDG
Importing GPG key 0x442DF0F8:
Userid : "PostgreSQL RPM Building Project <pgsql-pkg-yum@postgresql.org>"
Fingerprint: 68C9 E2B9 1A37 D136 FE74 D176 1F16 D2E1 442D F0F8
From : /etc/pki/rpm-gpg/RPM-GPG-KEY-PGDG
[root@postgres ~]# Installing Postgres Database Server on CentOS 8:
Install Postgres database server 13 (latest at the time of this writing) on your Linux server by using dnf command.
[root@postgres ~]# dnf install -y postgresql13-server
Last metadata expiration check: 0:07:16 ago on Mon 21 Nov 2022 08:30:01 PM HKT.
Dependencies resolved.
=========================================================================================================================================================================================================================================
Package Architecture Version Repository Size
=========================================================================================================================================================================================================================================
Installing:
postgresql13-server x86_64 13.9-1PGDG.rhel8 pgdg13 5.5 M
Installing dependencies:
postgresql13 x86_64 13.9-1PGDG.rhel8 pgdg13 1.5 M
postgresql13-libs x86_64 13.9-1PGDG.rhel8 pgdg13 417 k
Transaction Summary
=========================================================================================================================================================================================================================================
Install 3 Packages
Total download size: 7.4 M
Installed size: 31 M
Downloading Packages:
(1/3): postgresql13-libs-13.9-1PGDG.rhel8.x86_64.rpm 147 kB/s | 417 kB 00:02
(2/3): postgresql13-13.9-1PGDG.rhel8.x86_64.rpm 429 kB/s | 1.5 MB 00:03
(3/3): postgresql13-server-13.9-1PGDG.rhel8.x86_64.rpm 1.2 MB/s | 5.5 MB 00:04
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Total 1.5 MB/s | 7.4 MB 00:04
PostgreSQL 13 for RHEL / Rocky 8 - x86_64 1.6 MB/s | 1.7 kB 00:00
Importing GPG key 0x442DF0F8:
Userid : "PostgreSQL RPM Building Project <pgsql-pkg-yum@postgresql.org>"
Fingerprint: 68C9 E2B9 1A37 D136 FE74 D176 1F16 D2E1 442D F0F8
From : /etc/pki/rpm-gpg/RPM-GPG-KEY-PGDG
Key imported successfully
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transaction
Preparing : 1/1
Installing : postgresql13-libs-13.9-1PGDG.rhel8.x86_64 1/3
Running scriptlet: postgresql13-libs-13.9-1PGDG.rhel8.x86_64 1/3
Installing : postgresql13-13.9-1PGDG.rhel8.x86_64 2/3
Running scriptlet: postgresql13-13.9-1PGDG.rhel8.x86_64 2/3
Running scriptlet: postgresql13-server-13.9-1PGDG.rhel8.x86_64 3/3
Installing : postgresql13-server-13.9-1PGDG.rhel8.x86_64 3/3
Running scriptlet: postgresql13-server-13.9-1PGDG.rhel8.x86_64 3/3
Verifying : postgresql13-13.9-1PGDG.rhel8.x86_64 1/3
Verifying : postgresql13-libs-13.9-1PGDG.rhel8.x86_64 2/3
Verifying : postgresql13-server-13.9-1PGDG.rhel8.x86_64 3/3
Installed:
postgresql13-13.9-1PGDG.rhel8.x86_64 postgresql13-libs-13.9-1PGDG.rhel8.x86_64 postgresql13-server-13.9-1PGDG.rhel8.x86_64
Complete!
[root@postgres ~]#You need to execute following command once to initialize the Postgres database.
[root@postgres ~]# /usr/pgsql-13/bin/postgresql-13-setup initdb
Initializing database ... OK
[root@postgres ~]# Enable and start Postgres database service.
[root@postgres ~]#
[root@postgres ~]# systemctl enable --now postgresql-13
Created symlink /etc/systemd/system/multi-user.target.wants/postgresql-13.service → /usr/lib/systemd/system/postgresql-13.service.
[root@postgres ~]#Check the status of Postgres database service.
[root@postgres ~]#
[root@postgres ~]# systemctl status postgresql-13.service
● postgresql-13.service - PostgreSQL 13 database server
Loaded: loaded (/usr/lib/systemd/system/postgresql-13.service; enabled; vendor preset: disabled)
Active: active (running) since Mon 2022-11-21 20:42:18 HKT; 36s ago
Docs: https://www.postgresql.org/docs/13/static/
Process: 47479 ExecStartPre=/usr/pgsql-13/bin/postgresql-13-check-db-dir ${PGDATA} (code=exited, status=0/SUCCESS)
Main PID: 47485 (postmaster)
Tasks: 8 (limit: 24548)
Memory: 16.9M
CGroup: /system.slice/postgresql-13.service
├─47485 /usr/pgsql-13/bin/postmaster -D /var/lib/pgsql/13/data/
├─47486 postgres: logger
├─47488 postgres: checkpointer
├─47489 postgres: background writer
├─47490 postgres: walwriter
├─47491 postgres: autovacuum launcher
├─47492 postgres: stats collector
└─47493 postgres: logical replication launcher
Nov 21 20:42:18 postgres systemd[1]: Starting PostgreSQL 13 database server...
Nov 21 20:42:18 postgres postmaster[47485]: 2022-11-21 20:42:18.296 HKT [47485] LOG: redirecting log output to logging collector process
Nov 21 20:42:18 postgres postmaster[47485]: 2022-11-21 20:42:18.296 HKT [47485] HINT: Future log output will appear in directory "log".
Nov 21 20:42:18 postgres systemd[1]: Started PostgreSQL 13 database server.
[root@postgres ~]#Check the version of installed PostgreSQL server.
[root@postgres ~]# psql -V
psql (PostgreSQL) 13.9
[root@postgres ~]# Switch to postgres user and connect to psql shell to set admin user password.
[root@postgres ~]#
[root@postgres ~]# psql -V
psql (PostgreSQL) 13.9
[root@postgres ~]#
[root@postgres ~]#
[root@postgres ~]# su - postgres
[postgres@postgres ~]$ psql
psql (13.9)
Type "help" for help.
postgres=# ALTER USER postgres WITH PASSWORD 'postgres';
ALTER ROLE
postgres=# \q
[postgres@postgres ~]$Configure Postgres Database Service for Network Access:
PostgreSQL default service port is 5432/tcp. Execute the following command to verify that PostgreSQL service is listening on this port.
[postgres@postgres ~]$ ss -tulpn | grep 5432
tcp LISTEN 0 128 127.0.0.1:5432 0.0.0.0:* users:(("postmaster",pid=47485,fd=7))
tcp LISTEN 0 128 [::1]:5432 [::]:* users:(("postmaster",pid=47485,fd=6))
[postgres@postgres ~]$ As you may notice that the PostgreSQL service is initially runs on localhost interface only. However, to make our Postgres database available for network clients, you have to configure PostgreSQL to run on all (or on some specific) interfaces.
For this purpose, you have to edit PostgreSQL configuration file in vim text editor.
# vi /var/lib/pgsql/13/data/postgresql.confSearch for following directive therein.
# listen_addresses = 'localhost'And replace it with the following directive.
listen_addresses = '*'Your Postgres database service is now configured to listen on all network interfaces.
Allow network clients to access PostgreSQL service in pg_hba.conf file.
[root@postgres ~]# echo "host all all 192.168.8.0/24 md5" >> /var/lib/pgsql/13/data/pg_hba.conf
[root@postgres ~]# Restart Postgres database service to apply changes.
[root@postgres ~]# systemctl restart postgresql-13.service
[root@postgres ~]#
[root@postgres ~]#Again check the network services by using ss command.
[root@postgres ~]#
[root@postgres ~]# ss -tulpn | grep 5432
tcp LISTEN 0 128 0.0.0.0:5432 0.0.0.0:* users:(("postmaster",pid=49011,fd=6))
tcp LISTEN 0 128 [::]:5432 [::]:* users:(("postmaster",pid=49011,fd=7))
[root@postgres ~]# Postgres Service is now running on all network interfaces.
Configure Linux Firewall for Postgres Database Service:
In CentOS 8, we already have a firewall service for PostgreSQL, therefore we are allowing it by using firewall-cmd command. However, you can create a custom firewall service of your own, if your PostgreSQL server is configured to listen on a non-default port.
[root@postgres ~]# systemctl status firewall-cmd
Unit firewall-cmd.service could not be found.
[root@postgres ~]# systemctl status --now firewalld
● firewalld.service - firewalld - dynamic firewall daemon
Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; vendor preset: enabled)
Active: inactive (dead)
Docs: man:firewalld(1)
[root@postgres ~]# systemctl enable --now firewalld
Created symlink /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service → /usr/lib/systemd/system/firewalld.service.
Created symlink /etc/systemd/system/multi-user.target.wants/firewalld.service → /usr/lib/systemd/system/firewalld.service.
[root@postgres ~]# firewall-cmd --permanent --add-service=postgresql
success
[root@postgres ~]# firewall-cmd --reload
success
[root@postgres ~]# Postgres database server has been installed on Linux server.
Installing pgAdmin Yum Repository on CentOS 8:

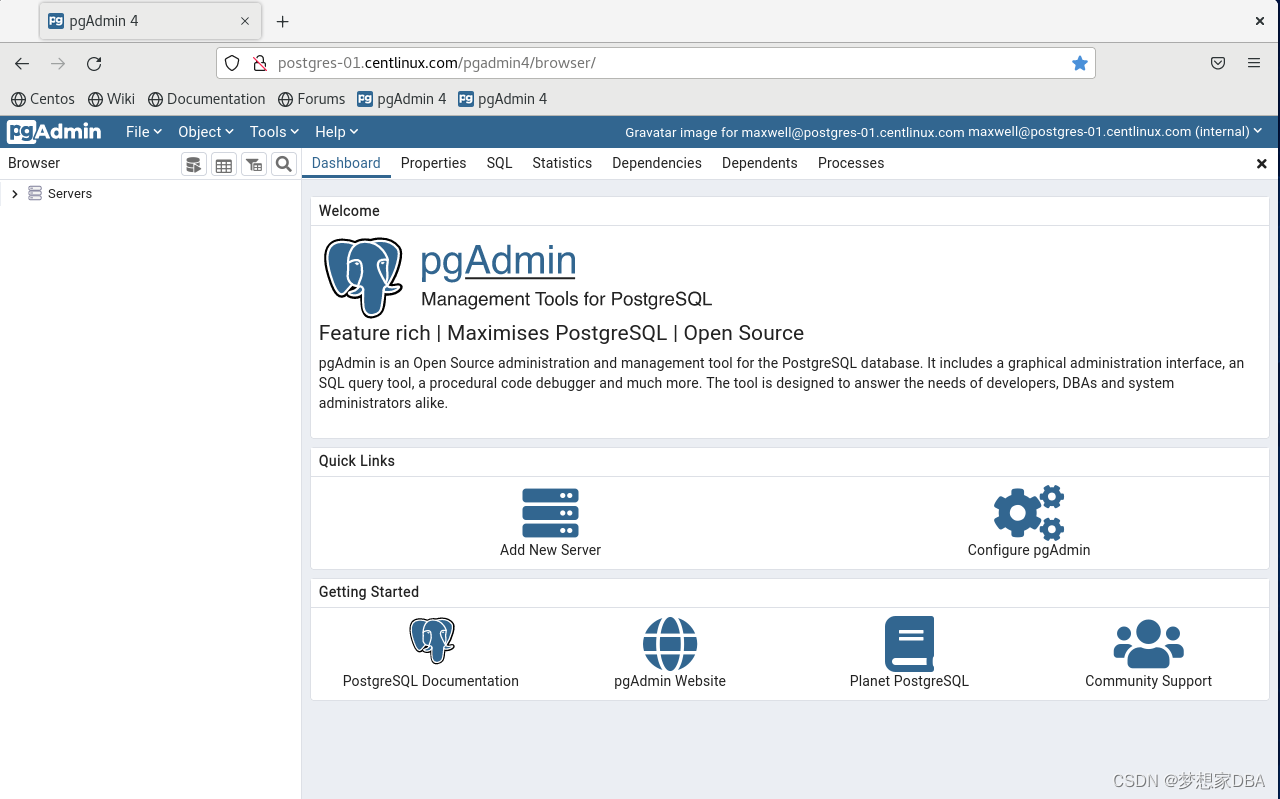

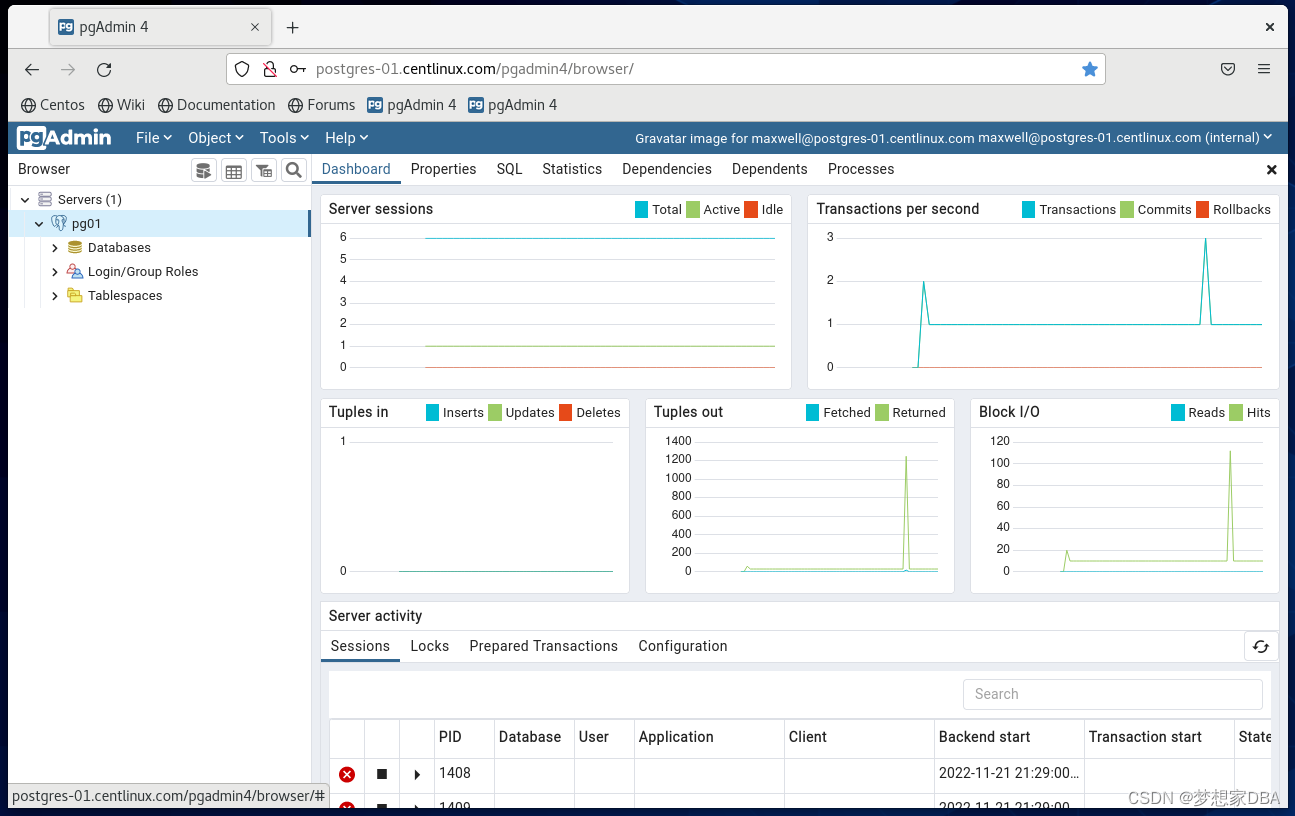

pgAdmin is a popular web interface for database administration of PostgreSQL databases.
Although pgAdmin is also provided within PostgreSQL official yum repositories. But it doesn’t work on our CentOS 8 server.
Therefore, we are installing the latest stable version of pgAdmin from pgAdmin official yum repository.
For this purpose, first you need to remove the PostgreSQL yum repositories from your Linux server.
[root@postgres ~]#
[root@postgres ~]# dnf remove -y pgdg-redhat-repo
Dependencies resolved.
=========================================================================================================================================================================================================================================
Package Architecture Version Repository Size
=========================================================================================================================================================================================================================================
Removing:
pgdg-redhat-repo noarch 42.0-28 @@commandline 14 k
Transaction Summary
=========================================================================================================================================================================================================================================
Remove 1 Package
Freed space: 14 k
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transaction
Preparing : 1/1
Erasing : pgdg-redhat-repo-42.0-28.noarch 1/1
Verifying : pgdg-redhat-repo-42.0-28.noarch 1/1
Removed:
pgdg-redhat-repo-42.0-28.noarch
Complete!
[root@postgres ~]# Now, add the pgAdmin official yum repository in your Linux operating system.
[root@postgres ~]#
[root@postgres ~]# dnf install -y https://ftp.postgresql.org/pub/pgadmin/pgadmin4/yum/pgadmin4-redhat-repo-2-1.noarch.rpm
Last metadata expiration check: 0:42:04 ago on Mon 21 Nov 2022 08:37:30 PM HKT.
pgadmin4-redhat-repo-2-1.noarch.rpm 3.8 kB/s | 6.6 kB 00:01
Dependencies resolved.
=========================================================================================================================================================================================================================================
Package Architecture Version Repository Size
=========================================================================================================================================================================================================================================
Installing:
pgadmin4-redhat-repo noarch 2-1 @commandline 6.6 k
Transaction Summary
=========================================================================================================================================================================================================================================
Install 1 Package
Total size: 6.6 k
Installed size: 4.0 k
Downloading Packages:
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transaction
Preparing : 1/1
Installing : pgadmin4-redhat-repo-2-1.noarch 1/1
Verifying : pgadmin4-redhat-repo-2-1.noarch 1/1
Installed:
pgadmin4-redhat-repo-2-1.noarch
Complete!
[root@postgres ~]# You are also required to install EPEL (Extra Packages for Enterprise Linux) yum repository, because pgAdmin requires some software packages that are not available in standard yum repositories.
Use dnf command and install EPEL yum repository.
[root@postgres ~]#
[root@postgres ~]# dnf install -y epel-release
pgadmin4 265 B/s | 833 B 00:03
pgadmin4 3.8 MB/s | 3.8 kB 00:00
Importing GPG key 0x210976F2:
Userid : "Package Manager (Package Signing Key) <packages@pgadmin.org>"
Fingerprint: E869 7E2E EF76 C02D 3A63 3277 8881 B2A8 2109 76F2
From : /etc/pki/rpm-gpg/PGADMIN_PKG_KEY
pgadmin4 106 kB/s | 896 kB 00:08
Last metadata expiration check: 0:00:02 ago on Mon 21 Nov 2022 09:20:44 PM HKT.
Dependencies resolved.
=========================================================================================================================================================================================================================================
Package Architecture Version Repository Size
=========================================================================================================================================================================================================================================
Installing:
epel-release noarch 8-11.el8 extras 24 k
Transaction Summary
=========================================================================================================================================================================================================================================
Install 1 Package
Total download size: 24 k
Installed size: 35 k
Downloading Packages:
epel-release-8-11.el8.noarch.rpm 53 kB/s | 24 kB 00:00
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Total 21 kB/s | 24 kB 00:01
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transaction
Preparing : 1/1
Installing : epel-release-8-11.el8.noarch 1/1
Running scriptlet: epel-release-8-11.el8.noarch 1/1
Verifying : epel-release-8-11.el8.noarch 1/1
Installed:
epel-release-8-11.el8.noarch
Complete!
[root@postgres ~]# Build cache for newly installed yum repositories.
[root@postgres ~]#
[root@postgres ~]# dnf makecache
CentOS Stream 8 - AppStream 1.1 kB/s | 4.4 kB 00:03
CentOS Stream 8 - BaseOS 4.6 kB/s | 3.9 kB 00:00
CentOS Stream 8 - Extras 2.9 kB/s | 2.9 kB 00:00
CentOS Stream 8 - Extras common packages 3.2 kB/s | 3.0 kB 00:00
Extra Packages for Enterprise Linux 8 - x86_64 3.1 MB/s | 13 MB 00:04
Extra Packages for Enterprise Linux Modular 8 - x86_64 181 kB/s | 733 kB 00:04
pgadmin4 198 B/s | 833 B 00:04
Metadata cache created.
[root@postgres ~]# Installing pgAdmin Web UI on CentOS 8:
All repositories has been added. You can now install pgAdmin by using dnf command.
[root@postgres ~]#
[root@postgres ~]# dnf install -y pgadmin4
Last metadata expiration check: 0:00:47 ago on Mon 21 Nov 2022 09:22:31 PM HKT.
Dependencies resolved.
=========================================================================================================================================================================================================================================
Package Architecture Version Repository Size
=========================================================================================================================================================================================================================================
Installing:
pgadmin4 noarch 6.16-1.el8 pgAdmin4 6.2 k
Installing dependencies:
apr x86_64 1.6.3-12.el8 appstream 129 k
apr-util x86_64 1.6.1-6.el8 appstream 105 k
centos-logos-httpd noarch 85.8-2.el8 appstream 75 k
httpd x86_64 2.4.37-47.module_el8.6.0+1111+ce6f4ceb.1 appstream 1.4 M
httpd-filesystem noarch 2.4.37-47.module_el8.6.0+1111+ce6f4ceb.1 appstream 41 k
httpd-tools x86_64 2.4.37-47.module_el8.6.0+1111+ce6f4ceb.1 appstream 108 k
mod_http2 x86_64 1.15.7-5.module_el8.6.0+1111+ce6f4ceb appstream 155 k
pgadmin4-desktop x86_64 6.16-1.el8 pgAdmin4 92 M
pgadmin4-server x86_64 6.16-1.el8 pgAdmin4 77 M
pgadmin4-web noarch 6.16-1.el8 pgAdmin4 8.7 k
python3-mod_wsgi x86_64 4.6.4-5.el8 appstream 2.5 M
Installing weak dependencies:
apr-util-bdb x86_64 1.6.1-6.el8 appstream 25 k
apr-util-openssl x86_64 1.6.1-6.el8 appstream 27 k
Enabling module streams:
httpd 2.4
Transaction Summary
=========================================================================================================================================================================================================================================
Install 14 Packages
Total download size: 173 M
Installed size: 621 M
Downloading Packages:
(1/14): apr-util-bdb-1.6.1-6.el8.x86_64.rpm 71 kB/s | 25 kB 00:00
(2/14): apr-util-1.6.1-6.el8.x86_64.rpm 209 kB/s | 105 kB 00:00
(3/14): apr-util-openssl-1.6.1-6.el8.x86_64.rpm 168 kB/s | 27 kB 00:00
(4/14): apr-1.6.3-12.el8.x86_64.rpm 250 kB/s | 129 kB 00:00
(5/14): centos-logos-httpd-85.8-2.el8.noarch.rpm 789 kB/s | 75 kB 00:00
(6/14): httpd-filesystem-2.4.37-47.module_el8.6.0+1111+ce6f4ceb.1.noarch.rpm 442 kB/s | 41 kB 00:00
(7/14): httpd-tools-2.4.37-47.module_el8.6.0+1111+ce6f4ceb.1.x86_64.rpm 958 kB/s | 108 kB 00:00
(8/14): mod_http2-1.15.7-5.module_el8.6.0+1111+ce6f4ceb.x86_64.rpm 837 kB/s | 155 kB 00:00
(9/14): httpd-2.4.37-47.module_el8.6.0+1111+ce6f4ceb.1.x86_64.rpm 2.4 MB/s | 1.4 MB 00:00
(10/14): python3-mod_wsgi-4.6.4-5.el8.x86_64.rpm 4.2 MB/s | 2.5 MB 00:00
(11/14): pgadmin4-6.16-1.el8.noarch.rpm 4.0 kB/s | 6.2 kB 00:01
(12/14): pgadmin4-web-6.16-1.el8.noarch.rpm 32 kB/s | 8.7 kB 00:00
(13/14): pgadmin4-server-6.16-1.el8.x86_64.rpm 4.7 MB/s | 77 MB 00:16
(14/14): pgadmin4-desktop-6.16-1.el8.x86_64.rpm 4.7 MB/s | 92 MB 00:19
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Total 8.1 MB/s | 173 MB 00:21
pgadmin4 3.8 MB/s | 3.8 kB 00:00
Importing GPG key 0x210976F2:
Userid : "Package Manager (Package Signing Key) <packages@pgadmin.org>"
Fingerprint: E869 7E2E EF76 C02D 3A63 3277 8881 B2A8 2109 76F2
From : /etc/pki/rpm-gpg/PGADMIN_PKG_KEY
Key imported successfully
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transaction
Preparing : 1/1
Installing : pgadmin4-server-6.16-1.el8.x86_64 1/14
Installing : apr-1.6.3-12.el8.x86_64 2/14
Running scriptlet: apr-1.6.3-12.el8.x86_64 2/14
Installing : apr-util-bdb-1.6.1-6.el8.x86_64 3/14
Installing : apr-util-openssl-1.6.1-6.el8.x86_64 4/14
Installing : apr-util-1.6.1-6.el8.x86_64 5/14
Running scriptlet: apr-util-1.6.1-6.el8.x86_64 5/14
Installing : httpd-tools-2.4.37-47.module_el8.6.0+1111+ce6f4ceb.1.x86_64 6/14
Installing : pgadmin4-desktop-6.16-1.el8.x86_64 7/14
Running scriptlet: pgadmin4-desktop-6.16-1.el8.x86_64 7/14
Running scriptlet: httpd-filesystem-2.4.37-47.module_el8.6.0+1111+ce6f4ceb.1.noarch 8/14
Installing : httpd-filesystem-2.4.37-47.module_el8.6.0+1111+ce6f4ceb.1.noarch 8/14
Installing : centos-logos-httpd-85.8-2.el8.noarch 9/14
Installing : mod_http2-1.15.7-5.module_el8.6.0+1111+ce6f4ceb.x86_64 10/14
Installing : httpd-2.4.37-47.module_el8.6.0+1111+ce6f4ceb.1.x86_64 11/14
Running scriptlet: httpd-2.4.37-47.module_el8.6.0+1111+ce6f4ceb.1.x86_64 11/14
Installing : python3-mod_wsgi-4.6.4-5.el8.x86_64 12/14
Installing : pgadmin4-web-6.16-1.el8.noarch 13/14
Installing : pgadmin4-6.16-1.el8.noarch 14/14
Running scriptlet: httpd-2.4.37-47.module_el8.6.0+1111+ce6f4ceb.1.x86_64 14/14
Running scriptlet: pgadmin4-6.16-1.el8.noarch 14/14
Verifying : apr-1.6.3-12.el8.x86_64 1/14
Verifying : apr-util-1.6.1-6.el8.x86_64 2/14
Verifying : apr-util-bdb-1.6.1-6.el8.x86_64 3/14
Verifying : apr-util-openssl-1.6.1-6.el8.x86_64 4/14
Verifying : centos-logos-httpd-85.8-2.el8.noarch 5/14
Verifying : httpd-2.4.37-47.module_el8.6.0+1111+ce6f4ceb.1.x86_64 6/14
Verifying : httpd-filesystem-2.4.37-47.module_el8.6.0+1111+ce6f4ceb.1.noarch 7/14
Verifying : httpd-tools-2.4.37-47.module_el8.6.0+1111+ce6f4ceb.1.x86_64 8/14
Verifying : mod_http2-1.15.7-5.module_el8.6.0+1111+ce6f4ceb.x86_64 9/14
Verifying : python3-mod_wsgi-4.6.4-5.el8.x86_64 10/14
Verifying : pgadmin4-6.16-1.el8.noarch 11/14
Verifying : pgadmin4-desktop-6.16-1.el8.x86_64 12/14
Verifying : pgadmin4-server-6.16-1.el8.x86_64 13/14
Verifying : pgadmin4-web-6.16-1.el8.noarch 14/14
Installed:
apr-1.6.3-12.el8.x86_64 apr-util-1.6.1-6.el8.x86_64 apr-util-bdb-1.6.1-6.el8.x86_64
apr-util-openssl-1.6.1-6.el8.x86_64 centos-logos-httpd-85.8-2.el8.noarch httpd-2.4.37-47.module_el8.6.0+1111+ce6f4ceb.1.x86_64
httpd-filesystem-2.4.37-47.module_el8.6.0+1111+ce6f4ceb.1.noarch httpd-tools-2.4.37-47.module_el8.6.0+1111+ce6f4ceb.1.x86_64 mod_http2-1.15.7-5.module_el8.6.0+1111+ce6f4ceb.x86_64
pgadmin4-6.16-1.el8.noarch pgadmin4-desktop-6.16-1.el8.x86_64 pgadmin4-server-6.16-1.el8.x86_64
pgadmin4-web-6.16-1.el8.noarch python3-mod_wsgi-4.6.4-5.el8.x86_64
Complete!
[root@postgres ~]# To configure SELinux policies, the pgAdmin setup script requires semanage command, which is provided in policycoreutils-python-utils packages. Therefore, you should install it before executing pgAdmin setup script.
[root@postgres ~]#
[root@postgres ~]# dnf install -y policycoreutils-python-utils
Last metadata expiration check: 0:02:28 ago on Mon 21 Nov 2022 09:22:31 PM HKT.
Package policycoreutils-python-utils-2.9-20.el8.noarch is already installed.
Dependencies resolved.
Nothing to do.
Complete!
[root@postgres ~]#The pgAdmin software comes with a well written configuration script to configure pgAdmin web service. Execute it to create a admin user, configure SELinux policies and Apache web server to deploy pgAdmin web service.
[root@postgres ~]#
[root@postgres ~]# /usr/pgadmin4/bin/setup-web.sh
Setting up pgAdmin 4 in web mode on a Redhat based platform...
Creating configuration database...
NOTE: Configuring authentication for SERVER mode.
Enter the email address and password to use for the initial pgAdmin user account:
Email address: maxwell@postgres-01.centlinux.com
Password:
Retype password:
pgAdmin 4 - Application Initialisation
======================================
Creating storage and log directories...
Configuring SELinux...
The Apache web server is not running. We can enable and start the web server for you to finish pgAdmin 4 installation. Continue (y/n)? y
Created symlink /etc/systemd/system/multi-user.target.wants/httpd.service → /usr/lib/systemd/system/httpd.service.
Apache successfully enabled.
Apache successfully started.
You can now start using pgAdmin 4 in web mode at http://127.0.0.1/pgadmin4
[root@postgres ~]#The above script installs a configuration file (/etc/httpd/conf.d/pgadmin4.conf) to deploy pgAdmin on Apache web server.
No customization is required in this file. You are only required to enable and start httpd service.
[root@postgres ~]#
[root@postgres ~]# systemctl enable --now httpd.service
[root@postgres ~]# systemctl status --now httpd.service
● httpd.service - The Apache HTTP Server
Loaded: loaded (/usr/lib/systemd/system/httpd.service; enabled; vendor preset: disabled)
Active: active (running) since Mon 2022-11-21 21:32:03 HKT; 1min 11s ago
Docs: man:httpd.service(8)
Main PID: 4763 (httpd)
Status: "Running, listening on: port 80"
Tasks: 241 (limit: 24548)
Memory: 57.7M
CGroup: /system.slice/httpd.service
├─4763 /usr/sbin/httpd -DFOREGROUND
├─4764 /usr/sbin/httpd -DFOREGROUND
├─4765 /usr/sbin/httpd -DFOREGROUND
├─4766 /usr/sbin/httpd -DFOREGROUND
├─4767 /usr/sbin/httpd -DFOREGROUND
└─4768 /usr/sbin/httpd -DFOREGROUND
Nov 21 21:32:03 postgres systemd[1]: Starting The Apache HTTP Server...
Nov 21 21:32:03 postgres httpd[4763]: [Mon Nov 21 21:32:03.459384 2022] [so:warn] [pid 4763:tid 140125930293568] AH01574: module wsgi_module is already loaded, skipping
Nov 21 21:32:03 postgres httpd[4763]: AH00558: httpd: Could not reliably determine the server's fully qualified domain name, using 192.168.8.133. Set the 'ServerName' directive globally to suppress this message
Nov 21 21:32:03 postgres systemd[1]: Started The Apache HTTP Server.
Nov 21 21:32:03 postgres httpd[4763]: Server configured, listening on: port 80
[root@postgres ~]#
Configure Linux firewall to allow incoming traffic to Apache web server.
[root@postgres ~]#
[root@postgres ~]#
[root@postgres ~]# firewall-cmd --permanent --add-service=http
success
[root@postgres ~]# firewall-cmd --reload
success
[root@postgres ~]#
Open URL http://postgres-01.centlinux.com/pgadmin4/ in a web browser.
Login to pgAdmin as admin user (maxwell@postgres-01.centlinux.com)that we have created by setup-web.sh script.
After successful login, you may reach at the pgAdmin dashboard.
To add your PostgreSQL database server in pgAdmin inventory, click on "Add New Server".
Provide the Server name and click on “Connection” tab.
Provide the database connection information in this dialog box as we did in the above screenshots.
Click on "Save".
Our Postgres database server has been added in pgAdmin. You can see a tree of you database server in the left side panel.
扫一扫
932
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
