BSN-DID研究--主题2：发证方函数

本文开始对帮助手册的API进行调用， 分析具体的输入参数和返回结果。

主题1 ：创建DID、上链、查询、验证， 主要是 帮助手册的14.4.2 发证方

-------------------------------------------------------------------------------------------

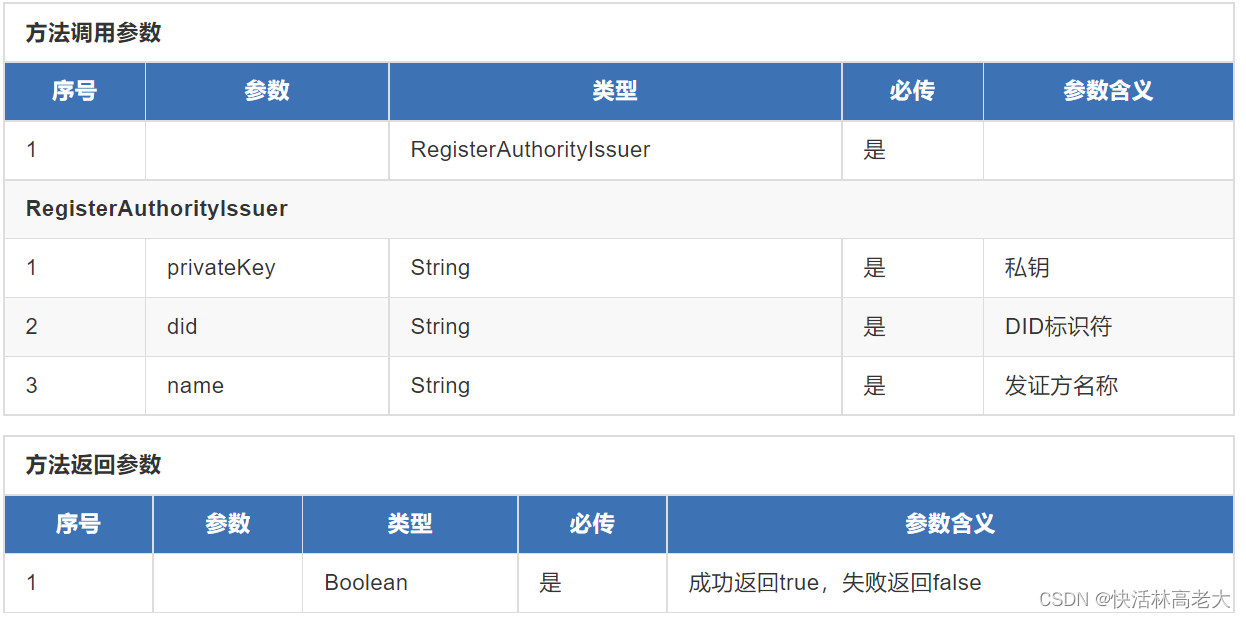

1 注册发证方

方法名：   registerAuthIssuer(RegisterAuthorityIssuer register)

方法描述： DID用户申请成为发证方角色，注册成功则发证方信息上链。

【说明】 参数中包含了一个私钥，就是DID的主私钥。该私钥不能丢失， 以后发证时要用这个私钥签名的。

               这个私钥并不会传送给服务端，只是在函数内计算公钥签名，对请求数据进行签名的。以后相关的函数中也会要求传入私钥进行计算。

public static void registerAuthIssuerTest() {

    DidDataWrapper didDataWrapper = didClient.createDid(true);

    RegisterAuthorityIssuer register = new RegisterAuthorityIssuer();

    register.setDid(didDataWrapper.getDid());

    register.setPrivateKey(didDataWrapper.getAuthKeyInfo().getPrivateKey());

    register.setName("MetaPorts company");

    System.out.println("registerAuthIssuerTest()  register = "+JSONArray.toJSONString(register));



    boolean registerresult = didClient.registerAuthIssuer(register);

    System.out.println("registerAuthIssuerTest()  registerresult = "+registerresult);

}

运行结果：

registerAuthIssuerTest()  register =

{"did":"did:bsn:4GpA5R4hvix2cLxUDPjLsuLZFD2t","name":"MetaPorts company","privateKey":"19735796550396724256944876838556861168110780296787174707640481151280248118014"}

registerAuthIssuerTest()  registerresult = true

2 查询发证方

方法名：   queryAuthIssuerList(AuthIssuerList query)

方法描述：  通过DID标识符查询是否是发证方，以及通过名称可识别出可签发哪类凭证。

【说明】输入参数did，如果指定为具体的did字符串，查询结果就是一条。

  page，指定第几页。 size：指定每页多少条记录。

目前来看， 发证方的测试数据大约400条。 允许每页50条记录，条数再多的话（size=100）就报告字符串溢出了。

public static void queryAuthIssuerListTetst() {

        DidDataWrapper didDataWrapper = didClient.createDid(true);

        RegisterAuthorityIssuer register = new RegisterAuthorityIssuer();

        register.setDid(didDataWrapper.getDid());

        register.setPrivateKey(didDataWrapper.getAuthKeyInfo().getPrivateKey());

        register.setName("xxxx company");

        boolean registerresult = didClient.registerAuthIssuer(register);

        AuthIssuer queryIssuer = new AuthIssuer();

        queryIssuer.setPage(1);

        queryIssuer.setSize(10);

//        queryIssuer.setDid(didDataWrapper.getDid());

        queryIssuer.setDid("");

        Pages<AuthorityIssuer> issuerList = didClient.queryAuthIssuerList(queryIssuer);

        List<AuthorityIssuer> result = issuerList.getResult();

//        AuthorityIssuer issuer = result.get(0);   //这种做法是不行的，必须用下面的写法才能解析出具体对象

        System.out.println("=================="+JSONArray.toJSONString(result));

        String ret = JSONArray.toJSONString(result);

        JSONArray jarray = JSONArray.parseArray(ret);

        for(int i=0;i<jarray.size();i++){

            System.out.println(jarray.get(i));

            JSONObject jobj = jarray.getJSONObject(i);

            System.out.println("name : "+ jobj.get("name"));

            System.out.println("did : "+ jobj.get("did"));

        }

    }

指定did="did":"did:bsn:21UKCBwnCgaYYKpEG5Jd2DDzyR99"，运行结果：

==================[{"name":"xxxx company","did":"did:bsn:21UKCBwnCgaYYKpEG5Jd2DDzyR99"}]

{"name":"xxxx company","did":"did:bsn:21UKCBwnCgaYYKpEG5Jd2DDzyR99"}

name : xxxx company

did : did:bsn:21UKCBwnCgaYYKpEG5Jd2DDzyR99

指定did="",  运行结果：

==================[{"name":"testname","did":"did:bsn:uWEju29UN5kce13iRrwa7Zk8HPJ"},{"name":"xxxx company","did":"did:bsn:Nd9gpybVfCB3LnnFRitGNNXyjrL"},{"name":"xxxx company","did":"did:bsn:aNs5oYjCytvAU1mTWfhk731FS29"},{"name":"xxxx company","did":"did:bsn:4CzoqqbeGir2RbiMSxhudjwXXD8d"},{"name":"xxxx company","did":"did:bsn:3LCSy1v9WDFhG2GZjQ4iniscAHiz"},{"name":"xxxx company","did":"did:bsn:4TwbnUN2CbWVwHdBaR98shg2GxDV"},{"name":"xxxx company","did":"did:bsn:3SCN2AUmh3pJVuwvTDb3Coy6koxa"},{"name":"xxxx company","did":"did:bsn:4RxVPyL6ae2bH6TYECzfmVhPfoVH"},{"name":"xxxx company","did":"did:bsn:4KiRgTu36MxpxmMi7BiD8zXZq9Uv"},{"name":"xxxx company","did":"did:bsn:4Z9qpPZeSWiikvyMZksEnKPx97Pk"}]

{"name":"testname","did":"did:bsn:uWEju29UN5kce13iRrwa7Zk8HPJ"}

name : testname

did : did:bsn:uWEju29UN5kce13iRrwa7Zk8HPJ

{"name":"xxxx company","did":"did:bsn:Nd9gpybVfCB3LnnFRitGNNXyjrL"}

name : xxxx company

did : did:bsn:Nd9gpybVfCB3LnnFRitGNNXyjrL

{"name":"xxxx company","did":"did:bsn:aNs5oYjCytvAU1mTWfhk731FS29"}

name : xxxx company

did : did:bsn:aNs5oYjCytvAU1mTWfhk731FS29

{"name":"xxxx company","did":"did:bsn:4CzoqqbeGir2RbiMSxhudjwXXD8d"}

name : xxxx company

did : did:bsn:4CzoqqbeGir2RbiMSxhudjwXXD8d

{"name":"xxxx company","did":"did:bsn:3LCSy1v9WDFhG2GZjQ4iniscAHiz"}

name : xxxx company

did : did:bsn:3LCSy1v9WDFhG2GZjQ4iniscAHiz

{"name":"xxxx company","did":"did:bsn:4TwbnUN2CbWVwHdBaR98shg2GxDV"}

name : xxxx company

did : did:bsn:4TwbnUN2CbWVwHdBaR98shg2GxDV

{"name":"xxxx company","did":"did:bsn:3SCN2AUmh3pJVuwvTDb3Coy6koxa"}

name : xxxx company

did : did:bsn:3SCN2AUmh3pJVuwvTDb3Coy6koxa

{"name":"xxxx company","did":"did:bsn:4RxVPyL6ae2bH6TYECzfmVhPfoVH"}

name : xxxx company

did : did:bsn:4RxVPyL6ae2bH6TYECzfmVhPfoVH

{"name":"xxxx company","did":"did:bsn:4KiRgTu36MxpxmMi7BiD8zXZq9Uv"}

name : xxxx company

did : did:bsn:4KiRgTu36MxpxmMi7BiD8zXZq9Uv

{"name":"xxxx company","did":"did:bsn:4Z9qpPZeSWiikvyMZksEnKPx97Pk"}

name : xxxx company

did : did:bsn:4Z9qpPZeSWiikvyMZksEnKPx97Pk

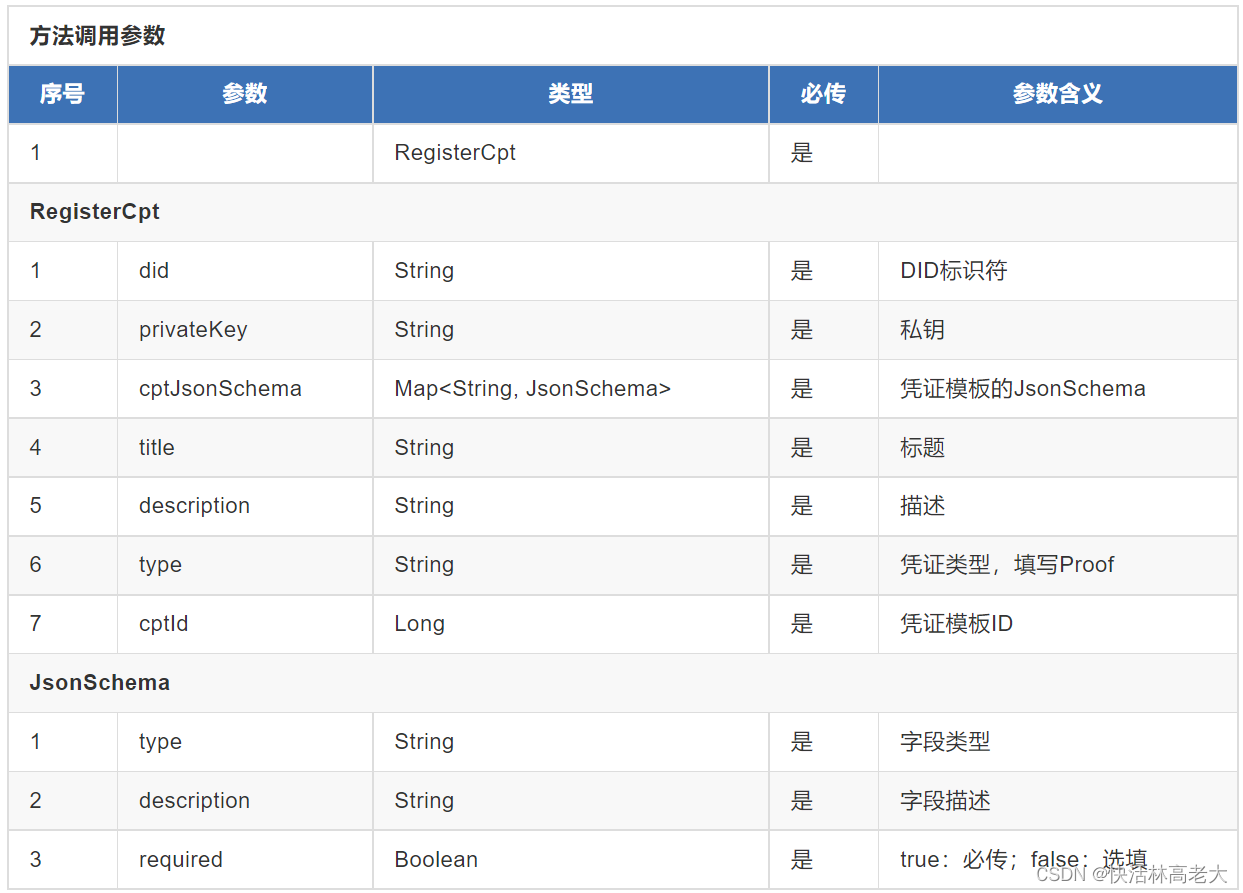

3 注册凭证模板

方法名：     registerCpt(RegisterCpt registerCpt)

方法描述： 发证方自定义凭证模板，可以约定哪些属性值申请人要必须提供的。比如高校毕业证的模板，可以约定“姓名”、“学号”为必须填写的信息。

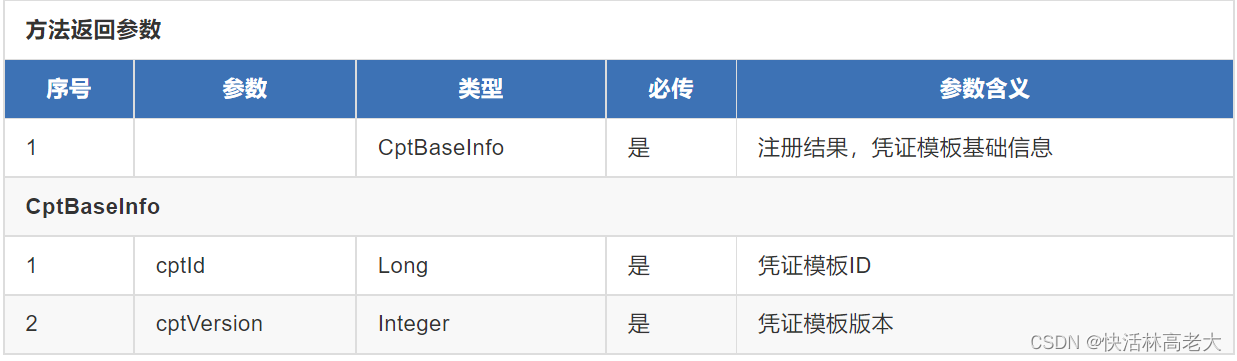

【说明】注册模板时无需指定cptId，等到注册成功返回cptId。

public static void registerCptTest() {

    DidDataWrapper didDataWrapper = didClient.createDid(true);

    RegisterAuthorityIssuer register = new RegisterAuthorityIssuer();

    register.setDid(didDataWrapper.getDid());

    register.setPrivateKey(didDataWrapper.getAuthKeyInfo().getPrivateKey());

    register.setName("xxxx company");

    boolean registerresult = didClient.registerAuthIssuer(register);

    RegisterCpt registerCpt = new RegisterCpt();

    registerCpt.setDid(didDataWrapper.getDid());

    registerCpt.setTitle("test cpt template 01");

    registerCpt.setDescription("test cpt tempalte 01 long descriptuion");

    registerCpt.setType("Proof");

    registerCpt.setPrivateKey(didDataWrapper.getAuthKeyInfo().getPrivateKey());

    Map<String, JsonSchema> cptJsonSchemas = new HashMap<>();

    JsonSchema jsonSchema1 = new JsonSchema();

    jsonSchema1.setDescription("user name");

    jsonSchema1.setRequired(true);

    jsonSchema1.setType("String");

    cptJsonSchemas.put("name", jsonSchema1);

    JsonSchema jsonSchema2 = new JsonSchema();

    jsonSchema2.setDescription("user sex");

    jsonSchema2.setRequired(false);

    jsonSchema2.setType("String");

    cptJsonSchemas.put("sex", jsonSchema2);

    JsonSchema jsonSchema3 = new JsonSchema();

    jsonSchema3.setDescription("user age");

    jsonSchema3.setRequired(true);

    jsonSchema3.setType("Number");

    cptJsonSchemas.put("age", jsonSchema3);

    registerCpt.setCptJsonSchema(cptJsonSchemas);

    System.out.println("registerCptTest()  registerCpt = "+JSONArray.toJSONString(registerCpt));



    CptBaseInfo cptBaseInfo = didClient.registerCpt(registerCpt);

    System.out.println("registerCptTest()  cptBaseInfo = "+JSONArray.toJSONString(cptBaseInfo));

}

运行结果：

registerCptTest()  registerCpt =

{

    "cptJsonSchema":{

        "sex":{

            "description":"user sex",

            "required":false,

            "type":"String"

        },

        "name":{

            "description":"user name",

            "required":true,

            "type":"String"

        },

        "age":{

            "description":"user age",

            "required":true,

            "type":"Number"

        }

    },

    "description":"test cpt tempalte 01 long descriptuion",

    "did":"did:bsn:fEsNK8gjTFCBEgtXfvR2avPgJzr",

    "privateKey":"23084912555970257285541363210643018905213545822808257650593849408195914596083",

    "title":"test cpt template 01",

    "type":"Proof"

}

registerCptTest()  cptBaseInfo = {"cptId":732210021407470105,"cptVersion":1}

4 查询凭证模板列表

方法名：    queryCptListByDid(QueryCpt query)

方法描述： 任何人都可通过DID标识符查询其所有的凭证模板。同一个个人/组织有可能会注册多个凭证模板。比如高校除了毕业证模板外，可能还有学位证模板、肄业证模板等。

public static void queryCptListByDidTest() {

        QueryCpt query = new QueryCpt();

        query.setDid("did:bsn:fEsNK8gjTFCBEgtXfvR2avPgJzr");   //查指定DID的所有证书模板, 必填字段，不能为null

        query.setPage(1);

        query.setSize(10);

        try {

            Pages<CptInfo> pages = didClient.queryCptListByDid(query);

            System.out.println("queryCptListByDidTest() size = "+pages.getResult().size());

            //不能这样写代码，必须用JSONObject

//            for(CptInfo cpt : pages.getResult()){

//                System.out.println(cpt.getCptId() + ",  "+cpt.getTitle());

//            }

            System.out.println("=================="+JSONArray.toJSONString(pages.getResult()));

            String ret = JSONArray.toJSONString(pages.getResult());

            JSONArray jarray = JSONArray.parseArray(ret);

            for(int i=0;i<jarray.size();i++){

                System.out.println(jarray.get(i));

                JSONObject jobj = jarray.getJSONObject(i);

            }

        }catch (Exception e){

            System.out.println("query cptList failed:query cpt list by did failed:server process failed\n "+e.getMessage());

        }

        System.out.println("==================");

    }

运行结果：

queryCptListByDidTest() size = 1

==================

[

    {

        "cptJsonSchema":{

            "sex":{

                "description":"user sex",

                "type":"String",

                "required":false

            },

            "name":{

                "description":"user name",

                "type":"String",

                "required":true

            },

            "age":{

                "description":"user age",

                "type":"Number",

                "required":true

            }

        },

        "cptId":732210021407470105,

        "description":"test cpt tempalte 01 long descriptuion",

        "create":"2022-10-02 14:07:47",

        "update":"2022-10-02 14:07:47",

        "proof":{

            "creator":"did:bsn:fEsNK8gjTFCBEgtXfvR2avPgJzr",

            "type":"Secp256k1",

            "signatureValue":"FQGx87YB9jTW/p8cNXdhGYL3G51ULZ2xJD50hEmq4BEwg3uX+Bw66Y1MOykKNAFnmOnrHkCpxA1PkU3dpBTg/wE="

        },

        "cptVersion":1,

        "title":"test cpt template 01",

        "publisherDid":"did:bsn:fEsNK8gjTFCBEgtXfvR2avPgJzr"

    }

]

{"cptJsonSchema":{"sex":{"description":"user sex","type":"String","required":false},"name":{"description":"user name","type":"String","required":true},"age":{"description":"user age","type":"Number","required":true}},"cptId":732210021407470105,"description":"test cpt tempalte 01 long descriptuion","create":"2022-10-02 14:07:47","update":"2022-10-02 14:07:47","proof":{"creator":"did:bsn:fEsNK8gjTFCBEgtXfvR2avPgJzr","type":"Secp256k1","signatureValue":"FQGx87YB9jTW/p8cNXdhGYL3G51ULZ2xJD50hEmq4BEwg3uX+Bw66Y1MOykKNAFnmOnrHkCpxA1PkU3dpBTg/wE="},"cptVersion":1,"title":"test cpt template 01","publisherDid":"did:bsn:fEsNK8gjTFCBEgtXfvR2avPgJzr"}

==================

5 查询凭证模板

方法名：    queryCptById(Long cptId)

方法描述： 通过某个具体的凭证模板ID查询其内容。

【说明】cptId是个Long类型数字

public static void queryCptByIdTest() {

    CptInfo cptInfo = didClient.queryCptById(732210021407470105L);

    System.out.println(JSONArray.toJSONString(cptInfo));

}

运行结果：

{

    "cptId":732210021407470105,

    "cptJsonSchema":{

        "sex":{

            "description":"user sex",

            "required":false,

            "type":"String"

        },

        "name":{

            "description":"user name",

            "required":true,

            "type":"String"

        },

        "age":{

            "description":"user age",

            "required":true,

            "type":"Number"

        }

    },

    "cptVersion":1,

    "create":"2022-10-02 14:07:47",

    "description":"test cpt tempalte 01 long descriptuion",

    "proof":{

        "creator":"did:bsn:fEsNK8gjTFCBEgtXfvR2avPgJzr",

        "signatureValue":"FQGx87YB9jTW/p8cNXdhGYL3G51ULZ2xJD50hEmq4BEwg3uX+Bw66Y1MOykKNAFnmOnrHkCpxA1PkU3dpBTg/wE=",

        "type":"Secp256k1"

    },

    "publisherDid":"did:bsn:fEsNK8gjTFCBEgtXfvR2avPgJzr",

    "title":"test cpt template 01",

    "update":"2022-10-02 14:07:47"

}

6  更新凭证模板

方法名：    updateCpt(RegisterCpt registerCpt)

方法描述： 发证方对自己已注册过的凭证模板内容进行更新。凭证模板更新不影响已签发的凭证。

【说明】 第一次注册凭证模板时， 模板的版本号为1。 以后每次更新模板，版本号+1。

               更新模板不会改变模板编号cptId。

public static void updateCptTest(){

    //这是原来模板内容

    RegisterCpt registerCpt = new RegisterCpt();

    registerCpt.setDid("did:bsn:fEsNK8gjTFCBEgtXfvR2avPgJzr");

    registerCpt.setTitle("test cpt template 01");

    registerCpt.setDescription("test cpt tempalte 01 long descriptuion");

    registerCpt.setType("Proof");

    registerCpt.setPrivateKey("23084912555970257285541363210643018905213545822808257650593849408195914596083");

    Map<String, JsonSchema> cptJsonSchemas = new HashMap<>();

    JsonSchema jsonSchema1 = new JsonSchema();

    jsonSchema1.setDescription("user name");

    jsonSchema1.setRequired(true);

    jsonSchema1.setType("String");

    cptJsonSchemas.put("name", jsonSchema1);

    JsonSchema jsonSchema2 = new JsonSchema();

    jsonSchema2.setDescription("user sex");

    jsonSchema2.setRequired(false);

    jsonSchema2.setType("String");

    cptJsonSchemas.put("sex", jsonSchema2);

    JsonSchema jsonSchema3 = new JsonSchema();

    jsonSchema3.setDescription("user age");

    jsonSchema3.setRequired(true);

    jsonSchema3.setType("Number");

    cptJsonSchemas.put("age", jsonSchema3);

    registerCpt.setCptJsonSchema(cptJsonSchemas);

    //新增地址字段

    JsonSchema jsonSchema4 = new JsonSchema();

    jsonSchema4.setDescription("user address");

    jsonSchema4.setRequired(true);

    jsonSchema4.setType("String");

    cptJsonSchemas.put("address", jsonSchema4);

    registerCpt.setCptId(732210021407470105L);

    CptBaseInfo cptBaseInfo2 = didClient.updateCpt(registerCpt);

    System.out.println(JSONArray.toJSONString(cptBaseInfo2));

    CptInfo cptInfo  = didClient.queryCptById(cptBaseInfo2.getCptId());

    System.out.println(JSONArray.toJSONString(cptInfo));

}

运行结果：

{"cptId":732210021407470105,"cptVersion":2}

{"cptId":732210021407470105,"cptJsonSchema":{"address":{"description":"user address","required":true,"type":"String"},"sex":{"description":"user sex","required":false,"type":"String"},"name":{"description":"user name","required":true,"type":"String"},"age":{"description":"user age","required":true,"type":"Number"}},"cptVersion":2,"create":"2022-10-02 14:07:47","description":"test cpt tempalte 01 long descriptuion","proof":{"creator":"did:bsn:fEsNK8gjTFCBEgtXfvR2avPgJzr","signatureValue":"zMbSjUkua3qdO7DeIETpKQEXNDHs+zmHv7c8+7RMVkoB2LRjwpcqVvQDFJ03W824pDXchfXcE/u9g11EB1LHyQE=","type":"Secp256k1"},"publisherDid":"did:bsn:fEsNK8gjTFCBEgtXfvR2avPgJzr","title":"test cpt template 01","update":"2022-10-02 14:38:25"}
