Postgresql 表、索引膨胀监控

背景

PG数据库表空间膨胀会带来空间资源浪费，所以需要
监控数据库表膨胀浪费空间前10的表，及时清理。

查询表膨胀情况

select datname from pg_database where datname not in ($$template0$$, $$template1$$)'`
do
psql -d $db --pset=pager=off -q -x -c 'SELECT
  current_database() AS db, schemaname, tablename, reltuples::bigint AS tups, relpages::bigint AS pages, otta,
  ROUND(CASE WHEN otta=0 OR sml.relpages=0 OR sml.relpages=otta THEN 0.0 ELSE sml.relpages/otta::numeric END,1) AS tbloat,
  CASE WHEN relpages < otta THEN 0 ELSE relpages::bigint - otta END AS wastedpages,
  CASE WHEN relpages < otta THEN 0 ELSE bs*(sml.relpages-otta)::bigint END AS wastedbytes,
  CASE WHEN relpages < otta THEN $$0 bytes$$::text ELSE (bs*(relpages-otta))::bigint || $$ bytes$$ END AS wastedsize,
  iname, ituples::bigint AS itups, ipages::bigint AS ipages, iotta,
  ROUND(CASE WHEN iotta=0 OR ipages=0 OR ipages=iotta THEN 0.0 ELSE ipages/iotta::numeric END,1) AS ibloat,
  CASE WHEN ipages < iotta THEN 0 ELSE ipages::bigint - iotta END AS wastedipages,
  CASE WHEN ipages < iotta THEN 0 ELSE bs*(ipages-iotta) END AS wastedibytes,
  CASE WHEN ipages < iotta THEN $$0 bytes$$ ELSE (bs*(ipages-iotta))::bigint || $$ bytes$$ END AS wastedisize,
  CASE WHEN relpages < otta THEN
    CASE WHEN ipages < iotta THEN 0 ELSE bs*(ipages-iotta::bigint) END
    ELSE CASE WHEN ipages < iotta THEN bs*(relpages-otta::bigint)
      ELSE bs*(relpages-otta::bigint + ipages-iotta::bigint) END
  END AS totalwastedbytes
FROM (
  SELECT
    nn.nspname AS schemaname,
    cc.relname AS tablename,
    COALESCE(cc.reltuples,0) AS reltuples,
    COALESCE(cc.relpages,0) AS relpages,
    COALESCE(bs,0) AS bs,
    COALESCE(CEIL((cc.reltuples*((datahdr+ma-
      (CASE WHEN datahdr%ma=0 THEN ma ELSE datahdr%ma END))+nullhdr2+4))/(bs-20::float)),0) AS otta,
    COALESCE(c2.relname,$$?$$) AS iname, COALESCE(c2.reltuples,0) AS ituples, COALESCE(c2.relpages,0) AS ipages,
    COALESCE(CEIL((c2.reltuples*(datahdr-12))/(bs-20::float)),0) AS iotta -- very rough approximation, assumes all cols
  FROM
     pg_class cc
  JOIN pg_namespace nn ON cc.relnamespace = nn.oid AND nn.nspname <> $$information_schema$$
  LEFT JOIN
  (
    SELECT
      ma,bs,foo.nspname,foo.relname,
      (datawidth+(hdr+ma-(case when hdr%ma=0 THEN ma ELSE hdr%ma END)))::numeric AS datahdr,
      (maxfracsum*(nullhdr+ma-(case when nullhdr%ma=0 THEN ma ELSE nullhdr%ma END))) AS nullhdr2
    FROM (
      SELECT
        ns.nspname, tbl.relname, hdr, ma, bs,
        SUM((1-coalesce(null_frac,0))*coalesce(avg_width, 2048)) AS datawidth,
        MAX(coalesce(null_frac,0)) AS maxfracsum,
        hdr+(
          SELECT 1+count(*)/8
          FROM pg_stats s2
          WHERE null_frac<>0 AND s2.schemaname = ns.nspname AND s2.tablename = tbl.relname
        ) AS nullhdr
      FROM pg_attribute att
      JOIN pg_class tbl ON att.attrelid = tbl.oid
      JOIN pg_namespace ns ON ns.oid = tbl.relnamespace
      LEFT JOIN pg_stats s ON s.schemaname=ns.nspname
      AND s.tablename = tbl.relname
      AND s.inherited=false
      AND s.attname=att.attname,
      (
        SELECT
          (SELECT current_setting($$block_size$$)::numeric) AS bs,
            CASE WHEN SUBSTRING(SPLIT_PART(v, $$ $$, 2) FROM $$#"[0-9]+.[0-9]+#"%$$ for $$#$$)
              IN ($$8.0$$,$$8.1$$,$$8.2$$) THEN 27 ELSE 23 END AS hdr,
          CASE WHEN v ~ $$mingw32$$ OR v ~ $$64-bit$$ THEN 8 ELSE 4 END AS ma
        FROM (SELECT version() AS v) AS foo
      ) AS constants
      WHERE att.attnum > 0 AND tbl.relkind=$$r$$
      GROUP BY 1,2,3,4,5
    ) AS foo
  ) AS rs
  ON cc.relname = rs.relname AND nn.nspname = rs.nspname
  LEFT JOIN pg_index i ON indrelid = cc.oid
  LEFT JOIN pg_class c2 ON c2.oid = i.indexrelid
) AS sml order by wastedbytes desc limit 5

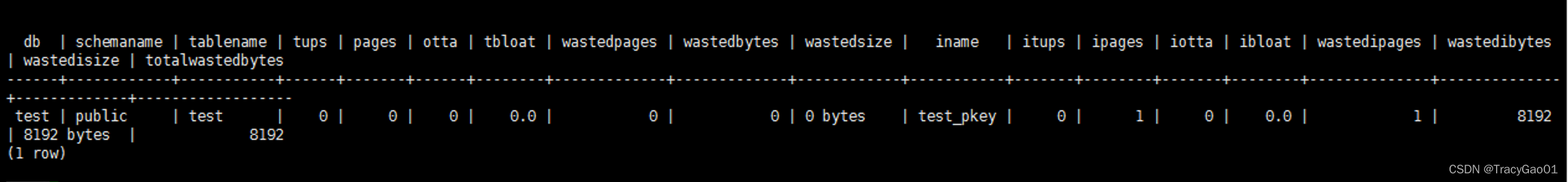

查询结果说明

otta评估出的表实际需要页数, iotta评估出的索引实际需要页数;
tbloat表膨胀倍数, ibloat索引膨胀倍数, wastedpages表浪费了多少个数据块, wastedipages索引浪费了多少个数据块;
wastedbytes表浪费了多少字节, wastedibytes索引浪费了多少字节;

回收膨胀空间

1、 vacuum full
2、 pg_squeeze
3、 设置合适的autovacuum_vacuum_scale_factor的，自动触发autovacuum，根据服务器的内存大小, CPU核数, 设置足够大的autovacuum_work_mem 或 autovacuum_max_workers 或 maintenance_work_mem, 以及足够小的 autovacuum_naptime
