Apache Atlas 1.2.0 安装部署

组件版本：
Hive 1.1.0
CDH 5.15.0
Atlas 1.2.0
Centos 8
Maven 3.6.3

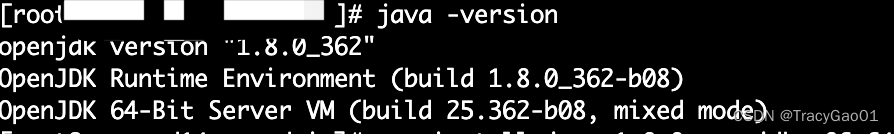

Java 环境安装

yum install java-1.8.0-openjdk.x86_64

Tips: Migrate from CentOS 8 to CentOS Stream 8
dnf --disablerepo ‘*’ --enablerepo=extras swap centos-linux-repos centos-stream-repos
dnf distro-sync

Atlas编译安装

下载源码包

wget https://archive.apache.org/dist/atlas/1.2.0/apache-atlas-1.2.0-sources.tar.gz

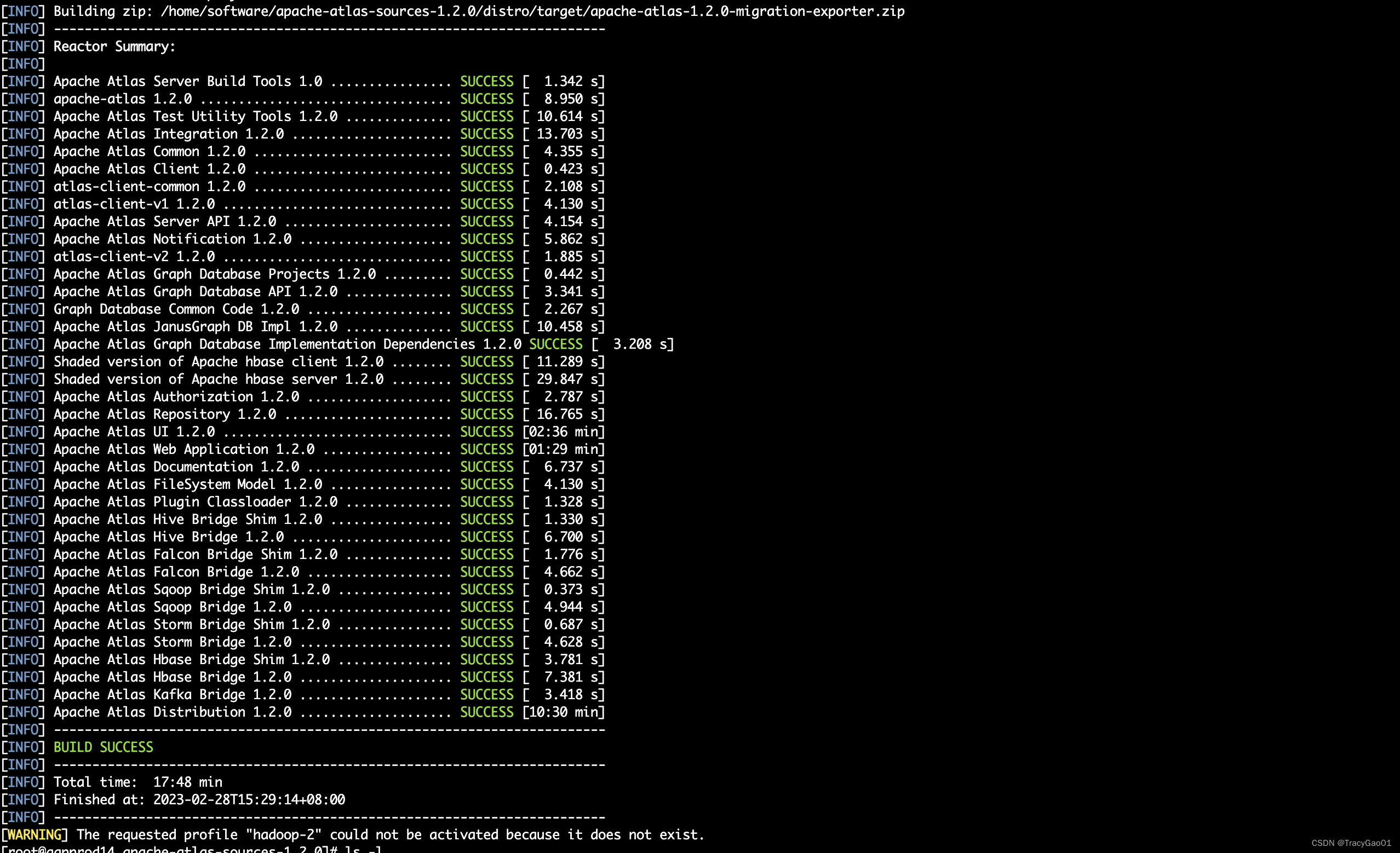

解压编译

sudo mvn -Phadoop-2 -Pdist,embedded-hbase-solr  -DskipTests -Dmaven.javadoc.skip=true clean package

Atlas安装包路径

/apache-atlas-sources-1.2.0/distro/target/apache-atlas-1.2.0-server/apache-atlas-1.2.0

修改包路径：

mv apache-atlas-1.2.0 /home/software/apache-atlas-1.2.0-server

Solr配置

修改Solr配置文件

vi /home/software/apache-atlas-1.2.0-server/solr/bin/solr.in.sh

修改Zookeeper Host：
ZK_HOST=“xxxx:2181/solr”
修改时区：
SOLR_TIMEZONE=“Asia/Shanghai”

Zookeeper添加Solr节点

在zookeeper添加solr节点：

create /solr "solr"

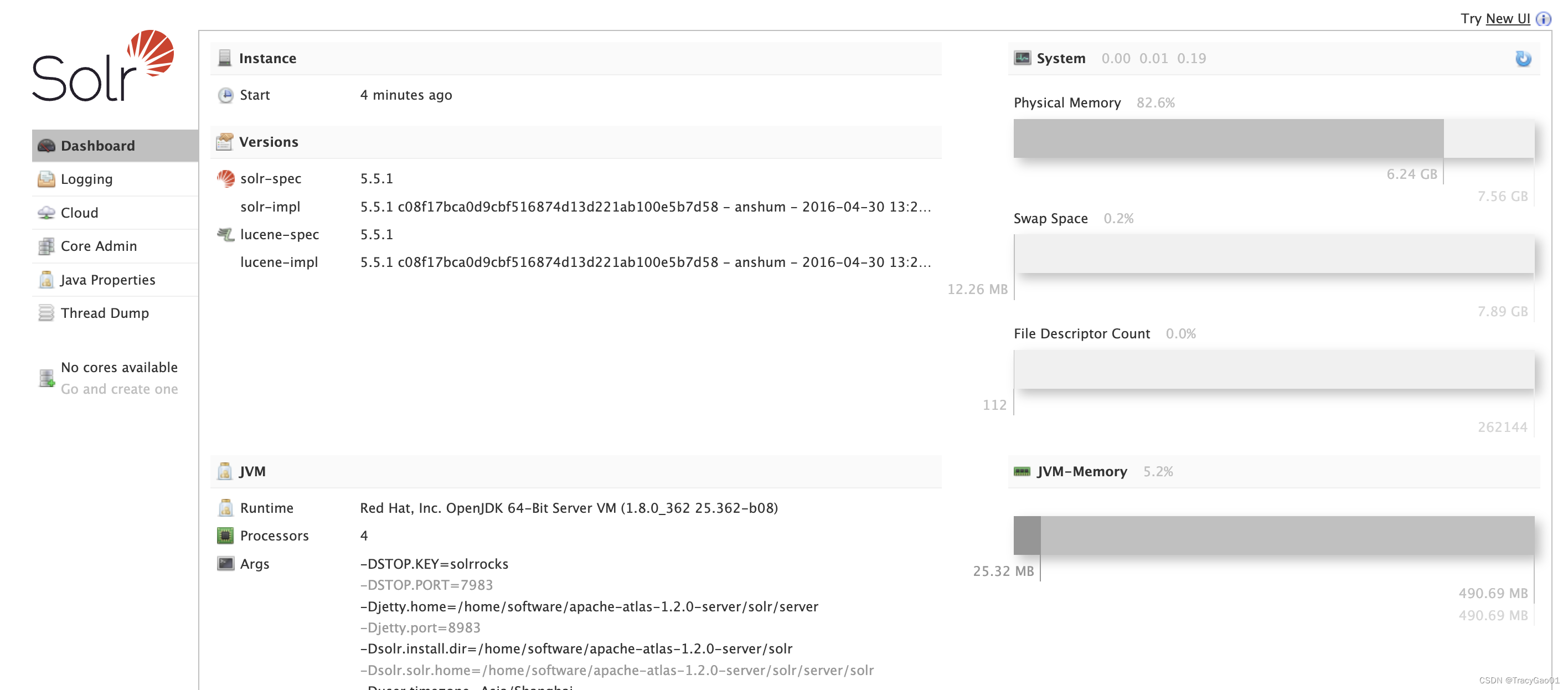

启动Solr

bin/solr start

Atlas与Solr集成

修改atlas的配置文件

vi atlas-application.properties

atlas.graph.index.search.solr.mode=cloud
atlas.graph.index.search.solr.zookeeper-url=xxxxxx:2181/solr
atlas.graph.index.search.solr.zookeeper-connect-timeout=60000
atlas.graph.index.search.solr.zookeeper-session-timeout=60000
atlas.graph.index.search.solr.wait-searcher=true

Copy Atlas Conf目录下的solr目录到solr安装目录：

cp -r /home/software/apache-atlas-1.2.0-server/conf/solr ./solr_conf

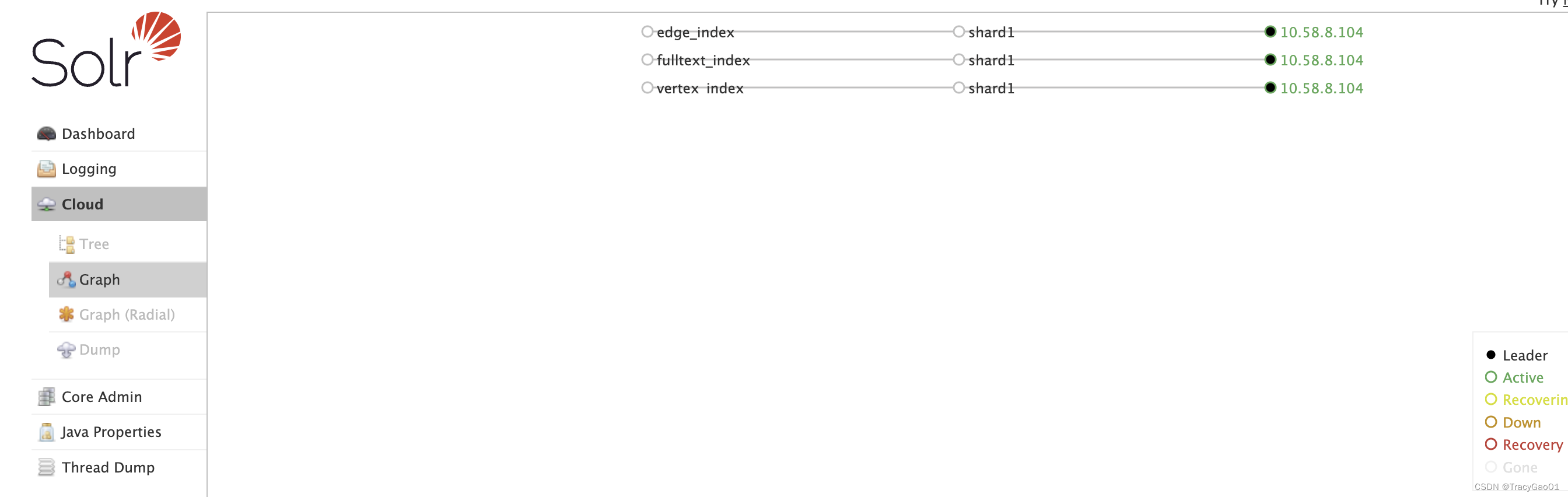

SOLR_HOME下执行：

bin/solr create -c vertex_index -d solr_conf -shards 1 -replicationFactor 1
bin/solr create -c edge_index -d solr_conf -shards 1 -replicationFactor 1
bin/solr create -c fulltext_index -d solr_conf -shards 1 -replicationFactor 1

Atlas与Kafka集成

修改atlas的配置文件

vi atlas-application.properties

atlas.notification.embedded=false
atlas.kafka.data=${sys:atlas.home}/data/kafka
atlas.kafka.zookeeper.connect=xxxxxxx:2181 #ZK地址
atlas.kafka.bootstrap.servers=xxxxxxx:9092 #kafka地址
atlas.kafka.zookeeper.session.timeout.ms=400
atlas.kafka.zookeeper.connection.timeout.ms=200
atlas.kafka.zookeeper.sync.time.ms=20
atlas.kafka.auto.commit.interval.ms=1000
atlas.kafka.hook.group.id=atlas

atlas.kafka.enable.auto.commit=true
atlas.kafka.auto.offset.reset=earliest
atlas.kafka.session.timeout.ms=30000
atlas.kafka.offsets.topic.replication.factor=1
atlas.kafka.poll.timeout.ms=1000

atlas.notification.create.topics=true
atlas.notification.replicas=1
atlas.notification.topics=ATLAS_HOOK,ATLAS_ENTITIES
atlas.notification.log.failed.messages=true
atlas.notification.consumer.retry.interval=500
atlas.notification.hook.retry.interval=1000
# Enable for Kerberized Kafka clusters
#atlas.notification.kafka.service.principal=kafka/_HOST@EXAMPLE.COM
#atlas.notification.kafka.keytab.location=/etc/security/keytabs/kafka.service.keytab

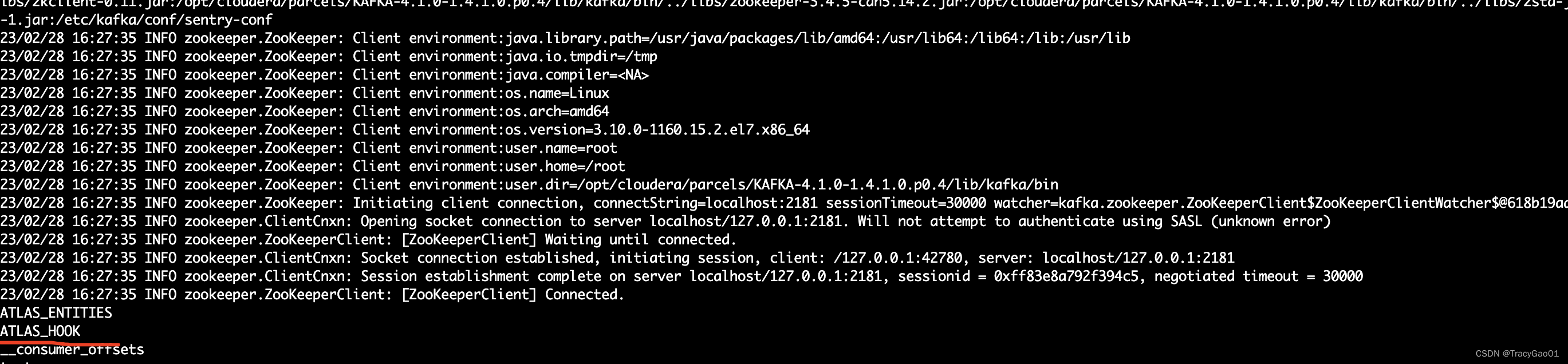

创建Topic

bin/atlas_kafka_setup.py

Atlas与HBase集成

修改atlas的配置文件

vi atlas-application.properties

atlas.audit.hbase.zookeeper.quorum=xxxxxx:2181 #HBase ZK地址
atlas.graph.storage.hostname=xxxxxxx:2181 #HBase ZK地址

Atlas与Hive集成

备注

由于当前环境Hive为1.1.0版本，所以默认无法展示字段血缘，Hive需要打两个Patch:
14706
13112
重新编译，用编译后的hive-exec-1.1.0-cdh5.15.0-core.jar，hive-exec-1.1.0-cdh5.15.0.jar替换原jar包
高版本Hive可以忽略此步骤

修改atlas的配置文件

vi atlas-application.properties

atlas.hook.hive.synchronous=false
atlas.hook.hive.numRetries=3
atlas.hook.hive.queueSize=10000
atlas.cluster.name=primary

将atlas的hive-hook依赖包放在hive的auxlib下

hive-hook Jar包路径：

distro/target/apache-atlas-1.2.0-hive-hook/apache-atlas-hive-hook-1.2.0/hook/hive

备注：将 atlas-application.properties 压缩到 atlas-plugin-classloader-0.4.8.jar 内：
zip -u atlas-plugin-classloader-1.2.0.jar atlas-application.properties

此外，需要集成额外的依赖：

<dependency>
     <groupId>com.fasterxml.jackson.jaxrs</groupId>
     <artifactId>jackson-jaxrs-json-provider</artifactId>
     <version>${jackson.version}</version>
 </dependency>
 <dependency>
     <groupId>com.fasterxml.jackson.module</groupId>
     <artifactId>jackson-module-jaxb-annotations</artifactId>
     <version>${jackson.version}</version>
 </dependency>
 <dependency>
     <groupId>com.fasterxml.jackson.jaxrs</groupId>
     <artifactId>jackson-jaxrs-base</artifactId>
     <version>${jackson.version}</version>
 </dependency>

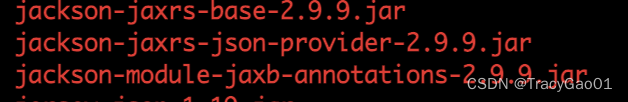

下载如下依赖jar包放到auxlib下：

配置hive-site.xml

<property>
    <name>hive.exec.post.hooks</name>
    <value>org.apache.atlas.hive.hook.HiveHook</value>
</property>

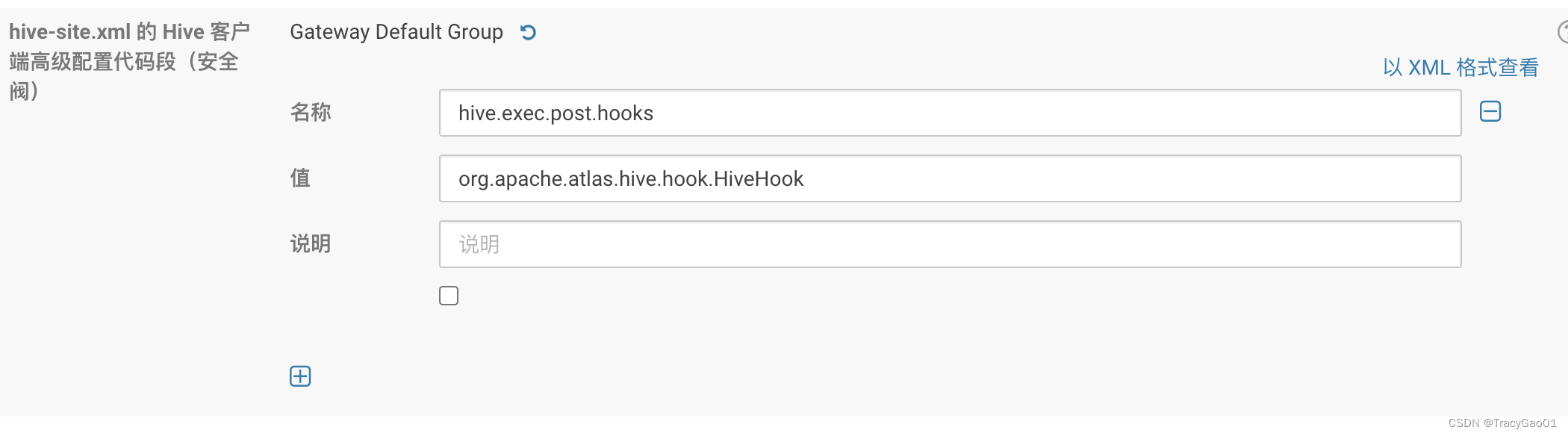

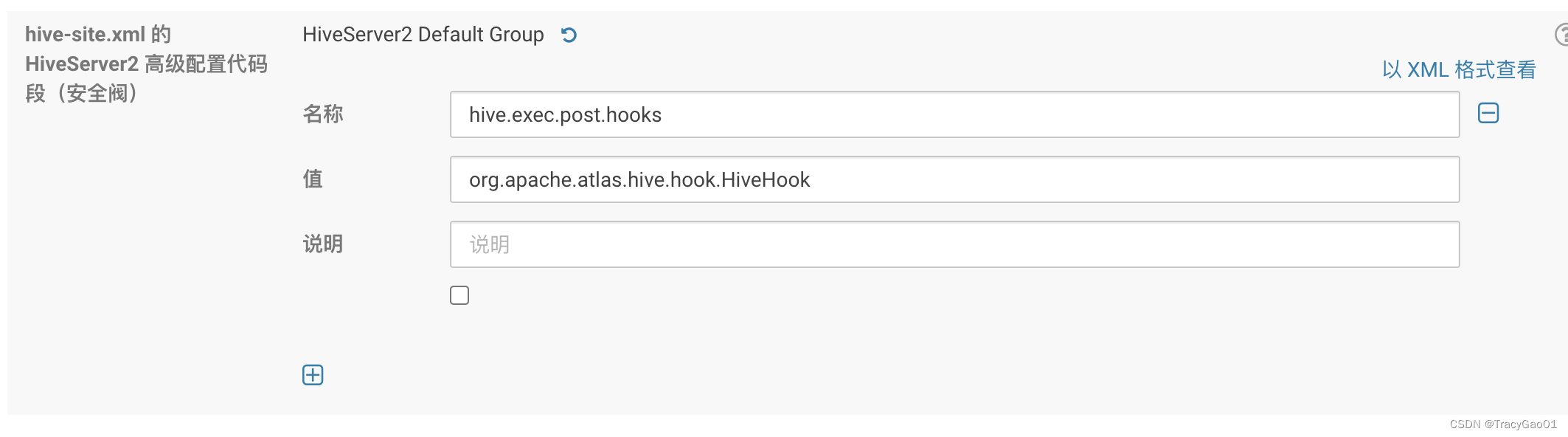

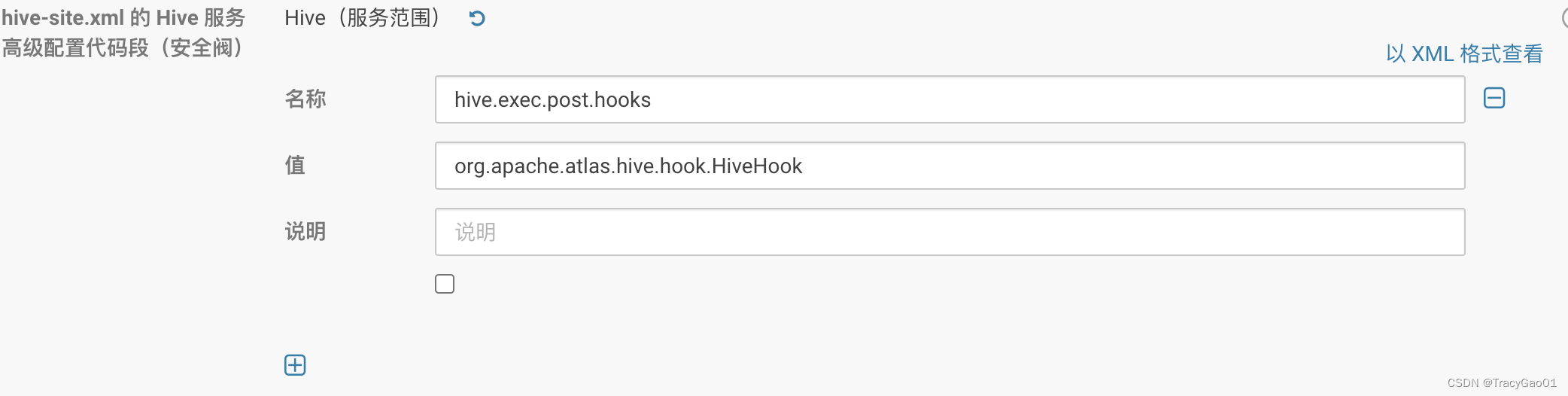

修改CDH配置：

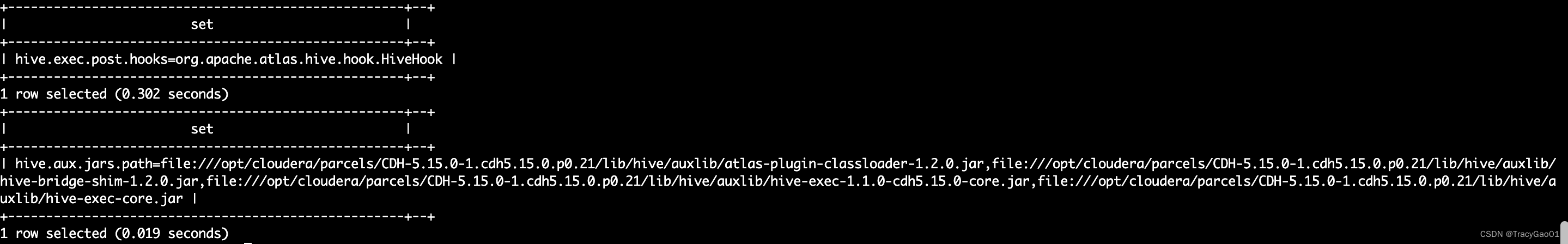

重启Hive生效配置

set hive.exec.post.hooks;
set hive.aux.jars.path;

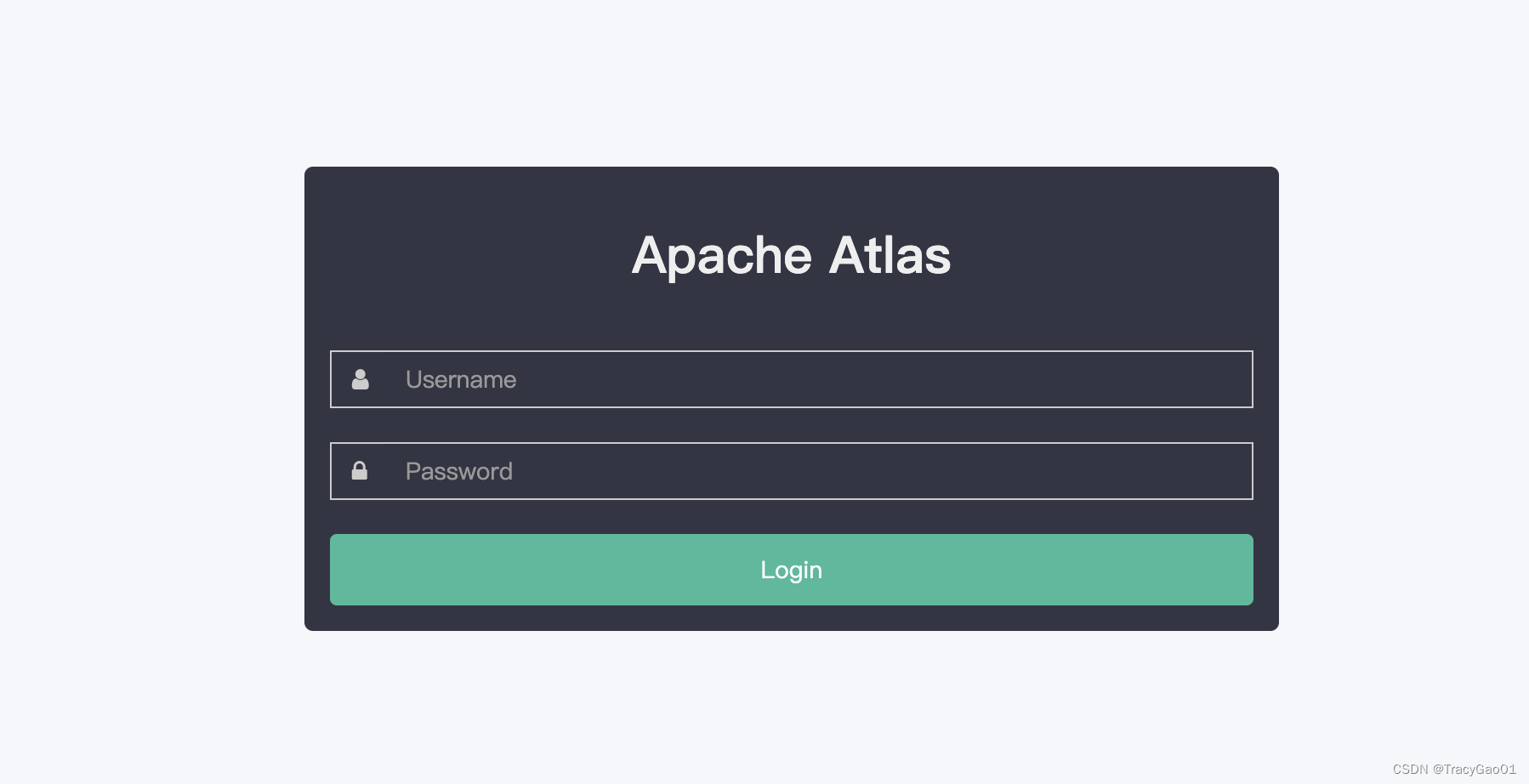

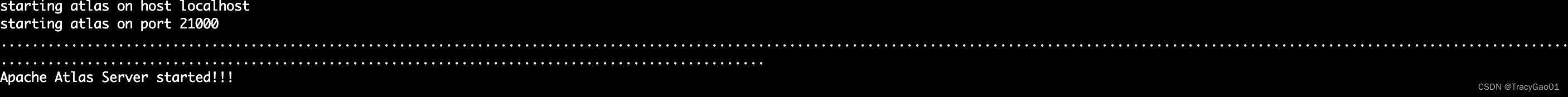

启动Atlas

bin/atlas_start.py

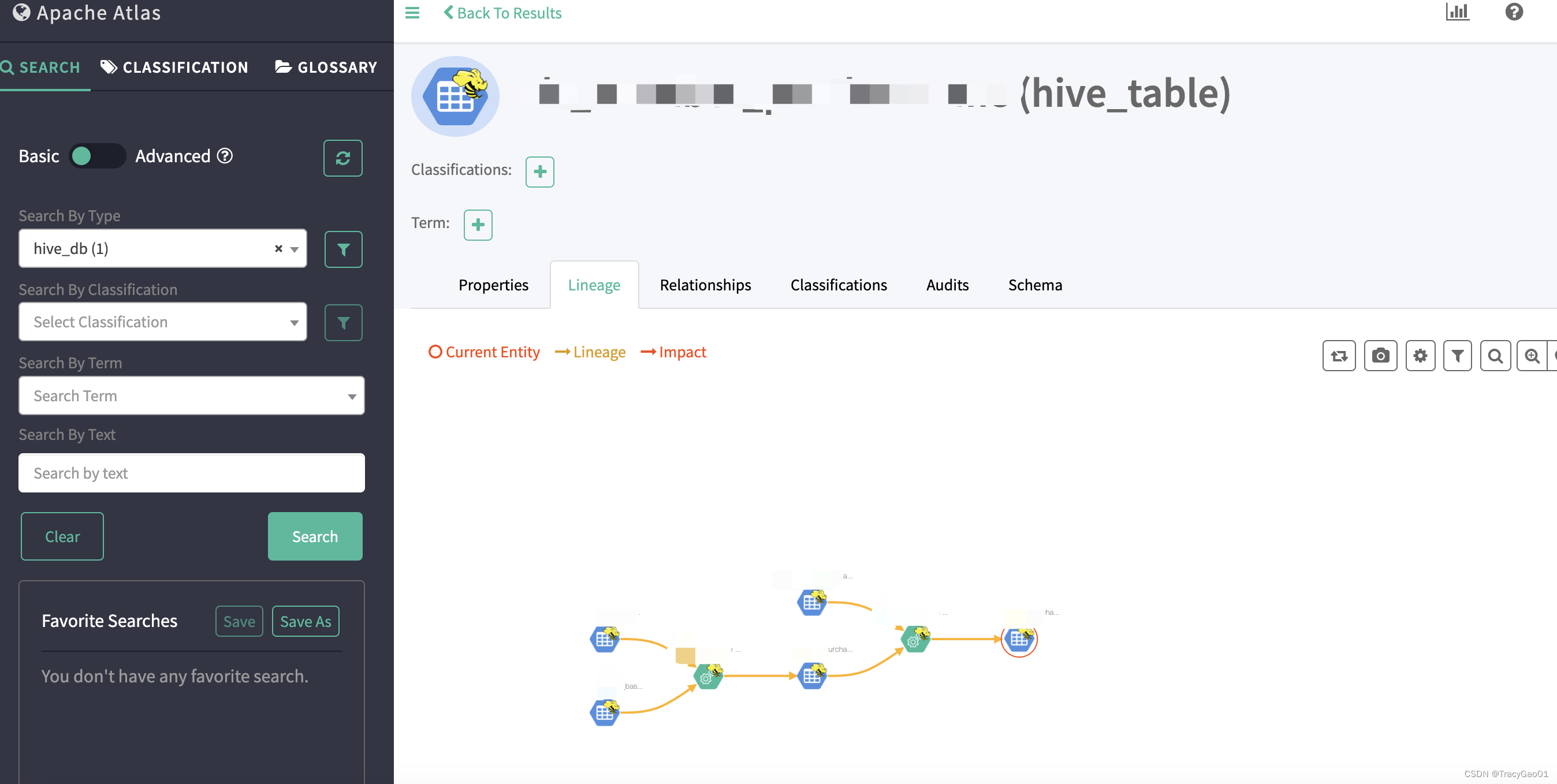

表血缘

字段血缘
