#include<iostream>
#include<cv.h>
#include<highgui.h>
#include<cxcore.h>
const int MAX_CORNERS=500;
int main(int argc,char** argv)
{
 IplImage* imgA=cvLoadImage("F:\\img1.jpg",CV_LOAD_IMAGE_GRAYSCALE);
 IplImage* imgB=cvLoadImage("F:\\img2.jpg",CV_LOAD_IMAGE_GRAYSCALE);
 CvSize img_sz=cvGetSize(imgA);
 int win_size=10;

 IplImage* imgC=cvLoadImage("F:\\img3.jpg",CV_LOAD_IMAGE_UNCHANGED);//img3 and img2 is two same image

 IplImage* eig_image=cvCreateImage(img_sz,IPL_DEPTH_32F,1);
 IplImage* tmp_image=cvCreateImage(img_sz,IPL_DEPTH_32F,1);

 int corner_count=MAX_CORNERS;
 CvPoint2D32f* cornersA=new CvPoint2D32f[MAX_CORNERS];
 cvGoodFeaturesToTrack(//检测角点
  imgA,
  eig_image,//两个临时图像
  tmp_image,
  cornersA,//函数的输出，即检测到的角点数组
  &corner_count,//最大角点数，调用函数后返回的角点的数目
  0.01,
  5.0,//返回角点之间的最短距离不应小于min_distance
  0,
  3,
  0,
  0.04
  );
 cvFindCornerSubPix(//根据上一步精确角点位置，确定亚像素角点
  imgA,
  cornersA,//整数值的像素位置
  corner_count,//角点数目
  cvSize(win_size,win_size),//等式产生窗口的尺寸
  cvSize(-1,-1),//禁区，不需要时设置cvSize（-1,-1）
  cvTermCriteria(CV_TERMCRIT_ITER|CV_TERMCRIT_EPS,20,0.03)
  );

 char features_found[MAX_CORNERS];
 float feature_errors[MAX_CORNERS];
 CvSize pyr_sz=cvSize(imgA->width+8,imgB->height/3);
 IplImage* pyrA=cvCreateImage(pyr_sz,IPL_DEPTH_32F,1);
 IplImage* pyrB=cvCreateImage(pyr_sz,IPL_DEPTH_32F,1);
 CvPoint2D32f* cornersB=new CvPoint2D32f[MAX_CORNERS];
 cvCalcOpticalFlowPyrLK(
  imgA,//初始图像
  imgB,//最终图像
  pyrA,//申请存放两幅输入图像金字塔的缓存，大小至少为(img.width-8)*img.height/3字节
  pyrB,
  cornersA,//用于寻找运动的点
  cornersB,//存放featureA中点的新的位置
  corner_count,//featureA中点的数目
  cvSize(win_size,win_size),
  5,//金字塔层数
  features_found,//对应点是否在第二副图像中发现
  feature_errors,
  cvTermCriteria(CV_TERMCRIT_ITER|CV_TERMCRIT_EPS,20,0.3),
  0
  );

 for(int i=0;i<corner_count;i++)
 {
  if(features_found[i]==0||feature_errors[i]<550)
  {
   printf("error is %f/n",feature_errors[i]);
   continue;
  }
  printf("got it/n");
  CvPoint p0=cvPoint(cvRound(cornersA[i].x),cvRound(cornersA[i].y));
  CvPoint p1=cvPoint(cvRound(cornersB[i].x),cvRound(cornersB[i].y));
  cvLine(imgC,p0,p1,CV_RGB(255,0,0),2);
 }

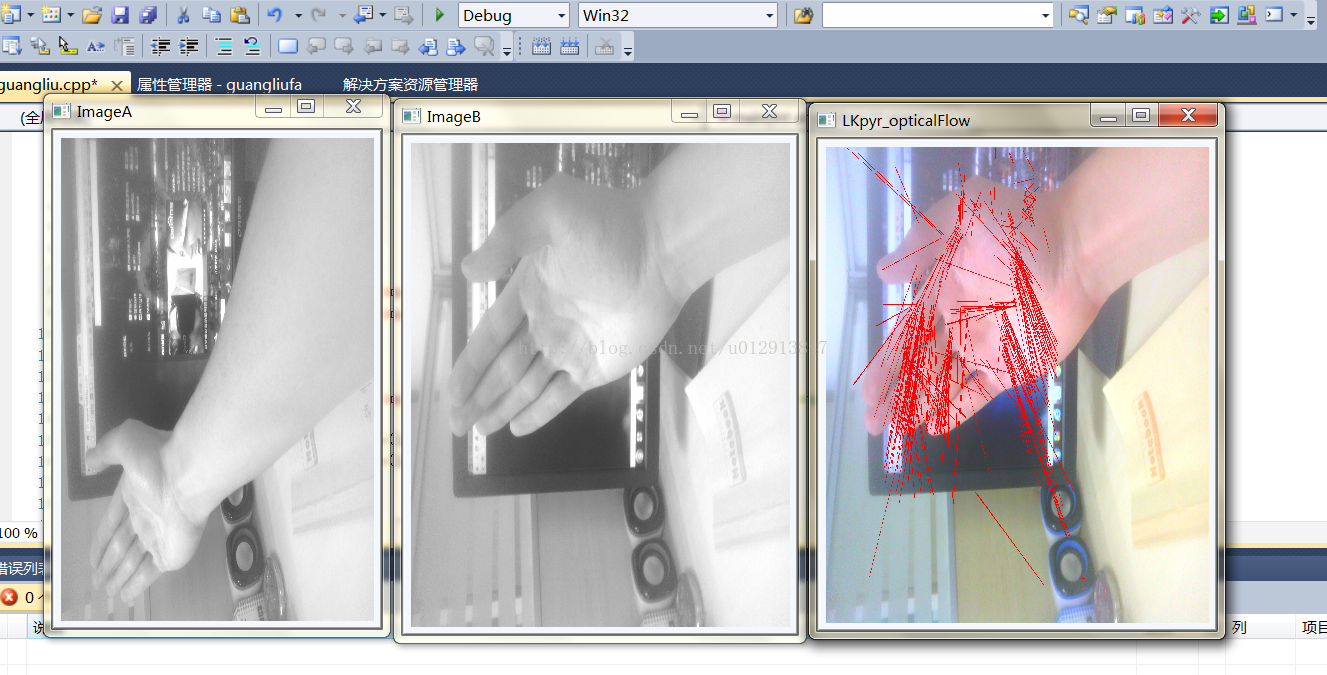

 cvNamedWindow("ImageA",0);
 cvNamedWindow("ImageB",0);
 cvNamedWindow("LKpyr_opticalFlow",0);
 cvShowImage("ImageA",imgA);
 cvShowImage("ImageB",imgB);
 cvShowImage("LKpyr_opticalFlow",imgC);

 cvWaitKey(0);
 return 0;

}
