关于使用两个GTP/GTX出现[DRC RTSTAT-1]error([route 35-54] critical warning)的问题详解

1 概述

本文用于记录在用xilinx的FPGA时,使用VIVADO编译两个GTP/GTX IP时出现的[DRC RTSTAT-1]错误的问题,并说明问题原因与解决思路。

使用的编译软件:vivado 2017.4

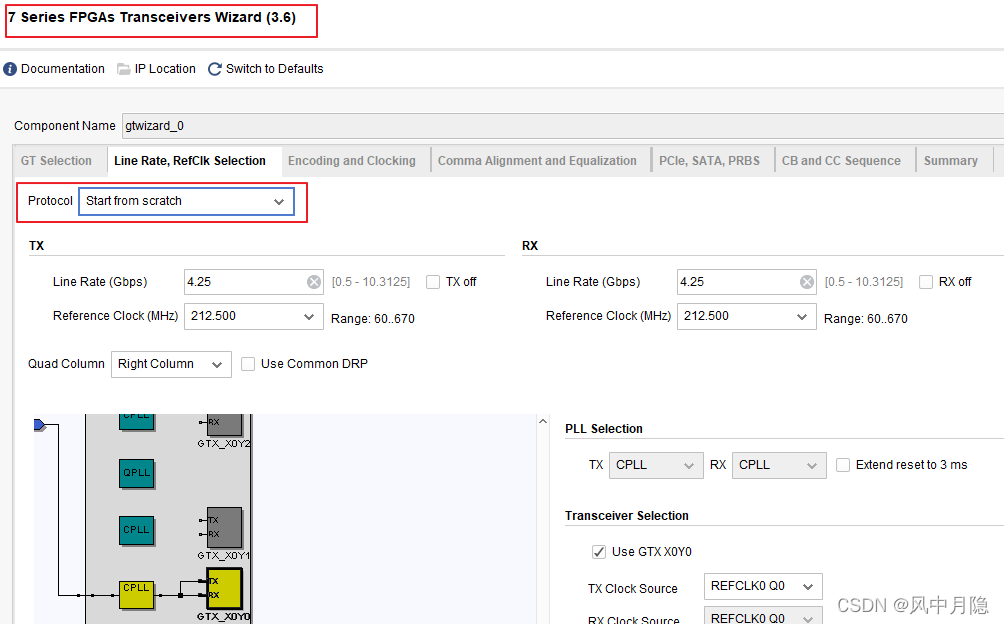

使用的GTP IP:

在这里插入图片描述

2 错误具体描述

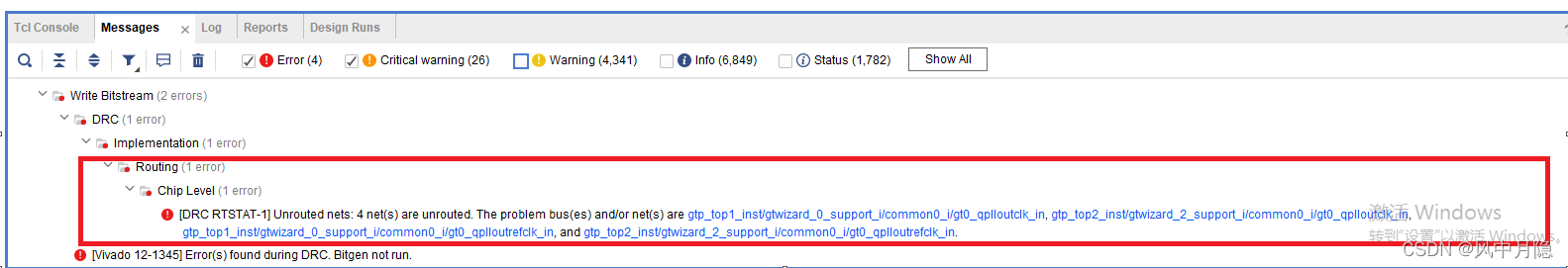

看error时:

在这里插入图片描述


> [DRC RTSTAT-1] Unrouted nets: 4 net(s) are unrouted. The problem
> bus(es) and/or net(s) are
> gtp_top1_inst/gtwizard_0_support_i/common0_i/gt0_qplloutclk_in,
> gtp_top2_inst/gtwizard_2_support_i/common0_i/gt0_qplloutclk_in,
> gtp_top1_inst/gtwizard_0_support_i/common0_i/gt0_qplloutrefclk_in, and
> gtp_top2_inst/gtwizard_2_support_i/common0_i/gt0_qplloutrefclk_in.

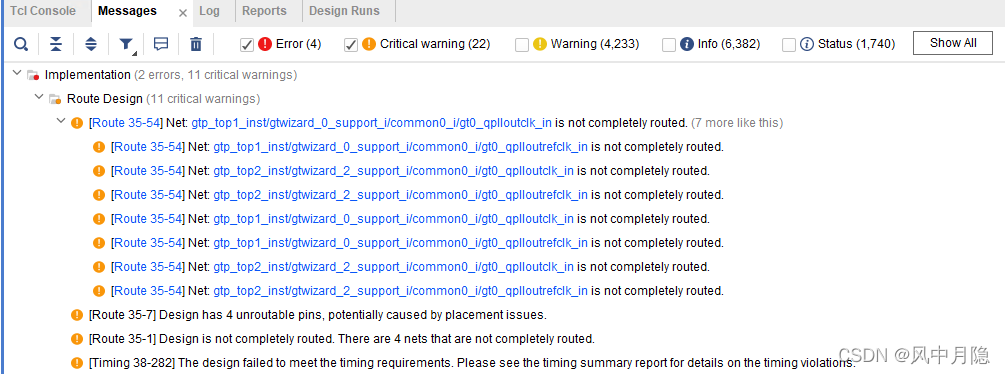

看critical warning:

在这里插入图片描述


> [Route 35-54] Net:
> gtp_top1_inst/gtwizard_0_support_i/common0_i/gt0_qplloutclk_in is not
> completely routed.

3 错误分析

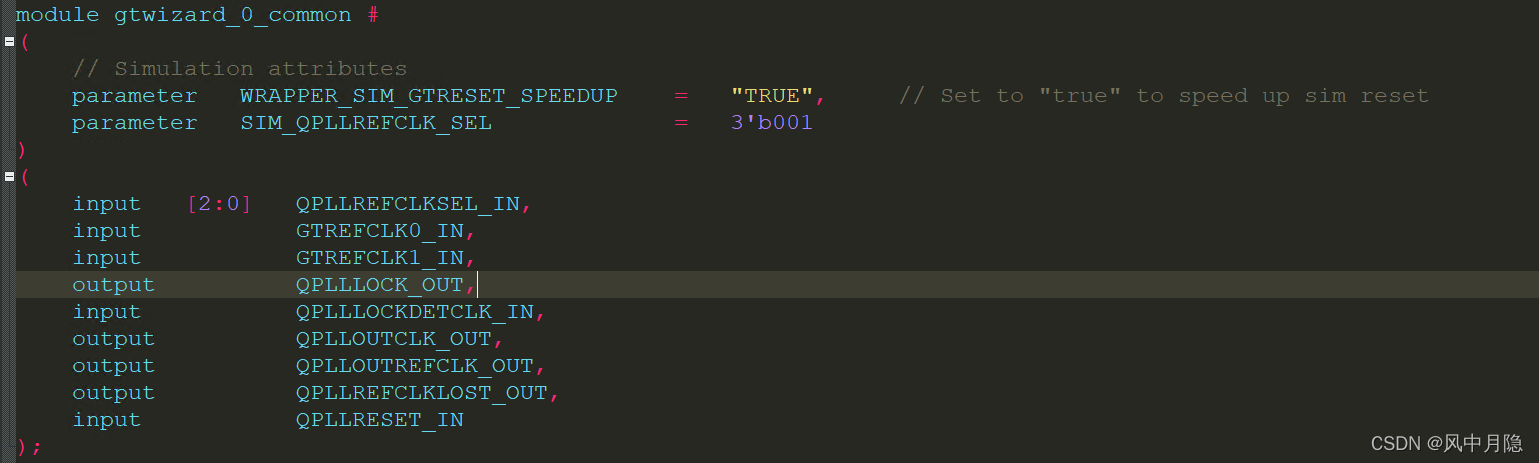

根据出现的错误,我们看到是GTP中的common*i/gt**clk_in冲突,然而我们找到对应的模块gtwizard_0_common中并没有错误对应的一模一样的信号,如下所示:

在这里插入图片描述

`default_nettype wire

timescale 1ns / 1psdefine DLY #1 //*****************************
Entity Declaration **************************** module
gtwizard_0_common # (
// Simulation attributes
parameter WRAPPER_SIM_GTRESET_SPEEDUP = “TRUE”, // Set to “true” to speed up sim reset
parameter SIM_QPLLREFCLK_SEL = 3’b001 ) (
input [2:0] QPLLREFCLKSEL_IN,
input GTREFCLK0_IN,
input GTREFCLK1_IN,
output QPLLLOCK_OUT,
input QPLLLOCKDETCLK_IN,
output QPLLOUTCLK_OUT,
output QPLLOUTREFCLK_OUT,
output QPLLREFCLKLOST_OUT,
input QPLLRESET_IN );

//***************************** Parameter Declarations


localparam QPLL_FBDIV_TOP =  16;

localparam QPLL_FBDIV_IN  =  (QPLL_FBDIV_TOP == 16)  ? 10'b0000100000 :
  		(QPLL_FBDIV_TOP == 20)  ? 10'b0000110000 :
  		(QPLL_FBDIV_TOP == 32)  ? 10'b0001100000 :
  		(QPLL_FBDIV_TOP == 40)  ? 10'b0010000000 :
  		(QPLL_FBDIV_TOP == 64)  ? 10'b0011100000 :
  		(QPLL_FBDIV_TOP == 66)  ? 10'b0101000000 :
  		(QPLL_FBDIV_TOP == 80)  ? 10'b0100100000 :
  		(QPLL_FBDIV_TOP == 100) ? 10'b0101110000 : 10'b0000000000;

localparam QPLL_FBDIV_RATIO = (QPLL_FBDIV_TOP == 16) ? 1’b1 :
(QPLL_FBDIV_TOP == 20) ? 1’b1 :
(QPLL_FBDIV_TOP == 32) ? 1’b1 :
(QPLL_FBDIV_TOP == 40) ? 1’b1 :
(QPLL_FBDIV_TOP == 64) ? 1’b1 :
(QPLL_FBDIV_TOP == 66) ? 1’b0 :
(QPLL_FBDIV_TOP == 80) ? 1’b1 :
(QPLL_FBDIV_TOP == 100) ? 1’b1 : 1’b1;

// ground and vcc signals wire            tied_to_ground_i; wire    [63:0]  tied_to_ground_vec_i; wire            tied_to_vcc_i; wire

[63:0] tied_to_vcc_vec_i;

assign tied_to_ground_i             = 1'b0;
assign tied_to_ground_vec_i         = 64'h0000000000000000;
assign tied_to_vcc_i                = 1'b1;
assign tied_to_vcc_vec_i            = 64'hffffffffffffffff;

//_________________________________________________________________________
//_________________________________________________________________________
//_________________________GTXE2_COMMON____________________________________

GTXE2_COMMON #
(
        // Simulation attributes
        .SIM_RESET_SPEEDUP   (WRAPPER_SIM_GTRESET_SPEEDUP),
        .SIM_QPLLREFCLK_SEL  (SIM_QPLLREFCLK_SEL),
        .SIM_VERSION         ("4.0"),


       //----------------COMMON BLOCK Attributes---------------
        .BIAS_CFG                               (64'h0000040000001000),
        .COMMON_CFG                             (32'h00000000),
        .QPLL_CFG                               (27'h06801C1),
        .QPLL_CLKOUT_CFG                        (4'b0000),
        .QPLL_COARSE_FREQ_OVRD                  (6'b010000),
        .QPLL_COARSE_FREQ_OVRD_EN               (1'b0),
        .QPLL_CP                                (10'b0000011111),
        .QPLL_CP_MONITOR_EN                     (1'b0),
        .QPLL_DMONITOR_SEL                      (1'b0),
        .QPLL_FBDIV                             (QPLL_FBDIV_IN),
        .QPLL_FBDIV_MONITOR_EN                  (1'b0),
        .QPLL_FBDIV_RATIO                       (QPLL_FBDIV_RATIO),
        .QPLL_INIT_CFG                          (24'h000006),
        .QPLL_LOCK_CFG                          (16'h21E8),
        .QPLL_LPF                               (4'b1111),
        .QPLL_REFCLK_DIV                        (1)

)
gtxe2_common_i
(
    //----------- Common Block  - Dynamic Reconfiguration Port (DRP) -----------
    .DRPADDR                        (tied_to_ground_vec_i[7:0]),
    .DRPCLK                         (tied_to_ground_i),
    .DRPDI                          (tied_to_ground_vec_i[15:0]),
    .DRPDO                          (),
    .DRPEN                          (tied_to_ground_i),
    .DRPRDY                         (),
    .DRPWE                          (tied_to_ground_i),
    //-------------------- Common Block  - Ref Clock Ports ---------------------
    .GTGREFCLK                      (tied_to_ground_i),
    .GTNORTHREFCLK0                 (tied_to_ground_i),
    .GTNORTHREFCLK1                 (tied_to_ground_i),
    .GTREFCLK0                      (GTREFCLK0_IN),
    .GTREFCLK1                      (GTREFCLK1_IN),
    .GTSOUTHREFCLK0                 (tied_to_ground_i),
    .GTSOUTHREFCLK1                 (tied_to_ground_i),
    //----------------------- Common Block -  QPLL Ports -----------------------
    .QPLLDMONITOR                   (),
    //--------------------- Common Block - Clocking Ports ----------------------
    .QPLLOUTCLK                     (QPLLOUTCLK_OUT),
    .QPLLOUTREFCLK                  (QPLLOUTREFCLK_OUT),
    .REFCLKOUTMONITOR               (),
    //----------------------- Common Block - QPLL Ports ------------------------
    .QPLLFBCLKLOST                  (),
    .QPLLLOCK                       (QPLLLOCK_OUT),
    .QPLLLOCKDETCLK                 (QPLLLOCKDETCLK_IN),
    .QPLLLOCKEN                     (tied_to_vcc_i),
    .QPLLOUTRESET                   (tied_to_ground_i),
    .QPLLPD                         (tied_to_vcc_i),
    .QPLLREFCLKLOST                 (QPLLREFCLKLOST_OUT),
    .QPLLREFCLKSEL                  (QPLLREFCLKSEL_IN),
    .QPLLRESET                      (QPLLRESET_IN),
    .QPLLRSVD1                      (16'b0000000000000000),
    .QPLLRSVD2                      (5'b11111),
    //------------------------------- QPLL Ports -------------------------------
    .BGBYPASSB                      (tied_to_vcc_i),
    .BGMONITORENB                   (tied_to_vcc_i),
    .BGPDB                          (tied_to_vcc_i),
    .BGRCALOVRD                     (5'b11111),
    .PMARSVD                        (8'b00000000),
    .RCALENB                        (tied_to_vcc_i)

); endmodule

但很明显我们这里能知道是时钟布线冲突,这里先看看两个GTX的管脚约束情况,如下图所示:
在这里插入图片描述

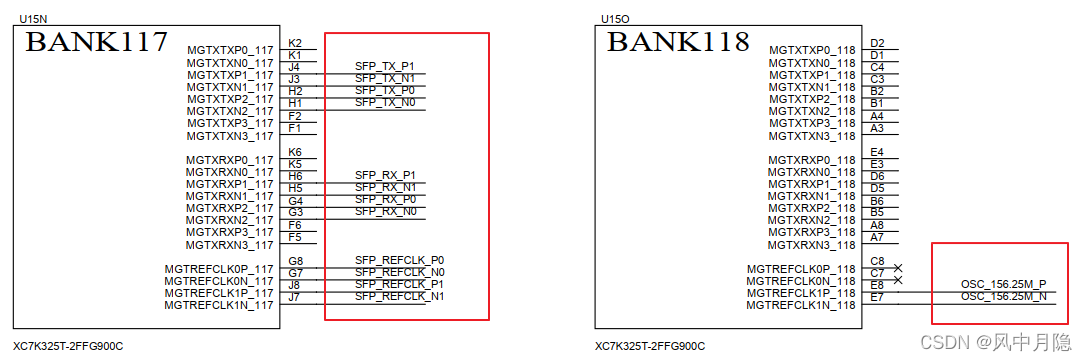

即数据线在相同的bank,时钟在不同的bank。这个是根据硬件原理图来的,如下所示:

在这里插入图片描述

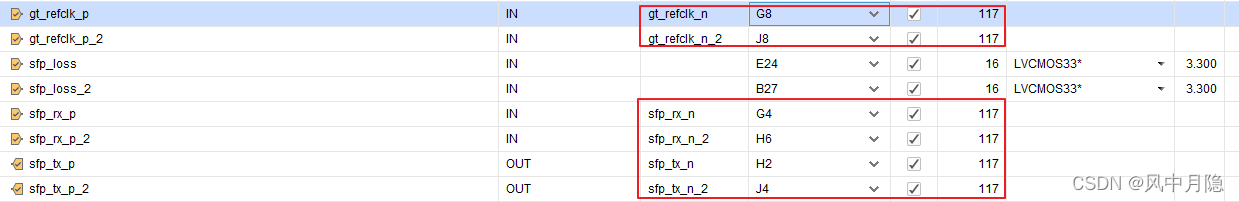

再根据原理图看,时钟我可以调整到一个bank上即117上,进行调整后如下所示,问题依然存在,并没有解决。

在这里插入图片描述

那么是否是说同一个工程中不能使用两个GTX呢?我翻看ug482_7Series_GTP_Transceivers手册后发现并不是,比如手册上是可以使用多个IP的,如下所示:

在这里插入图片描述

但是需要这个GTP分布在不同的Quad。而本设计硬件上是将两个SFP设置在了同一个Quad上,因此报了错误。

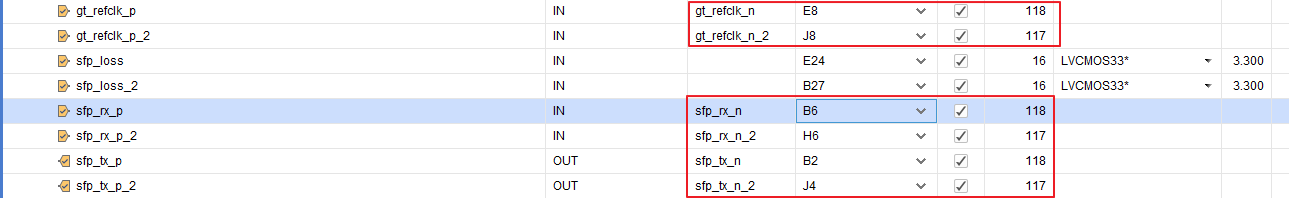

为了验证这个思路是否正常,我将一组GTP的信号管脚移植到BANK118如下所示,经过编译发现错误消失了,即证明若需要两个GTP时需要它们在两个BANK上。

在这里插入图片描述
