项目地址：loopeer/shadow

简介：Android custom shadow view, can replace your CardView

更多：作者   提 Bug

标签：



This library draw android view shadow by ShadowLayer. You may don't like the CardView's black shadow which we can't change it's color. Same to CardView wrap content and set shadow radius. You can change shadow color, foreground color and corner radius everywhere. Because the shadow is draw in the view. So you must add space to draw the shadow. The ShadowView add one param shadowMargin which must be set before you add shadow radius to the view.

Caveat: Margin In UI~ = layout_margin + shadow_margin(Add by ShadowView)

Download Sample

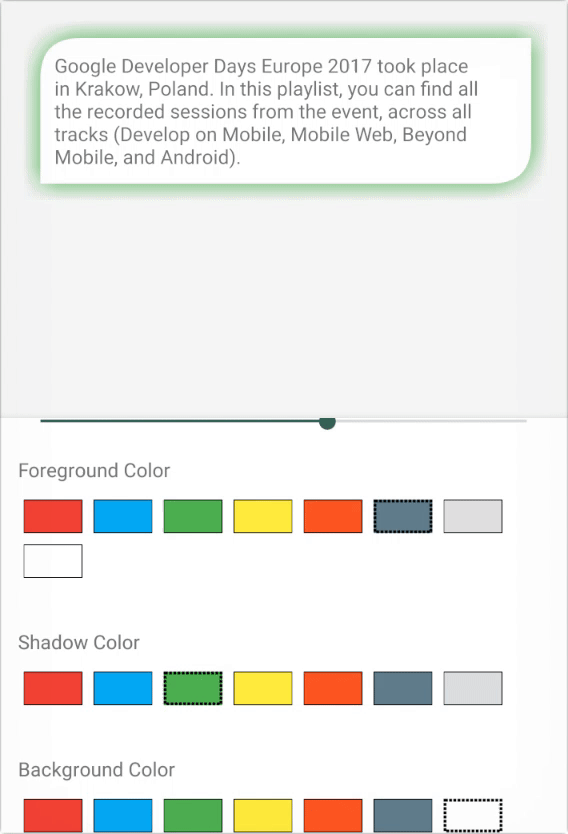

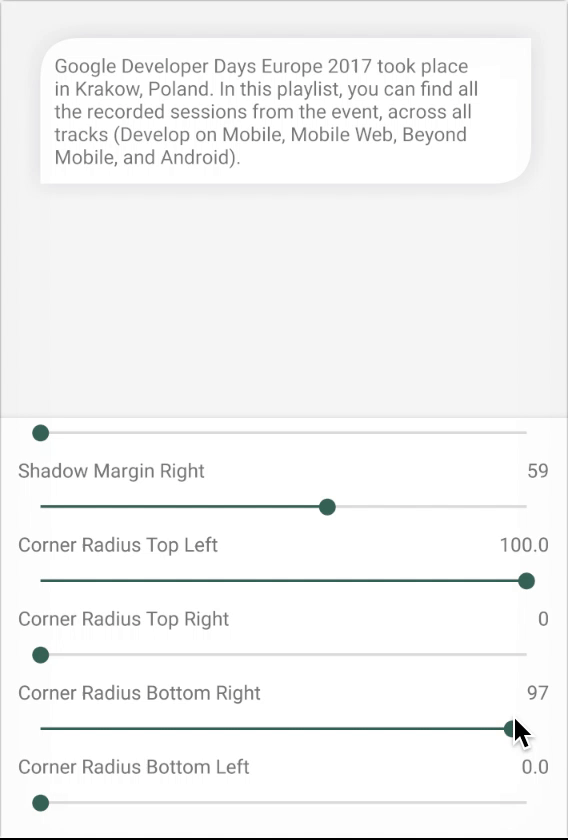

Screenshot

H	H	H
Change Radius	Change foreground	Change Corners
Change shadow color	Change shadow margin	Demo

Installation

dependencies {
    compile 'com.loopeer.lib:shadow:0.0.4-beta3'
}

Usages

<com.loopeer.shadow.ShadowView
    android:id="@+id/shadow_view"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:layout_margin="12dp"
    android:elevation="10dp"
    android:foreground="?attr/selectableItemBackground"
    android:onClick="onShadowClickTest"
    android:padding="10dp"
    app:cornerRadius="4dp"
    app:shadowMargin="20dp"
    app:shadowRadius="14dp">

    <TextView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="Google Developer Days Europe 2017 took place in Krakow, Poland. In this playlist, you can find all the recorded sessions from the event, across all tracks (Develop on Mobile, Mobile Web, Beyond Mobile, and Android)."/>
</com.loopeer.shadow.ShadowView>

Attribute

android:foreground
shadowMargin
shadowMarginTop
shadowMarginLeft
shadowMarginRight
shadowMarginBottom
cornerRadius
cornerRadiusTL
cornerRadiusTR
cornerRadiusBL
cornerRadiusBR
foregroundColor
shadowColor
shadowDx
shadowDy
shadowRadius
backgroundColor
